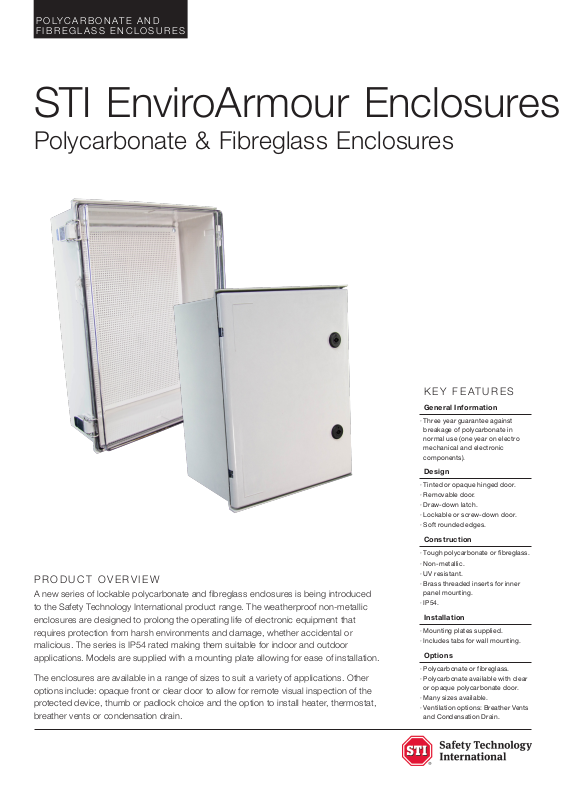

Safety Technology International EnviroArmour Enclosures Data Sheet

POLYCARBONATE AND
FIBREGLASS ENCLOSURES

STI EnviroArmour Enclosures

Polycarbonate & Fibreglass Enclosures

PRODUCT OVERVIEW

A new series of lockable polycarbonate and fibreglass enclosures is being introduced
to the Safety Technology International product range. The weatherproof non-metallic
enclosures are designed to prolong the operating life of electronic equipment that
requires protection from harsh environments and damage, whether accidental or
malicious. The series is IP54 rated making them suitable for indoor and outdoor
applications. Models are supplied with a mounting plate allowing for ease of installation.

The enclosures are available in a range of sizes to suit a variety of applications. Other
options include: opaque front or clear door to allow for remote visual inspection of the
protected device, thumb or padlock choice and the option to install heater, thermostat,
breather vents or condensation drain.

KEY FEATURES

General Information

· Three year guarantee against
breakage of polycarbonate in
normal use (one year on electro
mechanical and electronic
components).

Design

· Tinted or opaque hinged door.

· Removable door.

· Draw-down latch.

· Lockable or screw-down door.

· Soft rounded edges.

Construction

· Tough polycarbonate or fibreglass.

· Non-metallic.

· UV resistant.

· Brass threaded inser ts for inner
panel mounting.

· IP54.

Installation

· Mounting plates supplied.

· Includes tabs for wall mounting.

Options

· Polycarbonate or fibreglass.

· Polycarbonate available with clear
or opaque polycarbonate door.

· Many sizes available.

· Ventilation options: Breather Vents
and Condensation Drain.

EnviroArmour Enclosures - Polycarbonate & Fibreglass Enclosures

Dimensions and Technical Information

MODELS AVAILABLE

Fibreglass Models

ES-121005-O - Opaque door
ES-161608-O - Opaque door
ES-231609-O - Opaque door
ES-312312-O - Opaque door

Polycarbonate Models

ET-121006-O - Opaque door
ET-121006-C - Clear door
ET-141007-O - Opaque door
ET-141007-C - Clear door
ET-181408-O - Opaque door
ET-181408-C - Clear door

WARRANTY

Three year guarantee against breakage of polycarbonate or
fibreglass in normal use (one year on electro mechanical and
electronic components).
TESTING

· IP54

· IK09 (ET models only)

A

ACCESSORIES

STI-HTR020T Mini Radiant Heater 20W with Thermostat
STI-HTR030T Mini Radiant Heater 30W with Thermostat
STI-HTR045T Radiant Heater 45W with Thermostat
STI-HTR060T Radiant Heater 60W with Thermostat
STI-HTR075T Radiant Heater 75W with Thermostat
STI-HTR100T Radiant Heater 100W with Thermostat
STI-HTR150T Radiant Heater 150W with Thermostat
STI-HTR200T Fan Heater
KIT-BV4X NEMA 4X Breather Vent
KIT-DV4X NEMA 4X Drain Vent
KIT-REV60 Small Vent
KIT-REV80 Large Vent
KIT-BV20 Nylon Breather Vent 20mm, IP66 Rating
KIT-BV40 Nylon Breather Vent 40mm, IP66 Rating
KIT-DV16 Nylon Condensation Drain Vent 16mm, IP55 Rating
KIT-LPK3 Louver Plate Vent
KIT-CG205 20mm (pg 13.5) IP68 Nylon Cable Glands, Pack of 5
KIT-CG255 25mm IP68 Nylon Cable Glands, Pack of 5
KIT-HPSERIES2 1/2” and 3/4” Conduit Hole Plug, Type 4X and 6P Rated (22mm-30mm PB)
KIT-PRTPKT Plastic Print Packet 9.3”x10.4”x1.2”

ET Polycarbonate ModelsES Fibreglass Models

A

B

Dimensions

ES-121005
ES-161608
ES-231609
ES-312312
ET-121006
ET-141007
ET-181408

B

B

A

A

E

B

SECTION B-B

D

C

F

SECTION A-A

B

A

E

B

B

A

D

C

F

INTERNAL EXTERNAL

A B C D E F

274mm (10.8 in.) 240mm (9.4 in.) 124mm (4.9 in.) 355mm (14.0 in.) 250mm (9.9 in.) 163mm (6.4 in.)

366mm (14.3 in.) 388mm (15.2 in.) 181mm (7.1 in.) 442mm (17.4 in.) 400mm (15.8 in.) 220mm (8.7 in.)

565mm (22.2 in.) 387mm (15.2 in.) 211mm (8.3 in.) 645mm (25.4 in.) 401mm (15.8 in.) 250mm (9.8 in.)

762mm (30.0 in) 582mm (22.9 in.) 276mm (10.8 in.) 843mm (33.2 in.) 600mm (23.6 in.) 320mm (12.6 in.)

291mm (11.5 in.) 241mm (9.5 in.) 129mm (5.0 in.) 357mm (14.0 in.) 290mm (11.4 in.) 157mm (6.1 in.)

331mm (13.0 in.) 231mm (9.0 in.) 159mm (6.2 in.) 397mm (15.6 in.) 280mm (11.0 in.) 187mm (7.3 in.)

462mm (18.1 in.) 347mm (13.6 in.) 179mm (7.0 in.) 517mm (20.3 in.) 397mm (15.6 in.) 208mm (8.2 in.)
