Components List

A. Folding Lock B. Handle C. Tether Strap D. Storage Latch E. Rear Brake F. Rear Wheels (x2)

G. Shopping Basket H. Canopy Window I. Canopy J. Seat Back K. Harness Straps L. Bumper Bar

M. Safety Buckle N. Anti-Bacterial Seat Pad

(Double-Sided) O. Adjustable Footrest P. Front Swivel Locks (x2) Q. Front Swivel Wheels (x2)

Page 5

017327 - Willow 4 Wheel Stroller - 11A/16

Assembling Stroller

STEP 1: OPENING STROLLER

• If the stroller has a security tie, please remove it.

• Release the storage latch (Figure 1a).

• Simultaneously lift handle while pulling on the frame until the locking mechanism engages (Figure 1b).

• Push down on the handle to check that locks have fully engaged.

Page 6

017327 - Willow 4 Wheel Stroller - 11A/16

Assembling Stroller

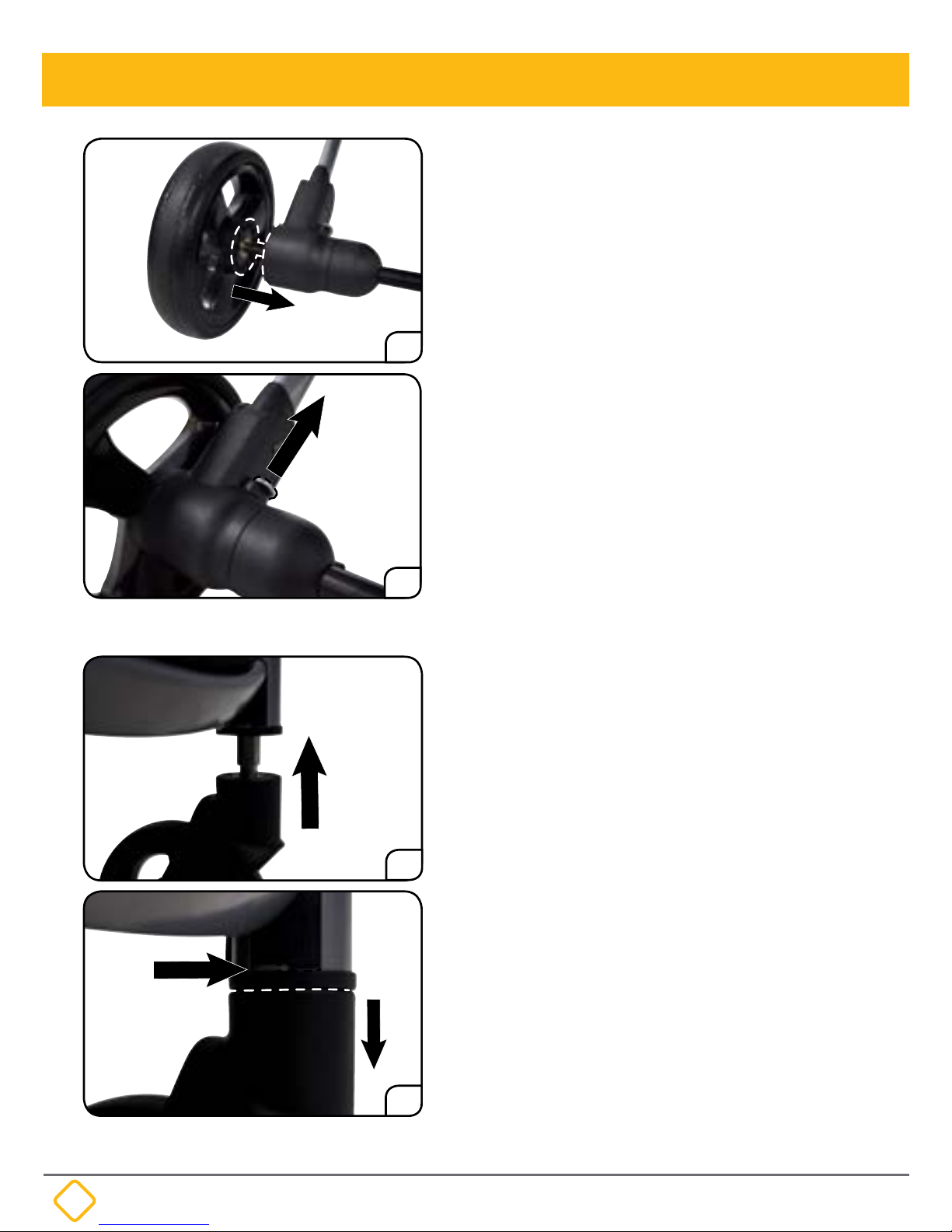

STEP 2: REAR WHEEL ASSEMBLY

• Slide rear wheels onto the frame of the stroller (Figure 2a).

• Push the wheels in until you hear them lock into place.

• Listen for ‘click’.

• To remove the rear wheel assembly, pull and hold the metal tab while removing rear wheel from the axle (Figure 2b). Repeat on the other side.

STEP 3: FRONT WHEEL ASSEMBLY

• Align the shaft on the wheel with the hole in the front leg and push in (Figure 3a). Listen for a ‘click’.

• Repeat on the other side.

• To remove the front wheel assembly, press the metal tab inwards while pulling the wheel off (Figure 3b).

Page 7

017327 - Willow 4 Wheel Stroller - 11A/16

Assembling Stroller

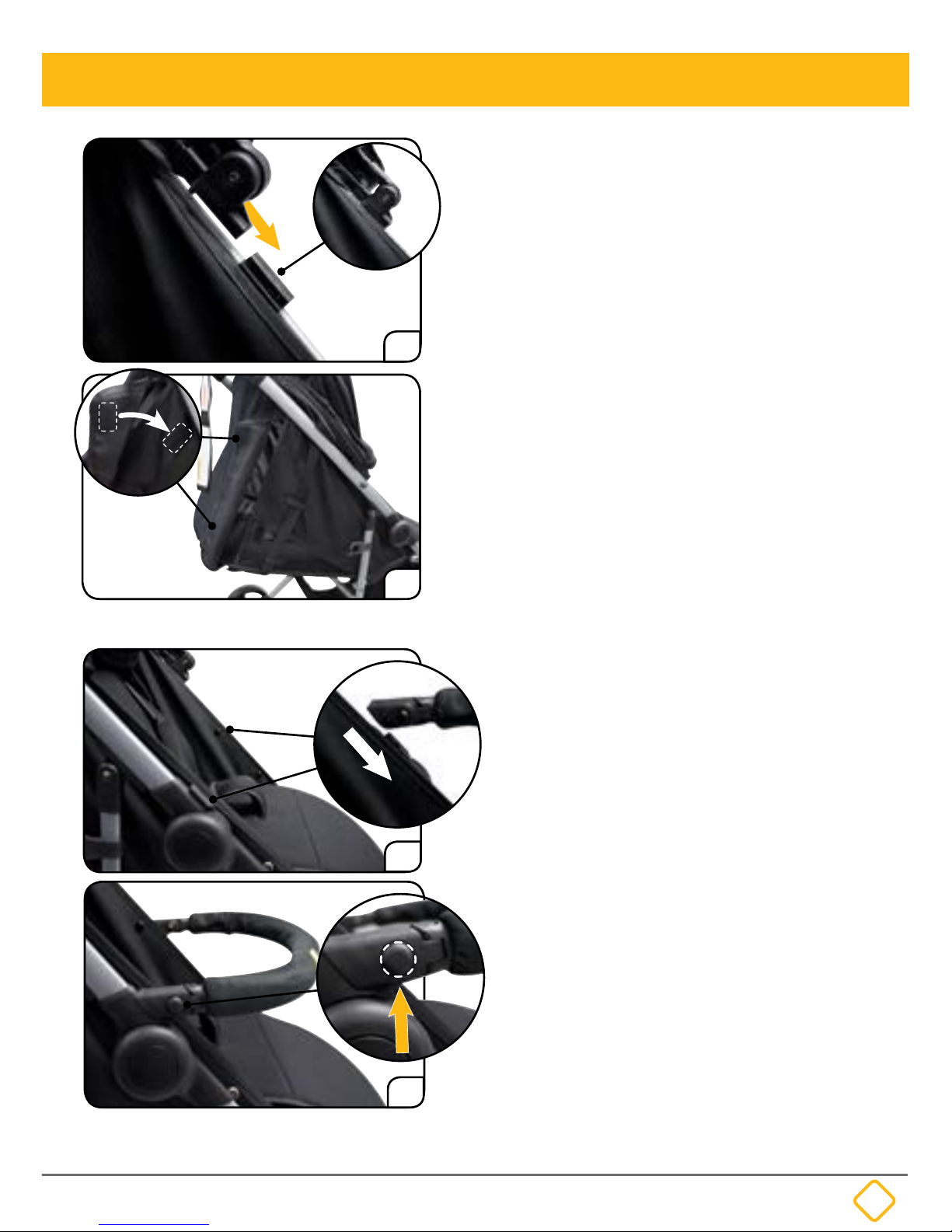

STEP 6: ATTACHING CANOPY

• Align both canopy ends with the plastic sliders on the frame then slide the ends of the canopy down until they are fully engaged (Figure 4a).

• Attach the velcro tabs to secure canopy to stroller back (Figure 4b).

STEP 5: ATTACH BUMPER BAR

• Align bumper bar with the plastic sliders on the frame then slide the ends of the bumper bar down until it is secure in place (Figure 5a).

• Listen for the ‘click’, then repeat on the other side.

• To remove bumper bar, press the grey buttons on each side of the bumper bar (Figure 5b), and remove.

Page 8

017327 - Willow 4 Wheel Stroller - 11A/16

Using Stroller

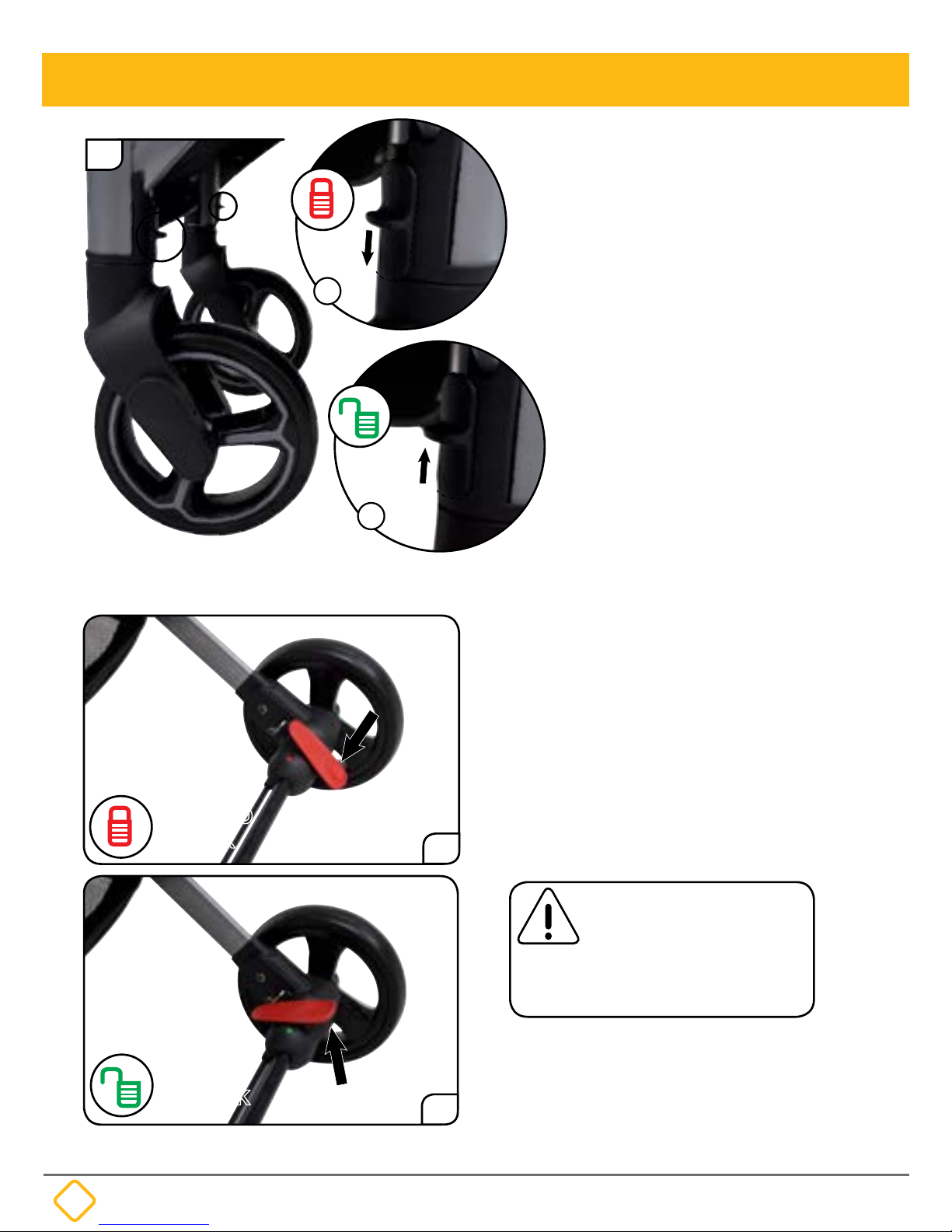

OPERATING FRONT SWIVEL WHEELS

• Position the front wheel as per Figure 6a.

• To lock, align the swivel lock button with the frame and push downwards (Figure 6b).

• To unlock, push the swivel lock button upwards (Figure 6c).

LIFT TO

UNLOCK

PUSH TO

LOCK

OPERATING BRAKES

• To apply the brake, press down firmly on the brake pedal using the ball of your foot (Figure 7a).

• To release the brake, lift the brake pedal until the brakes have fully disengaged (Figure 7b).

Apply all brakes whenever

you park the stroller.

WARNING

Page 9

017327 - Willow 4 Wheel Stroller - 11A/16

Using Stroller

USING CANOPY

• To use the canopy, pull the front edge forward to open (Figure 9a, 9b).

• To extend canopy, flip the visor outwards into position (Figure 9c).

• To further extend canopy, unzip and pull the front edge forward to reveal the breathable mesh extension (Figure 9c).

• When not using, ensure the extension is zipped, and then simply push the canopy back until it is fully collapsed.

9a 9b 9c

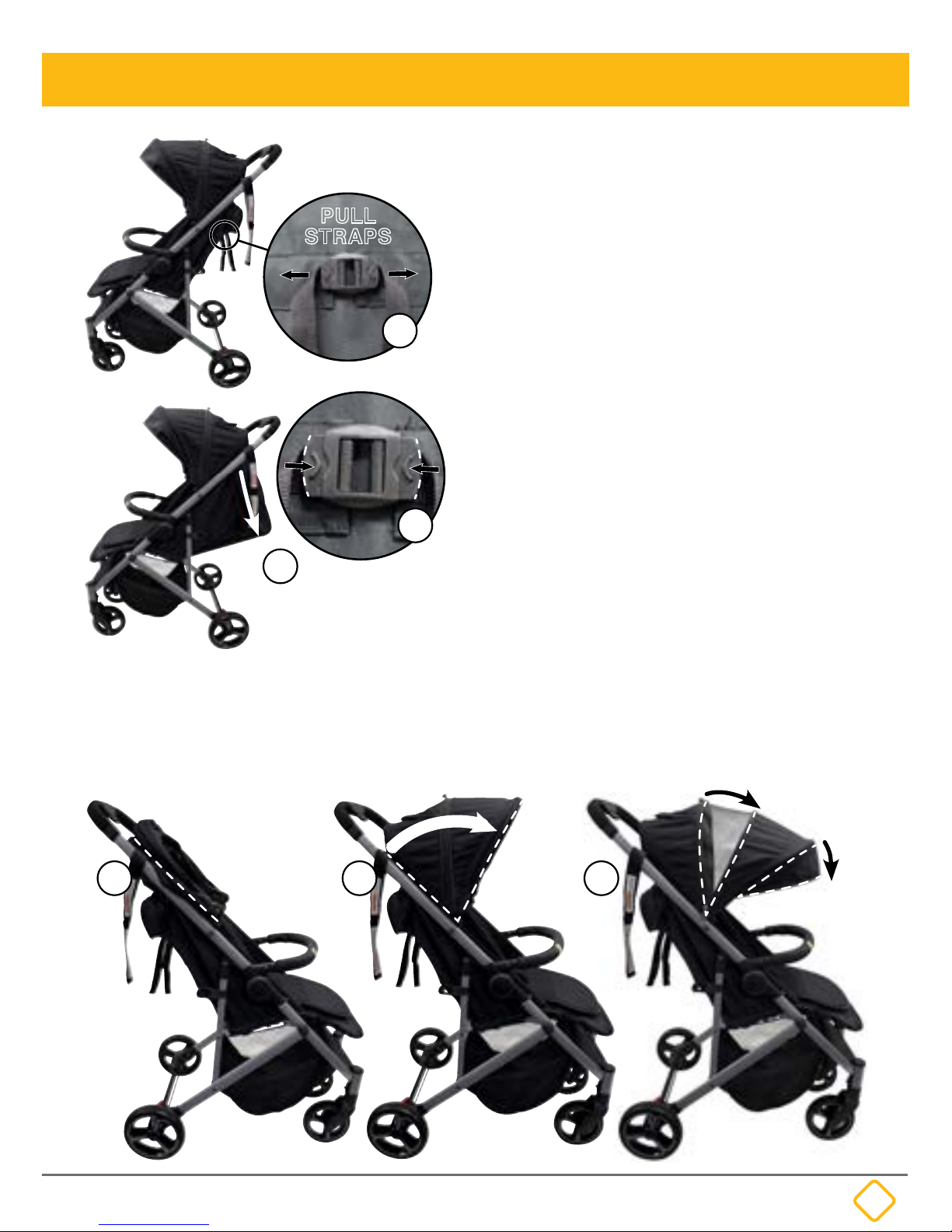

ADJUSTING THE BACKREST

• To set backrest upright, pull both straps outwards until tight (Figure 8a).

• To lower backrest, squeeze clip on both sides to loosen straps (Figure 8b) and pull seat downwards (Figure 8c).

PULL

STRAPS

Page 10

017327 - Willow 4 Wheel Stroller - 11A/16

Using Stroller

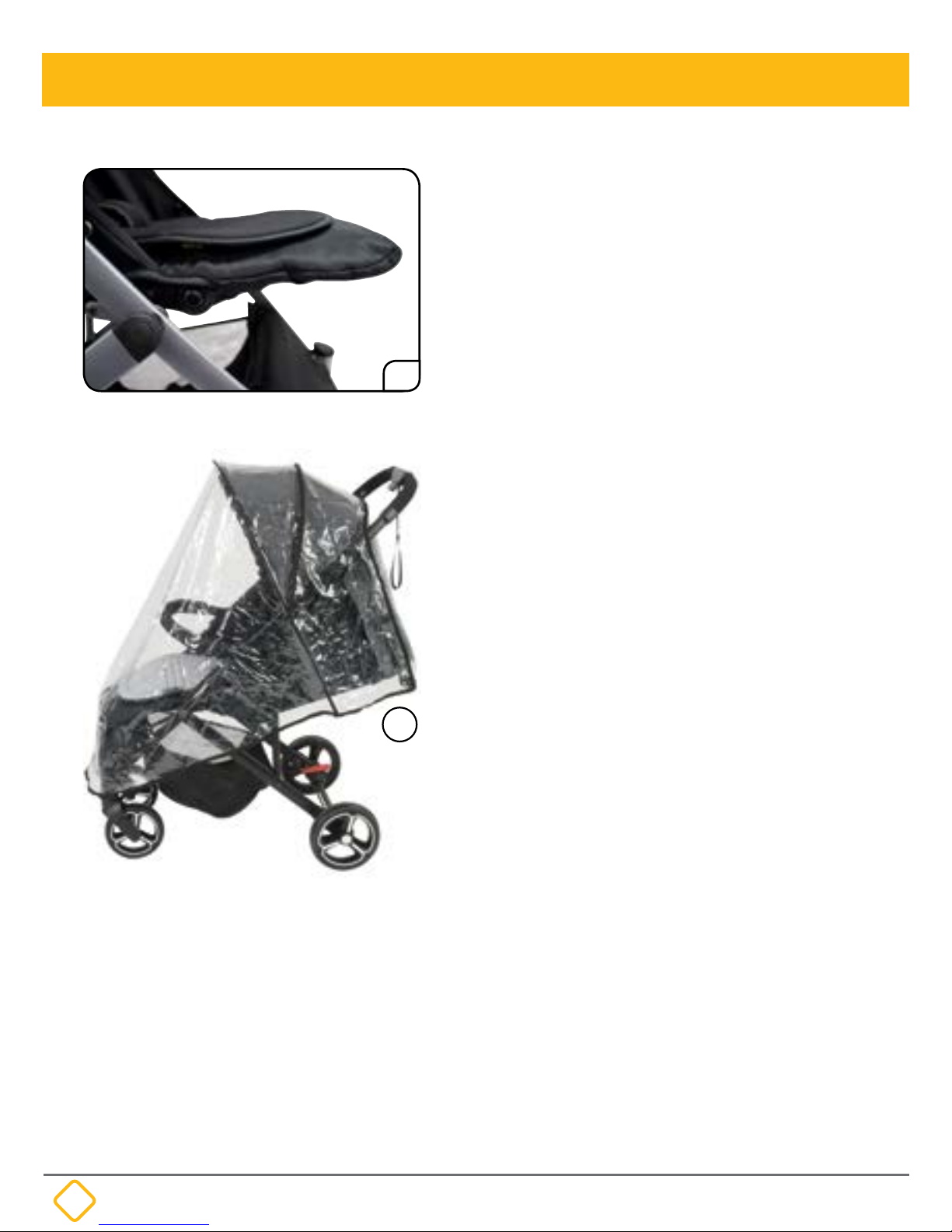

TO FIT THE RAINCOVER

• Spread the raincover over the

stroller and pull over the seat (Figure 11).

• Use elastic straps to secure to

stroller.

ADJUSTING FOOTREST

• Press both adjustment buttons simultaneously and adjust to the desired position (Figure 11). Listen for ‘click’ to lock in place.

Page 11

017327 - Willow 4 Wheel Stroller - 11A/16

Using Stroller

A A

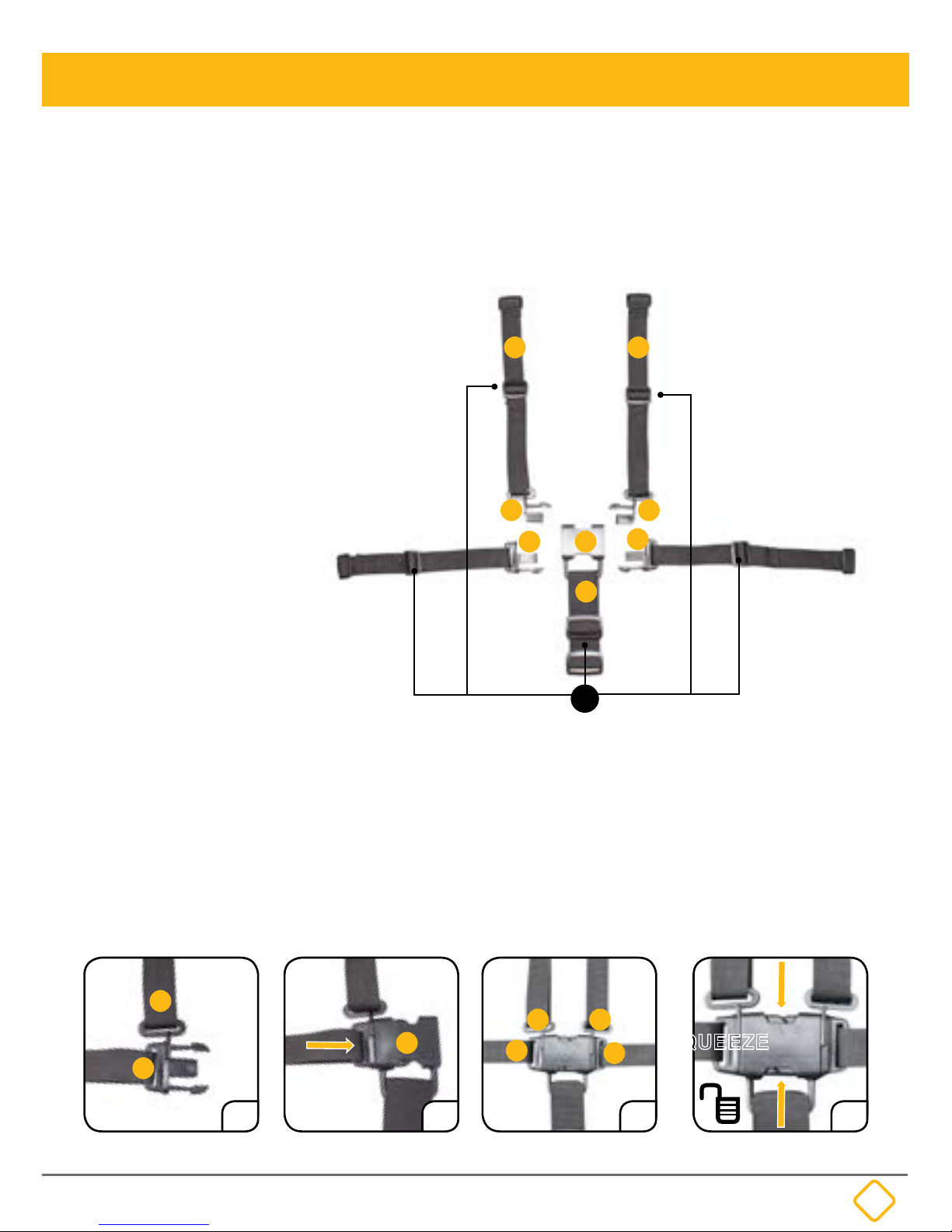

SECURING YOUR CHILD

5 points of the harness can be adjusted by moving each straps’ slider (gure A1).

To tighten or loosen the waist and/or shoulder straps, hold and lift the plastic adjuster. Adjust straps to desired position. The waist strap needs to fit firmly around the child.

1. Slip one shoulder strap (A) over each shoulder and position crotch strap between legs (B)

2. Place buckle prong (D) on top of buckle prong (C)

3. Insert the prongs into the buckle housing (E) until it clicks into position. Repeat the above steps for the opposite side (F and G). Pull straps to ensure they are locked into the buckle assembly.

4. The harness should resemble this image.

5. The buckle is released by squeezing the top and bottom prongs together until

harness disengages. (Figure 5).

SQUEEZE

Page 12

017327 - Willow 4 Wheel Stroller - 11A/16

• Use this harness at all times.

• A five-point harness is provided to secure your child.

• When not in use disconnect shoulder straps from the waist strap and

buckle.

• The adjusted harness should closely fit the child.

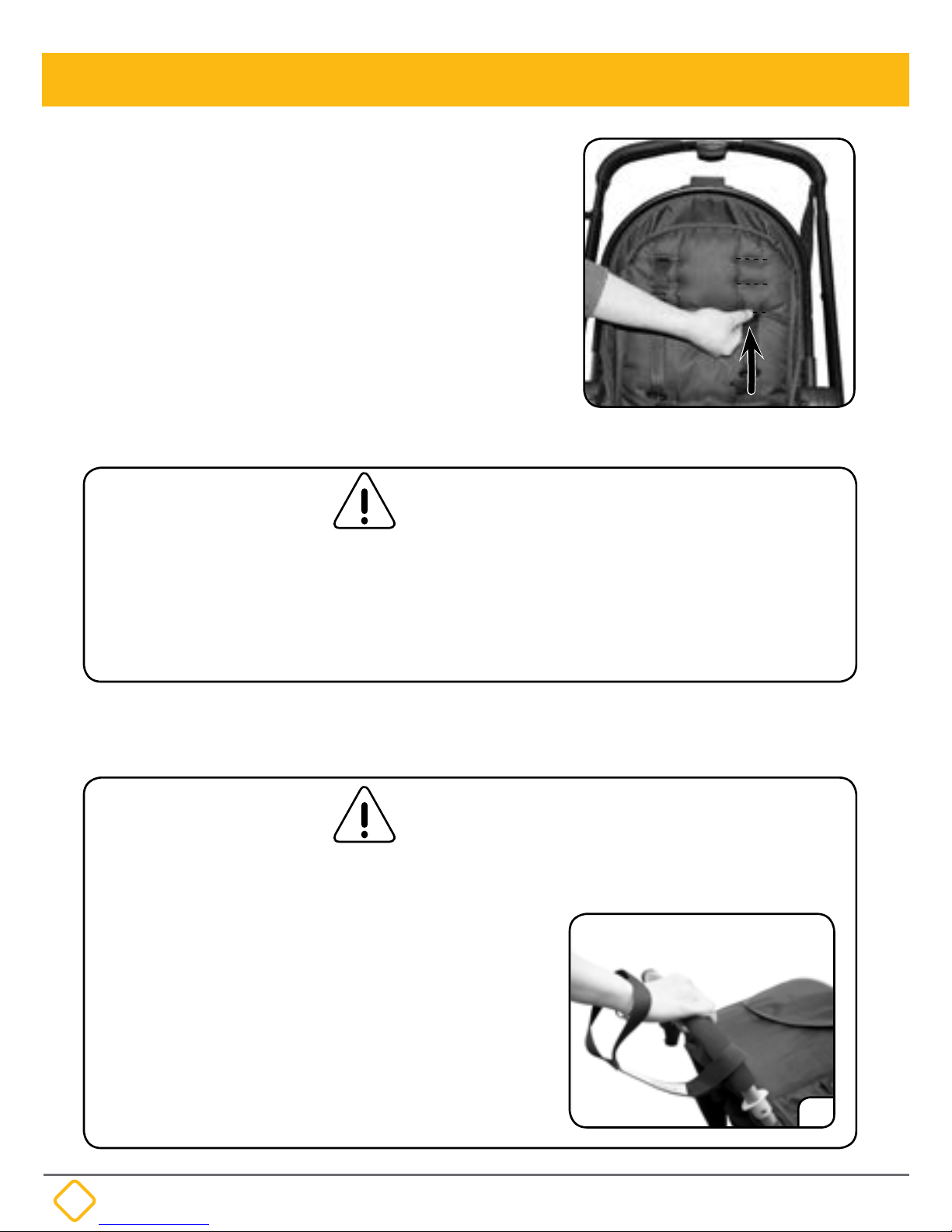

WARNING:

TETHER STRAP

• Correct use of the tether strap will

prevent stroller runaway and possible injury to the stroller occupant.

• Whenever a child is in the stroller and

brakes are not engaged, the large loop should be around your wrist, as per Figure 14.

WARNING:

USE THIS STRAP TO STOP THE STROLLER ROLLING AWAY.

ADJUSTING HARNESS HEIGHT

• The harness can be set at varying heights to accommodate the child, depending on the model.

• To change the shoulder harness height, position the shoulder straps near the child’s shoulders and push the shoulder harness tongue out of the current harness slot and through the back of the seat. Pull the shoulder harness tongue through the desired slot.

Page 13

017327 - Willow 4 Wheel Stroller - 11A/16

15c

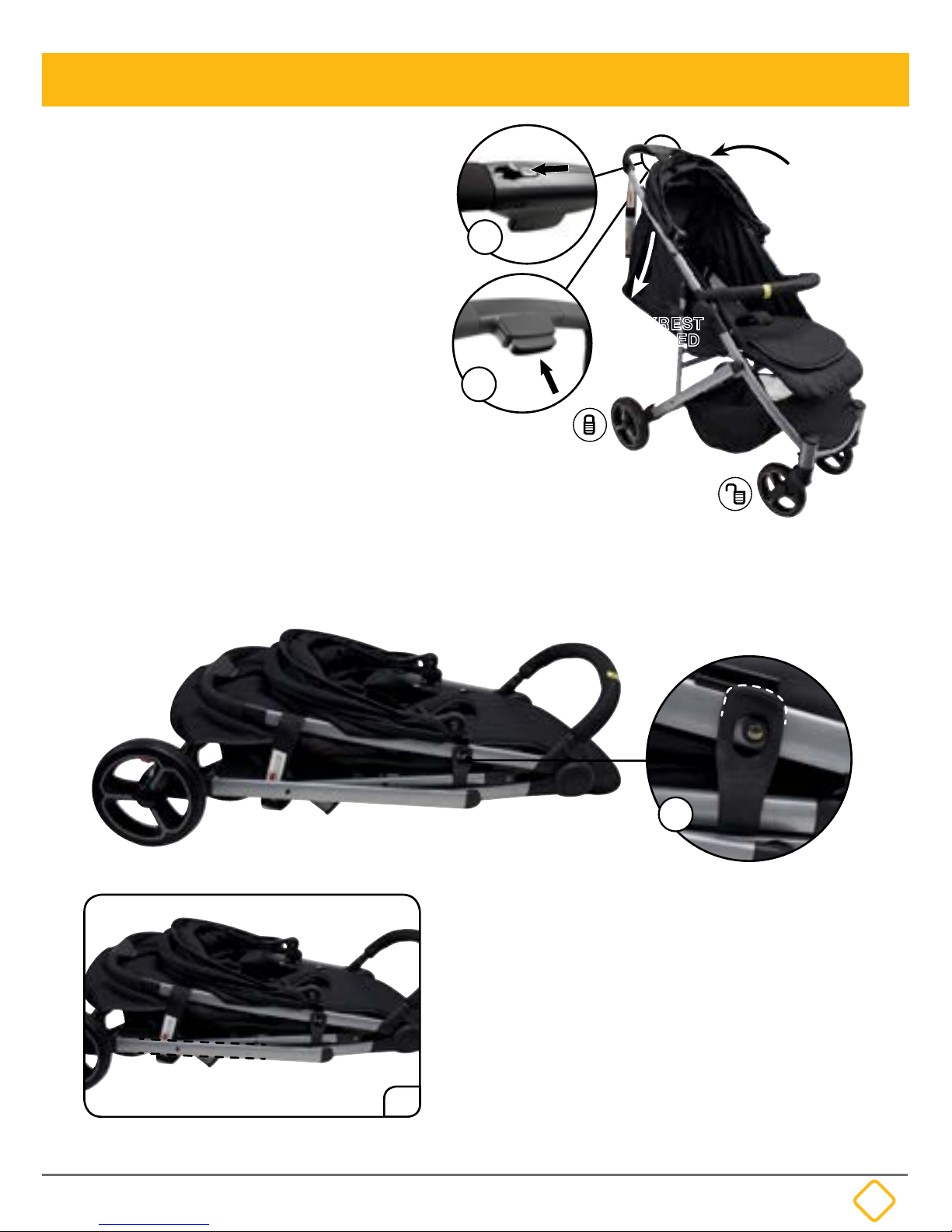

FOLDING STROLLER

• Before beginning: fold the canopy back, unlock the swivel wheels, apply all brakes, and adjust the seat backrest to full layback position.

• Press and pull folding lock on the handle (Figure 15a) while firmly holding in the secondary lock on the handle underside (Figure 15b).

• Press down on the handle to fold the stroller while keeping the folding locks engaged.

• The storage latch will automatically engage when fully folded (Figure 15c).

CARRYING STROLLER

• Fold the stroller, and ensure that storage latch is applied before continuing.

• Carry stroller by holding frame between the seat mount bracket and the storage latch (Figure 16).

Using Stroller

CANOPY

FOLDED

BRAKES APPLIED

SWIVELS

UNLOCKED

BACKREST

LOWERED

15b

15a

Page 14

017327 - Willow 4 Wheel Stroller - 11A/16

17b

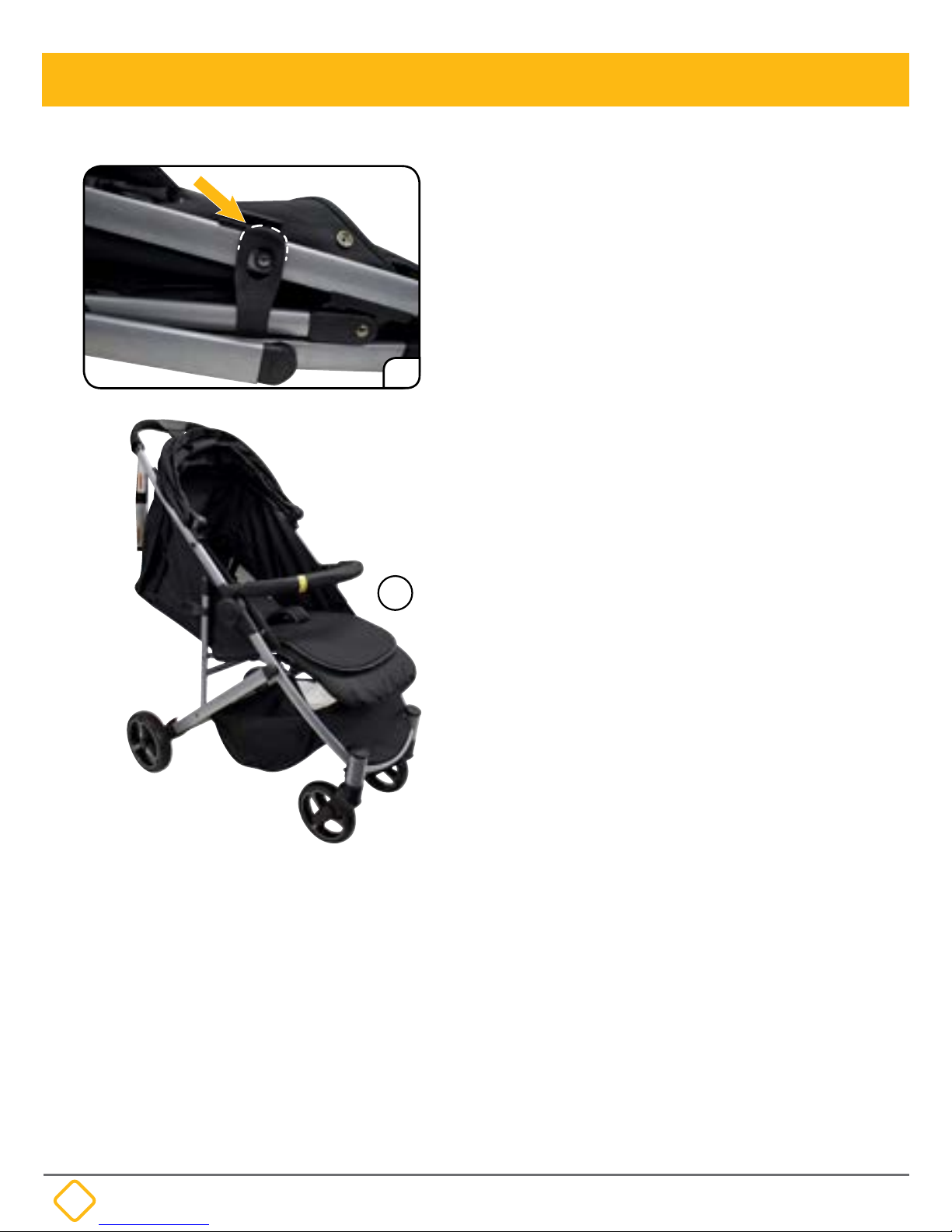

UNFOLDING STROLLER

• Release the storage latch (Figure 17a).

• Lift handle until stroller is fully open and locking mechanism engages (Figure 17b).

• Push down on the handle to check that the locks have been fully engaged.

17a

Using Stroller

Page 15

017327 - Willow 4 Wheel Stroller - 11A/16

• Always store in a clean and dry place.

• Clean the frame by wiping with a damp cloth.

• Do not use abrasives, bleach or strong detergents.

• Spot clean fabrics with warm water and mild soap.

• Ensure fabric is dry before storing.

• Occasionally clean and lubricate wheels with a light lubricating oil.

• Regularly check for loose parts and tighten when required.

• Damaged or broken parts should be immediately replaced.

Care and Maintenance
