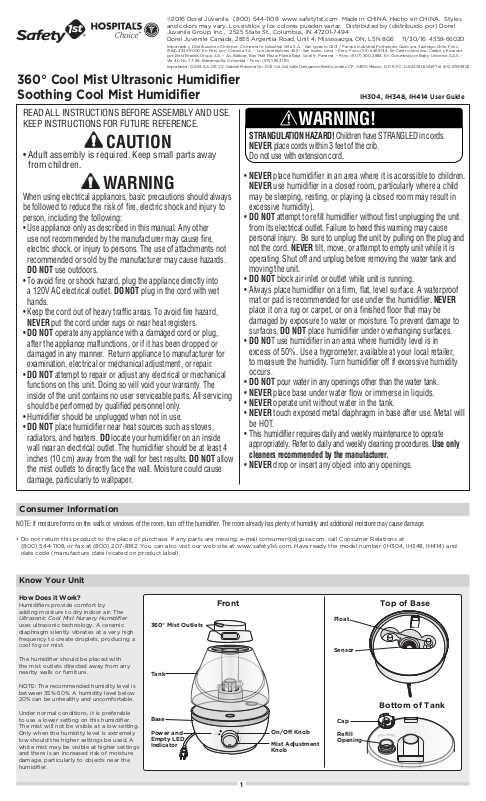

360° Cool Mist Ultrasonic Humidifier

4358-6602D

Soothing Cool Mist Humidifier

READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE.
KEEP INSTRUCTIONS FOR FUTURE REFERENCE.

CAUTION

• Adult assembly is required. Keep small parts away
from children.

WARNING

When using electrical appliances, basic precautions should always
be followed to reduce the risk of re, electric shock and injury to
person, including the following:

• Use appliance only as described in this manual. Any other

use not recommended by the manufacturer may cause re,
electric shock, or injury to persons. The use of attachments not
recommended or sold by the manufacturer may cause hazards.
DO NOT use outdoors.

• To avoid re or shock hazard, plug the appliance directly into

a 120V AC electrical outlet. DO NOT plug in the cord with wet
hands.

• Keep the cord out of heavy trafc areas. To avoid re hazard,

NEVER put the cord under rugs or near heat registers.

• DO NOT operate any appliance with a damaged cord or plug,

after the appliance malfunctions, or if it has been dropped or
damaged in any manner. Return appliance to manufacturer for
examination, electrical or mechanical adjustment, or repair.

• DO NOT attempt to repair or adjust any electrical or mechanical

functions on this unit. Doing so will void your warranty. The
inside of the unit contains no user serviceable parts. All servicing
should be performed by qualied personnel only.

• Humidier should be unplugged when not in use.

• DO NOT place humidier near heat sources such as stoves,

radiators, and heaters. DO locate your humidier on an inside
wall near an electrical outlet. The humidier should be at least 4
inches (10 cm) away from the wall for best results. DO NOT allow
the mist outlets to directly face the wall. Moisture could cause
damage, particularly to wallpaper.

STRANGULATION HAZARD! Children have STRANGLED in cords.
NEVER place cords within 3 feet of the crib.

Do not use with extension cord.

• NEVER place humidier in an area where it is accessible to children.
NEVER use humidier in a closed room, particularly where a child
may be sleeping, resting, or playing (a closed room may result in
excessive humidity).

• DO NOT attempt to rell humidier without rst unplugging the unit
from its electrical outlet. Failure to heed this warning may cause
personal injury. Be sure to unplug the unit by pulling on the plug and
not the cord. NEVER tilt, move, or attempt to empty unit while it is
operating. Shut off and unplug before removing the water tank and
moving the unit.

• DO NOT block air inlet or outlet while unit is running.

• Always place humidier on a rm, at, level surface. A waterproof
mat or pad is recommended for use under the humidier. NEVER
place it on a rug or carpet, or on a nished oor that may be
damaged by exposure to water or moisture. To prevent damage to
surfaces, DO NOT place humidier under overhanging surfaces.

• DO NOT use humidier in an area where humidity level is in
excess of 50%. Use a hygrometer, available at your local retailer,
to measure the humidity. Turn humidier off if excessive humidity
occurs.

• DO NOT pour water in any openings other than the water tank.

• NEVER place base under water ow or immerse in liquids.

• NEVER operate unit without water in the tank.

• NEVER touch exposed metal diaphragm in base after use. Metal will
be HOT.

• This humidier requires daily and weekly maintenance to operate
appropriately. Refer to daily and weekly cleaning procedures. Use only

cleaners recommended by the manufacturer.

• NEVER drop or insert any object into any openings.

WARNING!

IH304, IH348, IH414

User Guide

Consumer Information

NOTE: If moisture forms on the walls or windows of the room, turn off the humidier. The room already has plenty of humidity and additional moisture may cause damage.

• Do not return this product to the place of purchase. If any parts are missing, e-mail [e-mail], call Consumer Relations at
[phone], or fax at [phone]. You can also visit our web site at www.safety1st.com. Have ready the model number (IH304, IH348, IH414) and
date code (manufacture date located on product label).

Know Your Unit

How Does it Work?

Humidifiers provide comfort by
adding moisture to dry indoor air. The
Ultrasonic Cool Mist Nursery Humidifier
uses ultrasonic technology. A ceramic
diaphragm silently vibrates at a very high
frequency to create droplets, producing a
cool fog or mist.

The humidifier should be placed with
the mist outlets directed away from any
nearby walls or furniture.

NOTE: The recommended humidity level is
between 35%-50%. A humidity level below
20% can be unhealthy and uncomfortable.

Under normal conditions, it is preferable
to use a lower setting on this humidifier.
The mist will not be visible at a low setting.
Only when the humidity level is extremely
low should the higher settings be used. A
white mist may be visible at higher settings
and there is an increased risk of moisture
damage, particularly to objects near the
humidifier.

360° Mist Outlets

Tank

Base

Power and
Empty LED
Indicator

Front Top of Base

Float

Sensor

Bottom of Tank

Cap

On/Off Knob

1

Mist Adjustment
Knob

Refill
Opening

To Use

1 Ensure the humidifier is switched OFF.
2 Select a location: Choose a flat and level surface 4 inches away from the wall. DO NOT place on a finished

floor or near furniture which can be damaged by too much moisture or water. Place on a moisture-resistant
surface.

3 Remove and fill tank: Lift tank off base and bring tank to the sink. Remove cap on the bottom of tank and fill

with clean, cool water, ideally distilled (Figure 1). Additives are NOT recommended. Replace cap, turn tank so

that cap faces down, and replace tank on the base. The tank will immediately begin to empty into the base.
NOTE: Use both hands when carrying full tank of water. It is normal for the water level in the tank to decrease once
full tank has been replaced on base. The water from the tank has simply filled up the empty base.

4 Plug into a 120VAC electrical outlet.
5 Turn on: Turn knob on front of humidifier until power light glows.
6 Adjust mist direction: Rotate the 360° mist outlets and set the desired output level.

7 Turn off: To manually shut off, turn knob on front of humidifier until power light turns off. When water level is

low, mist will automatically shut off.

1

Care and Maintenance

NOTE: This is an electrical appliance and requires attention when in use. Follow the recommended guidelines to help
prevent micro-organisms from growing in the humidifier.

STORAGE

1 Clean, rinse and thoroughly dry as directed. DO NOT leave any water in the unit as this may render the unit

inoperable for the following season.

2 Place in the original carton and store in a cool, dry place.

WEEKLY MAINTENANCE
Remove Mineral Buildup/Scale:

1 Turn off unit and remove tank: Ensure humidifier is off and unplugged, then remove tank and drain water from

tank into sink. DO NOT place base in sink.

2 Base unit: Scale build-up on electronic sensor and float. Once sensor has had time to cool, wipe isopropyl alcohol

or vinegar directly on sensor and/or float with a paper towel, cloth or safety swab to clean. DO NOT attempt to
remove float to clean.

3 Tank: Partially fill with one 8-ounce cup of undiluted white vinegar. Leave in the tank for at least 30 minutes,

occasionally swishing the vinegar around inside the tank, then gently clean all interior tank surfaces with a soft brush.
Wipe the exterior of the tank with a cloth dampened with undiluted white vinegar. Rinse tank thoroughly with clean
water to remove the mineral and vinegar residue. Rinse a second time to ensure that all residue has been removed.

Disinfect Tank:

1 Fill tank 1/2 full with water and 1/2 teaspoon of chlorine bleach. DO NOT place tank on base unit while it contains

the bleach/water.

2 Let the solution stand for 30 minutes, swishing every few minutes. Wet all surfaces.
3 Carefully empty the tank and rinse with warm water until you can not detect any bleach smell. Dry with a clean cloth

or paper towel.

One (1) Year Limited Warranty

Dorel Juvenile Group, Inc., warrants to the original
purchaser that this product (Ultrasonic Cool Mist Nursery
Humidifier), is free from material and workmanship
defects when used under normal conditions for a period
of one (1) year from the date of purchase. Should the
product contain defects in material or workmanship
Dorel Juvenile Group, Inc., will repair or replace the
product, at our option, free of charge. Purchaser will be
responsible for all costs associated with packaging and
shipping the product to Dorel Juvenile Group Consumer
Relations Department at the address noted on the front
of this document and all other freight or insurance costs
associated with the return. Dorel Juvenile Group will bear
the cost of shipping the repaired or replaced product to
the purchaser. Product should be returned in its original
package accompanied by a proof of purchase, either a
sales receipt or other proof that the product is within
the warranty period. This warranty is void if the owner
repairs or modifies the product or the product has been
damaged as a result of misuse.

This warranty excludes any liability other than that
expressly stated previously, including but not limited to,
any incidental or inconsequential damages.

SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS THAT MAY
VARY FROM STATE TO STATE.

Troubleshooting

Problem 1:

•

IF MIST OUTPUT IS MINIMAL OR NOT VISIBLE,

Retry the humidifier after trying each action below:

Cause Action

• Water level in base reservoir is
too high

check for the following causes.

Empty all water out of the humidifier base and replace tank. Ensure tank is SECURED and LEVEL in
base with no gap visible between base and tank.

Note: any remaining water in reservoir should be emptied each time tank is re-filled.

WARNING

Shut off and unplug humidier before
removing tank from base.

• Humidifier is at low setting

• Indicator light on front is red

• Indicator light on front does not
illuminate

Problems Causes Actions

• Unit does not turn on

• White powder coming out

of humidifier

• Dampness in rooms on

walls or windows

• Unit turns on and off

• Bubbles in the water or a

gurgling sound

• Water leakage

• Unit is not plugged in or tank is not
seated properly

• High setting
powder)

•

Some chemicals used in safe water
treatment could become white
powder as the water vaporizes. This
is not a humidifier malfunction.

• High setting

• Tank is almost empty

• The float inside base unit is dirty

• Gasket in bottom of tank is dirty

• Humidifier is not on a level surface so
float is not able to operate properly

• Normal operation. As water enters
reservoir in base, air is displaced and
creates bubbles in tank and possibly
a gurgling sound.

• Water level in base reservoir may be
too high.

• Product may have been mishandled.

(mist can look like white

OFF

ON

*

ON

• Plug in power cord or re-seat tank

• Adjust the setting
to reduce mist output

• Use distilled or filtered water instead
of tap water

• Turn unit off or adjust the
setting to reduce mist output

• Refill tank

• Clean float (see Care & Maintenance)

• Clean gasket (see Care & Maintenance)

• Put humidifier on a level surface and
refill tank

• No action necessary

• See first diagram and corrective actions
above under “Problem 1.”

• Discard humidifier, as it cannot be repaired

Check out our Helpful Hints video here for step-by-step instructions:
https://youtu.be/239EXoHL72s

• It is normal for mist not to be visible at lower settings. If you can see the mist when you turn the
wheel to a higher setting, there is no issue.

• Water tank is empty. Shut off and unplug humidifier and refill water tank. Make sure to empty any
remaining water in base before replacing tank.

• Ensure that humidifier is plugged in and powered on.

Question Answer

• What are the variables that
affect run time?

• How do I remove film on
the tank?

• How can I extend run time?

Each unit was tested after production and confirmed to be free of leaks.

*

• The estimated run time for this humidifier is based on average room conditions
and is dependent on numerous variables such as:

- Air exchange in the room.

- Room construction where the humidifier is placed.

- Temperature of the room.

- Humidity levels in the room.

- Movement of occupants and the opening and closing of doors in the room.

- Home furnishings in the room.

• See “Daily Maintenance” section. Regular cleaning is
recommended.

• Run your unit on the lowest setting.

• Fill tank all the way full and place on the base. Let water empty into the base
until it stops bubbling, then refill and re-seat tank again. This ensures maximum
water capacity and will extend run time.

2
