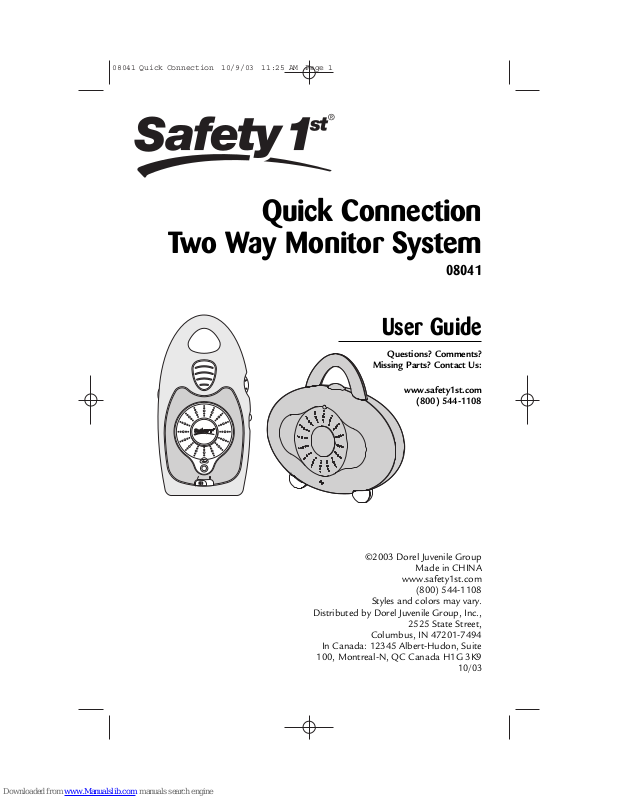

Safety 1st 08041 User Manual

3

4

User Guide

Questions? Comments?

Missing Parts? Contact Us:

www.safety1st.com

[phone]

©2003 Dorel Juvenile Group

Made in CHINA

www.safety1st.com

[phone]

Styles and colors may vary.

Distributed by Dorel Juvenile Group, Inc.,

2525 State Street,

Columbus, IN 47201-7494

In Canada: 12345 Albert-Hudon, Suite

100, Montreal-N, QC Canada H1G 3K9

10/03

Quick Connection

Two Way Monitor System

08041

08041 Quick Connection 10/9/03 11:25 AM Page 1

PLEASE READ THE FOLLOWING WARNINGS AND ALL ASSEMBLY
INSTRUCTIONS CAREFULLY BEFORE USING THE QUICK
CONNECTION TWO WAY MONITOR. KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE.

TERMS USED IN WARNINGS: The term “Receiver” corresponds to “Parent

Unit” and the term “Transmitter” corresponds to “Child Unit” in the rest of this
instruction booklet.

• The Quick Connection Two Way Monitor is not intended to replace
responsible and proper parental supervision.

• Check your child’s activity at regular intervals as this monitor will not alert
parents to the silent activities of a child.

• Before using your Quick Connection Two Way Monitor:

- Read and follow all instructions carefully.

- Read and observe all warnings on the product and in this
instruction booklet.

• To prevent entanglement with the adapter cord, NEVER place the
cord in or near a crib or playpen. DO NOT place the Receiver anywhere its
AC adapter cord are within reach of children.

• ALWAYS KEEP THE TRANSMITTER, RECEIVER AND AC ADAPTERS
OUT OF REACH OF CHILDREN.

• This product is not intended to be used as a medical monitor and its
use should not replace adult supervision. It is important that an adult
stay within the viewing range of the Quick Connection Two Way Monitor at
all times during use.

• It is essential to check reception regularly. Please see the Testing
Reception section for complete instructions.

• The Receiver is intended for indoor use only.

• NEVER use the Transmitter or Receiver near water. For example, do not
use near a bathtub, bathroom sink, laundry tub, kitchen sink, in a wet
basement, etc.

• Always unplug the AC adapters from wall outlets during long periods
of non-use.

• Position the Transmitter, Receiver and AC adapters to allow adequate
ventilation and prevent these components from overheating.

• To prevent overheating, keep the Transmitter, Receiver and AC adapters
away from heat sources such as radiators, heat registers, stoves or other
appliances (including amplifiers) which produce heat. Also keep these
components out of direct sunlight.

• Use only the AC adapters provided. Use of any other adapters may
damage the Transmitter and/or Receiver. Plug the AC adapters into
standard household current only (120V AC outlet)! To prevent
entanglement and overheating, DO NOT use extension cords.

• The AC adapters may become slightly warm to the touch during operation.
This is normal.

• Position the AC adapter cords so that they are not walked on or pinched by
items placed upon or against them, paying particular attention to cords at
AC adapter plugs, wall plugs, and the point at which the cords attach to the
Transmitter and Receiver.

WARNING

2

08041 Quick Connection 10/9/03 11:25 AM Page 2

3

• This product should be serviced only by qualified service personnel at
Dorel Juvenile Group when:

- An AC adapter or its plug is damaged,

- The Transmitter or Receiver have fallen,

- Liquid has spilled into the Transmitter or Receiver or

- The Transmitter or Receiver do not appear to operate normally or exhibit a

marked change in performance

• DO NOT attempt to service this product beyond that described in the
Troubleshooting section at the end of these instructions. All other servicing
should be referred to qualified personnel at Dorel Juvenile Group.

NOTE: The LEDs emit IR (infra red) light that is not harmful.

TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER OR
BACK OF TRANSMITTER. NO SERVICEABLE PARTS INSIDE. REFER SERVICING TO
DOREL JUVENILE GROUP CONSUMER RELATIONS [phone].

TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS
PRODUCT TO WATER OR MOISTURE. NEVER ATTEMPT TO OPEN THE CASE OF THE
PRODUCT. THIS IS DANGEROUS AND WILL VOID THE WARRANTY.

FCC Compliance Information

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna,

• Increase the separation between the equipment and receiver,

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected,

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by
Dorel Juvenile Group could void the user’s authority to use the equipment.

CAUTION

WARNING

08041 Quick Connection 10/9/03 11:25 AM Page 3
