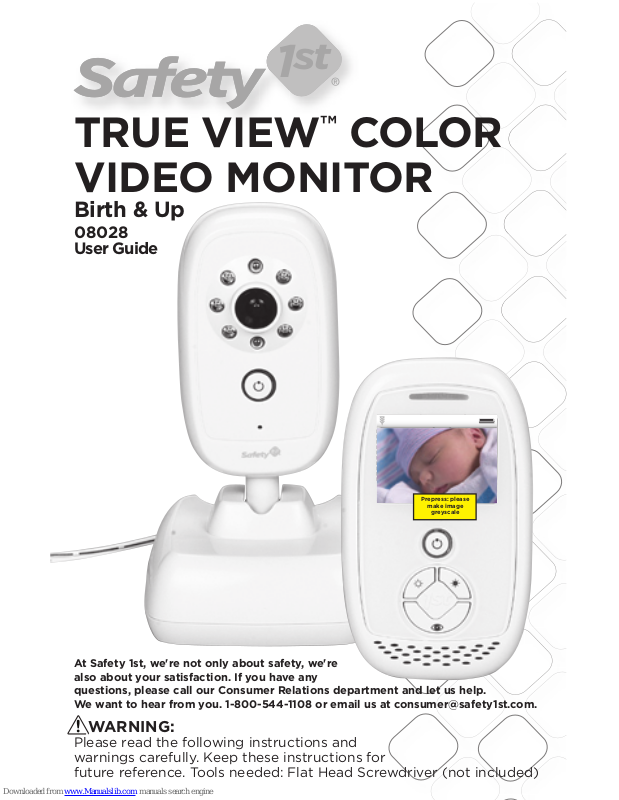

Safety 1st 08028 User Manual
TRUE VIEW™ COLOR
VIDEO MONITOR
Birth & Up
08028
User Guide
4x
Video Display
12/31 12:20 PM 72 F
0
2x
12/31 12:20 PM 72 F
0
2x
Video Display
At Safety 1st, we're not only about safety, we're
also about your satisfaction. If you have any
questions, please call our Consumer Relations department and let us help.
We want to hear from you. 1-800-544-1108 or email us at consumer@safety1st.com.
WARNING:
Please read the following instructions and
warnings carefully. Keep these instructions for
future reference. Tools needed: Flat Head Screwdriver (not included)
Prepress: please
make image
greyscale
2
DANGER!
To prevent electric shock, NEVER use the Transmitter
or Receiver near water, such as a bathtub, sink,
laundry tub, in a wet basement, etc.
To prevent strangulation with power cord, never
place transmitter within reach of child.
Important!
Please read all warnings and assembly instructions carefully before using the video monitor.•
Parent Unit is a receiver. Baby unit is a transmitter.•
Check your child’s activity at regular intervals, as this monitor will not alert parents to the silent •
activities of a child.
To prevent entanglement with the adapter cord, NEVER PLACE THE CORD IN OR NEAR A CRIB OR •
PLAYPEN. DO NOT place the Receiver anywhere its AC adapter cord is near children.
ALWAYS KEEP TRANSMITTER, RECEIVER AND AC ADAPTERS OUT OF REACH OF CHILDREN•
This product is not a medical monitor and its use should not replace adult supervision. •
Check the reception regularly. •
NEVER use the Transmitter or Receiver near water. For example, do not use near a bath tub, •
bathroom sink, laundry tub, kitchen sink, in a wet basement, etc.
Always unplug the AC adapters from wall outlets during long periods of non-use. •
Position the Transmitter, Receiver and AC adapters to allow adequate ventilation and prevent these •
components from overheating.
To prevent overheating, keep the Transmitter, Receiver and AC adapters away from heat sources such •
as radiators, heat registers, stoves or other appliances (including amplifi ers) that produce heat. Also
keep these components out of direct sunlight.
Use only the AC adapters provided. Use of any other adapters may damage the Transmitter and/•
or Receiver. Plug the AC adapters into standard household current only 120V AC outlet)! To prevent
entanglement and overheating, DO NOT use extension cords.
The AC adapters may become slightly warm to the touch during operation. This is normal.•
Position the AC adapter cords so that they are not walked on or pinched by items placed upon or •
against them, paying particular attention to cords at AC adapter plugs, wall plugs and the point
where the cords attach to the Transmitter and Receiver.
The LEDs emit IR (infra red) light that is not harmful.•
This product should be serviced only by qualifi ed service personnel at Dorel Juvenile Group when:•
-An AC Adapter or its plug is damaged
-The Transmitter or Receiver has fallen
-Liquid has spilled into the Transmitter or Receiver, or
-The Transmitter or Receiver do not appear to operate normally or exhibit a marked
change in performance.
DO NOT attempt to service this product beyond that described in the Troubleshooting section. All •
other servicing should be referred to qualifi ed personnel at Dorel Juvenile Group.
WARNING!
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,
DO NOT EXPOSE THIS PRODUCT TO WATER OR MOISTURE.
NEVER ATTEMPT TO OPEN THE CASE OF THE PRODUCT.
THIS IS DANGEROUS AND WILL VOID THE WARRANTY.
IMPORTANT!
For more help and resources call 1-800-544-1108 or visit www.safety1st.com 3
PARTS
Parent Unit
A Video Screen
B Sound Light Bar – Shows your
baby’s sounds
C Video Screen On/Off Button
D Power On/Off Button
E More Bright/Scroll Right
F Less Bright/Scroll Left
G AC Adapter Jack
H Volume Control
I Belt Clip
J Speaker
Baby Unit
K Camera Lens
L Base
M Power On/Off Button
N Microphone
O A/C Adapter Jack
P Nighttime Viewing Lights
Parent Unit Baby Unit
2 AC Adapters AAA Rechargeable Battery Pack
(already installed in Parent Unit)
G
I
K
M
N
O
L
P
H
E
A
F
C
D
J
B
4
QUICK START
1 Connect AC adapter to the side
of the Parent Unit.
3 Plug Parent Unit and Plug Baby Unit into wall to charge
or to operate AC power.
Plug in here.
2 Connect AC adapter to the back
of the Baby Unit.
Plug in here.
Power on here.
Power On/Off
Button
Power On/Off
Button
Room Temp
Button
Quick View
ON/OFF Button
PMS 877C
PMS 130C
Scale: 100%
48.05
LCD VIEW
Power Up
Press Power button for one second, LED ring will light up and stay
lit as product is on. Video will boot up in following sequence:
Safety First Screen for 3 seconds
1
5 Turn Baby unit on. Hold down
Power On/Off button until light
comes on.
4 Turn Parent Unit on. Hold down
Power On/Off button until light
comes on.
Power on here.
4
5
Prepress: please
make image
greyscale and clip
2
