Safeplace T500 C, M800 C, T800 C, M500 C, T300 C Technical Manual & Handheld Unit Manual

TQM Technical Manual

Handheld Unit Manual

For models: M800 - C,C4,SL,W,MS,E

&

T800 - C,C4,SL,W,MS,E
M500 - C,C4,SL,W,MS,E
T500 - C,C4,SL,W,MS,E
T300 - C,C4,SL,W,MS,E

Q300 - C,C4,SL,W,MS,E
M300 - C,C4,SL,W,MS,E
IMPACT - C,C4,SL,W,MS,E

590.1060.001

Version 05 – 2.09

2

Registration Form

Please fill in this form and fax it to the

following number: [phone]

or email to [e-mail]

Property name:__________________________________

Chain/Group:___________________________________

Address:__________________________________________________________

_________________________________________________________________

_________________________________________________________________

Contact persons:____________________________________________________

_________________________________________________________________

Telephone number:______________________________

Fax number:___________________________________

Email:________________________________________

Safe model________________ Quantity __________________

Color_________________________________________

3

4

Table of Contents

1 General Description and Guidelines Page 7

2 Safety Instructions Page 8

3 Safe Models Page 10

4 Anchoring the Safe Page 11

5 Emergency Opening Procedure Page 12

Page 13Emergency Opening with EOT 3005a

Page 14Emergency Opening with BiMax Handheld Unit5b

Page 15Emergency with Master Key/Card5c

6 Mechanical Emergency Opening for C, C4, SL, W Page 16

7 Mechanical Emergency Opening for E4, MS4 Page 17

8 Trouble-Shooting Page 18

Page 21Trouble-Shooting for Magna 500

9 Battery Replacement Page 22

10 Parts Replacement Page 23

10a Electronic Board Page 24

10b Battery Housing Page 25

Page 26Lock Assembly10c

Page 28Panel Assembly10d

Page 30Door Replacement10e

11 Safe Place Components

11a C, C4, SL, W Page 31

11b E4, MS4 Page 32

11c Assembled Door C, C4, SL Page 33

11d Assembled Door E4, MS4 Page 34

5

6

General Description

And Guidelines

Dear Customer,

You have just received new safes. In the following manual, you will find

all the necessary information for operating and maintaining the
safes, including:

1. Safety instructions.

2. Anchoring - The different options for anchoring the safes.

3. Emergency opening.

4. Parts replacement - How to replace the main components of the
safe.

5. Safe Place components - All the safe components you may
need to purchase in the future. Please note which size safe
(C, SL, MS, E & W) you have, and choose the component.

6. Trouble-shooting - safe feedback that will identify the problem in
a malfunctioning safe.

Service and Warranty Guidelines:

We provide a 2 year limited warranty for parts. You received

spare parts to enable you to replace any defective part. We ask
you to please send us any defective parts for later replacement.
If you have any questions or need assistance, please call your
local distributor. If for any reason you cannot reach your local
distributor, you can always contact us at fax number: ++972-8­8573962, or e-mail: [e-mail]

7

Safety Instructions

For safes with power outlet (recharge socket)

The safe model you have purchased is equipped with a 220V or
110V power (USA Rating : 110V 5A 60Hz) outlet for laptop
recharging. Please follow the safety instructions carefully before
hooking up the power outlet.

1. Only a certified electrician should handle this equipment.

2. Unplug the receptacle from the wall outlet before performing
maintenance.

3. If no plug is connected to the electrical wire – connect as follows:

U.S.A:

Black wire to terminal marked L

White wire to terminal N

Green wire to terminal E or GR

:Europe

Brown wire to terminal marked L or

Blue wire to terminal marked N

Green & yellow wire to terminal marked E or

4. The receptacle must be protected by a 6 Amp fuse.

5. Do not plug it in if for any reason, the power supply cord or plug
is damaged or frayed.

6. Do not allow anything to rest on the power cord.

8

Safety Instructions

For safes with AC power hook-up (Adaptor)

Adaptor specifications AC-DC:

Output – 9V DC, 500mA max. built in thermal fuse.

1. Only a certified electrician should handle this equipment.

2. Pay attention to wire marks (+ / -) and assemble them
properly.

3. Disconnect the adaptor from the main power before replacing
the electronic board.

4. Check the adaptor specifications before plugging into main
power (see above).

9

Safe Models

Biometric

Digital Safes

Magna 800

Magna 500

Magna 300

Impact

Combination

Titan 500

Card Safe

Titan 800

Smart Key

Quantor 300

Tiara-M Top Open

C - Small

SL – Super Laptop

MS – Medium

C4 - Laptop

W – Wall

E – Floor

10

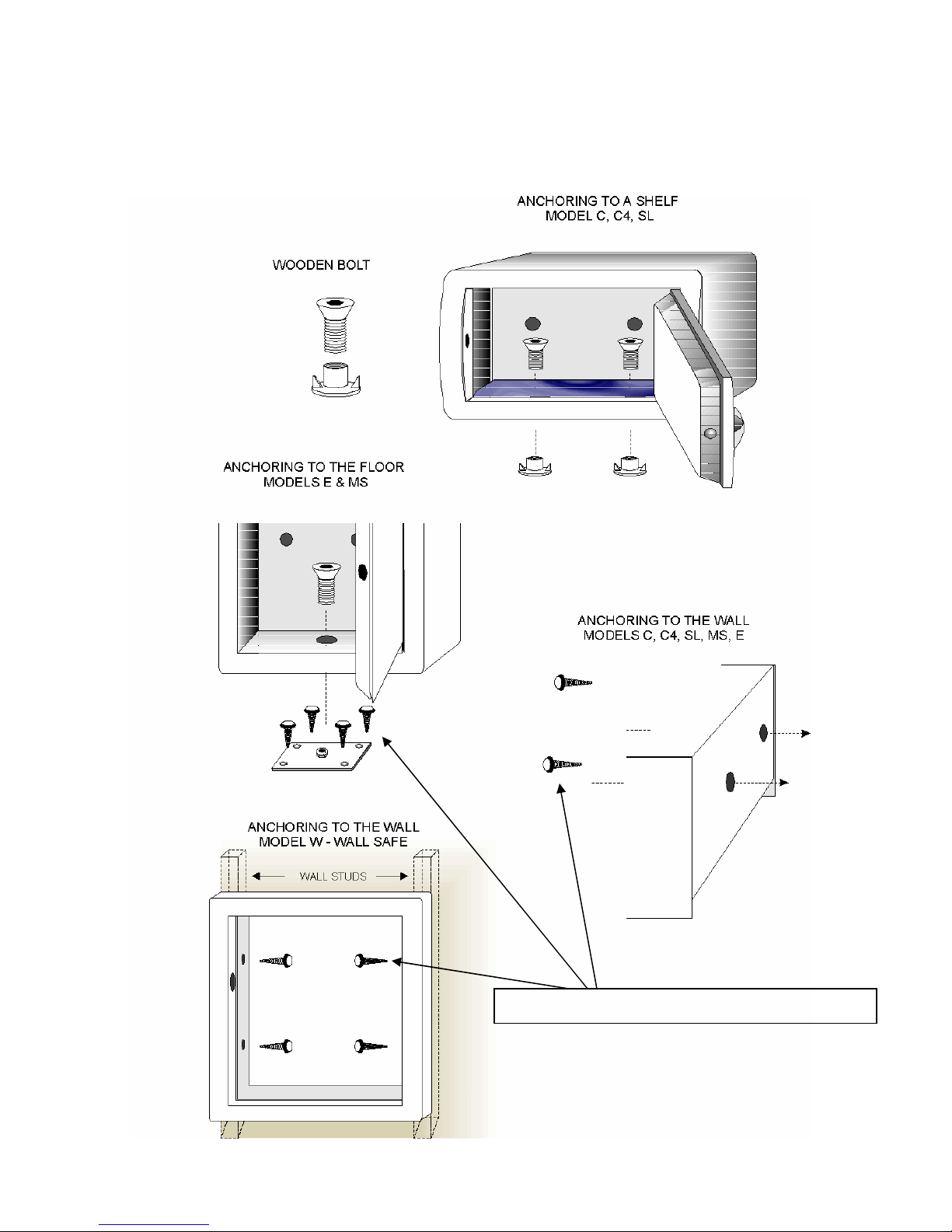

Anchoring The Safe

Anchoring Bolts should be - 10*1”
