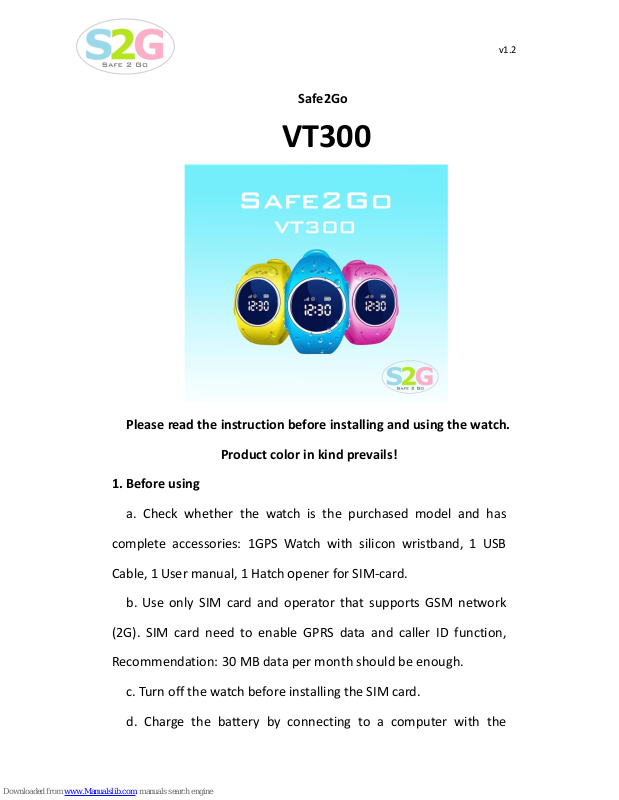

v1.2
Safe2Go
VT300
Please read the instruction before installing and using the watch.
Product color in kind prevails!
1. Before using
a. Check whether the watch is the purchased model and has
complete accessories: 1GPS Watch with silicon wristband, 1 USB
Cable, 1 User manual, 1 Hatch opener for SIM-card.
b. Use only SIM card and operator that supports GSM network
(2G). SIM card need to enable GPRS data and caller ID function,
Recommendation: 30 MB data per month should be enough.
c. Turn off the watch before installing the SIM card.
d. Charge the battery by connecting to a computer with the
v1.2
matched USB cable. Do not charge over 3 hours.
Note: Charging the battery should only be under adult supervision.
e. Please scan the barcode of this manual last page to download
the APP Setracker on your phone.
2. Watch interface
This picture is just for reference.
2.1 Product function
GPS+LBS+WIFI three ways real-time Positioning
0.66 OLED health eye shield screen
Footprints: record history route
Voice monitoring: Once the phone number confirmed, watch
will call the number automatically while user don’t know.
Two-way phone call and voice chat
Records of step count, amount of exercise, distance and sleep
monitor.
App available on IOS and Android Platform
GSM, GPS, Battery, time
Family number 1/Volume (+)
Set time (Button3)
Family number 2/Volume (-)
Phone book (Button4)
Microphone
Speaker
Power button/On-hook button
Record button (Button1)
SOS button/hand up button
Touch make friends (Button2)
v1.2
Setting no disturbing time when kids on class
GEO fence safety area
SOS Phone call and alert
Watch removed and low power alarm
Remote shutdown
Waterproof:IP68, underwater 1-3meter for 30mins
Make friends between watches
Note: It’s better not to wear the watch swimming.
3. Watch function instruction
3.1 Phone book: press the button 4 you can see 10 phone number
and pick number to dial.
3.2 Talk: Long press the button 1 to recording voice message and
released to send to mobile phones, the longest voice message is 15
seconds.
3.3 Touch make friends: press button 2 to enter the make friend
interface, with 2 watches supports make multi friends (or 2 watches
supports make single friend), have same time and connects the
network, both watch will add each other.
4. Set up watch with App
4.1 APP Registration and login
v1.2
App only available on IOS and Android , Windows phones do not
support. Search ”Setracker” on App store and Google play or scan
the bar code of the last page manual to download and enter the
following page shown on the pic1.
Fill into the unique ID or REG CODE which you can see on the
back side of the watch(by scanning the QR code or entering the ID
manually) and unique user name (at least 4 characters, whether
letter or number) before login, the P-number is parents’ number,
then set the password (at least 6 characters),at last select the server
location which your country belongs to.
The login interface is shown as below: pic2
4.2 Introduction of APP main interface
Enter the correct account and password on the login interface,
v1.2
click to login and enter the main interface. The main interface is
shown as below:
Description of functions:
(1)Voice chat: Click “Long press and speak” to start recording.
Release the button to send the message. The longest voice message
can be 15 seconds. Meanwhile, you can also write short message to
the watch. Like “I am here”.
(2) Map: Check the position of the watch in real time. Each
positioning working time is 3 minutes. The interval time for location
data updating need 20 seconds. After 3 minutes, device will back to
the default working mode. You can know the real-time location in
v1.2
the map. When location icon is Red, it is in GPS location, Blue is in
LBS location, Green is WIFI location.
(3)Settings: you can set all parameters of the watch, settings
interface shown as below:
a. SOS number: three numbers can be set up, the watch will calling
to the phone automatically by pressing the watch SOS button for 3
seconds in case of an emergency, and there will have alert message
sent to APP. Three phone numbers will be called one after another
twice (unless the call is answered).
v1.2
b. Monitoring: generally parents' phone numbers are set as monitor
number. Once the phone number confirmed, the watch will call the
monitoring number automatically, please do not make any sound
then you will hear the sound around kids. But the watch cannot
hear the sound of mobile phone.
c. Synchronization intervals: three models can be chosen according
to customer's requirements, the default working mode is every 10
minutes; power saving mode to update location is every 1 hour, and
the real-time positioning mode is 1 minute.
d. Class mode: also named No disturbing time, you can set three
periods, all incoming calls will be shielded during three periods, this
function is suitable for kids on class. Class mode only works from
Monday to Friday, weekends are excluded.
e. Notification settings: with low power, SOS, watch removed three
alarm messages switches. If the Watch electricity less than 20%,
watch removed and press SOS button over 3 minutes, the watch will
sent alarm messages to the set number(default off), at the same
time send alarm alert to the APP.
f. Phone book: There are 10 contacts can be added and these
number can be displayed in the watch. You can click to dial to watch
and kids can call them from the watch.
g. Quick connect with your friends: with 2 VT300 watches installed
v1.2
with the same SIM card operating company, get touch then both
phone numbers will be added in the Contact of App.
h. Language and Region: If the time display on the watch is not
correct, you can choose the time zone to fix. But this function only
works when the watch is connecting to the APP.
i. LBS: The base location positioning function.
j. Activate device-removal sensor: there have sensor on the back
side of the watch, open this function, when you take off the watch
the alert information will be sent.
k. Remote shutdown: Watch cannot be shut down by pressing
button after it starts to work, but it can be turn off from APP.
(4)GEO fence safety area: it’s minimum radius is 500 meters, when
users go in and out of the fence, there will has alarm information
when kids out of the fence.
Note: fence alarm information only when the watch GPS is triggered,
base station (LBS)positioning fence has no alarm information.
(5) Love rewards: select the number of red hearts on the app, click
the number send to watch, then watch screen will display love heat
and the number.
(6) Watch alarm: can be set up three alarm clocks, and alarm clock
can be set according to own requirements.
(7)Device: it is to search the watch, when watch is not around, click
v1.2
this function key the watch will ring for a minute for searching the
watch and it will stop ringing by pressing any key.
(8)Footprint: This function is used to check the history route of kids
in different period. The location data can be saved up to 90 days.
(9)Display activities: you can see the records of step count, amount
of exercise, distance and sleep monitor.
(10)Notification overview: you can see the earlier notifications.
5. "My" interface :Click left side “My” function key at main page
and the page shown as below:
a. On the personal data, you can see the account, ID and phone
number. We suggest you fill the email address.
v1.2
b. The device list: If you have more than one device to monitor,
then you can add them in one account. Please notice, you just
need register one watch then add IDs of other watches here.
c. “Change the password” function.
**
***
v1.2
6. Working mode of the watch
Three basic working modes include normal mode, power saving
mode and real-time positioning mode. Upload interval is different
on different working modes.
Normal mode: upload interval is 10 minutes;
Power saving mode: upload interval is 1 hour;
Real-time positioning: upload interval is 1 minute.
7. Troubleshooting
1. Problem : Can not register an account
An error when entering ID (does not exist or is already registered).
Please contact us directly to resolve the issue on info@safe2go.se
and we will provide you with all the necessary technical supports.
2. Problem : The device is not connected to the Internet.
- Check whether your SIM card supports 2G network, for example
Telecom is not supportive, and data consumption fee inside.
-Use mobile phone text message to the watch: pw,123456,ts#,in
response you will receive SMS message with the specifications,
please contact us for support, then we immediately find the cause
and solution.
v1.2
8. Installing SIM card way: Using coin or the hatch opener
(backside), insert into the slotted back circular panel like pic1
showing, counterclockwise rotate and remove it like pics2 show, and
put micro SIM card inside like pic3, then move back to lock.
9. Download the APP
Support Android or IOS mobile phone APP: Setracker
Note: The company reserves the right to modify the instruction
v1.2
contents without any further notice, please understand no further
notice about the modification. Part of the function is different in
particular software version, but is normal.
