Safco 4362WH, 4362RD, 4362BU, 4361RD, 4362BL Assembly Guide

...
an LDI Spaces Company
Minneapolis, MN 55428
www.safcoproducts.com
Instructions
INSTRUCTIONS
INSTRUCCIONES
4361,4362
CoGo™ Table 30” or 36”
CoGo™ Tableau 30” or 36”
CoGo™ Tabla 30” or 36”
PRODUCT WARRANTY is available online at: www.safcoproducts.com
LA GARANTIE DU PRODUIT est
disponible sur l’Internet : www.safcoproducts.com
available Monday-Friday 7:30 AM to 5:00 PM (Central Time) (English-speaking operators)
Si vous avez des questions pour poser ou les préoccupations
pour exprimer, connecter au 1-800-664-0042
de 7H30 à 17H00 (Heure centrale) (Opérateurs de langue anglaise)
990000050: 1 of 5; Rev B; Rev Date 03-JAN-2017
For questions or concerns, please call 1-800-664-0042
LA GARANTÍA DEL PRODUCTO está
disponible en la Internet: www.safcoproducts.com
Si usted tiene preguntas o preocupaciones,
de 7:30 AM a 5:00 PM (Hora Central) (Operadores que hablan inglés)
Safco Products Company, New Hope, MN 55428
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
CODE /
CODIGO
A
Top Frame / Cadre Supérieur / Marco Superior For 4361 1 610000027§ For 4362 1 610000022§
B
Foot Ring For 4361 1 610000028§ For 4362 1 610000023§
C
Decorative Ring / Anneau Décoratif / Aro Decorativo 1 610000024§
D
Leg / Jambe / Pierna For 4361 4 620000033§ For 4362 4 620000030§
E
Table Top / Dessus De Table / Tapa De Tabla For 4361 1 640000023§
For 4362 1 640000022§
§Note: When corresponding about parts, be sure to state color: Black (BL), Blue (BU), Red (RD), or White (WH).
§Noter: Quand correspondre au sujet de parties, soyez sûr d’affi rmer la couleur: Noir (BL), Bleu (BU), Rouge (RD), ou Blanc (WH).
§Note: Al corresponder sobre las piezas, esté seguro declarar el color: Negro (BL), Azul (BU), Rojo (RD), o Blanco (WH).
/ Bague De Pied / Anillo Del Pie
DESCRIPTION / DESCRIPTION /DESCRIPCIÓN
QTY. / QUANTITÉ/ CANTIDAD
PART NO. /
NO DE PIECE / NO.
DE PIEZA
HARDWARE
PACK / PAQUET
MATÉRIEL
/ PAQUETE
MATERIAL 900000056
F
Leveler
Planeuse
Nivelador
Qty. / Qte. / Cant.: 4
#960000021
HARDWARE PACK / PAQUET MATÉRIEL
/ PAQUETE MATERIAL
900000026
G
Screw M6x40mm
Vis M6x40mm
Tornillo M6x40mm
Qty. / Qte. / Cant.: 8
#905000131
H
Screw M6x20mm
Vis M6x20mm
Tornillo M6x20mm
Qty. / Qte. / Cant.: 8
#905000007
E
G
A
H
H
G
H H
I
4mm Hex Key
4mm Clé Hexagonale
4mm Llave Hexagonal
Qty. / Qte. / Cant.: 1
#920000131
G
(4)
D
F
990000050: 2 of 5; Rev B; Rev Date 03-JAN-2017
C
D
H
D
B
G
(4)
F
D
F
F
Safco Products Company, New Hope, MN 55428
1
H
(4)
D
D
C
H
(4)
D
D

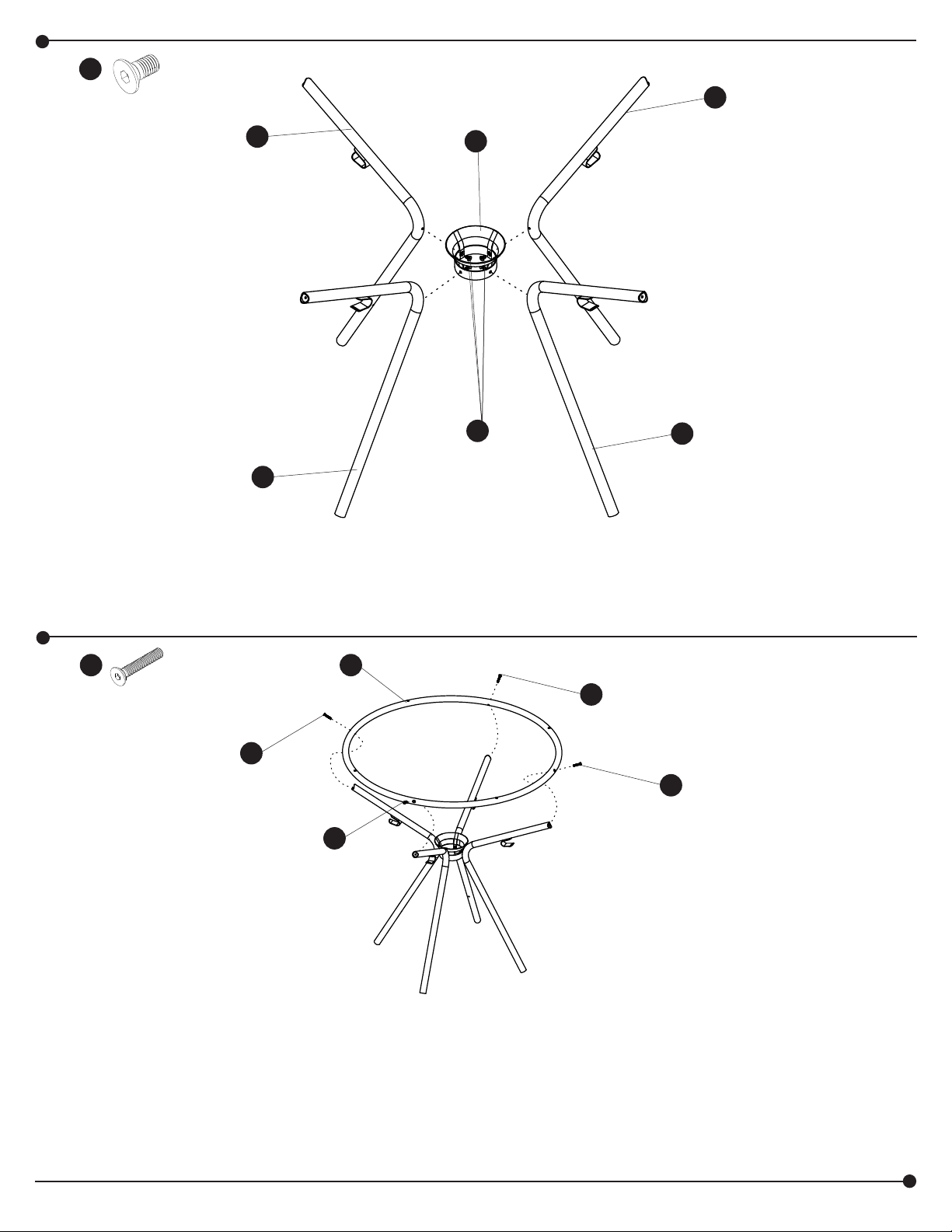

Note: Tighten All Screws. May Require Two People To Assemble This Step.
Noter: Serrer toutes les vis. Peut Nécessiter Deux Personnes Se Réunissent Cette Étape.
Note: Apriete todos los tornillos. Puede Requerir Dos Personas Para montar Este Paso.
2
G
(4)
A
G
G
G
G
Note: Tighten All Screws.
Noter: Serrer toutes les vis.
Note: Apriete todos los tornillos.
990000050: 3 of 5; Rev B; Rev Date 03-JAN-2017
Safco Products Company, New Hope, MN 55428
3
H
(4)
H
HH
E
H
Note: Hand Tighten All Screws Until All Screws Are Installed.
Noter: Serrez À La Main Toutes Les Vis Jusqu’à Ce Que Toutes Les Vis Sont Installés.
Note:Mano apretar todos los tornillos hasta que todos los tornillos están instalados.
4
G
(4)
G
B
(4)
Note: Start All 4 Screws Before Tight­ening All Screws.
Noter: Démarrer Tous Les 4 Vis Avant De Serrer Toutes Les Vis.
Note: Inicio 4 Todos Los Tornillos Antes De Apretar Todos Los T ornillos.
990000050: 4 of 5; Rev B; Rev Date 03-JAN-2017
Safco Products Company, New Hope, MN 55428
5
F
(4)
F
F
FF
990000050: 5 of 5; Rev B; Rev Date 03-JAN-2017
Safco Products Company, New Hope, MN 55428
