Safavieh PAT7005D Assembly Guide
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when not in use.
Remove wooden furniture from standing water. Dust regularly with small brush or vacuum
Spills should be taken care of immediately before they harden or
stain with a slightly dampened sponge.
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* This item may require periodic tightening

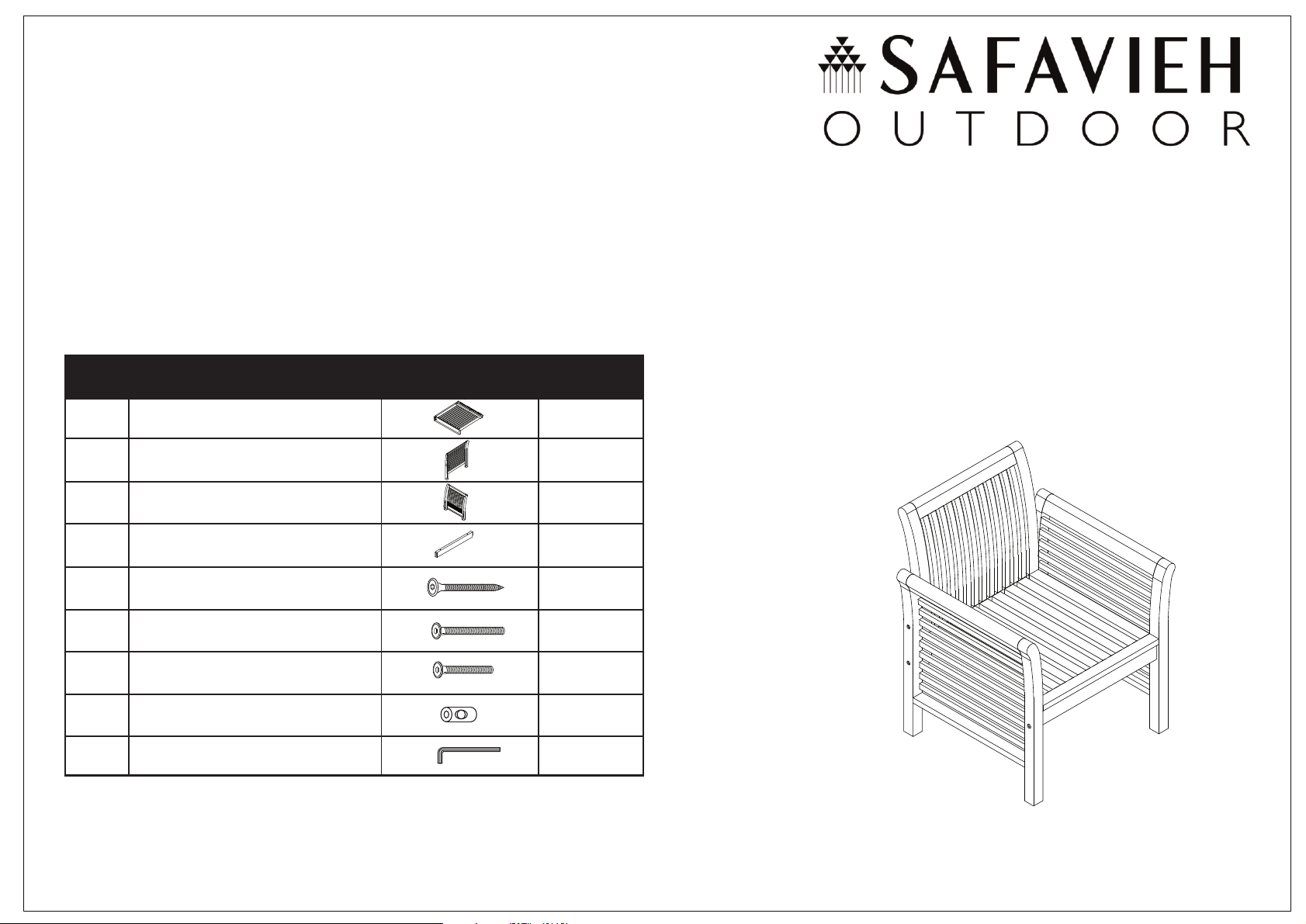

Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
A
B
C
D
E
H1
H2
H3
H4
H5
Seat Frame
Leg Frame
Back frame
Cross bar of leg
Screw -1
Allen bolt L
Allen bolt L
Horizontal spread
Allen key
Screw -2
6x60mm
6x70mm
6x50mm
6x35mm
1X
2X
1X
1X
3X
2X
5X
2X
1X
1X
Model# PAT7005
Product Dimensions:50.39" W x 23.62" D x 30.31" H
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 10 minutes.
Tools Required for Assembly (included): Allen Key
1
2 3
H2
H2
C
A
D
E
E
E
D
A
H5
H1
B
H3
D
A
C
H3
B
H2
H2
H1
Step 1
Attach seat frame (A) to cross bar of leg (D),
use screws (E) and tighten with allen key (H4).
Step 2
Connect back frame (A) with seat frame (C)
as arrow direction.
Step 3
Attach leg frame (B) to back frame (A),use allen
bolts (H2),tighten with allen key(H4).
Attach leg frame (B) to seat frame (C),use allen
bolts (H1) & horizontal spread (H3),tighten
with allen key (H4).
