Safavieh PAT6746C Assembly Guide

CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use. Dust regularly with small brush or vacuum.Spills should be taken care of immediately before they harden or stain with a slightly dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you begin assembly of this item.
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
A
B
C
D
E1
E2
Back
Seat
Left side
Right side
Allen bolt
Allen nut L
1X
1X
1 X
1 X
2 X
2 X
O U T D O O R
MODEL# PAT6746 Product Dimension :29.53”W x 31.89”D x 28.35”H
Weight capacity : 275 lbs Warning : Do not stand on the chair
Warning : Do not torque bolts / screws
E3
E4
E5
Allen nut S
Wrench
Allen key
6 X
2x
Before beginning the assembly of the product,make sure all parts are present. Compare the parts with package contents list and hardware contents list. If any parts are missing or damaged,do not attempt to assemble the product. Tool required for assembly (included) : Allen key and Wrench.
1
E5

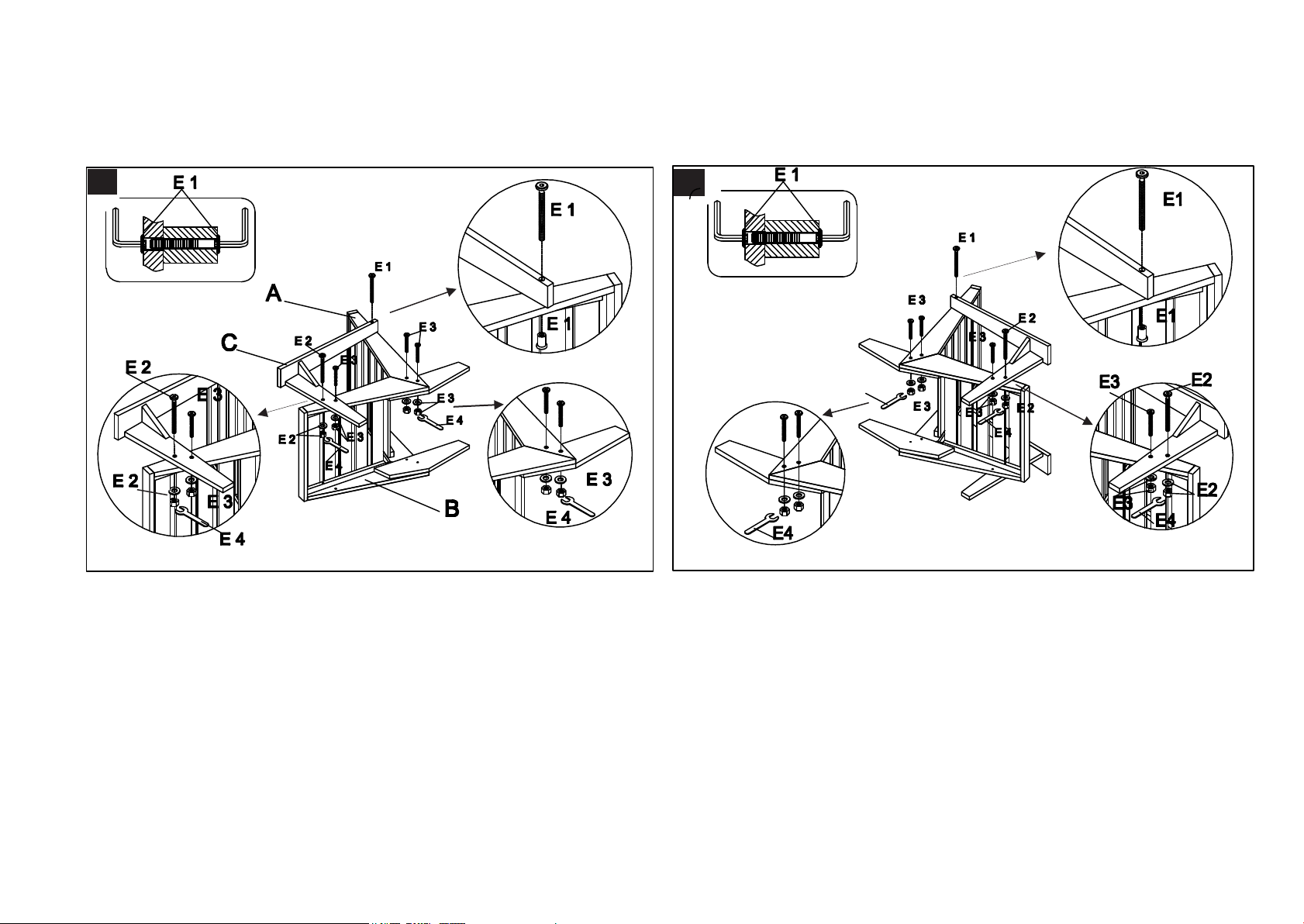

Step1: attach the back (A) and left side (C) to the seat (B) as shown on the picture. Then using the Allen bolt (E1), Allen nut L (E2) and Allen nut S (E3) as shown on the picture. Tighten with the Allen key (E5) and wrench (E4). Make sure you tight the side , back correct with the length of hardware used.
E5
E3

2

E5
E3
E3
Step 2: repeat with the right side (D) same step 1. At last tighten all bolts again.
E5
E4
