PREPARATION
Before beginning the assembly of the product, make sure all parts are present.
Compare the parts with the package contents list and hardware contents list.
If any parts are missing or damaged, do not attempt to assemble the product.
Tool required for assembly (included): Allen Key.
1

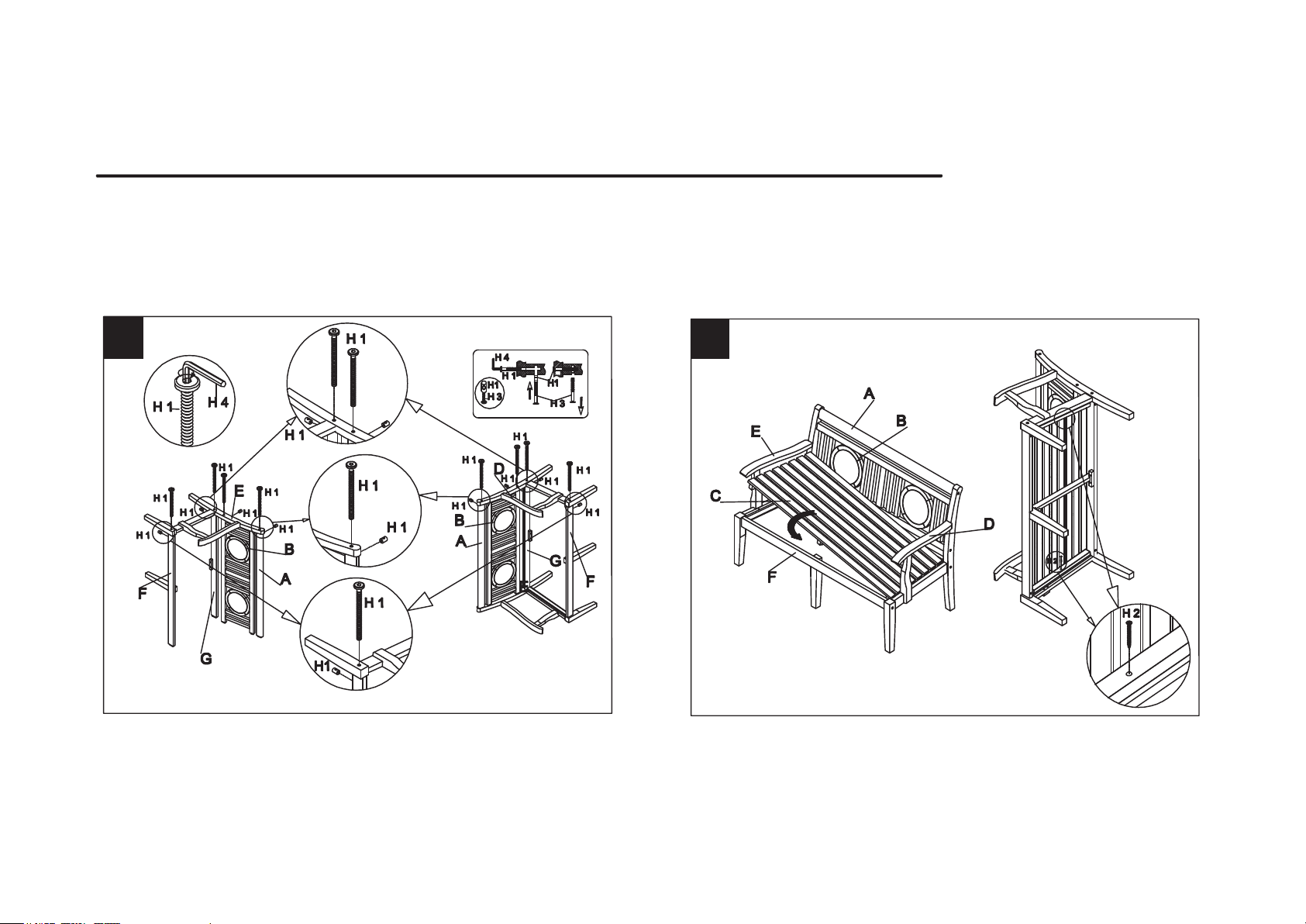

Step 1: attach right side (E) to the top (A) and back (B). Then attach
support S (G) and support L (F) to the right side (E) as shown on
the picture by using the Allen Bolt (H1) and tighten with the Allen
Key (H4). Continue with the left side (D) in the same way.
Make sure to tighten all bolts (H1) before you continue with step 2.
2
Step 2: put the seat (C) inside the bench as shown on the
picture and use the screws (H2) to attach it to the bench by
using a screwdriver.
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum. Spills should be taken
care of immediately before they harden or stain with a slightly
dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you
begin assembly of this item.
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
A
B
C
D
E
F
G
Top
Back
Seat
Left side
Right side
Support L
Support S
MODEL# PAT6712
Product Dimension: 48.43”W x 24.8”D x 31.89”H
Weight capacity : 600 lbs.
Warning : Do not stand on the bench
Warning : Do not torque bolts / screws
Allen Bolt
Screw
Bolt extra
Allen Key
8
M6x70
M4x35
M6x50
PREPARATION
Before beginning the assembly of the product, make sure all parts are present.
Compare the parts with the package contents list and hardware contents list.
If any parts are missing or damaged, do not attempt to assemble the product.
Tool required for assembly (included): Allen Key.
1
Step 1: attach right side (E) to the top back (A) and back (B).
Then attach support L (F) and support S (G) to the right side (E)
as shown on the picture by using the Allen Bolt (H1) and tighten
with the Allen Key (H4). Continue with the left side (D) in the same
way. Make sure to tighten all bolts (H1) before you continue with
step 2.
2
Step 2: put the seat (C) inside the chair as shown on the picture
and use the screws (H2) to attach it to the chair by using
a screwdriver.
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum. Spills should be taken
care of immediately before they harden or stain with a slightly
dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you
begin assembly of this item.
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
A
B
C
D
E
F
G
Top back
Back
Seat
Left side
Right side
Support L
Support S
MODEL# PAT6712
Product Dimension: 27.17”W x 27.17”D x 31.89”H
Weight capacity : 300 lbs
Warning : Do not stand on the chair
Warning : Do not torque bolts / screws
Allen Bolt
Screw
Bolt extra
Allen Key
8
M6x70
M4x35
M6x50
PREPARATION
Before beginning the assembly of the product, make sure all parts are present.
Compare the parts with the package contents list and hardware contents list.
If any parts are missing or damaged, do not attempt to assemble the product.
Tool required for assembly (included): Wrench.
1
Step 1: turn the table top and put the 4 legs (B)
on the table top (A).
2
C
Step 2 : tighten all bolts to the support of the table
top by using the wrench(C).
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum. Spills should be taken
care of immediately before they harden or stain with a slightly
dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you
begin assembly of this item.
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
Table top
Leg
Wrench
MODEL# PAT6712
Product Dimension: 39.37”W x 23.62”D x 14.17”H
Weight capacity : 40 lbs.
Warning : Do not stand on the table
Warning : Do not torque bolts / screws
