CARE AND MAINTENANCE
Do not use acids or alkaline cleaning agents. Sharp objects will damage and scratch
the surface. Wipe the surface with a soft, damp cloth
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this
item
* This item should be assembled on a soft surface to prevent scratching the finish
during assembly
* This item may require periodic tightening
Part List and Hardware List
Model#PAT5000A-BENCH
Product Dimensions:43"W x 21" D x39.75" H
PIECE
A
B
C
D
DESCRIPTION PICTURE
SEAT WITH BACK
LEFT LEG
RIGHT LEG
BOTTOM BAR
QUANTITY
1x
1x
1x
1x
E
F
NUTS
SPANNER
9x
1x
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 10 minutes.
Tools Required for Assembly (included):SPANNER.
Nuts has been kept on product itself, two spare nuts can found in hardware bag
Please do not fully tighten bolts/nuts until the end of step.
Periodically check all bolted connections to make sure they are tight and secure.
step1 step2
Attach the left leg (B) and the right leg (C) to the seat with
back (A), using the nuts and spanner provided.
Connect the bottom bar (D) to the legs (B)、(C) and
the seat with back (A),using nuts and spanner provided.
CARE AND MAINTENANCE
Do not use acids or alkaline cleaning agents. Sharp objects will damage and scratch
the surface. Wipe the surface with a soft, damp cloth
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this
item
* This item should be assembled on a soft surface to prevent scratching the finish
during assembly
* This item may require periodic tightening
Part List and Hardware List
Model#PAT5000A-CHAIR
Product Dimensions:22.75"W x21 " D x39.75" H
PIECE QUANTITY
A 1x
B 1x
C 1x
D 1x
DESCRIPTION PICTURE
SEAT WITH BACK
LEFT LEG
RIGHT LEG
BOTTOM BAR
E 9x
F 1x
NUTS
SPANNER
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 10 minutes.
Tools Required for Assembly (included):SPANNER.
Nuts has been kept on product itself, two spare nuts can found in hardware bag
Please do not fully tighten bolts/nuts until the end of step.
Periodically check all bolted connections to make sure they are tight and secure.
step1 step2
Attach the left leg (B) and the right leg (C) to the seat with
back (A) using the nuts and spanner provided.
Connect the bottom bar (D) to the legs(B)、(C) and the
seat with back (A),using nuts and spanner provided.
CARE AND MAINTENANCE
Do not use acids or alkaline cleaning agents. Sharp objects will damage and scratch
the surface. Wipe the surface with a soft, damp cloth.
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this
item
* This item should be assembled on a soft surface to prevent scratching the finish
during assembly
* This item may require periodic tightening
Part List and Hardware List
Model#PAT5000-TABLE
Product Dimensions:39.25"W x 23.5" D x 22" H
PIECE QUANTITY
A 1X
B 2X
C 1X
D 8X
E 1X
DESCRIPTION PICTURE
TABLE TOP
LEGS
BOTTOM FRAME
FASTENING NUT
SPANNER
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 10 minutes.
Tools Required for Assembly (included): SPANNER
Nuts has been kept on product itself, two spare nuts can found in hardware bag.
Please do not fully tighten bolts/nuts until the end of step.
Periodically check all bolted connections to make sure they are tight and secure.

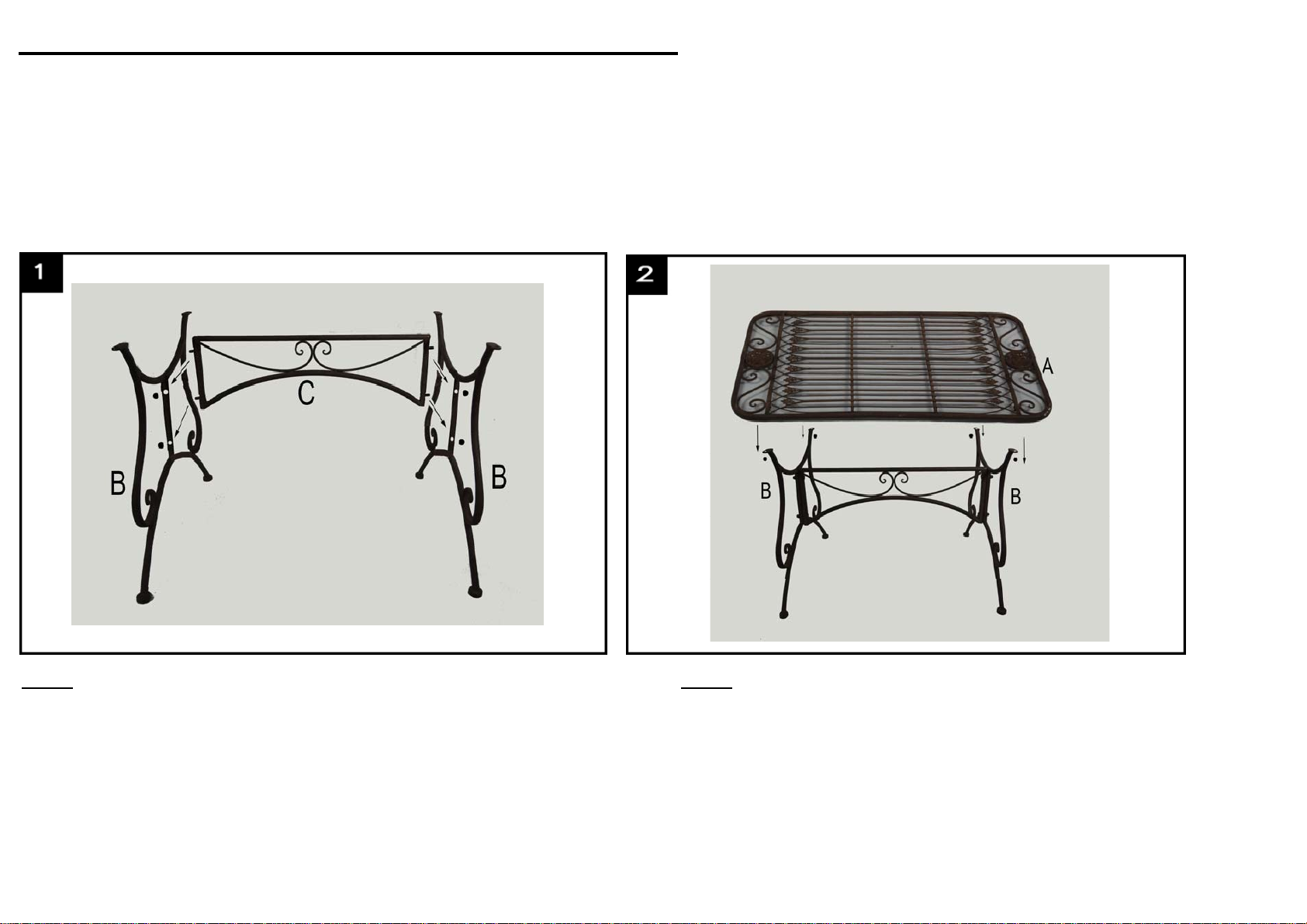

Step 1 Step 2
Attach the frame (C) to the legs (B) using the nuts provided. Put the table top (A) upside down, insert the legs (B)
into the screws on the table top, fasten the nuts with
spanner provided.
