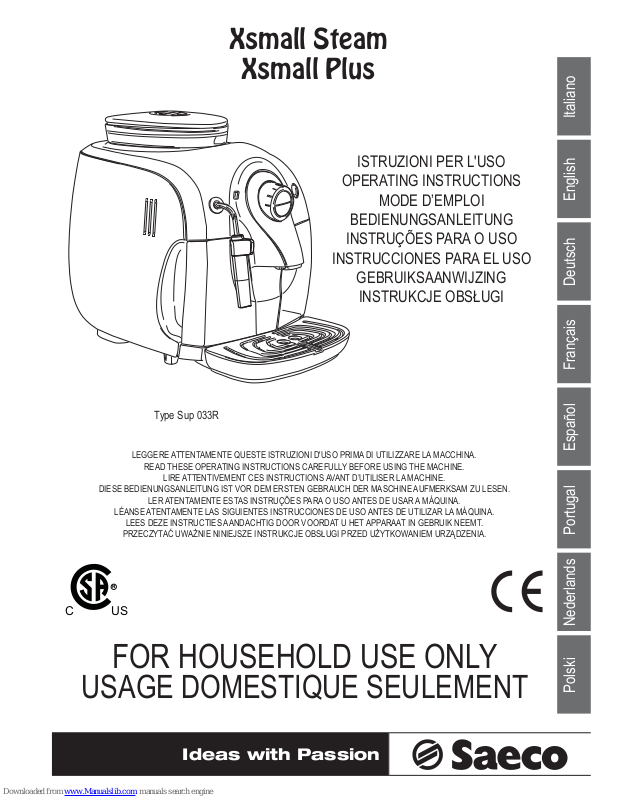

Xsmall Steam
Xsmall Plus
ItalianoEnglishDeutschFrançaisEspañolPortugalNederlandsPolski
ISTRUZIONI PER L'USO
OPERATING INSTRUCTIONS
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
INSTRUÇÕES PARA O USO
INSTRUCCIONES PARA EL USO
GEBRUIKSAANWIJZING
INSTRUKCJE OBSŁUGI
LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI D'USO PRIMA DI UTILIZZARE LA MACCHINA.
READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.
LIRE ATTENTIVEMENT CES INSTRUCTIONS AVANT D’UTILISER LA MACHINE.
DIESE BEDIENUNGSANLEITUNG IST VOR DEM ERSTEN GEBRAUCH DER MASCHINE AUFMERKSAM ZU LESEN.
LER ATENTAMENTE ESTAS INSTRUÇÕES PARA O USO ANTES DE USAR A MÁQUINA.
LÉANSE ATENTAMENTE LAS SIGUIENTES INSTRUCCIONES DE USO ANTES DE UTILIZAR LA MÁQUINA.
LEES DEZE INSTRUCTIES AANDACHTIG DOOR VOORDAT U HET APPARAAT IN GEBRUIK NEEMT.
PRZECZYTAĆ UWAŻNIE NINIEJSZE INSTRUKCJE OBSŁUGI PRZED UŻYTKOWANIEM URZĄDZENIA.
Page 2
Congratulazioni!
Ci congratuliamo con voi per l’acquisto di questa macchina per caffè espresso, di qualità superiore, e vi ringraziamo per
la fi ducia accordataci. Prima di mettere in funzione la macchina, vi consigliamo di leggere attentamente le istruzioni per
l’uso che vi spiegano come utilizzarla, pulirla e mantenerla in perfetta effi cienza. Se avete altre domande, rivolgetevi al
rivenditore o direttamente alla casa produttrice. Saremo lieti di darVi tutti i chiarimenti desiderati.
Congratulations!
Thank you for purchasing this highest quality espresso coffee machine and for your confi dence in our company. Before
operating the machine, we recommend carefully reading the operating instructions that explain how to use, clean and
maintain it in perfect working order. Please refer to an authorized dealer, or to Saeco, if you have any questions. We will
be happy to provide any clarifi cations.
Herzlichen Glückwunsch!
Wir gratulieren Ihnen zum Kauf dieses hochwertigen Kaffeevollautomaten und danken Ihnen für das Vertrauen, das
Sie uns entgegenbringen. Bevor Sie die Maschine in Betrieb nehmen, empfehlen wir Ihnen, die Gebrauchsanweisung
aufmerksam zu lesen, in der der Gebrauch, die Reinigung und die Pfl ege beschrieben werden. Sollten Sie darüber
hinaus weitere Fragen haben, so wenden Sie sich bitte an den Händler oder direkt an den Hersteller. Wir liefern Ihnen
gerne alle gewünschten Informationen.
Félicitations !
Nous vous félicitons pour l’achat de cette machine à café expresso de qualité supérieure et vous remercions de votre
confi ance. Avant de mettre la machine en marche, nous vous recommandons de lire attentivement ce mode d’emploi
qui vous explique comment utiliser, nettoyer et conserver la machine en parfait état de fonctionnement. Si vous avez
des questions à poser, nous vous prions de contacter le revendeur ou directement notre service consommateurs. Nous
vous donnerons avec plaisir toutes les informations nécessaires.
¡Enhorabuena!
Enhorabuena por haber comprado esta máquina de café exprés de alta calidad y gracias por la confi anza depositada
en nosotros. Antes de poner en funcionamiento la máquina se aconseja leer atentamente las instrucciones de uso que
explican cómo utilizarla, limpiarla y mantenerla en perfectas condiciones. En caso de dudas, dirigirse a un revendedor
o directamente al fabricante. Será un placer responderle.
Parabéns!
Obrigado por ter adquirido esta máquina de café expresso, de qualidade superior, e pela confi ança demonstrada. Antes
de pôr a funcionar a máquina, aconselhamos a ler atentamente as instruções de uso nas quais é explicado como utilizála, limpá-la e mantê-la em perfeita efi ciência. Para outros esclarecimentos, dirija-se ao revendedor ou directamente ao
fabricante. Teremos o prazer em esclarecer quaisquer outras dúvidas.
Gefeliciteerd!
Wij feliciteren u met het feit dat u deze espressomachine van topkwaliteit gekocht heeft en danken u voor het in ons
gestelde vertrouwen. Wij adviseren u om, voordat u het apparaat in gebruik neemt, deze instructies aandachtig te
lezen. In deze gebruiksaanwijzing wordt namelijk uitgelegd hoe u het apparaat het beste kunt gebruiken, schoonmaken
en onderhouden. Als u nog vragen heeft kunt u zich wenden tot de verkoper of rechtstreeks contact opnemen met de
fabrikant. Wij zullen u met plezier de gewenste informatie verschaffen.
Gratulacje!
Gratulujemy Państwu zakupu tego wysokiej jakości ekspresu do kawy espresso i dziękujemy za powierzone nam
zaufanie. Przed uruchomieniem urządzenia radzimy Państwu uważnie przeczytać instrukcje użytkowania, które objaśnią,
w jaki sposób należy go używać, myć i utrzymywać w doskonałym stanie. Jeżeli mają Państwo jakieś pytanie, należy
zwrócić się do sprzedawcy bądź bezpośrednio do producenta. B
ędziemy zaszczyceni mogąc udzielić Państwu wszelkich
informacji.
Page 3
3
22
23
21
24
3
1
10
2
4
6
7
8
5
11
13
12
14
20
19
15 1817
16
9
Page 4
4
Fig.1 - Abb.1 - Afb.1 - Rys.1 Fig.2 - Abb.2 - Afb.2 - Rys.2 Fig.3 - Abb.3 - Afb.3 - Rys.3
Fig.4 - Abb.4 - Afb.4 - Rys.4 Fig.5 - Abb.5 - Afb.5 - Rys.5 Fig.6 - Abb.6 - Afb.6 - Rys.6
Fig.7 - Abb.7 - Afb.7 - Rys.7 Fig.8 - Abb.8 - Afb.8 - Rys.8 Fig.9 - Abb.9 - Afb.9 - Rys.9
Fig.10 - Abb.10 - Afb.10 - Rys.10 Fig.11 - Abb.11 - Afb.11 - Rys.11 Fig.12 - Abb.12 - Afb.12 - Rys.12
MAX
MIN
Page 5
5
Fig.13 - Abb.13 - Afb.13 - Rys.13 Fig.14 - Abb.14 - Afb.14 - Rys.14 Fig.15 - Abb.15 - Afb.15 - Rys.15
Fig.16 - Abb.16 - Afb.16 - Rys.16 Fig.17 - Abb.17 - Afb.17 - Rys.17 Fig.18 - Abb.18 - Afb.18 - Rys.18
Fig.19 - Abb.19 - Afb.19 - Rys.19 Fig.20 - Abb.20 - Afb.20 - Rys.20 Fig.21 - Abb.21 - Afb.21 - Rys.21
Fig.22 - Abb.22 - Afb.22 - Rys.22 Fig.23 - Abb.23 - Afb.23 - Rys.23
Page 6
6
Fig.24 - Abb.24 - Afb.24 - Rys.24
Fig.29 - Abb.29 - Afb.29 - Rys.29
Fig.25 - Abb.25 - Afb.25 - Rys.25 Fig.26 - Abb.26 - Afb.26 - Rys.26
Fig.27 - Abb.27 - Afb.27 - Rys.27 Fig.28 - Abb.28 - Afb.28 - Rys.28
1 2
Page 7
18
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not
immerse cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to
cool before putting on or taking off parts, and before cleaning the
appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination,
repair or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot
surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated
oven.
11. Always attach plug to appliance first, then plug cord into wall outlet.
To disconnect, turn any control to “off”, then remove plug from wall
outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
Page 8
19
English
CAUTION
This appliance is for household use only. Any servicing, other than
cleaning and user maintenance, should be performed by an authorized
service centre. Do not immerse machine in water. To reduce the risk of
fire or electric shock, do not disassemble the machine. There are no
parts inside the machine serviceable by the user. Repair should be done
by authorized service personnel only.
1 Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2 Never use warm or hot water to fill the water tank. Use cold water only.
3 Keep your hands and the cord away from hot parts of the appliance
during operation.
4 Never clean with scrubbing powders or harsh cleaners. Simply use a
soft cloth dampened with water.
5 For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6 Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to
be provided to reduce risks resulting from becoming entangled in or
tripping over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marker electrical rating of the detachable power-supply cord
or extension cord should be at least as great as the electrical rating
of the appliance
2. If the appliance is of the grounded type, the extension cord should
be a grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over
the counter top or table top where it can be pulled on by children or
tripped over.
Page 9
20
GENERAL INFORMATION - SAFETY REGULATIONS
1 GENERAL INFORMATION
The coffee machine is suitable for preparing espresso
coffee using either coffee beans or ground coffee and
is equipped with a device to dispense steam and hot
water. The machine is designed for domestic use and is
not suitable for heavy or professional use.
Warning. No liability is assumed for damage
caused by:
• Incorrect use not in accordance with the intended
uses;
• Repairs not carried out by authorized service
centers;
• Tampering with the power cord;
• Tampering with any part of the machine;
• Failure to descale the machine or use at temperatures below 0°C (32°F);
• The use of non-original spare parts and accessories.
In these cases, the warranty shall be deemed null
and void.
1.1 To Simplify Manual Reading
The warning triangle indicates all
important instructions for the
user's safety. Please follow these
instructions carefully to prevent serious injuries.
References to illustrations, parts of the appliance
or controls, etc. are indicated by numbers or letters.
Whenever possible, refer to the illustration.
This symbol is used to highlight information
that is particularly important to ensure opti-
mal use of the machine.
The illustrations corresponding to the text can
be found on the fi rst pages of the manual. Please
refer to these pages while reading the operating
instructions.
1.2 How to Use These Operating Instructions
Keep these operating instructions in a safe place and
make them available to anyone else who would use
the coffee machine.
For further information or in case of problems, please
refer to an authorized service center. For Saeco
customer service, call 1-800-933-7876 in the U.S., or
1-514-385-5551 in Canada.
2 TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to
the technical specifi cations of the product.
Nominal Voltage - Power Rating - Power Supply
See label on the inside of the service door (3)
Housing Material
ABS - Thermoplastic
Size (w x h x d)
14.5" x 14.5" x 19" - 295 x 325 x 420 (mm)
Weight
15.2 lbs. - 6.9 kg
Power Cord Length
47" - 1.2 m
Control Panel
Front
Pannarello
Standard on the Plus model - Special device for cappuccino
Water Tank
33 oz./ 1.0 litres – Removable
Coffee Bean Hopper Capacity
6.5 oz. - 170 (g)
Dregdrawer Capacity
8 portions
Pump Pressure
15 bar
Boiler
Stainless steel
Safety Devices
Thermal fuse
3 SAFETY REGULATIONS
Never allow water to come into contact with any of
the electrical parts of the machine: Danger of short
circuit! Steam and hot water may cause scalding! Do
not direct the steam or hot water jet towards body
parts. Handle the steam/hot water spout by means of
the special handle: Danger of scalding!
Intended Use of the Machine
The coffee machine is intended for domestic use only.
Do not make any technical changes or use the machine
for unauthorized purposes since this would create
serious hazards! The appliance is not to be used by
persons (including children) with reduced physical,
mental or sensory abilities or with scarce experience
and/or expertise, unless they are supervised by a person
responsible for their safety, or they are instructed by this
Page 10
21
English
SAFETY REGULATIONS
person on how to properly use the machine.
Power Supply
Only connect the coffee machine to a suitable power
socket. The voltage must correspond to the indication
on the machine's label, located on the inside of the
service door (3).
Power Cord
Never use the coffee machine if the power cord is
defective or damaged.
If damaged, the power cord must be replaced by the
manufacturer or an authorized service center. Do not
pass the power cord around corners, over sharp edges
or over hot objects and keep it away from oil.
Do not use the power cord to carry or pull the coffee
machine.
Do not pull out the plug by the power cord or touch it
with wet hands.
Do not let the power cord hang freely from tables or
shelves.
For the Safety of Others
Prevent children from playing with the machine.
Children are not aware of the risks related to electric
household appliances. Do not leave the machine
packaging materials within the reach of children.
Danger of Burns
Never direct the jet of hot steam and/or hot water
towards yourself or others:
Danger of scalding!
Always use the handles or knobs provided.
Machine Location
Place the coffee machine in a safe place, where there
will be no danger of overturning or injury.
Hot water or overheated steam may spill out of the
machine: Danger of scalding!
Do not keep the machine at a temperature below 0°C
(32°F). Frost may damage the machine. Do not use the
coffee machine outdoors.
In order to prevent its housing from melting or being
damaged, do not place the machine on very hot surfaces
or close to open fl ames.
Cleaning
Before cleaning the machine, turn it off by pressing the
ON/OFF button, then remove the plug from the socket.
Wait for the machine to cool down.
Never immerse the machine in water!
It is strictly forbidden to tamper with the internal parts
of the machine.
Water left in the tank for several days should not be
consumed. Wash the tank and fi ll it with fresh drinking
water.
Suitable Location for Operation and Maintenance
To ensure a correct and efficient performance of
the coffee machine, we recommend following the
instructions below:
• Choose a level surface.
• Choose a location that is sufficiently well-lit, clean
and near an easily reachable socket.

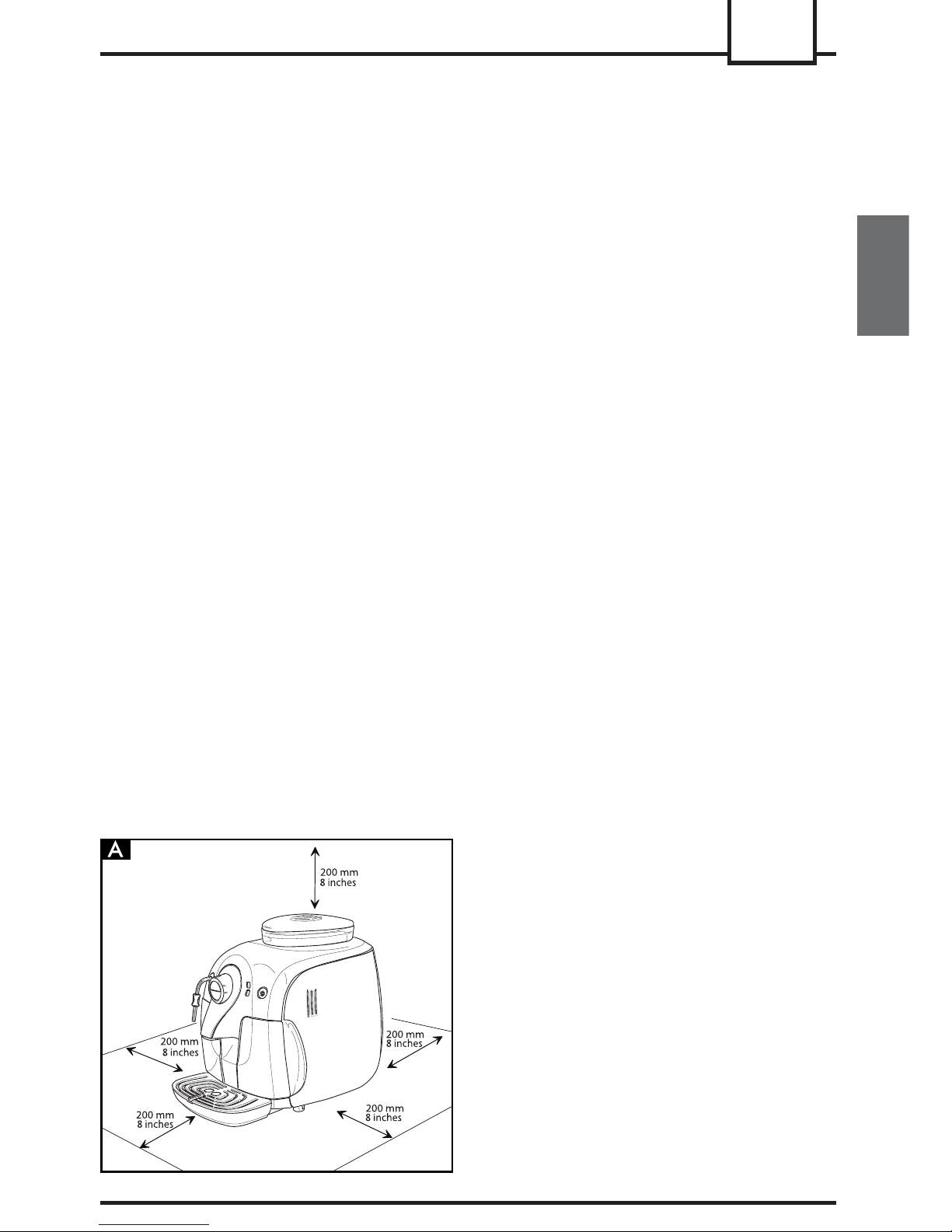

• Allow for a minimum distance from the sides of the
machine as shown in Fig. A.
Storing the Machine
If the machine is to remain inactive for a long time, turn
it off and unplug it. Store it in a dry place and out of the
reach of children. Keep it protected from dust and dirt.
Servicing / Maintenance
In case of failure, problems or a suspected fault resulting
from the falling of the machine, immediately remove the
plug from the socket. Never attempt to operate a faulty
machine.
Servicing and repairs may only be carried out by
authorized service centers.
All liability for damages resulting from work not carried
out by professionals is declined.
Fire Safety Precautions
In case of fi re, use carbon dioxide (CO2) extinguishers.
Do not use water or dry powder extinguishers.
Page 11
22
KEY TO MACHINE COMPONENTS - INSTALLATION
Key to Machine Components
Coffee bean hopper lid
Coffee bean hopper
Service door
Dregdrawer
Dispensing spout
Cup warming surface
Full drip tray indicator
Drip tray
Water tank
Hot water/steam wand
Protective handle
Control panel
Brew group
Control Panel
Small coffee brew button
Large coffee brew button
ON/OFF button
Control dial.
Warning light
Temperature light
Double coffee light
Accessories
Grinder adjustment key
Power cord
Brew group lubricant
Pannarello (standard on the Plus model only)
4 INSTALLATION
For your safety and the safety of others, carefully
follow the "Safety Regulations" in section 3.
4.1 Machine Packaging
The original packaging has been designed and
constructed to protect the machine during transport.
We recommend keeping the packaging material for
possible future transport.
4.2 Preliminary Operations
• Remove the coffee bean hopper lid (1) and the drip
tray (8) with grill (6) from the packaging.
• Remove the coffee machine from the packaging and
position it in a place that meets the requirements
described in the safety regulations (section 3).
• (Fig. 15) - Place the drip tray (8) with grill (6) into its
appropriate seat on the machine.
• Place the lid (1) on the coffee bean hopper (2).
• Before plugging the machine into the socket, be
sure that all steps outlined in section 4.3 have been
completed.
Important note: Carefully read the explana-
tions of all the warnings displayed by the
machine to the user by means of the lights on the
control panel (section 12).
Never remove the drip tray when the machine
is turned on. To remove the drip tray from the
machine, turn the machine off. The machine will carry
out a rinse/self-cleaning cycle (see section 4.4) when
it is turned off. When this cycle is fi nished, the drip
tray may be removed.
4.3 Using the Machine for the First Time
• (Fig. 3) - Remove the water tank (9).
• (Fig. 4) - Fill the tank with fresh drinking water up to
the MAX level. Re-insert the tank.
Use only fresh, non-sparkling water to fi ll the
tank (9). Hot water or any other liquid may
damage the tank and/or the machine. Do not turn
on the machine when the tank is empty. Make sure
there is enough water in the tank.
• (Fig. 1) - Remove the lid (1) from the coffee bean
hopper (2).
Page 12
23
English
INSTALLATION - ADJUSTMENTS
• (Fig. 2) - Fill the container with coffee beans.
Note: The grill on top of the coffee bean hopper cannot and must not be removed.
Only coffee beans must be put into the coffee
bean hopper (2). Ground coffee, instant coffee
or any other object may damage the machine.
• Replace the lid (1) on the coffee bean hopper (2).
• (Fig. 5A) - Insert the plug into the socket located on the
back of the machine.
• (Fig. 5B) - Insert the plug of the other end of the power
cord into a wall socket with suitable power voltage.
• Make sure control dial (17) is on "
" position; if this
is not the case, set it to that position.
• (Fig. 6) - Simply press the ON/OFF button (16) to
turn the machine on; the warning light (18) will begin
to blink rapidly indicating that the water circuit must
be primed.
4.4 Priming the Water Circuit
• (Fig.7) - To prime the water circuit, place a container
below the steam wand (Pannarello for Plus version)
(10).
• (Fig. 9) - Turn the control dial (17) clockwise to set it
to the "
" position and wait.
When water regularly comes out and the warning light
(18) will blink slowly, indicating that you can turn off the
control dial, rotate the control dial counter-clockwise
to set it back to the "
" position.
• At this point the temperature light (19) begins to blink
slowly, indicating that the machine is in warm-up
mode.
Note: Before starting the machine after long
periods of inactivity or if the water tank has
been completely emptied, it is recommended that
the circuit be primed.
When warm-up is complete, the machine
performs a rinse cycle of the internal circuits
(see section 4.4).
• When the above steps are complete, the machine is
ready for use.
• To brew coffee, dispense hot water or steam, and
for a proper use of the machine, carefully follow the
instructions provided.
4.5 Rinse/Self-Cleaning Cycle
This cycle rinses the coffee circuits with fresh water.
The rinse/self-cleaning cycle is carried out:
• When the machine is turned on (with cold boiler)
• After priming the water circuit (with cold boiler)
• During the warm-up phase (if a coffee product has
been brewed)
• When the machine is turned off (if a coffee product
has been brewed)
Note: Place a container beneath the dispensing spout (5) before the dispensing starts
(Fig. 8).
A small amount of water will be dispensed which will
rinse and heat all the machine components; in this
phase the lights will fl ash counter-clockwise.
Wait for the cycle to fi nish automatically. You can stop
dispensing as well, by pressing either coffee button.
5 ADJUSTMENTS
The machine that you have bought allows for certain
adjustments that will permit you to use it to its full
potential.
5.1 Saeco Adapting System
Coffee is a natural product and its characteristics may
change according to its origin, blend and roast. The
Saeco coffee machine is equipped with a self-adjusting
system that allows the use of all types of coffee beans
available on the market (not including flavored or
carmelized).
• The machine automatically adjusts itself in order to
optimize the extraction of the coffee, ensuring perfect
compression of the beans to obtain a creamy espresso
coffee that will release all the aromas, regardless of
the type of coffee used.
• The optimization process is a learning process that
requires the brewing of a certain number of coffees
to allow the machine to adjust the compactness of the
ground coffee.
• Attention should be given to special blends, which
require grinder adjustments in order to optimize the
extraction of the coffee (see section 5.2).
Page 13
24
ADJUSTMENTS - COFFEE BREWING
5.2 Coffee Grinder Adjustment
Warning! The grinder adjustment knob, inside
the coffee bean hopper, must be turned only
when the grinder is working. Do not pour ground and/
or instant coffee into the coffee bean hopper.
Do not insert any material other than coffee
beans into the hopper. The grinder contains
moving parts that may be dangerous. Therefore, do
not insert fi ngers and/or other objects. Turn off the
machine by pressing the ON/OFF button and remove
the plug from the socket before carrying out any
type of operation inside the coffee bean hopper.
Do not pour coffee beans when the coffee grinder
is working.
The machine lets you make slight adjustments to the
coffee grinder to adapt it to the kind of coffee used.
To make any adjustment, use the pin inside the coffee
bean hopper; this must be pressed and turned using
only the grinder adjustment key provided.
(Fig. 27) - Press and turn the pin one notch at a time.
You must brew 2-3 coffees before you will taste a
difference.
(Fig. 28) - The reference marks inside the coffee bean
hopper indicate the grind setting; there are 5 different
grind settings to choose from with the following
references:
1 - Coarse Grind
2 - Fine Grind
5.3 Adjusting the Amount of Coffee Brewed
The machine allows you to adjust the amount of brewed
coffee according to your tastes and/or the size of your
cups.
Each time you press and release a coffee button, the
machine brews a pre-programmed amount of coffee.
This amount may be reprogrammed to your taste. Each
button may be individually programmed for a specifi c
brew setting.
As an example, the following procedure describes the
programming of the small coffee button (14), which is
normally associated with espresso coffee.
• (Fig. 10A) - Place a cup beneath the dispensing
head.
• (Fig. 12) - Press and hold down the small coffee
button; the large coffee button blinks during this
phase.
• (Fig. 12) - Release the small coffee button when
the amount of coffee in the cup reaches the desired
level.
At this point the small coffee button is programmed;
each time it is pressed and released, the machine
will brew the same amount of coffee that was just
programmed.
5.4 Stand-By
The machine is designed for energy saving.
After 60 minutes of inactivity, the machines turns off
automatically.
To turn the machine on again, simply press the ON/OFF
button (16); in this case the machine will go through the
rinse cycle only if the boiler is cold.
5.5 Large Cups
Most cups on the market can be used with this coffee
machine.
If you would like to use an exceptionally large cup,
remove the grill (6).
Make sure that the drip tray (8) is clean and
empty before removing the grill and position-
ing the cup (see section 9).
(Fig. 11) - Remove the grill (6) and place the cup in the
special support.
Replace the grill (6) when fi nished.
6 COFFEE BREWING
Note: Should the machine not brew coffee,
make sure that the water tank (9) contains
water.
Before brewing coffee, make sure that the
green temperature light (19) is steady on and
that the water tank and the coffee hopper are full.
Keep the control dial (17) in the " " position,
during the coffee brewing cycle.
• (Fig. 10 - Fig. 11) - Place 1 or 2 cups under the
dispensing spout (5).
• (Fig. 12) - To brew coffee, press and release:
the small coffee button for an espresso coffee;
the large coffee button for a long coffee.
Page 14
25
English
DISPENSING HOT WATER - PREPARING A CAPPUCCINO
• To dispense 1 cup of coffee, press the button once. To
dispense 2 cups of coffee, press the button twice.
In this operating mode, the machine automati-
cally grinds and doses the correct amount of
coffee. Brewing two coffees requires two grinding
cycles and two brewing cycles, which the machine
carries out automatically.
• After the prebrewing cycle, coffee begins to dispense
out of the dispensing spout (5).
• Coffee brewing stops automatically when the pre-
programmed level is reached; however, it is possible
to interrupt coffee brewing by pressing the button
initially pressed.
The machine is adjusted to brew a true Italian
espresso coffee. This feature may slightly
lengthen the brewing time, allowing the intense fl avor
of the coffee to develop fully.
7 DISPENSING HOT WATER
Warning: Dispensing may be preceded by
short sprays of hot water, and scalding is
possible. The hot water/steam wand may reach high
temperatures. Do not touch it with bare hands; use
the appropriate handle only.
• Before dispensing hot water, make sure that the
green temperature light (19) is on.
When the machine is ready, proceed as follows:
• (Fig. 7) - Place a container under the hot water/steam
wand (Pannarello for Plus version) (10).
• (Fig. 9) - Turn the control dial (17) clockwise to set it
to the "
" position.
• Fill the cup with hot water to the level desired; to stop
hot water dispensing, turn control dial (17) counterclockwise back to the "
" position. The machine
returns to the normal operating mode.
Occasionally, after turning the control dial
(17) hot water may not be dispensed and the
temperature light (19) may blink slowly. To obtain a
fl ow of hot water, simply wait until the temperature
light (19) stops blinking and remains steady.
8 STEAM DISPENSING / CAPPUCCINO
Steam may be used to froth milk for a cappuccino, as
well as to reheat other beverages.
Warning: Dispensing may be preceded by
short sprays of hot water, and scalding is
possible. The hot water/steam wand may reach high
temperatures. Do not touch it with bare hands; use
the appropriate handle only.
• (Fig. 7) - Place a container under the hot water/steam
wand (10) (Pannarello).
• (Fig. 13) - When the machine is ready to brew coffee,
turn the control dial (17) counter-clockwise to set it to
the "
" position; residual water may come out of the
wand (Pannarello).
• The temperature light (19) blinks during the preheating
time required by the machine.
• Steam dispensing will begin when the green
temperature light (19) remains steady.
• Turn the control dial (17) clockwise and set it back to
the "
" position to stop dispensing steam.
• Fill 1/3 the cup with cold milk.
Use cold milk for better results when preparing a cappuccino.
• (Fig. 14) - Immerse the steam wand (Pannarello for
Plus version) in the milk to be heated and turn the
control dial (17) counter-clockwise to set it to the "
" position. Froth the milk by gently swirling the cup
and moving it up and down.
• After dispensing steam for the desired time, turn the
control dial (17) clockwise and set it back to the "
"
position to stop dispensing steam.
• The same procedure can be used to heat other
beverages.
After using the steam wand (Pannarello for Plus
version), wash it as described in the "Cleaning and
Maintenance" section.
• Prime the machine as described in section 4.4.
If the control dial is left on the central posi-
tion, the machine, in order to save energy,
automatically reaches the temperature needed to
dispense coffee.
Page 15
26
CLEANING AND MAINTENANCE
9 CLEANING AND MAINTENANCE
• Maintenance and cleaning can only be carried out
when the machine is turned off and unplugged.
• Do not immerse the machine in water.
• Do not wash any of its parts in the dishwasher.
• Do not use alcohol, solvents, and/or abrasive objects
to clean the machine.
• Use a soft, dampened cloth to clean the machine.
• Do not dry the machine and/or its components using
a microwave and/or standard oven.
• (Fig. 16) - Every day, after heating the milk, remove
the external part of the Pannarello (if present) and
wash it with fresh drinking water.
• (Fig. 17) - Clean the steam wand weekly. In order to
do this, you have to:
- Remove the external part of the Pannarello (for
standard cleaning);
- Remove the upper part of the Pannarello from the
hot water/steam wand;
- Wash the upper part of the Pannarello with fresh
drinking water;
- Wash the hot water/steam wand with a wet cloth and
remove any milk residue;
- Replace the upper part in the hot water/steam wand
(make sure it is completely inserted).
- Reassemble the external part of the Pannarello.
• (Fig. 4) - Clean the water tank daily.
- Remove the fi lter in the water tank and wash it under
running drinking water.
- Reposition the fi lter by gently pressing and turning
it.
- Fill the water tank with fresh drinking water.
• (Fig. 15) - Empty and clean the drip tray (8) daily; this
operation must also be performed when the fl oat (7)
is raised.
• (Fig. 18) - Empty and clean the dregdrawer daily.
9.1 Brew Group
• The brew group (13) must be cleaned at least once a
week.
• Turn off the machine by pressing the ON/OFF button
(16) and remove the plug from the socket.
• (Fig. 18 - Fig. 19) - Remove the dregdrawer (4). Open
the service door (3).
• (Fig. 20) - To remove the brew group (13), pull it by
the handle and press the «PUSH» button.
• (Fig. 21) - Wash the brew group with lukewarm water,
carefully clean the upper fi lter and dry.
• Thoroughly clean the inside of the machine.
• (Fig. 22) - Make sure that the two reference marks
match up.
• (Fig. 23) - Make sure that the lever is in contact with
the brew group. Press the "PUSH" button to make
sure that the brew group is in the correct position.
Lubricate the brew group after approximately
500 brewing cycles. The brew group lubricant
may be purchased through Saeco or authorized
service centers.
• (Fig.24) - Lubricate the brew group guides using the
supplied lubricant.
• (Fig.25-26) - Apply the lubricant evenly on both side
guides.
• Insert the brew group in its seat until it locks into place
WITHOUT pressing the "PUSH" button.
• Insert the dregdrawer and close the service door.
10 DESCALING THE MACHINE
Limescale normally builds up with the use of the
appliance. Descaling should be performed every 1-2
months, or when indicated by the machine.
Please use Saeco descaling solution in your
machine. It has been specifi cally developed to
preserve performance and functionality throughout
the lifetime of the machine and to ensure, with regular
use, a high quality delivered product.
Warning! Never use vinegar as a descaling
solution.
(Fig. 17) - Before descaling, remove the Pannarello (if
present) from the hot water/steam wand as described in
the "Cleaning and Maintenance" section.
• Turn the machine on by pressing the ON/OFF button
(16). Wait for the machine to complete the warm
up and rinse cycles.
• Mix the descaling solution with water as specifi ed on
the package of the descaling product and fi ll the water
tank.
Page 16
27
English
DESCALING THE MACHINE - MACHINE DISPOSAL
• (Fig.7) - Place a container under the hot water/steam
wand (10).
• (Fig.9) - Dispense one cup of water at a time to
completely empty the water tank by turning the
control dial (17) clockwise to the "
" position. To stop
dispensing, turn the control dial (17) counter-clockwise
to set it back to the "
" position.
• Between each interval, allow the descaling solution
to take effect for about 10-15 minutes and press the
ON/OFF button (16) to turn the machine off. Empty
the container.
• Repeat this operation until the water tank is empty.
• Rinse the water tank and fi ll it with fresh water.
• Turn the machine on by pressing the ON/OFF button
(16).
• (Fig. 9) - Empty the water tank by turning the control
dial (17) clockwise to the "
" position. When the
water tank is empty, turn the control dial (17) counterclockwise to set it to the "
" position.
When descaling is complete, insert the Pannarello
(for Plus version) into the hot water/steam wand as
described in the "Cleaning and Maintenance" section.
Saeco descaling solution should be disposed
of according to the manufacturer instructions
and/or the regulations in the country of use.
11 MACHINE DISPOSAL
- The packing materials can be recycled.
- Appliance: unplug the appliance and cut the power
cord.
- Deliver the appliance and power cord to a service
center or public waste disposal facility
This product complies with eu directive 2002/96/ec.
The symbol
on the product or on its
packaging indicates that this product may not be
treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise
be caused by inappropriate waste handling of this
product. For more detailed information about recycling
of this product, please contact your local city offi ce, your
household waste disposal service or the shop where
you purchased the product.
Page 17
28

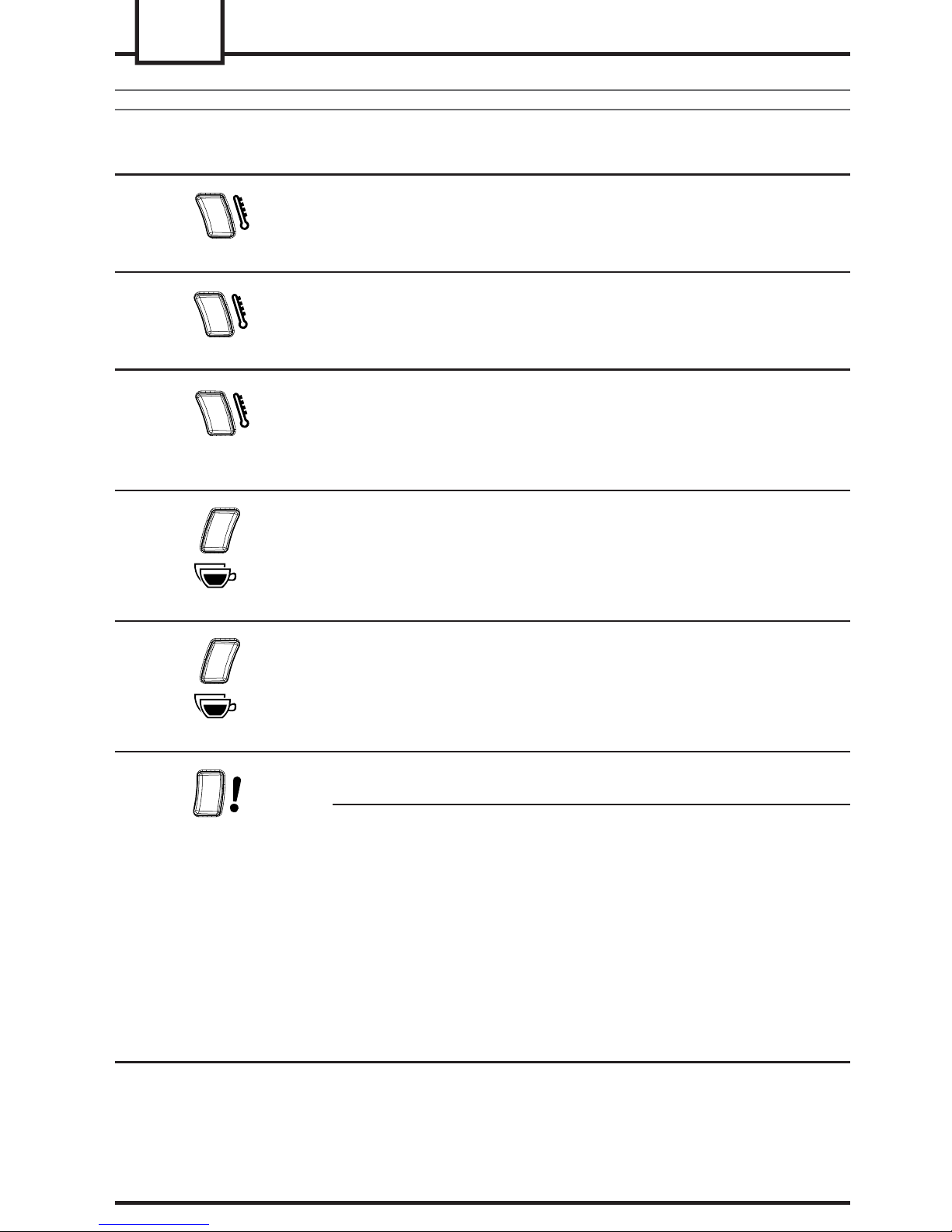

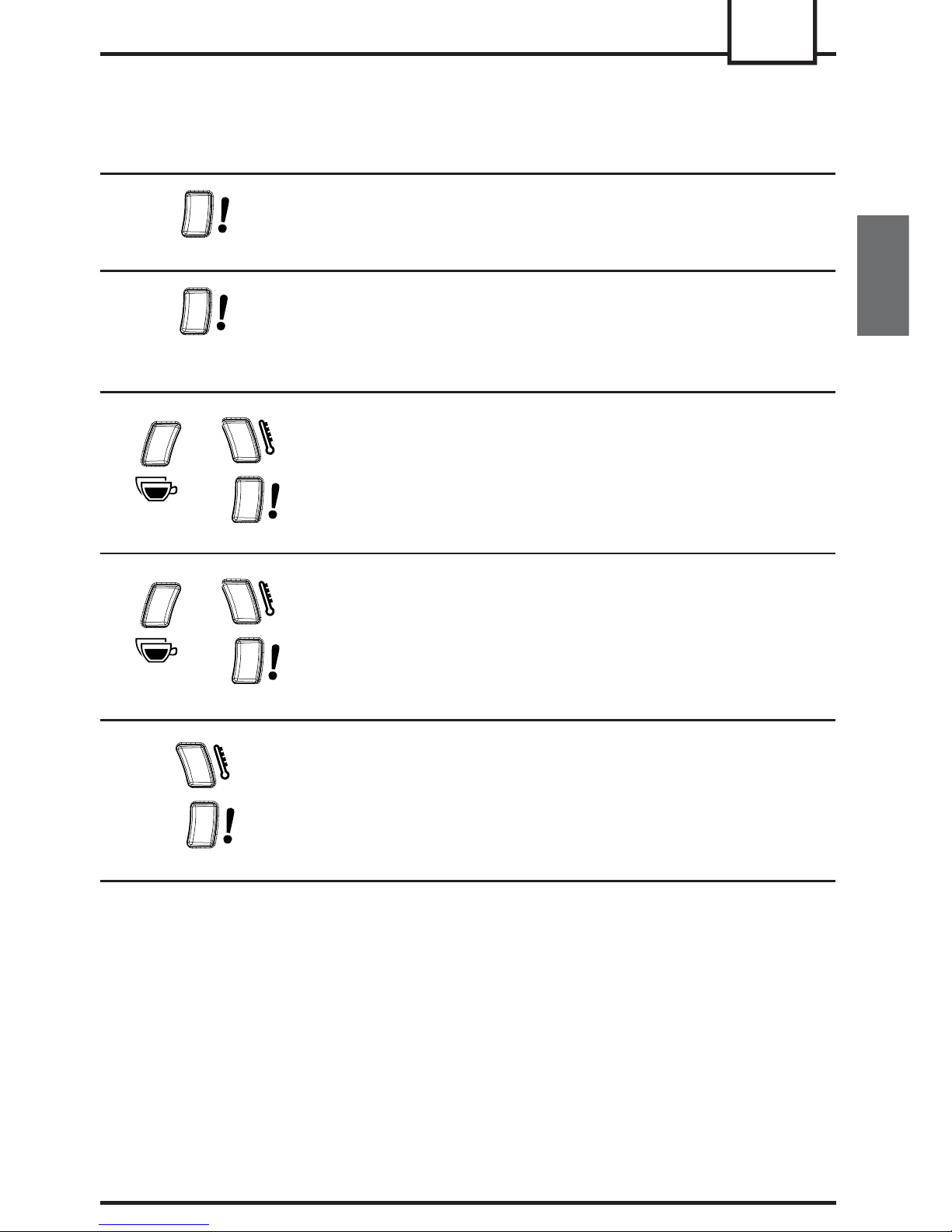

CONTROL PANEL LIGHTS
12 CONTROL PANEL LIGHTS
Light Signals Causes Solutions
Steady on
The machine is warmed up and ready
to use.
Slowly Flashing
The machine is warming up.
Quickly Flashing
Machine is overheating. Coffee may
not be brewed.
Prime the machine.
Slowly Flashing
Indicates that the machine is
programming the amount of coffee
to brew (see section 5.3).
Steady on
The machine is brewing a double
coffee.
Steady on
The coffee bean hopper is empty. Fill the bean hopper with whole
coffee beans.
Dregdrawer full. With the machine turned on, empty
the coffee dregdrawer.
The dregdrawer must be emptied
after every 8 coffee cycles. If the
dregdrawer is emptied with the
machine turned off, or when the
indicator light is not illuminated, the
count of coffee cycles is not reset.
For this reason, the indicator light to
empty the dregdrawer may illuminate
even when it is not full.
Page 18
29
English
Light Signals Causes Solutions
Quickly fl ashing
The machine needs to be primed. Fill the tank with fresh drinking
water and prime the water circuit as
described in section 4.4.
Slowly fl ashing
Brew group not inserted.
Dregdrawer not inserted.
Service door is open.
Control dial is not in correct
position.
Make sure that all components have
been correctly inserted and closed.
+
Flashing counterclockwise
The machine is performing the
rinse/self-cleaning cycle (see
Section.4.5).
The machine ends the cycle
automatically.
You can interrupt the cycle by
pressing either coffee button.
+
Flashing simultaneously
An error has occurred. Turn the machine off. After
30-seconds, turn it back on.
Try this 2 or 3 times.
If the machine does NOT start,
contact an authorized service
center.
Flashing alternately
A fault has occurred in the brew
group.
Try again to brew another coffee.
Page 19
30
MACHINE ACTIONS - CAUSES - SOLUTIONS
Problems Causes Solutions
The machine does not turn on. The machine is not connected to the
power source.
Connect the machine to the power source.
The coffee is not hot enough. The cups are cold. Preheat the cups with hot water.
Hot water or steam is not
dispensed.
The hole of the hot water/steam wand
is clogged.
Clean the hole of the hot water/steam using
a pin.
Make sure that the machine is turned off
and has cooled before performing this
operation.
Pannarello is dirty (if present). Clean the Pannarello.
The coffee is not creamy
enough.
(see note)
The coffee blend is unsuitable, the
coffee is not freshly roasted or the grind
is too coarse.
Change coffee blend or adjust the grind
(section 5.2).
The machine takes a long time to
warm up or the amount of water
dispensed from the wand is too
little.
The machine's water circuit is obstructed
by limescale build-up
Descale the machine.
The brew group does not come
out.
The brew group is out of place. Turn the machine on. Close the service door.
The brew group is automatically placed in
the correct position.
The dregdrawer is inserted. Remove the dregdrawer fi rst, then the brew
group.
The machine grinds the coffee
beans but no coffee comes out.
(see note)
Water tank is empty. Fill the water tank and prime the circuit
(section 4.4).
The brew group is dirty. Clean the brew group (section 9.1).
The circuit is not primed. Prime the circuit again by dispensing hot
water from the hot water/steam wand.
Rare event that occurs when the
machine is automatically adjusting the
dose.
Brew a few coffees as described in section
5.1.
The dispensing spout is dirty. Clean the dispensing spout.
The coffee is too weak.
(see note)
Rare event that occurs when the
machine is automatically adjusting the
dose.
Brew a few coffees as described in section
5.1.
Coffee is brewed slowly.
(see note)
The coffee grind is too fi ne. Change coffee blend or adjust the grind
(section 5.2).
The water circuit is not primed. Prime the circuit again by dispensing hot
water from the hot water/steam wand.
The brew group is dirty. Clean the brew group (section 9.1).
Coffee leaks out of the dispensing
spout
The dispensing spout is clogged. Clean the dispensing spout and its holes.
Note: These problems can be considered normal if the coffee blend has been changed or if the machine has
just been installed; in this case wait until the machine performs a self-adjusting operation as described in
section 5.1.
Please contact customer service for any problems not covered in the above table or when the suggested
solutions do not solve the problem.
Loading...
