Sabrent EC-UEIS7 User Manual

Sabrent EC-UEIS7 USB 2.0/ESATA TO 3.5″ IDE/SATA/SATA II ALUMINUM HARD DRIVE ENCLOSURE WITH COOLING FAN

1. Device Setup

3.5 Inch IDE Drive:

1. Check if your IDE drive has Jumpers, if so make sure they are set to Master. (Note: Please refer to the drive

manufacturer’s website for more information regarding your specific hard drive model.):

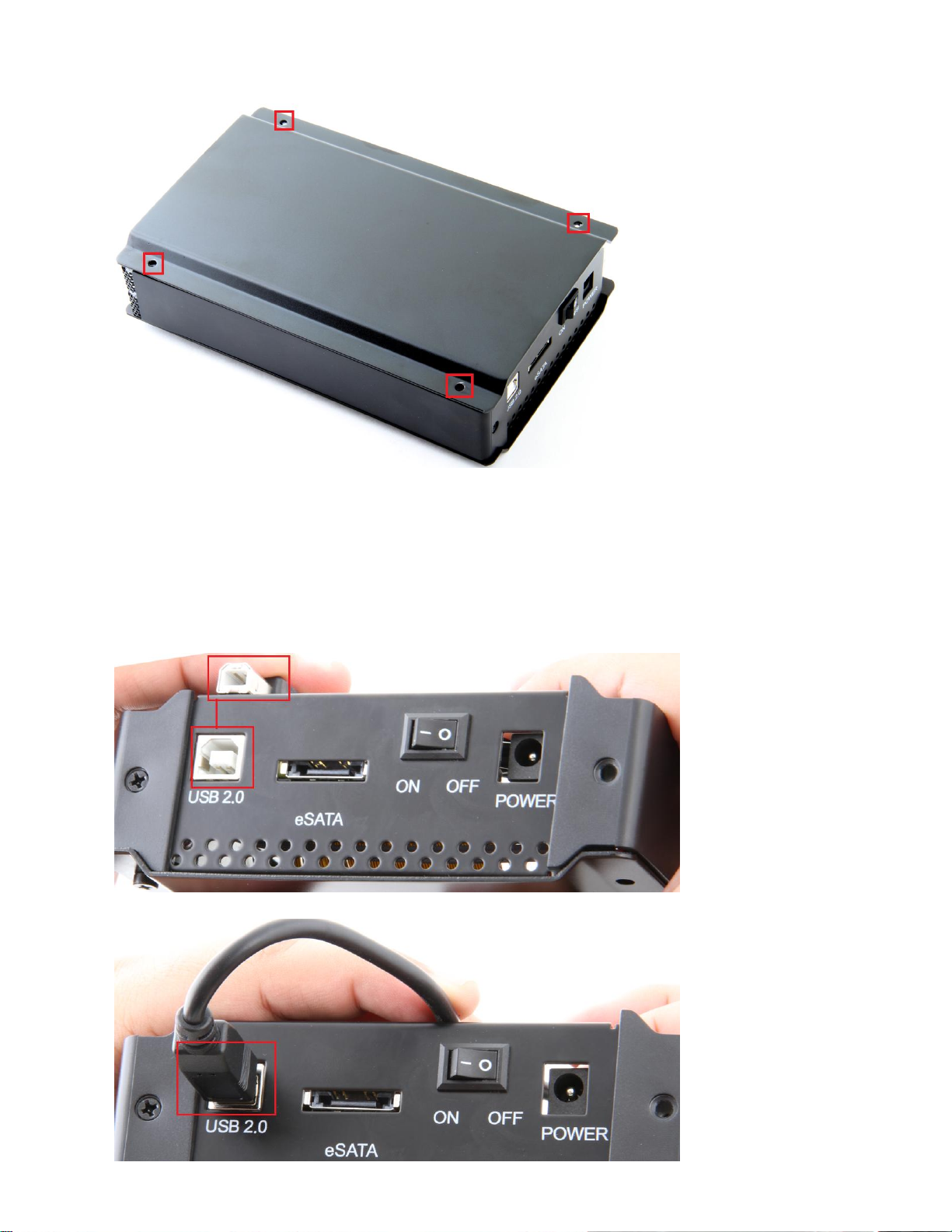

2. Remove the screws, on the side without the fan, using the included screwdriver. Remove the panel:

Figure A:

Figure B:

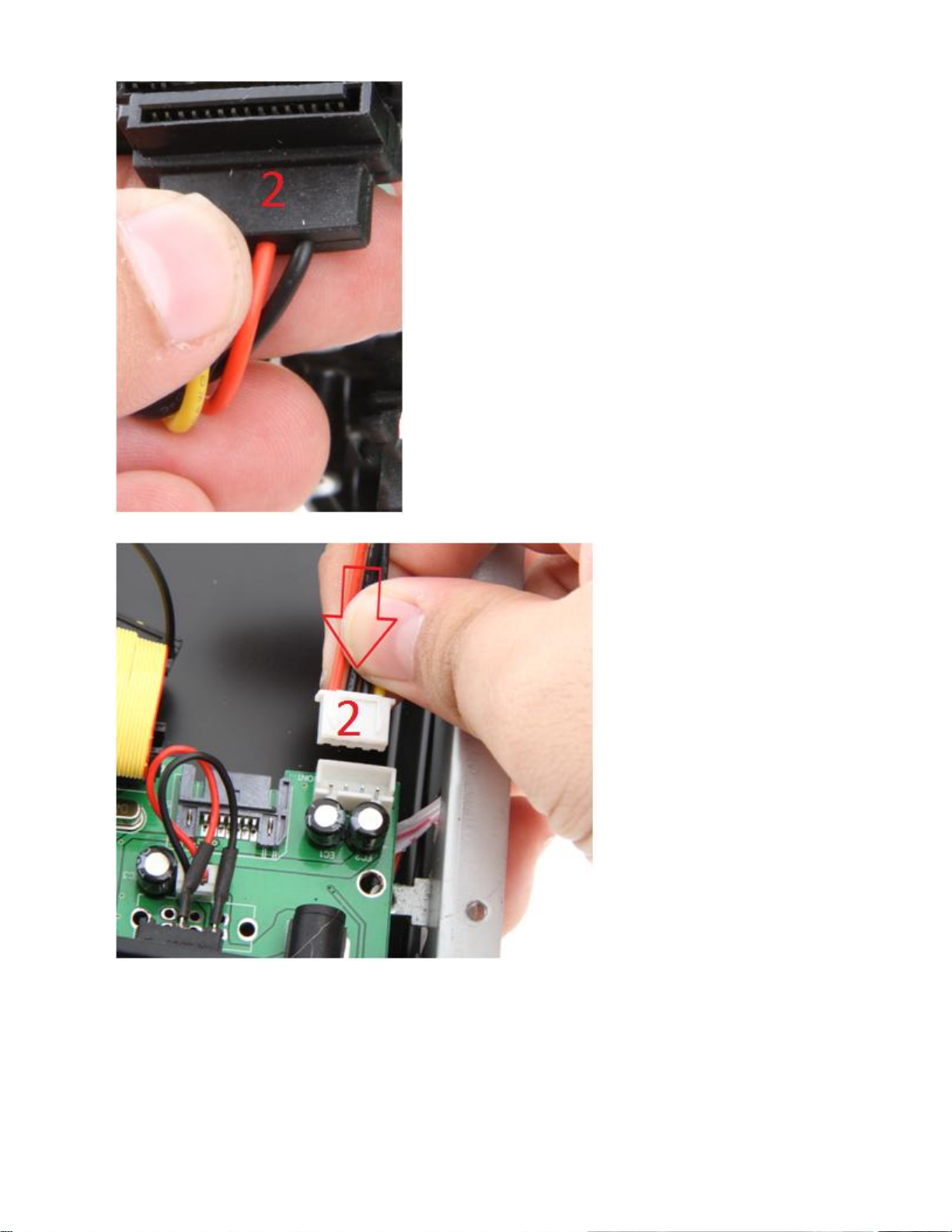

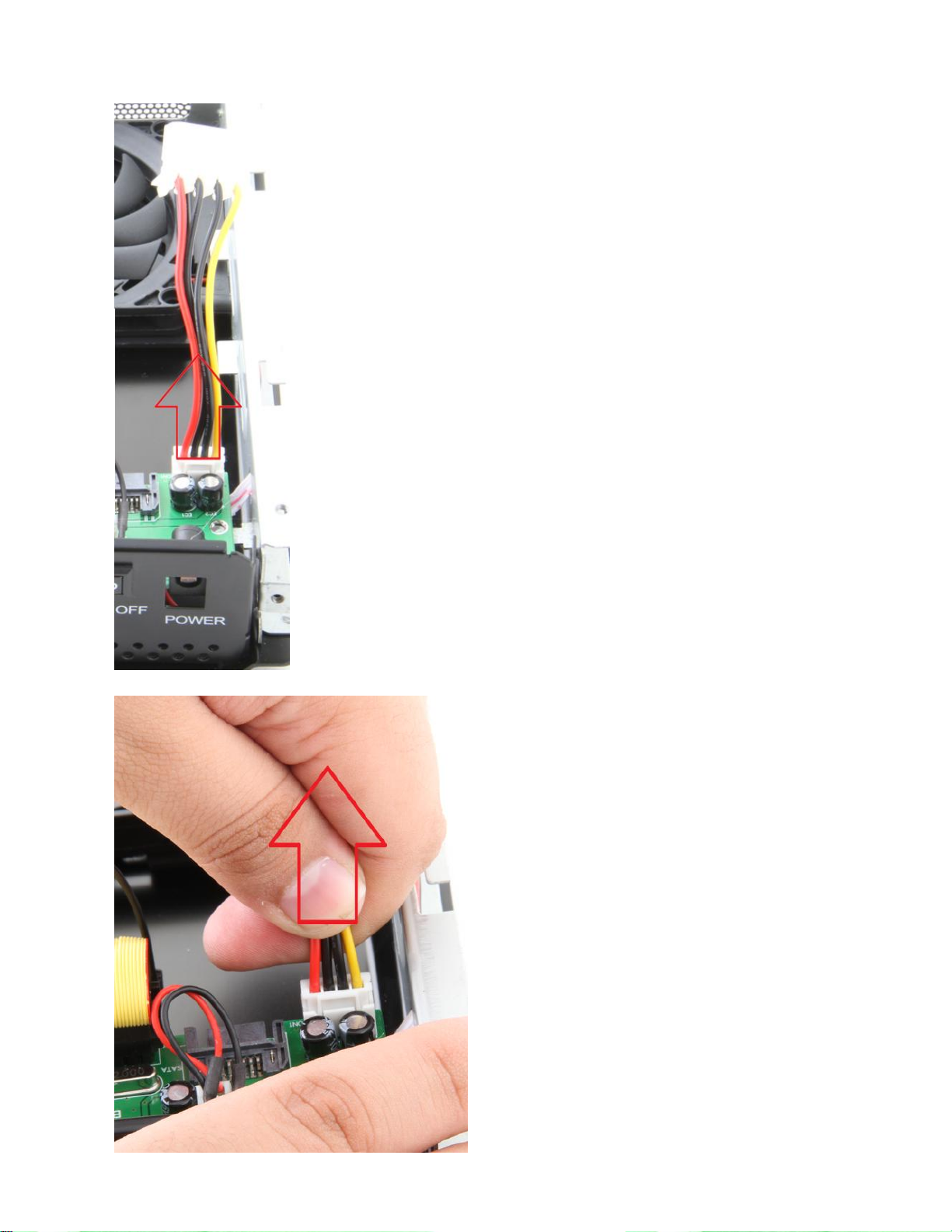

3. Locate the IDE power cable. Connect it to the IDE power port on your drive:

Figure A:

Figure B:

Figure C:

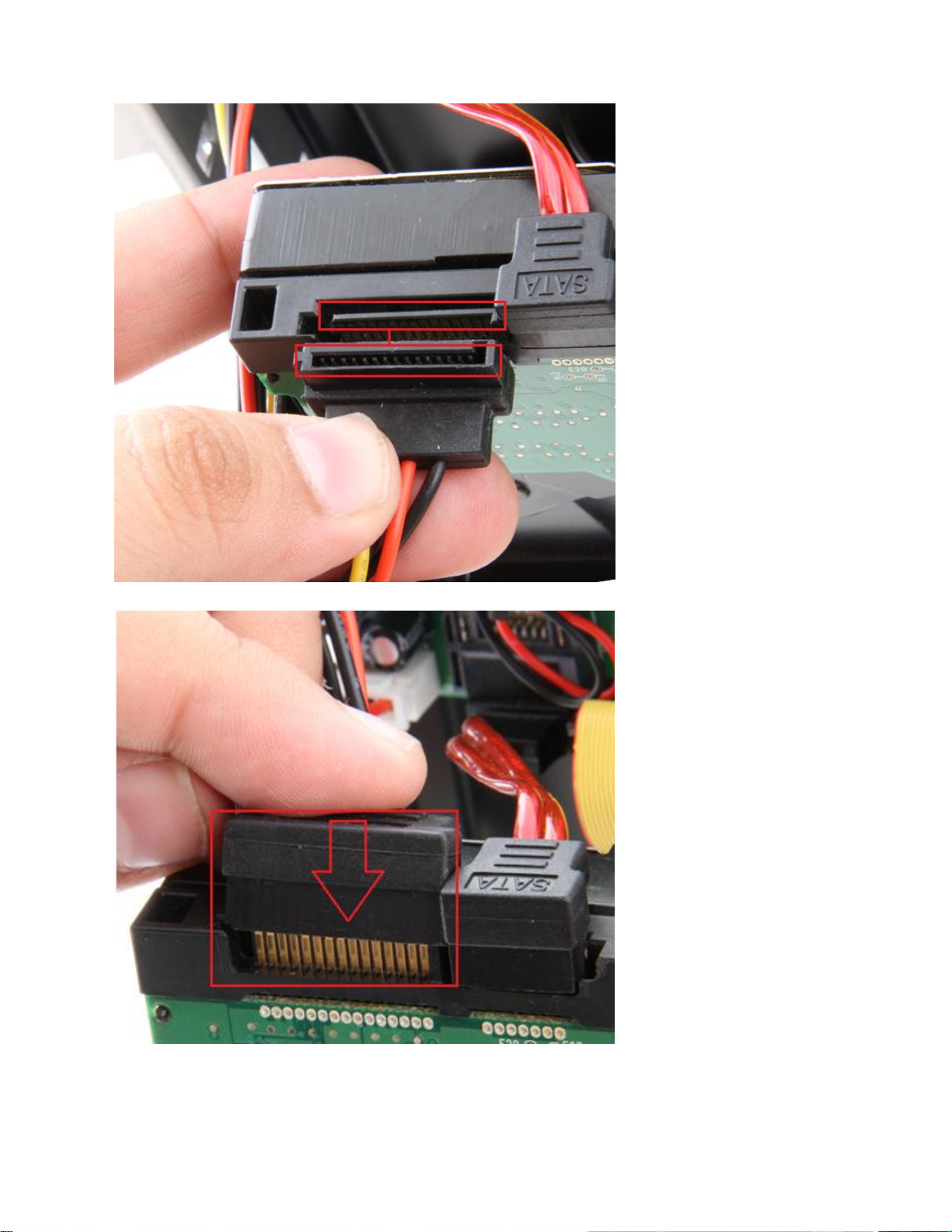

4. Locate the IDE data cable. Connect it to the IDE data port on your drive.

Figure A:

Figure B:

Figure C:

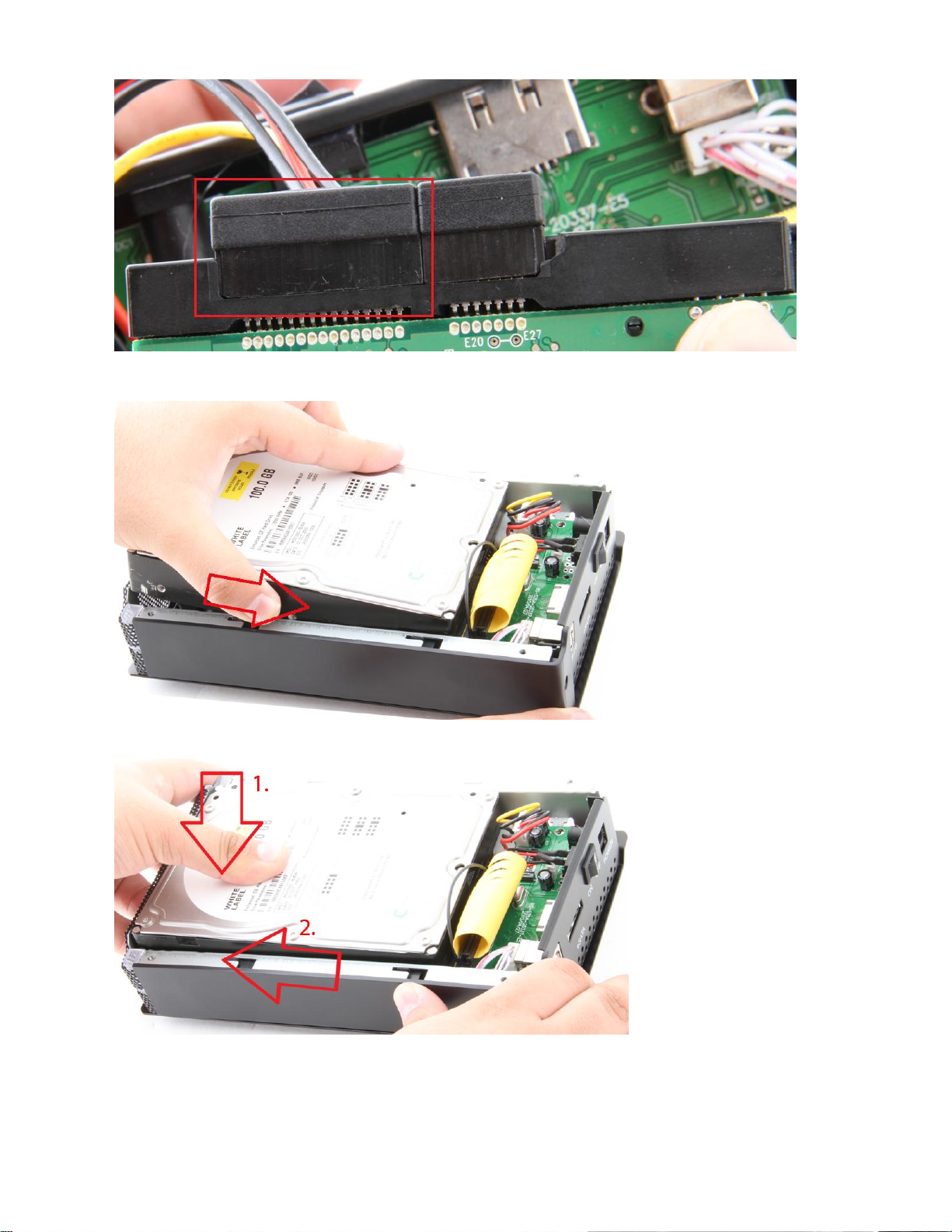

5. Insert the hard into the enclosure, as shown below:

Figure A:

Figure B:

6. Place the cover back on the enclosure. Screw it back in place:

Figure A:

3.5 Inch SATA Drive

1. Remove the screws, on the side without the fan, using the included screwdriver. Remove the panel:

Figure A:

Figure B:

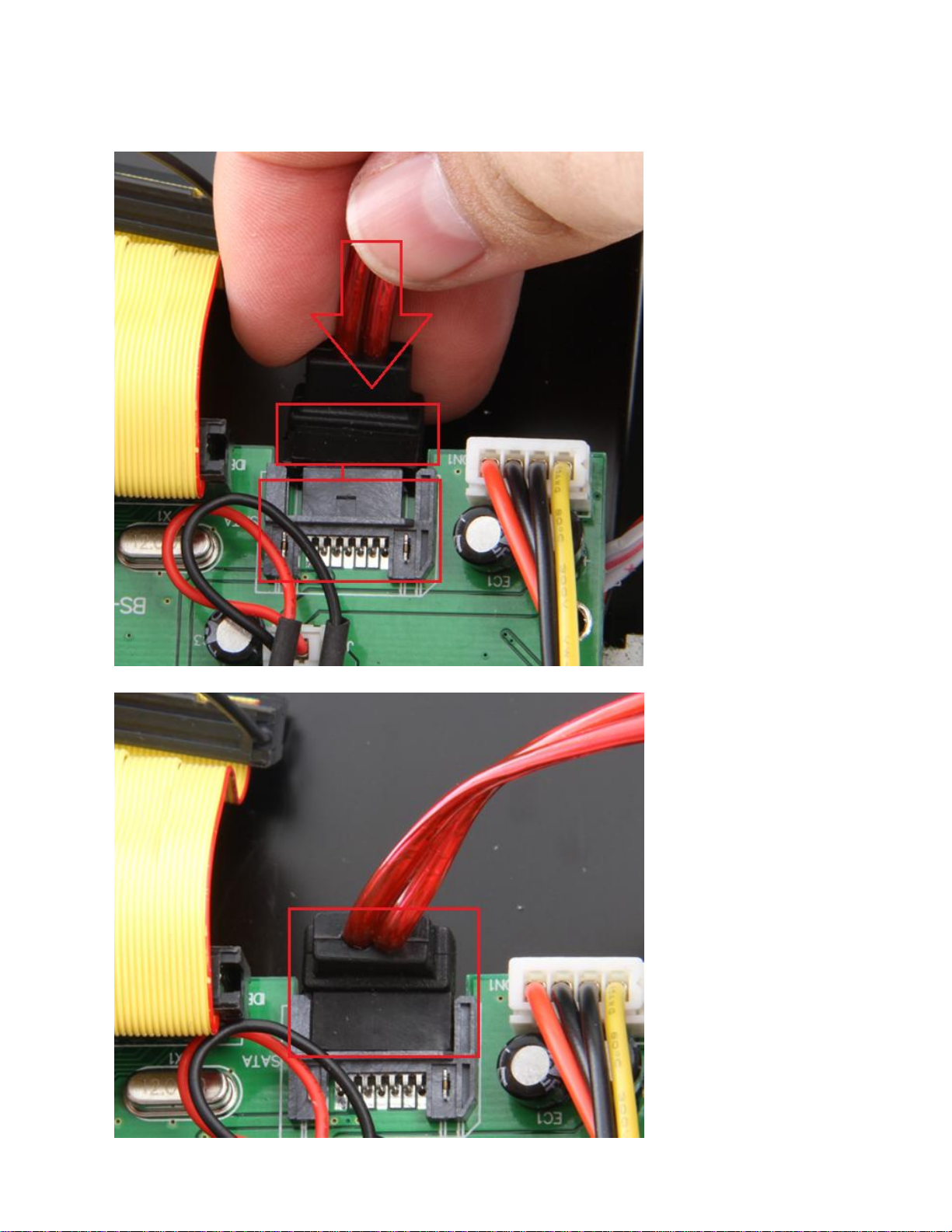

1. Locate the SATA data port on the enclosure. Plug one end of the SATA data cable into the port.

Figure A:

Figure B:
