Page 1
The right way to attach almost anything to metal roofs!
Installation Instructions
S-5!® Warning! Please use these products responsibly! Visit our website or contact your
S-5! distributor for available load test results. The user and/or installer of these parts is
responsible for all necessary engineering and design to ensure the S-5-N and S-5-N 1.5
have been properly spaced and configured.
Notice to S-5! users: Due to the many variables involved with specific panel
products, climates, snow melt phenomena, and job particulars, the manufacturer
cannot and does not express any opinions as to the suitability of any S-5! assembly for
any specific application and assumes no liability with respect thereto. S-5! products
are tested for ultimate holding strength on various profile types and materials. This
information is available from the S-5! website: www.S-5.com. This document is an
installation guide only and the photographs and drawings herein are for the purpose
of illustrating installation, tools and techniques, not system designs. Information
contained within is intended to apply to the document as a whole.
IMPORTANT: The S-5-N, S-5-N Mini, S-5-N 1.5, and S-5-N 1.5 Mini are designed to fit
numerous (but dimensionally specific) 1” - 1.5” nail strip profiles; however these
profile types are vast with new variations coming into the market regularly. These
clamps may not be suitable for every such profile. To avoid potential damage to
roof seam it is important to verify clamp-to-roof suitability. Consult the load table
for suitability at the S-5! website: www.S-5.com.
Tools Needed
• Screw Gun
• T30 Torx Bit Tip (provided)
• Dial-Calibrated Torque Wrench
(
For accurate tension values, do NOT use a clicking torque
wrench)

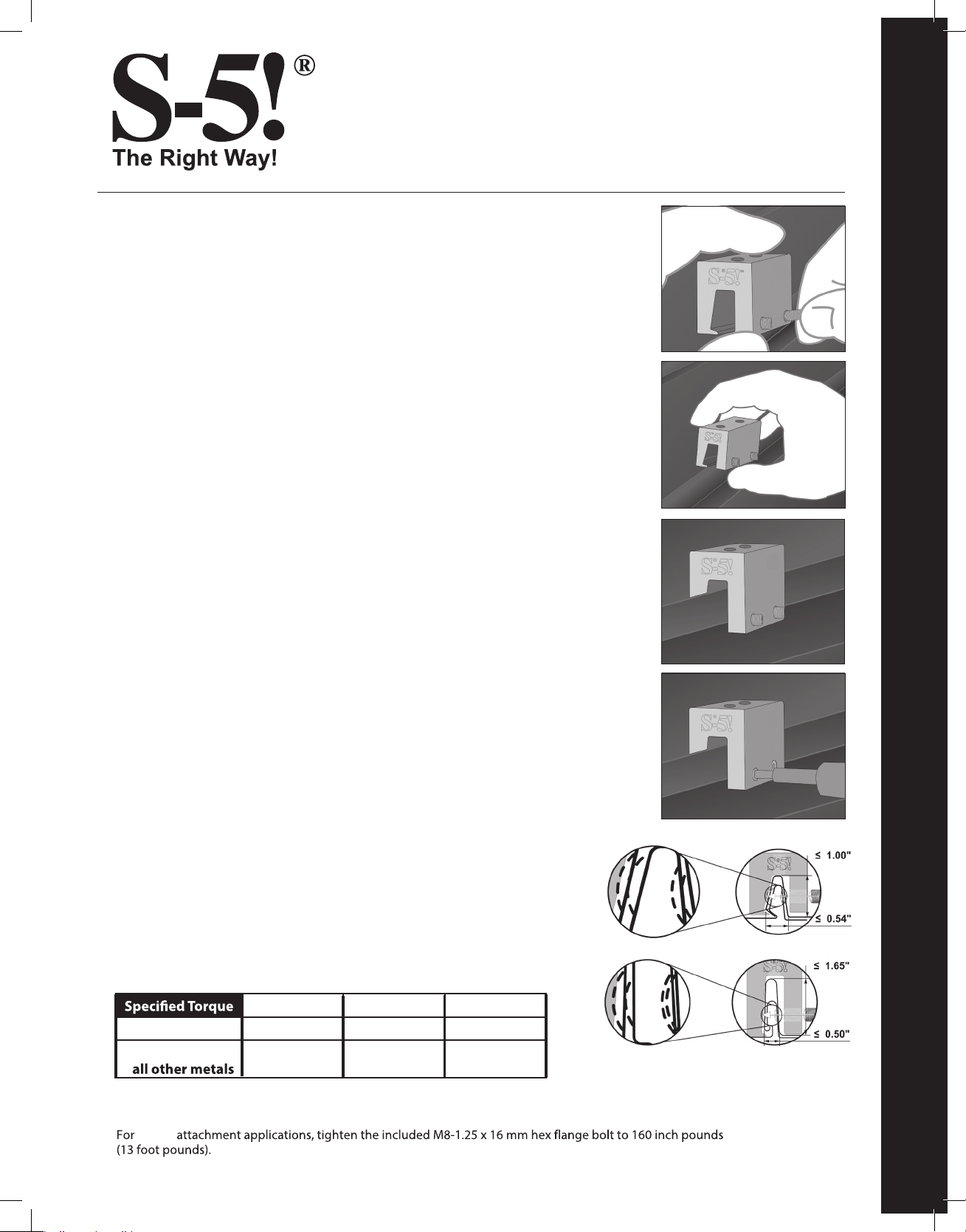

To Install S-5-N and S-5-N 1.5
1. Partially thread the setscrews into the clamp by hand.
2. Position clamp at desired location along the seam.
3. Make sure the toe of the clamp engages the female part of the seam as shown.
Tighten the setscrews using a screw gun* and the included screw gun
4.
bit tip. Setscrews should be tensioned and re-tensioned as the seam
material compresses, i.e. tighten the first setscrew, then the second;
then repeat until each setscrew achieves the recommended torque.
The setscrews will dimple the seam material but will not penetrate it.
When relying on published load values, setscrew tension should be
verified periodically using a calibrated torque wrench as indicated
below to ensure the tool is consistently achieving the proper torque
range.
* For time-saving tool recommendations, call S-5!
Note: Seams that exceed maximum allowance (see illustrations to right) at the widest part of the
seam will require hand crimping to allow the clamp to fit.
1
2
3
S-5-N & Mini and S-5-N 1.5 & Mini Install
4
Above illustrations show S-5-N clamp.
S-5-N & S-5-N Mini
Inch Pounds Foot Pounds Nm
22ga steel 160–180 13–15 18–20
24ga steel and
Once installed correctly, these clamps require no maintenance or reinspection for the life of the roof.
critical
These instructions are for use by those experienced in the trade. Always follow appropriate safety precautions and use appropriate tools.
130–150 11–12.5 15–17
S-5-N 1.5 & S-5-N 1.5 Mini
888-825-3432 | www.S-5.com
Page 2
S-5-N Mini, and S-5-N 1.5 Mini Installation Instructions

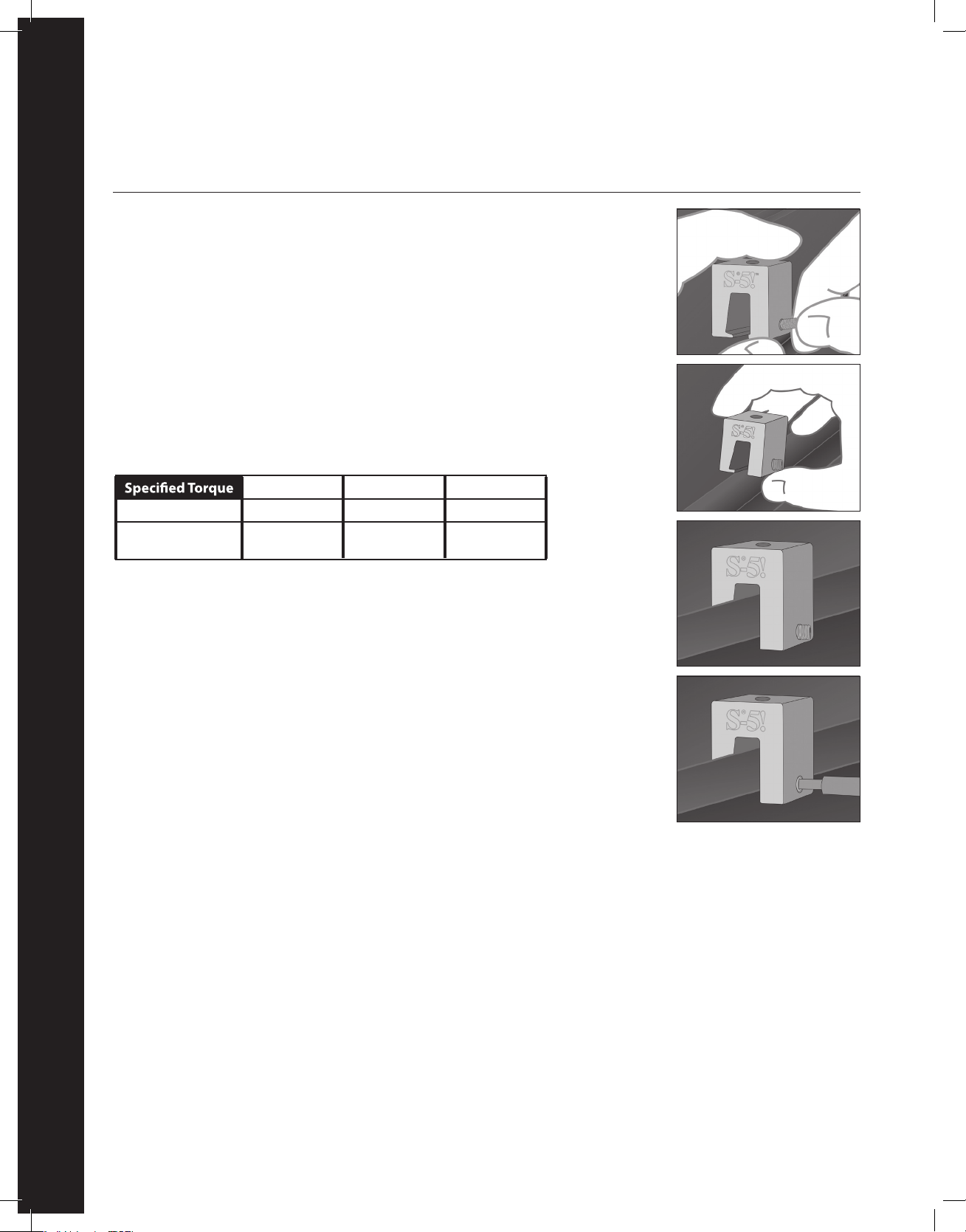

To Install S-5-N Mini and S-5-N 1.5 Mini
1. Partially thread the setscrew into the clamp by hand.
2. Position clamp at desired location along the seam.
3. Make sure the toe of the clamp engages the female part of the seam as shown.
4. Tighten the setscrew using a screw gun* and the included screw gun bit tip. The
setscrew will dimple the seam material but will not penetrate it. When relying on
published load values, setscrew tension should be verified periodically using a
calibrated torque wrench as indicated below to ensure the tool is consistently
achieving the proper torque range.
1
Note: Seams that exceed maximum allowance (see illustrations on front page) at the widest part
of the seam will require hand crimping to allow the clamp to fit.
* For time-saving tool recommendations, call S-5!
Inch Pounds Foot Pounds Nm
22ga steel 160–180 13–15 18–20
24ga steel and
all other metals
Once installed correctly, the
the life of the roof.
For critical attachment applications, tighten the M8-1.25 x 16 mm hex flange
bolt (sold seperately) to 160 inch pounds (13 foot pounds).
NOTE: Any S-5! warranty and/or calculation may be void if hardware
is used that was not furnished by S-5! directly or through one of their
licensed distributors
130–150 11–12.5 15–17
se clamps require no maintenance or re-inspection for
2
3
4
Above illustrations show S-5-N Mini clamp.
S-5!® Warning! Please use this product responsibly!
Produc ts are protect ed by multiple U. S. and foreign pa tents. Visit th e website at www. S-5.com for comp lete informat ion on patents and t rademarks. F or maximum hold ing strength, s etscrews
should be tensioned and re-tensioned as the seam material compresses, i.e. tighten the first setscrew, then the second; then repeat until each setscrew achieves the recommended torque. Clamp
setscrew tens ion should be verified using a calibrated torque wrench between 160 and 180 inch pounds when used on 22ga steel, and between 130 and 150 inch pounds for all other metals and
thinner gauges of steel. Consult the S-5! website at www.S-5.com for published data regarding holding strength.
Copyright 2020, Metal Roof Innovations, Ltd. S-5! products are patent protected.
S-5! aggressively protects its patents, trademarks, and copyrights. Version 0420.
NN1.5I-V1.1-0420
