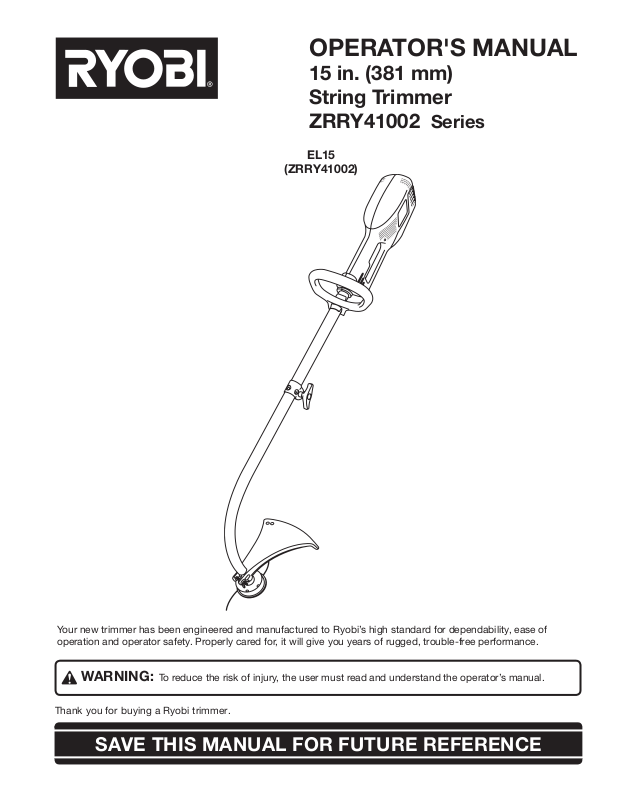

Ryobi Outdoor ZRRY41002 User Manual
OPERATOR'S MANUAL
15 in. (381 mm)
String Trimmer
ZRRY41002 Series
EL15
(ZRRY41002)
Your new trimmer has been engineered and manufactured to Ryobi’s high standard for dependability, ease of
operation and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual.
Thank you for buying a Ryobi trimmer.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
n Introduction ..............................................................................................................................................................2
n General Safety Rules ................................................................................................................................................3
n Specific Safety Rules ........................................................................................................................................... 3-4
n Symbols ................................................................................................................................................................ 5-6
n Specifications ...........................................................................................................................................................7
n Unpacking ................................................................................................................................................................7
n Features ...................................................................................................................................................................8
n Assembly ............................................................................................................................................................ 9-10
n Operation .......................................................................................................................................................... 11-13
n Maintenance .................................................................................................................................................... 14-15
n Troubleshooting ......................................................................................................................................................16
n Accessories ............................................................................................................................................................17
n Warranty..................................................................................................................................................................18
n Customer Service Information ................................................................................................................................20
INTRODUCTION
Your trimmer has many features that make using this product more pleasant and enjoyable. We have given safety,
performance, and dependability top priority in the design of this product, making it easy to maintain and operate.
Page 2
GENERAL SAFETY RULES
WARNING:
When using electric gardening appliances, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury, including
the following:
READ ALL INSTRUCTIONS
GENERAL SAFETY RULES
n Clear the work area before each use. Remove all ob-
jects, such as rocks, broken glass, nails, wire, or string
that can be thrown or become entangled in the cutting
line.
n Wear heavy, long pants, boots, and gloves. Do not wear
loose fitting clothing, short pants, or go barefoot. Do
not wear jewelry of any kind.
n Secure hair above shoulder level to prevent entan-
glement in moving parts.
n Do not allow children or untrained individuals to use
this product.
n Keep all bystanders, children, and pets at least 50 ft.
(15 m) away.
n Do not operate this product when you are tired, ill, or
under the influence of alcohol, drugs, or medication.
n Do not operate in poor lighting.
n Keep firm footing and balance. Do not overreach. Over-
reaching can result in loss of balance or exposure to
hot surfaces.
n Keep all parts of your body away from moving parts.
n Inspect the product before use. Replace any damaged
parts before use.
n Do not operate the product in damp or wet locations.
n Do not use the product in the rain.
n Wear safety glasses or goggles that are marked to
comply with ANSI Z87.1 standard when operating this
product.
n Use the right product. Use the product for the intended
purpose only.
n Do not handle the product with wet hands.
n Do not use the product if the switch does not turn the
product on or off. A product that cannot be controlled
with the switch is dangerous and must be repaired.
n Avoid accidental starting; never carry the product with
your finger on the trigger.
n Stay alert and pay attention to what you are doing. Use
common sense when using this product.
n Do not force the product. It will do a better job with less
likelihood of a risk of injury when you operate it at the
rate for which it was designed.
n Use the product for cutting grass and light weeds only.
Do not use for any other purpose.
n Before starting the product, position it so that the line
does not come in contact with anything you do not
intend to cut.
n Keep the grass deflector in place at all times while oper-
ating the product. The product may overheat without
the grass deflector in place.
n Stop the product immediately, unplug it, and check for
damage if you strike or become entangled with foreign
objects. Do not operate the product before having any
damage repaired.
n Keep hands away from the cutting line. Do not attempt
to remove cut material or to hold material to be cut when
the line is moving. Be sure the unplug the product and
the release the trigger when clearing jammed material
from the line. Do not grasp the line when picking up or
holding the product.
n Be cautious after turning off the product. The line coasts
after turning off the product.
n Disconnect the product from the power supply when
it is not in use, before servicing, and when changing
accessories.
SPECIFIC SAFETY RULES
SPECIFIC TRIMMER SAFETY RULES
n Replace the trimmer head if cracked, chipped, or dam-
aged in any way. Be sure the trimmer head is properly
installed and securely fastened.
n Make sure all guards, straps, deflectors, and handles
are properly and securely attached.
n Use only the manufacturer’s replacement line in the
trimmer head.
Page 3
n Never operate the product without the grass deflector
in place and in good condition.
n Maintain a firm grip on both handles while trimming.
Keep the trimmer head below waist level. Never cut with
the trimmer head over 30 in. (76 cm) or more above the
ground.
SPECIFIC SAFETY RULES
ELECTRICAL SAFETY RULES
n Make sure the cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
n Do not abuse the power cord. Never carry the product
by the cord. Never yank the plug out of the receptacle.
Keep the cord away from heat, oil, and sharp edges.
n To reduce the risk of electrical shock, use only round-
jacketed extension cords approved for outdoor use,
such as cords of type SW-A, SOW-A, STW-A, STOWA, SJOW-A, SJTW-W, or SJTOW-A. Since this tool is
double insulated, you may use a 2-wire extension cord
(an extension cord without a ground). However, you
may also use a 3-wire extension cord (an extension
cord with a ground) that has a NEMA-type connector
(parallel blade, U ground). Extension cords are available
from your local retailer.
n Be sure to use a cord that is heavy enough to carry the
current that your product will draw. The correct cord
size depends on cord length and amperage rating (see
figures below). An undersized cord set will cause a drop
in line voltage resulting in loss of power and overheating.
Use of an improper extension cord could result in a risk
of fire and electric shock. If an extension cord must be
used, make sure:
a. That pins on plug of extension cord are the same
number, size and shape as those on the plug on the
charger.
b. That the extension cord is properly wired and in good
electrical condition; and
c. That the wire size is large enough for the AC ampere
rating of the product as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 14 12
Note: AWG = American Wire Gage
n To reduce the risk of electrical shock, this product has
a polarized plug (one blade is wider than the other)
and requires the use of a polarized extension cord.
This product’s plug fits into a polarized extension cord
in only one way. If the plug does not fit fully into the
extension cord, reverse the plug. If the plug still does
not fit, obtain a correct polarized extension cord. Use
of a polarized extension cord requires use of a polarized wall outlet. This product’s plug fits into a polarized
wall outlet in only one way. If the plug does not fit fully
into the wall outlet, reverse the plug. If the plug still
does not fit, contact a qualified electrician to install the
proper wall outlet. Do not change the product plug, the
extension cord receptacle, or the extension cord plug
in any way.
n Ground Fault Circuit Interrupter (GFCI) protection should
be provided on the circuits(s) or outlet(s) used for this
product. Receptacles with built-in GFCI protection are
available and may be used.
Page 4
n Inspect extension cords for deterioration, cuts, or
cracks in the insulation. Repair or replace the cords if
any defects appear.
n A nameplate on the product indicates the unit’s volt-
age. Never connect the product to an AC voltage that
differs from this voltage.
MAINTENANCE RULES
n Maintain the product with care. Follow instructions for
changing accessories. Keep the product dry, clean,
and free from oil and grease.
n Release the trigger, allow the motor to stop, and unplug
the product before making adjustments or repairs.
n Do not use the product if parts have been damaged.
Check the product to make sure that it will operate
properly and perform the intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, and any other condition that may
affect the unit’s operation. Inspect the unit’s power connection. Any part that is damaged should be properly
repaired or replaced by a Homelite authorized service
center.
n Keep the product clean of grass clippings and other ma-
terials that may become lodged in the cutting lines.
n Never douse or squirt the product with water or any
other liquid. Keep handles dry, clean and free from
debris. After each use, clean with a soft, dry cloth.
SERVICE RULES
n Service on this product must be performed by qualified
repair personnel only. Service or maintenance performed
by unqualified personnel could result in injury to the
user or damage to the product. Such service may also
void your warranty.
n Use only identical replacement parts when servicing
the product. Follow the instructions in the Maintenance
section of this manual. Use of unauthorized parts or
failure to follow maintenance instructions may create
a risk of shock, serious injury to the user, or damage to
the product. Such use may also void your warranty.
STORAGE AND TRANSPORTATION RULES
n Stop the motor when you are waiting to cut or when
you are walking from one cutting location to another.
n Store the product inside in a dry place. Store the
product up high or lock it up to prevent unauthorized
use or damage. Keep the product out of the reach of
children.
n Secure the product when transporting it.
n Save these instructions. Refer to them frequently and
use them to instruct others who may use this
product. If you loan someone this product, loan
these instructions also.
SYMBOLS
50' 15m
Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool more safely and effectively.
SYMBOL NAME EXPLANATION
Safety Alert Precautions that involve your safety.
.
Ricochet Thrown objects can cause severe injury. Wear
protective clothing and boots.
Eye Protection Always wear safety goggles or safety glasses
with side shields and a full face shield when
operating this product.
Keep Bystanders Away Keep all bystanders at least 50 ft. (15 m) away.
No Blade Do not install any type of blade on this
product.
Class II Construction Double-insulated construction.
Read Operator’s Manual To reduce the risk of injury, user must read and
Wet Conditions Alert Do not e xpose to ra in or use i n dam p
locations.
understand operator’s manual before using this
product.
Page 5
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in
death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in
serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
` minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When
servicing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use
this product until you read thoroughly and understand
completely the operator’s manual. Save this operator’s
manual and review frequently for continuing safe operation and instructing others who may use this product.
WARNING:
Observe all normal safety precautions related to avoiding electrical shock.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety
Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
Page 6
Loading...
