Ryobi YM26CO-41AD26OG401PL User Manual
Reissued 9/02

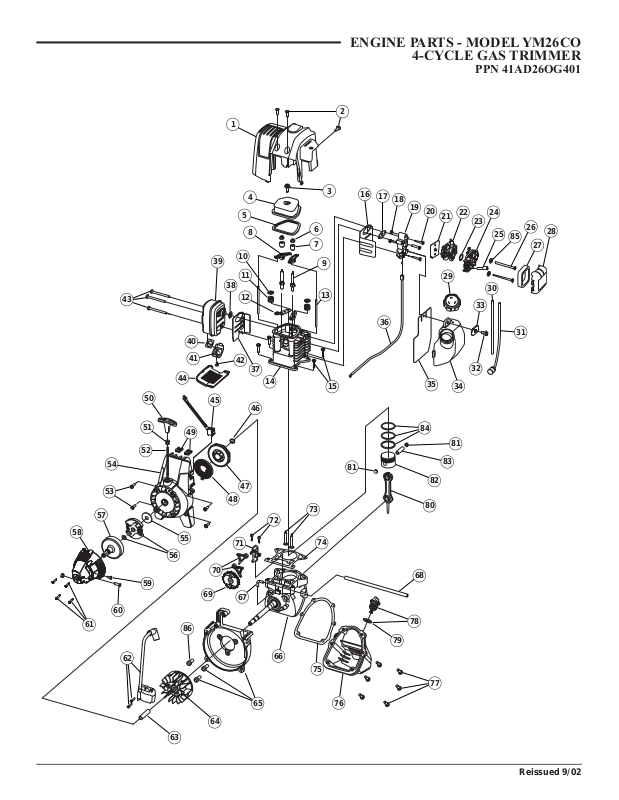

ENGINE PARTS - MODEL YM26CO
4-CYCLE GAS TRIMMER
PPN 41AD26OG401
1
46
49
50
51
52
54
53
47
48
55
57
58
59
60
67
72
73
74
71
70
69
66
75
76
77
79
78
68
80
81
82
83
81
84
65
86
64
63
62
56
2
3
16
17
18
19
20
21
22
23
24
25
85
26
27
28
30
31
33
36
4
5
8
10
6
7
9
13
11
38
12
15
14
39
37
40
41
42
43
44
29
32
35
34
45
61
ENGINE PARTS - MODEL YM26CO
4-CYCLE GAS TRIMMER
PPN 41AD26OG401
Reissued 9/02
Item Part
No. Description
1 753-1222 Engine Cover
2 791-182339 Engine Cover Screws
3 791-181025 Valve Cover Screw
4 791-182098 Valve Cover
5 791-182099 Valve Cover Gasket
6 791-182340 Rocker Adjustment Nut
7 791-182101 Rocker Arm Pivot
8 791-182100 Rocker Arm
9 791-182341 Rocker Arm Stud
10 791-182103 Valve Spring Retainer
11 791-181038 Valve Spring
12 791-182102 Push Rod Guide
13 791-181033 Push Rod
14 791-182653 Cylinder Head
15 791-182344 Cylinder Screw
16 753-1226 Intake Baffle
17 791-182749 Carburetor Mount Gasket
18 791-181034 Nut
19 791-182347 Carburetor Mount (includes 20)
20 791-182348 Carburetor Mount Screw
21 791-182732 Carburetor Gasket
22 753-1225 Carburetor with Primer
23 791-181751 O-Ring, Carburetor
24 791-182350 Air Filter Assembly (includes 27 & 28)
25 791-182097 Breather Tube
26 791-181750 Air Filter Mounting Screw
27 791-181757 Air Filter
28 791-182351 Air Filter Cover
29 791-182271 Fuel Cap
30 791-182352 Fuel Return Line
31 791-182353 Fuel Pick-Up Line with Filter
32 791-181080 Screw
33 791-182354 Washer
34 791-182355 Fuel Tank Assembly
35 791-182356 Fuel Tank Shield
36 753-1231 Throttle Cable
37 753-1232 Muffler Baffle
38 791-181048 Muffler Gasket
39 791-182359 Muffler
40 791-180890 Spark Arrestor Screen
41 791-181045 Screen Cover
42 791-181046 Screw
43 791-182361 Muffler Mounting Screw
44 753-04092 Muffler Cover
45 791-182365 Switch with Wires
Item Part No. Description
46 791-181247 Pulley Retainer
47 753-1199 Recoil Pulley
48 753-1236 Recoil Spring
49 791-182366 Nut Clip
50 791-181079 Pull Handle
51 791-611061 Rope Guide
52 791-613103 Rope
53 791-181020 Starter Housing Screw
54 753-04127 Starter Housing Assembly (includes 47-54)
55 791-182368 Clutch Washer
56 753-1238 Clutch with Spacer
57 791-153592 Clutch Drum
58 753-1239 Clutch Cover
59 791-145569 Anti-Rotation Screw
60 753-1240 Screw
61 791-181345 Clutch Cover Screw
62 791-182725 Ignition Module with Screws
63 791-181065 Spacer
64 791-182736 Flywheel
65 791-182743 Shroud Assembly w\Screws
66 791-182376 Crankcase Assembly
67 791-182375 90° Elbow
68 791-182379 Breather Hose
69 791-181015 Cam Gear
70 753-1242 Cam Follower
71 791-181013 Cam Bracket
72 791-181012 Cam Bracket Screw
73 791-181040 Valves, Intake and Exhaust
74 791-182374 Cylinder Gasket
75 791-181018 Oil Pan Gasket
76 791-182377 Oil Pan (includes 76 & 78)
77 791-181020 Oil Pan Screw
78 791-182378 Dipstick Assembly
79 791-182290 O-Ring
80 791-181009 Connecting Rod
81 791-181008 Wrist Pin Button
82 753-1243 Piston
83 791-181006 Wrist Pin
84 791-181005 Piston Ring Set
85 791-182409 Washer
86 791-181861 Screw
* 791-180852B Spark Plug
* 753-04087 Short Block Assembly (includes 3-15, 67-85)
* 791-182745 Cylinder Assembly
* 791-180142 Starter Pawl Repair Kit
* 753-04014 Carburetor Repair Kit
* Parts not shown
