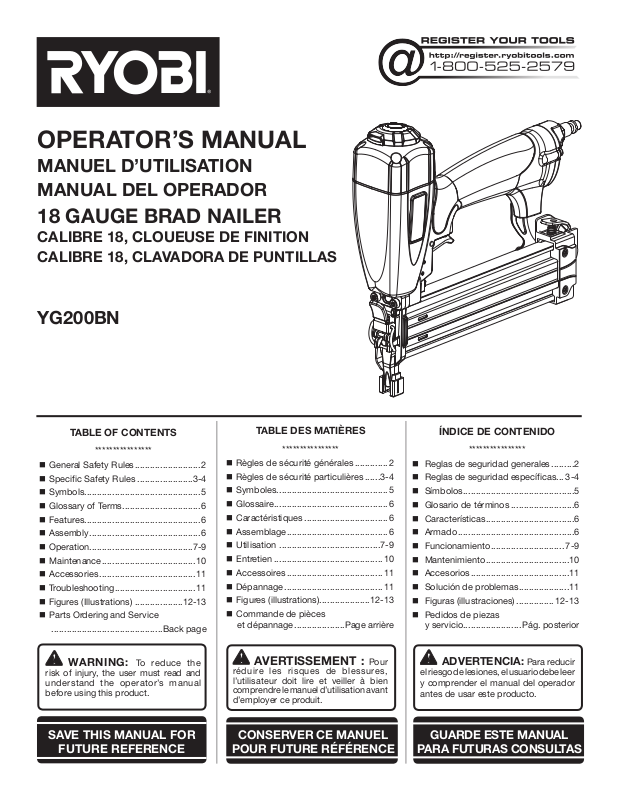

Ryobi YG200BN Owner's Manual
OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
18 GAUGE BRAD NAILER
CALIBRE 18, CLOUEUSE DE FINITION
CALIBRE 18, CLAVADORA DE PUNTILLAS
YG200BN
TABLE OF CONTENTS
****************
General Safety Rules .......................... 2
Specific Safety Rules ......................3-4
Symbols ..............................................5
Glossary of Terms ...............................6
Features .............................................. 6
Assembly ............................................ 6
Operation .........................................7-9
Maintenance ..................................... 10
Accessories ...................................... 11
Troubleshooting ................................11
Figures (Illustrations) ...................12-13
Parts Ordering and Service
............................................Back page
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
TABLE DES MATIÈRES
****************
Règles de sécurité générales ............. 2
Règles de sécurité particulières ......3-4
Symboles ............................................5
Glossaire .............................................6
Caractéristiques .................................6
Assemblage ........................................ 6
Utilisation ........................................7-9
Entretien ...........................................10
Accessoires ...................................... 11
Dépannage ....................................... 11
Figures (illustrations) ....................12-13
Commande de pièces
et dépannage ....................Page arrière
AVERTISSEMENT :
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendre le manuel d’utilisation avant
d’employer ce produit.
Pour
ÍNDICE DE CONTENIDO
****************
Reglas de seguridad generales .........2
Reglas de seguridad específicas ... 3-4
Símbolos ............................................5
Glosario de términos .........................6
Características ...................................6
Armado ..............................................6
Funcionamiento ............................. 7-9
Mantenimiento .................................10
Accesorios .......................................11
Solución de problemas ....................11
Figuras (illustraciones) ............... 12-13
Pedidos de piezas
y servicio ....................... Pág. posterior
ADVERTENCIA: Para reducir
el riesgo de lesiones, el usuario debe leer
y comprender el manual del operador
antes de usar este producto.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
GENERAL SAFETY RULES
DANGER:
READ AND UNDERSTAND TOOL LABELS AND
MANUAL. Failure to follow warnings could result in
DEATH or SERIOUS INJURY.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases,
or dust. Power tools create sparks which may ignite the
dust or fumes.
Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
PERSONAL SAFETY
Eye protection which conforms to ANSI specifications
and provides protection against flying particles both
from the FRONT and SIDE should ALWAYS be worn
by the operator and others in the work area when
loading, operating or servicing this tool. Eye protection
is required to guard against flying fasteners and debris,
which could cause severe eye injury.
The employer and/or user must ensure that proper
eye protection is worn. We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety
glasses that provide protection against flying particles
both from the front and side. Always use eye protection
which is marked to comply with ANSI Z87.1.
Additional safety protection will be required in some
environments. For example, the working area may
include exposure to noise level which can lead to hearing
damage. The employer and user must ensure that any
necessary hearing protection is provided and used by the
operator and others in the work area. Some environments
will require the use of head protection equipment. When
required, the employer and user must ensure that head
protection conforming to ANSI Z89.1-1997 is used.
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use tool
while tired or under the influence of drugs, alcohol,
or medication. A moment of inattention while operating
power tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
Keep fingers away from trigger when not driving
fasteners to avoid accidental firing.
Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enables better
control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection.
Dust mask, nonskid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE
Do not force tool. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
Do not use tool if trigger does not actuate properly.
Any tool that cannot be controlled with the trigger is
dangerous and must be repaired.
Check operation of the workpiece contact mechanism
frequently. Do not use the tool if the workpiece contact
mechanism is not working correctly as accidental driving
of a fastener may result. Do not interfere with the proper
operation of the workpiece contact mechanism.
Store idle tools out of the reach of children and other
untrained persons. Tools are dangerous in the hands of
untrained users.
Maintain tools with care. Follow maintenance
instructions. Properly maintained tools are easier to
control.
Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by
poorly maintained tools.
Use only fasteners that are recommended for your
model.
Keep the tool and its handle dry, clean and free from
oil and grease. Always use a clean cloth when cleaning.
Never use brake fluids, gasoline, petroleum-based
products, or any strong solvents to clean your tool.
Following this rule will reduce the risk of loss of control
and deterioration of the enclosure plastic.
SERVICE
Tool service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
When servicing a tool, use only identical replacement
parts. Follow instructions in the Maintenance section
of this manual. Use of unauthorized parts or failure to
follow Maintenance instructions may create a risk of
injury.
2 - English
SPECIFIC SAFETY RULES
Know your pneumatic tool. Read operator’s manual
carefully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1 along with hearing and
head protection. Failure to do so could result in objects
being thrown into your eyes and other possible serious
injuries.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
Make sure the hose is free of obstructions or snags.
Entangled or snarled hoses can cause loss of balance or
footing and may become damaged.
Use the tool only for its intended use. Do not discharge
fasteners into open air.
Use the pneumatic tool only for the purpose for which
it was designed.
Use only the fasteners recommended for this tool.
Use of the wrong fasteners could result in poor fastener
feeding, jammed fasteners, and nails leaving the tool at
erratic angles. If fasteners are not feeding smoothly and
properly, discontinue their use immediately. Jammed
and improperly feeding fasteners could result in serious
personal injury.
Never use this tool in a manner that could cause a
fastener to be directed toward anything other than
the workpiece.
Do not use the tool as a hammer.
Always carry the tool by the handle. Never carry the
tool by the air hose.
Do not alter or modify this tool from the original design
or function without approval from the manufacturer.
Always be aware that misuse and improper handling
of this tool can cause injury to yourself and others.
Never clamp or tape the trigger or workpiece contact
in an actuated position.
Never leave a tool unattended with the air hose
attached.
Do not operate this tool if it does not contain a legible
warning label.
Do not continue to use a tool that leaks air or does
not function properly.
OPERATION
Always assume that the tool contains fasteners.
Do not carry the tool from place to place holding the
trigger. Accidental discharge could result.
Always handle the tool with care:
• Respect the tool as a working implement.
• Never engage in horseplay.
• Never pull the trigger unless nose is directed toward
the work.
• Keep others a safe distance from the tool while tool is in
operation as accidental actuation may occur, possibly
causing injury.
Choice of triggering method is important. Check
manual for triggering options.
Pneumatic tools are designed for single-hand use. Do
not hold the tool by the front of the magazine. Do not put
hands, head, or other parts of your body near the bottom
of the magazine where the nail exits the tool, as serious
personal injury could result.
Do not point the tool toward yourself or anyone
whether it contains fasteners or not.
Do not actuate the tool unless you intend to drive a
fastener into the workpiece.
Always ensure that the workpiece contact is fully
positioned on the workpiece. Positioning the work
contact element only partially on the workpiece could
cause the fastener to miss the workpiece completely and
result in serious personal injury.
Do not drive fasteners near edge of material. The
workpiece may split causing the fastener to ricochet,
injuring you or a co-worker. Be aware that the nail or
fastener may follow the grain of the wood, causing it to
protrude unexpectedly from the side of the work material.
Keep hands and body parts clear of immediate work
area. Hold workpiece with clamps when necessary to
keep hands and body out of potential harm. Be sure the
workpiece is properly secured before pressing the nailer
against the material. The workpiece contact may cause
the work material to shift unexpectedly.
Keep face and body parts away from back of the tool
cap when working in restricted areas. Sudden recoil
can result in impact to the body, especially when nailing
into hard or dense material.
3 - English
SPECIFIC SAFETY RULES
During normal use the tool will recoil immediately
after driving a fastener. This is a normal function of
the tool. Do not attempt to prevent the recoil by holding
the nailer against the work. Restriction to the recoil can
result in a second fastener being driven from the nailer.
Grip the handle firmly and let the tool do the work. Failure
to heed this warning can result in serious personal injury.
Do not drive fasteners on top of other fasteners or with
the tool at an overly steep angle as this may cause
deflection of fasteners which could cause injury.
Do not drive fasteners close to the edge of the
workpiece as the wood may split, allowing the fastener to be deflected possibly causing injury.
AIR SUPPLY AND CONNECTIONS
Do not use oxygen, combustible gases or bottled
gases as a power source for this tool as tool will explode, possibly causing injury or death.
Do not use with an air compressor which can po-
tentially exceed 200 psi as tool may burst, possibly
causing injury.
The connector on the tool must not hold pressure
when air supply is disconnected. If an incorrect fitting
is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after
the air line is disconnected, possibly causing injury.
Always disconnect air supply:
• Before making adjustments
• When servicing the tool
• When clearing a jam
• When tool is not in use
• When moving to a different work area, as accidental
actuation may occur, possibly causing injury.
LOADING TOOL
Do not load the tool with fasteners when any one of
the operating controls is activated.
When loading tool:
Never place a hand or any part of body in fastener
discharge area of tool.
Never point tool at anyone.
Do not pull the trigger or depress the workpiece
contact as accidental actuation may occur, possibly
causing injury.
SAVE THESE INSTRUCTIONS
Refer to them frequently and use them to instruct others
who may use this tool. If you loan someone this tool, loan
them these instructions also.
CALIFORNIA PROPOSITION 65
WARNING:
This product and some dust created by power sanding, sawing, grinding, drilling, and other construction activities may
contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling.
Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products and,
• arsenic and chromium from chemically treated lumber.
Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your
exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially
designed to filter out microscopic particles.
4 - English
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
NOTICE:
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the tool better and safer.
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury.
(Without Safety Alert Symbol) Indicates important information not related
to an injury hazard, such as a situation that may result in property damage.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Eye, Ear, and Head Protection
Read Operator’s Manual
Always wear eye protection with side shields marked to comply
with ANSI Z87.1 along with hearing and head protection.
To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Keep Hands Away Keep hands and body away from the discharge area of the tool.
Hot Surface
To reduce the risk of injury or damage, avoid contact with any hot
surface.
5 - English
GLOSSARY OF TERMS
Activate (operating controls)
To move an operating control so that it is in a position that
allows the tool to be actuated or that satisfies one requirement
for the tool to be actuated.
Actuate (tool)
To cause movement of the tool component(s) intended to
drive a fastener.
Air inlet port
In an air tool, the opening to which the compressed air supply
is connected, usually by means of a threaded fitting.
Fastener
A staple, pin, brad, nail, or other fastening device which is
designed and manufactured for use in the tools within the
scope of this standard.
Jam
An obstruction in the feed or drive areas of the tool.
Maximum air pressure
The maximum allowable pressure of the compressed air, as
specified by the manufacturer, for operating a tool.
FEATURES
Operating control
A control that separately, or as part of an actuation system,
can cause the actuation of a tool.
Single sequential actuation
An actuation system in which there is more than one operating
control and the operating controls must be activated in a
specific sequence to actuate the tool. Additional actuation
can occur when a specific operating control, other than a
workpiece contact, is released and re-activated.
Trigger
A tool operating control activated by a tool operator’s fingers.
Workpiece
The intended object into which a fastener is to be driven
by a tool.
Workpiece contact
An operating control element or assembly on the tool intended
to be activated by the material to be fastened.
PRODUCT SPECIFICATIONS
Operating Pressure.............................................70-120 psi
Fastener Type ...................................... 18 gauge brad nails
Fastener Range ............................................. 5/8 in. to 2 in.
Magazine Capacity ................................................110 nails
Air Consumption............................ 0.06 ft3/cycle at 100 psi
Air Inlet .............................................................. 1/4 in. NPT
Weight ..................................................................... 3.4 lbs.
ASSEMBLY
WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
or with damaged or missing parts could result in serious
personal injury.
If any parts are damaged or missing, please call 1-800-525-2579 for assistance.
WARNING:
Do not attempt to modify this product or create
attachments or accessories not recommended for use
with this product. Any such alteration or modification is
misuse and could result in a hazardous condition leading
to possible serious personal injury.
6 - English
OPERATION
DANGER:
Do not use oxygen, combustible gases or bottled gases
as a power source for this tool. The tool will explode and
cause death or serious injury.
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict severe injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1 along with hearing and head
protection. Failure to do so could result in objects being
thrown into your eyes and other possible serious injuries.
WARNING:
Disconnect the tool from the air supply before leaving the
work area, moving the tool to another location, or handing
the tool to another person. Failure to do so could result
in serious personal injury.
WARNING:
Always wear eye protection. Eye protection does not fit all
operators in the same way. Make sure the eye protection
chosen has side shields or provides protection from flying
debris both from the front and sides.
PREPARING THE TOOL FOR USE

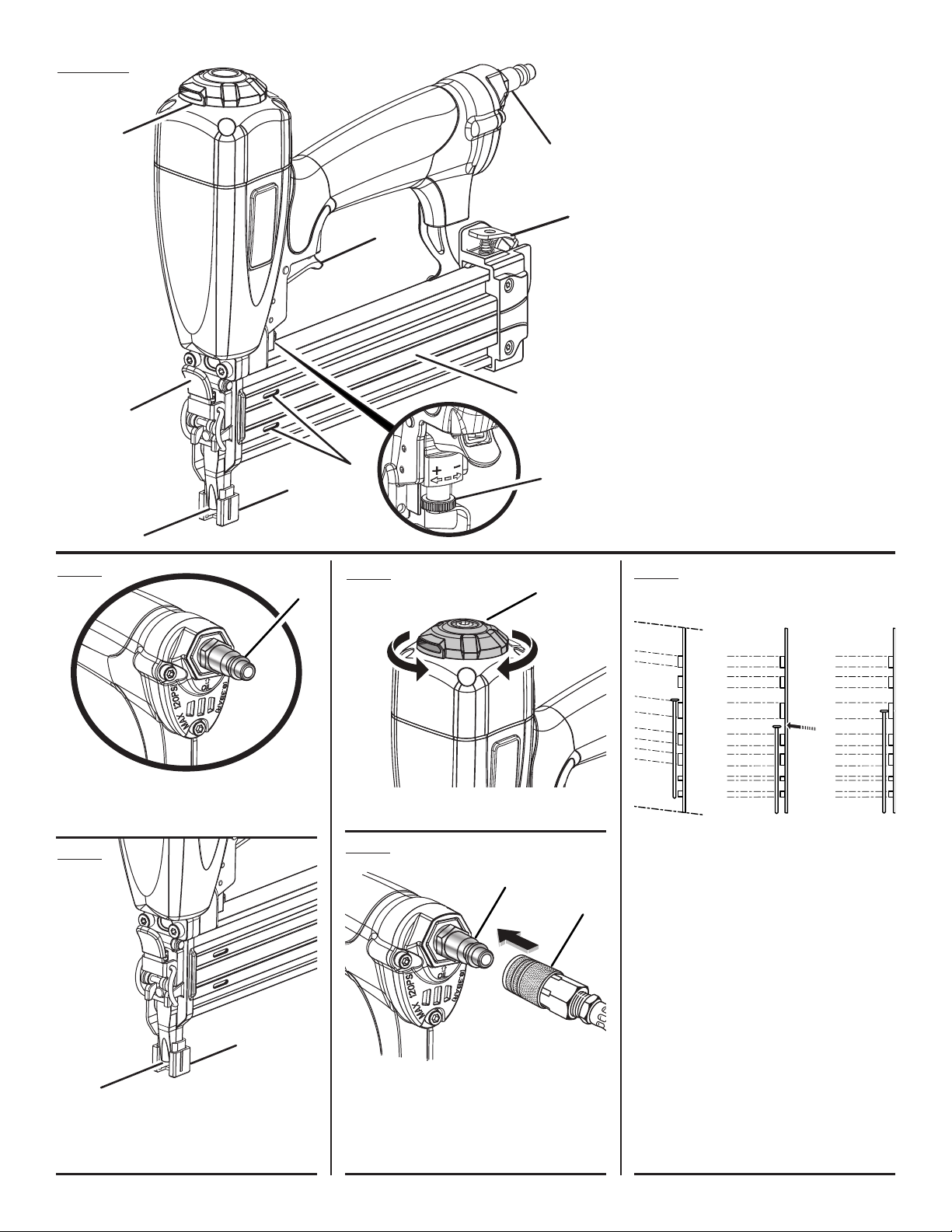

See Figure 1, page 12.
This is an oil-free tool, therefore lubrication is not required.
However, the occasional addition of air tool lubrication into
the air fitting on the tool will not adversely affect performance
or harm the tool.
Before connecting the tool, check the air compressor gauge to
be sure it is functioning within the proper range of 70-120 psi.
NO-MAR NOSEPIECE
See Figure 2, page 12.
The no-mar nosepiece attached to the workpiece contact
of the tool helps prevent marring and denting when working
with softer woods.
WARNING:
Disconnect the tool from the air supply before removing
or replacing the no-mar nosepiece. Failure to do so could
result in serious personal injury.
APPLICATIONS
You may use this tool for the purposes listed below:
Finish and Trim (interior and exterior)
Decorative Trim
Book Cases
Baseboard
Cabinets
Case Backs
Drawers
Molding
Mirror and Picture Frames
Paneling
Shoe & Base Moldings
Staircases
Upholstery Trim Panels
Wainscoting
Window Beading
Chair Rail
Furniture Frames
Lattice Strip Molding
Nailable Plastic Parts
Crafts
The no-mar nosepiece can be removed by pulling it down
and away from the nose. To replace the no-mar nosepiece,
fit it into place over the workpiece contact and push up at
the back to reseat.
ADJUSTING THE EXHAUST
See Figure 3, page 12.
The adjustable exhaust on the end cap of the tool allows
the operator to direct the exhaust according to preference.
To adjust, turn the exhaust cap until the exhaust blows in
the desired direction.
WARNING:
Disconnect the tool from the air supply before leaving the
work area, moving the tool to another location, or handing
the tool to another person. Failure to do so could result
in serious personal injury.
7 - English
OPERATION
CONNECTING THE TOOL TO AN AIR SUPPLY
See Figure 4, page 12.
DANGER:
Do not use oxygen, combustible gases or bottled gases
as a power source for this tool. The tool will explode and
cause death or serious injury.
This tool is designed to operate on clean, dry compressed air
at regulated pressures between 70 and 120 psi . The correct
air pressure is the lowest pressure that will do the job.
NOTE: Air pressure that is higher than 120 psi may damage
the tool.
The tool must have an air fitting that allows all pressure
to discharge from the tool when the air hose connector is
disconnected.
WARNING:
Always use an air fitting that discharges all the
compressed air in the tool at the time the air fitting and
air hose connector is disconnected. Using an air fitting
that does not discharge the compressed air could cause
unintended operation and serious personal injury.
WARNING:
Do not climb rigging or scaffolding while carrying a tool
that is connected to an air hose. Doing so could result in
serious personal injury.
Connect the tool to the air supply with a 1/4 in. female quick
connector.
LOADING THE TOOL WITH NAILS

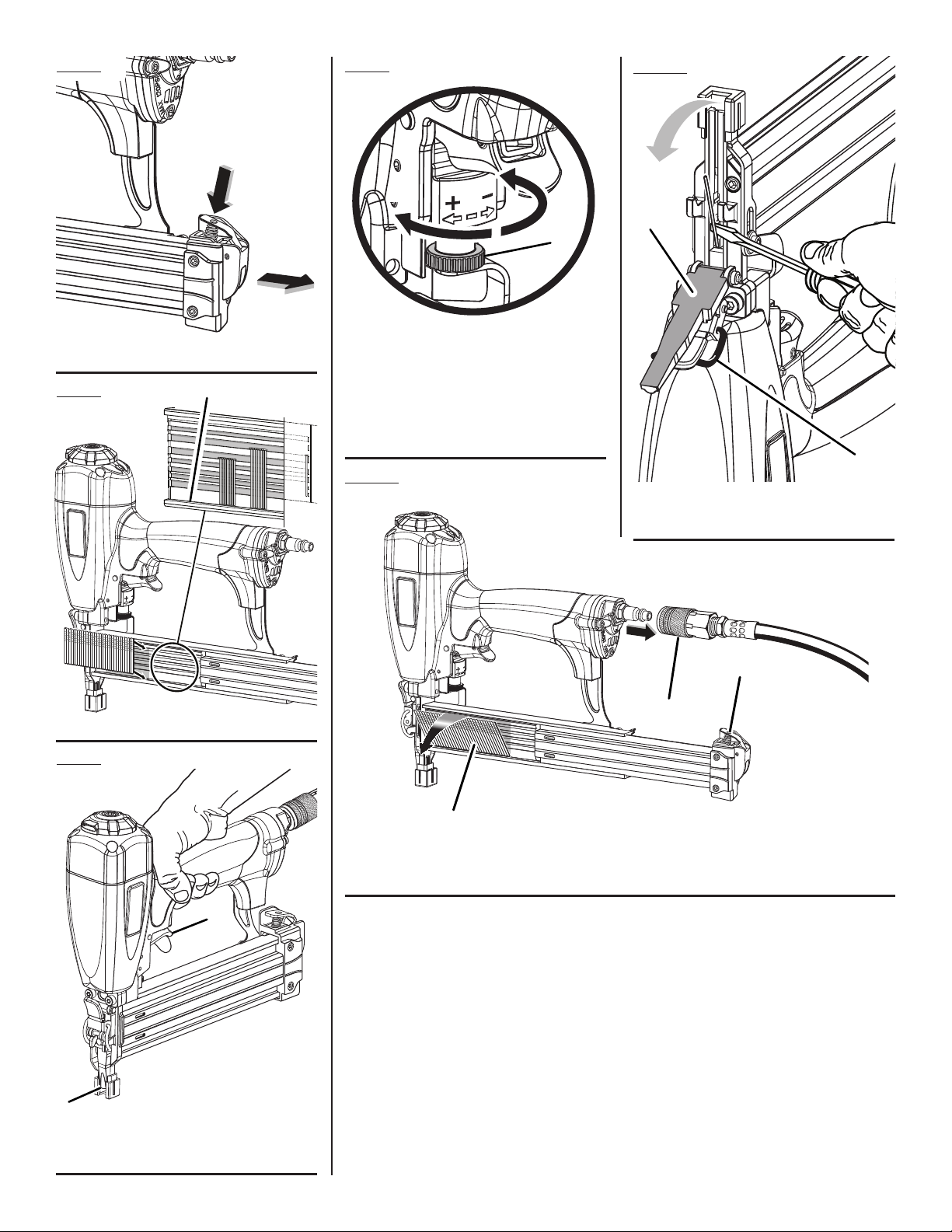

See Figures 5 - 7, pages 12 - 13.
Connect the tool to the air supply.
WARNING:
Use only the nails recommended for use with this tool.
The use of any other nails can result in tool malfunction,
leading to serious injuries.
WARNING:
Never load nails with the workpiece contact or trigger
activated, as accidental actuation will occur and could
cause serious personal injury.
Depress the latch located at the rear of the magazine and
slide the magazine open.
With the nose of the tool pointed away from you, insert
a strip of nails into the magazine. Be sure the nails are
pointed downward.
CORRECT NAIL POSITION
Nails should always be inserted with the points down-
ward, fitting into the nail track, or as close as possible to
the nail track.
Nail heads must sit either on the top edge of a rib or inside
a track between two ribs.
Nail heads should never lie on top of a rib without sitting on
the rib edge. Do not position nail heads in the center of a rib.
The strip of nails should not be centered in the magazine
or positioned at the top portion of the magazine.
If the nail points will not sit inside the track without sitting
incorrectly on a rib, move the nail strip up slightly until
the heads sit on the top edge of a rib.
To close the magazine, push it forward until the latch
snaps into place. Make sure the latch is securely locked
into place before driving a nail.
DRIVING A FASTENER
See Figure 8, page 13.
WARNING:
The tool’s driving mechanism could cycle when the tool
is first connected to the air supply. Always connect the
tool to the air supply before loading nails to prevent injury
from unintended cycling. Always make sure the tool’s
magazine is empty at the beginning of each work session,
before connecting to an air supply.
WARNING:
Keep the tool pointed away from yourself and others
when loading nails. Failure to do so could result in
possible serious personal injury.
8 - English
WARNING:
Never wedge or hold back the workpiece contact
mechanism during operation of the tool, as accidental
actuation will occur and could cause serious personal
injury.
SINGLE SEQUENTIAL ACTUATION
Single sequential actuation provides accurate fastener
placement.
Connect the tool to the air supply.
Grip the tool firmly to maintain control. Position the nose
of the tool onto the work surface.
OPERATION
Push the tool against the work surface to depress the
workpiece contact.
Pull the trigger to drive a fastener.
Allow the tool to recoil away from the work surface as the
fastener is driven.
WARNING:
Disconnect the tool from the air supply before removing
nails. Failure to do so could result in serious personal
injury.
WARNING:
During normal use the tool will recoil immediately
after driving a fastener. This is a normal function of
the tool. Do not attempt to prevent the recoil by holding
the nailer against the work. Restriction to the recoil can
result in a second fastener being driven from the nailer.
Grip the handle firmly, let the tool do the work, and do
not place second hand on top of tool or near exhaust at
any time. Failure to heed this warning can result in serious
personal injury.
SETTING THE AIR PRESSURE
The amount of air pressure required will depend on the size
of the nail and the workpiece material.
Begin testing the depth of drive by driving a test nail into
the same type of workpiece material used for the actual job.
Drive a test nail with the air pressure set at 90-95 psi. Raise
or lower the air pressure to find the lowest setting that will
perform the job with consistent results.
It may be possible to achieve the desired depth with air
pressure adjustments alone. If finer adjustments are needed,
use the drive depth adjustment on the tool.
DRIVE DEPTH ADJUSTMENT
See Figure 9, page 13.
The driving depth of the nail may be adjusted. It is advisable
to test the depth on a scrap workpiece to determine the
required depth for the application.
To determine depth of drive, first adjust the air pressure and
drive a test nail. To achieve the desired depth, use the drive
depth adjustment on the tool.
Disconnect the tool from the air supply.
Turn the depth selector left or right to change the driving
depth.
Reconnect the tool to the air supply.
Drive a test nail after each adjustment until the desired
depth is set.
REMOVING NAILS FROM THE TOOL
See Figure 10, page 13.
Disconnect the tool from the air supply.
To remove a strip of nails from the tool, depress the latch
located at the rear of the magazine and slide the magazine
open.
Remove the nail strip.
To close the magazine, push it forward until the latch
snaps into place.
CLEARING A JAMMED FASTENER
See Figure 11, page 13.
WARNING:
Disconnect the tool from the air supply before clearing a
jammed fastener. Failure to do so could result in serious
personal injury.
If a nail or fastener becomes jammed in the tool, disconnect
the air hose and keep the tool pointed away from you while
clearing the jam.
Disconnect the tool from the air supply.
Open magazine and remove fasteners from the tool.
Pull up on the latch and open the jam release.
Insert a flat blade screwdriver into the driving mechanism
and push the driver mechanism back, freeing the fastener
jam.
Remove the bent fastener.
Close the jam release and latch.
Reconnect the tool to the air supply.
Reinstall fasteners and close the magazine.
9 - English
MAINTENANCE
WARNING:
When servicing use only identical replacement parts. Use
of any other parts can create a hazard or cause product
damage.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1 along with hearing and head
protection. Failure to do so could result in objects being
thrown into your eyes and other possible serious injuries.
WARNING:
NOTE: Some commercial air line drying liquids are harmful
to “O” rings and seals. Do not use these low temperature
air dryers without checking compatibility.
AIR SUPPLY PRESSURE AND VOLUME
Air volume is as important as air pressure. The air volume
supplied to the tool may be inadequate because of undersize
fittings and hoses, or from the effects of dirt and water in the
system. Restricted air flow will prevent the tool from receiving
an adequate volume of air, even though the pressure reading
is high. The results will be a slow operation or reduced
driving power. Before evaluating tool problems for these
symptoms, trace the air supply from the tool to the supply
source for restrictive connectors, low points containing
water and anything else that would prevent full volume flow
of air to the tool.
Disconnect the tool from the air supply before performing
maintenance. Failure to do so could result in serious
personal injury.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which could result in serious personal
injury.
COLD WEATHER OPERATION
For cold weather operation, near and below freezing, the
moisture in the air line may freeze and prevent tool operation.
We recommend the use of air tool lubricant or permanent
antifreeze (ethylene glycol) as a cold weather lubricant.
CAUTION:
Do not store tools in a cold weather environment to
prevent frost or ice formation on the tools’ operating
valves and mechanisms that could cause tool failure and
personal injury.
REQUIRED DAILY CHECKLIST
Disconnect the air supply from the tool and remove all
fasteners.
Check all screws, nuts, bolts, and pins on the tool. If
any of these are loose, they must be tightened with the
appropriate size wrench.
Press the workpiece contact against a workpiece to
ensure that it moves smoothly.
With the workpiece contact depressed, pull the trigger.
The trigger should move smoothly, without binding.
While the tool is not loaded, connect the appropriate air
supply (at 70 psi) to the tool.
Without pulling the trigger, press the workpiece contact
against a workpiece several times. The tool must not
operate. No air should leak from the tool.
With the workpiece contact not engaged on the
workpiece, point the tool down and away and pull the
trigger several times. Hold the trigger in this position for
a minimum of 5 seconds. The tool must not operate.
Press the workpiece contact firmly against the
workpiece. Pull the trigger. The tool must operate.
With the workpiece contact still depressed, release the
trigger. The driver must return to its up position.
If the tool successfully meets all the requirements in this
checklist, it is ready for use. Load the proper fasteners
for the desired application.
Set the depth of drive according to the Drive Depth
Adjustment section in this manual. Repeat this checklist
before using the tool each day, or if the tool is dropped
or damaged in any way.
10 - English
ACCESSORIES
To order parts and maintenance kits, call 1-800-525-2579.
Overhaul Maintenance Kit ................................................................................................................................079077004701
Driver Maintenance Kit .....................................................................................................................................079077004702
Driver Assembly Kit ..........................................................................................................................................079077004703
Oil and Wrench Kit............................................................................................................................................079077005705
Trigger Valve Kit ................................................................................................................................................079077004704
WARNING:
Current attachments and accessories available for use with this tool are listed above. Do not use any attachments or
accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended
can result in serious personal injury.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Air leak near the top of the tool or in the
trigger area
Loose screws
Worn or damaged O-rings or seals
Tighten screws
Install Overhaul Kit
Air leak near the bottom of the tool Worn or damaged O-rings or bumper Install Overhaul Kit
Tool does nothing or operates sluggishly Inadequate air supply
Worn or damaged O-rings or bumper
Tool jams frequently Incorrect fasteners
Damaged fasteners
Loose magazine
Dirty magazine
Worn or damaged driver
Verify adequate air supply
Install Overhaul Kit
Verify that fasteners are the correct size
Replace fasteners
Tighten screws
Clean magazine
Install Driver Maintenance Kit
NOTE: FIGURES (ILLUSTRATIONS) START ON PAGE 12
AFTER SPANISH LANGUAGE SECTION.
This product has a Three-year Limited Warranty.
For Warranty details go to
www.ryobitools.com
