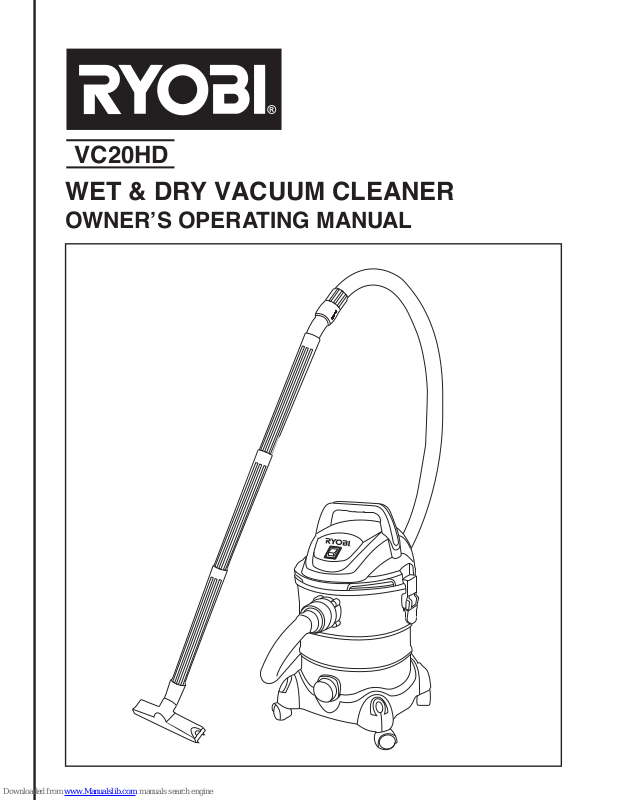

Ryobi VC20HD Owner's Operating Manual

VC20HD

OWNER’S OPERATING MANUAL

WET & DRY VACUUM CLEANER

DESCRIPTION

1. 3 Piece Wand

2. Floor tool

3. Crevice tool

4. Hose set

5. Wheels (x4)

6. Handle

7. Foam filter

8. Screws

9. Dust bag

10. Upper section

11. Float switch

12. Filter basket

13. Cartridge filter cap

14. Cartridge filter

15. ON/OFF switch

16. Connection for the vacuum hose

17. Clamps (x2)

18. Tank

6

7 8 9

10

11

12

5

1

2

3

4

13

14

Fig. 1

Fig. 2 Fig. 3

15

16

17

18

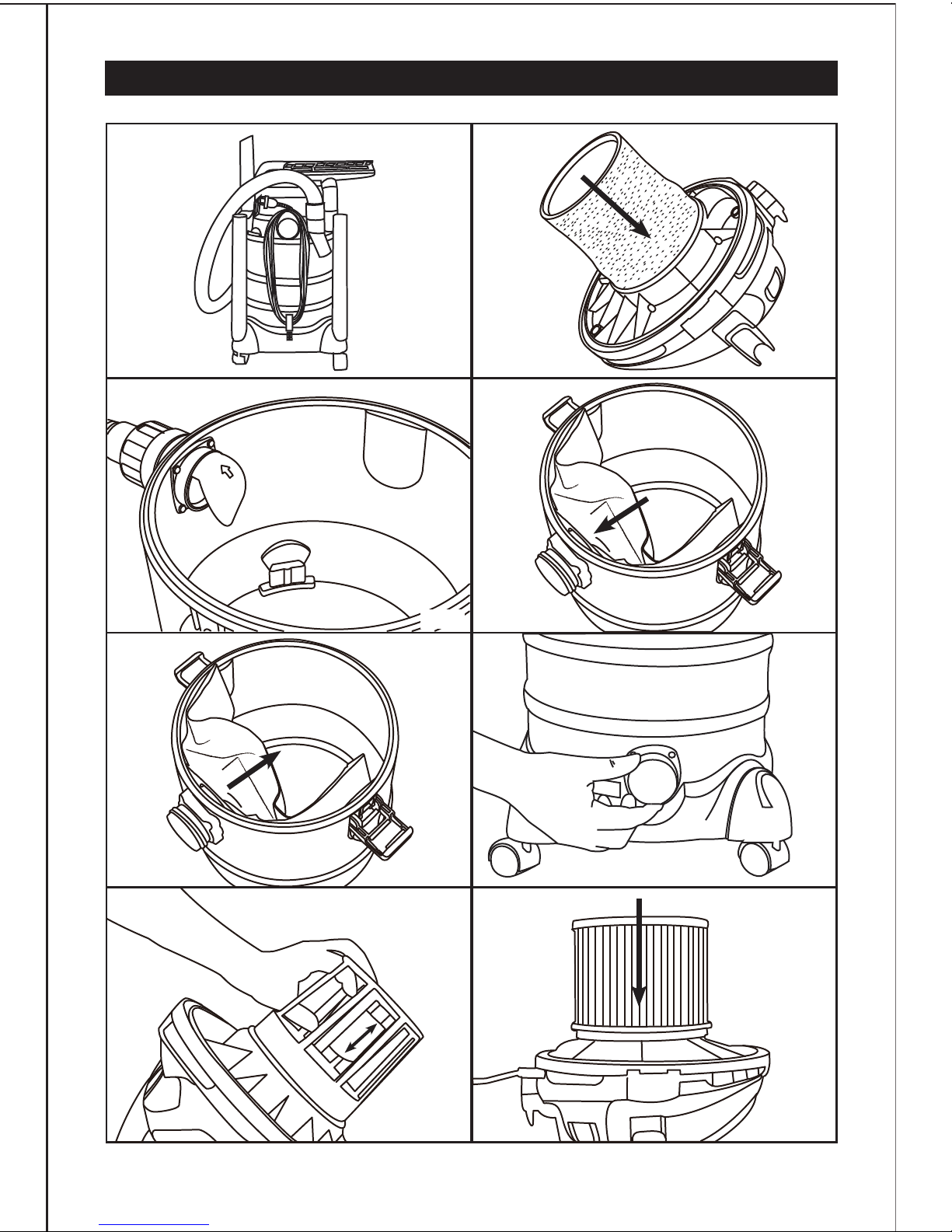

DESCRIPTION

Fig. 4

Fig. 6

Fig. 5

Fig. 7

Fig. 8

Fig. 10

Fig. 11

Fig. 9

Please refer to pages 2 - 3 for instructions Please refer to pages 2 - 3 for instructions
