ABRASIVE GENTLE

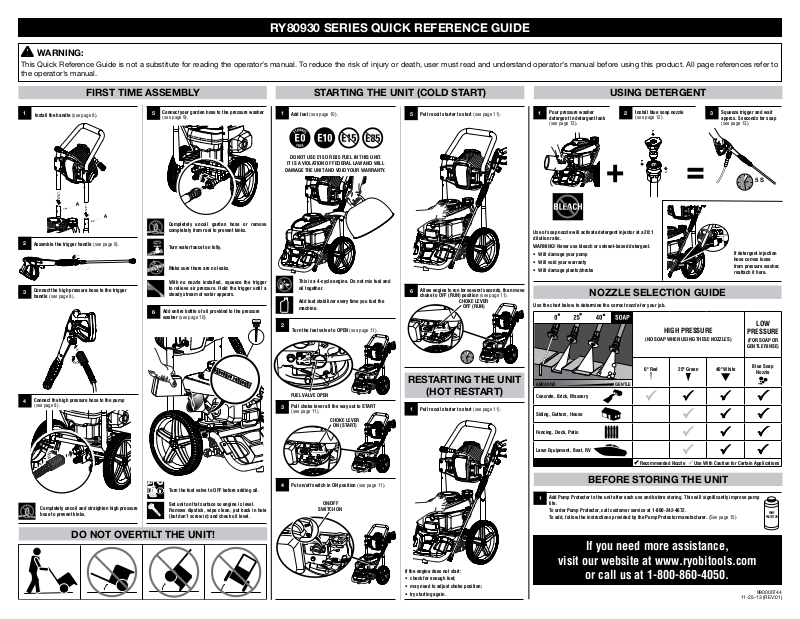

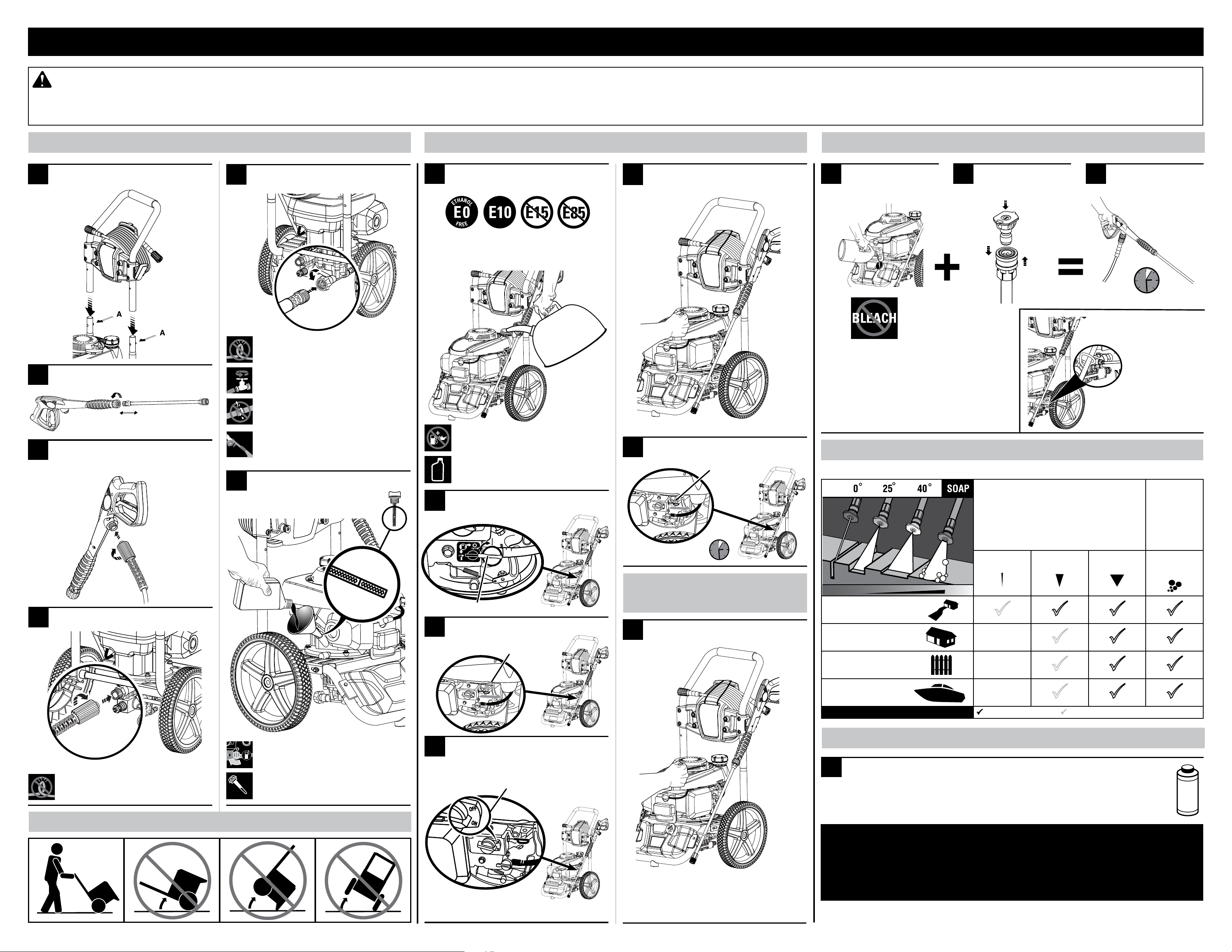

Ry80930 seRIes QuIck RefeReNce GuIde
5 S
WARNING:
This Quick Reference Guide is not a substitute for reading the operator’s manual. To reduce the risk of injury or death, user must read and understand operator’s manual before using this product. All page references refer to
the operator’s manual.
fIRst tIme Assembly
1
Install the handle (see page 8).
2
Assemble the trigger handle (see page 8).
Connect your garden hose to the pressure washer
5
(see page 9).
Completely uncoil garden hose or remove
completely from reel to prevent kinks.
Turn water faucet on fully.
Make sure there are no leaks.
stARtING the uNIt (cold stARt) usING deteRGeNt
1
Add fuel (see page 10).
DO NOT USE E15 OR E85 FUEL IN THIS UNIT.
IT IS A VIOLATION OF FEDERAL LAW AND WILL
DAMAGE THE UNIT AND VOID YOUR WARRANTY.
5
Pull recoil starter to start (see page 11).
Pour pressure washer
1
detergent in detergent tank
(see page 13).
Use of soap nozzle will activate detergent injector at a 20:1
dilution ratio.
WARNING! Never use bleach or solvent-based detergent.
• Will damage your pump
• Will void your warranty
• Will damage plants/shrubs
Install blue soap nozzle
2
(see page 12).
Squeeze trigger and wait
3
approx. 5 seconds for soap
(see page 13).
25
5 S
If detergent injection
hose comes loose
from pressure washer,
reattach it here.
Connect the high pressure hose to the trigger
3
handle (see page 8).
Connect the high pressure hose to the pump
4
(see page 8).
With no nozzle installed, squeeze the trigger
to relieve air pressure. Hold the trigger until a
steady stream of water appears.
Add entire bottle of oil provided to the pressure
6
washer (see page 10).
This is a 4-cycle engine. Do not mix fuel and
oil together.
Add fuel stabilizer every time you fuel the
machine.
2
Turn the fuel valve to OPEN (see page 11).
ON
CLOSE
OPEN
FUEL VALVE OPEN
Pull choke lever all the way out to START
3
(see page 11).
CHOKE LEVER
ON (START)
Allow engine to run for several seconds, then move
6
choke to OFF (RUN) position (see page 11).
CHOKE LEVER
OFF (RUN)
RestARtING the uNIt
(hot RestARt)
1
Pull recoil starter to start (see page 11).
Nozzle selectIoN GuIde
Use the chart below to determine the correct nozzle for your job.
(NO SOAP WHEN USING THESE NOZZLES)
0º Red
Concrete, Brick, Masonry
Siding, Gutters, House
Fencing, Deck, Patio
HIGH PRESSURE
25º Green 40º White
LOW
PRESSURE
(FOR SOAP OR
GENTLE RINSE)
Blue Soap
Nozzle
Completely uncoil and straighten high pressure
hose to prevent kinks.
do Not oveRtIlt the uNIt!
Turn the fuel valve to OFF before adding oil.
Set unit on flat surface so engine is level.
Remove dipstick, wipe clean, put back in hole
(but don’t screw in) and check oil level.
4
Put on/off switch in ON position (see page 11).
ON/OFF
SWITCH ON
If the engine does not start:
• check for enough fuel;
• may need to adjust choke position;
• try starting again.
Lawn Equipment, Boat, RV
Recommended Nozzle Use With Caution for Certain Applications
befoRe stoRING the uNIt
Add Pump Protector to the unit after each use and before storing. This will significantly improve pump
1
life.
To order Pump Protector, call customer service at 1-800-242-4672.
To add, follow the instructions provided by the Pump Protector manufacturer. (See page 15)
If you need more assistance,
visit our website at www.ryobitools.com
or call us at 1-800-860-4050.
PUMP
PROTECTOR
990000744
11-25-13 (REV:01)
