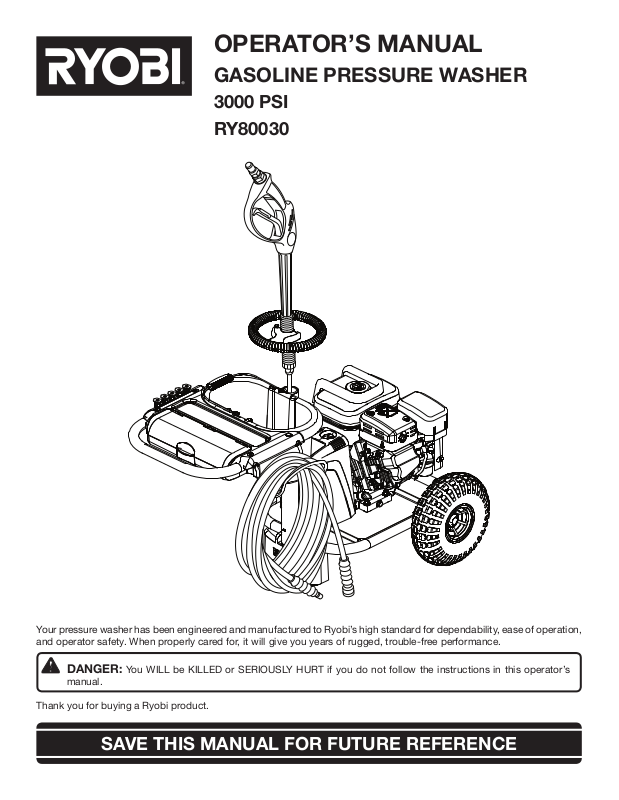

OPERATOR’S MANUAL

GASOLINE PRESSURE WASHER

3000 PSI

RY80030

Your pressure washer has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.

DANGER: You WILL be KILLED or SERIOUSLY HURT if you do not follow the instructions in this operator’s

manual.

Thank you for buying a Ryobi product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

TABLE OF CONTENTS

n Introduction .......................................................................................................................................................................2

�n Important Safety Instructions ............................................................................................................................................3

�n Specific Safety Rules ........................................................................................................................................................4

�n Symbols......................................................................................................................................................................... 5-6

��n Features......................................................................................................................................................................... 7-8

��n Assembly .....................................................................................................................................................................9-12

�n Operation................................................................................................................................................................... 12-15

�n Maintenance ..............................................................................................................................................................16-18

n Troubleshooting.............................................................................................................................................................. 19

n Warranty .................................................................................................................................................................... 21-25

�n Parts Ordering / Service ................................................................................................................................................. 26

INTRODUCTION

This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Read and understand all instructions. Failure to follow

all instructions listed below may result in electric shock, fire and/or carbon monoxide poisoning which will cause death or serious personal injury.

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT

n KNOW YOUR TOOL. Read the operator's manual

carefully. Learn the machine's applications and limitations as well as the specific potential hazards related to this tool.

n KEEP GUARDS IN PLACE and in working order. Never

operate the tool with any guard or cover removed. Make sure all guards are operating properly before each use.

n REMOVE ADJUSTING KEYS AND WRENCHES.

Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.

n TO REDUCE THE RISK OF INJURY, keep children and

visitors away. All visitors should wear safety glasses and be kept a safe distance from work area.

n KEEP THE AREA OF OPERATION CLEAR OF ALL

PERSONS, particularly small children, and pets.

n DO NOT OPERATE THE ENGINE IN A CONFINED

SPACE where dangerous carbon monoxide fumes can

collect. Carbon monoxide, a colorless, odorless, and extremely dangerous gas can cause unconsciousness or death.

n USE RIGHT TOOL. Don't force tool or attachment

to do a job it was not designed for. Don't use it for a purpose not intended.

n DRESS PROPERLY. Do not wear loose clothing, gloves,

neckties, or jewelry. They can get caught and draw you into moving parts. Rubber gloves and nonskid footwear are recommended when working outdoors. Also wear protective hair covering to contain long hair.

n DO NOT OPERATE THE EQUIPMENT WHILE BARE-

FOOT OR WHEN WEARING SANDALS OR SIMILAR LIGHTWEIGHT FOOTWEAR. Wear protective footwear

that will protect your feet and improve your footing on slippery surfaces.

n EXERC ISE CAUT I ON TO AVOI D SLIPPI N G OR

FALLING.

n ALWAYS WEAR SAFETY GLASSES WITH SIDE

SHIELDS. Everyday eyeglasses have only impact- resistant lenses; they are NOT safety glasses.

n DON'T OVERREACH OR STAND ON UNSTABLE

SUPPORT. Keep proper footing and balance at all

times.

n USE ONLY RECOMMENDED ACCESSORIES. The use

of improper accessories may cause risk of injury.

n NEVER STAND ON TOOL. Serious injury could occur

if the tool is tipped.

n CHECK DAMAGED PARTS. Before further use of the

tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury.

n NEVER LEAVE TOOL RUNNING UNATTENDED.

TURN POWER OFF. Don't leave tool until it comes to

a complete stop.

n KEEP THE ENGINE FREE OF GRASS, LEAVES, OR

GREASE to reduce the chance of a fire hazard.

n KEEP THE EXHAUST PIPE FREE OF FOREIGN

OBJECTS.

n FOLLOW MANUFACTURER’S RECOMMENDATIONS

FOR SAFE LOADING, UNLOADING, TRANSPORT, AND STORAGE OF MACHINE.

n BE THOROUGHLY FAMILIAR WITH CONTROLS.

Know how to stop the product and bleed pressure quickly.

n KEEP TOOL DRY, CLEAN, AND FREE FROM OIL

AND GREASE. Always use a clean cloth when cleaning.

Never use brake fluids, gasoline, petroleum-based products, or any solvents to clean tool.

n STAY ALERT AND EXERCISE CONTROL. Watch what

you are doing and use common sense. Do not operate tool when you are tired. Do not rush.

n DO NOT OPERATE THE PRODUCT WHILE UNDER

THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICATION.

CHECK THE WORK AREA BEFORE EACH USE.

Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine.

n DO NOT USE TOOL IF SWITCH DOES NOT TURN

IT ON AND OFF. Have defective switches replaced by

an authorized service center.

n BEFORE CLEANING, REPAIRING, OR INSPECTING,

shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting.

n AVOID DANGEROUS ENVIRONMENT. Don’t use in

damp or wet locations or expose to rain. Keep work area well lit.

n NEVER USE IN AN EXPLOSIVE ATMOSPHERE.

Normal sparking of the motor could ignite fumes.

DO NOT OPERATE WHILE SMOKING OR NEAR AN OPEN FLAME.

n DO NOT OPERATE AROUND dry brush, twigs, cloth

rags, or other flammable materials.

n WARNING: RISK OF INJECTION OR INJURY – Do

not direct discharge stream at persons.

SPECIFIC SAFETY RULES

n NEVER DIRECT A WATER STREAM TOWARDS

PEO P L E OR PETS , OR ANY ELEC T R IC A L DEVICE.

n BEFORE STARTING ANY CLEANING OPERATION,

close doors and windows. Clear the area to be cleaned of debris, toys, outdoor furniture, or other objects that could create a hazard.

n NEVER PICK UP OR CARRY A MACHINE WHILE THE

ENGINE IS RUNNING.

n NEVER START THE MACHINE if ice has formed in

any part of the equipment.

n DO NOT USE ACIDS, ALKALINES, SOLVENTS,

FLAMMABLE MATERIAL, OR INDUSTRIAL GRADE SOLUTIONS in this product. These products can cause

physical injuries to the operator and irreversible damage to the machine.

n ALWAYS OPERATE THE MACHINE on a level surface.

If the engine is at an incline, it could seize due to improper lubrication (even at the maximum oil level).

n WA RN I N G: HI G H P R E S SU R E J E T S CA N BE

DANGEROUS IF SUBJECT TO MISUSE. The jet

must not be directed at persons, animals, electrical devices, or the machine itself.

n NEVER ATTEMPT TO MAKE ANY ADJUSTMENTS

WHILE THE ENGINE (MOTOR) IS RUNNING (except

where specifically recommended by the manufacturer).

n PROTECTIVE COVERS MUST ALWAYS COVER

ROTATIN G PA R T S WH E N THE EN G I NE I S RUNNING.

n KEEP COOLING AIR INTAKE (recoil starter area) and

muffler side of the engine at least 3 feet away from buildings, obstructions, and other burnable objects.

n KEEP THE ENGINE AWAY FROM FLAMMABLES AND

OTHER HAZARDOUS MATERIALS.

n KEEP AWAY FROM HOT PARTS. The muffler and other

engine parts become very hot, use caution.

n DO NOT TOUCH THE SPARK PLUG AND IGNITION

CABLE when starting and operating the engine.

n CHECK FUEL HOSES AND JOINTS for looseness

and fuel leakage before each use.

n CHECK BOLTS AND NUTS for looseness before each

use. A loose bolt or nut may cause serious engine problems.

n ALWAYS REFUEL OUTDOORS. Never refuel indoors or

in a poorly ventilated area.

n NEVER STORE THE MACHINE WITH FUEL IN THE

FUEL TANK INSIDE A BUILDING where ignition sources

are present, such as hot water and space heaters, clothes dryers, and the like.

n IF THE FUEL TANK HAS TO BE DRAINED, DO THIS

OUTDOORS.

TO REDUCE THE RISK OF FIRE AND BURN INJURY,

handle fuel with care. It is highly flammable.

DO NOT SMOKE WHILE HANDLING FUEL.

n ADD FUEL BEFORE STARTING THE ENGINE. Never

remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot.

LOOSEN FUEL CAP SLOWLY to release pressure and

to keep fuel from escaping around the cap.

n REPLACE ALL FUEL TANK AND CONTAINER CAPS

SECURELY.

WIPE SPILLED FUEL FROM THE UNIT. Move 30 feet

away from refueling site before starting engine.

n IF FUEL IS SPILLED, do not attempt to start the engine

but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.

NEVER ATTEMPT TO BURN OFF SPILLED FUEL

UNDER ANY CIRCUMSTANCES.

BEFORE STORING, ALLOW THE ENGINE TO COOL.

n STORE FUEL IN A COOL, WELL-VENTILATED AREA,

safely away from spark and/or flame-producing equipment.

n STORE FUEL IN CONTAINERS specifically designed for

this purpose.

EMPTY FUEL TANK AND RESTRAIN THE UNIT FROM

MOVING before transporting in a vehicle.

n WHEN SERVICING USE ONLY IDENTICAL RYOBI

REPLACEMENT PARTS. Use of any other parts may

create a hazard or cause product damage.

n USE COLD WATER ONLY.

n MAKE SURE MINIMUM CLEARANCE of 3 feet is main-

tained from combustible materials.

n SAVE THESE INSTRUCTIONS. Refer to them frequently

and use them to instruct other users. If you loan someone this tool, loan them these instructions also.

SYMBOLS

Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION

Wet Conditions Alert

Read The Operator’s Manual

Eye Protection

Safety Alert

Hot Surface

Gasoline and Oil

Risk of Explosion

Do not expose to rain or use in damp locations.

To reduce the risk of injury, user must read and understand operator’s manual before using this product.

Always wear safety goggles, safety glasses with side shields, or a full face shield when operating this product.

Precautions that involve your safety.

To reduce the risk of injury or damage, avoid contact with any hot surface.

Use unleaded gasoline intended for motor vehicle use with an octane rating of 87 [(R + M)/2)] or higher. This product is powered by a 4-cycle engine.

Fuel and its vapors are explosive and can cause severe burns or death.

Risk of Fire

Toxic Fumes

Kickback

Electric Shock

Fuel and its vapors are extremely flammable and explosive. Fire can cause severe burns or death.

Gas products emit carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting, or death.

To reduce the risk of injury from kickback, hold the wand securely with both hands when the machine is on.

Failure to use in dry conditions and to observe safe practices can result in electric shock.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will

result in death or serious injury.

WARNING: Indicates a potentially hazardous situation, which, if not avoided, could

result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may

result in minor or moderate injury.

CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in

property damage.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.

WARNING:

To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. Save this operator’s manual and review frequently for continuing safe operation and instructing others who may use this product.

WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles, safety glasses with side shields, or a full face shield when needed. We recommend Wide Vision Safety Mask for use over eye glasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

FEATURES

PRODUCT SPECIFICATIONS

Engine Size................................................................................................................................................................... 211 cc

Engine Output, Horsepower............................................................................................................................................ 7 HP

Fuel Tank Capacity ................................................................................................................................. 3.8 quarts (3.6 liters)

Maximum Pounds per Square In. Pressure...............................................................................................................3000 psi

Maximum Gallons Per Minute ...................................................................................................................................2.7 GPM

NOZZLE CLEANING TOOL

CHOKE

FUEL

VALVE

RECOIL

STARTER

TRIGGER WITH

LOCK OUT

NOZZLES AND

NOZZLE

STORAGE

MOVING HANDLE

DETERGENT

BUCKET

ACCESSORIES

STORAGE

SPRAY

WAND

ON/OFF

SWITCH

SPRAY

WAND

STORAGE

FUEL TANK

HIGH PRESSURE

HOSE

Fig. 1

FEATURES

KNOW YOUR PRESSURE WASHER

See Figure 1.

Before attempting to use this product, familiarize yourself with all operating features and safety rules.

ACCESSORIES STORAGE

Safely stores accessories (not included) within easy reach.

DETERGENT BUCKET

The removable detergent bucket holds up to two gallons of detergent. Position the injection hose in the slot closest to the spray wand storage.

CHOKE

Using the choke makes starting the engine easier. Close the choke for starting a cold engine. The choke lever needs to be half opened or fully opened when starting a warm engine.

FUEL VALVE

The fuel valve must be open to start the engine and should always be closed for before storing the machine.

FUEL TANK

This fuel tank has a maximum capacity of 3.8 quarts (or

3.6 liters). Use unleaded automotive gasoline in the engine.

RECOIL STARTER

The recoil starter is used (along with the on/off switch) to start the power washer.

SPRAY WAND

The spray wand has a round assist handle that provides added control of the spray wand and helps reduce fatigue.

STORAGE BRACKET

Once the high pressure hose is rolled, hang it on the storage bracket for convenient storage.

SUBARU® ENGINE

This 7 HP engine enables the pressure washer to achieve 3,000 PSI and 2.7 gallons per minute.

THERMAL RELIEF VALVE

This pump safety feature will prevent water temperatures from reaching harmful levels by releasing a small amount of water from a rubber hose. Once the water has drained to the ground, the thermal relief valve will reset itself.

TRIGGER WITH LOCK OUT

Pulling the trigger releases a stream of water for high pressure cleaning. The lock out provides protection against unauthorized use.

ON/OFF SWITCH

Located on the side of the motor, the motor won’t start until the switch is in the ON ( l ) position.

+ 18 hidden pages

Ryobi Outdoor RY80030 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
