Page 1
FRONT PAGE
RY170PWA
Page 2
Original Instructions
IMPORTANT!
It is essential that you read the instructions
in this manual before assembling, operating,
and maintaining the product.
Subject to technical modication.
Safety, performance, and dependability have
been given top priority in the design of your
electric high pressure cleaner.
INTENDED USE
The electric high pressure cleaner is intended
only for outdoor use. For safety reasons, the
product must be adequately controlled by a
two-handed operation.
The product is designed for home or domestic
use. It is intended to clean machines, vehicles,
buildings, oors, tools, facades, terraces,
oors, and concrete walkways by removal of
stubborn dirt using clean water with or without
cleaning detergent.
The product should be used in well-illuminated
conditions.
WARNING! The product is intended for use
only in premises that have a service current
capacity of >100 A per phase.
Do not use the product for any other purpose.
WARNING! The product is designed for
use with a neutral cleaning agent supplied or
recommended by the manufacturer. The use
of other cleaning agents or chemicals may
adversely aect the safety of the product.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
■ The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge. Children should
be adequately supervised to ensure they do
not play with the product.
■ Wear complete personal protective
equipment when operating the product,
such as boots, safety gloves, safety helmets
with visor, and hearing protection. Use
high-impact visors only with liquid splash
protection.
WARNING! Do not use the product when
people are within range, unless they wear
protective clothing.
■ To reduce the risk of injury, keep children
and visitors away. All visitors should wear
safety glasses and be kept at a safe
distance from the work area.
■ Ensure that the safety devices are in good
working condition. Make sure that all safety
devices are operating properly before each
use.
■ Do not use the product if the power cord
or other important parts, such as safety
devices, high-pressure hoses, or trigger
gun, are damaged.
■ Exercise caution when opening the trigger.
Hold the trigger handle firmly with two hands
to avoid injury when the trigger handle kicks
back.
WARNING! During use of high pressure
cleaners, aerosols may be formed. Inhalation
of aerosols can be hazardous to health.
Depending on the application, shielded nozzles
can be used for high pressure cleaning, which
will reduce the emission of hydrous aerosols.
However, not all applications allow the use
of such a device. If shielded nozzles are not
applicable for the protection against aerosols,
a respiratory mask of class FFP 2 or equivalent
may be needed, depending on the cleaning
environment.
■ Always stop the product when you leave it
unattended.
■ High pressure jet is dangerous if misused.
Do not direct the jet to people, live electrical
equipment, or the product itself.
■ To avoid a risk of explosion, do not spray
flammable liquids.
■ Do not direct the jet against yourself or
others to clean clothes or footwear.
■ Do not use the product to clean electronic
devices, clothes, or footwear.
■ High pressure hoses, fittings, and couplings
are important for the safety of the product.
Use only hoses, fittings, and couplings that
are recommended by the manufacturer.
■ Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure you take
regular breaks.
2
Page 3
Original Instructions
CAUTION The product must not be used
on a drinking water supply without a backow
preventer that corresponds to EN 12729 Type
BA. Water that has owed through a backow
preventer is considered non-drinkable. Always
observe the regulations of your local water
utility company when connecting the product
to a water supply line.
ELECTRICAL SAFETY WARNINGS
■ The plug must match the outlet. Never
modify the plug in any way. Unmodified
plugs and matching outlets reduce the risk
of electric shock.
■ Do not use the product if the power cord
or other important parts, such as safety
devices, are damaged.
■ Check the power cord and the extension cord
for damage before each use. If the power
cord or the extension cord is damaged, it
must be replaced by the manufacturer, its
service agent, or similarly qualified persons
in order to avoid a hazard.
■ Before every use, examine the supply cord
for damage. If there are signs of damage,
it must be replaced by a qualified person
at an authorised service centre to avoid a
hazard.
■ Keep the power cord away from heat, oil,
and sharp edges.
■ Never touch the mains plug and the socket
with wet hands.
■ Inadequate extension cords can be
dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and
the connection has to be kept dry and off
the ground. Use a cord wheel to keep the
socket at least 60 mm above the ground.
■ The electric supply connection shall be
made by a qualified electrician and comply
with IEC 60364-1. It is recommended that
the electric supply to this product should
include either a residual current device
that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms
or a device that will prove the earth circuit.
ADDITIONAL SAFETY WARNINGS
■ Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■ Before each use, check the product
for damage. A damaged high-pressure
hose must be replaced. Ensure that all
connections, such as high-pressure hose
and nozzle, are secure. Unwind the hose
properly so they may not get twisted or
kinked.
■ Do not allow children or untrained individuals
to use the product.
■ Before starting any cleaning operation,
close doors and windows. Clear the area to
be cleaned of debris, toys, outdoor furniture,
or other objects that could create a hazard.
■ Never pick up or carry the product while the
motor is running.
■ Do not use the product in temperatures
below 0°C.
■ Do not use acids, alkalines, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.
■ Always operate the product on a level
surface.
WARNING! High pressure jet can be
dangerous if subjected to misuse. The jet must
not be directed to people, animals, electrical
devices, or the product itself.
■ Hold the trigger handle securely with both
hands. Expect the trigger handle to move
when the trigger is pulled due to reaction
forces. Failure to do so could cause loss of
control and injury to yourself and others.

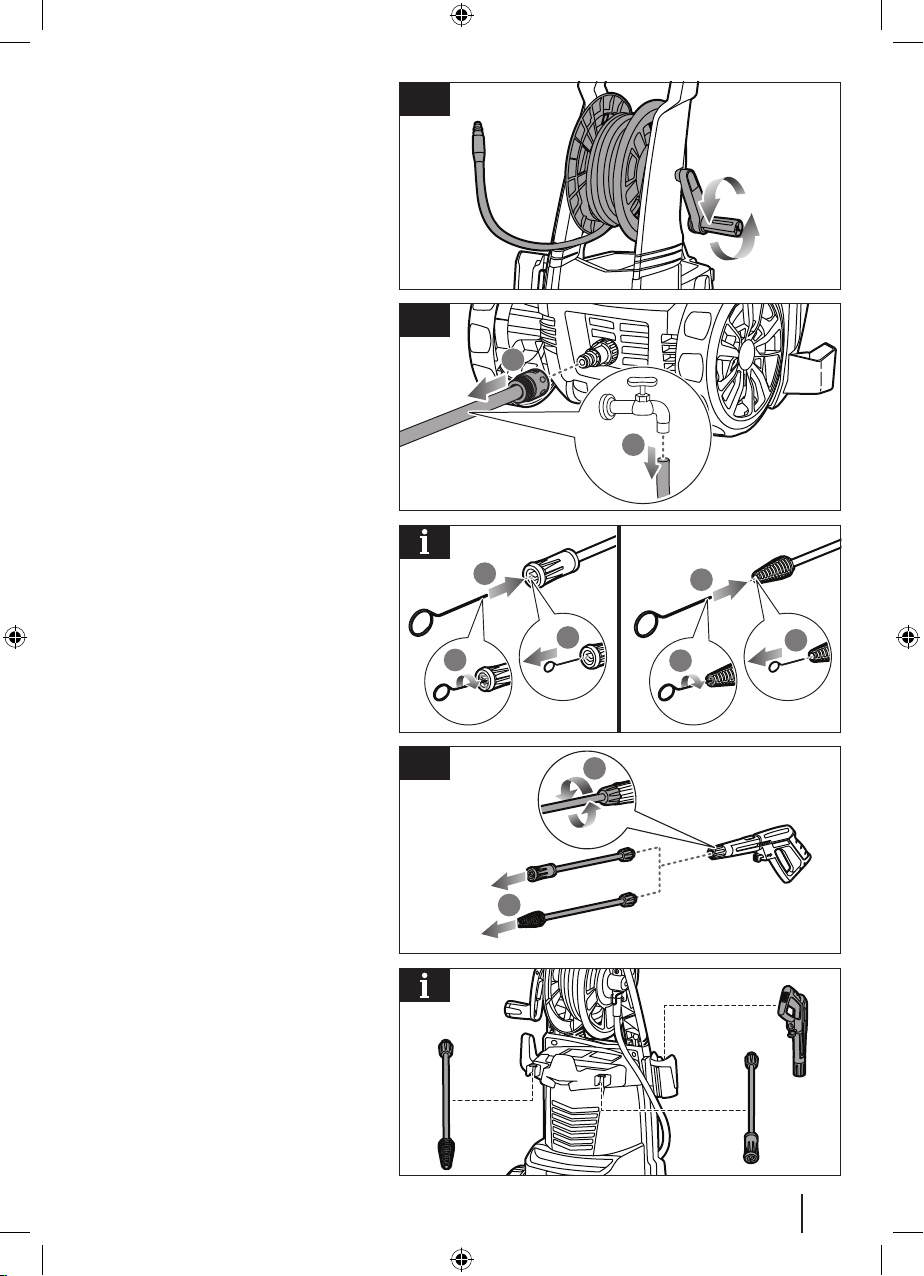

■ Make sure that the air in the hose and pump
is released before you turn on the product.
To remove the air in the hose and pump,
connect the water supply to the pump using
a garden hose, connect the trigger handle
to the pump using the high-pressure hose,
disengage the trigger handle lock, and
press the trigger until there is a steady flow.
■ Exercise caution to avoid slipping or falling.
■ Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■ Use only accessories that are recommended
by the manufacturer. The use of improper
accessories may cause injury.
■ Never leave the product running
unattended. Turn off the product. Do not
leave the product if it has not come to a
complete stop.
■ Be familiar with the controls. Know how to
stop the product and bleed the pressure
quickly.
3
Page 4
Original Instructions
■ Stay alert and exercise control. Watch what
you are doing and use common sense.
■ Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating the product may result in serious
personal injury.
■ Do not use the product if the switch does not
turn it on and off. Any product that cannot
be controlled with a switch is dangerous
and must be repaired.
■ Keep a minimum distance of 30 cm when
cleaning vehicles. The high pressure jet
may damage or burst vehicle tires and/or
tire valves.

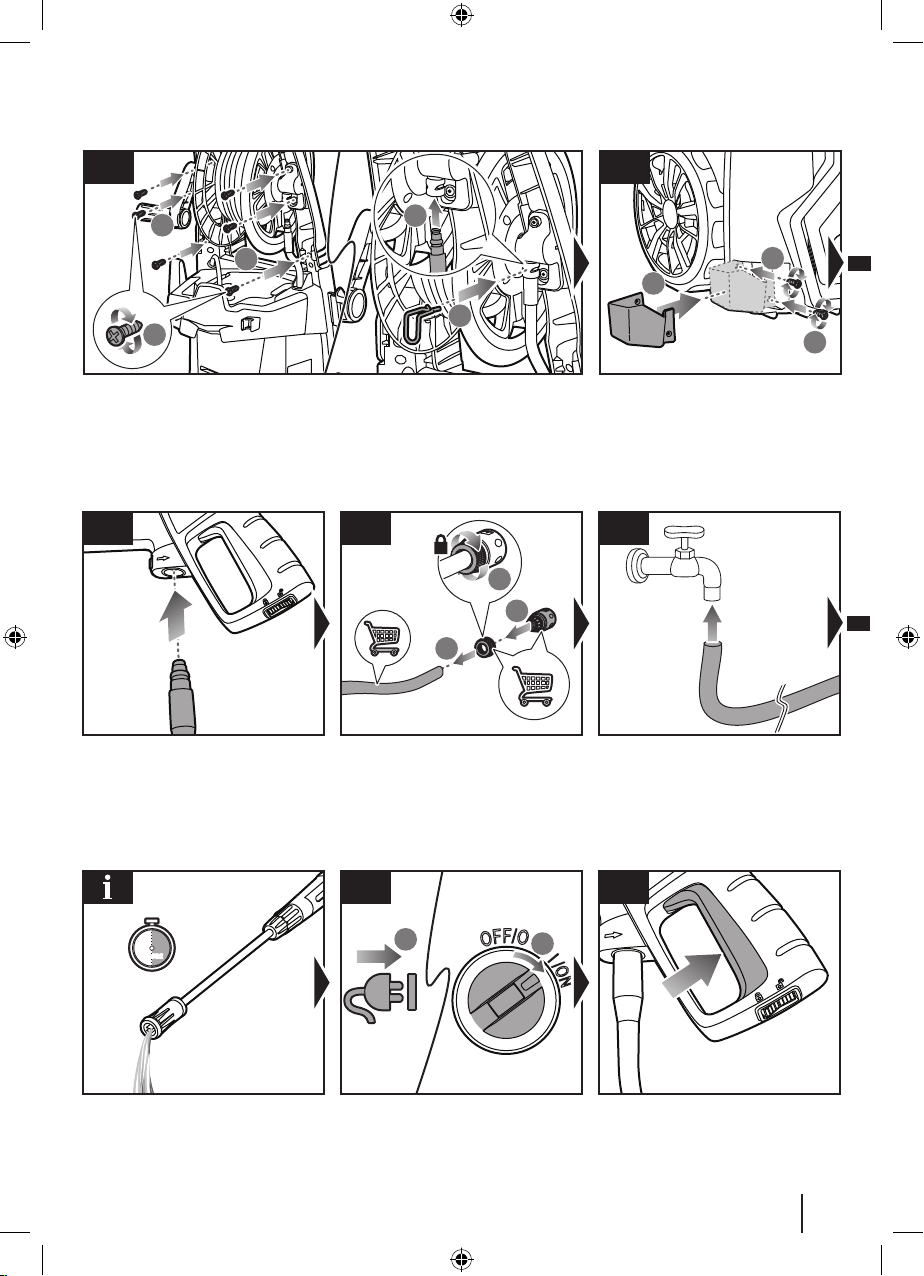

■ Use a garden hose with a maximum length
of 15 m and minimum diameter of 18 mm
(3/4 in.).

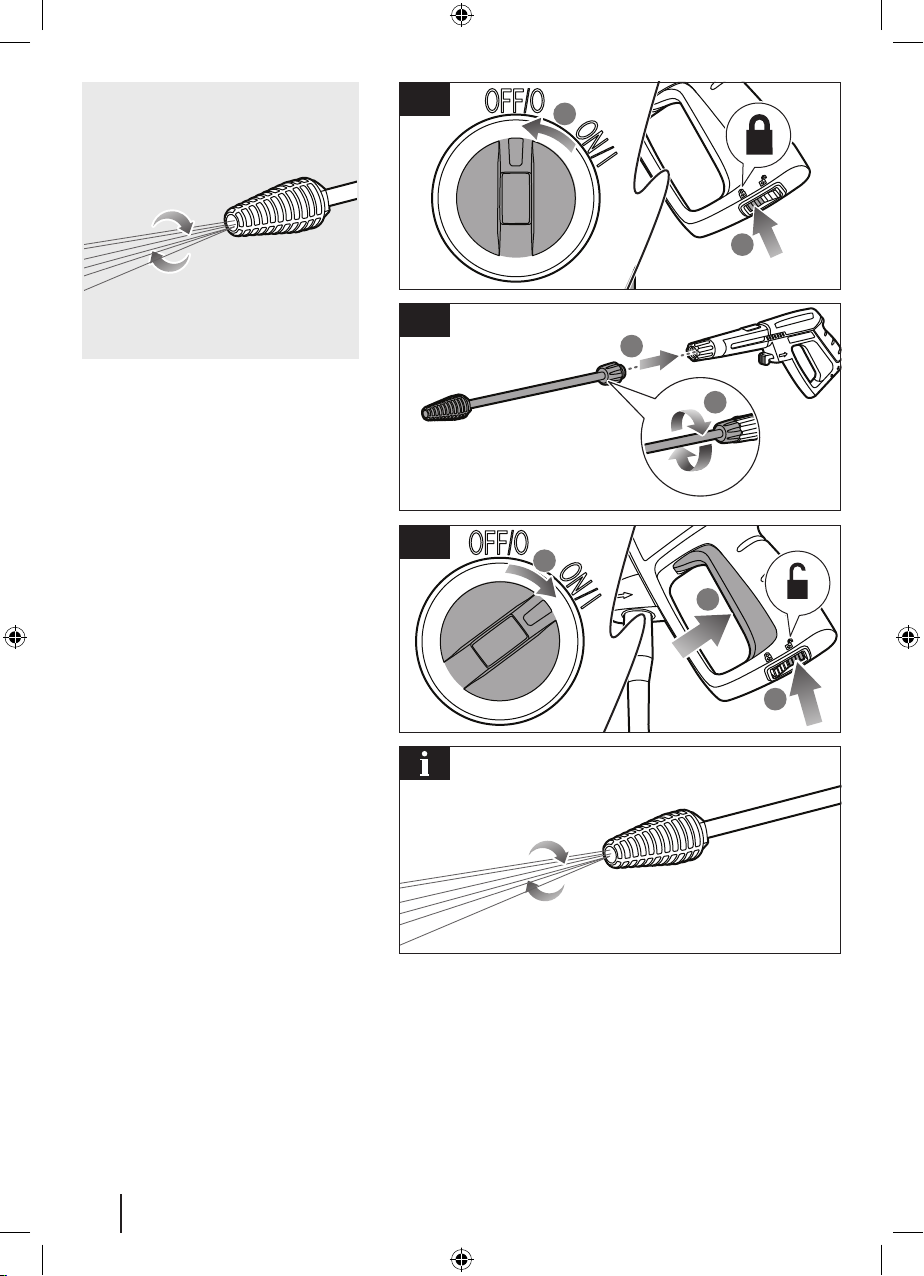

■ Before each use, ensure that the accessory
is securely attached to the trigger gun.
OVERLOAD PROTECTION
The product has an overload protection device
that is activated when overheating or when a
current spike occurs, automatically shutting
down the power within the product. To resume
operation, disconnect the product from the
power supply, wait for about 15 minutes, and
reconnect the product to the power supply.
TRANSPORTATION AND STORAGE
CAUTION! Mind the weight of the product
when selecting the storage location and during
transportation to prevent accidents or injuries.
■ Stop the product, disconnect from the power
supply, and allow the product to cool down.
Disconnect the product from the water
supply before storing or transporting. Never
place the product in any position other than
upright.
■ Clean all foreign materials from the product.
Store it in a cool, dry, and well-ventilated
place that is inaccessible to children. Keep
the product away from corrosive agents
such as garden chemicals and de-icing
salts. Do not store the product outdoors.
■ Remove water from all hoses and the pump,
and empty the detergent tank before storing
the product.
■ For transportation in a vehicle, secure the
product against movement or falling to
4
prevent injury to persons or damage to the
product.

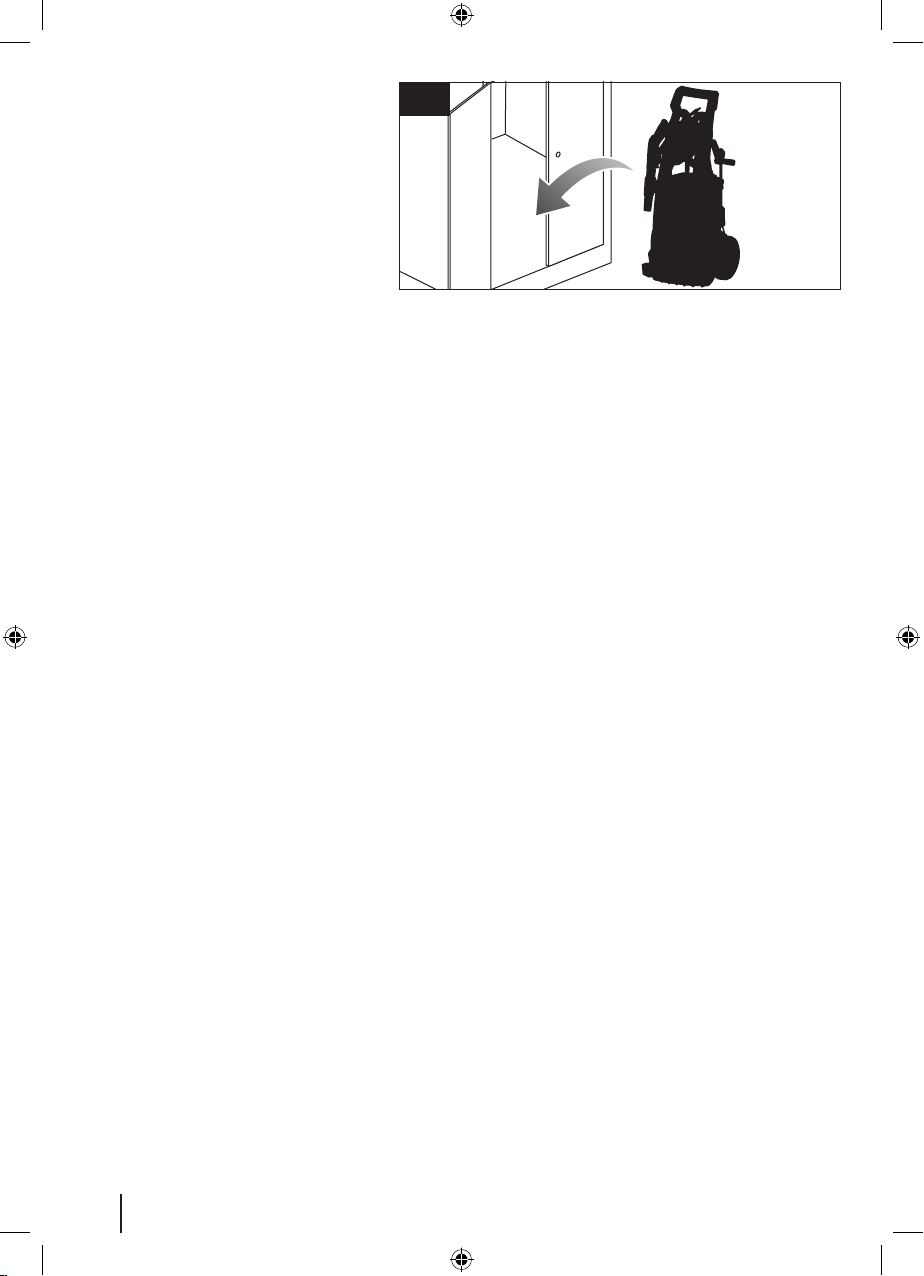

■ Store the product indoors only. Storing the
product in an area with temperature below
0°C will damage the product.
MAINTENANCE
■ Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
■ Servicing requires extreme care and
knowledge and should be performed only
by a qualified service technician. Have the
product serviced by an authorised service
centre only.

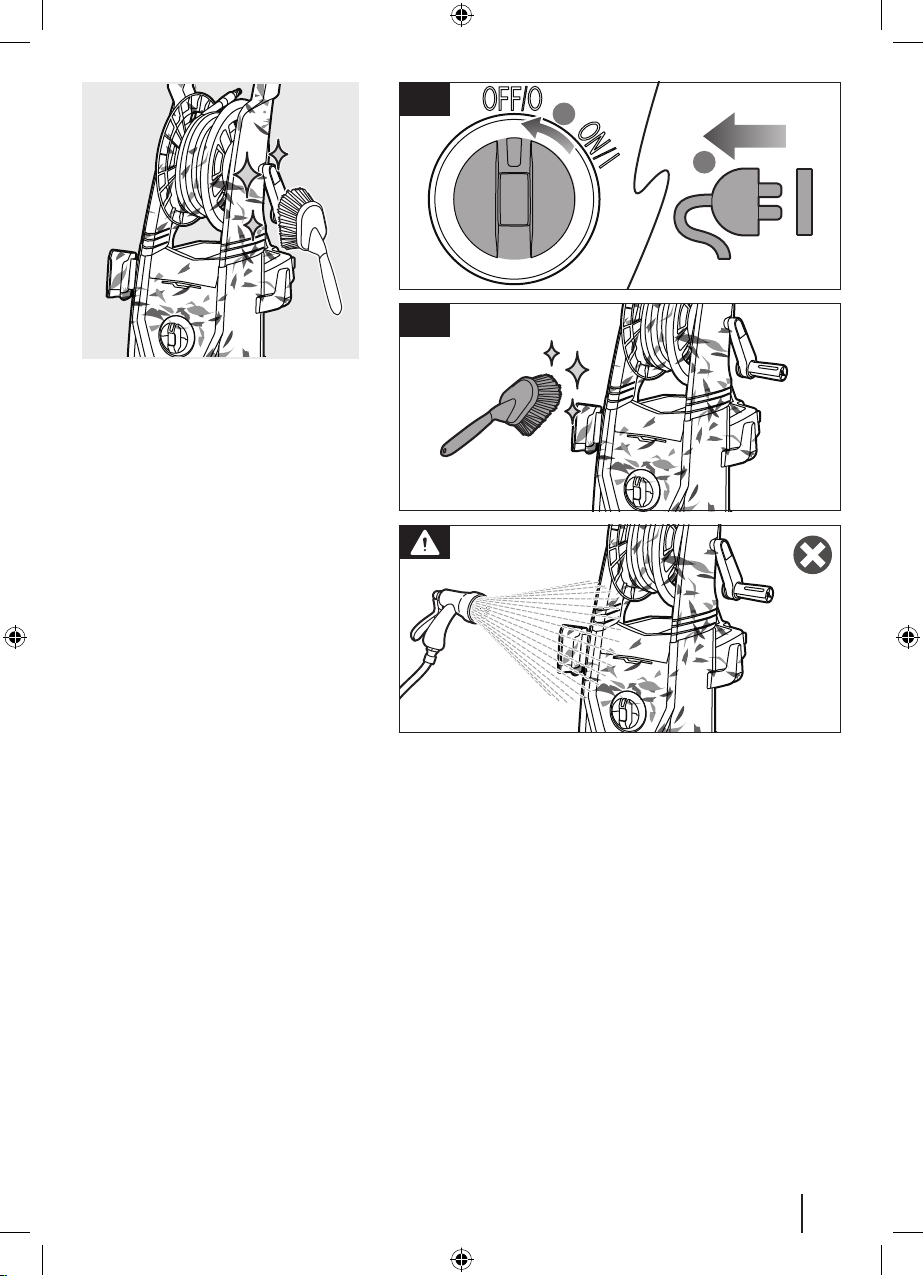

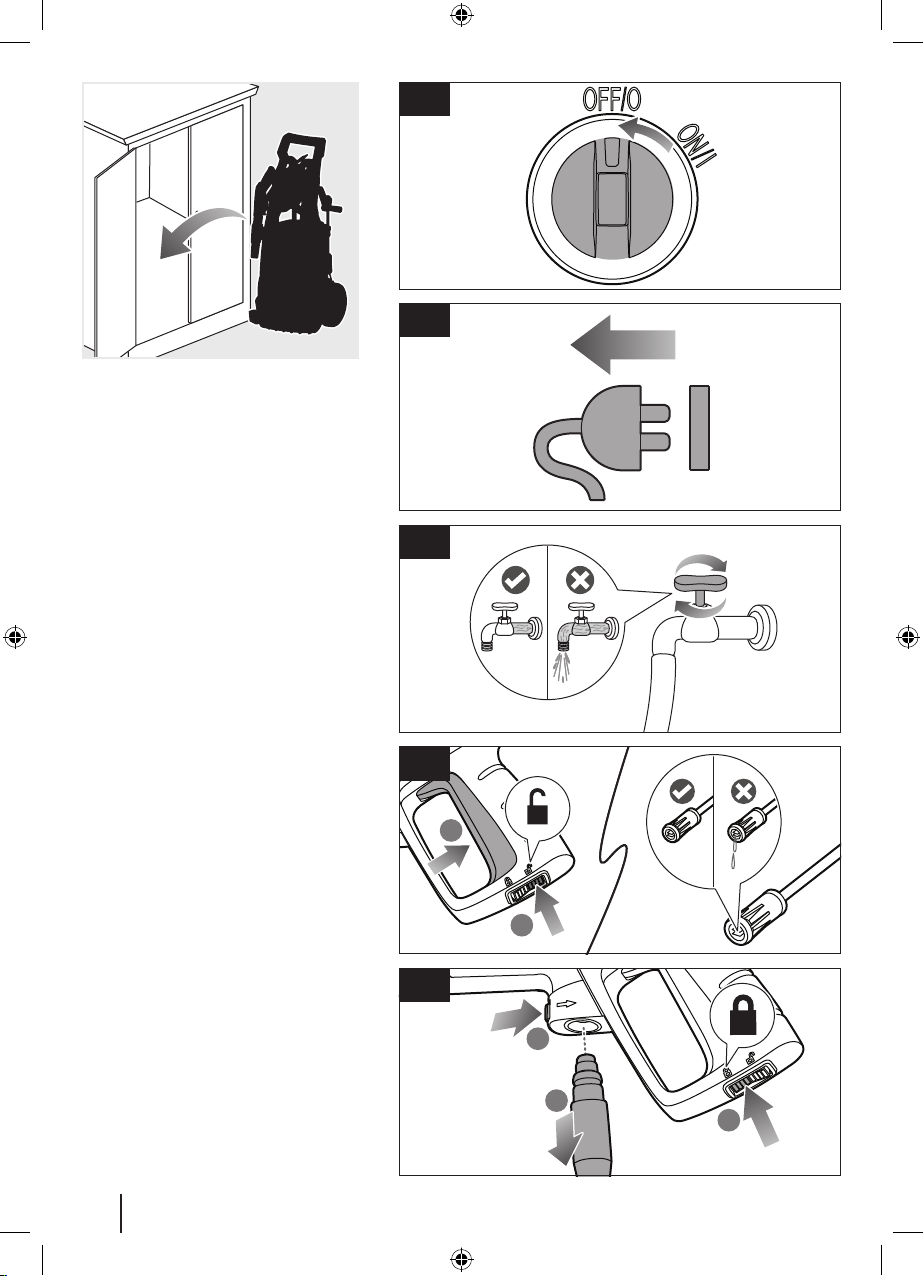

■ Turn off the product, disconnect from the
power supply and water supply, and allow
the product to cool down:
● before servicing
● before clearing a blockage
● before checking, cleaning, or working on
the product
■ You may make adjustments or repairs
described in this manual. For other repairs,
contact an authorised service centre.
■ Regularly inspect and maintain the high
pressure cleaner for safe operation. RYOBI
recommends inspecting the product every
6 months.
■ Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure that
the product is in safe working condition. Any
part that is damaged should be properly
repaired or replaced by an authorised
service centre.

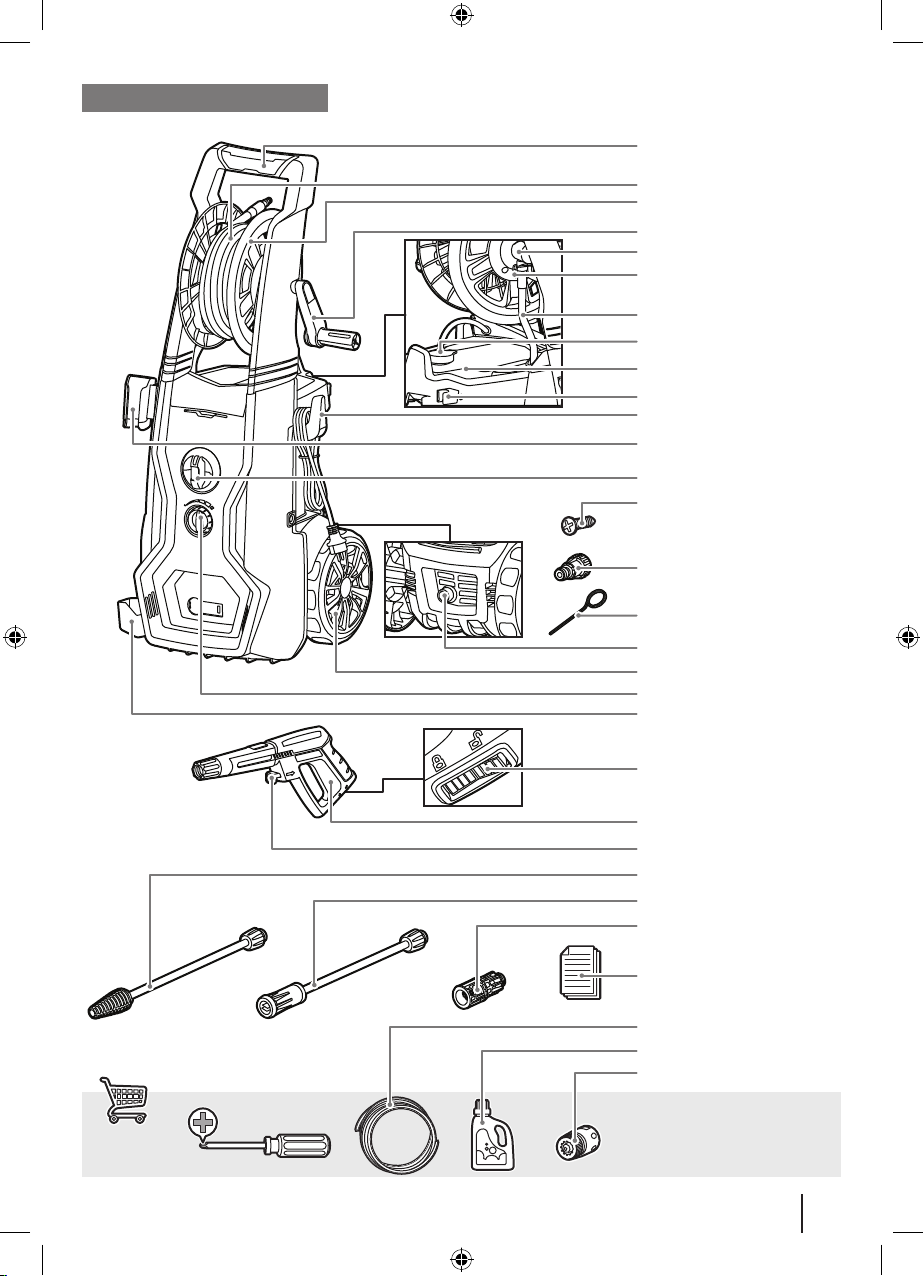

KNOW YOUR PRODUCT
See page 7.
1. Carry handle
2. High pressure hose
3. Hose reel
4. Reel handle
5. Rolling support
6. Adapter clip
7. Internal high pressure hose
8. Detergent tank cap
9. Detergent tank
10. Lance hook
11. Power cord holder
12. Trigger gun holder
13. On/off switch
14. Handle screws
Page 5
Original Instructions
15. Water inlet filter
90
16. Nozzle cleaning tool
17. Water inlet port
18. Wheel
19. Detergent function switch
20. Nozzle holder
21. Trigger handle lock
22. Trigger
23. Hose lock button
24. Turbo lance
25. Vario lance
26. QC adapter
27. Operator’s manual
28. Garden hose
29. Ryobi detergent
30. Garden hose connector
NOTE: If using a detergent, refer to the Material
Safety Data Sheet of the detergent.
SAFETY DEVICES
■ On/Off switch
– The on/off switch prevents unintentional
operation of the product.
■ Trigger handle lock
– The trigger handle lock locks the trigger
and prevents unintentional opening of
the high-pressure jet.
■ Overflow valve with pressure switch
– The overflow valve prevents the
permissible working pressure from being
exceeded. If the lever on the trigger gun
is released, the pressure switch turns
off the pump and the high-pressure jet
stops. If the lever is pulled, the pump
turns on again.
■ Overload protection
– A thermal sensor protects the product
from overloading. The product will
automatically shut the power down while
overheating.

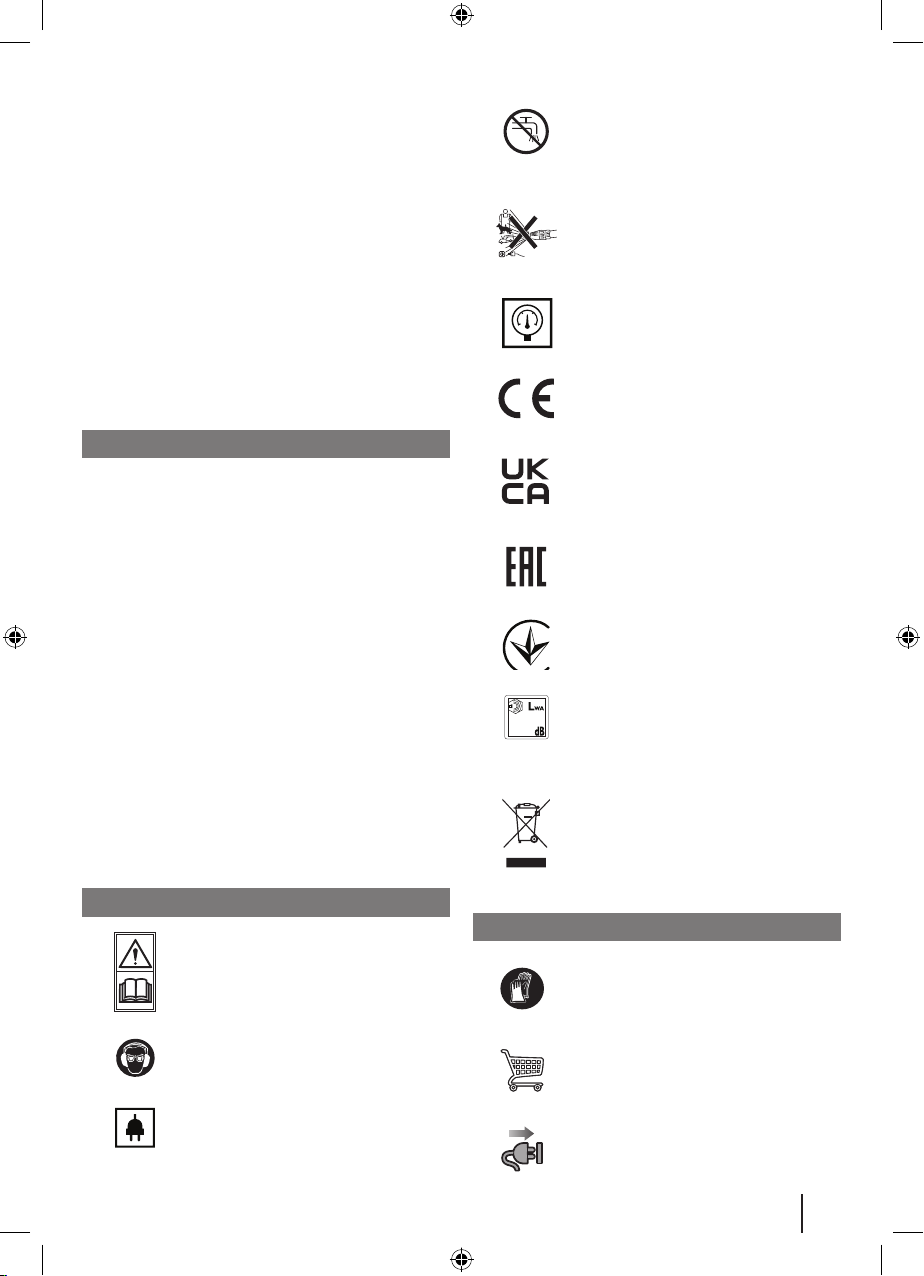

SYMBOLS ON THE PRODUCT
Read and understand all
instructions before operating
the product. Follow all warnings
and safety instructions.
The product is not suitable
for connection to the drinking
water mains without backow
preventer.
Never point the spray wand to
people, animals, the body of the
product, power supply, or any
electric appliances.
Maximum pressure
European Conformity Mark
British Conformity Mark
EurAsian Conformity Mark
Ukraine Conformity Mark
Guaranteed sound power level
Waste electrical products
should not be disposed of with
household waste. Recycle
where facilities exist. Check
with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Wear non-slip, heavy-duty,
protective gloves when handling.
Wear eye and hearing
protection.
Power
Parts or accessories sold
separately
Connect to power outlet.
5
Page 6
Original Instructions
Disconnect from power outlet.
Note
Warning
6
Page 7
RY170PWA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
x 6
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
7
Page 8

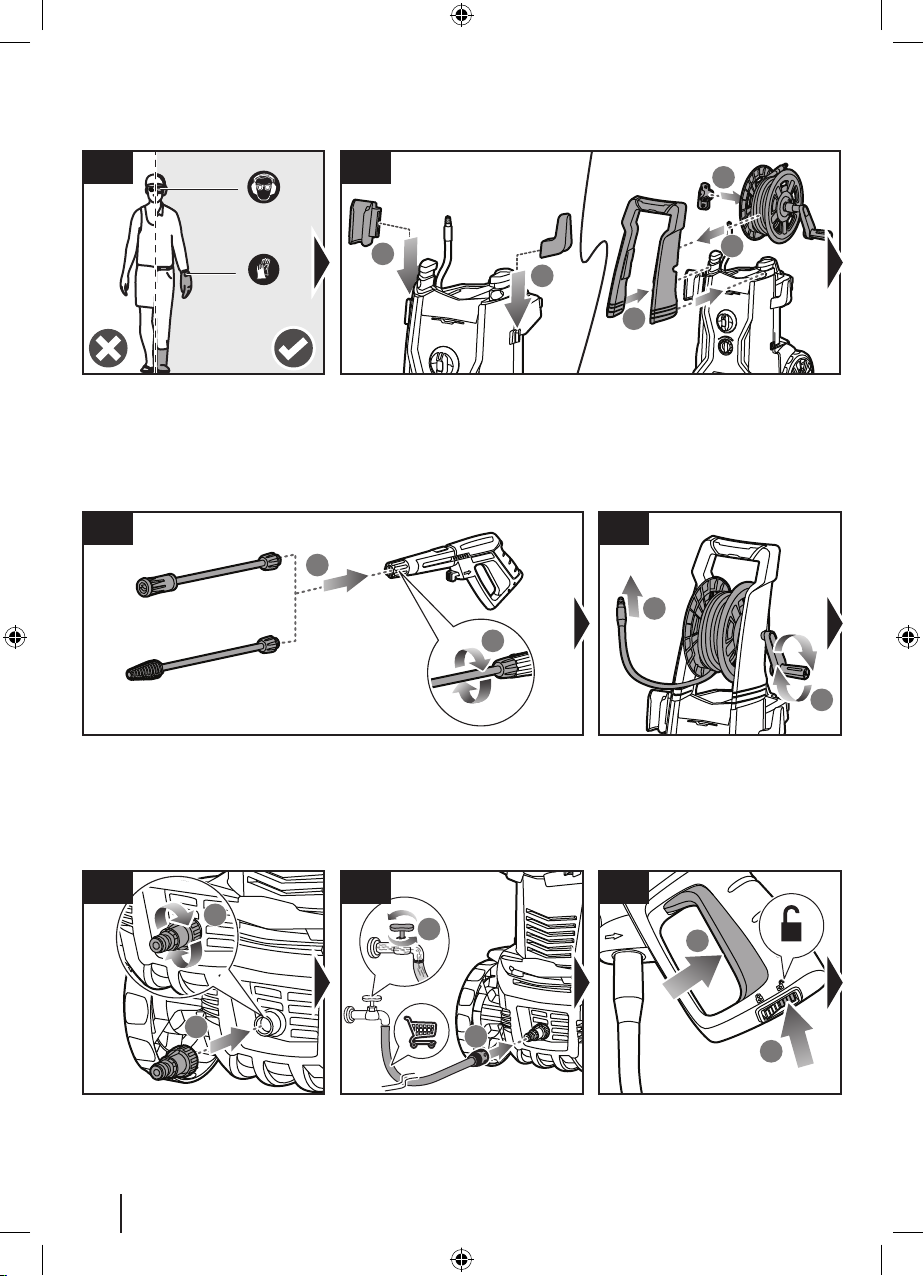

1 2
4
1
2
5 6
1
2
5
3
1
2
10
8
11
2
1
2
1
12
2
1
Page 9
3
4
1
2
3
7
4
2
1
5
8
3
2
1
9
5
3
10
30 sec
13
14
1
2
9

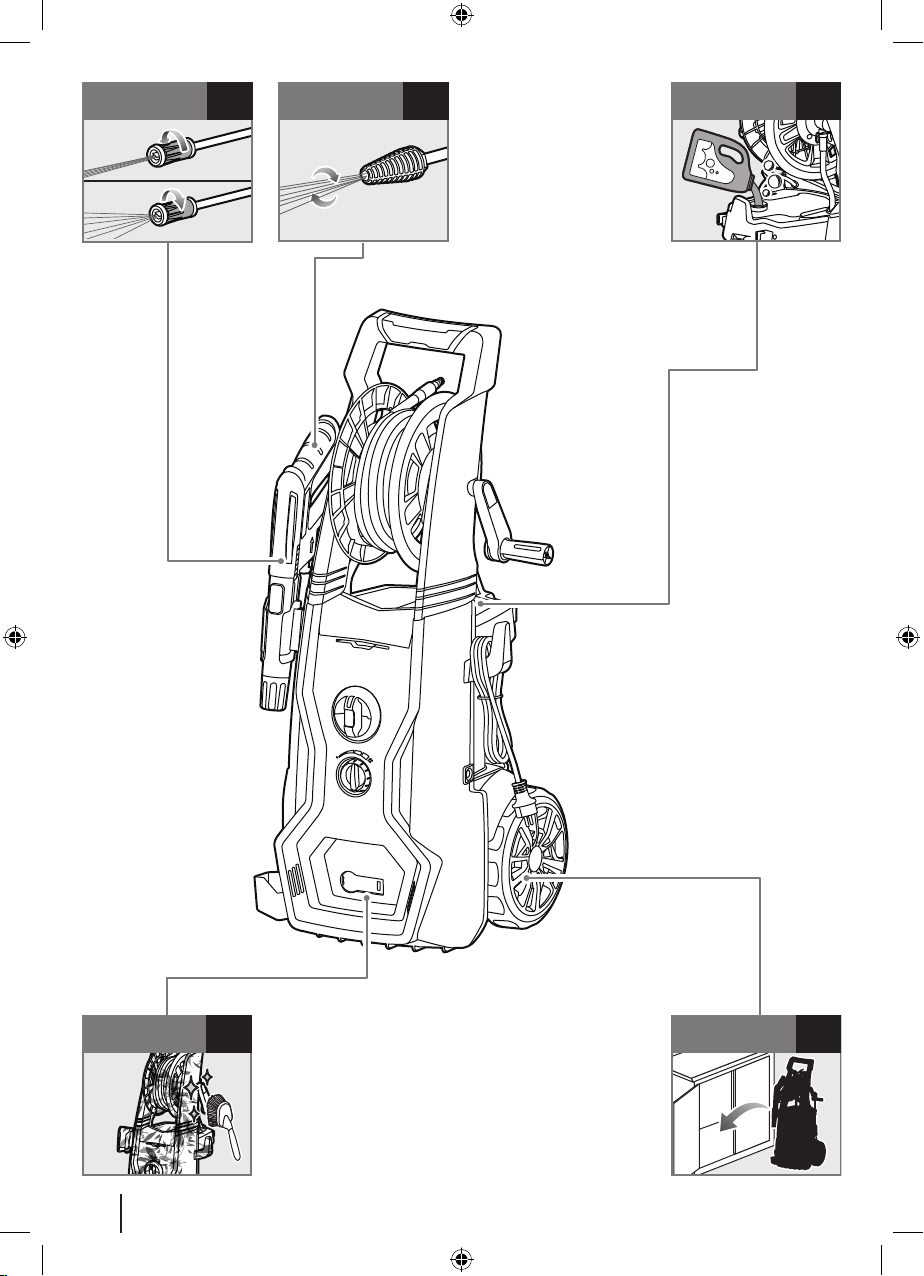

Page 10
p.11
p.13p.12
10
p.15 p.16
Page 11
1
1
3
2
11
Page 12
1
1
2
2
1
2
3
1
3
2
12
Page 13

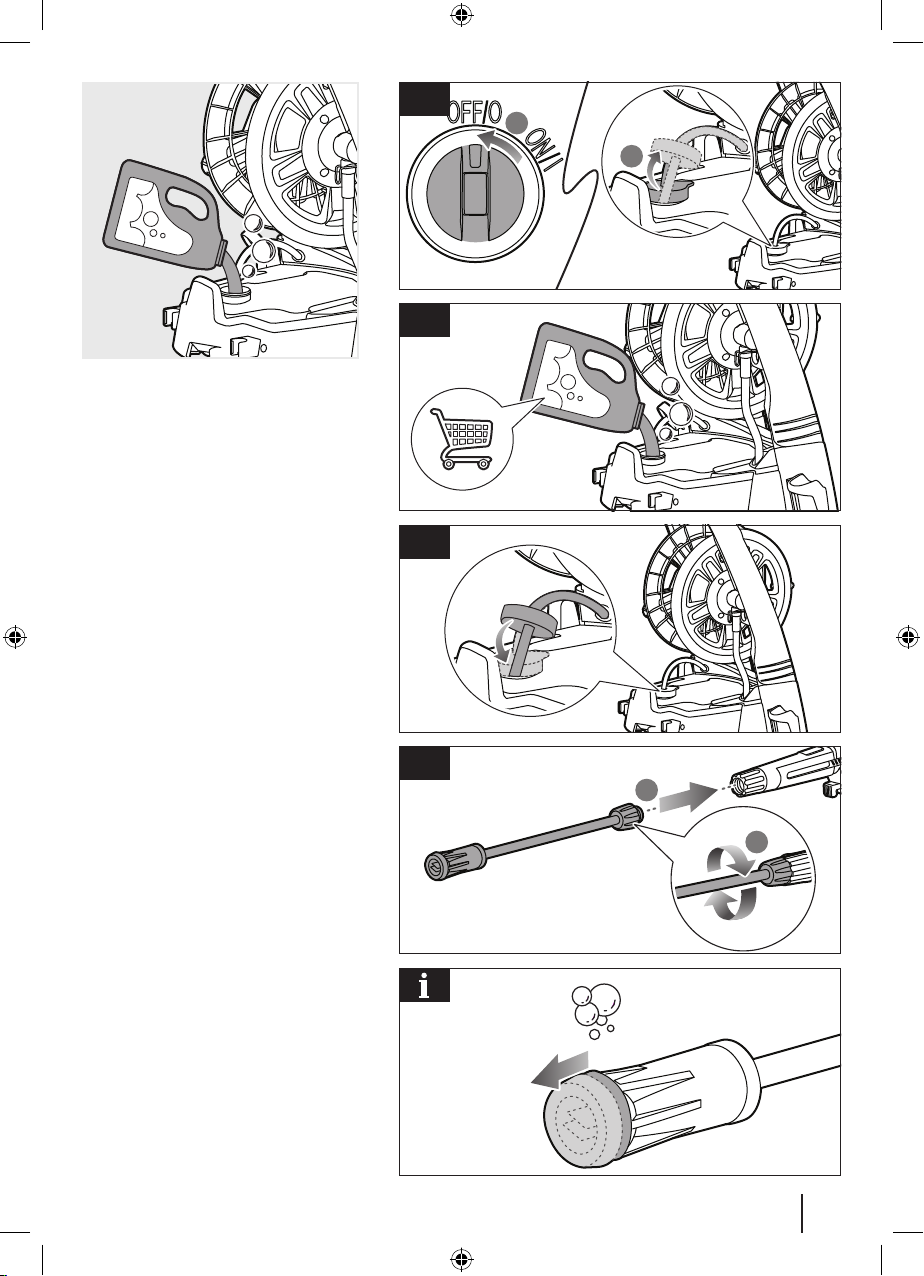

1
1
2
2
3
4
1
2
13

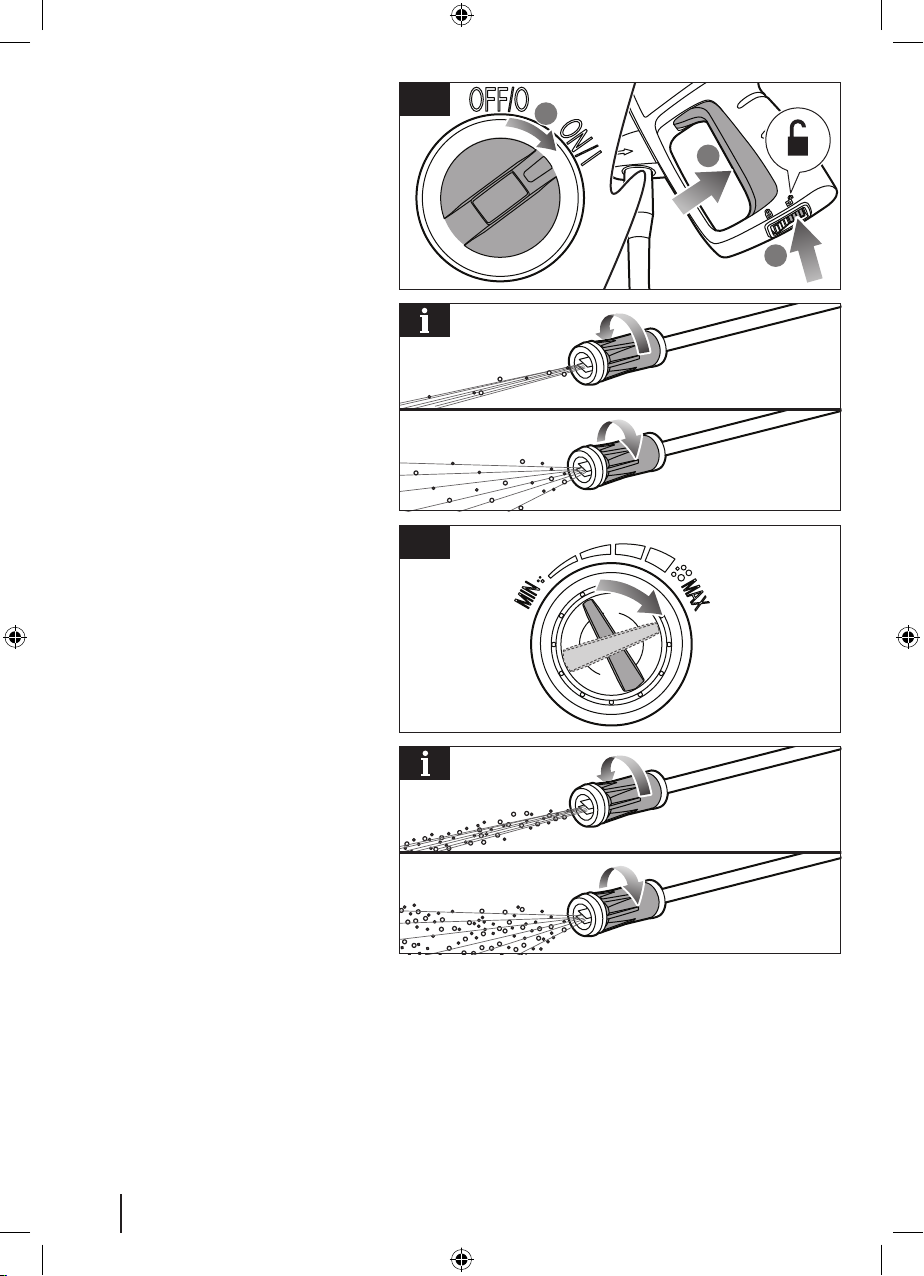

Page 14
5
1
3
2
6
14
Page 15

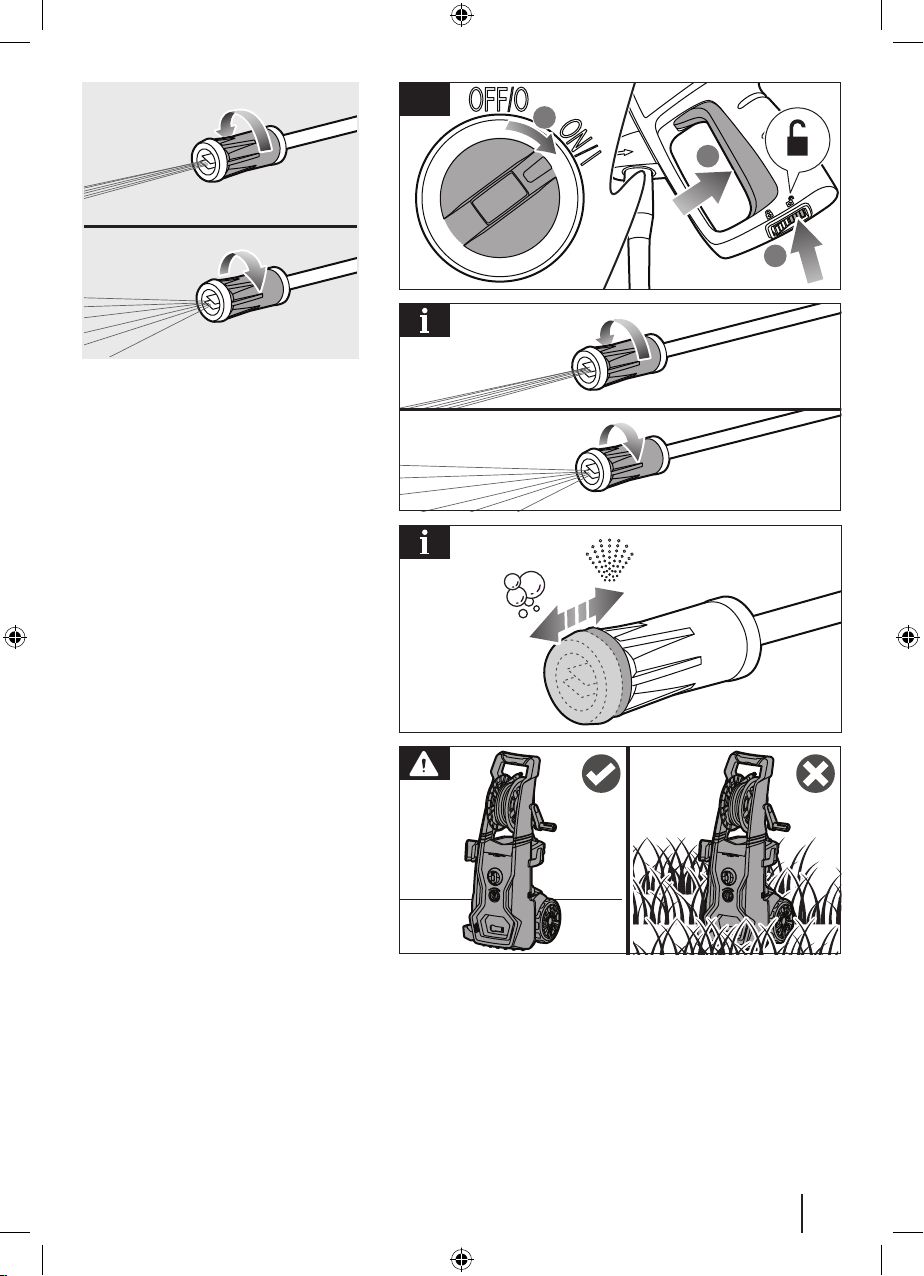

1
1
2
2
15
Page 16
1
2
3
16
4
2
1
5
2
3
1
Page 17
6
7
1
2
1
3
2
8
2
1
1
3
2
17
Page 18
9
18
20211124v1
Page 19
TROUBLESHOOTING
Problem Possible causes Solution
Fluctuating pressure Pump sucking air Check that hoses and
Dirty, worn-out, or stuck
valves
Worn-out pump seals Bring the product to an
Product stops Thermal sensor activated Leave the cleaner for 15
Partially blocked nozzle Clean the nozzle.
Product pulsating Air in inlet hose/pump Allow the product to run with
Inadequate supply of mains
water
Partially blocked nozzle Clean the nozzle.
connections are air tight.
Bring the product to an
authorised service centre for
service or repair.
authorised service centre for
service or repair.
minutes to cool down.
open trigger until regular
working pressure resumes.
Check that the water
supply corresponds to the
specications required (see
model tag). Avoid using long,
thin hoses.
Blocked water lter Clean the lter.
Kinked hose Straighten out hose.
Product starts, but no water
comes out
No detergent Nozzle adjusted to high
Frozen pump/hoses or
accessory
No water supply Connect the water inlet port to
Blocked water lter Clean the lter.
Blocked nozzle Clean the nozzle.
pressure
Wait for pump/hoses or
accessory to thaw.
a water supply.
Adjust to low pressure.
Page 20
PRODUCT SPECIFICATIONS
Electric high pressure cleaner
Model RY170PWA
Rated voltage
Frequency
Power
Maximum pressure
Rated pressure
Degree of protection
Rated ow
Maximum ow
Maximum inlet water
pressure
Detergent tank
Power cord length
Sound pressure level (LPA)
(in accordance with EN
60335-2-79)
Uncertainty
Sound power level (LWA)
(in accordance with EN
60335-2-79)
Uncertainty
Vibration value (in
accordance with EN
60335-2-79)
Uncertainty
Weight
Maximum garden hose
length
Minimum garden hose
diameter
230-240 V a.c.
50 Hz
2200 W
17 MPa (170 bar)
13 MPa (130 bar)
IPX5
7.0 L/min
7.8 L/min
1.2 MPa (12 bar)
1.3 L
5 m
72.5 dB(A)
3 dB
86.2 dB(A)
3 dB
< 2.5 m/s
1.5 m/s
24 kg
15 m
18 mm (3/4 in.)
ACCESSORIES
Syphoning kit RAC769
Surface cleaner RAC772
Fixed/Multipurpose brush RAC774
Foam detergent bottle RAC775
Adaptor * RAC780
Angled turbo lance RAC782
Water inlet lter RAC784
Rotary brush RAC785
Pipe cleaning hose RAC786
O-rings RAC788
Adaptor (previous range
accessory to current product)
RAC790
Adaptor (current range
accessory to previous product)
RAC791
*Compatible adaptor for KÄRCHER pressure cleaner
accessories.
NOTE: Check the specication of the accessory part if it
matches the specications of the RYOBI high pressure
cleaner.
WARNING! The declared vibration total values
and the declared noise emission values given in this
instruction manual have been measured in accordance
with a standardised test and may be used to compare
one tool with another. They may be used for a preliminary
assessment of exposure.
The declared vibration and noise emission values
represent the main applications of the tool. However, if the
tool is used for dierent applications, used with dierent
accessories, or poorly maintained, the vibration and noise
emission may dier. These conditions may signicantly
increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and
noise should take into account the times when the tool
is turned o or when it is running idle. These conditions
may signicantly reduce the exposure level over the total
working period.
Identify additional safety measures to protect the operator
2
2
from the eects of vibration and noise, such as maintaining
the tool and the accessories, keeping the hands warm (in
case of vibration), and organising work patterns.
Page 21
RYOBI WARRANTY APPLICATION CONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered
by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the date
the product was purchased. This date has to be documented by an invoice or
other proof of purchase. The product is designed and dedicated to consumer
and private use only. So there is no warranty provided in case of professional or
commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC)
the warranty period over the period described above using the registration on
the www.ryobitools.eu website. The eligibility of products for extended warranty
is clearly displayed in stores and / or on packaging and is contained within
the product documentation. The end user is required to register his/her newlyacquired products online within 30 days from the date of purchase. The end
user may register for the extended warranty in his/her country of residence if
listed on the online registration form where this option is valid. Furthermore,
end users must give their consent to the storage of their personal data that is
required to be entered online. They must also accept the terms and conditions.
The registration confirmation receipt, which is sent out by e-mail, and the
original invoice showing the date of purchase will serve as proof of the extended
warranty.
3. The warranty covers all defects of the product during the warranty period due
to faults in workmanship or material at the purchase date. The warranty is
limited to repair and/or replacement and does not include any other obligations
including but not limited to incidental or consequential damages. The warranty
is not valid if the product has been misused, used contrary to the instruction
manual, or has been incorrectly connected to a power supply. This warranty
does not apply to:
– any damage to the product that is the result of improper or lack of
maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number)
markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised
warranty service centre or without prior authorisation by Techtronic
Industries
– any product connected to an improper power supply (amps, voltage,
frequency)
– any product used with inappropriate fuel mixture (fuel, oil, Ratio of oil /
fuel mixture)
– any damage caused by external influences (water, chemical, physical,
shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Accessories provided with the tool or purchased separately including but
not limited to blades, saw chains, cutting lines etc.
– Any periodic adjustments to or maintenance cleaning of carburetors
– Components (parts and accessories) subject to natural wear and tear,
including but not limited to bump knobs, drive belts, clutch, blades of
hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes,
power cord, tines, felt washers, hitch pins, blower fans, blower and
vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses,
connector fittings, spray nozzles, wheels, spray wands, inner reels, outer
spools, cutting lines, spark plugs, air filters, gas filters, mulching blades,
etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised
service station listed for each country in the following list of service station
addresses. In some countries your local RYOBI dealer undertakes to send the
product to the RYOBI service organisation. When sending a product to a RYOBI
service station, the product should be safely packed without any dangerous
contents such as petrol, marked with sender’s address and accompanied by a
short description of the fault.
5. A repair / replacement under this warranty is free of charge. It does not
constitute an extension or a new start of the warranty period. Exchanged
parts or products become our property. In some countries delivery charges or
postage will have to be paid by the sender. Your statutory rights arising from the
purchase of the product remain unaffected.
6. This warranty is valid in the European Community, Switzerland, Iceland,
Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these
areas, please contact your authorised RYOBI dealer to determine if another
warranty applies.
AUTHORISED SERVICE CENTRE
Any request or issue with the product can be addressed to your local authorized
service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH,
Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number
and product type printed on the label.
EC DECLARATION OF CONFORMITY
Manufacturer: Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare as the manufacturer under our sole responsibility that the product
mentioned below
Electric high pressure cleaner
Brand: RYOBI
Model number: RY170PWA
Serial number range: 47588501000000 - 47588501999999
fulfills all the relevant provisions of the following European Directives, European
Regulations and harmonized standards:
2006/42/EC, 2014/30/EU, 2011/65/EU,
EN 60335-1:2012+A2:2019, EN 60335-2-79:2012,
EN 55014-1:2017+A11:2020, EN 55014-2:2015,
EN IEC 63000:2018, EN IEC 61000-3-2:2019,
EN 62233:2008, EN 61000-3-11:2013+A1:2019
Measured sound power level: 86.2 dB(A)
Guaranteed sound power level: 90 dB(A)
Conformity assessment method to Annex V Directive 2000/14/EC amended by
2005/88/EC.
Sven Eschrich
VP of Engineering - TTI Outdoor Power Division
Winnenden, Jan. 15, 2021
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
GB-DECLARATION OF CONFORMITY
Manufacturer: Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare as the manufacturer under our sole responsibility that the product
mentioned below
Electric high pressure cleaner
Brand: RYOBI
Model number: RY170PWA
Serial number range: 47588601000000 - 47588601999999
fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597
(as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended) and that
the following designated standards have been used:
BS EN 60335-1:2012+A2:2019,
BS EN 60335-2-79:2012, BS EN 55014-1:2017+ A11: 2020,
BS EN 55014-2:2015, BS EN IEC 61000-3-2:2019,
BS EN 61000-3-11:2013+A1:2019, BS EN 62233:2008,
BS EN IEC 63000:2018
Measured sound power level:
Guaranteed sound power level: 90 dB(A)
Conformity assessment method to S.I. 2001/1701 Schedule 8 (as amended)
Sven Eschrich
VP of Engineering - TTI Outdoor Power Division
Winnenden, Jan. 15, 2021
Authorised to compile the technical file:
Techtronic Industries (UK) Ltd
Fieldhouse Lane
Marlow Bucks SL7 1HZ
UK
KÄRCHER is a registered trade mark of Alfred Kärcher GmbH & Co. KG.
86.2 dB(A)
RYOBI is a trade mark of Ryobi Limited, and is used under license.
Page 22
Page 23
Page 24
BACK PAGE
Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
Techtronic Industries (UK) Ltd
Fieldhouse Lane
Marlow Bucks SL7 1HZ
UK
099903074001-01
Loading...
