Page 1

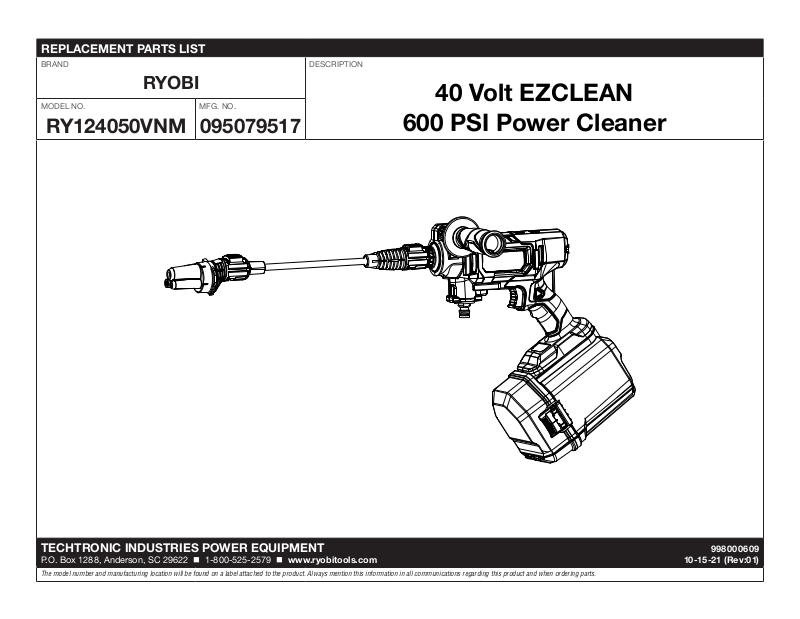

REPLACEMENT PARTS LIST
BRAND
RYOBI
MODEL NO.
MFG. NO.
DESCRIPTION
40 Volt EZCLEAN
RY124050VNM
095079517
600 PSI Power Cleaner
TECHTRONIC INDUSTRIES POWER EQUIPMENT 998000609
P.O. Box 1288, Anderson, SC 29622 1-800-525-2579 www.ryobitools.com 10-15-21 (Rev:01)
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
Page 2
RY124050
12
13
16
14
17
15
7
8
2
3
14
11
4
15
19
5
6
1
9
18
10
KEY NO. PART NO. DESCRIPTION QTY.
1 308835131
2 310448053 3-in-1 Nozzle 1
3 310448046 Extension Pole 1
4 308103009 Inlet Filter 1
5 308751031 Inlet Connector 1
6 570742189 O-Ring (11.3 x 2.5) 1
7 527932089 Handle Grip Mount 1
Suction Hose with Swivel
Connector
1
PARTS LIST
KEY NO. PART NO. DESCRIPTION QTY.
8 360804003 Handle 1
9 527932081 Latch 1
10 570742188 O-Ring Seal (144 x 4.2) 1
11 310423011 Quick-Connect Adaptor 1
12 940779390 Icon/Danger Label 1
13 941588944 Data Label 1
14 940705547 RYOBI HP Logo Label 2
2
KEY NO. PART NO. DESCRIPTION QTY.
15 940779394 EZCLEAN Logo Label 2
16 940779360 LED Mode Label 1
17 940779391 BRUSHLESS Logo Label 1
18 940657337 Danger Hangtag 1
19 310423018 1- to 2-Liter Bottle Connector 1
Not Shown:
998000607 Operator’s Manual
