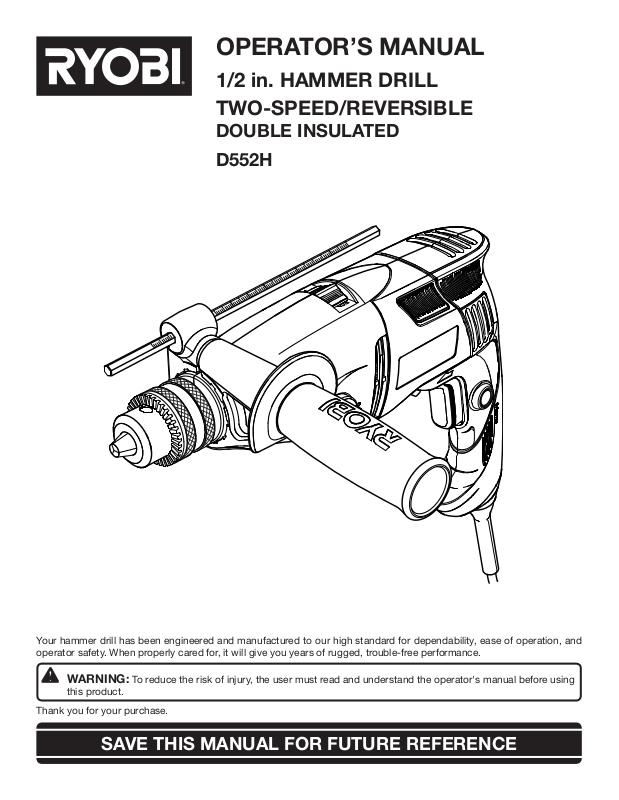

Page 1
OPERATOR’S MANUAL
1/2 in. HAMMER DRILL
TWO-SPEED/REVERSIBLE
DOUBLE INSULATED
D552H
Your hammer drill has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Page 2
TABLE OF CONTENTS
Introduction ..................................................................................................................................................................... 2
Warranty .......................................................................................................................................................................... 2
General Safety Rules .................................................................................................................................................... 3-4
Specific Safety Rules ....................................................................................................................................................... 4
Symbols ........................................................................................................................................................................5-6
Electrical .......................................................................................................................................................................... 7

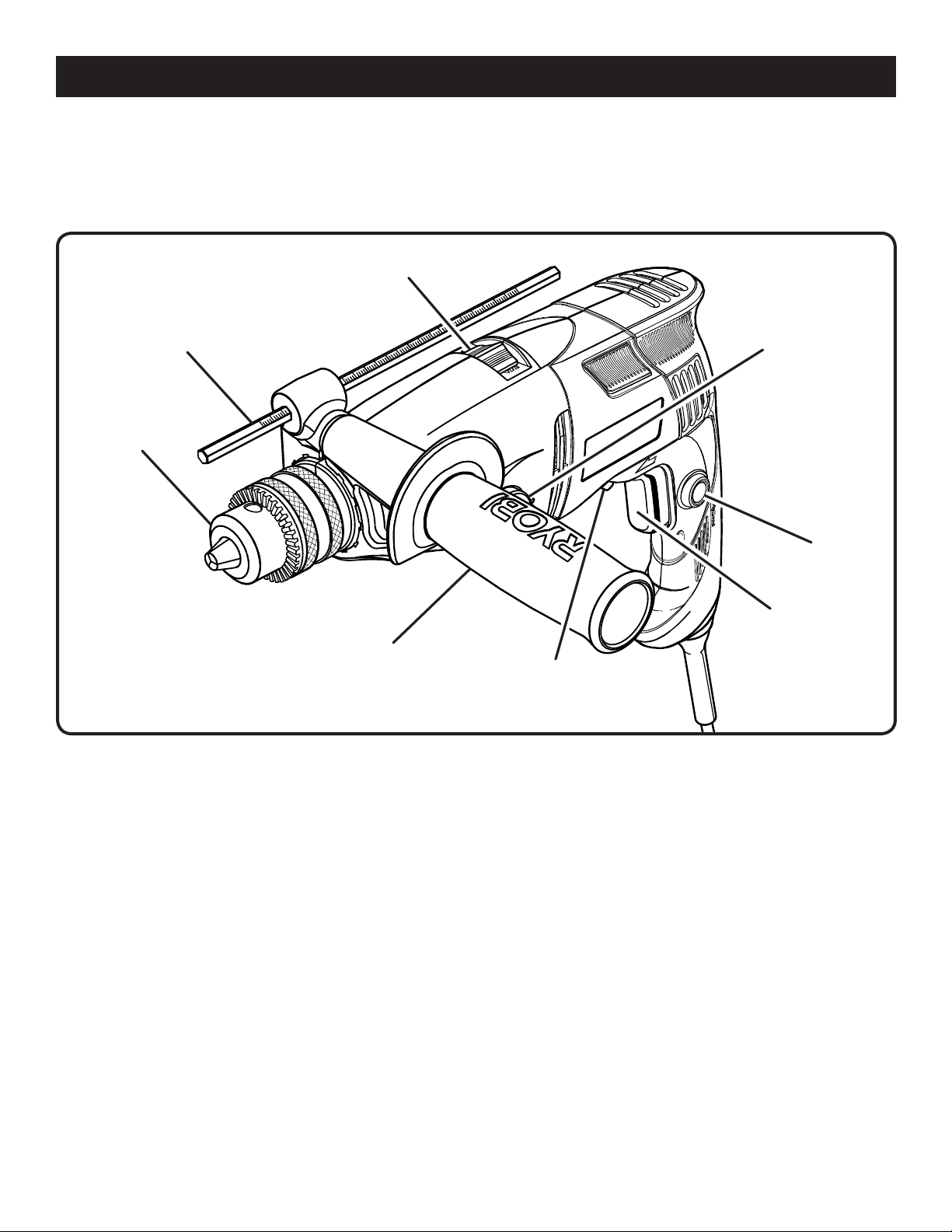

Features ........................................................................................................................................................................... 8
Assembly ......................................................................................................................................................................... 9
Operation .................................................................................................................................................................... 9-14
Maintenance ............................................................................................................................................................. 14-15
Parts Ordering / Service ................................................................................................................................................ 16
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
WARRANTY
RYOBI® POWER TOOL - LIMITED TWO YEAR WARRANTY AND 30 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI® power tools with the following conditions:
30-DAY EXCHANGE POLICY: During the first 30 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI® power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool
or requested warranty service, you must present proof of purchase and return all original equipment packaged with the
original product. The replacement power tool will be covered by the limited warranty for the balance of the two year period
from the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI® power
tool for a period of two years from the date of purchase. With the exception of batteries, power tool accessories are
warranted for ninety (90) days. Batteries are warranted for two years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service
Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One
World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to
www.ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World
Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools
other than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to two years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
2
Page 3
GENERAL SAFETY RULES
WARNING!
Read all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or
serious injury. The term “power tool” in all of the warnings
listed below refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
Do n o t o p e r a te p o w e r to ol s in ex p l o s i v e
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
PERSONAL SAFETY
Stay alert, watc h what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools
with your finger on the switch or plugging in power tools
that have the switch on invites accidents.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
power tool in unexpected situations.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work
to be performed. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
3
Page 4
GENERAL SAFETY RULES
SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
WARNING!
To reduce the risk of injury, user must read instruction
manual.
SPECIFIC SAFETY RULES
Wear ear protectors with impact drills. Exposure to
noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of
control can cause personal injury.
Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a
“live” wire will make exposed metal parts of the tool “live”
and shock the operator.
Know your power tool. Read operator’s manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
power tool. Following this rule will reduce the risk of
electric shock, fire, or serious injury.
Always wear safety glasses. Everyday eyeglasses
have only impact-resistant lenses; they are NOT safety
glasses. Following this rule will reduce the risk of serious
personal injury.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
Inspect power tool cords periodically and, if damaged,
have repaired at your nearest Authorized Service
Center. Constantly stay aware of cord location.
Following this rule will reduce the risk of electric shock
or fire.
When servicing a power tool, use only identical
replacement parts. Fo l low instructions in the
Maintenance section of this manual. Use of unauthorized
parts or failure to follow Maintenance instructions may
create a risk of shock or injury.
Check damaged parts. Before further use of the power
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced
by an authorized service center. Following this rule will
reduce the risk of shock, fire, or serious injury.
Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one
heavy enough to carry the current your product will
draw. A wire gauge size (A.W.G.) of at least 14 is
recommended for an extension cord 50 feet or less in
length. A cord exceeding 100 feet is not recommended.
If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating.
Inspect for and remove all nails from lumber before
using this power tool. Following this rule will reduce the
risk of serious personal injury.
If the power supply cord is damaged, it must be replaced
only by the manufacturer or by an authorized service
center to avoid risk.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this power tool.
If you loan someone this power tool, loan them these
instructions also.
4
Page 5
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n
o
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
No Load Speed Rotational speed, at no load
Class II Tool Double-insulated construction
DESIGNATION/EXPLANATION
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual
Eye Protection
Safety Alert Precautions that involve your safety.
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Always wear safety goggles or safety glasses with side shields and,
as necessary, a full face shield when operating this product.
Failure to keep your hands away from the blade will result in serious
personal injury.
Failure to keep your hands away from the blade will result in serious
personal injury.
Failure to keep your hands away from the blade will result in serious
personal injury.
Failure to keep your hands away from the blade will result in serious
personal injury.
Hot Surface
To reduce the risk of injury or damage, avoid contact with any hot
surface.
5
Page 6
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
CAUTION:
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to the nearest
AU THORIZED SERVICE CENTER for repair. When
servicing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt
to use this product until you read thoroughly and
understand completely the operator’s manual. If you
do not understand the warnings and instructions in the
operator’s manual, do not use this product. Call Ryobi
customer service for assistance.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye
protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
6
Page 7
ELECTRICAL
DOUBLE INSULATION
Double insulation is a concept in safety in electric power
tools, which eliminates the need for the usual threewire grounded power cord. All exposed metal parts are
isolated from the internal metal motor components with
protecting insulation. Double insulated tools do not need
to be grounded.
WARNING:
The double insulated system is intended to protect
the user from shock resulting from a break in the tool’s
internal insulation. Observe all normal safety precautions
to avoid electrical shock.
NOTE: Servicing of a tool with double insulation requires
extreme care and knowledge of the system and should
be performed only by a qualified service technician. For
service, we suggest you return the tool to your nearest
authorized service center for repair. Always use original
factory replacement parts when servicing.
ELECTRICAL CONNECTION
This tool has a precision-built electric motor. It should be
connected to a power supply that is 120 volts, 60 Hz, AC
only (normal household current). Do not operate this tool
on direct current (DC). A substantial voltage drop will cause
a loss of power and the motor will overheat. If the tool does
not operate when plugged into an outlet, double-check the
power supply.
EXTENSION CORDS
When using a power tool at a considerable distance from
a power source, be sure to use an extension cord that has
the capacity to handle the current the tool will draw. An
undersized cord will cause a drop in line voltage, resulting in
overheating and loss of power. Use the chart to determine
the minimum wire size required in an extension cord. Only
round jacketed cords listed by Underwriter’s Laboratories
(UL) should be used.
When working outdoors with a tool, use an extension cord that
is designed for outside use. This type of cord is designated
with “WA” on the cord’s jacket.
Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
**Ampere rating (on tool data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on lumber,
tools or other obstructions while you are working with a
power tool. Failure to do so can result in serious personal
injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use tool with a damaged cord
since touching the damaged area could cause electrical
shock resulting in serious injury.
7
Page 8
FEATURES
PRODUCT SPECIFICATIONS
Chuck Capacity ........................................................ 1/2 in.
Switch ............................. VSR (Variable Speed Reversible)
Blows Per Minute ........................ 0-17,000/0-51,000 BPM
MODE SELECTOR
DEPTH STOP ROD
CHUCK
No Load Speed ................... 0-1,000/0-3,000 r/min. (RPM)
Input ............................... 120 V, AC only, 60 Hz, 5.5 Amps
Net Weight ............................................................ 6.25 lbs.
TWO-SPEED
GEAR TRAIN
(HI-LO)
AUXILIARY
HANDLE ASSEMBLY

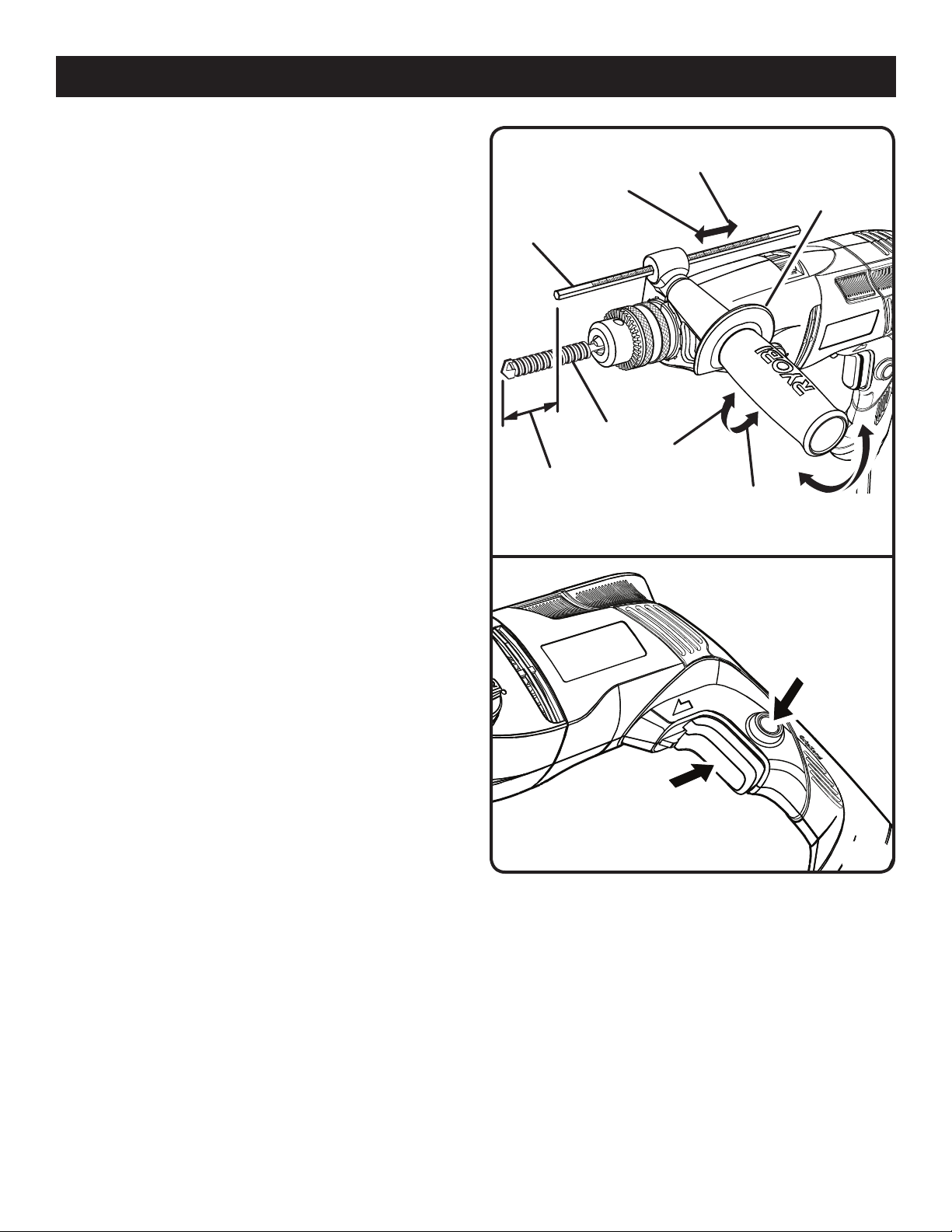

KNOW YOUR HAMMER DRILL
See Figure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
AUXILIARY HANDLE ASSEMBLY
Your drill is equipped with an auxiliary handle assembly.
For ease of operation, use the handle with either the left or
right hand.
BLOWS PER MINUTE
This tool features an impact speed of 0-17,000 and 0-51,000
BPM (Blows Per Minute). Blows Per Minute is the number
of impacts per minute.
DEPTH STOP ROD
A depth stop rod has been supplied with this product to
assist in controlling the depth of drilled holes.
LOCK-ON
BUTTON
SWITCH
TRIGGER
DIRECTION OF
ROTATION SELECTOR
(FOWARD/REVERSE)
Fig. 1

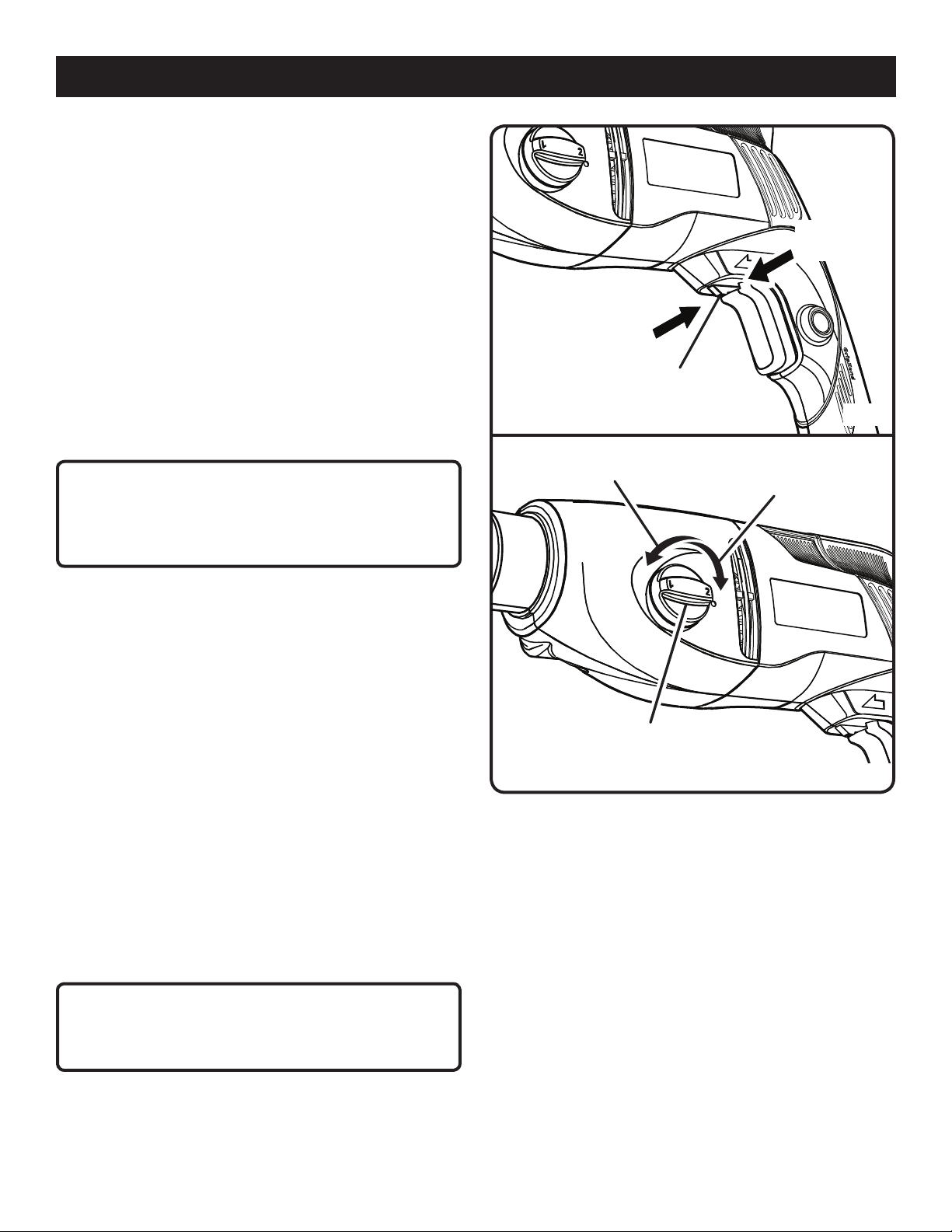

DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE)
Your drill has a direction of rotation (forward/reverse) selector
located above the switch trigger for changing the direction
of bit rotation.
LOCK-ON BUTTON
The lock-on button is convenient for continuous drilling for
extended periods of time.
MODE SELECTOR
Select either hammer mode or drilling mode depending on
the type of material in which you are drilling.
TWO-SPEED GEAR TRAIN
The two-speed gear train is designed for drilling or driving
at LO (1) or HI (2) speeds. A switch is located on the side of
your drill for selecting either LO (1) or HI (2) speed.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed with
increased trigger pressure and lower speed with decreased
trigger pressure.
8
Page 9
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have carefully
inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
PACKING LIST
Hammer Drill with Auxiliary Handle Assembly
Chuck Key
Depth Stop Rod
Case
Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate
this product until the parts are replaced. Failure to heed
this warning could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this product.
Any such alteration or modification is misuse and could
result in a hazardous condition leading to possible serious
personal injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
OPERATION
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating power tools. Failure to do so
could result in objects being thrown into your eyes
resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.
APPLICATIONS
You may use this product for the purposes listed below:
Hammer drilling in concrete, brick, or other masonry
Drilling in wood
Drilling in ceramics, plastics, fiberglass, and laminates
Drilling in metals
Mixing paint

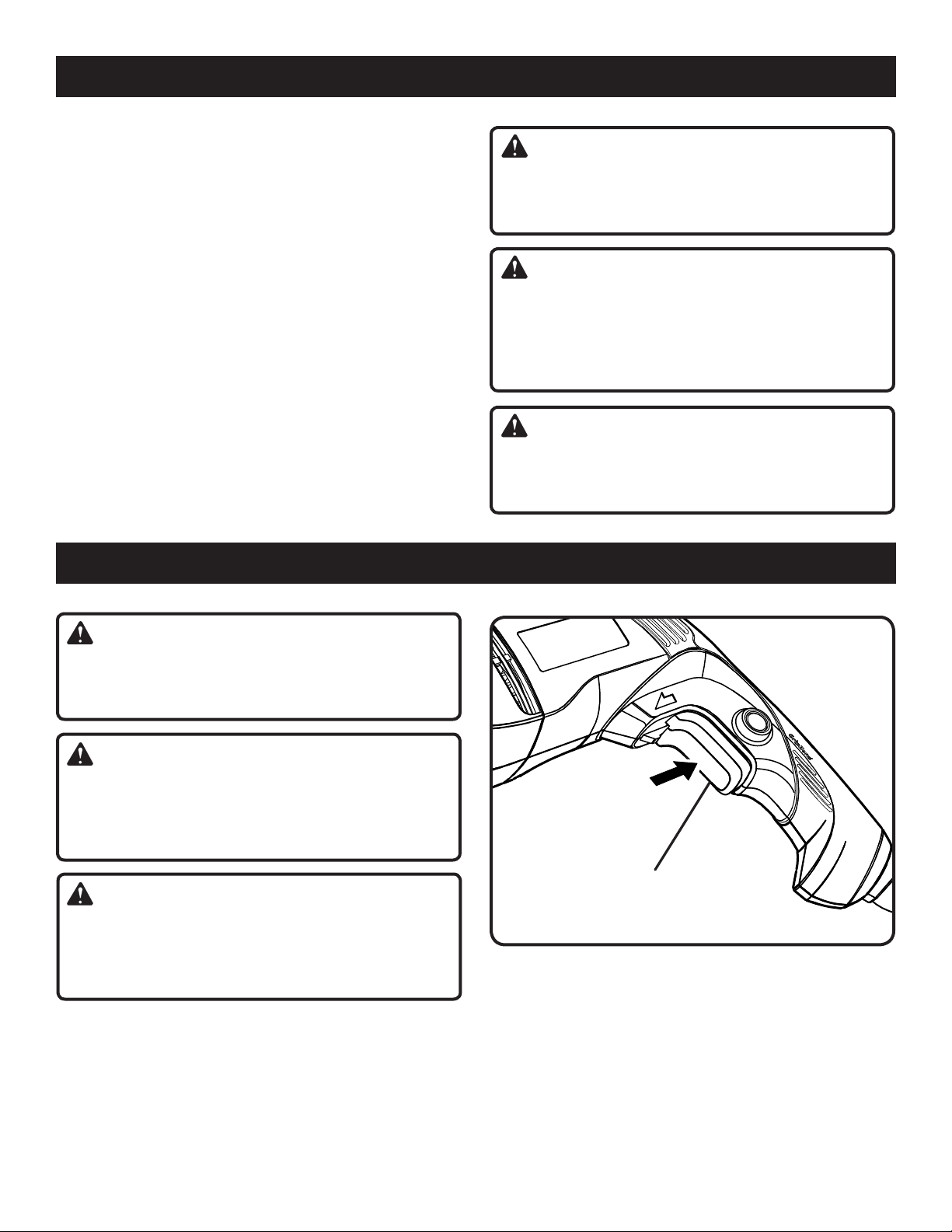

SWITCH TRIGGER
Fig. 2
SWITCH TRIGGER
See Figure 2.
To turn the drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger.
9
Page 10
OPERATION
VARIABLE SPEED
The variable speed switch delivers higher speed with
increased trigger pressure and lower speed with decreased
trigger pressure.
NOTE: You might hear a whistling or ringing noise from the
switch during use. Do not be concerned; this is a normal
part of the switch function.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE)
See Figure 3.
The direction of bit rotation is reversible and is controlled
by a selector located above the switch trigger. With the drill
held in normal operating position, the direction of rotation
selector should be positioned to the left of the switch trigger
for forward drilling. The drilling direction is reversed when
the selector is to the right of the switch trigger.
CAUTION:
To prevent gear damage, always allow the chuck to
come to a complete stop before changing the direction
of rotation.
FORWARD
ROTATION
DIRECTION OF
ROTATION SELECTOR
(FORWARD/REVERSE)
HI (2)
REVERSE
ROTATION
Fig. 3
LO (1)
To stop the drill, release the switch trigger and allow the
chuck to come to a complete stop.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended periods
of time. Running at low speeds under constant usage may
cause the drill to become overheated. If this occurs, cool the
drill by running it without a load and at full speed.
TWO-SPEED GEAR TRAIN
See Figure 4.
The drill has a two-speed gear train designed for drilling or
driving at LO (1) or HI (2) speeds. A switch is located on the
side of the drill to select either LO (1) or HI (2) speed. When
using drill in the LO (1) speed range, speed will decrease
and unit will have more power and torque. When using drill in
the HI (2) speed range, speed will increase and unit will have
less power and torque. Use LO (1) speed for high power
and torque applications, usually for drill bits larger than 3/8
in. Use HI (2) speed for fast drilling or driving applications,
usually for drill bits smaller than 3/8 in.
CAUTION:
To prevent gear damage, always allow the chuck to come
to a complete stop before changing gear speed.
TWO-SPEED
GEAR SHIFT KNOB
Fig. 4
10
Page 11
OPERATION
WARNING:
Always unplug the tool when installing or removing bits,
adjusting settings, or when the tool is not in use. Failure
to unplug the tool may result in accidental starting and
serious personal injury.

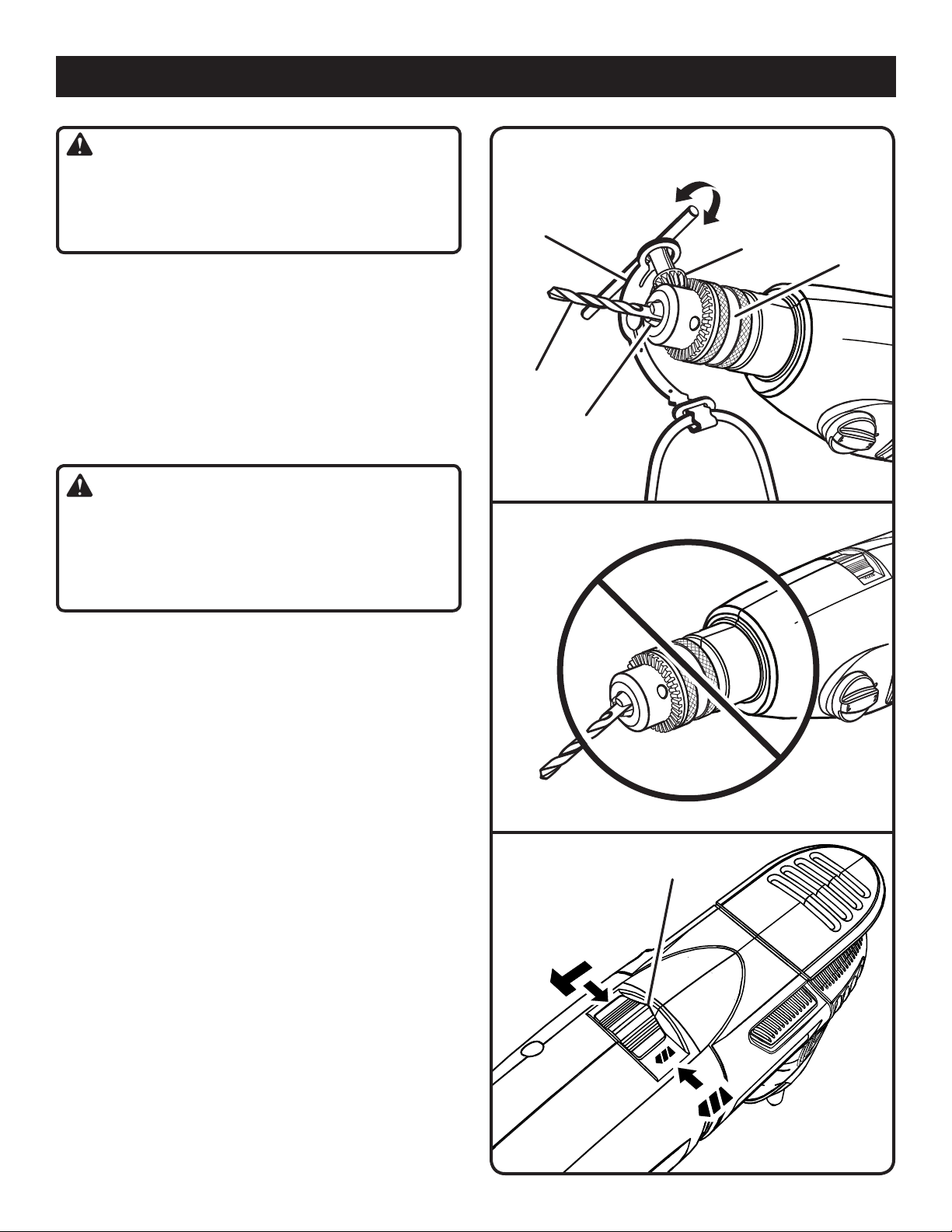

INSTALLING BITS
See Figures 5 - 6.
Unplug the drill.
Insert the chuck key and twist counterclockwise.
Open or close the chuck jaws to a point where the opening
is slightly larger than the bit size you intend to use. Also,
raise the front of the drill slightly to keep the bit from falling
out of the chuck jaws.
Insert the drill bit.
WARNING:
Make sure to insert the drill bit straight into the chuck
jaws. Do not insert the drill bit into the chuck jaws at an
angle then tighten, as shown in figure 6. This could cause
the drill bit to be thrown from the drill, resulting in possible
serious personal injury or damage to the chuck.
CHUCK KEY
STORAGE
DRILL BIT
CHUCK JAWS
TO
TIGHTEN
RIGHT
TO
LOOSEN
CHUCK KEY
CHUCK
Fig. 5
Tighten the chuck jaws securely on the drill bit, using the
chuck key provided.
Remove the chuck key.
REMOVING BITS
See Figure 5.
Unplug the drill.
Loosen the chuck jaws using the chuck key provided.
Remove the drill bit.
Remove the chuck key.
SELECTING HAMMER MODE OR DRILLING
MODE
See Figure 7.
To adjust for type of drilling, slide the selector on top of
the motor housing to hammer mode or drilling mode. The
hammer mode symbol is on the right and the drill bit symbol
is on the left.
NOTE: The hammer drill has not been designed for reverse
hammering.
Use carbide-tipped bits or designated hammer drill bits and
select hammer mode when drilling in hard materials such as
brick, tile, concrete, etc.
Select normal drill mode when drilling with twist drills, hole
saws, etc., in soft materials.
WRONG
Fig. 6
DRILLING/HAMMER
MODE SELECTOR
HAMMER
DRILL
11
Fig. 7
Page 12
OPERATION
USING THE AUXILIARY HANDLE ASSEMBLY
See Figure 8.
The drill is equipped with an auxiliary handle assembly. For
ease of operation, use the handle with either the left or right
hand. The handle can be rotated 360°.
To adjust the auxiliary handle assembly:
Loosen the handle assembly by turning the handle
counterclockwise.
Rotate the handle assembly to the desired operating
position.
Securely tigh ten by turnin g the handle assembly
clockwise.
Be sure the handle assembly is securely tightened against
the depth stop clamp. This secures the depth stop rod at the
desired depth of cut. It also secures the handle assembly.
NOTE: For convenience and ease of starting threads, the
hex nut has been trapped inside the molded slot in the
handle assembly.
The depth stop rod helps control the depth of drilled
holes.
NOTE: When properly installed, the teeth on the depth stop
rod should be aligned with the teeth indicator on the depth
stop clamp.
Adjust the depth stop rod so that the drill bit extends beyond
the end of the rod to the required drilling depth.
When drilling holes with the depth stop rod installed, the
desired hole depth has been reached when the end of the
rod comes in contact with the surface of the workpiece.
DECREASE
DRILLING DEPTH
DEPTH
STOP ROD
DRILLING
DEPTH
DRILL BIT
INCREASE
DRILLING DEPTH
TIGHTEN
LOOSEN
AUXILIARY HANDLE
ASSEMBLY
360°
ROTATION
Fig. 8
LOCK-ON
BUTTON
LOCK-ON BUTTON
See Figure 9.
This drill is equipped with a lock-on feature, which is
convenient for continuous drilling for extended periods of
time.
To lock-on:
Depress the switch trigger.
Push in and hold the lock-on button, located on the side
of the handle.
Release the switch trigger.
Release the lock-on button and the drill will continue
running.
To release the lock, depress and release the switch
trigger.
If the lock-on feature is engaged during use and the drill
becomes disconnected from the power supply, disengage
the lock-on feature immediately.
SWITCH
TRIGGER
Fig. 9
12
Page 13
OPERATION
WARNING:
Before connecting the drill to a power supply source,
always check to be sure it is not in lock-on position
(depress and release the switch trigger). Failure to ensure
that it is not locked-on could result in accidental starting
of the drill resulting in possible serious injury. Do not lock
the switch trigger in applications where the drill may need
to be suddenly stopped.

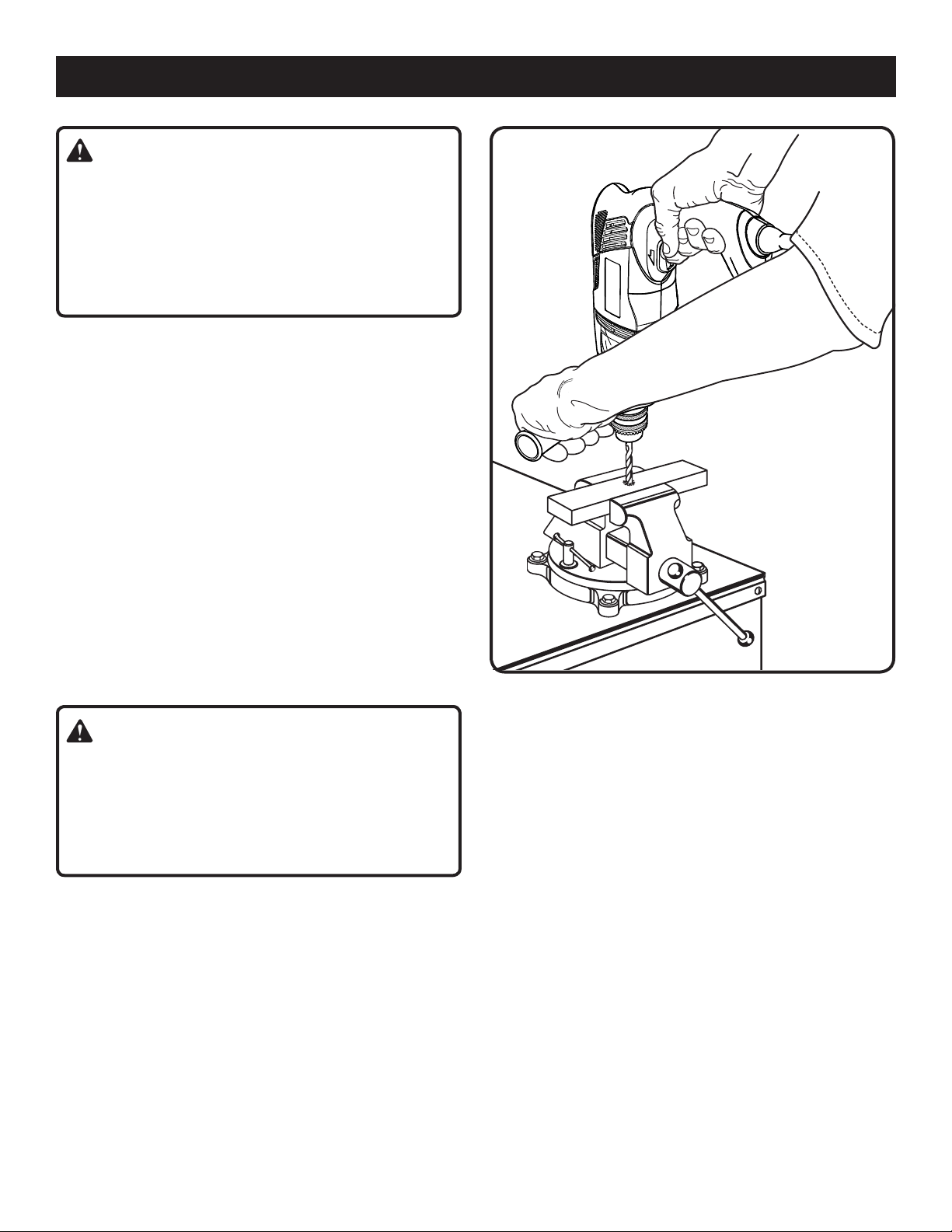

DRILLING
See Figure 10.
Depress and release the switch trigger to be sure the drill is
in the OFF position before connecting it to power supply.
Check the direction of rotation selector for correct setting
(forward or reverse).
Secure the material to be drilled in a vise or with clamps
to keep it from turning as the drill bit rotates.
Plug the drill into power supply source.
Hold the drill firmly and place the bit at the point to be
drilled.
Depress the switch trigger to start the drill. Do not lock
the switch ON for jobs where the drill may need to be
stopped suddenly.
Move the drill bit into the workpiece applying only enough
pressure to keep the bit cutting. Do not force the drill or
apply side pressure to elongate a hole. Let the drill and
bit do the work.
Fig. 10
WARNING:
Be prepared for binding at bit breakthrough. When these
situations occur, drill has a tendency to grab and kick
opposite to the direction of rotation and could cause
loss of control when breaking through material. If not
prepared, this loss of control can result in possible
serious injury.
When drilling hard smooth surfaces use a center punch
to mark the desired hole location. This will prevent the
drill bit from slipping off center as the hole is started.
When drilling metals use a light oil on the drill bit to keep
it from overheating. The oil will prolong the life of the bit
and increase the drilling action.
If the bit jams in the workpiece or if the drill stalls, stop
the tool immediately. Remove the bit from the workpiece
and determine the reason for jamming.
13
Page 14
OPERATION
WOOD DRILLING
For maximum performance, use high speed steel bits for
wood drilling.
Select normal drilling mode.
Begin drilling at a very low speed to prevent the bit from
slipping off the starting point. Increase the speed as the
drill bit bites into the material.
When drilling through holes, place a block of wood behind
the workpiece to prevent ragged or splintered edges on
the back side of the hole.
METAL DRILLING
For maximum performance, use high speed steel bits for
metal or steel drilling.
Select normal drilling mode.
Begin drilling at a very low speed to prevent the bit from
slipping off the starting point.
Maintain a speed and pressure which allows cutting
without overheating the bit. Applying too much pressure
will:
• Overheat the drill;
• Wear the bearings;
• Bend or burn bits; and
• Produce off-center or irregular-shaped holes.
When drilling large holes in metal, start with a small bit,
then finish with a larger bit. Also, lubricate the bit with oil
to improve drilling action and increase bit life.
MASONRY DRILLING
For maximum performance, use carbide-tipped masonry
impact bits or designated hammer drill bits when drilling
holes in brick, tile, concrete, etc.
Slide adjustment button on hammer drill left for hammer
mode.
Apply light pressure and medium speed for best results
in brick.
Apply additional pressure for hard materials such as
concrete.
When drilling holes in tile, practice on a scrap piece to
determine the best speed and pressure. Begin drilling at
a very low speed to prevent the bit from slipping off the
starting point.
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Electric tools used on fiberglass material, wallboard, spackling
compounds, or plaster are subject to accelerated wear and
possible premature failure because the fiberglass chips
and grindings are highly abrasive to bearings, brushes,
commutators, etc. Consequently, we do not recommended
using this tool for extended work on these types of materials.
However, if you do work with any of these materials, it is
extremely important to clean the tool using compressed
air.
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit under
normal operating conditions. Therefore, no further lubrication
is required.
14
Page 15
MAINTENANCE

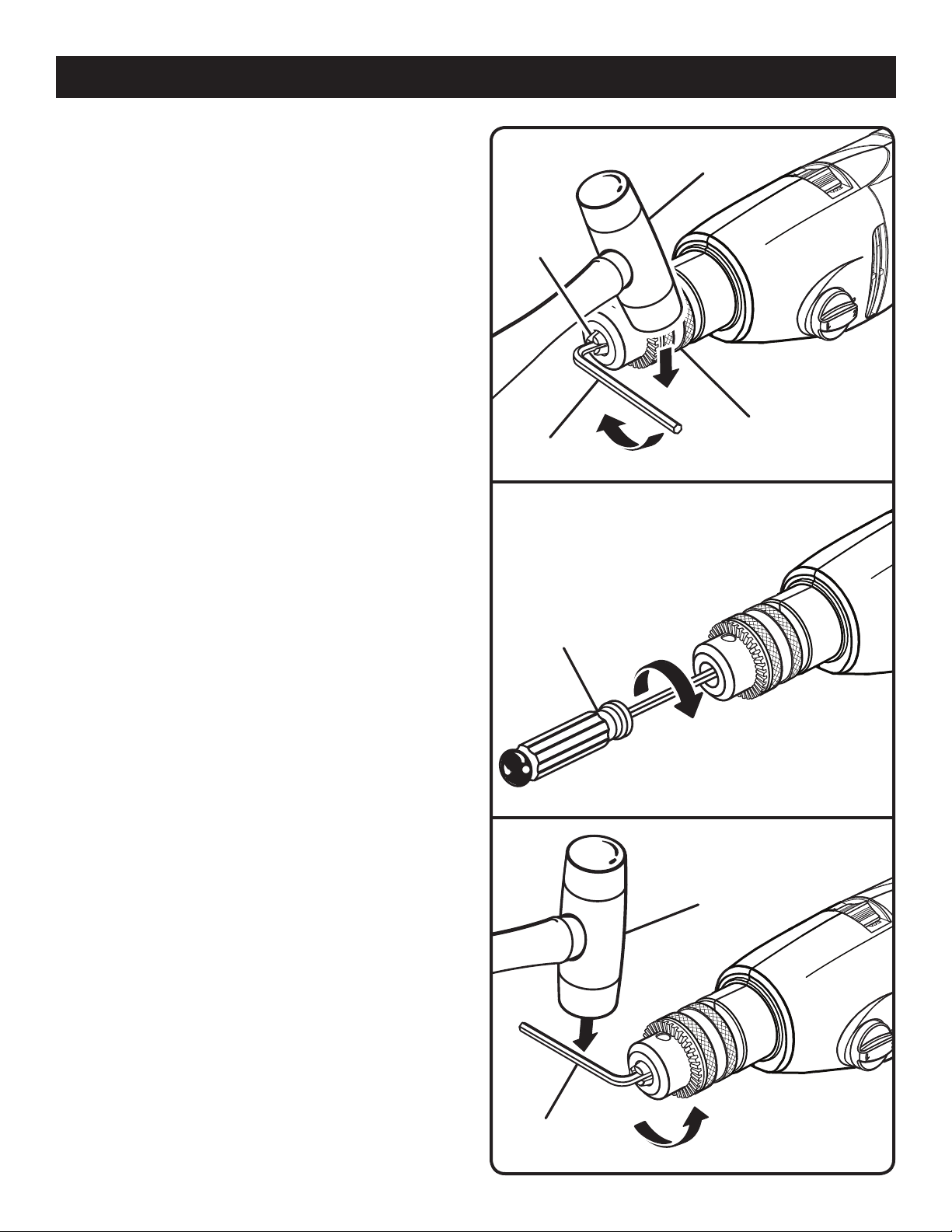

CHUCK REMOVAL
See Figures 11 - 13.
The chuck may be removed and replaced with a new one.
Unplug the drill.
Open chuck jaws using the provided chuck key.
Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
Tap the hex key sharply with a mallet in a clockwise
direction. This will loosen the screw in the chuck for easy
removal.
Open chuck jaws and remove hex key. Remove the chuck
screw by turning it in a clockwise direction.
NOTE: The screw has left hand threads.
Insert hex key in the chuck and tighten chuck jaws
securely.
Tap sharply with a mallet in a counterclockwise direction.
This will loosen chuck on the spindle. It can now be
unscrewed by hand.
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on the spindle and develop a
wobble. Also, the chuck screw may become loose, causing
the chuck jaws to bind and prevent them from closing. To
tighten:
Unplug the drill.
Open the chuck jaws.
Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap the hex key sharply with a mallet in
a clockwise direction. This will tighten the chuck on the
spindle.
Open the chuck jaws and remove the hex key.
Tighten the chuck screw by turning it in a counterclockwise
direction.
NOTE: The chuck screw has left hand threads.
CHUCK
JAWS
HEX KEY
SCREWDRIVER
MALLET
CHUCK
Fig. 11
Fig. 12
15
MALLET
HEX KEY
Fig. 13
Page 16
OPERATOR’S MANUAL
1/2 in. HAMMER DRILL
TWO-SPEED/REVERSIBLE
DOUBLE INSULATED
D552H
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles.
• PARTS AND SERVICE
Prior to requesting service or purchasing replacement parts, please obtain your model
and serial number from the product data plate.
• MODEL NUMBER
• SERIAL NUMBER
D552H
• HOW TO OBTAIN REPLACEMENT PARTS:
Replacement parts can be purchased online at www.ryobitools.com or by calling
1-800-525-2579. Replacement parts can also be obtained at one of our Authorized
Service Centers.
• HOW TO LOCATE AN AUTHORIZED SERVICE CENTER:
Authorized Service Centers can be located online at www.ryobitools.com or by calling
1-800-525-2579.
• HOW TO OBTAIN CUSTOMER OR TECHNICAL SUPPORT:
To obtain Customer or Technical Support please contact us at 1-800-525-2579.
Ryobi® is a registered trademark of Ryobi Limited used under license.
987000-001
2-1-08 (REV:01)
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Phone 1-800-525-2579
www.ryobitools.com
16
Loading...
