CMS180G
ORIGINAL INSTRUCTIONS
Compound Mitre Saw
Important!
It is essential that you read the instructions in this manual before operating this
machine.
Subject to technical modications.
Safety
GENERAL SAFETY WARNINGS
WARNING
When using electric tools, basic safety precautions
should always be followed to reduce the risk of re,
electric shock and personal injury. Read all these
instructions before attempting to operate this product
and save these instructions.
■ Keep work area clear. Cluttered areas and benches
invite injuries.
■ Consider work area environment. Do not expose
tools to rain. Do not use tools in damp or wet locations.
Keep work area well lit. Do not use tools in the presence
of flammable liquids or gases.
■ Guard against electric shock. Avoid body contact with
earthed or grounded surfaces (e.g., pipes, radiators,
ranges, refrigerators).
■ Keep other persons away. Do not let persons,
especially children, be involved in the work, touch the
tool or the extension cord, and keep them away from
the work area.
■ Store idle tools. When not in use, tools should be
stored in a dry locked-up place, out of reach of children.
■ Do not force the tool. It will do the job better and safer
at the rate for which it was intended.
■ Use the right tool. Do not force small tools to do the
job of a heavy duty tool. Do not use tools for purposes
not intended, for example, do not use circular saws to
cut tree limbs or logs.
■ Dress properly. Do not wear loose clothing or
jewellery, they can be caught in moving parts. Nonskid footwear is recommended when working outdoors.
Wear protective hair covering to contain long hair.
■ Use protective equipment. Use safety glasses. Use
face or dust mask if working operations create dust.
■ Connect dust extraction equipment. If the tool is
provided for the connection of dust extraction and
collecting equipment, ensure these are connected and
properly used.
■ Do not abuse the cord. Never yank the cord to
disconnect it from the socket. Keep the cord away from
heat, oil and sharp edges.
■ Secure work. Where possible, use clamps or a vice to
hold the work. It is safer than using your hand.
■ Do not overreach. Keep proper footing and balance
at all times.
■ Maintain tools with care. Keep cutting tools sharp
and clean for better and safer performance. Follow
instruction for lubricating and changing accessories.
Inspect tool cords periodically and if damaged, have
them repaired by an authorized service facility. Inspect
extension cords periodically and replace if damaged.
Keep handles dry, clean and free from oil and grease.
■ Disconnect tools. When not in use, before servicing
and when changing accessories such as blades, bits
and cutters, disconnect tools from the power supply.
■ Remove adjusting keys and wrenches. Form the
habit of checking to see that keys and adjusting
wrenches are removed from the tool before turning it
on.
■ Avoid unintentional starting. Ensure switch is in “off”
position when installing battery pack.
■ Use outdoor extension leads. When the tool is used
outdoors, use only extension cords intended for outdoor
use and so marked.
■ Stay alert. Watch what you are doing, use common
sense and do not operate the tool when you are tired.
■ Check damaged parts. Before further use of tool, it
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting and any other
conditions that may affect its operation. A guard or
other part that is damaged should be properly repaired
or replaced by an authorized service centre unless
otherwise indicated in this instruction manual. Have
defective switches replaced by an authorized service
centre. Do not use the tool if the switch does not turn
it on and off.
■ Warning. The use of any accessory or attachment
other than the one recommended in this instruction
manual may present a risk of personal injury.
■ Have your tool repaired by a qualified person. This
electric tool complies with the relevant safety rules.
Repairs should only be carried out by qualified persons
using original spare parts otherwise this may result in
considerable danger to the user.
SPECIAL SAFETY RULES
WARNING
The product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the product by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the product.
■ Wear ear protectors. Exposure to noise can cause
hearing loss.
■ Always wear goggles when using the machine. It is
recommended to wear gloves, sturdy non slipping
shoes and apron.
■ Always disconnect the battery pack before carrying out
any work on the machine.
■ Only install and remove the battery pack when machine
3
Safety
is switched off.
■ Sawdust and splinters must not be removed while the
machine is running.
■ Never reach into the danger area of the plane of the
blade when it is running.
■ Repairs should only be carried out by authorised
service agents.
■ Always use the protective shields on the machine.
■ Do not clamp the protective swing guard.
■ Do not use saw blades which are damaged or deformed.
■ Replace the table insert when worn.
■ Do not use saw blades not corresponding to the key
data given in these instructions for use.
■ The protective cover should only open when the
machine is lowered to the workpiece.
■ Do not use saw blades made of high-speed steel.
■ Any faults with the machine, including any related to
the safeguard or the saw blades, must be reported to
the persons in charge of safety as soon as the faults
are discovered.
■ It is necessary to select a saw blade which is suitable
for the material being cut.
■ Never use the mitre saw to cut materials other than
those specified in the instruction manual.
■ The handle lock must always be engaged when
transporting the mitre saw.
■ Only use the saw with guards in good working order
and properly maintained, and in position.
■ Keep the floor area free of loose material e.g., chips
and cut-offs.
■ Only use saw blades which have been properly
sharpened. It is essential to adhere to the maximum
speed specified on the saw blade.
■ Do not use any flanges other than those supplied or
indicated in the instruction manual to secure the saw
blade.
■ Refrain from removing any cut-offs or other parts of the
workpiece from the cutting area whilst the machine is
running and the saw head is not in the rest position.
■ Ensure that the machine is always stable and secure
(e.g., fixed to a bench).
■ Long workpieces must be adequately supported.
■ Do not use cracked or distorted saw blades.
■ Before using the tool please read the instructions. If
possible have the tool demonstrated.
■ The dust produced when using this tool may be harmful
to health. Use a dust absorption system and wear a
suitable dust protection mask. Remove deposited dust
thoroughly, e.g., with a vacuum cleaner.
■ Stock having a round or irregular cross section (such
as firewood) must not be cut, as it cannot be securely
held during cutting. When sawing thin stock layered on
edge, a suitable auxiliary fence must be used for firm
4
support.
■ Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
■ Do not stare directly at the laser beam.
■ Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
■ Any repairs must only be carried out by the laser
manufacturer or authorized service agent.
■ Do not replace the laser with a different type.
INTENDED USE
■ The mitre saw can be used for sawing solid wood,
bonded wood, glued veneer, materials similar to wood,
and plastics.
■ Do not use this product in any other way as stated for
normal use.
LASER SAFETY
■ Do not stare into beam during operation.
■ Do not project the laser beam directly into the eyes of
others. Serious eye injury could result.
■ Do not place the laser in a position, that may cause
anyone to stare into the laser beam intentionally or
unintentionally.
■ Do not use optical tools to view the laser beam.
■ Do not operate the laser around children or allow
children to operate the laser.
■ Do not attempt to repair the laser device by yourself.
■ Do not attempt to change any parts of the laser device
by yourself.
■ Any repairs must only be carried out by the laser
manufacturer or authorized service agent.
■ Do not replace the laser with a different type.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be sorted for
environmental-friendly recycling.
SYMBOL
Safety alert
V Volts
min
Hz
Hertz
Alternating current
W
Watts
no
No-load speed
-1
Revolutions or reciprocations per minute
CE conformity
Please read the instructions carefully
before starting the machine.
Wear ear protection
Wear eye protection
Danger! Sharp blade.
Laser radiation.
Do not stare into beam.
Safety
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your Local Authority or retailer for recycling
advice.
5

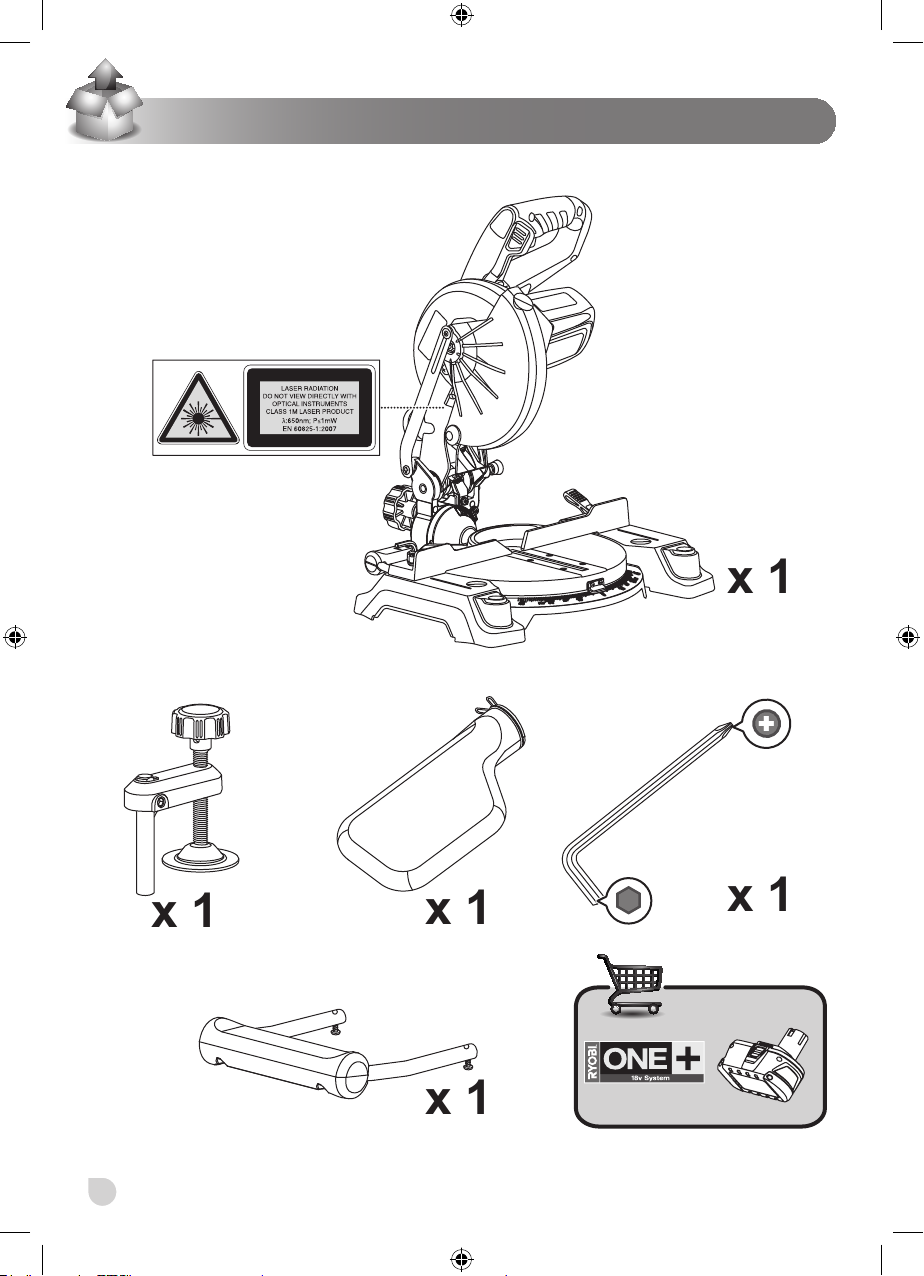

Unpacking
x 1
x 1
x 1
x 1
x 1
6
Getting started
1
2
3 4
7
Operation
1
2
1
2
8
Operation
1
2
3
4
9
