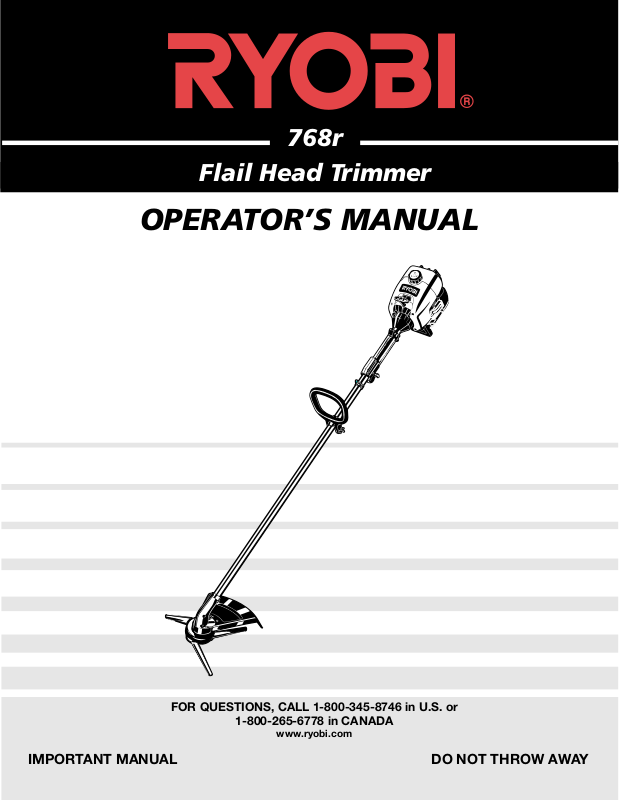

768r
Flail Head Trimmer
OPERATOR’S MANUAL
FOR QUESTIONS, CALL 1-800-345-8746 in U.S. or
1-800-265-6778 in CANADA
www.ryobi.com
IMPORTANT MANUAL DO NOT THROW AWAY
INTRODUCTION TABLE OF CONTENTS
2
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator’s manual provides you with easy-to-understand operating instructions. Read the whole manual
and follow all the instructions to keep your new outdoor
power tool in top operating condition. The other manual
that came with your power tool, the parts manual,
contains all the information that you need to order parts.
PRODUCT REFERENCES, ILLUSTRATIONS AND
SPECIFICATIONS
All information, illustrations and specifications in this
manual are based on the latest product information
available at the time of printing. We reserve the right to
make changes at any time without notice.
Copyright©1998 Ryobi Outdoor Products, Inc.
All Rights Reserved.
Click-Link®is a registered trademark of Ryobi Outdoor
Products.
Bump Head™ is a trademark of Ryobi Outdoor
Products.
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
Dial:
1-800-345-8746 in the United States or
1-800-265-6778 in Canada
to obtain the listing of the authorized service dealer
nearest you.
DO NOT RETURN THE UNIT TO THE RETAILER.
NOTE:PROOF OF PURCHASE WILL BE REQUIRED
FOR WARRANTY SERVICE.
Make sure this manual is carefully read and understood
before starting or operating this equipment.
THIS PRODUCT IS COVERED BY ONE OR MORE OF
THE US PATENTS LISTED BELOW: 5,076,149;
4,901,682; 4,779,405; 4,651,422; 4,505,040; 4,463,498;
4,369,742; 4,342,236; 4,223,441; 2,125,688; D-249,012;
D-239,329;
OTHER PATENTS PENDING.
I. California Emission Regulations . . . . . . . . . . . . . . . . . 3
II. Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . 4-8
A. Important Safty Information . . . . . . . . . . . . . . . . 4-5
B. Safety and International Symbols . . . . . . . . . . . 6-7
C. Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
III. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 9-11
A. Installing the Harness . . . . . . . . . . . . . . . . . . . . . . 9
B. Assembling the Flail Head . . . . . . . . . . . . . . . . 9-10
C. Removing the Cutting Attachment . . . . . . . . . . . 10
D. Installing the Flail Head . . . . . . . . . . . . . . . . . 10-11
E. Removing the Flail Head . . . . . . . . . . . . . . . . . . . 11
F. Installing the Cutting Attachment . . . . . . . . . . . . 11
IV. Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . 12
V. Starting/Stopping Instructions . . . . . . . . . . . . . . . . . 13
VI. Operating Instructions . . . . . . . . . . . . . . . . . . . . 14-15
A. Holding the Trimmer . . . . . . . . . . . . . . . . . . . . . . 14
B. Adjusting Trimming Line Length . . . . . . . . . . . . . 14
C. Tips for Best Trimming Results . . . . . . . . . . . . . . 14
D. Decorative Trimming . . . . . . . . . . . . . . . . . . . . . . 15
E. Operating the Flail Head . . . . . . . . . . . . . . . . . . . 15
F. Flail Head Operating Tips . . . . . . . . . . . . . . . . . . 15
VII. Maintenance and Repair Instructions . . . . . . . . . 15-20
A. Maintenance Schedule . . . . . . . . . . . . . . . . . . . . 15
B. Line Installation . . . . . . . . . . . . . . . . . . . . . . . 16-17
C. Installing a Prewound Reel . . . . . . . . . . . . . . . . . 17
D. Air Filter Maintenance . . . . . . . . . . . . . . . . . . . 18-19
E. Carburetor Adjustment . . . . . . . . . . . . . . . . . . . . 19
F. Replacing the Spark Plug . . . . . . . . . . . . . . . . . . 20
G. Accessories/Replacement parts . . . . . . . . . . . . . 20
VIII. Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . 20
IX. Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . 21
X. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
XI. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
CONTENTS OF CARTON
This carton should include of the following:
• Model 768r Trimmer
• Operator's Manual
• Parts Manual
• Product Registration Card
• Bottle of 2-Cycle Oil
• Flail Head
• Locking Rod
CALIFORNIA EMISSION REGULATIONS
3
WARNING
NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest
Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that
certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark
arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention
of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these
requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires
replacement, ask your LOCAL SERVICE dealer to install the Accessory Part #180030 Spark Arrestor Kit.
FOR QUESTIONS, CALL 1-800-345-8746 IN U.S. OR 1-800-265-6778 in CANADA
California Proposition 65 Warning:
THE ENGINE EXHAUST FROM THIS
PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS
OR OTHER
REPRODUCTIVE HARM.
This unit meets the 1995 to 1998 California emissions regulations for small off-road engines. These units are identified by
the label on the engine of your product. A typical identification label is shown.
To ensure that your unit continues to meet these regulations, refer to the following information and instructions in this
operator’s manual.
Read the Operator’s Manual(s) and follow all warnings and safety instructions. Failure to do so can
result in serious injury to the operator and/or bystanders.
SPARK ARRESTOR
WARNING!
RULES FOR SAFE OPERATION
4
DANGER: Failure to obey a safety warning
will result in serious injury to yourself or to
others. Always follow the safety precautions
to reduce the risk of fire, electric shock, and
personal injury.
WARNING: Failure to obey a safety warning
can result in injury to yourself and others.
Always follow the safety precautions to
reduce the risk of fire, electric shock, and
personal injury.
CAUTION: Failure to obey a safety warning
may result in property damage or personal
injury to yourself or to others. Always follow
the safety precautions to reduce the risk of
fire, electric shock, and personal injury.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their
explanations, deserve your careful attention and
understanding. The safety warnings do not by themselves eliminate any danger. The instructions or
warnings they give are not substitutes for proper accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates dan-
ger, warning, or caution. Attention is required
in order to avoid serious personal injury. May
be used in conjunction with other symbols or
pictographs.
NOTE: Advises you of information or instructions vital
to the operation or maintenance of the equipment.
READ ALL INSTRUCTIONS BEFORE
OPERATING
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use
the unit, except for teens guided by an adult.
• Inspect the unit before use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in
place and secure. Replace cutting attachment parts
that are cracked, chipped, or damaged in any way.
Make sure the cutting attachment is properly
installed and securely fastened. Be sure the cutting
attachment shield is properly attached, and
positioned as recommended. Failure to so can result
in personal injury to the operator and bystanders, as
well as damage to the unit
• Use only 0.080 in (2.03 mm) diameter genuine Ryobi
replacement line. Never use metal-reinforced line,
wire, or rope, etc.. These can break off and become
a dangerous projectile.
• Be aware of the risk of injury to the head, hands and
feet.
• Clear the area to be cut before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in
the cutting attachment. Clear the area of children,
bystanders, and pets. At a minimum, keep all
children, bystanders and pets outside a 50 ft. (15 m.)
radius; there still may be a risk to bystanders from
thrown objects. Bystanders should be encouraged to
wear eye protection. If you are approached, stop the
engine and cutting attachment immediately.
• Squeeze the throttle control and check that it returns
automatically to the neutral position. Make all
adjustments or repairs before using unit.
SAFETY WARNINGS FOR GAS TRIMMERS
WARNING: Gasoline is highly flammable, and its vapors
can explode if ignited. Take the following precautions:
• Store fuel only in containers specifically designed
and approved for the storage of such materials.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
• Always stop the engine and allow it to cool before
filling the fuel tank. Never remove the cap of the fuel
tank, or add fuel, when the engine is hot. Never
operate the unit without the fuel cap securely in
place. Loosen the fuel tank cap slowly to relieve any
pressure in the tank.
• Mix and add fuel in a clean, well-ventilated area
outdoors where there are no sparks or flames.
Slowly remove the fuel cap only after stopping
engine. Do not smoke while fueling or mixing fuel.
Wipe up any spilled fuel from the unit immediately.
• Move the unit at least 30 ft. (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke, keep sparks and open flames from the area
while adding fuel or operating the unit.
WHILE OPERATING
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate
this unit only in a well ventilated area outdoors.
• Wear safety glasses or goggles that are marked as
meeting ANSI Z87.1-1989 standards, and
ear/hearing protection when operating this unit.
Wear a face or dust mask if the operation is dusty.
Long sleeve shirts are recommended.
• Wear heavy, long pants, boots and gloves. Do not
wear loose clothing, jewelry, short pants, sandals or
go barefoot. Secure hair above shoulder level.
• The cutting attachment shield must always be in
place while operating the unit as a trimmer. Do not
operate unit without both trimming lines extended,
and the proper line installed. Do not extend the
trimming line beyond the length of the shield.
• IMPORTANT SAFETY INFORMATION •
RULES FOR SAFE OPERATION
5
• This unit has a clutch. The cutting attachment
remains stationary when the engine is idling. If it
does not, have the unit adjusted by an authorized
service technician.
• Adjust the D handle to provide the best grip.
• Be sure the cutting attachment is not in contact with
anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and
unit must be in a stable position while starting. See
Starting/Stopping Instructions.
• Use the right tool. Only use this tool for the purpose
intended.
• Do not overreach. Always keep proper footing and
balance.
• Always hold the unit with both hands when operating. Keep a firm grip on both the front and rear handle or grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the cutting
attachment when it is rotating.
• Do not touch the engine or muffler. These parts get
extremely hot from operation. When turned off they
remain hot for a short time.
• Do not operate the engine faster than the speed
needed to cut, trim or edge. Do not run the engine at
high speed when not cutting.
• Always stop the engine when cutting is delayed or
when walking from one cutting location to another.
• If you strike or become entangled with a foreign
object, stop the engine immediately and check for
damage. Do not operate before repairing damage.
Do not operate the unit with loose or damaged parts.
• Stop and switch the engine to off for maintenance,
repair, or for changing the cutting attachment or
other attachments.
• Use only genuine Ryobi replacement parts when
servicing this unit. These parts are available from
your authorized service dealer. Do not use parts,
accessories or attachments not authorized by Ryobi
for this unit. Doing so could lead to serious injury to
the user, or damage to the unit, and void your
warranty.
• Keep unit clean of vegetation and other materials.
They may become lodged between the cutting
attachment and shield.
• To reduce fire hazard, replace faulty muffler and
spark arrestor, keep the engine and muffler free from
grass, leaves, excessive grease or carbon build up.
FLAIL HEAD SAFETY
• Be certain that the Flail Head is assembled correctly
and properly mounted on the machine. See
Assembly Instructions.
• Keep the D handle between the operator and Flail
Head at all times.
• NEVER cut with the Flail Head located over
30 inches (76.2 cm) or more above the ground level.
• Do not attempt to touch or stop the Flail Head when
it is rotating.
• Do not run the unit at high speed when not cutting.
• Do not use the Flail Head for decorative trimming or
cutting brush.
• If you strike or become entangled with a foreign
object, stop the engine immediately and check for
damage. Have any damage repaired before further
operation is attempted.
• Inspect the flail blades regularly for excessive wear
and damage. Do not operate the Flail Head with
worn, broken, or cracked blades. Flail blades should
always be replaced as a set, using only Ryobi
replacement blades. Use of any other blades could
damage the unit and result in and serious personal
injury.
• Stop the engine IMMEDIATELY if you feel excessive
vibration. Vibration is a sign of trouble. Inspect
thoroughly for loose nuts and bolts, broken flail
blades, or other damage before continuing. Repair or
replace affected parts as necessary.
OTHER SAFETY WARNINGS
• Never store the unit, with fuel in the tank, inside a
building where fumes may reach an open flame or
spark.
• Allow the engine to cool before storing or
transporting. Be sure to secure the unit while
transporting.
• Store the unit in a locked up and dry, or high and dry
place to prevent unauthorized use or damage. Keep
out of the reach of children.
• Never douse or squirt the unit with water or any
other liquid. Keep handles dry, clean and free from
debris. Clean after each use, see Cleaning and
Storage instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone
this unit, also loan them these instructions.
SAVE THESE INSTRUCTION
RULES FOR SAFE OPERATION
6
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning, or caution. May be used in conjunction with other symbols or
pictographs.
• WARNING - READ OPERATOR'S MANUAL
Failure to follow operating instructions and safety precautions in the operator's manual can
result in serious injury. Read the operator's manual before starting or operating this unit.
• FOR SERVICE INFORMATION, CALL:
USA: 1-800-345-8746
CANADA: 1-800-265-6778
• WEAR EYE AND HEARING PROTECTION
WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss.
Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating
this unit.
• KEEP BYSTANDERS AWAY
WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m.) from
the trimming area.
• PRIMER BULB
Push primer bulb, fully and slowly, 5 to 7 times.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• OIL
Refer to operator's manual for the proper type of oil.
RULES FOR SAFE OPERATION
7
SYMBOL MEANING
• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY
WARNING: Do not operate without the cutting attachment shield in place. Keep away from
the rotating cutting attachment.
• ON/OFF STOP CONTROL
ON / START / RUN
• ON/OFF STOP CONTROL
OFF OR STOP
• HOT SURFACE WARNING
Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot
from operation. When turned off they remain hot for a short time.
• SHARP BLADE
WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do not touch
line cutting blade.
• CHOKE CONTROL
A. FULL CHOKE position.
B. PARTIAL CHOKE position.
C. RUN position
• KEEP HANDS AWAY FROM BLADES
WARNING: MOVING BLADES CAN CAUSE SEVERE INJURY. Keep hands and body parts
away from flail blades at all times while operating this unit.
WARNING: The operation of any power tool can cause foreign objects to be thrown into your
eyes. This can lead to severe eye damage. Before commencing power tool operation, always
wear safety glasses or goggles that are marked as meeting ANSI Z87.1-1989 standards, and
a full face shield when needed.
APPLICATIONS
As a trimmer;
• Cutting grass and light weeds.
• Edging
• Decorative trimming around trees, fences,
etc.
With Flailhead;
• Cutting weeds and light brush of up to 1/2
inch in diameter.
RULES FOR SAFE OPERATION
8
Cutting Attachment Shield
Gas Cap
Throttle Control
D-Handle
Line Cutting Blade
Cutting Attachment
Handgrip
Primer Bulb
Choke Lever
Air filter/muffler cover
Spark Plug
Shaft Housing
Starter Rope Grip
KNOW YOUR UNIT
Support Fitting
On / Off Stop Control
Flail Head Assembly
ASSEMBLY INSTRUCTIONS
9
3. Snap the clip on to the support fitting (Fig. 2).
Support Fitting
4. While standing in the operating position adjust length
to fit the operator’s size. Pull tab to lengthen, pull
strap to shorten (Fig 3).
Fig. 2
INSTALLING THE HARNESS
WARNING: To avoid serious personal injury,
never attempt to start the unit when standing
and the unit clipped to the shoulder strap.
Always follow the starting procedures as
described in the Operation section.
1. Push the strap through the center of the buckle.
2. Pull the strap over the cross bar and down through
the slot in the buckle (Fig. 1).
Fig. 1
Pin Guides
Pin Guides
ASSEMBLING THE FLAIL HEAD
2. Place one Flail Blade on each Pivot Pin (Fig. 6).
Flail Head Top
3 Pivot Pins
Flail Head Bottom
Flail Blades
Adaptor
Fig. 5
Fig. 4
1. Insert the three Pivot Pins into the pin guides in the
Flail Head Top (Fig. 5).
Flail Head Top
Pivot Pins
Pivot Pins
Flail Blades
Fig. 6
Flail Head Parts
Clip
Buckle
Fig. 3
INSTALLING THE FLAIL HEAD
NOTE: To make removing or installing the cutting
attachment easier, place the unit on the ground
or on a work bench.
WARNING: The gear housing gets hot with
use and can result in injury to the operator.
When the unit is turned off it remains hot for
a short time. Do not touch the gear housing
until it has cooled.
1. Place the assembled Flail Head with the Flail Head
Bottom and Hexagonal Recess and Adapter facing
upward. Move the Flail Blades together (Fig.10).
WARNING: To avoid serious personal injury,
always wear gloves while handling or
installing the flail head
ASSEMBLY INSTRUCTIONS
10
Hexagon Recess
Pin Guides
Hexagonal Recess
Flail Blades
3. Press the Flail Head Bottom on by matching the pin
guides with the Pivot Pins (Fig. 7).
Fig. 7
Fig. 8
Fig. 10
Flail Head Bottom
Pivot Pins
Flail Head Bottom
Adaptor
Adapter
4. Slide the Adapter flush into the hexagonal recess of
the Flail Head Bottom (Fig. 8).
Cutting Attachment
Locking Rod Slot
Locking Rod
REMOVING THE CUTTING ATTACHMENT
1. Align the shaft bushing hole with the locking rod slot
and insert the locking rod into the shaft bushing hole
(Fig. 9).
2. While holding the locking rod, remove the cutting
attachment by turning it counterclockwise off of the
output shaft (Fig. 9). Store the cutting attachment for
future use.
3. Remove the locking rod.
Fig. 9
Shaft Bushing Hole
11
3. Grip the sides of the Flail Head with the Adaptor
facing your palm and the Flail Head top facing the
unit. Screw the Flail Head clockwise onto the shaft
(Fig. 12) until the Flail Head is on securely. Do not
over tighten.
WARNING: To avoid serious personal injury
and damage to the unit, do not put the Flail
head on facing the wrong direction.
Output Shaft
Cutting Attachment Shield
Locking Rod Slot
Shaft Bushing Hole
Locking Rod
2. Align the blade driver hole with the locking rod slot
and insert the locking rod into the blade driver hole
(Fig. 11).
Fig. 12
Fig. 11
Locking Rod
ASSEMBLY INSTRUCTIONS
Cutting Attachment
Locking Rod
Output Shaft Bushing
Fig. 13
INSTALLING THE CUTTING ATTACHMENT
NOTE: To make installing or removing the cutting
attachment easier, place the unit on the ground
or on a work bench.
WARNING: The gear housing gets hot with
use and can result in injury to the operator.
When the unit is turned off it remains hot for
a short time. Do not touch the gear housing
until it has cooled.
1. Align the shaft bushing hole with the locking rod slot
and insert the locking rod into the shaft bushing hole.
(Fig. 13).
REMOVING THE FLAIL HEAD
To remove the Flail Head,
1. Align the blade driver hole with the locking rod slot
and insert the locking rod into the blade driver hole,
Fig. 12.
2. Grip the Flail Head, and turn counterclockwise.
Store the Flail Head components together to prevent
loss.
Output Shaft
Locking Rod Slot
Shaft Bushing Hole
2. While holding the locking rod, screw the cutting
attachment clockwise onto the output shaft. Tighten
securely.
3. Remove the locking rod.
WARNING: Inspect the output shaft bushing
every time a cutting attachment is changed
for cracks or damage. Replace any damaged
output shaft bushings
Locking Rod Slot
OIL AND FUEL INFORMATION
12
OIL AND FUEL MIXING INSTRUCTIONS
Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to
use fresh, clean unleaded fuel. Follow the instruc-
tions carefully for the proper fuel/oil mixture.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1%
water in the fuel can make fuel and oil separate. It forms
acids when stored. When using alcohol-blended fuel,
use fresh fuel (less than 60 days old).
Using Blended Fuels
If you choose to use a blended fuel, or its use is
unavoidable, follow recommended precautions.
• Always use fresh fuel mix per your operator's
manual.
• Use the fuel additive STA-BIL
®
or an equivalent.
• Always agitate the fuel mix before fueling the unit.
• Drain the tank and run the engine dry before storing
the unit.
Using Fuel Additives
The use of fuel additives, such as STA-BIL®Gas
Stabilizer or an equivalent, will inhibit corrosion and
minimize the formation of gum deposits. Using a fuel
additive can keep fuel from forming harmful deposits in
the carburetor for up to six (6) months. Add 0.8 oz.
(23 ml.) of fuel additive per gallon of fuel according to the
instructions on the container. NEVER add fuel additives
directly to the unit's fuel tank.
CAUTION: For proper engine operation and
maximum reliability, pay strict attention to the
oil and fuel mixing instructions on the 2-cycle
oil container. Using improperly mixed fuel can
severely damage the engine.
Thoroughly mix the proper ratio of 2-cycle
engine oil with unleaded gasoline in a
separate fuel can. Use a 32:1 fuel/oil ratio. Do
not mix them directly in the engine fuel tank. See the
table below for specific gas and oil mixing ratios.
NOTE: One gallon (3.8 liters) of unleaded gasoline mixed
with one 4 oz. (120 ml.) bottle of RYOBI 2 Cycle
OIL makes a 32:1 fuel/oil ratio.
WARNING: Gasoline is extremely flammable.
Ignited Vapors may explode. Always stop the
engine and allow it to cool before filling the
fuel tank. Do not smoke while filling the tank.
Keep sparks and open flames at a distance
from the area.
WARNING: Remove fuel cap slowly to avoid
injury from fuel spray. Never operate the unit
without the fuel cap securely in place.
WARNING: Add fuel in a clean, well
ventilated area outdoors. Wipe up any spilled
fuel immediately. Avoid creating a source of
ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
NOTE: Dispose of the old fuel/oil mix in accordance to
Federal, State, and Local regulations.
+
UNLEADED GAS RYOBI 2 CYCLE OIL
1 US. GALLON + 4.0 FL. OZ.
(3.8 LITERS) (120 ml)
1 LITER + 30 ml
MIXING RATIO - 32:1
STARTING/STOPPING INSTRUCTIONS
13
Choke Lever
Full Choke Position (A)
Starter Rope
Throttle Control
On/Off Stop Control
Primer Bulb
Fig. 16
STARTING INSTRUCTIONS
WARNING: Avoid accidental starting. Be in
the starting position when pulling the starter
rope (Fig. 16). The operator and unit must be
in a stable position while starting to avoid
serious personal injury.
NOTE: When using the shoulder harness, have it on and
adjusted, but not clipped to the support fitting
prior to starting unit. See Installing the Harnes,
Pg. 9.
1. Mix gas with oil. Fill fuel tank with fuel/oil mixture.
See Oil and Fuel Mixing Instructions on Pg.12.
2. Put the On/Off Stop Control in the ON position
(Fig. 14).
3. Fully press and release primer bulb slowly 5 to 7
times. Fuel should be felt and visible in the bulb
(Fig. 15). If fuel hasn’t entered the bulb, press three
more times, or until it does.
4. Place the choke lever in the
FULL choke position (A)
(Fig. 15).
5. With the unit on the ground, squeeze the throttle
control and hold. Pull starter rope briskly (Fig. 16).
Continue pulling until the engine sounds as though it
wants to run (normally 2 to 5 pulls).
NOTE: Squeeze the throttle control until the engine has
started and warmed up.
6. Place the choke lever in the
PARTIAL choke position
(B) (Fig. 15).
7. Pull starter rope briskly 1 to 3 times to start the
engine (Fig. 16).
8. If the engine does not start, repeat steps
4 through 7.
NOTE: If the engine floods while trying to start, place the
choke lever in the RUN position (C). Squeeze the
throttle control. Pull the starter rope briskly. The
engine should start within three (3) to eight (8)
pulls.
9. Squeeze the throttle control to warm up engine for 5
to 10 seconds. Place the choke lever in the
RUN
position (C) (Fig. 15).
10. Stand in the operating position and clip the shoulder
to the support fitting
NOTE: Choking is unnecessary when starting a warm
engine. Put the On/Off Stop Control in the ON
position (Fig. 14), and start in PARTIAL Choke
position (B) (Fig. 15).
WARNING: Operate this unit only
in a well ventilated area outdoors. Carbon
monoxide exhaust fumes can be lethal in a
confined area.
STOPPING INSTRUCTIONS
1. Release your hand from the throttle control (Fig. 16).
Allow the engine to cool down by idling.
2. Put the On/Off Stop Control in the OFF position
(Fig. 14).
Fig. 14
Fig. 15
Run Position (C)
Partial Choke
Position (B)
OPERATING INSTRUCTIONS
14
HOLDING THE TRIMMER
WARNING: Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.
Before operating the unit, stand in the operating position
(Fig. 17). Check for the following:
• The operator is wearing eye protection and proper
clothing.
• The right arm is slightly bent, and the hand is holding
the shaft grip.
• The left arm is straight, and the hand is holding the
handle.
• The unit is below waist level.
• The cutting attachment is parallel to the ground and
easily contacts the vegitation to be cut without the
operator having to bend over.
Fig. 17
ADJUSTING TRIMMING LINE LENGTH
The Bump Head™ cutting attachment allows you to
release trimming line without stopping the engine. To
release more line, lightly tap the cutting attachment on
the ground (Fig. 18) while operating the trimmer at high
speed.
NOTE: Always keep the trimming line fully extended.
Line release becomes more difficult as cutting
line becomes shorter.
Fig. 18
Each time the head is bumped, about 1 in (25.4 mm.) of
trimming line is released. A blade in the cutting attachment shield will cut the line to the proper length if excess
line is released. For best results, tap the Bump Head™
on bare ground or hard soil. If line release is attempted
in tall grass, the engine may stall. Always keep the
trimming line fully extended. Line release becomes more
difficult as the cutting line becomes shorter.
NOTE: Do not rest the Bump Head™ on the ground.
CAUTION: Do not remove or alter the line
cutting blade assembly. Excessive line length
will make the clutch overheat. This may lead
to serious personal injury or damage to the
unit.
Some line breakage will occur from:
• Entanglement with foreign matter
• Normal line fatigue
• Attempting to cut thick, stalky weeds
• Forcing the line into objects such as walls or fence
posts
TIPS FOR BEST TRIMMING RESULTS
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of
the line to do the cutting, especially along walls.
Cutting with more than the tip will reduce cutting efficiency and may overload the engine.
• Cut grass over 8 in. (200 mm.) by working from top
to bottom in small increments to avoid premature
line wear or engine drag.
• Cut from left to right whenever possible. Cutting to
the right improves the unit's cutting efficiency.
Clippings are thrown away from the operator.
• Slowly move the trimmer into and out of the cutting
area at the desired height. Move either in a forwardbackward or side-to-side motion. Cutting shorter
lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon;
• Following the previous trimming
techniques
• What vegitation is being cut
• Where it’s being cut
For example, the line will wear faster when trimming
against a foundation wall as opposed to trimming
around a tree.
WARNING: The cutting attachment shield
must be installed when operating either the
cutting attachment or flail head.
OPERATING INSTRUCTIONS
15
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about
these procedures take your unit to an authorized
service dealer.
MAINTENANCE SCHEDULE
These required maintenance procedures should be
performed at the frequency stated in the table. They
should also be included as part of any seasonal tune-up.
DECORATIVE TRIMMING
Decorative trimming is accomplished by removing all
vegetation around trees, posts, fences, etc.
Rotate the whole unit so that the cutting attachment is at
a 30° angle to the ground (Fig. 19).
Before operating the unit with the Flail Head stand in the
operating position (Figs. 20). Refer to Holding the
Trimmer, Pg. 14.
WARNING: To avoid serious personal injury
and damage to the unit, do not use the flail
head assembly for decorative trimming or
cutting brush.
Flail Head Operating Tips:
To establish a rhythmic cutting procedure:
• Plant feet firmly, comfortably apart.
• Bring the engine to full throttle before entering the
material to be cut. The blade has maximum cutting
power at full throttle and is less likely to bind, stall, or
cause blade thrust, which can result in serious personal injury to the operator or others.
Fig. 19
Fig. 20
OPERATING THE FLAIL HEAD
Your unit can be equipped with a Flail Head that is better
suited for use on thick grass and weeds (Fig. 20).
MAINTENANCE REQUIRED
Fill fuel tank with correct oil and fuel mixture.
Clean and re-oil air filter.
Check spark plug condition and gap.
FREQUENCY
Before Starting Engine
Every 10 Hours
Every 50 Hours
REFER TO:
Page 12
Page 18
Page 20
WARNING: To prevent serious injury, never
do maintenance or repairs with unit running.
Always do maintenance and repairs on a cool
unit. Disconnect spark plug wire to ensure
the unit will not start.
MAINTENANCE AND REPAIR INSTRUCTIONS
MAINTENANCE AND REPAIR INSTRUCTIONS
16
Indexing Teeth
Inner Reel
Spring
Outer Spool
Bump Knob™
LINE INSTALLATION
Always use genuine Ryobi 0.080 inch (2.03 mm.)
replacement line. Larger line may make the engine
overheat or fail.
WARNING: Never use metal-reinforced line,
wire, or rope, etc.. These can break off and
become a dangerous projectile.
There are two methods to replace the trimming line.
• Wind the inner reel with new line
• Install a prewound inner reel
NOTE: Replacement line Part # 610375, or a prewound
reel, Part # 153577 can be purchased from your
local authorized dealer.
Winding the Existing Inner Reel
1. Hold the outer spool with one hand and unscrew the
Bump Knob™ counterclockwise (Fig. 21). Inspect
the bolt inside the Bump Knob™ to make sure it
moves freely. Replace the Bump Knob™ if damaged.
NOTE: A Bump Knob™, Part # 153066 can be
purchased from your local authorized dealer.
Fig. 21
2. Remove the inner reel from the outer spool (Fig. 22).
Fig. 23
5. Check the indexing teeth on the innerreel and outer
spool for wear (Fig. 24). If necessary, remove burrs
or replace the reel and spool.
NOTE: A cutting attachment head assembly,
Part # 153700 can be purchased from your local
authorized dealer.
Fig. 24
6. Take approximately 25 feet (7.6 m) of new trimming
line, loop it into two equal lengths. Insert each end of
the line through one of the two holes in the inner reel
(Fig. 25). Pull the line through the inner reel so that
the loop is as small as possible.
NOTE: Always use the correct line length when installing
trimming line on the unit. The line may not
release properly if the line is too long.
4. Use a clean cloth to clean the the inner reel, spring,
shaft, and inner surface of the outer spool (Fig. 23).
Fig. 22
3. Remove spring from the inner reel (Fig. 22).
NOTE: An inner reel spring, Part # 610317 can be
purchased from your local authorized dealer.
MAINTENANCE AND REPAIR INSTRUCTIONS
17
10. Hold the inner reel in place and install the Bump
Knob™ by turning clockwise. Tighten securely.
INSTALLING A PREWOUND REEL
1. Hold the outer spool with one hand and unscrew the
Bump Knob™ counterclockwise (Fig. 21 Pg. 16).
Inspect the bolt inside the Bump Knob™ to make
sure it moves freely. Replace the Bump Knob™ if
damaged.
2. Remove the old inner reel from the outer spool
(Fig. 22).
3. Remove the spring from the old inner reel (Fig. 22.
4. Place the spring in the new inner reel.
NOTE: The spring must be assembled on the inner reel
before reassembling the cutting attachment.
5. Insert the ends of the line through the eyelets in the
outer spool (Fig. 28).
6. Place the new inner reel inside the outer spool. Push
the inner reel and outer spool together. While holding
the inner reel and outer spool, grasp the ends and
pull firmly to release the line from the holding slots in
the spool.
7. Hold the inner reel in place and install the Bump
Knob™ by turning clockwise. Tighten securely.
Holding Slots
7. Wind the lines in tight even layers, onto the reel
(Fig.26). Wind the line in the direction indicated on
the inner reel. Place your index finger between the
two lines to stop the lines from overlapping. Do not
overlap the ends of the line.
NOTE: Failure to wind the line in the direction indicated
will cause the cutting attachment to operate
incorrectly.
Fig. 26
8. Insert the ends of the line into the two holding slots
and cut to the same length (Fig. 27).
Fig. 27
9. Place the spring in the inner reel. Insert the ends of
the line through the eyelets in the outer spool and
place inner reel inside the outer spool (Fig. 28). Push
the inner reel and outer spool toghther. While holding
the inner reel and outer spool, grasp the ends and
pull firmly to release the line from the holding slots in
the spool.
NOTE: The spring must be assembled on the inner reel
before reassembling the cutting attachment.
Fig. 28
Fig. 25
MAINTENANCE AND REPAIR INSTRUCTIONS
18
Choke Lever
Screws
Screws
Partial Choke
Position (B)
3. Pull the cover from the engine. Do not force.
Cleaning the Air Filter
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
Clean and re-oil the air filter every 10 hours of operation.
It is an important item to maintain. Not maintaining the
air filter will VOID the warranty.
1. Remove the air filter/muffler cover. See Removing
the Air filter/Muffler Cover.
4. Apply enough clean SAE 30 oil to lightly coat the
filter (Fig. 31).
3. Wash the filter in detergent and water (Fig. 30). Rinse
the filter thoroughly. Squeeze out excess water.
Allow it to dry completely.
AIR FILTER MAINTENANCE
Removing the Air Filter/Muffler Cover
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
1. Place the choke lever in the PARTIAL choke position
(B).
NOTE: The choke lever must be in the PARTIAL choke
position (B) (Fig. 28) to remove the
air filter/muffler cover.
2. Remove the four (4) screws securing the air
filter/muffler cover (Fig. 28). Use a flat blade or # T20
Torx bit screwdriver.
Fig. 30
Fig. 28
Air Filter
Fig. 29
2. Remove the air filter from behind the air filter/muffler
cover. (Fig. 29).
Fig. 31
MAINTENANCE AND REPAIR INSTRUCTIONS
19
6. Replace the air filter in the air filter/muffler cover
(Fig. 29).
NOTE: Operating the unit without the air filter and
air filter/muffler cover assembly, will VOID the
warranty.
Reinstalling the Airfilter/Muffler Cover
1. Place the air filter/muffler cover over the back of the
carburator and muffler.
NOTE: The choke lever must be in the PARTIAL choke
position (B) (Fig. 28, Pg. 18) to install the air
filter/muffler cover.
2. Insert the four (4) screws into the holes in the air
filter/muffler cover (Fig. 28, Pg. 18) and tighten. Use
a flat blade or # T20 Torx bit screwdriver. Do not
over tighten. Do not force.
CARBURETOR ADJUSTMENT
The idle speed of the engine is adjustable though the Air
filter/muffler cover (Fig 33).
NOTE: Careless adjustments can seriously damage your
unit. An authorized service dealer should make
carburetor adjustments.
Check Fuel Mixture
Old and/or improperly mixed fuel is usually the reason
for the unit not running properly. Drain and refill the tank
with fresh, properly mixed fuel prior to making any
adjustments. Refer to Oil and Fuel Information, Pg. 12.
Clean Air Filter
The condition of the air filter is important to the operation of the unit. A dirty air filter will restrict air flow and
change the air/fuel mixture. This is often mistaken for an
out of adjustment carburetor. Check the condition of the
air filter before adjusting the idle speed screw. Refer to
Air Filter Maintenance Pg. 18.
5. Squeeze the filter to spread and remove excess oil
(Fig. 32).
Adjust Idle Speed Screw
WARNING: The cutting attachment may be
spinning during idle speed adjustment. Wear
protective clothing and observe all safety
instructions to prevent serious personal
injury.
If after checking the fuel mixture and cleaning the air filter the engine still will not idle, adjust the idle speed
screw as follows.
1. Start the engine and let it run at a high idle for a
minute to warm up.
2. Release the throttle trigger and let the engine idle. If
the engine stops, insert a small phillips or flat blade
screwdriver into the hole in the air filter/muffler cover
(Fig. 33). Turn the idle speed screw in, clockwise, 1/8
of a turn at a time (as needed) until the engine idles
smoothly.
NOTE: The cutting attachment should not rotate when
the engine idles.
3. If the cutting attachment rotates when the engine
idles, turn the idle speed screw counterclockwise 1/8
of a turn at a time (as needed), to reduce idle speed.
Checking the fuel mixture, cleaning the air filter, and
adjusting the idle speed screw should solve most engine
problems.
If not and:
• The engine will not idle,
• The engine hesitates or stalls on acceleration,
• There is a loss of engine power,
have the carburetor adjusted by an authorized service
dealer.
WARNING: When the unit is turned off make
sure the cutting attachment has stopped
before the unit is set down to prevent serious
personal injury.
Idle Speed Screw
Fig. 32
Fig. 33
MAINTENANCE AND REPAIR INSTRUCTIONS
20
REPLACING THE SPARK PLUG
Use a Champion RDJ7Y spark plug (or equivalent). The
correct air gap is 0.020 in. (0.5 mm.). Remove the plug
after every 50 hours of operation to check its condition.
1. Stop the engine and allow it to cool. Grasp the plug
wire firmly and pull the cap from the spark plug.
2. Clean dirt from around the spark plug. Remove the
spark plug from the cylinder head by turning a 5/8 in.
socket counterclockwise.
Note: Replace cracked, fouled or dirty spark plug.
3. Set the air gap at 0.020 in. (0.5 mm.) using a feeler
gauge (Fig. 34).
CAUTION: Do not sand blast, scrape, or
clean electrodes. Grit in the engine could
damage the cylinder.
4. Install a correctly gaped spark plug in the cylinder
head. Tighten by turning the 5/8 in. socket clockwise
until snug.
If using a torque wrench torque to;
110-120 in.•lb. (12.3-13.5 N•m).
Do not over tighten.
ACCESSORIES/REPLACEMENT PARTS
2-Cycle Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147543
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610311
Replacement Line . . . . . . . . . . . . . . . . . . . . . . . 610375
Replacement Line Cartridge . . . . . . . . . . . . . . . 153577
Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . 610317
Bump Head Knob Assembly . . . . . . . . . . . . . . . 153066
Outer Spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153599
Cutting Attachment Head Assembly . . . . . . . . . 153700
Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180000
Shoulder Harness . . . . . . . . . . . . . . . . . . . . . . . 682075
Flail Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181974
0.020 in.
(0.5 mm.)
Fig. 34
CLEANING AND STORAGE
LONG TERM STORAGE
If the unit will be stored for an extended time,
1. Drain all gasoline from the gas tank into a container .
Do not use gas that has been stored for more than
60 days. Dispose of the old gasoline in accordance
to Federal, State, and Local regulations.
2. Start the engine and allow it to run until it stalls. This
ensures that all gasoline has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug and
put 1 oz. (30 ml.) of any high quality motor oil into the
cylinder. Pull the starter rope slowly to distribute the
oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the oil
from the cylinder before attempting to start the
trimmer after storage.
4. Thoroughly clean the unit and inspect for any loose
or damaged parts. Repair or replace damaged parts
and tighten loose screws, nuts or bolts. The unit is
ready for storage.
TRANSPORTING
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Drain the gas tank before transporting.
• Tighten gas cap before transporting.
CLEANING
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
Use a small brush to clean off the outside of the unit. Do
not use strong detergents. Household cleaners that
contain aromatic oils such as pine and lemon, and such
as kerosene, can damage plastic housing or handle.
Wipe off any moisture with a soft cloth.
STORAGE
• Never store the unit with gasoline in the tank where
fumes may reach an open flame or spark.
• Allow the engine to cool before storing.
• Store the unit locked up to prevent unauthorized use
or damage.
• Store the unit in a dry, well ventilated area.
• Store the unit out of the reach of children.
LONG TERM STORAGE
If the unit will be stored for an extended time,
1. Drain all gasoline from the gas tank into a container .
Do not use gas that has been stored for more than
60 days. Dispose of the old gasoline in accordance
to Federal, State, and Local regulations.
TROUBLESHOOTING
21
CAUSE ACTION
Cutting head bound with grass Stop the engine and clean cutting attachment
Cutting head out of line Refill with new line
Inner reel bound up Replace the inner reel
Cutting head dirty Clean inner reel and outer spool
Line welded Disassemble, remove the welded section
and rewind the line
Line twisted when refilled Disassemble and rewind the line
Not enough line is exposed Push the Bump Knob and pull out line until
4 in. (102 mm.) of line is outside of the
cutting attachment
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
CAUSE ACTION
Ignition switch is OFF Turn switch to ON
Empty gas tank Fill fuel tank
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 5-7 times
Engine flooded Use starting procedure with choke lever in the
RUN position, Pg. 13
Old or improperly mixed fuel Drain fuel tank / Add fresh fuel mixture
Fouled spark plug Replace or clean the spark plug
ENGINE WILL NOT START
ENGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
ENGINE LACKS POWER OR STALLS WHEN CUTTING
CAUSE ACTION
Air Filter is Plugged Replace or clean the air filter
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Adjust per instruction Pg. 19
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
Cutting head bound with grass Stop the engine and clean the cutting attachment
Dirty air filter Clean or replace the air filter
CUTTING ATTACHMENT WILL NOT ADVANCE LINE
SPECIFICATIONS
22
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25 in. (31.75 mm.)
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9 cu. in. (31 cc.)
Clutch Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centrifugal
Operating RPM (Trimmer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,600-8,000 rpm
Operating RPM (Flail Head) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8,000-9,500 rpm
Idle Speed RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800-3,900 rpm
Ignition Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Slide Switch
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.020 in. (0.5 mm.)
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32:1
Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diaphragm, All-Position
Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Rewind
Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Baffled with Guard
Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Spring Return
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 oz. (530 ml.)
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HD Polyethylene
Drive Shaft Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Tube
Throttle Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Finger-Tip Trigger
Unit Weight (No fuel, with cutting attachment, cutting attachment shield and D handle) . . . . . . . . . . 11 lbs. (4.9 kg.)
Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flail Head, Dual String Cutting Head
Line Spool Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 in. (76.2 mm.)
Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.080 in. (2.03 mm.)
Cutting Path Diameter, Cutting Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 in. (40.6 cm.)
Cutting Path Diameter, Flail Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Inches (330.2 mm.)
Shoulder Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single Quick-Snap
ENGINE
DRIVESHAFT & CUTTING ATTACHMENT
23
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and Ryobi Outdoor
Products (ROP), are pleased to explain the emission
control system warranty on your 1995 and later small
off-road engine. In California, new small off-road
engines must be designed, built and equipped to meet
the State's stringent anti-smog standards. ROP must
warrant the emission control system on your small off-
road engine for the periods of time listed below provided there has been no abuse, neglect or improper
maintenance of your small off-road engine.
Your emission control system may include parts such
as the carburetor or fuel injection system, the ignition
system, and catalytic converter. Also included may be
hoses, belts, connectors and other emission-related
assemblies.
Where a warrantable condition exists, ROP will repair
your small off-road engine at no cost to you including
diagnosis, parts and labor.
The 1995 and later small off-road engines are warranted
for two years. If any emission-related part on your
engine is defective, the part will be repaired or replaced
by ROP
OWNER'S WARRANTY RESPONSIBILITIES:
• As the small off-road engine owner, you are
responsible for the performance of the required
maintenance listed in your operator's manual. ROP
recommends that you retain all receipts covering
maintenance on your small off-road engine, but ROP
cannot deny warranty solely for the lack of receipts
or for your failure to ensure the performance of all
scheduled maintenance.
• As the small off-road engine owner, you should however be aware that ROP may
deny you warranty coverage if your small
off-road engine or a part has failed due to abuse,
neglect, improper maintenance or unapproved modifications.
• You are responsible for presenting your
small off-road engine to a Ryobi Authorized Service
Center as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount
of time, not to exceed
30 days.
If you have any questions regarding your warranty rights
and responsibilities, you should call 1-800-345-8746.
MANUFACTURER'S WARRANTY COVERAGE:
• The warranty period begins on the date the engine or
equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and
each subsequent purchaser, that the engine is free
from defects in material and workmanship which
cause the failure of a warranted part for a period of
two years.
• Repair or replacement of warranted part will be
performed at no charge to the owner at an
Authorized Ryobi Service Center. For the nearest
location, please contact Ryobi at:
1-800-345-8746.
• Any warranted part which is not scheduled for
replacement, as required maintenance which is
scheduled only for regular inspection to the effect of
"Repair or replace as necessary" is warranted for the
warranty period. Any warranted part which is
scheduled for replacement as required maintenance
will be warranted for the period of time up to the first
scheduled replacement point for that part.
• The owner will not be charged for diagnostic labor
which leads to the determination that a warranted
part is defective, if the diagnostic work is performed
at an Authorized Ryobi Service Center.
• The manufacturer is liable for damages to other
engine components caused by the failure of a
warranted part still under warranty.
• Failures caused by abuse, neglect or improper
maintenance are not covered under warranty.
• The use of add-on or modified parts can be grounds
for disallowing a warranty claim. The manufacturer is
not liable to cover failures or warranted parts caused
by the use of add-on or modified parts.
• In order to file a claim, go to your nearest Authorized
Ryobi Service Center. Warranty services or repairs
will be provided at all Authorized Ryobi Service
Centers.
• Any manufacturer approved replacement part may
be used in the performance of any warranty
maintenance or repair of emission related parts and
will be provided without charge to the owner. Any
replacement part that is equivalent in performance or
durability may be used in non-warranty maintenance
or repair and will not reduce the warranty obligations
of the manufacturer.
• The following components are included in the
emission related warranty of the engine, air filter,
carburetor, primer, fuel lines, fuel pick up/fuel filter,
ignition module, spark plug and muffler.
ALL IMPLIED WARRANTIES ARE LIMITED IN
DURATION TO THE TWO (2) YEAR WARRANTY
PERIOD OR NINETY (90) DAYS FOR PRODUCTS
USED FOR ANY COMMERCIAL PURPOSE.
ACCORDINGLY, ANY SUCH IMPLIED WARRANTIES
INCLUDING MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OR OTHERWISE, ARE
DISCLAIMED IN THEIR ENTIRETY AFTER THE
EXPIRATION OF THE APPROPRIATE TWO-YEAR
OR NINETY DAY WARRANTY PERIOD. RYOBI’S
OBLIGATION UNDER THIS WARRANTY, IS STRICTLY
AND EXCLUSIVELY LIMITED TO THE REPAIR OR
REPLACEMENT OF DEFECTIVE PARTS, AND ROP
DOES NOT ASSUME OR AUTHORIZE ANYONE TO
ASSUME FOR THEM ANY OTHER OBLIGATION.
SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
RYOBI ASSUMES NO RESPONSIBILITY FOR
INCIDENTAL, CONSEQUENTIAL OR OTHER
DAMAGES INCLUDING, BUT NOT LIMITEDTO
EXPENSE OF RETURNING THE RYOBI PRODUCT
TO AN AUTHORIZED SERVICE DEALER AND
EXPENSE OF DELIVERING IT BACK TO THE
OWNER, MECHANIC’S TRAVEL TIME, TELEPHONE
OR TELEGRAM CHARGES, RENTAL OF A LIKE
PRODUCT DURING THE TIME WARRANTY SERVICE
IS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE
TO PERSONAL PROPERTY, LOSS OF REVENUE,
LOSS OF USE OF THE PRODUCT, LOSS OF TIME,
OR INCONVENIENCE. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
This warranty applies to all RYOBI Products
manufactured by RYOBI and sold in the United States
and Canada.
To locate your nearest service dealer dial
1-800-345-8746 in the United States or
1-800-265-6778 in Canada.
RYOBI OUTDOOR PRODUCTS
550 N. 54th Street
Chandler, AZ 85226 U.S.A.
RYOBI CANADA INC.
275 Industrial Rd
Cambridge, Ontario N1R 6K2 CANADA
RYOBI OUTDOOR PRODUCTS warrants each new
RYOBI Product for two (2) years according to the
following terms.
This warranty extends to the original retail purchaser
only and commences on the date of original retail
purchase.
Any part of the RYOBI Product manufactured or
supplied by RYOBI and found in the reasonable
judgement of RYOBI to be defective in material or
workmanship will be repaired or replaced by an
authorized RYOBI service dealer without charge for
parts and labor.
The RYOBI Product including any defective part must
be returned to an authorized service dealer within the
warranty period. The expense of delivering the RYOBI
Product to the dealer for warranty work and the
expense of returning it back to the owner after repair
or replacement will be paid for by the owner. RYOBI’s
responsibility in respect to claims is limited to making
the required repairs or replacements and no claim of
breach of warranty shall be cause for cancellation or
rescission of the contract of sale of any RYOBI
Product. Proof of purchase will be required by the
dealer to substantiate any warranty claim. All warranty
work must be performed by an authorized RYOBI
service dealer.
This warranty is limited to ninety (90) days from the
date of original retail purchase for any RYOBI Product
that is used for rental or commercial purposes, or any
other income-producing purpose.
This warranty does not cover any RYOBI Product that
has been subject to misuse, neglect, negligence, or
accident, or that has been operated in any way
contrary to the operating instructions as specified in
the RYOBI Operator’s Manual. This warranty does not
apply to any damage to the RYOBI Product that is the
result of improper maintenance or to any RYOBI
Product that has been altered or modified so as to
adversely affect the product's operation, performance
or durability or that has been altered or modified so as
to change its intended use. The warranty does not
extend to repairs made necessary by normal wear or
by the use of parts or accessories which are either
incompatible with the RYOBI Product or adversely
affect its operation, performance or durability.
In addition, this warranty does not cover:
A. Tune-ups - Spark Plugs, Carburetor Adjustments,
Filters
B. Wear items - Bump Knobs, Outer Spools,
Cutting Line, Inner Reels, Starter Pulley,
Starter Ropes, Drive Belts
RYOBI reserves the right to change or improve the
design of any RYOBI Product without assuming
any obligation to modify any product previously
manufactured.
LIMITED TWO-YEAR WARRANTY
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR QUESTIONS CALL 1-800-345-8746 IN U.S.
OR 1-800-265-6778 IN CANADA
OPERATOR’S MANUAL PART NO. 182208 REV. A (7825)
PRINTED IN U.S.A. 11/98
Loading...
