767rj
2-Cycle Gas Trimmer
OPERATOR’S MANUAL
FOR QUESTIONS, CALL 1-800-345-8746 in U.S. or
1-800-265-6778 in CANADA
www.ryobi.com
IMPORTANT MANUAL DO NOT THROW AWAY
INTRODUCTION TABLE OF CONTENTS
2
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator’s manual provides you with easy-to-understand operating instructions. Read the whole manual
and follow all the instructions to keep your new outdoor
power tool in top operating condition. The other manual
that came with your power tool, the parts manual, contains all the information that you need to order parts.
PRODUCT REFERENCES, ILLUSTRATIONS AND
SPECIFICATIONS
All information, illustrations and specifications
in this manual are based on the latest product information available at the time of printing. We reserve the right
to make changes at any time without notice.
Copyright©1999 Ryobi Outdoor Products, Inc.
All Rights Reserved.
SpeedSpool®is a registered trademark of Ryobi
Outdoor Products.
Bump Head™ is a trademark of Ryobi Outdoor
Products.
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
Dial:
• 1-800-345-8746 or www.ryobi.com on the world wide
web for authorized service dealers in the United States
Or
• 1-800-265-6778 in Canada to obtain the listing of the
authorized service dealer nearest you.
to obtain the listing of the authorized service dealer
nearest you.
DO NOT RETURN THE UNIT TO THE RETAILER.
NOTE: PROOF OF PURCHASE WILL BE REQUIRED
FOR WARRANTY SERVICE.
Make sure this manual is carefully read and understood
before starting or operating this equipment.
THIS PRODUCT IS COVERED BY ONE OR MORE OF
THE US PATENTS. OTHER PATENTS PENDING.
I. California Emission Regulations . . . . . . . . . . . . . . . . . 3
II. Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . 4-7
A. Important Safety Information . . . . . . . . . . . . . . . 4-5
B. Safety and International Symbols . . . . . . . . . . . .5-6
C. Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
III. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . 8-9
A. Installing and Adjusting J-Handle . . . . . . . . . . . . . 8
B. Installing the Cutting Attchment Shield . . . . . . . . 8
IV. Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . 9
V. Starting/Stopping Instructions . . . . . . . . . . . . . . . . . 10
VI. Operating Instructions . . . . . . . . . . . . . . . . . . . . . 11-12
A. Holding the Trimmer . . . . . . . . . . . . . . . . . . . . . . . 11
B. Adjusting Trimming Line Length . . . . . . . . . . . . . . 11
C. Tips for Best Trimming Results . . . . . . . . . . . . . . 11
D. Decorative Trimming . . . . . . . . . . . . . . . . . . . . . . . 12
VII. Maintenance and Repair Instructions . . . . . . . . . 12-16
A. Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . 12
B. Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
C. Installing a Prewound Reel . . . . . . . . . . . . . . . . . . 13
D. Cleaning the SpeedSpool . . . . . . . . . . . . . . . . . . . 14
E. Air Filter Maintenance . . . . . . . . . . . . . . . . . . . . . . 15
F. Carburetor Adjustment . . . . . . . . . . . . . . . . . . . . . 16
G. Replacing the Spark Plug . . . . . . . . . . . . . . . . . . . 16
VIII. Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . 17
A. Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
B. Accessories and Replacement parts . . . . . . . . . . 17
IX. Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . 18
X. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
XI. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
CONTENTS OF CARTON
• Model 767rj Trimmer
∆ J-Handle and Hardware
∆ Cutting Attachment Shield and Hardware
• Bottle of 2-Cycle Oil
• Operator's Manual
• Parts Manual
• Product Registration Card
∆ These items may be in the hardware bag or
assembled on your unit.
CALIFORNIA EMISSION REGULATIONS
3
SPARK ARRESTOR
WARNING!
RULES FOR SAFE OPERATION
NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest
Land and the states of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that
certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark
arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention
of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these
requirements could subject you to liability or a fine. This unit is not factory equipped with a spark arrestor. If these
items are required in your area, ask your LOCAL SERVICE dealer to install the Optional Accessory Part #180030 Spark
Arrestor Kit.
This unit meets the 1995 and later California emissions regulations for small off-road engines. These units are identified by
the label on the engine of your product. A typical identification label is shown.
To ensure that your unit continues to meet these regulations, refer to the following information and instructions in this
operator’s manual.
Read the Operator’s Manual(s) and follow all warnings and safety instructions. Failure to do so can
result in serious injury to the operator and/or bystanders.
WARNING
California Proposition 65 Warning:
THE ENGINE EXHAUST FROM THIS PRODUCT
CONTAINS CHEMICALS KNOWN TO THE STATE
OF CALIFORNIA TO CAUSE CANCER, BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM.
FOR QUESTIONS, CALL 1-800-345-8746 IN U.S. OR 1-800-265-6778 in CANADA
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or
warnings they give are not substitutes for proper
accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates
danger, warning, or caution. Attention is
required in order to avoid serious personal
injury. May be used in conjunction with
other symbols or pictographs.
NOTE:Advises you of information or instructions vital to
the operation or maintenance of the equipment.
DANGER: Failure to obey a safety warning
will result in serious injury to yourself or to
others. Always follow the safety precautions
to reduce the risk of fire, electric shock, and
personal injury.
WARNING: Failure to obey a safety warning
can result in injury to yourself and others.
Always follow the safety precautions to
reduce the risk of fire, electric shock, and
personal injury.
CAUTION: Failure to obey a safety warning
may result in property damage or personal
injury to yourself or to others. Always follow
the safety precautions to reduce the risk of
fire, electric shock, and personal injury.
RULES FOR SAFE OPERATION
4
READ ALL INSTRUCTIONS
BEFORE OPERATING
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use
the unit, except for teens guided by an adult.
• Inspect the unit before use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in
place and secure. Replace cutting attachment parts
that are cracked, chipped, or damaged in any way.
Make sure the cutting attachment is properly installed
and securely fastened. Be sure the cutting attachment
shield is properly attached, and positioned as recommended. Failure to so can result in personal injury to
the operator and bystanders, as well as damage to the
unit.
• Use only 0.080 inch (2.03 mm) diameter genuine Ryobi
replacement line. Never use metal-reinforced line,
wire, or rope, etc.. These can break off and become a
dangerous projectile.
• Be aware of the risk of injury to the head, hands and
feet.
• Clear the area to be cut before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in
the cutting attachment. Clear the area of children,
bystanders, and pets. At a minimum, keep all children,
bystanders and pets outside a 50 feet (15 m) radius;
there still may be a risk to bystanders from thrown
objects. Bystanders should be encouraged to wear
eye protection. If you are approached, stop the engine
and cutting attachment immediately.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments
or repairs before using unit.
• This unit was not designed to be used as a brushcutter. Do not attach or operate this unit with any type of
brushcutting blade or brushcutting attachment.
SAFETY WARNINGS FOR GAS TRIMMERS
WARNING: Gasoline is highly flammable, and its vapors
can explode if ignited. Take the following precautions:
• Store fuel only in containers specifically designed and
approved for the storage of such materials.
• Always stop the engine and allow it to cool before
filling the fuel tank. Never remove the cap of the fuel
tank, or add fuel, when the engine is hot. Never
operate the unit without the fuel cap securely in place.
Loosen the fuel tank cap slowly to relieve any pressure
in the tank.
• IMPORTANT SAFETY INFORMATION •
• Mix and add fuel in a clean, well-ventilated area
outdoors where there are no sparks or flames. Slowly
remove the fuel cap only after stopping engine. Do not
smoke while fueling or mixing fuel. Wipe up any spilled
fuel from the unit immediately.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
• Move the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke, keep sparks and open flames from the area
while adding fuel or operating the unit.
WHILE OPERATING
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate
this unit only in a well ventilated area outdoors.
• Wear safety glasses or goggles that are marked as
meeting ANSI Z87.1 standards, and ear/hearing protection when operating this unit. Wear a face or dust
mask if the operation is dusty.
• Wear heavy, long pants, boots, gloves and a long
sleeve shirt. Do not wear loose clothing, jewelry, short
pants, sandals or go barefoot. Secure hair above
shoulder level.
• The cutting attachment shield must always be in place
while operating the unit. Do not operate unit without
both trimming lines extended, and the proper line
installed. Do not extend the trimming line beyond the
length of the shield.
• This unit has a clutch. The cutting attachment remains
stationary when the engine is idling. If it does not, have
the unit adjusted by an authorized service technician.
• Adjust the J-handle to your size to provide the best
grip.
• Be sure the cutting attachment is not in contact with
anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and
unit must be in a stable position while starting. See
Starting/Stopping Instructions.
• Use the right tool. Only use this tool for the purpose
intended.
• Do not overreach. Always keep proper footing and
balance.
• Always hold the unit with both hands when operating.
Keep a firm grip on both the front and rear handle or
grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the cutting
attachment when it is rotating.
RULES FOR SAFE OPERATION
5
• Do not touch the engine or muffler. These parts get
extremely hot from operation. When turned off they
remain hot for a short time.
• Do not operate the engine faster than the speed
needed to cut, trim or edge. Do not run the engine at
high speed when not cutting.
• Always stop the engine when cutting is delayed or
when walking from one cutting location to another.
• If you strike or become entangled with a foreign
object, stop the engine immediately and check for
damage. Do not operate before repairing damage. Do
not operate the unit with loose or damaged parts.
• Stop and switch the engine to off for maintenance,
repair, or for changing the cutting attachment or other
attachments.
• Use only genuine Ryobi replacement parts and
accessories for this unit. These are available from
your authorized service dealer. Use of any non Ryobi
parts or accessories could lead to serious injury to the
user, or damage to the unit, and void your warranty.
• Keep unit clean of vegetation and other materials.
They may become lodged between the cutting
attachment and shield.
• To reduce fire hazard, replace faulty muffler and spark
arrestor, keep the engine and muffler free from grass,
leaves, excessive grease or carbon build up.
OTHER SAFETY WARNINGS
• Never store the unit, with fuel in the tank, inside a
building where fumes may reach an open flame or
spark.
• Allow the engine to cool before storing or transporting.
Be sure to secure the unit while transporting.
• Store the unit in a locked up and dry or high and dry
place to prevent unauthorized use or damage, out of
the reach of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use, see
Cleaning and Storage
instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
SAVE THESE INSTRUCTIONS
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning, or caution. May be used in conjunction with other
symbols or pictographs.
• WARNING - READ OPERATOR'S MANUAL
Read the Operator’s Manual(s) and follow all warnings and safety instructions.
Failure to do so can result in serious injury to the operator and/or bystanders.
• FOR SERVICE INFORMATION, CALL:
USA: 1-800-345-8746
CANADA: 1-800-265-6778
• WEAR EYE AND HEARING PROTECTION
WARNING:
Thrown objects and loud noise can cause severe eye injury and hearing
loss. Wear eye protection meeting ANSI Z87.1 standards and ear protection when
operating this unit.
• KEEP BYSTANDERS AWAY
WARNING:
Keep all bystanders, especially children and pets, at least 50 feet (15 m)
from the operating area.
SYMBOL MEANING
• PRIMER BULB
Push primer bulb, fully and slowly, 5 to 7 times.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY
WARNING:
Do not operate without the cutting attachment shield in place.
Keep away from the rotating cutting attachment.
• ON/OFF STOP CONTROL
ON / START / RUN
• ON/OFF STOP CONTROL
OFF OR STOP
• HOT SURFACE WARNING
Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely
hot from operation. When turned off they remain hot for a short time.
• SHARP BLADE
WARNING:
There is a sharp blade on the cutting attachment shield.
To prevent serious injury, do not touch blade.
• INDICATES OIL
Refer to operator's manual for the proper type of oil.
• CHOKE CONTROL
A • FULL CHOKE position.
B • PARTIAL CHOKE position.
C • RUN position.
• DO NOT USE BLADES
WARNING:
To prevent serious injury, do not attach or operate the unit with
any type of blade.
RULES FOR SAFE OPERATION
6
WARNING: The operation of any power tool can cause foreign objects to be thrown into your
eyes. This can lead to severe eye damage. Before commencing power tool operation, always
wear safety glasses or goggles that are marked as meeting ANSI Z87.1 standards, and a full
face shield when needed.
RULES FOR SAFE OPERATION
7
KNOW YOUR UNIT
APPLICATIONS
• Cutting grass and light weeds.
• Decorative trimming around trees, fences, etc.
Handle Hardware
Primer Bulb
Air filter/Muffler
Cover
Fuel Cap
Throttle Control
Power Head
Choke Lever
J-handle
Line Cutting Blade
Cutting Attachment
Shaft Housing
Shaft Grip
Spark Plug
On/Off Stop Control
Cutting Attachment Shield
Starter Rope Grip
6. While holding the unit in the operating position
(Fig. 3), position the J-handle to the location
that provides you the best grip.
7. Tighten the clamp screws evenly, until the J-handle
is secure.
INSTALLING THE CUTTING ATTACHMENT
SHIELD
Use the following instructions if the cutting attachment
shield on your unit is not installed.
WARNING: Never operate the trimmer
without the cutting attachment shield in
place to prevent serious personal injury.
1. Slide the cutting attachment shield into the shield
mount on the cutting attachment. Align the screw
holes in the shield with the holes in the cutting
attachment (Fig. 4).
ASSEMBLY INSTRUCTIONS
8
Decal
INSTALLING AND ADJUSTING THE J-HANDLE
1. Place the J-handle between the top and middle
clamp pieces (Fig. 1).
(4) Screws
Top Clamp
J-Handle
Middle Clamp
Bottom Clamp
Nuts
2. While holding the three pieces together, install the
four (4) screws through the top clamp and into
middle clamp.
NOTE: The holes in the top and middle clamp will line up
only when assembled correctly.
3. Place the clamps and J-handle the over the shaft
housing and onto the bottom clamp.
4. Hold each hex nut in the bottom clamp recess with a
finger. Start screws with a large Phillips screwdriver.
Do not tighten until you make the handle adjustment.
5. Slide the J-handle in or out until the arrow/white line
on the decal touches the clamp assembly (Fig. 2).
Fig. 1
Fig. 4
Fig. 5
Fig. 2
Fig. 3
Cutting Attachment
Shield
Shaft Housing
Hex Lock Nut
Cutting Attachment
Shield
Cutting Attachment
2. Place a hex lock nut into one of the three recessed
holes on the top of the cutting attachment shield
(Fig 5).
Recessed Holes
Shield Mount
ASSEMBLY INSTRUCTIONS
9
OIL AND FUEL INFORMATION
WARNING: Gasoline is extremely
flammable. Ignited Vapors may explode.
Always stop the engine and allow it to cool
before filling the fuel tank. Do not smoke
while filling the tank. Keep sparks and open
flames at a distance from the area.
WARNING: Remove fuel cap slowly to avoid
injury from fuel spray. Never operate the unit
without the fuel cap securely in place.
WARNING: Add fuel in a clean, well
ventilated area outdoors. Wipe up any spilled
fuel immediately. Avoid creating a source of
ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
NOTE: Dispose of the old fuel/oil mix in accordance to
Federal, State, and Local regulations.
OIL AND FUEL MIXING INSTRUCTIONS
Old and/or improperly mixed fuel are the main reasons
for the unit not running properly. Be sure to use fresh,
clean unleaded fuel. Follow the instructions carefully for
the proper fuel/oil mixture.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and
oxygenates such as ethanol, methanol or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1%
water in the fuel can make fuel and oil separate. It forms
acids when stored. When using alcohol-blended fuel,
use fresh fuel (less than 60 days old).
Using Blended Fuels
If you choose to use a blended fuel, or its use is
unavoidable, follow recommended precautions.
• Always use fresh fuel mix per your operator's manual.
• Use the fuel additive STA-BIL®or an equivalent.
• Always agitate the fuel mix before fueling the unit.
• Drain the tank and run the engine dry before storing
the unit.
Using Fuel Additives
The use of fuel additive, such as STA-BIL®Gas
Stabilizer or an equivalent, will inhibit corrosion and
minimize the formation of gum deposits. Using a fuel
additive can keep fuel from forming harmful deposits in
the carburetor for up to six (6) months. Add 0.8 oz.
(23 ml.) of fuel additive per gallon of fuel according to the
instructions on the container. NEVER add fuel additives
directly to the unit's fuel tank.
CAUTION: For proper engine operation and
maximum reliability, pay strict attention to the
oil and fuel mixing instructions on the 2-cycle
oil container. Using improperly mixed fuel can
severely damage the engine.
Thoroughly mix the proper ratio of 2-cycle engine oil
with unleaded gasoline in a separate fuel can. Use a 32:1
fuel/oil ratio. Do not mix them directly in the engine fuel
tank. See the table below for specific gas and oil mixing
ratios.
NOTE: One gallon (3.8 liters) of unleaded gasoline mixed
with one 4 oz. (120 ml.) bottle of RYOBI 2 CYCLE
OIL makes a 32:1 fuel/oil ratio.
+
UNLEADED GAS RYOBI 2 CYCLE OIL
1 US. GALLON + 4.0 FL. OZ.
(3.8 LITERS) (120 ml)
1 LITER + 30 ml
MIXING RATIO - 32:1
Fig. 6
Screws
3. Install a screw into the hole from the bottom of the
cutting attachment shield and screw it into the nut
installed in step #2 (Fig 6). Do not tighten.
4. Repeat steps 2 and 3 until all three screws have
been started, then tighten securely.
STARTING/STOPPING INSTRUCTIONS
10
4. Place the choke lever in the FULL choke position (A)
(Fig. 8).
8. If the engine does not start, repeat steps
4 through 7.
NOTE: If the engine floods while trying to start, place the
choke lever in the RUN position (C) (Fig. 8).
Squeeze the throttle control. Pull the starter rope
briskly. The engine should start within three (3) to
eight (8) pulls.
9. Squeeze the throttle control to warm up engine for 5
to 10 seconds. Place the choke lever in the RUN
position (C) (Fig. 8).
NOTE: Choking is unnecessary when starting a warm
engine. Put the On/Off Stop Control in the ON
position (Fig. 4), and start in PARTIAL Choke
position (B) (Fig. 8).
WARNING: Operate this unit only in a well
ventilated area outdoors. Carbon monoxide
exhaust fumes can be lethal in a confined
area.
STOPPING INSTRUCTIONS
1. Release your hand from the throttle control (Fig. 9).
Allow the engine to cool down by idling.
2. Put the On/Off Stop Control in the OFF position
(Fig. 7).
STARTING INSTRUCTIONS
WARNING:
Avoid accidental starting. Be in
the starting position when pulling the starter
rope (Fig. 9). The operator and unit must be
in a stable position while starting to avoid
serious personal injury.
1. Mix gas with oil. Fill fuel tank with fuel/oil mixture.
See Oil and Fuel Mixing Instructions Pg. 9.
2. Put the On/Off Stop Control in the ON position
(Fig. 7).
Choke Lever
Full Choke
Position (A)
Run
Position (C)
Partial Choke
Position (B)
Starter Rope
Throttle Control
On/Off Stop Control
3. Fully press and release primer bulb slowly 5 to 7
times. Fuel should be visible in the bulb (Fig. 8).
If fuel is not visible, press three (3) more times, or
until it is.
5. With the unit on the ground, squeeze the throttle
control and pull starter rope briskly (Fig. 9). Continue
pulling until the engine sounds as though it wants to
run (normally 2 to 5 pulls).
NOTE: Squeeze the throttle control until the engine has
started and warmed up.
6. Place the choke lever in the
PARTIAL choke position
(B) (Fig. 8).
7. Pull starter rope briskly 1 to 3 times to start the
engine (Fig. 9).
Primer Bulb
Fig. 7
Fig. 9
Fig. 8
11
OPERATING INSTRUCTIONS

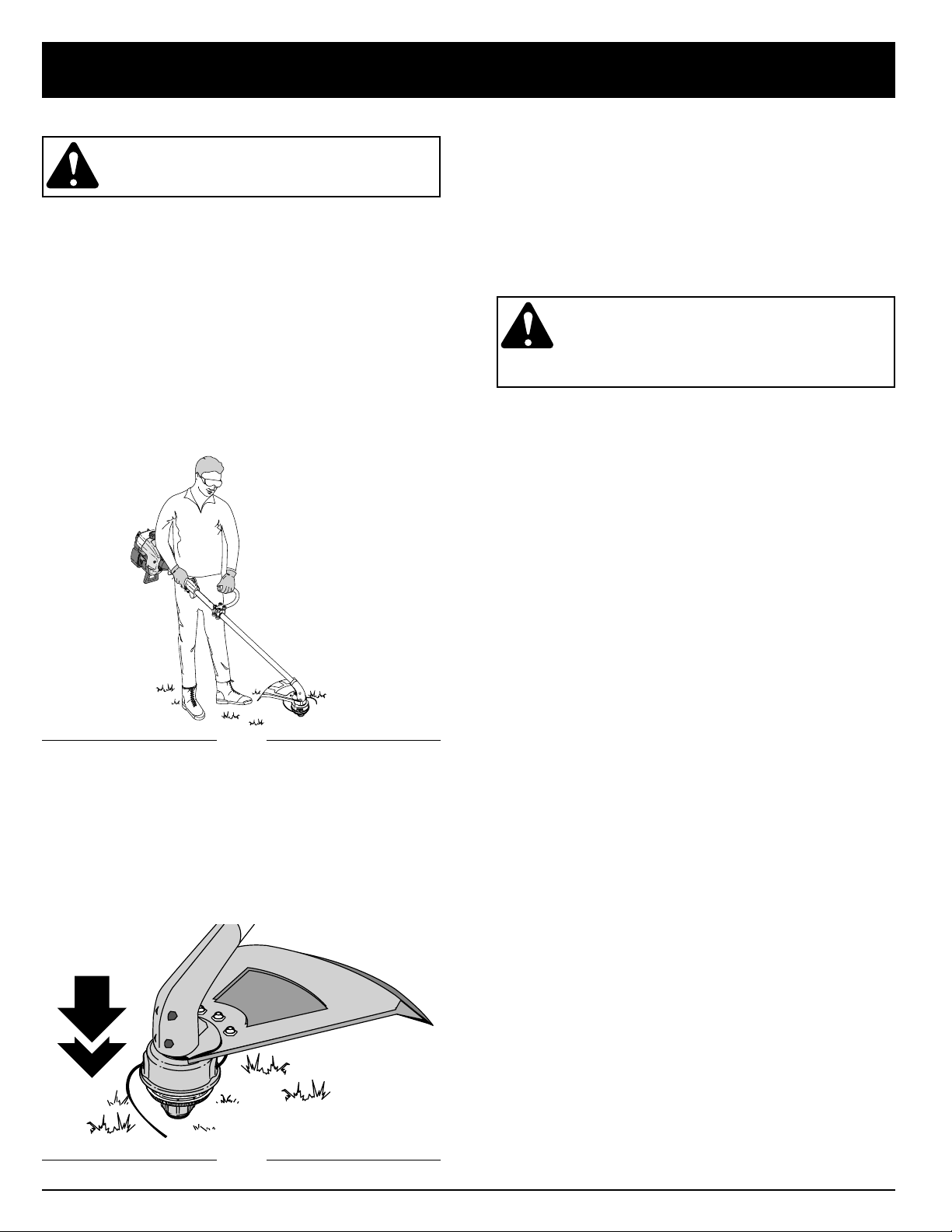

Fig. 10
Fig. 11
Each time the head is bumped, about 1 inch (25.4 mm.)
of trimming line is released. A blade in the cutting
attachment shield will cut the line to the proper length
if excess line is released.
For best results, tap the Bump Head™ on bare ground
or hard soil. If line release is attempted in tall grass, the
engine may stall. Always keep the trimming line fully
extended. Line release becomes more difficult as the
cutting line becomes shorter.
NOTE: Do not rest the Bump Head™ on the ground.
CAUTION: Do not remove or alter the line
cutting blade assembly. Excessive line length
will make the clutch overheat. This may lead
to serious personal injury or damage to the
unit.
Some line breakage will occur from:
• Entanglement with foreign matter
• Normal line fatigue
• Attempting to cut thick, stalky weeds
• Forcing the line into objects such as walls or fence
posts
TIPS FOR BEST TRIMMING RESULTS
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of
the line to do the cutting (especially along walls).
Cutting with more than the tip will reduce cutting
efficiency and may overload the engine.
• Cut grass over 8 inches (200 mm.) by working from
top to bottom in small increments to avoid premature
line wear or engine drag.
• Cut from right to left whenever possible. Cutting to the
left improves the unit's cutting efficiency. Clippings are
thrown away from the operator.
• Slowly move the trimmer into and out of the cutting
area at the desired height. Move either in a forwardbackward or side-to-side motion. Cutting shorter
lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon;
• Following the previous trimming techniques
• What vegetation is being cut
• Where it’s being cut
For example, the line will wear faster when trimming
against a foundation wall as opposed to trimming
around a tree.
ADJUSTING TRIMMING LINE LENGTH
The Bump Head™ cutting attachment allows you to
release trimming line without stopping the engine. To
release more line, lightly tap the cutting attachment on
the ground (Fig. 11) while operating the trimmer at high
speed.
NOTE: Always keep the trimming line fully extended.
Line release becomes more difficult as cutting
line becomes shorter.
HOLDING THE TRIMMER
WARNING:
Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.
Before operating the unit, stand in the operating position
(Fig. 10). Check for the following:
• The operator is wearing eye protection and proper
clothing.
• The right arm is slightly bent, and the hand is holding
the shaft grip.
• The left arm is straight, and the hand is holding the
handle.
• The unit is at waist level.
• The cutting attachment is parallel to the ground and
easily contacts the vegetation to be cut without the
operator having to bend over.
WARNING: Always use the correct line
length when installing trimming line on the
unit. The line may not release properly if the
line is too long.
2. Hold the outer spool and turn the inner reel
counterclockwise to line up the arrows on the outer
spool and inner reel (Fig. 13).
LINE INSTALLATION FOR THE SPEEDSPOOL
®
Always use genuine Ryobi 0.080 in. (2.03 mm.)
replacement line. Larger line may make the engine
overheat or fail.
WARNING: Never use metal-reinforced line,
wire, or rope, etc.. These can break off and
become a dangerous projectile.
There are two methods to replace the SpeedSpool
®
trimming line.
• Wind the inner reel with new line
• Install a prewound inner reel
Winding the Inner Reel With New Line
NOTE: It Is unnecessary to remove the bump knob to
install new trimming line.
1. Cut two pieces of 0.080 in. (2.03 mm.) trimming line,
10 feet (3 m.) long.
Top View Of The
SpeedSpool
®
Outer Spool
Arrows
Inner Reel
Bump Knob
Fig. 13
12
FREQUENCY MAINTENANCE REQUIRED REFER TO:
Before Starting Engine Fill fuel tank with correct oil and fuel mixture. Page 9
Every 10 Hours Clean and re-oil air filter. Page 15
Every 50 Hours Check spark plug condition and gap. Page 16
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about
these procedures take your unit to an authorized
service dealer.
MAINTENANCE SCHEDULE
These required maintenance procedures should be
performed at the frequency stated in the table. They
should also be included as part of any seasonal tune-up.
WARNING: To prevent serious personal
injury, never do maintenance or repairs with
unit running. Always do maintenance and
repairs on a cool unit. Disconnect spark plug
wire to ensure the unit will not start.
MAINTENANCE AND REPAIR INSTRUCTIONS
OPERATING INSTRUCTIONS
DECORATIVE TRIMMING
Decorative trimming is accomplished by removing all
vegetation around trees, posts, fences, etc.
Rotate the whole unit so that the cutting attachment is at
a 30° angle to the ground (Fig. 12).
Fig. 12
MAINTENANCE AND REPAIR INSTRUCTIONS
13
Line Locking Hole
Trimming Line
Line Loading Hole
Eyelet
5. Insert the line into the locking hole (Fig. 15). Do not
push the line more than 1/2 inch (12.7 mm.) into the
line locking hole. When inserted correctly the line will
form a small loop (Fig. 15).
6. Pull the line from the outer spool until the line is tight
against the inner reel (Fig. 16).
3. Pull old line out of the line loading and line locking
holes (Figs. 14 and 15).
4. Insert a piece of trimming line into one of the two
eyelets in the outer spool. Push it up through the line
loading hole in the inner reel (Fig. 14). Do not bend
the line when inserting it into the eyelet.
Fig. 14
Fig. 16
Fig. 15
9. If winding the line becomes difficult or the line jams,
pull the ends of the line from the spool (Fig. 18).
Continue winding the inner reel counterclockwise .
7. Repeat procedures 4-6 with the second piece of line.
8. Hold the outer spool. Wind the inner reel
counterclockwise until approximately four (4) inches
(102 mm.) of line remain (Fig. 17).
NOTE: Do not wind the inner reel before installing the
second piece of line.
Fig. 17
Fig. 18
Bump Knob
Foam Seal
Spring
Inner Reel
INSTALLING A PREWOUND REEL
1. Turn the Bump Knob counterclockwise and remove
the bump knob, spring, and foam seal (Fig. 19).
Fig. 19
MAINTENANCE AND REPAIR INSTRUCTIONS
14
2. Pull out the bump knob, spring, and foam seal
(Fig. 19, Pg. 13).
3. Pull the inner reel with existing line from the outer
spool (Fig. 19, Pg. 13).
4. Remove any existing line from the inner reel before
cleaning. Remove any debris or grass from the knob,
spring, inner reel, and foam seal. Wash the inner reel
with warm soapy water (Fig. 22).
Inner Reel
Shaft
Plunger
NOTE: The inner reel must be totally dry before
reinstalling it into the outer spool. Do not
lubricate the inner reel or outer spool assembly.
6. Place the inner reel into the outer spool.
7. Place the bump knob, spring, and foam seal into the
inner reel (Fig. 19, Pg. 13).
8. Press the bump knob down and tighten clockwise.
9. Install new line as described in
Line Installation for
the SpeedSpool®Pg. 12.
5. Clean the shaft and the inner surface of the outer
spool. To clean the shaft underneath the plunger,
press down on the plunger (Fig. 23). Remove any dirt
or debris from the shaft.
Fig. 21
Fig. 23
Fig. 22
Cleaning the SpeedSpool
®
Cleaning the SpeedSpool®may be necessary,
• To remove jammed or excess line,
• If the SpeedSpool®becomes difficult to wind or
does not operate correctly when bumping the head
on the ground,
1. Hold the outer spool, and unscrew the bump knob
counterclockwise (Fig. 21).
Replacement Line . . . . . . . . . . . . . . . . . . . . . . . . 181472
Replacement Line Cartridge . . . . . . . . . . . . . . . . 181460
Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . 181465
Foam Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181467
Inner Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181464
Bump Head Knob Assembly . . . . . . . . . . . . . . . . 181468
(Bump Head, Inner Reel, Spring, )
These SpeedSpool
®
replacement parts can be
purchased from your local authorized dealer.
SPEEDSPOOL®REPLACEMENT PARTS
4. Hold the inner reel in place and install the bump
knob, spring and foam seal. Press down and turn the
bump knob clockwise. Grasp the ends and pull
firmly to release the line from the holding slots in the
inner reel (Fig. 18, Pg. 13).
Releasing the Inner Reel
If the SpeedSpool®does not release line correctly, pull
the ends of the line firmly from the spool (Fig. 18, Pg.
13). If this does not release line, follow the Cleaning
the SpeedSpool®instructions.
2. Pull the old inner reel with existing line from the outer
spool.
3. Insert the ends of the prewound inner reel line into
the outer spool eyelets (Fig. 20). Push the new inner
reel, arrow side up, into the outer spool.
Fig. 20
MAINTENANCE AND REPAIR INSTRUCTIONS
15
Fig. 25
Fig. 26
Fig. 27
4. Apply enough clean SAE 30 oil to lightly coat the
filter (Fig. 27).
Air Filter
3. Wash the filter in detergent and water (Fig. 26).
Rinse the filter thoroughly. Squeeze out excess
water. Allow it to dry completely.
Fig. 24
AIR FILTER MAINTENANCE
Removing the Air Filter/Muffler Cover
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
1. Place the choke lever in the PARTIAL choke
position (B).
NOTE: The choke lever must be in the PARTIAL
choke position (B) (Fig. 24) to remove the air
filter/muffler cover.
2. Remove the four (4) screws securing the air
filter/muffler cover (Fig. 24). Use a flat blade or
T20 Torx bit screwdriver.
Choke Lever
Screws
Screws
Partial Choke
Position (B)
3. Pull the cover from the engine. Do not force.
Cleaning the Air Filter
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
Clean and re-oil the air filter every 10 hours of operation.
It is an important item to maintain. Not maintaining the
air filter will VOID the warranty.
1. Remove air filter/muffler cover. See
Removing the
Air filter/Muffler Cover.
2. Remove the air filter from behind the air filter/muffler
cover (Fig. 25).
5. Squeeze the filter to spread and remove excess oil
(Fig. 28).
Fig. 28
6. Replace the air filter in the air filter/muffler cover
(Fig. 25).
NOTE: Operating the unit without the air filter and air
filter/muffler cover assembly, will VOID the
warranty.
Reinstalling the Air filter/Muffler Cover
1. Place the air filter/muffler cover over the back of the
carburetor and muffler.
NOTE: The choke lever must be in the PARTIAL choke
position (B) (Fig. 24) to install the air filter/muffler
cover.
2. Insert the four (4) screws into the holes in the air
filter/muffler cover (Fig. 24) and tighten.
Do not over tighten.
MAINTENANCE AND REPAIR INSTRUCTIONS
16
0.020 in.
(0.5 mm.)
Fig. 30
CARBURETOR ADJUSTMENT
The idle speed of the engine is adjustable through the
Air filter/Muffler cover (Fig. 29).
NOTE: Careless adjustments can seriously damage your
unit. An authorized service dealer should make
carburetor adjustments.
Check Fuel Mixture
Old and/or improperly mixed fuel is usually the reason
for the unit not running properly. Drain and refill the tank
with fresh, properly mixed fuel prior to making any
adjustments. Refer to Oil and Fuel Information Pg. 9.
Clean Air Filter
The condition of the air filter is important to the operation
of the unit. A dirty air filter will restrict air flow and
change the air/fuel mixture. This is often mistaken for an
out of adjustment carburetor. Check the condition of the
air filter before adjusting the idle speed screw. Refer to
Air Filter Maintenance Pg. 15.
Adjust Idle Speed Screw
WARNING: The cutting attachment may be
spinning during idle speed adjustments.
Wear protective clothing and observe all
safety instructions to prevent serious
personal injury.
If after checking the fuel mixture and cleaning the
air filter the engine still will not idle, adjust the idle speed
screw as follows.
1. Start the engine and let it run at a high idle for a
minute to warm up. See Starting/Stopping
Instructions, Pg. 10.
2. Release the throttle trigger and let the engine idle. If
the engine stops, insert a small phillips or flat blade
screwdriver into the hole in the air filter/muffler cover
(Fig. 29). Turn the idle speed screw in, clockwise,
1/8 of a turn at a time (as needed) until the engine
idles smoothly.
Fig. 29
NOTE: The cutting attachment should not rotate when
the engine idles.
3. If the cutting attachment rotates when the engine
idles, turn the idle speed screw counterclockwise
1/8 of a turn at a time (as needed), to reduce idle
speed.
Checking the fuel mixture, cleaning the air filter, and
adjusting the idle speed screw should solve most engine
problems.
If not and:
• The engine will not idle,
• The engine hesitates or stalls on acceleration,
• There is a loss of engine power,
have the carburetor adjusted by an authorized service
dealer.
WARNING: When the unit is turned off make
sure the cutting attachment has stopped
before the unit is set down to prevent serious
personal injury.
REPLACING THE SPARK PLUG
Use a Champion RDJ7Y spark plug (or equivalent).
The correct air gap is 0.020 inch (0.5 mm.). Remove the
plug after every 50 hours of operation and check its
condition.
1. Stop the engine and allow it to cool. Grasp the plug
wire firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug
from the cylinder head by turning a 5/8 in. socket
counterclockwise.
3. Replace cracked, fouled or dirty spark plug. Set the
air gap at
0.020 in. (0.5 mm.) using a feeler gauge
(Fig. 30).
CAUTION: Do not sand blast, scrape, or
clean electrodes. Grit in the engine could
damage the cylinder.
4. Install a correctly gapped spark plug in the cylinder
head. Tighten by turning the 5/8 in. socket clockwise
until snug.
If using a torque wrench torque to;
110-120 in.•lb. (12.3-13.5 N•m).
Do not over tighten.
Idle Speed Screw
CLEANING AND STORAGE
17
TRANSPORTING
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Drain fuel from unit.
• Tighten fuel cap before transporting.
CLEANING
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
Use a small brush to clean off the outside of the unit.
Do not use strong detergents. Household cleaners that
contain aromatic oils such as pine and lemon, and
solvents such as kerosene, can damage plastic housing
or handle. Wipe off any moisture with a soft cloth.
STORAGE
• Never store the unit with fuel in the tank where fumes
may reach an open flame or spark.
• Allow the engine to cool before storing.
• Store the unit locked up to prevent unauthorized use
or damage.
• Store the unit in a dry, well ventilated area.
• Store the unit out of the reach of children.
LONG TERM STORAGE
If the unit will be stored for an extended time, use the
following storage procedure.
1. Drain all fuel from the fuel tank and drain into a
container with the same 2-cycle fuel mixture. Do not
use fuel that has been stored for more than 60 days.
Dispose of the old fuel/oil mix in accordance to
Federal, State, and Local regulations.
2. Start the engine and allow it to run until it stalls.
This ensures that all fuel has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug
and put 1 oz. (30 ml.) of any high quality motor oil or
2-cycle oil into the cylinder. Pull the starter rope
slowly to distribute the oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the oil
from the cylinder before attempting to start the
trimmer after storage.
4. Thoroughly clean the unit and inspect for any loose
or damaged parts. Repair or replace damaged parts
and tighten loose screws, nuts or bolts. The unit is
ready for storage.
ACCESSORIES/REPLACEMENT PARTS
2-Cycle Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147543
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610311
Replacement Line . . . . . . . . . . . . . . . . . . . . . . . 181472
Replacement Line Cartridge . . . . . . . . . . . . . . . . 181460
Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . 181465
Bump Head Knob Assembly . . . . . . . . . . . . . . . . 181468
Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180000
Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . 682075
TROUBLESHOOTING
18
CAUSE ACTION
Cutting attachment bound with grass Stop the engine and clean cutting attachment
Cutting attachment out of line Refill with new line
Inner reel bound up Replace the inner reel
Cutting head dirty Clean inner reel and outer spool
Line welded Disassemble, remove the welded section
and rewind the line
Line twisted when refilled Disassemble and rewind the line
Not enough line is exposed Push the Bump Knob and pull out line until
4 inches (102 mm.) of line is outside of the
cutting attachment
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
CAUSE ACTION
On/Off Stop Control is in OFF position Turn On/Off Stop Control to ON
Empty fuel tank Fill fuel tank with properly mixed fuel
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 5-7 times
Engine flooded Use starting procedure with choke lever in the
RUN position, Pg. 10
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Fouled spark plug Replace or clean the spark plug
ENGINE WILL NOT START
ENGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
ENGINE LACKS POWER OR STALLS WHEN CUTTING
CAUSE ACTION
Air Filter is Plugged Replace or clean the air filter
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Adjust per instruction Pg. 16
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
Cutting attachment bound with grass Stop the engine and clean the cutting attachment
Dirty air filter Clean or replace the air filter
CUTTING ATTACHMENT WILL NOT ADVANCE LINE
CUTTING lINE ADVANCES UNCONTROLABLY
CAUSE ACTION
Oil in cutting head Clean the cutting attachment
SPECIFICATIONS
19
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25 in. (31.75 mm.)
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9 cu in. (31 cc.)
Clutch Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centrifugal
Operating RPM (Trimmer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,600-8,000 rpm
Idle Speed RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800-3,600 rpm
Ignition Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Slide Switch
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.020 in. (0.5 mm.)
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32:1
Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diaphragm, All-Position
Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Rewind
Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Baffled with Guard
Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Spring Return
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 oz. (530 ml.)
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HD Polyethylene
ENGINE
DRIVE SHAFT and CUTTING ATTACHMENT
Drive Shaft Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Tube
Throttle Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Finger-Tip Trigger
Unit Weight (No fuel, with cutting attachment, cutting attachment shield and J-handle) . . . . . . . 12.25 lbs. (5.6 kg.)
Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual Line Bump Head
Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optional
Line Spool Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 in (76.2 mm)
Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.080 in (2.03 mm.)
Cutting Path Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 in. (40.64 cm)
NOTES
20
21
The California Air Resources Board and Ryobi
Outdoor Products (ROP), are pleased to explain the
emission control system warranty on your 1995 and
later small off-road engine. In California, new small
off-road engines must be designed, built and
equipped to meet the State's stringent anti-smog
standards. ROP must warrant the emission control
system on your small off-road engine for the periods
of time listed below provided there has been no
abuse, neglect or improper maintenance of your small
off-road engine.
Your emission control system may include parts such
as the carburetor or fuel injection system, the ignition
system, and catalytic converter. Also included may be
hoses, belts, connectors and other emission-related
assemblies.
Where a warrantable condition exists, ROP will repair
your small off-road engine at no cost to you including
diagnosis, parts and labor.
The 1995 and later small off-road engines are
warranted for two years. If any emission-related part
on your engine is defective, the part will be repaired
or replaced by ROP.
OWNER'S WARRANTY RESPONSIBILITIES:
• As the small off-road engine owner, you are
responsible for the performance of the required
maintenance listed in your operator's manual. ROP
recommends that you retain all receipts covering
maintenance on your small off-road engine, but
ROP cannot deny warranty solely for the lack of
receipts or for your failure to ensure the
performance of all scheduled maintenance.
• As the small off-road engine owner, you should
however be aware that ROP may deny you warranty
coverage if your small off-road engine or a part has
failed due to abuse, neglect, improper maintenance
or unapproved modifications.
• You are responsible for presenting your small
off-road engine to a Ryobi Authorized Service
Center as soon as a problem exists. The warranty
repairs should be completed in a reasonable
amount of time, not to exceed 30 days.
If you have any questions regarding your warranty
rights and responsibilities, you should call
1-800-345-8746.
MANUFACTURER'S WARRANTY COVERAGE:
• The warranty period begins on the date the engine
or equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and
each subsequent purchaser, that the engine is free
from defects in material and workmanship which
cause the failure of a warranted part for a period of
two years.
• Repair or replacement of warranted part will be
performed at no charge to the owner at an
Authorized Ryobi Service Center. For the nearest
location, please contact Ryobi at: 1-800-345-8746.
• Any warranted part which is not scheduled for
replacement, as required maintenance which is
scheduled only for regular inspection to the effect of
"Repair or replace as necessary" is warranted for
the warranty period. Any warranted part which is
scheduled for replacement as required maintenance
will be warranted for the period of time up to the
first scheduled replacement point for that part.
• The owner will not be charged for diagnostic labor
which leads to the determination that a warranted
part is defective, if the diagnostic work is performed
at an Authorized Ryobi Service Center.
• The manufacturer is liable for damages to other
engine components caused by the failure of a
warranted part still under warranty.
• Failures caused by abuse, neglect or improper
maintenance are not covered under warranty.
• The use of add-on or modified parts can be
grounds for disallowing a warranty claim. The
manufacturer is not liable to cover failures or
warranted parts caused by the use of add-on or
modified parts.
• In order to file a claim, go to your nearest
Authorized Ryobi Service Center. Warranty services
or repairs will be provided at all Authorized Ryobi
Service Centers.
• Any manufacturer approved replacement part
may be used in the performance of any warranty
maintenance or repair of emission related parts
and will be provided without charge to the owner.
Any replacement part that is equivalent in
performance or durability may be used in
non-warranty maintenance or repair and will
not reduce the warranty obligations of the
manufacturer.
• The following components are included in the
emission related warranty of the engine, air filter,
carburetor, primer, fuel lines, fuel pick up/fuel filter,
ignition module, spark plug and muffler.
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
ALL IMPLIED WARRANTIES ARE LIMITED IN
DURATION TO THE TWO (2) YEAR WARRANTY
PERIOD OR NINETY (90) DAYS FOR PRODUCTS
USED FOR ANY COMMERCIAL PURPOSE.
ACCORDINGLY, ANY SUCH IMPLIED WARRANTIES
INCLUDING MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OR OTHERWISE, ARE
DISCLAIMED IN THEIR ENTIRETY AFTER THE
EXPIRATION OF THE APPROPRIATE TWO-YEAR
OR NINETY DAY WARRANTY PERIOD. RYOBI’S
OBLIGATION UNDER THIS WARRANTY, IS STRICTLY
AND EXCLUSIVELY LIMITED TO THE REPAIR OR
REPLACEMENT OF DEFECTIVE PARTS, AND ROP
DOES NOT ASSUME OR AUTHORIZE ANYONE TO
ASSUME FOR THEM ANY OTHER OBLIGATION.
SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
RYOBI ASSUMES NO RESPONSIBILITY FOR
INCIDENTAL, CONSEQUENTIAL OR OTHER
DAMAGES INCLUDING, BUT NOT LIMITED TO
EXPENSE OF RETURNING THE RYOBI PRODUCT
TO AN AUTHORIZED SERVICE DEALER AND
EXPENSE OF DELIVERING IT BACK TO THE
OWNER, MECHANIC’S TRAVEL TIME, TELEPHONE
OR TELEGRAM CHARGES, RENTAL OF A LIKE
PRODUCT DURING THE TIME WARRANTY SERVICE
IS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE
TO PERSONAL PROPERTY, LOSS OF REVENUE,
LOSS OF USE OF THE PRODUCT, LOSS OF TIME,
OR INCONVENIENCE. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
This warranty applies to all RYOBI Products
manufactured by RYOBI and sold in the United States
and Canada.
To locate your nearest service dealer dial
1-800-345-8746 in the United States or
1-800-265-6778 in Canada.
RYOBI OUTDOOR PRODUCTS
550 N. 54th Street
Chandler, AZ 85226 U.S.A.
RYOBI CANADA INC.
275 Industrial Rd
Cambridge, Ontario N1R 6K2 CANADA
RYOBI OUTDOOR PRODUCTS warrants each new
RYOBI Product for two (2) years according to the
following terms.
This warranty extends to the original retail purchaser
only and commences on the date of original retail
purchase.
Any part of the RYOBI Product manufactured or
supplied by RYOBI and found in the reasonable
judgement of RYOBI to be defective in material or
workmanship will be repaired or replaced by an
authorized RYOBI service dealer without charge for
parts and labor.
The RYOBI Product including any defective part must
be returned to an authorized service dealer within the
warranty period. The expense of delivering the RYOBI
Product to the dealer for warranty work and the
expense of returning it back to the owner after repair
or replacement will be paid for by the owner. RYOBI’s
responsibility in respect to claims is limited to making
the required repairs or replacements and no claim of
breach of warranty shall be cause for cancellation or
rescission of the contract of sale of any RYOBI
Product. Proof of purchase will be required by the
dealer to substantiate any warranty claim. All warranty
work must be performed by an authorized RYOBI
service dealer.
This warranty is limited to ninety (90) days from the
date of original retail purchase for any RYOBI Product
that is used for rental or commercial purposes, or any
other income-producing purpose.
This warranty does not cover any RYOBI Product that
has been subject to misuse, neglect, negligence, or
accident, or that has been operated in any way
contrary to the operating instructions as specified in
the RYOBI Operator’s Manual. This warranty does not
apply to any damage to the RYOBI Product that is the
result of improper maintenance or to any RYOBI
Product that has been altered or modified so as to
adversely affect the product's operation, performance
or durability or that has been altered or modified so as
to change its intended use. The warranty does not
extend to repairs made necessary by normal wear or
by the use of parts or accessories which are either
incompatible with the RYOBI Product or adversely
affect its operation, performance or durability.
In addition, this warranty does not cover:
A. Tune-ups - Spark Plugs, Carburetor Adjustments,
Filters
B. Wear items - Bump Knobs, Outer Spools,
Cutting Line, Inner Reels, Starter Pulley,
Starter Ropes
RYOBI reserves the right to change or improve the
design of any RYOBI Product without assuming
any obligation to modify any product previously
manufactured.
LIMITED TWO-YEAR WARRANTY
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR QUESTIONS CALL 1-800-345-8746 IN U.S.
OR 1-800-265-6778 IN CANADA
OPERATOR’S MANUAL PART NO. 182627 REV. A (9790)
PRINTED IN U.S.A. 12/99
Loading...
