Ryobi 720r User Manual
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator’s manual provides you with easy-tounderstand operating instructions. Read the whole
manual and follow all the instructions to keep your new
outdoor power tool in top operating condition.
PRODUCT REFERENCES, ILLUSTRATIONS AND
SPECIFICATIONS
All information, illustrations and specifications in this
manual are based on the latest product information
available at the time of printing. We reserve the right to
make changes at any time without notice.
Copyright
©
2000 Ryobi Outdoor Products, Inc.
All Rights Reserved.
Click-Link®is a registered trademark of Ryobi Outdoor
Products.
Bump-Head™ is a trademark of Ryobi Outdoor
Products.
SplitLine™ is a trademark of Ryobi Outdoor Products.
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
Dial:
• 1-800-345-8746 or www.ryobi.com on the world wide
web for authorized service dealers in the United States
Or
• 1-800-668-1238 in Canada to obtain the listing of the
authorized service dealer nearest you.
DO NOT RETURN THE UNIT TO THE RETAILER.
NOTE: PROOF OF PURCHASE WILL BE REQUIRED
FOR WARRANTY SERVICE.
Make sure this manual is carefully read and understood
before starting or operating this equipment.
THIS PRODUCT IS COVERED BY ONE OR MORE
US PATENTS, OTHER PATENTS PENDING.
A complete parts list can be viewed and printed
by going to our web site, www.ryobi.com. Or,
you can request a copy by calling 1-800-345-TRIM
(1-800-345-8746). Please have the unit model and
serial number when calling.
2
INTRODUCTION TABLE OF CONTENTS
I. California Proposition 65 Warning: . . . . . . . . . . . . . . . 3
II. Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . 3-7
A. Important Safety Information . . . . . . . . . . . . . . . 4-5
B. Safety and International Symbols . . . . . . . . . . . 5-6
C. Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
III. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
A. Installing and Adjusting the D handle . . . . . . . . . . 8
B. Installing the Cutting Attachment Shield . . . . . . . . 8
IV. Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . 9
V. Starting/Stopping Instructions . . . . . . . . . . . . . . . . . 10
VI. Operating Instructions . . . . . . . . . . . . . . . . . . . . 11-13
A. Operating the Click-Link System . . . . . . . . . . . . . 11
B. Holding the Trimmer . . . . . . . . . . . . . . . . . . . . . . 12
C. Adjusting Trimming Line Length . . . . . . . . . . . . . 12
D. Tips for Best Trimming Results . . . . . . . . . . . . . . 12
E. Decorative Trimming . . . . . . . . . . . . . . . . . . . . . . 13
VII. Maintenance and Repair Instructions . . . . . . . . . 13-18
A. Maintenance Schedule . . . . . . . . . . . . . . . . . . . . 13
B. Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C. Installing a Prewound Reel . . . . . . . . . . . . . . . . . 15
D. Air Filter Maintenance . . . . . . . . . . . . . . . . . . . . . 16
E. Carburetor Adjustment . . . . . . . . . . . . . . . . . . . . 17
F. Replacing the Spark Plug . . . . . . . . . . . . . . . . . . 18
G. Accessories/Replacement parts . . . . . . . . . . . . . 18
H. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
I. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
J. Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . 18
VIII. Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . 19
IX. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
X. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CONTENTS OF CARTON
• Model 720r Trimmer with
Bump Head Cutting Attachment
∆ D-Handle and Hardware
∆ Cutting Attachment Shield with Hardware
• Operator's Manual
• Product Registration Card
• Bottle of 2-Cycle Oil
∆ This item will either be installed on the unit or in the
hardware pack
3
NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest
Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that
certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark
arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention
of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these
requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires
replacement, ask your LOCAL SERVICE dealer to install the Accessory Part #182747 Spark Arrestor Kit.
Read the Operator’s Manual(s) and follow all warnings and safety instructions. Failure to do so can
result in serious injury to the operator and/or bystanders.
FOR QUESTIONS, CALL 1-800-345-8746 IN U.S. OR 1-800-668-1238 in CANADA
SPARK ARRESTOR
WARNING!
DANGER: Failure to obey a safety warning
will result in serious injury to yourself or to
others. Always follow the safety precautions
to reduce the risk of fire, electric shock, and
personal injury.
WARNING: Failure to obey a safety warning
can result in injury to yourself and others.
Always follow the safety precautions to
reduce the risk of fire, electric shock, and
personal injury.
CAUTION: Failure to obey a safety warning
may result in property damage or personal
injury to yourself or to others. Always follow
the safety precautions to reduce the risk of
fire, electric shock, and personal injury.
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention and
understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or
warnings they give are not substitutes for proper
accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates
danger, warning, or caution. Attention is
required in order to avoid serious personal
injury. May be used in conjunction with other
symbols or pictographs.
NOTE: Advises you of information or instructions vital
to the operation or maintenance of the equipment.
RULES FOR SAFE OPERATION
CALIFORNIA PROPOSITION 65 WARNING:
WARNING
THE ENGINE EXHAUST FROM THIS
PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS
OR OTHER REPRODUCTIVE HARM.
RULES FOR SAFE OPERATION
4
• IMPORTANT SAFETY INFORMATION •
READ ALL INSTRUCTIONS
BEFORE OPERATING
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use
the unit, except for teens guided by an adult.
• Inspect the unit before use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in
place and secure. Replace cutting attachment parts
that are cracked, chipped, or damaged in any way.
Make sure the cutting attachment is properly installed
and securely fastened. Be sure the cutting attachment
shield is properly attached, and positioned as
recommended. Failure to do so can result in personal
injury to the operator and bystanders, as well as
damage to the unit.
• Use only 0.080 inch (2.03 mm) diameter genuine Ryobi
replacement line. Never use metal-reinforced line,
wire, chain, or rope, etc. These can break off and
become a dangerous projectile.
• Be aware of the risk of injury to the head, hands and
feet.
• Clear the area to be cut before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in
the cutting attachment. Clear the area of children,
bystanders, and pets. At a minimum, keep all children,
bystanders and pets outside a 50 feet (15 m) radius;
there still may be a risk to bystanders from thrown
objects. Bystanders should wear eye protection. If you
are approached, stop the engine and cutting
attachment immediately.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments
or repairs before using unit.
• This unit was not designed to be used as a
brushcutter. Do not attach or operate this unit with any
type of brushcutting blade or brushcutting attachment.
SAFETY WARNINGS FOR GAS TRIMMERS
WARNING: Gasoline is highly flammable, and its vapors
can explode if ignited. Take the following precautions:
• Store fuel only in containers specifically designed and
approved for the storage of such materials.
• Always stop the engine and allow it to cool before
filling the fuel tank. Never remove the cap of the fuel
tank, or add fuel, when the engine is hot. Never
operate the unit without the fuel cap securely in place.
Loosen the fuel tank cap slowly to relieve any pressure
in the tank.
• Add fuel in a clean, well-ventilated area outdoors
where there are no sparks or flames. Slowly remove
the fuel cap only after stopping engine. Do not smoke
while fueling or mixing fuel. Wipe up any spilled fuel
from the unit immediately.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
• Move the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke, keep sparks and open flames from the area
while adding fuel or operating the unit.
WHILE OPERATING
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate
this unit only in a well ventilated area outdoors.
• Wear safety glasses or goggles that are marked as
meeting ANSI Z87.1 standards, and ear/hearing
protection when operating this unit. Wear a face or
dust mask if the operation is dusty.
• Wear heavy, long pants, boots, gloves and a long
sleeve shirt. Do not wear loose clothing, jewelry, short
pants, sandals or go barefoot. Secure hair above
shoulder level.
• The cutting attachment shield must always be in place
while operating the unit. Do not operate unit without
both trimming lines extended, and the proper line
installed. Do not extend the trimming line beyond the
length of the shield.
• This unit has a clutch. The cutting attachment remains
stationary when the engine is idling. If it does not, have
the unit adjusted by an authorized service technician.
• Adjust the D-Handle to your size to provide the best
grip.
• Be sure the cutting attachment is not in contact with
anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and
unit must be in a stable position while starting. See
Starting/Stopping Instructions.
• Use the right tool. Only use this tool for the purpose
intended.
• Do not overreach. Always keep proper footing and
balance.
• Always hold the unit with both hands when operating.
Keep a firm grip on both the front and rear handle or
grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the cutting
attachment when it is rotating.
RULES FOR SAFE OPERATION
5
• Do not touch the engine, gear housing or muffler.
These parts get extremely hot from operation. When
turned off they remain hot for a short time.
• Do not operate the engine faster than the speed
needed to cut, trim or edge. Do not run the engine at
high speed when not cutting.
• Always stop the engine when cutting is delayed or
when walking from one cutting location to another.
• If you strike or become entangled with a foreign
object, stop the engine immediately and check for
damage. Do not operate before repairing damage. Do
not operate the unit with loose or damaged parts.
• Stop and switch the engine to off for maintenance,
repair, or for changing the cutting attachment or other
attachments.
• Use only genuine Ryobi replacement parts and
accessories for this unit. These are available from
your authorized service dealer. Use of any non Ryobi
parts or accessories could lead to serious injury to the
user, or damage to the unit, and void your warranty.
• Keep unit clean of vegetation and other materials.
They may become lodged between the cutting
attachment and shield.
• To reduce fire hazard, replace faulty muffler and spark
arrestor, keep the engine and muffler free from grass,
leaves, excessive grease or carbon build up.
OTHER SAFETY WARNINGS
• Never store the unit, with fuel in the tank, inside a
building where fumes may reach an open flame or
spark.
• Allow the engine to cool before storing or transporting.
Be sure to secure the unit while transporting.
• Store the unit in a dry area, locked up or up high
to prevent unauthorized use or damage, out of the
reach of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use, see Cleaning and Storage
instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
SAVE THESE INSTRUCTIONS

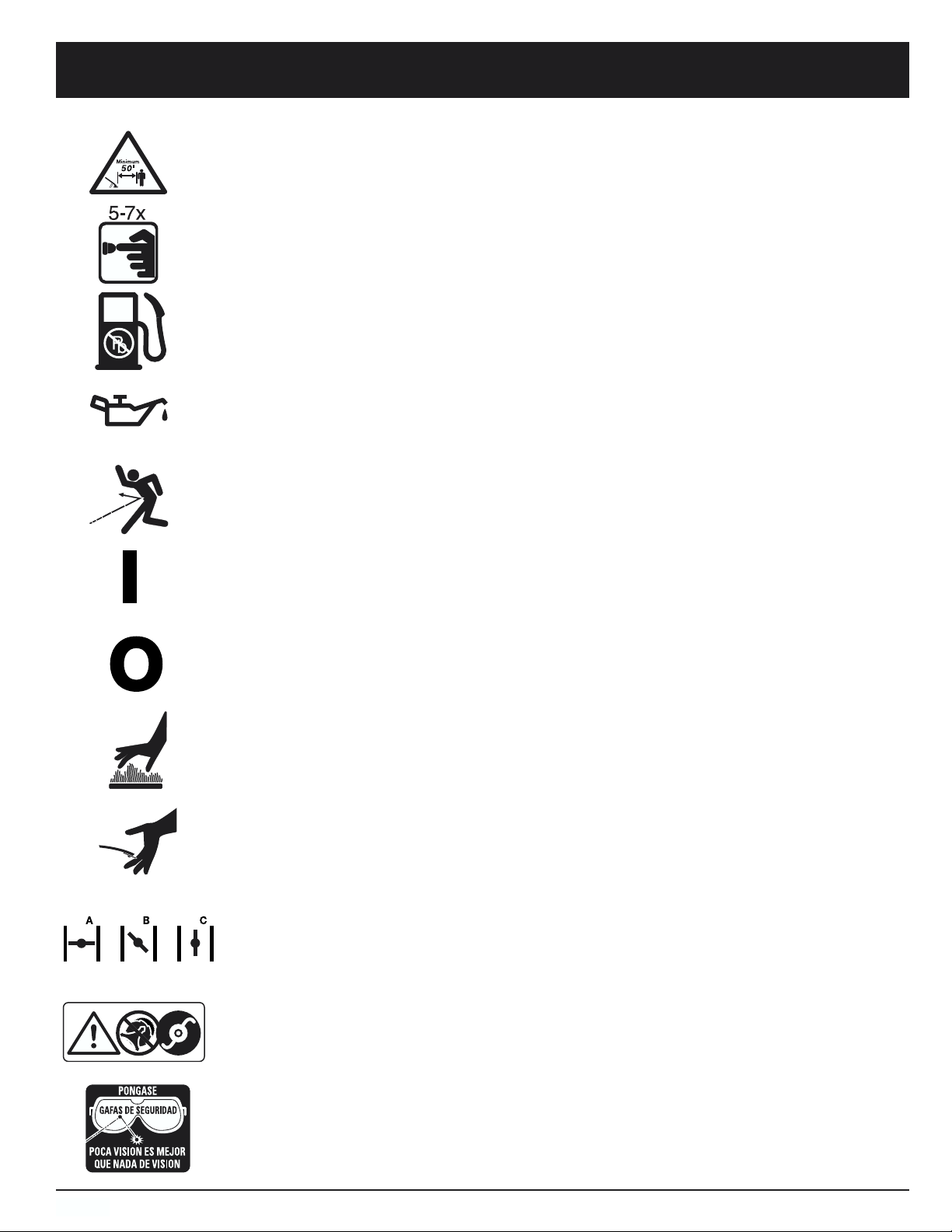

SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning, or caution. May be used in conjunction with other
symbols or pictographs.
•WARNING - READ OPERATOR'S MANUAL
Read the Operator’s Manual(s) and follow all warnings and safety instructions.
Failure to do so can result in serious injury to the operator and/or bystanders.
• FOR SERVICE INFORMATION, CALL:
USA: 1-800-345-8746
CANADA: 1-800-668-1238
• WEAR EYE AND HEARING PROTECTION
WARNING:
Thrown objects and loud noise can cause severe eye injury and hearing loss.
Wear eye protection meeting ANSI Z87.1 standards and ear protection when
operating this unit.
RULES FOR SAFE OPERATION
6
SYMBOL MEANING
• KEEP BYSTANDERS AWAY
WARNING:
Keep all bystanders, especially children and pets, at least 50 feet (15 m)
from the operating area.
• PRIMER BULB
Push primer bulb, fully and slowly, 5 to 7 times.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• OIL
Refer to operator's manual for the proper type of oil.
• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY
WARNING:
Do not operate without the cutting attachment shield in place.
Keep away from the rotating cutting attachment.
• ON/OFF STOP CONTROL
ON / START / RUN
• ON/OFF STOP CONTROL
OFF OR STOP
• HOT SURFACE WARNING
Do not touch a hot muffler, gear housing or cylinder. You may get burned. These parts get
extremely hot from operation. When turned off they remain hot for a short time.
• SHARP BLADE
WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do not
touch line cutting blade.
• CHOKE CONTROL
A • FULL choke position.
B • PARTIAL choke position.
C • RUN position.
• DO NOT USE BLADES
WARNING: To prevent serious personal injury, do not attach or operate the
unit with any type of blade.
WARNING: The operation of any power tool can cause foreign objects to be thrown into your
eyes. This can lead to severe eye damage. Before commencing power tool operation, always
wear safety glasses or goggles that are marked as meeting ANSI Z87.1 standards, and a full
face shield when needed.
RULES FOR SAFE OPERATION
7
RULES FOR SAFE OPERATION
8
OIL AND FUEL INFORMATION
9
WARNING: Gasoline is extremely
flammable. Ignited Vapors may explode.
Always stop the engine and allow it to cool
before filling the fuel tank. Do not smoke
while filling the tank. Keep sparks and open
flames at a distance from the area.
WARNING: Remove fuel cap slowly to avoid
injury from fuel spray. Never operate the unit
without the fuel cap securely in place.
WARNING: Add fuel in a clean, well
ventilated area outdoors. Wipe up any spilled
fuel immediately. Avoid creating a source of
ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
NOTE: Dispose of the old fuel/oil mix in accordance to
Federal, State, and Local regulations.
OIL AND FUEL MIXING INSTRUCTIONS
Old and/or improperly mixed fuel are the main reasons
for the unit not running properly. Be sure to use fresh,
clean unleaded fuel. Follow the instructions carefully for
the proper fuel/oil mixture.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and
oxygenates such as ethanol, methanol or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1%
water in the fuel can make fuel and oil separate. It forms
acids when stored. When using alcohol-blended fuel,
use fresh fuel (less than 60 days old).
Using Blended Fuels
If you choose to use a blended fuel, or its use is
unavoidable, follow recommended precautions.
• Always use fresh fuel mix per your operator's manual.
• Always agitate the fuel mix before fueling the unit.
• Drain the tank and run the engine dry before storing
the unit.
Using Fuel Additives
The bottle of Ryobi 2-Cycle oil that came with your unit
contains a fuel additive which will help inhibit corrosion
and minimize the formation of gum deposits.It is
recommended that you use only Ryobi 2-Cycle oil with
this unit.
If unavailable, use a good 2-cycle oil designed for
air-cooled engines along with a fuel additive, such as
STA-BIL® Gas Stabilizer or an equivalent. Add 0.8 oz.
(23 ml) of fuel additive per gallon of fuel according to the
instructions on the container. NEVER add fuel additives
directly to the unit's fuel tank.
CAUTION: For proper engine operation and
maximum reliability, pay strict attention to the
oil and fuel mixing instructions on the 2-cycle
oil container. Using improperly mixed fuel can
severely damage the engine.
Thoroughly mix the proper ratio of 2-cycle engine oil
with unleaded gasoline in a separate fuel can. Use a 32:1
fuel/oil ratio. Do not mix them directly in the engine fuel
tank. See the table below for specific gas and oil mixing
ratios.
NOTE: One gallon (3.8 liters) of unleaded gasoline mixed
with one 4 oz. (120 ml) bottle of RYOBI 2 CYCLE
OIL makes a 32:1 fuel/oil ratio.
+
UNLEADED GAS RYOBI 2 CYCLE OIL
1 US. GALLON + 4.0 FL. OZ.
(3.8 LITERS) (120 ml)
1 LITER + 30 ml
MIXING RATIO - 32:1

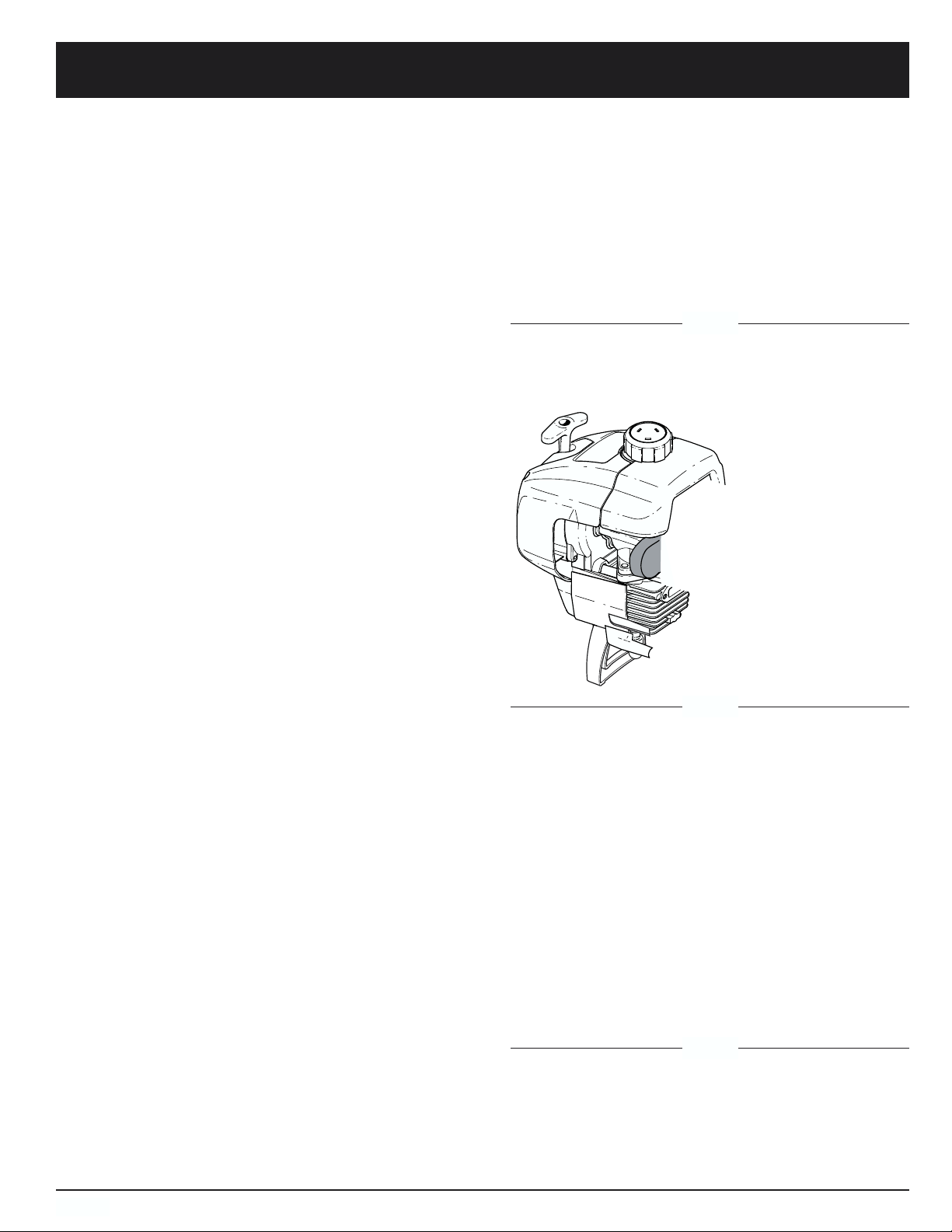

STARTING/STOPPING INSTRUCTIONS
10
Fig. 5
Fig. 6
Fig. 7
OPERATING INSTRUCTIONS
11
CAUTION: The cutting attachment and
add-ons with the Click-Link® system are to
be used in the primary hole unless stated
otherwise in the specific add-ons operator’s
manual. Using the wrong hole could lead to
personal injury, or damage to the unit.
For edging when using the line head cutting attachment
with Click-Link® models, lock the release button of the
cutting attachment into the 90° edging hole or the 180°
edging hole (Fig. 10).

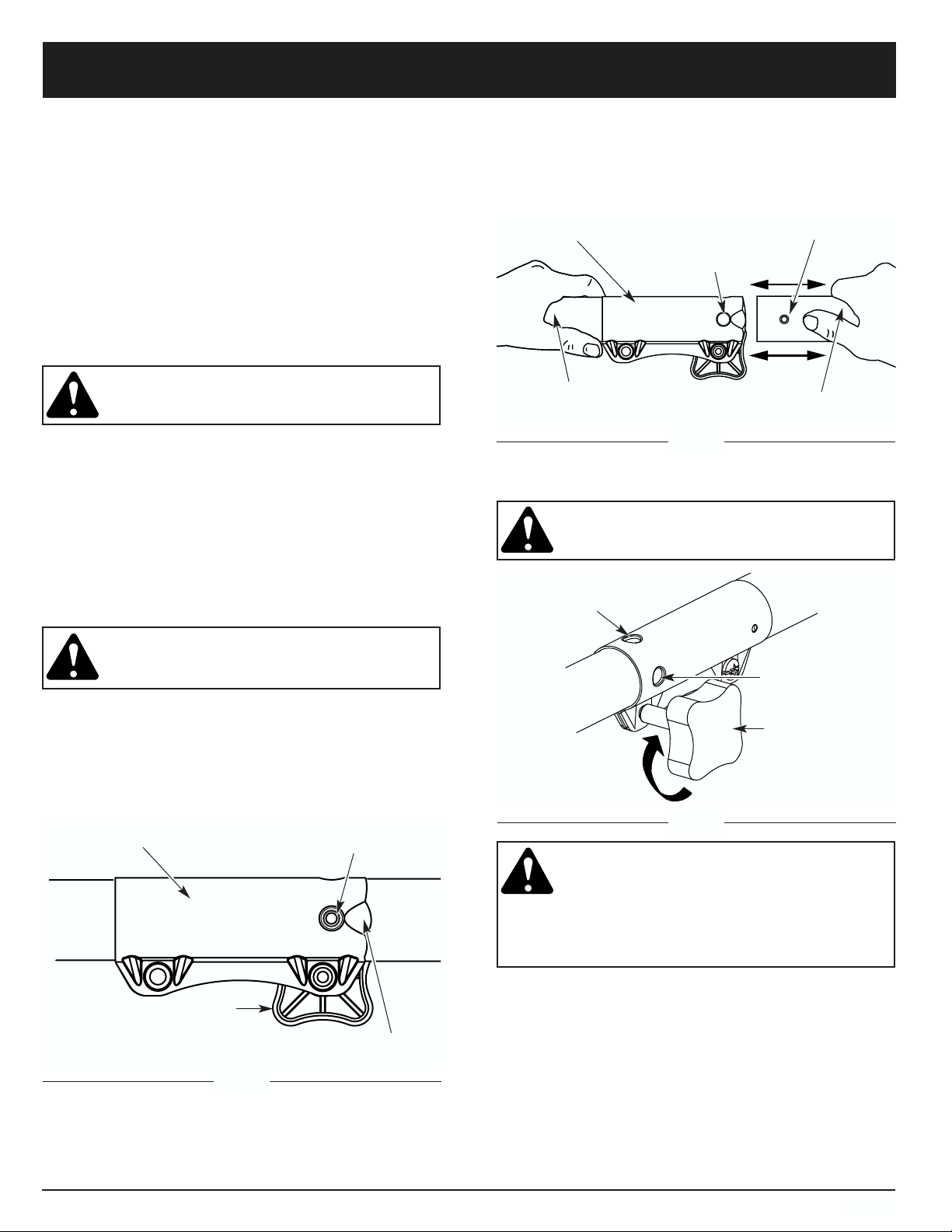

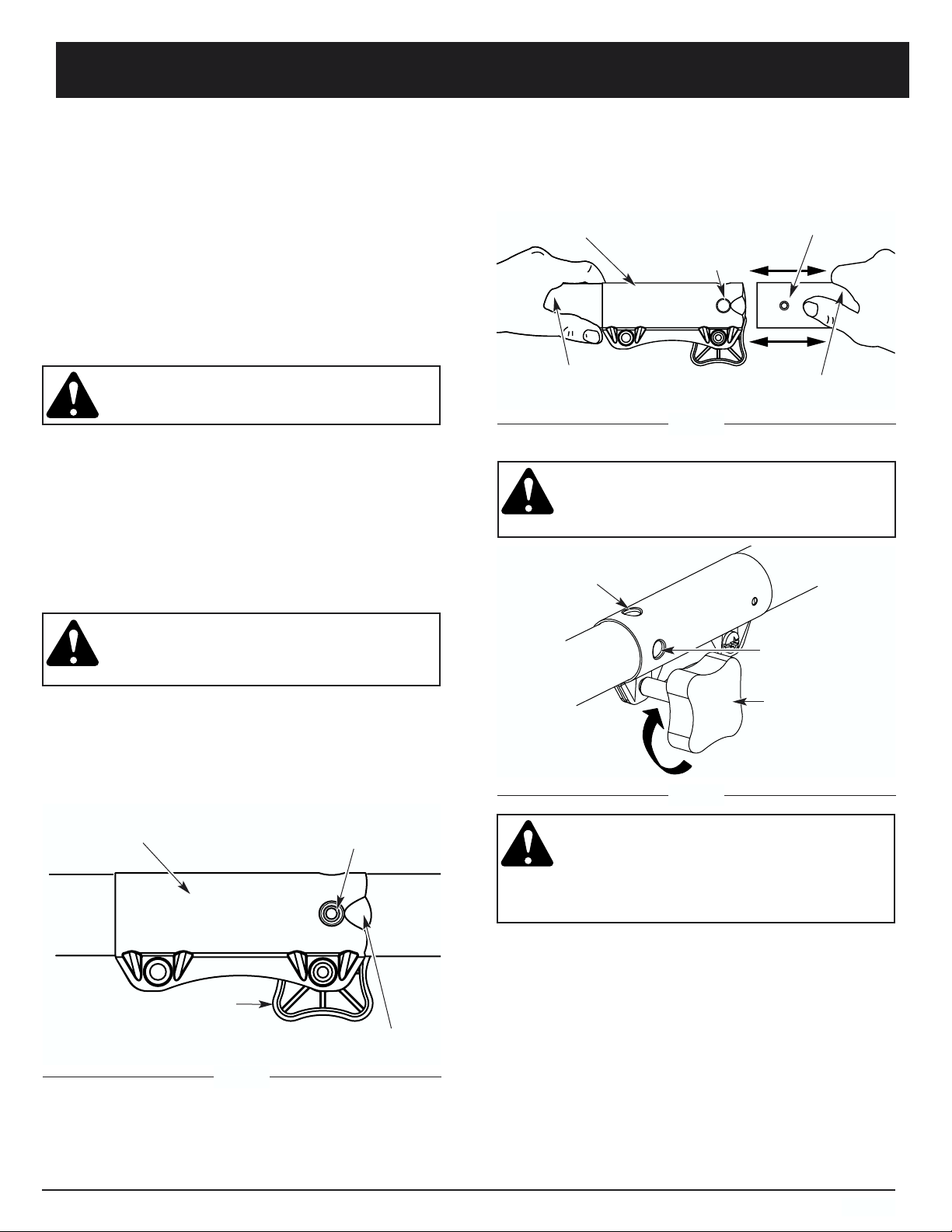

OPERATING THE CLICK-LINK®SYSTEM
The Click-Link®system enables the use of these
optional add-ons.
Blower/Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . BV720r
Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GC720r
Edger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE720r
Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . HS720r
Snow Thrower . . . . . . . . . . . . . . . . . . . . . . . . . . . ST720r
Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . SS725r
Sweeper/Blower . . . . . . . . . . . . . . . . . . . . . . . . . SB720r
Tree Pruner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TP720r
Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB720r
WARNING: Read and understand operator’s
manual for add-on prior to operation.
Removing the Cutting Attachment or Add-Ons:
1. Turn the knob counterclockwise to loosen (Fig. 8).
2. Press and hold the release button (Fig. 8).
3. While firmly holding the upper shaft housing, pull the
cutting attachment or add-on straight out of the
Click-Link®coupler (Fig. 9).
Installing the Cutting Attachment or Add-Ons:
WARNING: To avoid serious personal injury
and damage to the unit, shut unit off before
removing or installing add-ons.
NOTE: To make installing or removing the add-on
easier, place the unit on the ground or on a work
bench.
1. Turn knob counterclockwise to loosen (Fig. 8).
Fig. 8
Click-Link® Coupler
Release Button
Guide Recess
Knob
Primary Hole
Upper Shaft Housing
90˚ Edging Hole
Click-Link®Coupler
2. While firmly holding the add-on, push it straight into
the Click-Link®coupler (Fig. 9).
NOTE: Aligning the release button with the guide recess
will help installation (Fig. 8).
3. Turn the knob clockwise to tighten (Fig. 10).
CAUTION: Lock the release button in the
primary hole and securely tighten the knob
before operating this unit.
Fig. 9
Fig. 10
Knob
180˚ Edging Hole
Lower Shaft Housing
Release Button
OPERATING INSTRUCTIONS
12

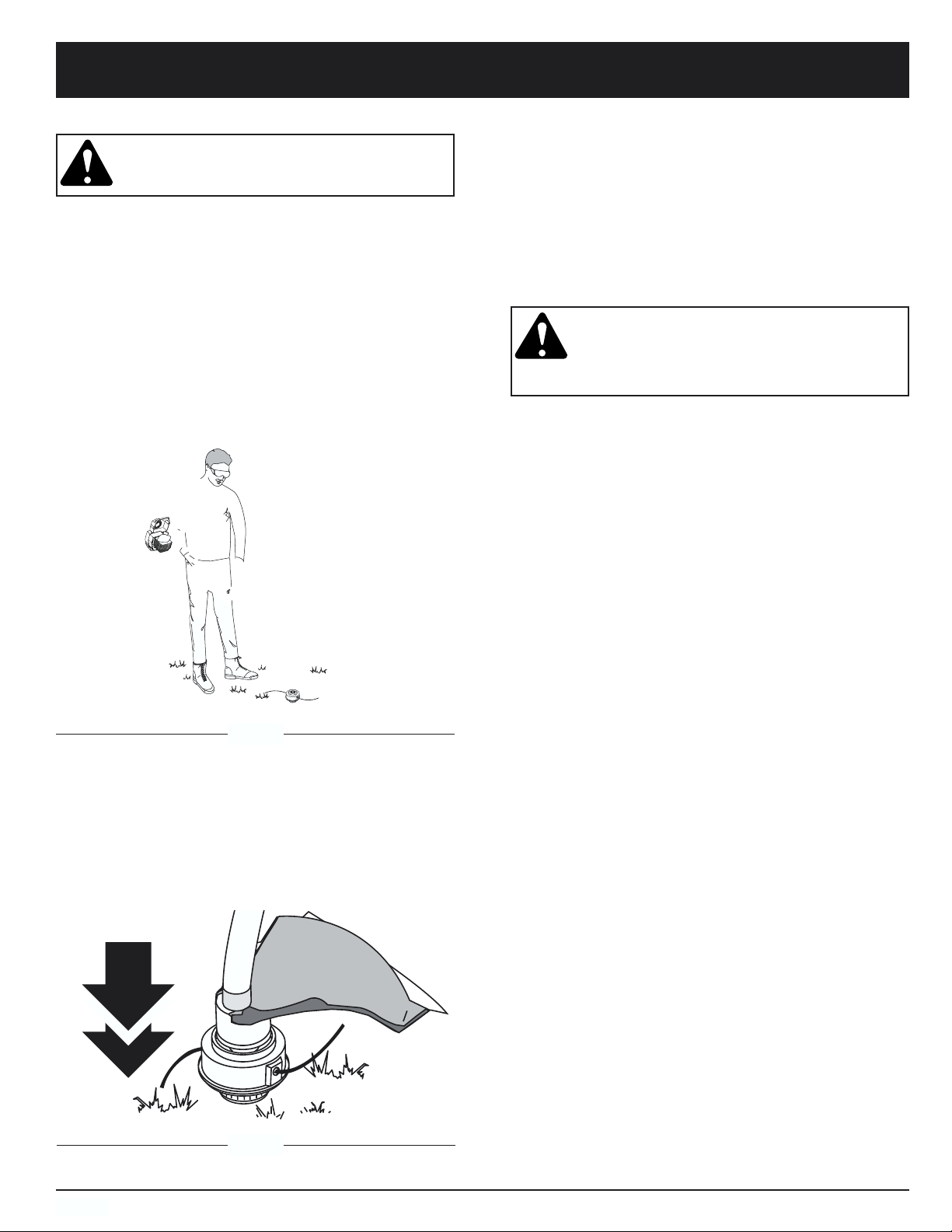

Each time the head is bumped, about 1 inch (25.4 mm)
of trimming line is released. A blade in the cutting
attachment shield will cut the line to the proper length if
excess line is released.
For best results, tap the Bump Head™ on bare ground
or hard soil. If line release is attempted in tall grass, the
engine may stall. Always keep the trimming line fully
extended. Line release becomes more difficult as the
cutting line becomes shorter.
NOTE: Do not rest the Bump Head™ on the ground
while the unit is running .
CAUTION: Do not remove or alter the line
cutting blade assembly. Excessive line length
will make the clutch overheat. This may lead
to serious personal injury or damage to the
unit.
Some line breakage will occur from:
• Entanglement with foreign matter
• Normal line fatigue
• Attempting to cut thick, stalky weeds
• Forcing the line into objects such as walls or fence
posts
TIPS FOR BEST TRIMMING RESULTS
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of
the line to do the cutting, especially along walls.
Cutting with more than the tip will reduce cutting
efficiency and may overload the engine.
• Cut grass over 8 inches (200 mm) by working from
top to bottom in small increments to avoid
premature line wear or engine drag.
• Cut from left to right whenever possible. Cutting to
the right improves the unit's cutting efficiency.
Clippings are thrown away from the operator.
• Slowly move the trimmer into and out of the cutting
area at the desired height. Move either in a forwardbackward or side-to-side motion. Cutting shorter
lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon;
• Following the previous trimming techniques
• What vegetation is being cut
• Where it’s being cut
For example, the line will wear faster when trimming
against a foundation wall as opposed to trimming
around a tree.
HOLDING THE TRIMMER
WARNING: Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.

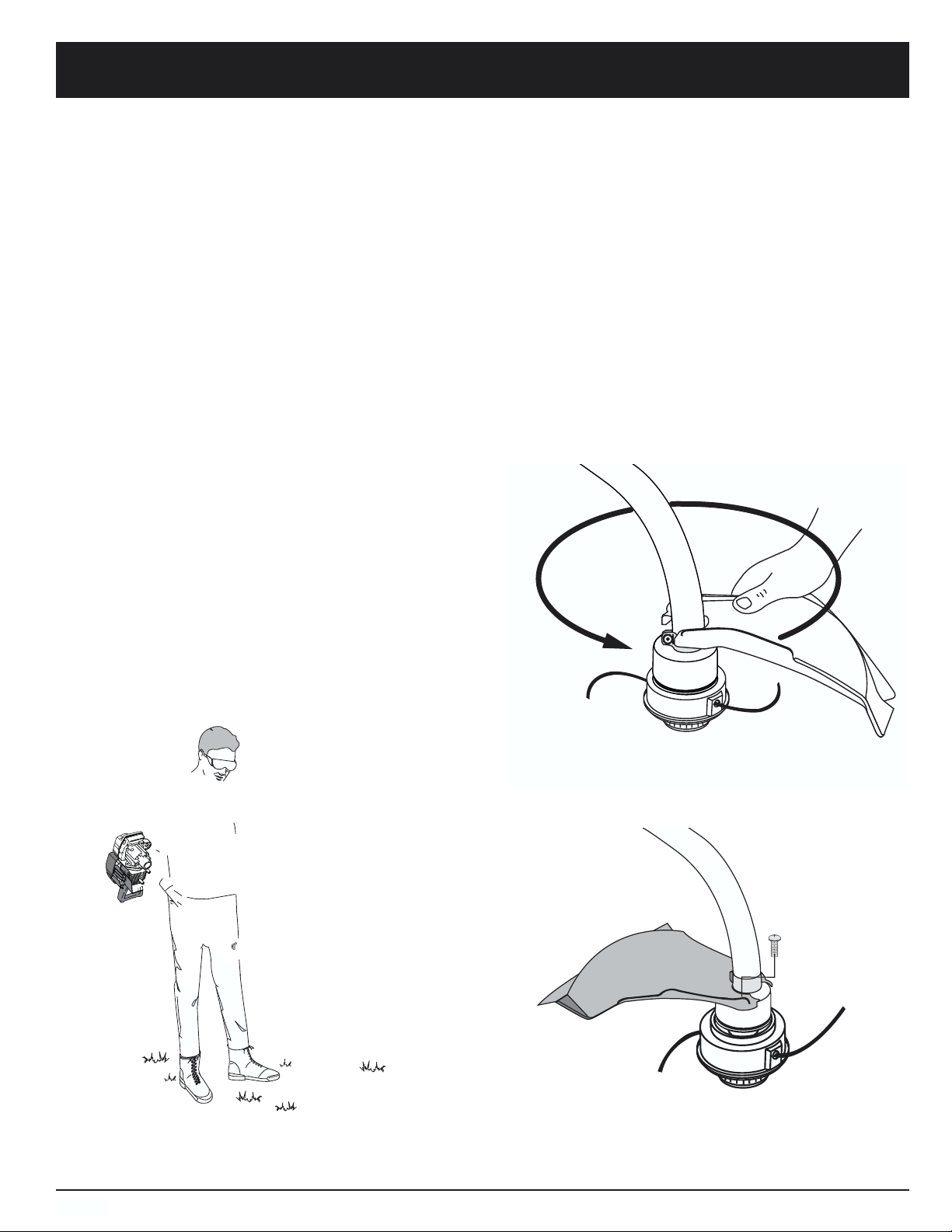

Before operating the unit, stand in the operating position
(Fig. 11). Check for the following:
• The operator is wearing eye protection and proper
clothing.
• The right arm is slightly bent, and the hand is holding
the shaft grip.
• The left arm is straight, and the hand is holding the
D-Handle.
• The unit is at waist level.
• The cutting attachment is parallel to the ground and
easily contacts the vegetation to be cut without the
operator having to bend over.
Fig. 11

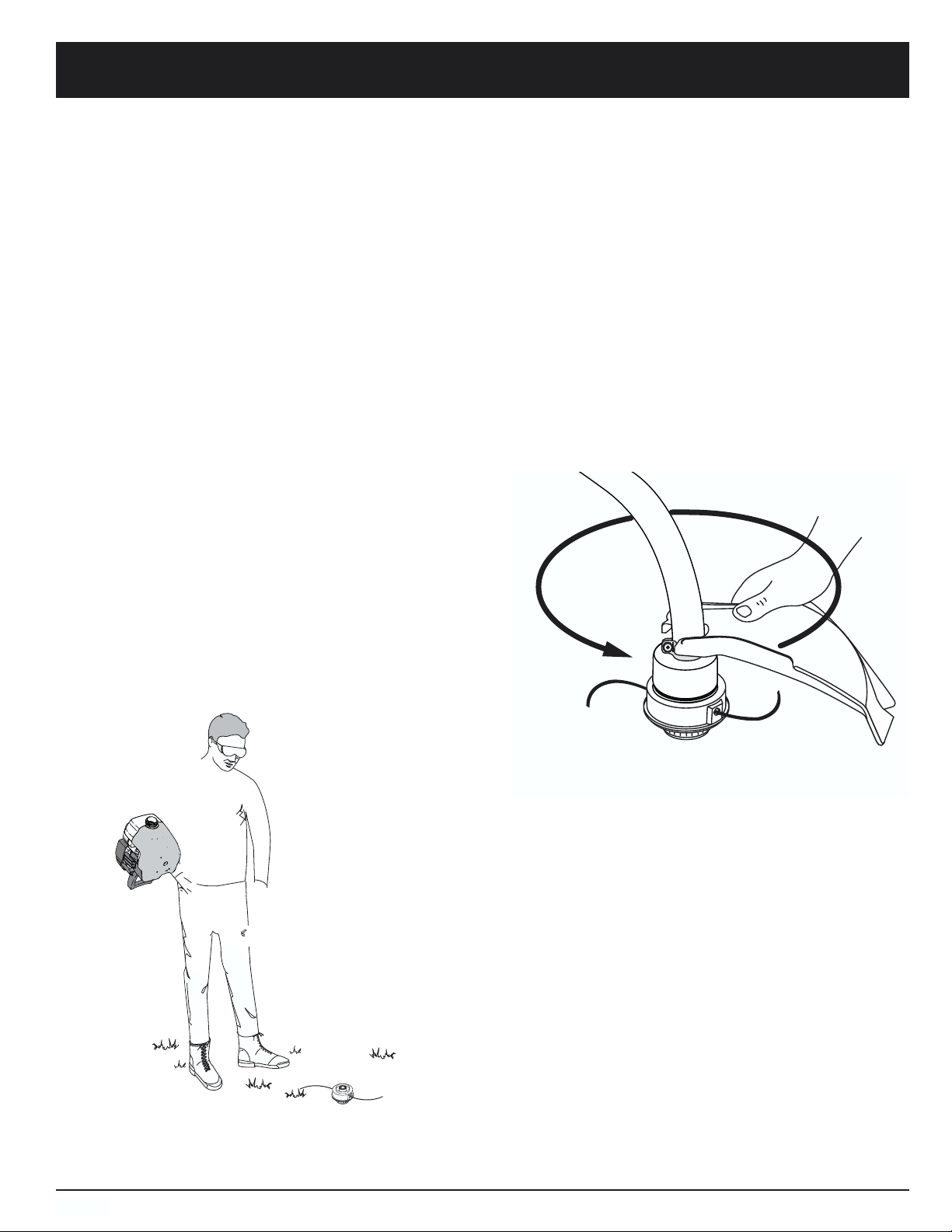

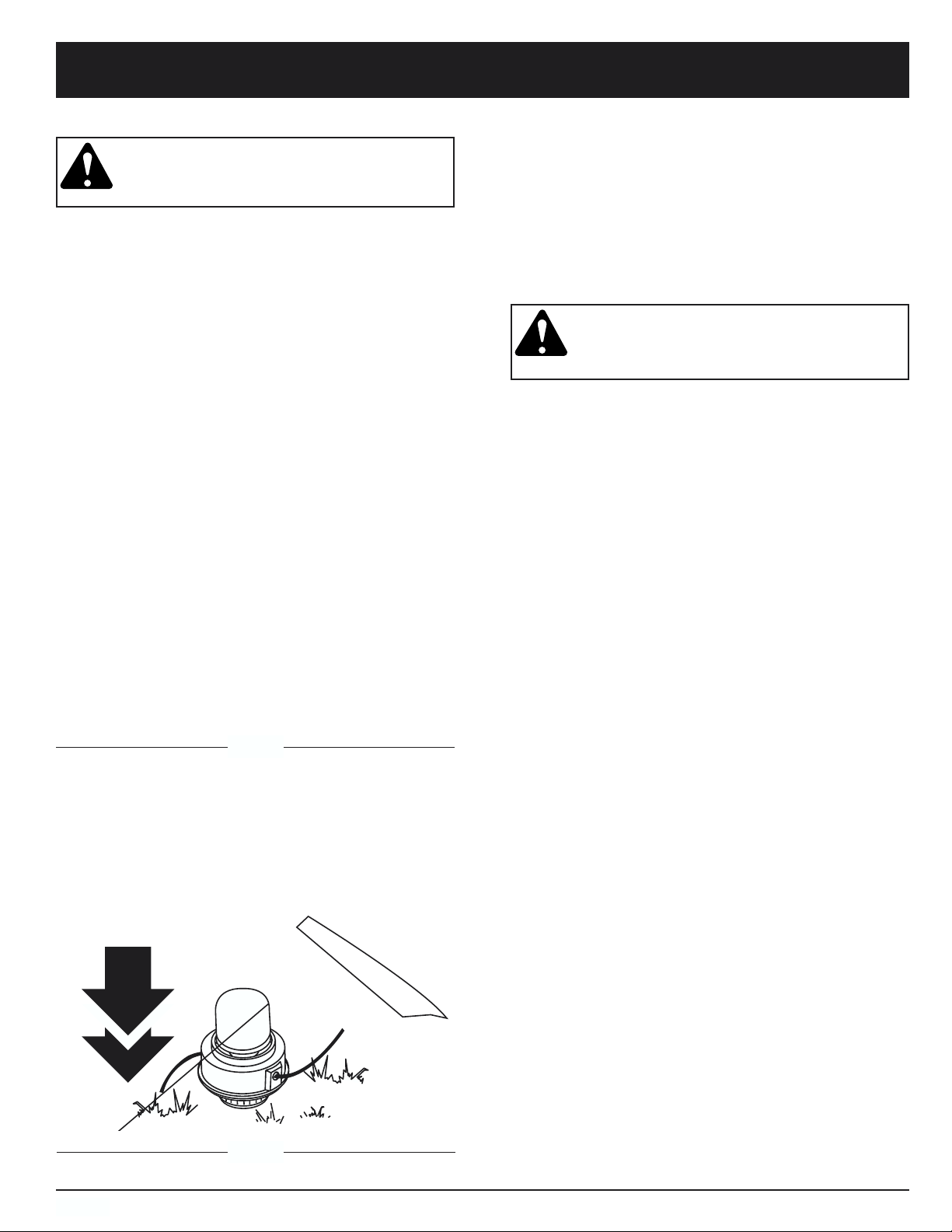

ADJUSTING TRIMMING LINE LENGTH
The Bump Head™ cutting attachment allows you to
release trimming line without stopping the engine. To
release more line, lightly tap the cutting attachment on
the ground (Fig. 12) while operating the trimmer at high
speed.
NOTE: Always keep the trimming line fully extended.
Line release becomes more difficult as cutting
line becomes shorter
Fig. 12
OPERATING INSTRUCTIONS
13
MAINTENANCE AND REPAIR INSTRUCTIONS
WARNING: To prevent serious injury, never
do maintenance or repairs with unit running.
Always do maintenance and repairs on a
cool unit. Disconnect spark plug wire to
ensure the unit will not start.
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about
these procedures take your unit to an authorized
service dealer.
MAINTENANCE SCHEDULE
These required maintenance procedures should be
performed at the frequency stated in the table. They
should also be included as part of any seasonal tune-up.
FREQUENCY MAINTENANCE REQUIRED REFER TO:
Before Starting Engine Fill fuel tank with correct oil and fuel mixture. Page 9
Every 10 Hours Clean and re-oil air filter. Page 16
Every 50 Hours Check spark plug condition and gap. Page 18
Fig. 13

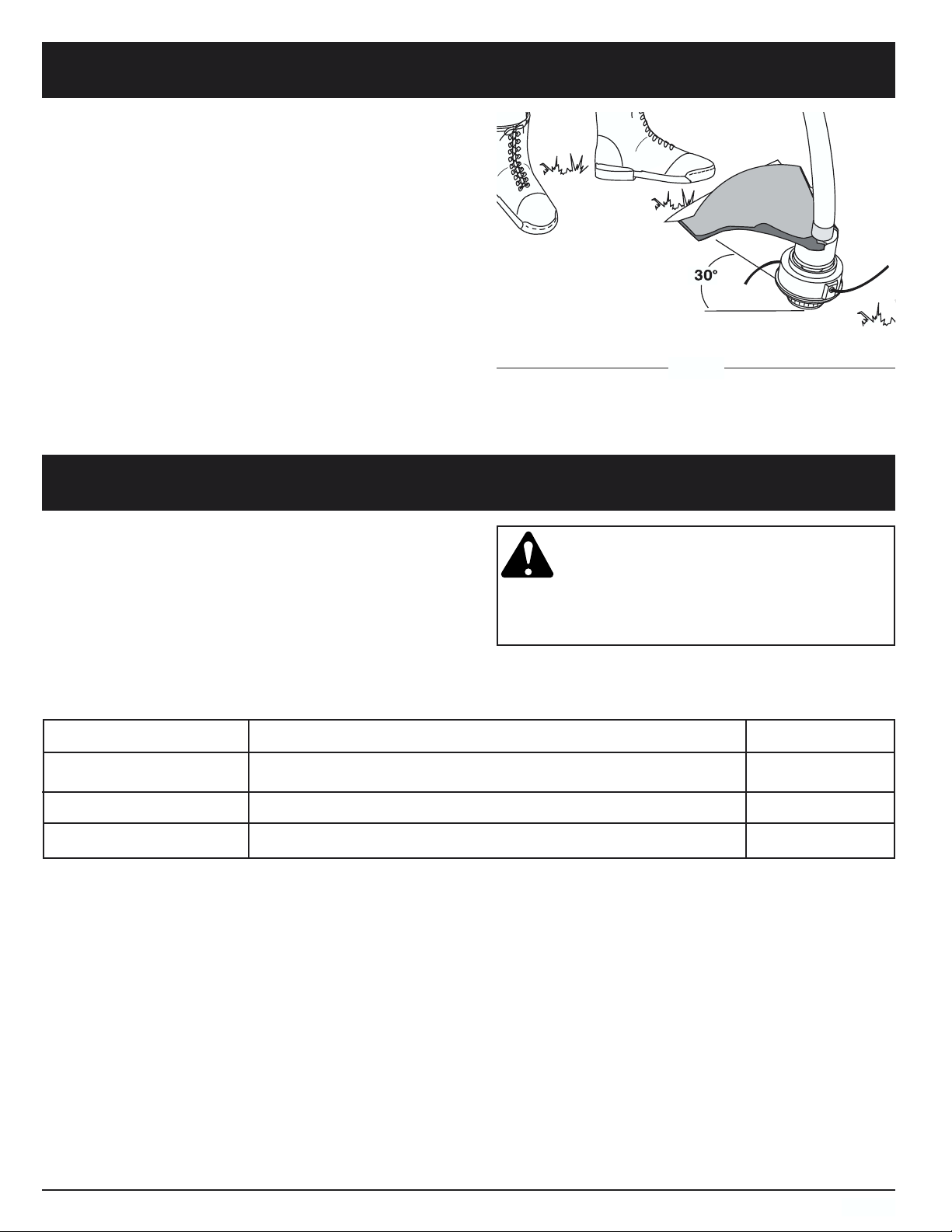

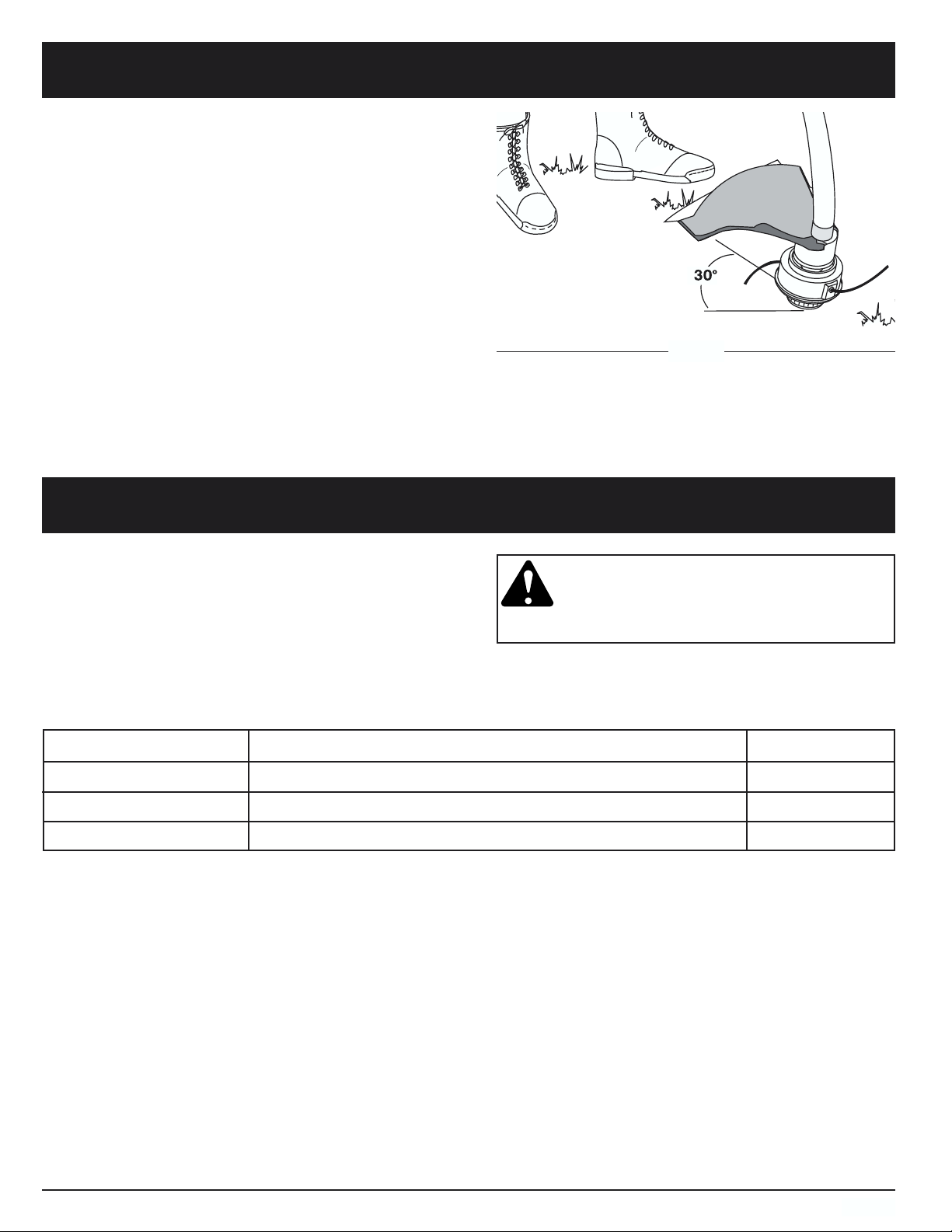

DECORATIVE TRIMMING
Decorative trimming is accomplished by removing all
vegetation around trees, posts, fences, etc.
Rotate the whole unit so that the cutting attachment is at
a 30° angle to the ground (Fig. 13).
MAINTENANCE AND REPAIR INSTRUCTIONS
14

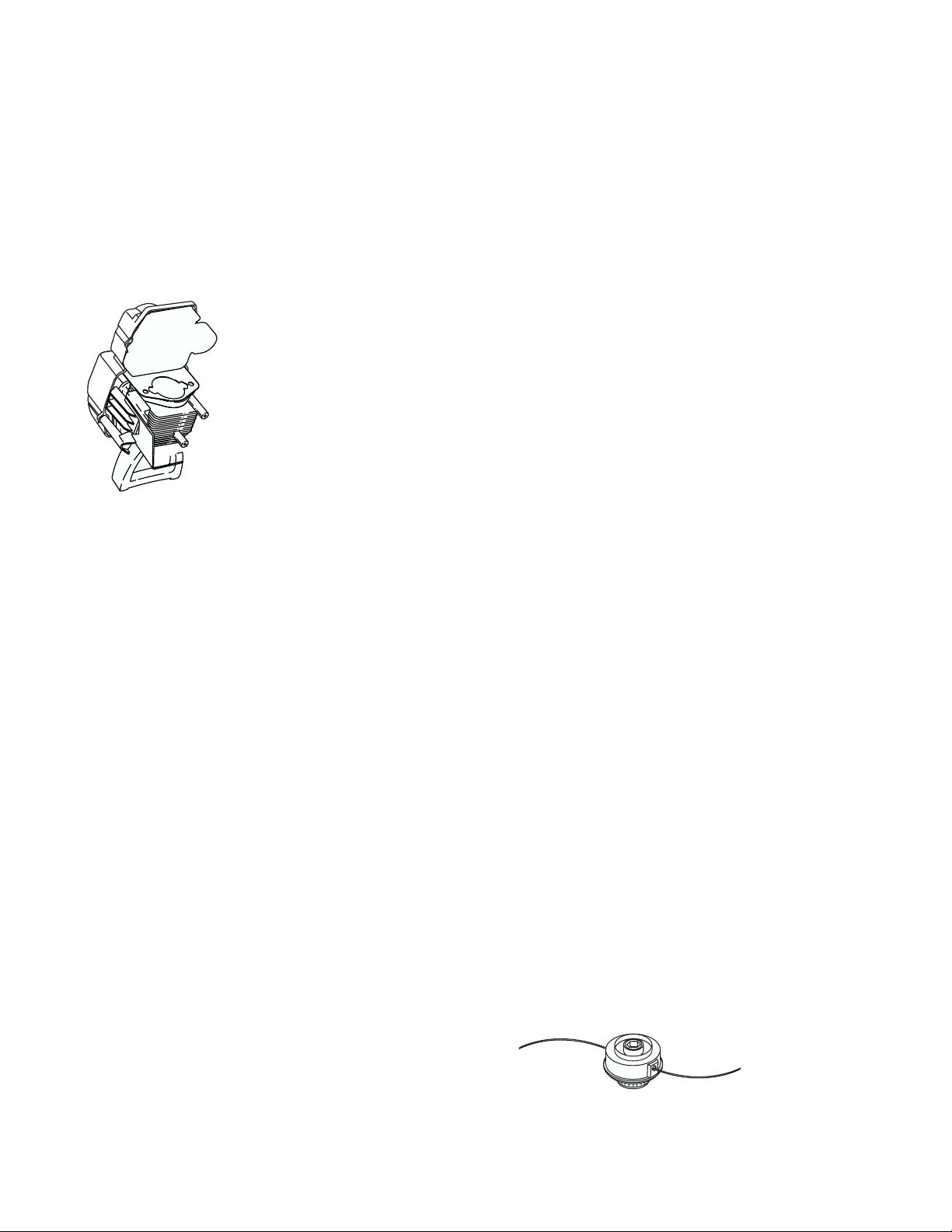

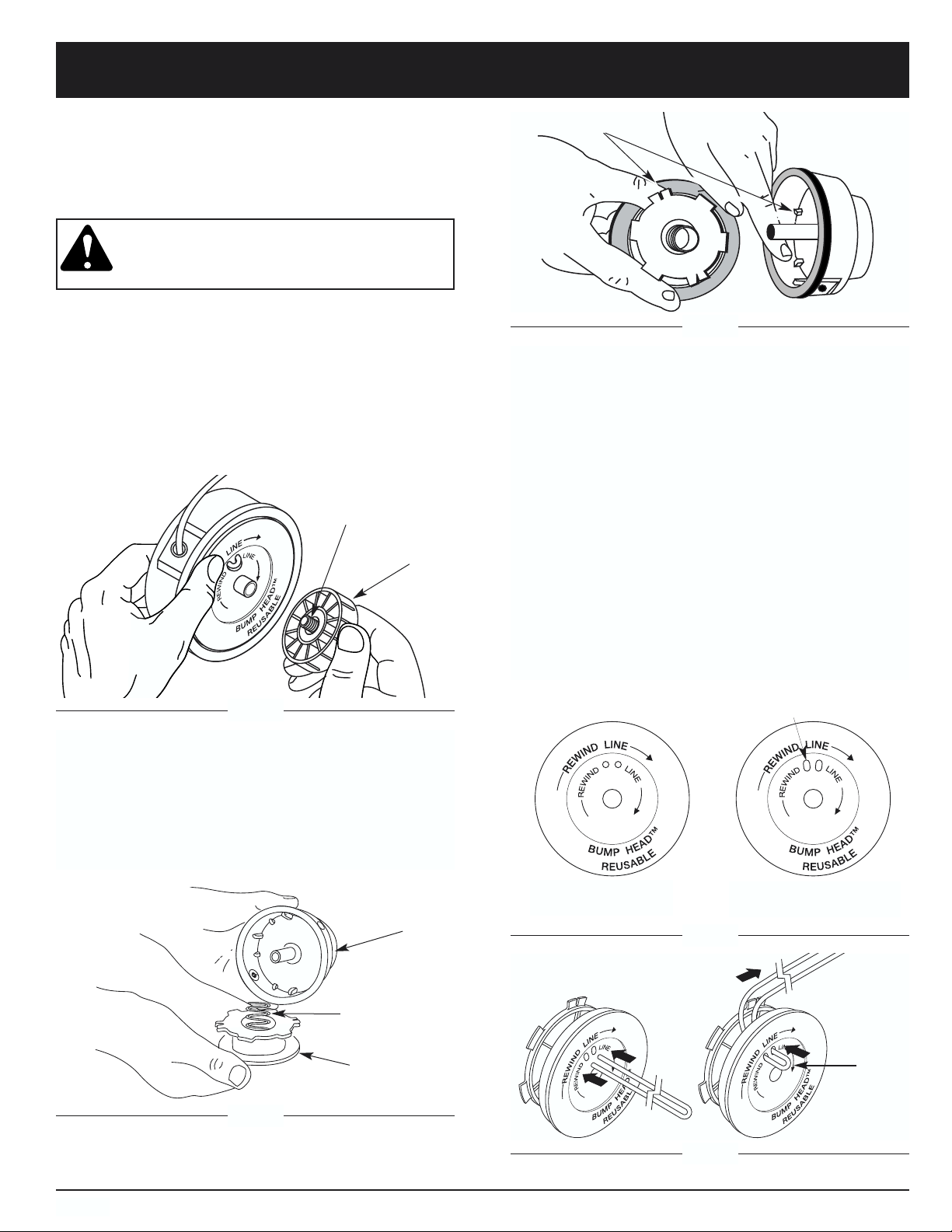

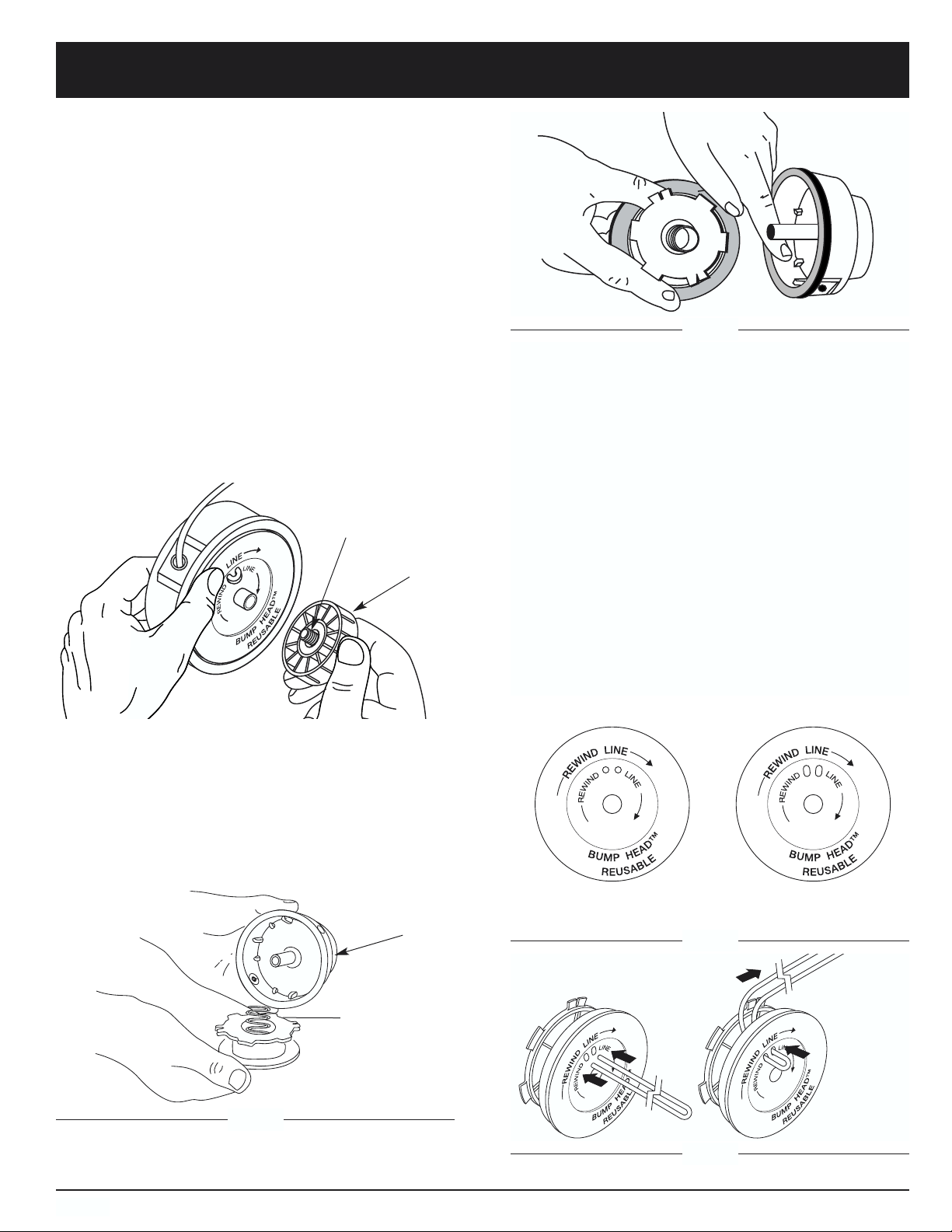

Indexing Teeth
Fig. 16
Fig. 15
Fig. 17
Fig. 18
NOTE: Split-Line™ can only be used with the inner reel
with the slotted holes. Single line can be used on
either type of inner reel. Use figure 17 to identify
the inner reel you have.
NOTE: Always use the correct line length when installing
MAINTENANCE AND REPAIR INSTRUCTIONS
15
Fig. 20
Loop
Fig. 19

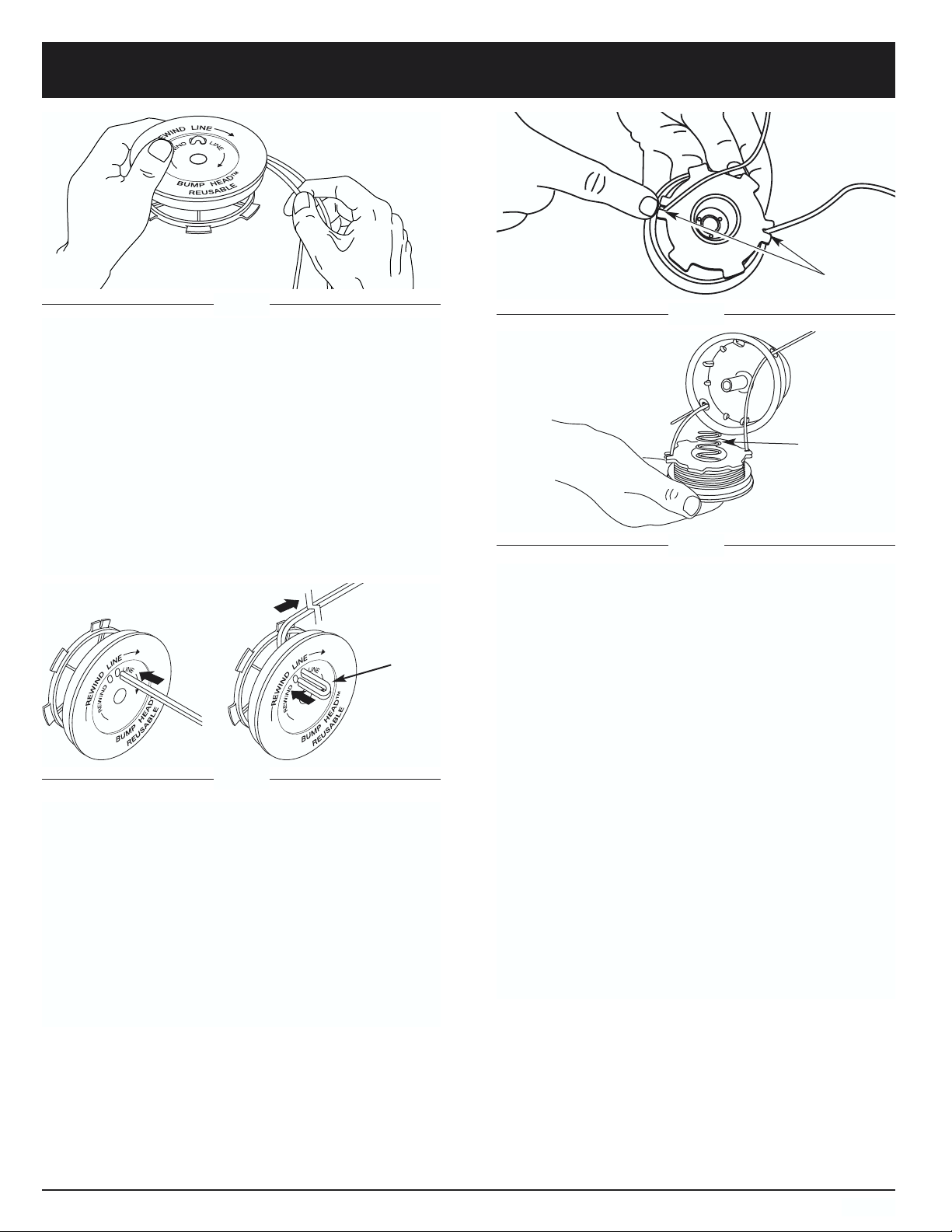

Split-Line™ Installation
8. Take approximately 12 feet (3.65 m) of new trimming
line. Insert one end of the line through one of the two
holes in the inner reel (Fig. 20). Pull the line through
the inner reel until only about 4 inches is left out.
9. Insert the end of the line into the open hole in the
inner reel and pull the line tight to make the loop as
small as possible (Fig. 20).
10. Before winding, split the line back about 6 inches.

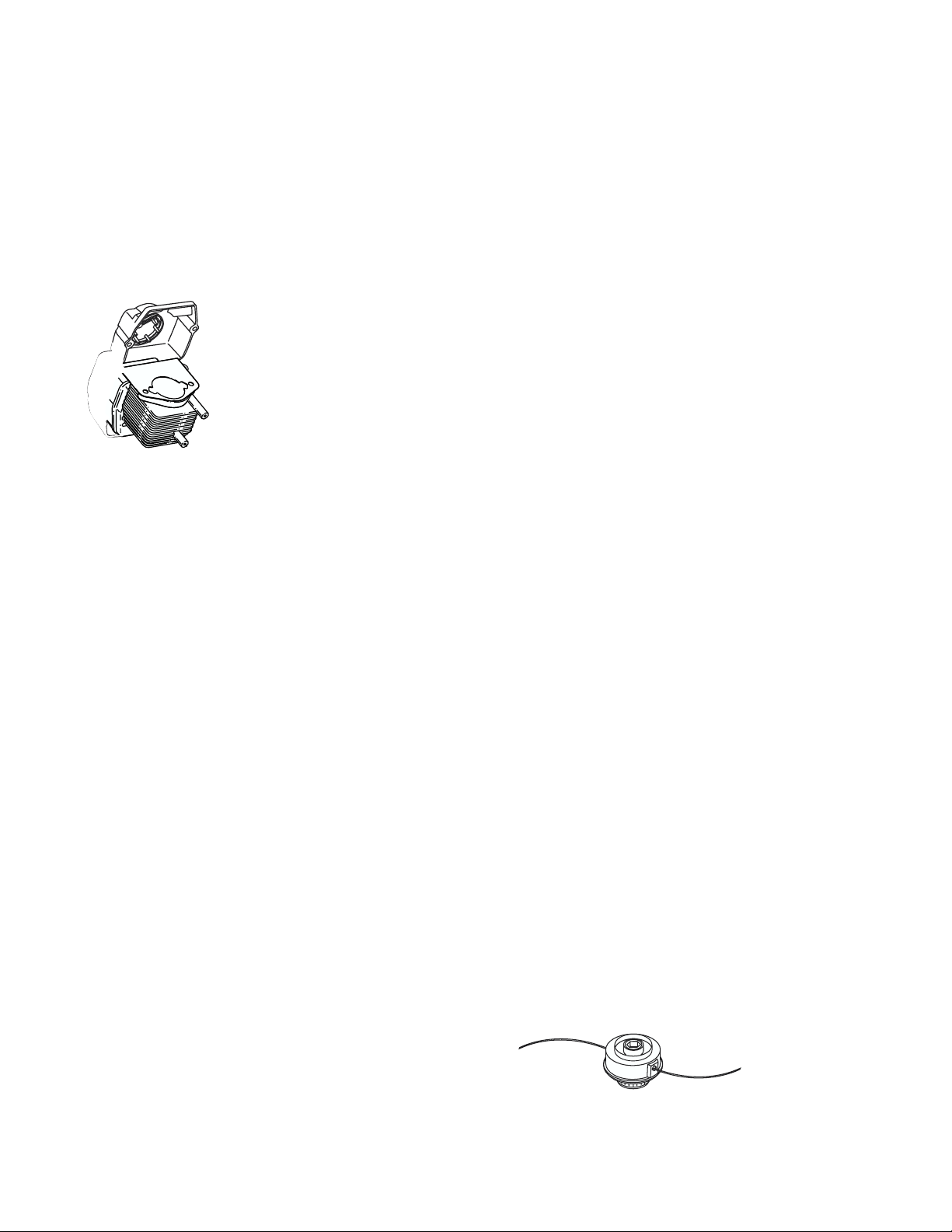

MAINTENANCE AND REPAIR INSTRUCTIONS
16
Fig. 24
Fig. 25
Fig. 26
4. Apply enough clean SAE 30 oil to lightly coat the
filter (Fig. 26).
MAINTENANCE AND REPAIR INSTRUCTIONS
17
Fig. 28

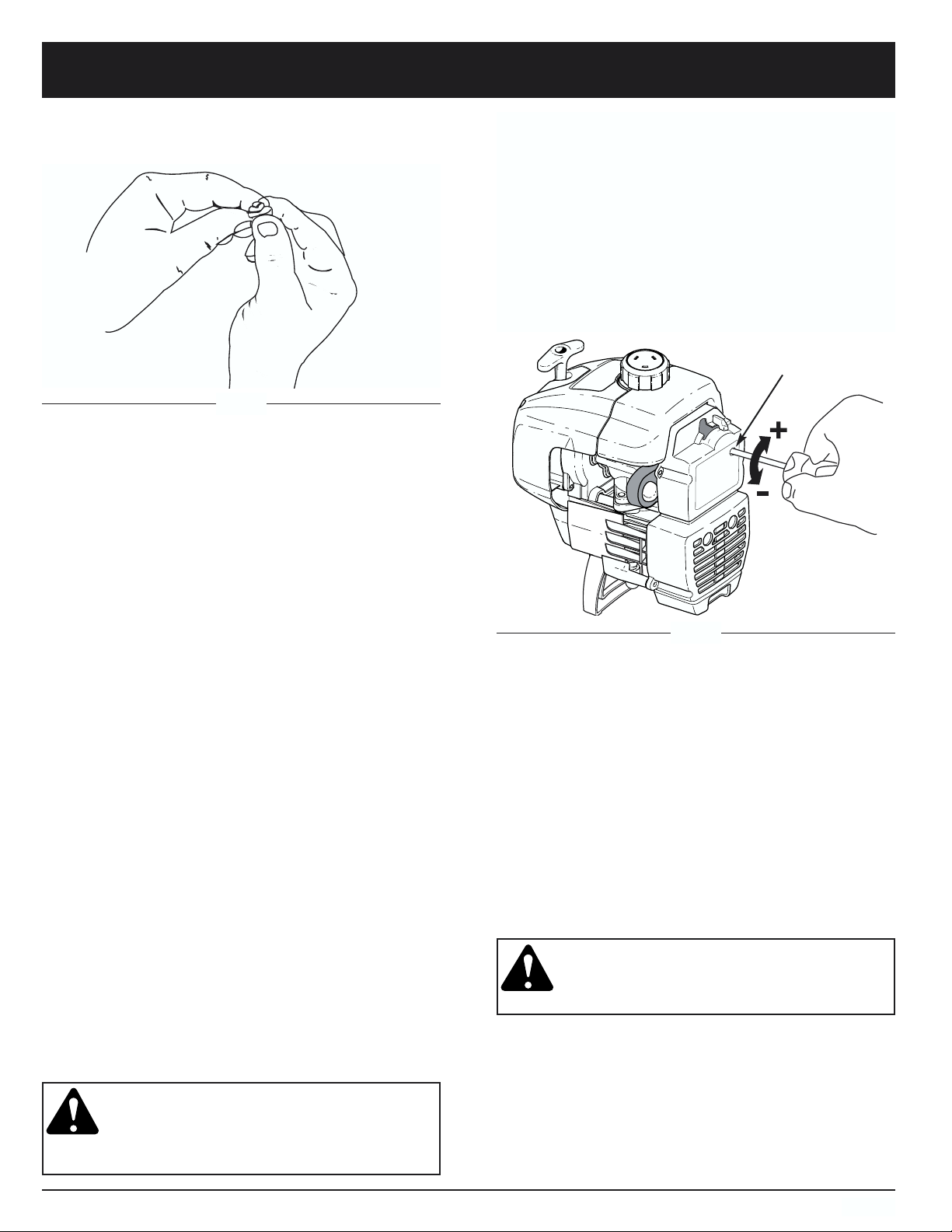

CARBURETOR ADJUSTMENT
The idle speed of the engine is adjustable through the
Air filter/Muffler cover (Fig. 28).
NOTE: Careless adjustments can seriously damage your
unit. An authorized service dealer should make
carburetor adjustments.
Check Fuel Mixture
Old and/or improperly mixed fuel is usually the reason
for the unit not running properly. Drain and refill the tank
with fresh, properly mixed fuel prior to making any
adjustments. Refer to Oil and Fuel Information Pg. 9.
Clean Air Filter
The condition of the air filter is important to the operation
of the unit. A dirty air filter will restrict air flow and
change the air/fuel mixture. This is often mistaken for an
out of adjustment carburetor. Check the condition of the
air filter before adjusting the idle speed screw. Refer to
Air Filter Maintenance Pg. 16.
Adjust Idle Speed Screw
WARNING: The cutting attachment may be
spinning during idle speed adjustments.
Wear protective clothing and observe all
safety instructions to prevent serious
personal injury.
NOTE: The cutting attachment should not rotate when
the engine idles.
3. If the cutting attachment rotates when the engine
idles, turn the idle speed screw counterclockwise
1/8 of a turn at a time (as needed), to reduce idle
speed.
Checking the fuel mixture, cleaning the air filter, and
adjusting the idle speed screw should solve most engine
problems.
If not and:
• The engine will not idle,
• The engine hesitates or stalls on acceleration,
• There is a loss of engine power,
have the carburetor adjusted by an authorized service
dealer.
WARNING: When the unit is turned off make
sure the cutting attachment has stopped
before the unit is set down to prevent serious
personal injury.
Idle Speed Screw

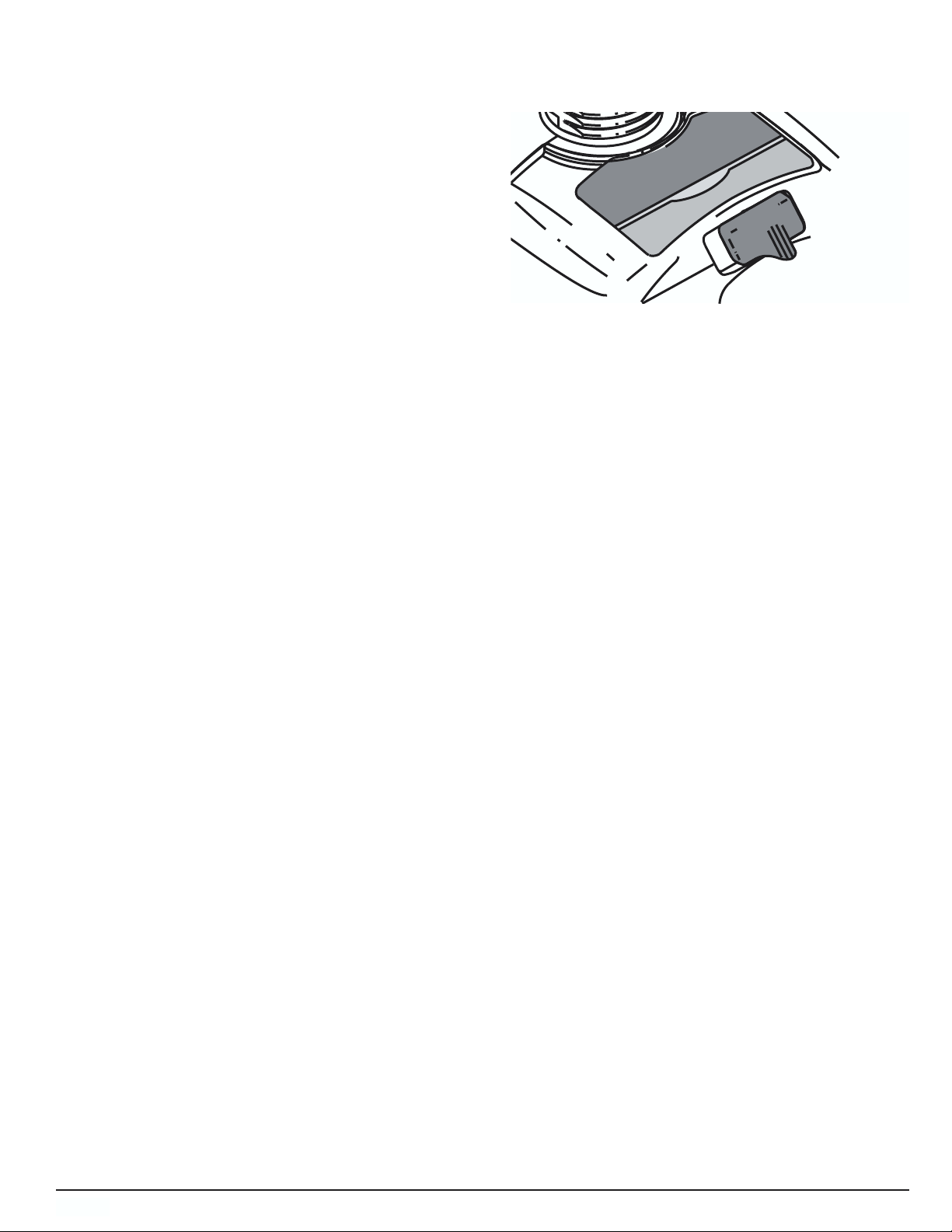

6. Replace the air filter inside the air filter/muffler cover
(Fig. 24).
NOTE: Operating the unit without the air filter and air
filter/muffler cover assembly, will VOID the
warranty.

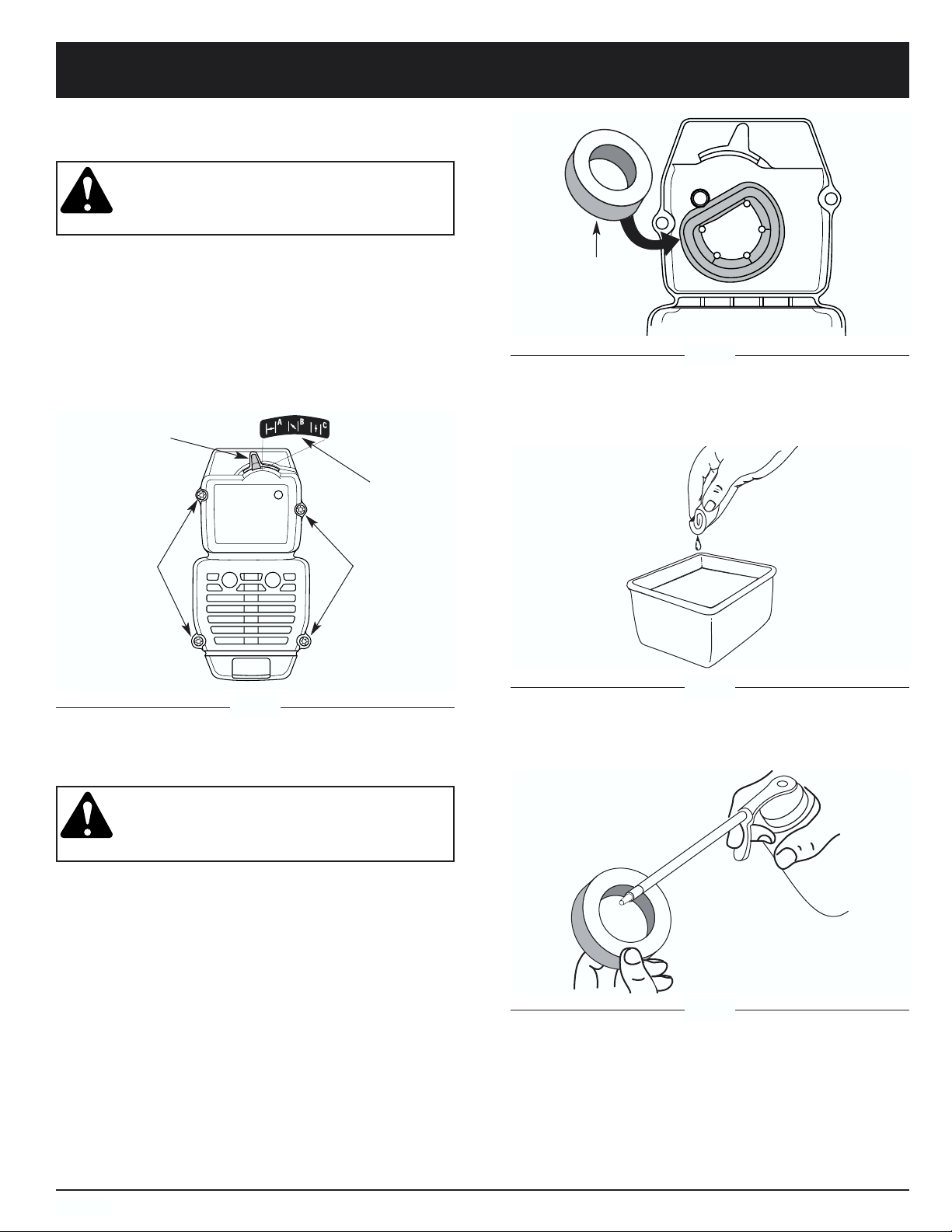

Reinstalling the Air filter/Muffler Cover
1. Place the air filter/muffler cover over the back of the
carburetor and muffler.
NOTE: The choke lever must be in the PARTIAL choke
position (B) (Fig. 23) to install the air filter/muffler
cover.
2. Insert the four (4) screws into the holes in the air
filter/muffler cover (Fig. 23) and tighten.
Do not over tighten.
5. Squeeze the filter to spread and remove excess oil
(Fig. 27).
Fig. 27
If after checking the fuel mixture and cleaning the
air filter the engine still will not idle, adjust the idle speed
screw as follows.
1. Start the engine and let it run about 2-3 minutes at a
high speed (full throttle) to warm up. See
Starting/Stopping Instructions, Pg. 10.
2. Release the throttle trigger and let the engine idle. If
the engine stops, insert a small phillips or flat blade
screwdriver into the hole in the air filter/muffler cover
(Fig. 28). Turn the idle speed screw in, clockwise,
1/8 of a turn at a time (as needed) until the engine
idles smoothly.
MAINTENANCE AND REPAIR INSTRUCTIONS
18
REPLACING THE SPARK PLUG
Use a Champion RDJ7Y spark plug (or equivalent).
The correct air gap is 0.020 inch (0.5 mm). Remove the
plug after every 50 hours of operation and check its
condition.
1. Stop the engine and allow it to cool. Grasp the plug
wire firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug
from the cylinder head by turning a 5/8 in. socket
counterclockwise.

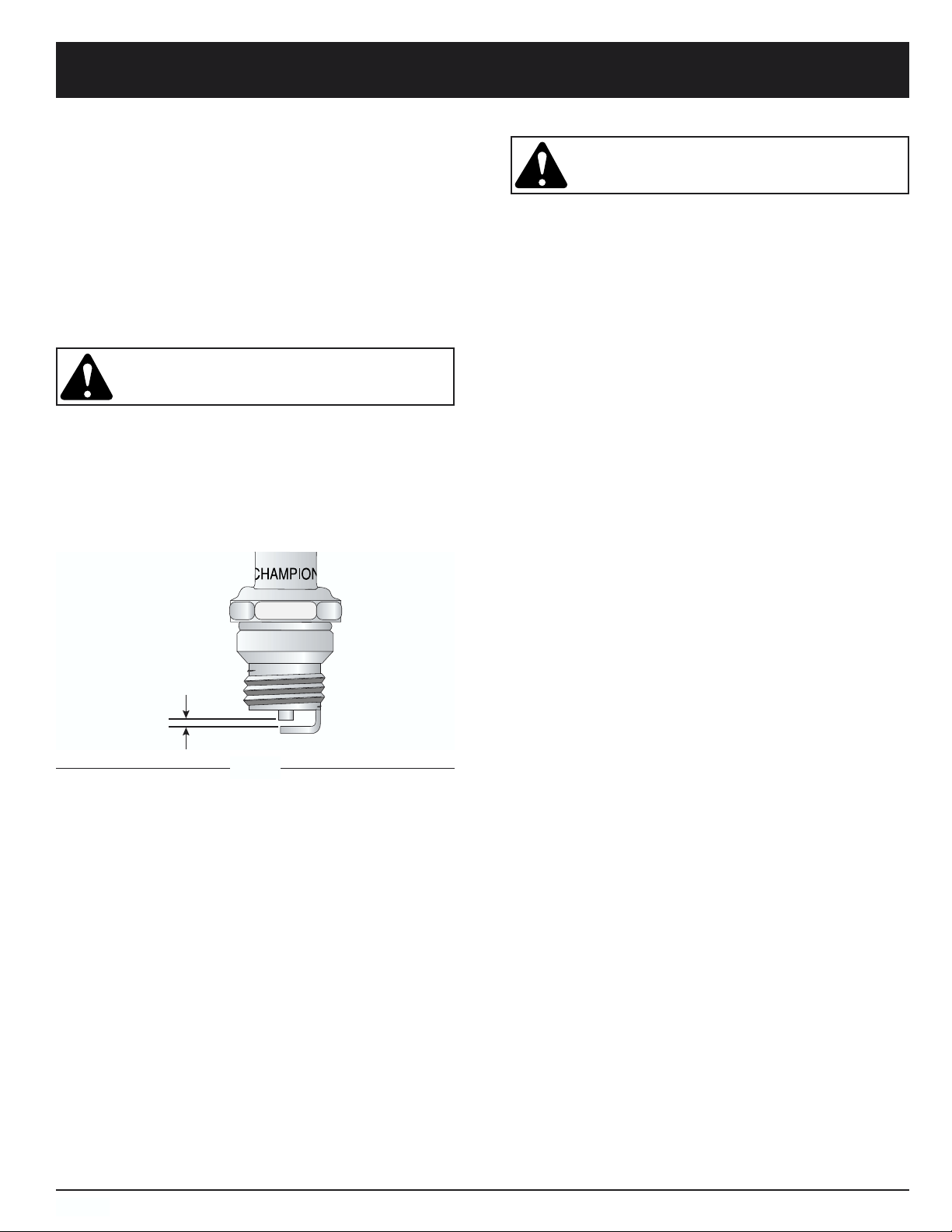

3. Replace cracked, fouled or dirty spark plug. Set the
air gap at 0.020 in. (0.5 mm) using a feeler gauge
(Fig. 29).
CAUTION: Do not sand blast, scrape, or
clean electrodes. Grit in the engine could
damage the cylinder.
4. Install a correctly gapped spark plug in the cylinder
head. Tighten by turning the 5/8 inch socket
clockwise until snug.
If using a torque wrench torque to;
110-120 in.•lb. (12.3-13.5 N•m).
Do not over tighten.
ACCESSORIES/REPLACEMENT PARTS
2-Cycle Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147543
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610311
Replacement Line . . . . . . . . . . . . . . . . . . . . . . . . 610375
Replacement Line Cartridge . . . . . . . . . . . . . . . . 153577
Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . 610317
Outer Spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153599
Inner Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610318
Bump Knob™ . . . . . . . . . . . . . . . . . . . . . . . . . . . 153066
Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180000
Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . 682075
These replacement parts can be purchased from your
local authorized dealer.
0.020 in.
(0.5 mm)
Fig. 29
CLEANING
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or do any maintenance
on it.
Use a small brush to clean off the outside of the unit.
Do not use strong detergents. Household cleaners that
contain aromatic oils such as pine and lemon, and
solvents such as kerosene, can damage plastic housing
or handle. Wipe off any moisture with a soft cloth.
STORAGE
• Never store the unit with fuel in the tank where fumes
may reach an open flame or spark.
• Allow the engine to cool before storing.
• Store the unit locked up to prevent unauthorized use
or damage.
• Store the unit in a dry, well ventilated area.
• Store the unit out of the reach of children.
LONG TERM STORAGE
If the unit will be stored for an extended time, use the
following storage procedure.
1. Drain all fuel from the fuel tank and drain into a
container with the same 2-cycle fuel mixture. Do not
use fuel that has been stored for more than 60 days.
Dispose of the old fuel/oil mix in accordance to
Federal, State, and Local regulations.
2. Start the engine and allow it to run until it stalls.
This ensures that all fuel has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug
and put 1 oz. (30 ml) of any high quality motor oil or
2-cycle oil into the cylinder. Pull the starter rope
slowly to distribute the oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the oil
from the cylinder before attempting to start the
trimmer after storage.
4. Thoroughly clean the unit and inspect for any loose
or damaged parts. Repair or replace damaged parts
and tighten loose screws, nuts or bolts. The unit is
ready for storage.
TRANSPORTING
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Drain fuel from unit.
• Tighten fuel cap before transporting.
TROUBLESHOOTING
19
CAUSE ACTION
Cutting attachment bound with grass Stop the engine and clean cutting attachment
Cutting attachment out of line Refill with new line
Inner reel bound up Replace the inner reel
Cutting head dirty Clean inner reel and outer spool
Line welded Disassemble, remove the welded section
and rewind the line
Line twisted when refilled Disassemble and rewind the line
Not enough line is exposed Push the Bump Knob and pull out line until
4 inches (102 mm) of line is outside of the
cutting attachment
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
CAUSE ACTION
On/Off Stop Control is in OFF position Turn On/Off Stop Control to ON
Empty fuel tank Fill fuel tank with properly mixed fuel
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 5-7 times
Engine flooded Use starting procedure with choke lever in the
RUN position, Pg. 9
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Fouled spark plug Replace or clean the spark plug
ENGINE WILL NOT START
ENGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
ENGINE LACKS POWER OR STALLS WHEN CUTTING
CAUSE ACTION
Air Filter is Plugged Replace or clean the air filter
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Adjust per instruction Pg. 17
CAUSE ACTION
Old or improperly mixed fuel Drain gas tank / Add fresh fuel mixture
Improper carburetor adjustment Take to an authorized service dealer for
carburetor adjustment
Cutting attachment bound with grass Stop the engine and clean the cutting attachment
Dirty air filter Clean or replace the air filter
CUTTING ATTACHMENT WILL NOT ADVANCE LINE
If further assistance is required, contact your authorized service dealer.
CAUSE ACTION
Oil in cutting head Clean the cutting attachment
CUTTING LINE ADVANCES UNCONTROLLABLY
SPECIFICATIONS
20
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25 in. (31.75 mm)
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9 cu in. (31 cc)
Clutch Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centrifugal
Idle Speed RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800-3,600 rpm
Operating RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,200-8,300 rpm
Ignition Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Slide Switch
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.020 in. (0.5 mm)
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32:1
Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diaphragm, All-Position
Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Rewind
Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Baffled with Guard
Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Spring Return
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 oz. (355 ml)
ENGINE
DRIVE SHAFT and CUTTING ATTACHMENT
Drive Shaft Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Tube, Click-Link
Throttle Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Finger-Tip Trigger
Unit Weight (No fuel, with cutting attachment, cutting attachment shield and D-handle) . . . . . . . . 12.5 lbs. (5.67 kg)
Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual String Cutting Head
Line Spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bump Line Releaser
Line Spool Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 inches (76.2 mm)
Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.080 inches (2.03 mm)
Cutting Path Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 inches (38.1 cm)
NOTES
21
Loading...
