Issued 4/99
Item Part No. Description
1 182059 Air Cleaner/Muffler Cover Assembly (includes 2 & 41)
2 180350 Air Cleaner Filter
3 180351 Carburetor Mounting Screw Assembly
4 180352 Wavey Washer
5 182061 Choke Lever Assembly (includes 6)
6 182070 Choke Knob and Screw
7 182060 Choke Lever and Plate (includes 5)
8 182062 Carburetor Assembly W/Limiter Caps
(includes 9 & 21)
9 610675 Carburetor Gasket
10 181860 Carb Mount Screw
11 181558 Primer and Hose Assembly
12 182063 Carb Mount Assembly (includes 10)
13 684451 Reed Assembly
14 181498 Power Shaft Assembly
15 612115 Carburetor Mount Gasket
16 180026 Crank Case Service Assembly
(includes 10, 14 & 24)
17 612134 Rear Mounting Pad
18 181438 Fuel Tank Assembly (includes 19-21)
19 181559 Fuel Cap Assembly
20 181168 Fuel Return Line
21 682039 Fuel Line Assembly
22 145308 Front Mounting Pad
23 153520 Shroud Assembly
24 181861 Shroud Screw
25 182064 Shroud Extension and Stand
26 180929 Flywheel Assembly
27 181065 Spacer
28 181597 Recoil Pulley Assembly
29 613102 Recoil Spring
30 611061 Rope Guide
31 181441 Pulley Retainer Assembly
32 181442 Switch Assembly (includes 43)
33 181079 Pull Handle
Item
Part No. Description
34 613103 Rope
35 181443 Starter Housing Assembly
(includes 28-34 & 43)
36 181862 Housing Screw
37 181074 Clutch Washer
38 181445 Clutch Rotor Assembly
39 153592 Clutch Drum Assembly
40 180098 Clutch Cover Assembly
41 181345 Cover Screw
42 153597 Upper Clamp Assembly
43 180036 Wire Lead
44 181937 Module Assembly
45 610311 Spark Plug
46 182065 Exhaust Gasket
47 182066 Muffler Assembly (includes 48)
48 147575 Muffler Mounting Bolt Assembly
49 181622 Cylinder Assembly (includes 52)
50 684449 Piston and Rod Assembly
51 610674 Cylinder Gasket
52 181870 Cylinder Bolt
* 180011 Engine Gasket Kit
* 180602 O.E.M. Carburetor Repair Kit (Walbro)
* 180090 O.E.M. Carburetor Repair Kit (Zama)
* 181873 Gasket Diaphragm Repair Kit (Walbro)
* 180091 Gasket Diaphragm Repair Kit (Zama)
* 180530 Piston Ring
* 181623 Short Block Assembly
(includes 10, 14, 16, 24, 45, 49-52)
* 610676 Flywheel Key
* 181501 Starter Housing Screw Set
* 610309 Crankcase Seal
* 181599 Clutch Springs (Qty. 2)
* Items Not Shown
41
1
2
3
8
10
12
3
4
5
7
6
11
13
15
16
50
51
14
22
52
20
17
18
19
21
37
38
39
41
42
40
26
27
28
29
32
30
33
34
32
36
41
35
25
32
43
44
49
45
46
47
48
24
31
23
9

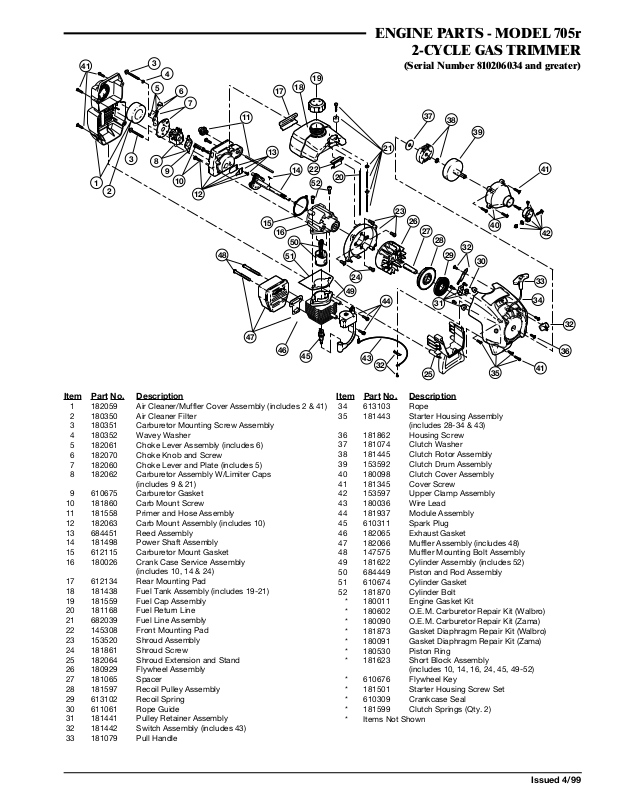

ENGINE PARTS - MODEL 705r
2-CYCLE GAS TRIMMER
(Serial Number 810206034 and greater)
Issued 4/99
Item Part No. Description
1 182069 Throttle Housing and Trigger Assembly
(includes 2 & 3)
2 610314 Throttle Trigger Spring
3 181556 Throttle Trigger
4 182068 Throttle Cable Assembly
5 145819 D-Handle Assembly (includes 6)
6 181587 D-Handle Hardware
7 181555 Drive Shaft Housing Assembly
8 153597 Lower Clamp Assembly
9 181550 Flexible Drive Shaft
10 181560 Palnut
11 180531 Shield Mounting Screw
12 181857 Bushing Housing Assembly
13 145569 Anti-Rotation Screw
14 683274 Shield and Blade Assembly (includes 15)
15 682061 Blade Assembly
16 181457 Outer Spool and Eyelet Assembly w/ Retainer
17 181458 Retainer
18 181561 Thrust Washer
19 181459 Small Spring
20 181461 Slider
21 181532 E-Clip
22 181531 Spring
23 181462 Plunger
24 181463 C-Clip
25 181464 Inner Reel
26 181465 Large Spring
27 181467 Foam Seal
28 181468 Bump Head Knob Assembly with Spring
and Foam Seal
Optional Accessories
* 181472 Replacement Line, 0.080 Diameter
(Eight - 10 ft lengths)
* 181460 Reel and Line Assembly
* 682075 Shoulder Strap Assembly
* 147543 Ryobi 2-Cycle Oil
* Items Not Shown
11
10
8
14
9
19
17
20
21
16
18
12
13
15
25
23
22
27
24
26
28
1
1
5
6
7
4
3
2
BOOM AND TRIMMER PARTS - MODEL 705r
2-CYCLE GAS TRIMMER
(Serial Number 810206034 and greater)
