Page 1
Issued 6/02

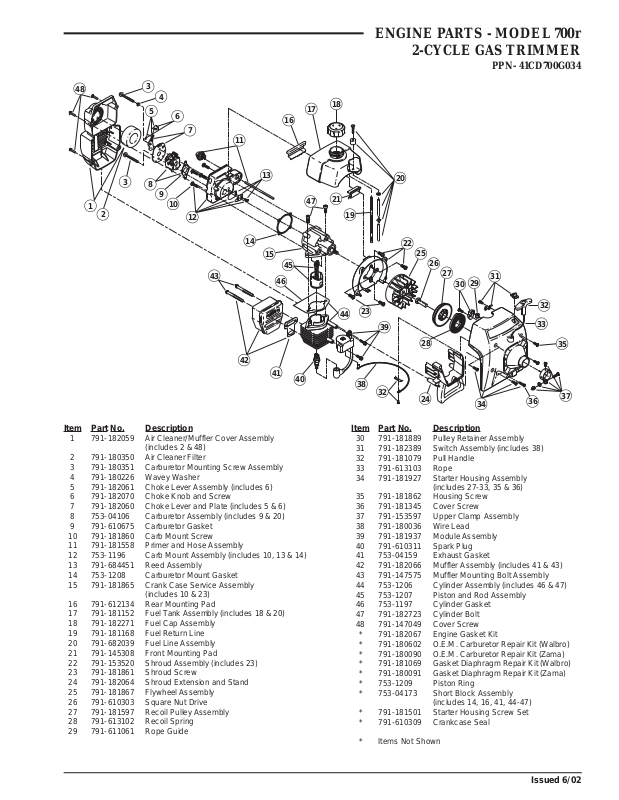

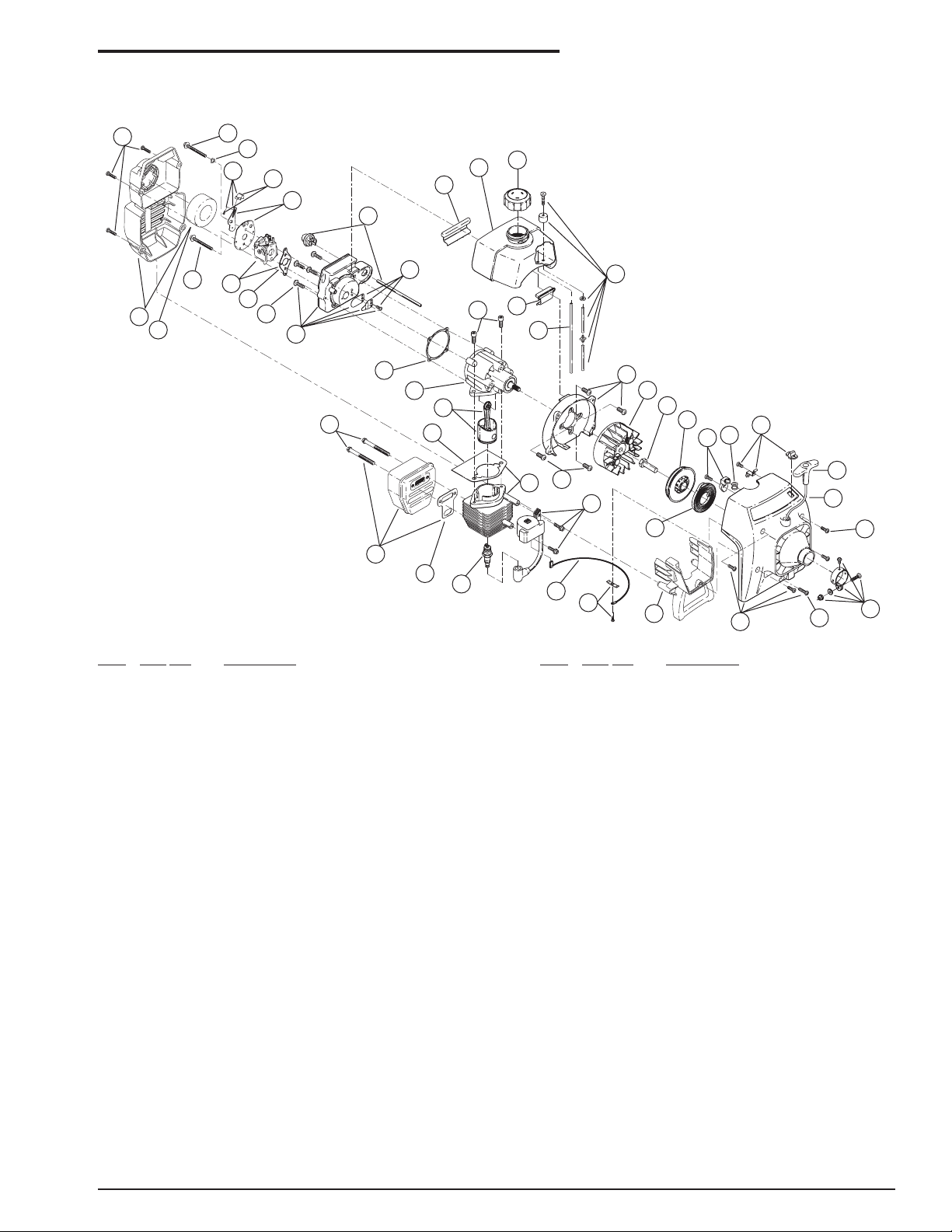

ENGINE PARTS - MODEL 700r
2-CYCLE GAS TRIMMER
PPN- 41CD700G034
Item Part No. Description
1 791-182059 Air Cleaner/Muffler Cover Assembly
(includes 2 & 48)
2 791-180350 Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 791-180226 Wavey Washer
5 791-182061 Choke Lever Assembly (includes 6)
6 791-182070 Choke Knob and Screw
7 791-182060 Choke Lever and Plate (includes 5 & 6)
8 753-04106 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-181558 Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10, 13 & 14)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 791-181865 Crank Case Service Assembly
(includes 10 & 23)
16 791-612134 Rear Mounting Pad
17 791-181152 Fuel Tank Assembly (includes 18 & 20)
18 791-182271 Fuel Cap Assembly
19 791-181168 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 791-153520 Shroud Assembly (includes 23)
23 791-181861 Shroud Screw
24 791-182064 Shroud Extension and Stand
25 791-181867 Flywheel Assembly
26 791-610303 Square Nut Drive
27 791-181597 Recoil Pulley Assembly
28 791-613102 Recoil Spring
29 791-611061 Rope Guide
Item
Part No. Description
30 791-181889 Pulley Retainer Assembly
31 791-182389 Switch Assembly (includes 38)
32 791-181079 Pull Handle
33 791-613103 Rope
34 791-181927 Starter Housing Assembly
(includes 27-33, 35 & 36)
35 791-181862 Housing Screw
36 791-181345 Cover Screw
37 791-153597 Upper Clamp Assembly
38 791-180036 Wire Lead
39 791-181937 Module Assembly
40 791-610311 Spark Plug
41 753-04159 Exhaust Gasket
42 791-182066 Muffler Assembly (includes 41 & 43)
43 791-147575 Muffler Mounting Bolt Assembly
44 753-1206 Cylinder Assembly (includes 46 & 47)
45 753-1207 Piston and Rod Assembly
46 753-1197 Cylinder Gasket
47 791-182723 Cylinder Bolt
48 791-147049 Cover Screw
* 791-182067 Engine Gasket Kit
* 791-180602 O.E.M. Carburetor Repair Kit (Walbro)
* 791-180090 O.E.M. Carburetor Repair Kit (Zama)
* 791-181069 Gasket Diaphragm Repair Kit (Walbro)
* 791-180091 Gasket Diaphragm Repair Kit (Zama)
* 753-1209 Piston Ring
* 753-04173 Short Block Assembly
(includes 14, 16, 41, 44-47)
* 791-181501 Starter Housing Screw Set
* 791-610309 Crankcase Seal
* Items Not Shown
48
1
2
3
8
10
12
3
4
5
7
6
11
13
14
15
45
46
21
47
19
16
17
18
20
25
26
27
30
31
29
32
33
35
36
37
34
24
32
38
39
44
40
41
42
43
23
28
22
9
Page 2
Issued 6/02

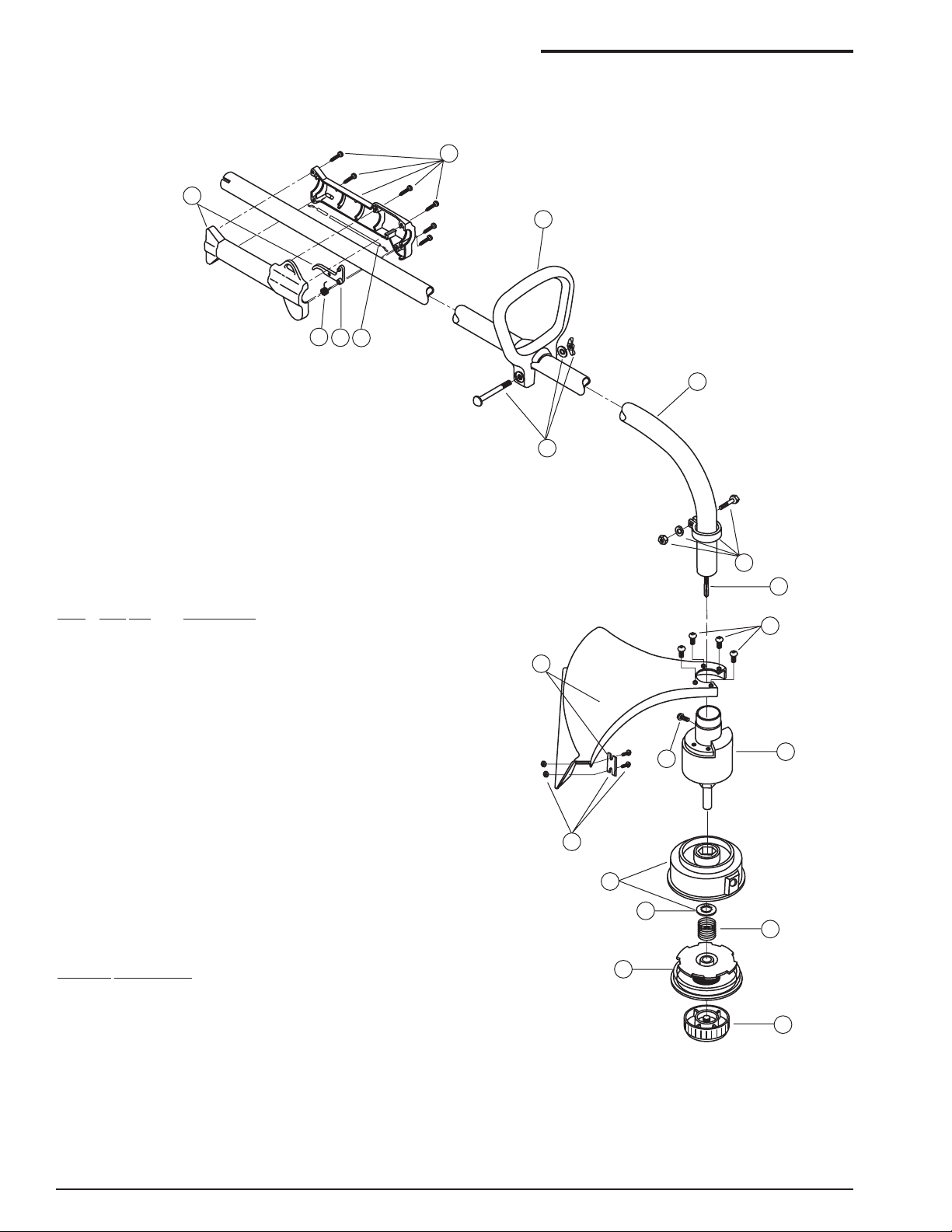

BOOM AND TRIMMER PARTS - MODEL 700r
2-CYCLE GAS TRIMMER
PPN- 41CD700G034
Item Part No. Description
1 791-182069 Throttle Housing and Trigger Assembly
(includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 791-181556 Throttle Trigger
4 791-182068 Throttle Cable Assembly
5 791-153064 D-Handle Assembly (includes 6)
6 791-181587 D-Handle Hardware
7 791-181893 Drive Shaft Housing Assembly
8 791-153597 Lower Clamp Assembly
9 791-182839 Flexible Drive Shaft
10 791-180531 Shield Mounting Screw
11 791-181784 Bushing Housing Assembly with Spool Shaft
12 791-145569 Anti-Rotation Screw
13 791-181659 Shield and Blade Assembly (includes 14)
14 791-181823 Blade Assembly
15 791-153619 Outer Spool and Eyelet Assembly
(includes 16)
16 791-610660 Retainer
17 791-610317 Spring
18 791-610318 Inner Reel
19 791-153066 Bump Head Knob Assembly
Optional Accessories
* 791-610375 Replacement Line, 0.80 Diameter
* 791-153577 Reel and Line Assembly
* 791-180897 Bump Head Assembly (includes 15-19)
* 791-682075 Shoulder Strap Assembly
* Items Not Shown
10
8
13
9
17
16
18
19
15
11
12
14
1
1
5
6
7
4
3
2
