Ryobi 41AD775A034, 41BD775A034 User Manual

Issued 10/98

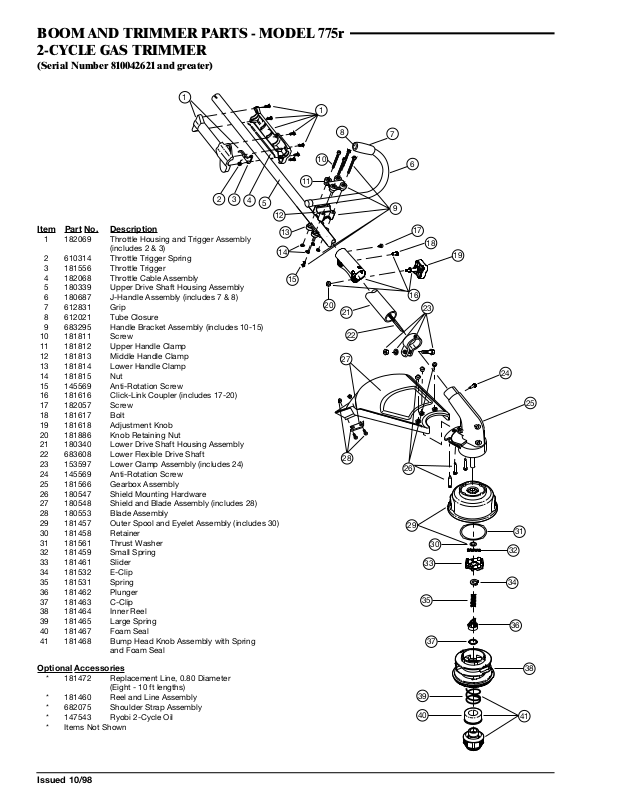

BOOM AND TRIMMER PARTS - MODEL 775r 2-CYCLE GAS TRIMMER
(Serial Number 810042621 and greater)
Item Part No.
Description
1 182069 Throttle Housing and Trigger Assembly
(includes 2 & 3) 2 610314 Throttle Trigger Spring 3 181556 Throttle Trigger 4 182068 Throttle Cable Assembly 5 180339 Upper Drive Shaft Housing Assembly 6 180687 J-Handle Assembly (includes 7 & 8) 7 612831 Grip 8 612021 Tube Closure 9 683295 Handle Bracket Assembly (includes 10-15)
10 181811 Screw 11 181812 Upper Handle Clamp 12 181813 Middle Handle Clamp 13 181814 Lower Handle Clamp 14 181815 Nut 15 145569 Anti-Rotation Screw 16 181616 Click-Link Coupler (includes 17-20) 17 182057 Screw 18 181617 Bolt 19 181618 Adjustment Knob 20 181886 Knob Retaining Nut 21 180340 Lower Drive Shaft Housing Assembly 22 683608 Lower Flexible Drive Shaft 23 153597 Lower Clamp Assembly (includes 24) 24 145569 Anti-Rotation Screw 25 181566 Gearbox Assembly 26 180547 Shield Mounting Hardware 27 180548 Shield and Blade Assembly (includes 28) 28 180553 Blade Assembly 29 181457 Outer Spool and Eyelet Assembly (includes 30) 30 181458 Retainer 31 181561 Thrust Washer 32 181459 Small Spring 33 181461 Slider 34 181532 E-Clip 35 181531 Spring 36 181462 Plunger 37 181463 C-Clip 38 181464 Inner Reel 39 181465 Large Spring 40 181467 Foam Seal 41 181468 Bump Head Knob Assembly with Spring
and Foam Seal
Optional Accessories
* 181472 Replacement Line, 0.80 Diameter
(Eight - 10 ft lengths)
* 181460 Reel and Line Assembly * 682075 Shoulder Strap Assembly * 147543 Ryobi 2-Cycle Oil * Items Not Shown
1
18
19
16
20
21
1
8
7
6
9
10
11
13
12
14
15
17
5
4
3
2
24
22
27
23
32
30
33
34
29
31
25
26
28
38
36
35
40
37
39
41
