Ryobi 340BVPL User Manual
Item Part No. Description
1 791-182441 On/Off Stop Control Switch with Wire
2 791-182439 Switch and Coil Replacement Wires
3 791-182440 Primer Bulb (includes 4)
4 791-182442 Return Lines
5 791-182443 Crankcase Plug (includes 6)
6 791-180221 Crankcase Plug Screws
7 791-182444 Crankcase Plug Gasket
8 791-181866 Power Shaft Assembly
9 791-182445 Crankcase Assembly (includes 6, 8 & 10)
10 791-181064 Tinnerman Nut
11 791-182446 Module Assembly (includes 12)
12 791-182447 Module Screw
13 791-182448 Throttle Lever
14 791-182449 Screw
15 791-182450 Air Cleaner Base
16 791-182451 Washer
17 791-182452 Carburetor Mount Screw
18 791-182453 Carburetor (includes 4)
19 791-182454 Carburetor Gasket
20 791-182452 Spacer Mounting Screw
21 791-182456 Carburetor Spacer
22 753-04163 Cylinder Baffle Assembly
23 753-04164 Piston and Rod Assembly
24 753-04165 Cylinder Gasket
25 753-04166 Cylinder Assembly (includes 24 & 26)
26 791-182461 Cylinder Bolt
27 791-610311 Spark Plug
28 791-182462 Flywheel
29 792-182756 Muffler Assembly (includes 30-34 & 37)
30 791-160335 Muffler Mounting Screw
31 791-182762 Spark Arrestor Screen
Item
Part No. Description
32 753-04160 Exhaust Tube Spring
33 753-04169 Exhaust Tube Washer
34 791-182759 Exhaust Tube Gasket
35 791-182515 Air Filter Heat Shield
36 791-182516 Carburetor Heat Shield
37 791-182188 Screw
38 791-182491 Clip
39 791-182518 Heat Shield Gasket
40 753-04167 Exhaust Gasket
41 791-182563 Intake Gasket
42 791-181930 Screw
* 791-182567 Kit, Foam Seal
* 791-182520 O.E.M. Carburetor Repair Kit (Walbro)
* 791-182521 Gasket Diaphragm Repair Kit (Walbro)
* 753-1209 Piston Ring
* 753-04170 Short Block Assembly
(includes 8-10 & 23-27)
* 791-610309 Oil Seal
* Not Shown
1
3
4
2
2
5
6
7
8
10
11
15
13
17
16
14
12
26
26
31
32
34
33
38
37
30
28
25
24
9
27
29
35
36
37
23
22
22
42
21
40
39
41
20
19
18
Issued 7/02

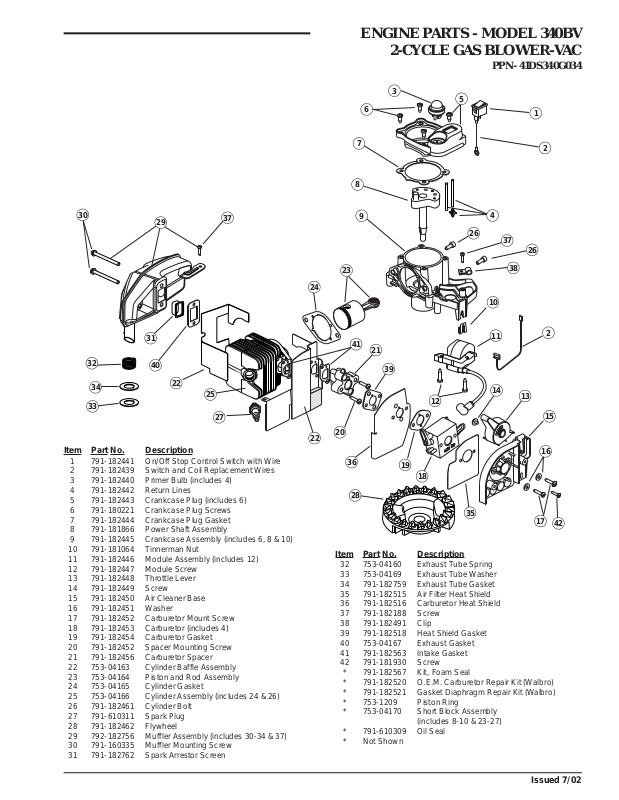

ENGINE PARTS - MODEL 340BV
2-CYCLE GAS BLOWER-VAC
PPN- 41DS340G034
Issued 7/02
HOUSING PARTS - MODEL 340BV
2-CYCLE GAS BLOWER / BLOWER-VAC
PPN- 41DS340G034
Item Part No.
Description
1 791-182465 Handle Grip Assembly (includes 2-5)
2 791-182466 Vibration Dampner
3 791-182467 Dampner Spacer
4 791-182468 Handle Screw
5 791-182469 Screw
6 791-182470 Diverter (includes 8)
7 791-147049 Cover Screw
8 791-182474 Baffle Screw
9 791-182766 Engine Cover Assembly
10 791-182763 Fuel Tank Pad
11 791-182482 Washer
12 791-182483 Gear Return Spring
13 791-182484 Pulley Gear
14 791-182485 Friction Spring
15 791-182486 Starter Pulley
16 791-613103 Rope
17 791-611061 Rope Guide
18 791-181079 Pull Handle
19 791-613102 Rewind Spring
20 791-182488 Pulley Retainer Assembly
21 791-182487 Rope Guide Retainer Assembly
22 791-182489 Recoil Housing
23 791-147049 Recoil Case Screw
24 791-182490 Recoil Housing Assembly (includes 10-22)
25 791-182438 Fuel Cap
26 791-182492 Fuel Tank Assembly (includes 25-30)
27 791-182495 Fuel Line
28 791-182496 Fuel Line Assembly
29 791-182497 Assist Handle
30 791-181930 Fuel Tank Screw
31 791-182568 Washer
32 791-182500 Air Filter Assembly
33 791-182501 Air Filter Cover (includes 23)
34 791-182502 Ground Wire
35 791-181064 Tinnerman Nut
36 791-182764 Upper Housing Assembly (includes 35)
37 791-182506 Impeller
38 791-182507 Washer and Lock Nut Assembly
39 791-182577 Lower Housing with Insert
40 791-182578 Vacuum Door Assembly
41 791-182512 Hinge Shaft
42 791-182513 Spring
43 791-182449 Screw
* 791-182647 Blower Outlet Tube
* 791-182511 Ring Reducer Gasket
* 791-147543 Ryobi 2-Cycle Oil
* 791-182476 Vacuum Bag Assembly (includes vacuum bag,
cable tie and vacuum bag adapter)
* 791-612930 Cable Tie
* 791-182477 Vacuum Bag Adapter
* 791-182480 Vacuum Tube Assembly (includes Upper Vacuum
Tube, Lower Vacuum Tube & Knob Assembly)
* 791-182479 Upper Vacuum Tube
* 791-182517 Lower Vacuum Tube
* 791-182481 Knob Assembly
* Items Not Shown
2
1
1
3
4
5
7
7
16
17
18
19
21
20
10
8
11
13
14
15
12
25
26
23
23
23
5
9
6
28
22
24
23
23
23
30
29
2732
33
34
34
35
36
31
37
38
39
42
41
43
40
