Operator´s manual
240RJ
Please read these instructions carefully and make sure
you understand them before using the machine.
English
Symbols
10000 rpm
max
SYMBOL EXPLANATION
WARNING! Clearing saws,
brushcutters and trimmers can be
dangerous!
Careless or incorrect use can result in
serious or fatal injury to the operator or
others.
Read through the Operator‘s Manual
carefully and understand the content
before using the machine.
Always use
• A protective helmet where there is a
risk of falling objects
• Ear protection
• Approved eye protection
Max. speed of output axle, rpm
This product is in accordance with
applicable CE directives.
Always wear approved protective gloves.
Use anti-slip and stable boots.
Only use non-metallic, flexible cutting
elements, that is trimmer head with
trimmer cord.
Only intended for the trimmer head.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in chapter Technical data and
on label.
15 m
50FT
15 m
50FT
Beware of thrown objects and
ricochets.
The operator of the machine shall
ensure, while working, that no persons
or animals come closer than 15 metres.
Blade can thrust violently when
coming in contact with any object.
Blade thrust can cause amputation of
arms or legs. Keep people and animals
50 feet away. Never use blades unless
recommended handlebar, shoulder
strap, attaching hardware and blade
deflector are installed.
Other symbols/decals on the machine refer to
special certification requirements for certain
markets.
Checks and/or maintenance should be
carried out with the engine switched off,
with the stop switch in the STOP
position.
Always wear approved protective gloves.
Regular cleaning required.
Ocular control.
2 – English
Arrows which show limits for handle
mounting.
Approved eye protection must always be
used.
CONTENTS
Husqvarna AB has a policy of continuous product
development and therefore reserves the right to modify the
design and appearance of products without prior notice.
WARNING!
!
Under no circumstances may the design
of the machine be modified without the
permission of the manufacturer. Always
use genuine accessories. Non-authorised
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
List of contents
SYMBOL EXPLANATION
Symbols ............................................................................... 2
CONTENTS
List of contents .................................................................... 3
SAFETY INSTRUCTIONS
Personal protective equipment ............................................. 4
The machine‘s safety equipment .......................................... 4
Control, maintenance and service of the machine‘s safety
equipment...................................................................... 7
Cutting equipment .............................................................. 9
General safety instructions ................................................. 10
General working instructions............................................. 11
Basic working techniques................................................... 11

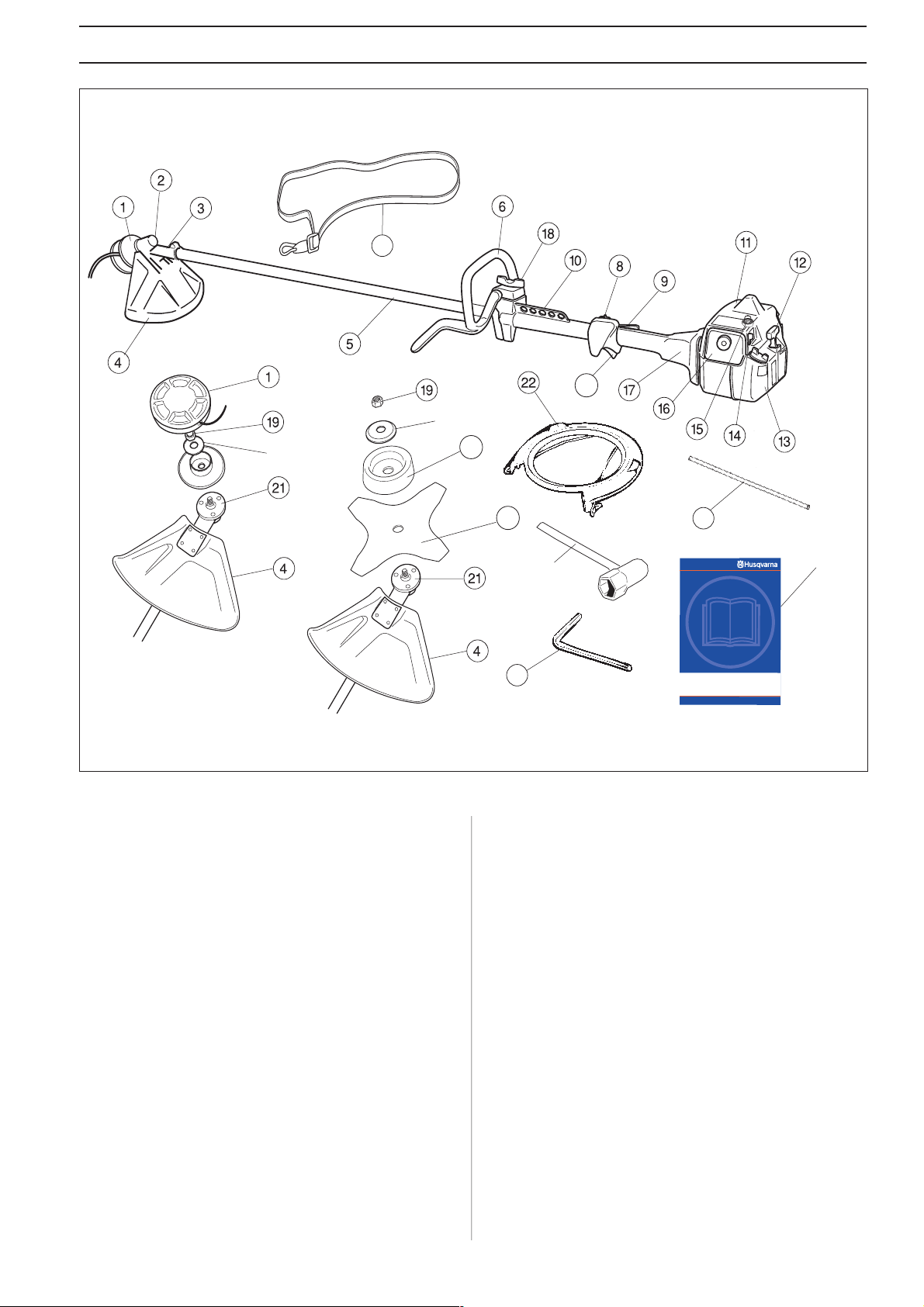

WHAT IS WHAT?
What is what on the trimmer?............................................ 13
ASSEMBLY
Assembling the J-handle .................................................... 14
Assembly of the blade and trimmer head............................ 14
Assembling the spray guard and trimmer head
Superauto II................................................................. 14
Assembling the blade guard and grass blade ....................... 15
Assembling other guards and cutting equipment................ 15
FUEL HANDLING
Fuel mixture ...................................................................... 16
Fuelling.............................................................................. 16
START AND STOP
Control before starting....................................................... 17
Start and stop..................................................................... 17
MAINTENANCE
Carburettor........................................................................ 18

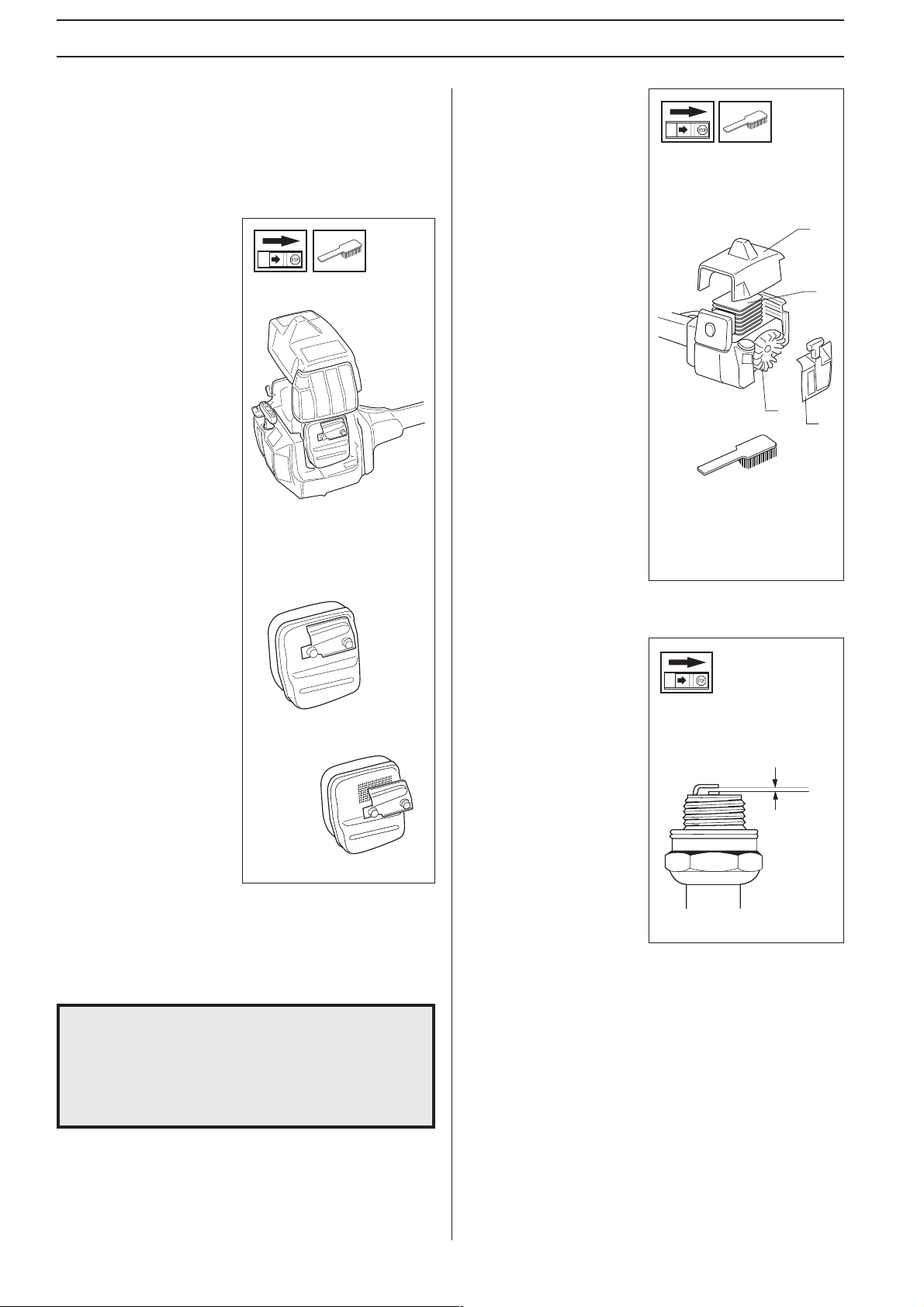

Muffler .............................................................................. 20
Cooling system .................................................................. 20
Spark plug.......................................................................... 20

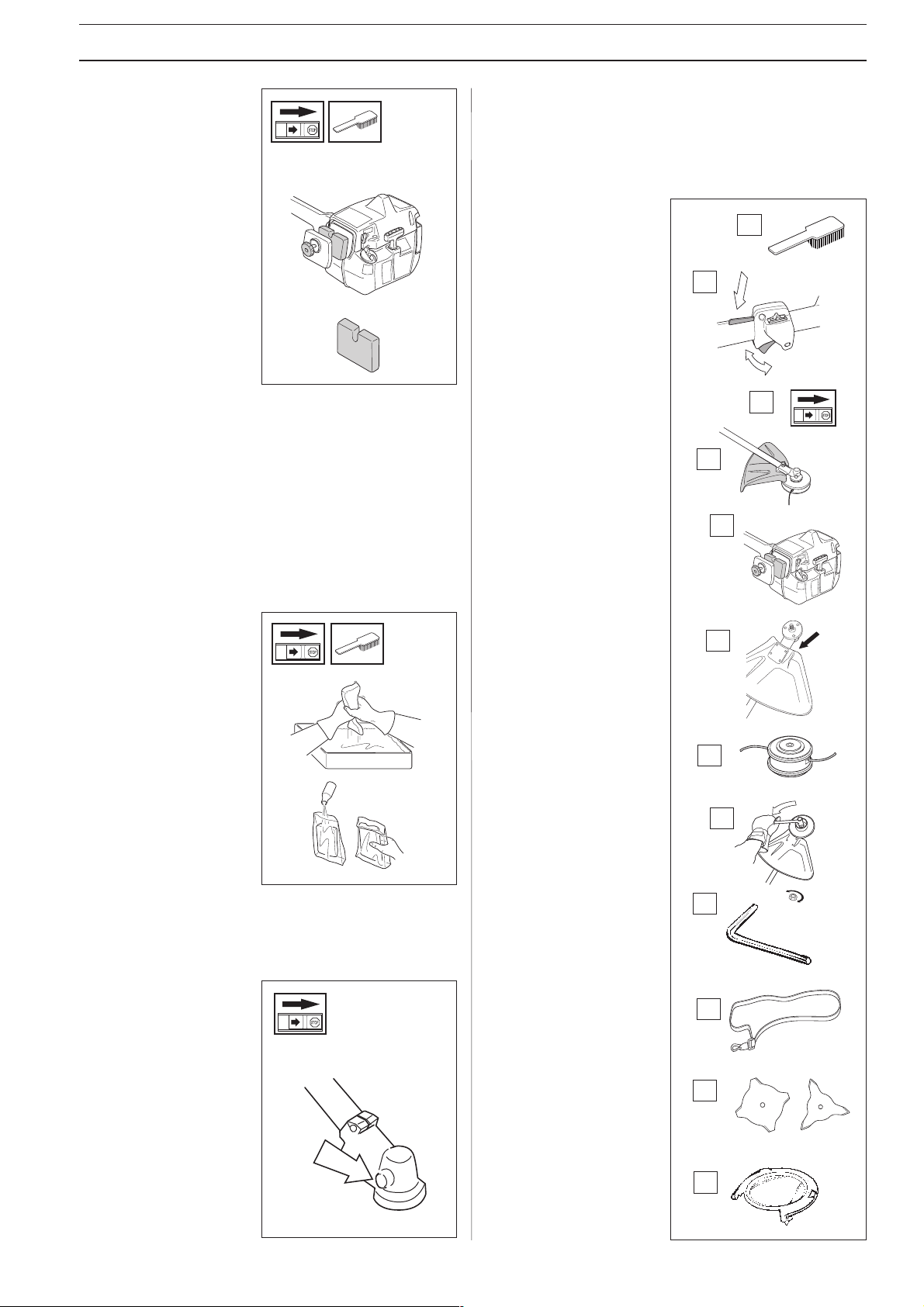

Air filter............................................................................. 21
Angle gear.......................................................................... 21

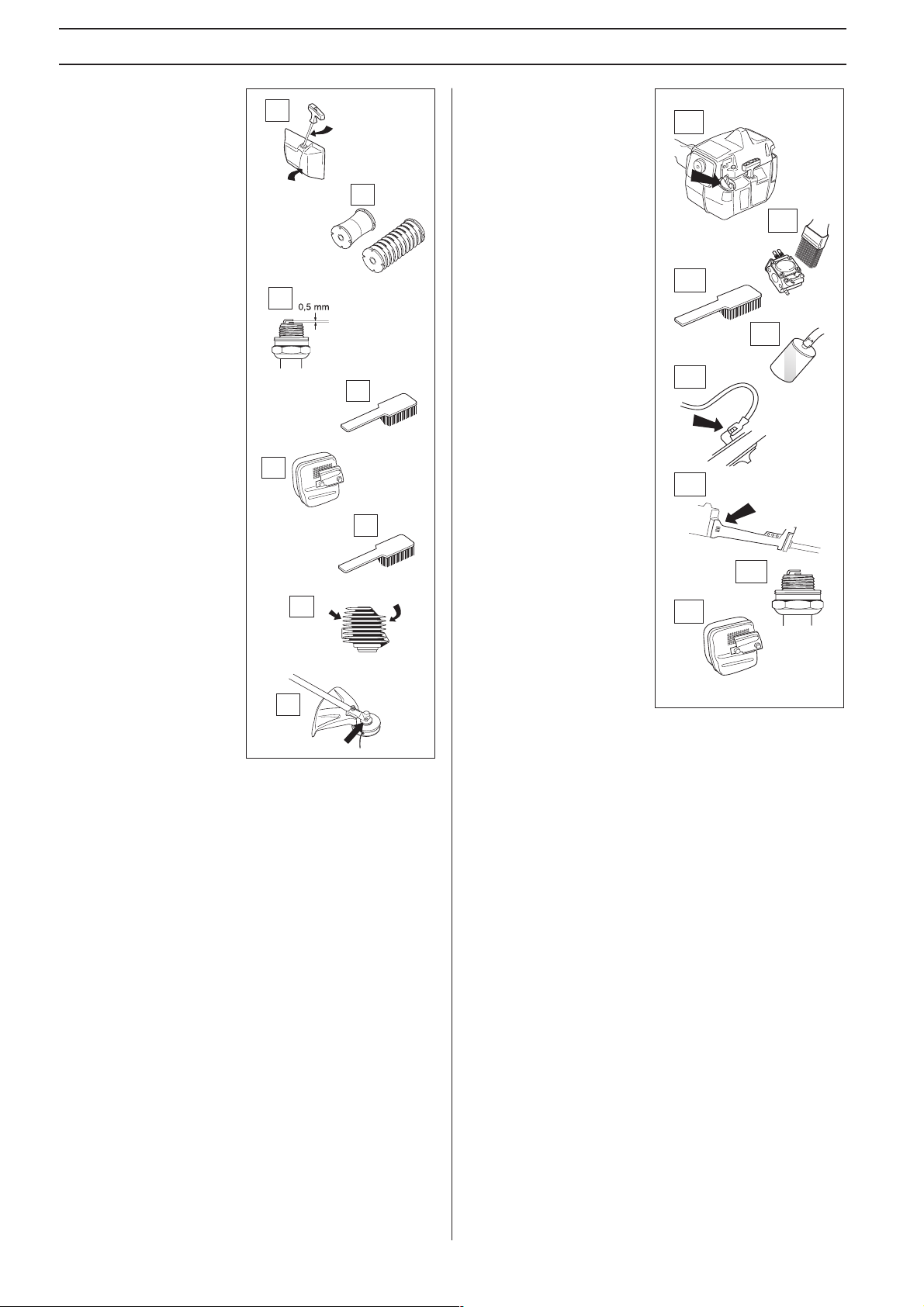

Maintenance schedule........................................................ 21
TECHNICAL DATA
240RJ ................................................................................ 23
English – 3
SAFETY INSTRUCTIONS
Personal protective equipment
MPORTANT INFORMATION
• A clearing saw, brushcutter or trimmer used
incorrectly or carelessly can become a dangerous
tool, that can cause serious or fatal injury to the
operator or others. It is extremely important that
you read and understand the content of this
manual.
• When using a trimmer, personal protective
equipment approved by the appropriate
authorities must be used. Personal protective
equipment does not eliminate the risk of
accidents, however, it can reduce the effects of an
injury in the event of an accident. Ask your dealer
for help when choosing protective equipment.
WARNING!
!
GLOVES
Gloves should be worn when
necessary, e.g., when
assembling cutting
equipment.
EAR PROTECTION
Ear protection offering
sufficient dampening effect
should be used.
EYE PROTECTION
Blows from branches or
objects thrown by the
rotating cutting equipment
can damage the eyes.
Remove your hearing protection as soon as
you stop the engine, so that you can hear
any noises or warning signals.
The machine‘s safety equipment
This section describes the machine‘s safety equipment, its
function and how checks and maintenance are carried out to
ensure that it operates correctly. (See the chapter “What is
what“ to locate where this equipment is positioned on your
machine.)
WARNING!
!
1. Throttle trigger
lock
The throttle trigger lock is
designed to prevent the
throttle from accidentally
being engaged. When the
trigger lock (A) is pressed
into the handle (= when you
hold the handle) the throttle
(B) is released. When the grip
on the handle is released the
throttle and the throttle
trigger lock return to their
original positions. This takes
place via two independent
return spring systems. This
means that the throttle is
automatically locked in its
“idling“ position.
2. Stop switch
The stop switch should be
used to stop the engine.
Never use a machine with defective safety
equipment. Follow the control,
maintenance and service instructions
described in this section.
A
B
A
B
BOOTS
Use anti-slip and stable
boots.
CLOTHING
Wear clothes made of a
strong fabric and avoid loose
clothing that can catch on
shrubs and branches. Always
wear heavy, long pants. Do
not wear jewelry, short pants,
sandals or go barefoot. Secure
hair so it is above shoulder
level.
FIRST AID KIT
A first aid kit should be
carried by operators of
clearing saws, brushcutters or
trimmers.
4 – English
"
SAFETY INSTRUCTIONS
3. Cutting
attachment guard
This guard is intended to
prevent objects from being
thrown towards the operator
and to protect the operator
from unintentionel contact
with the cutting attachment.
WARNING!
Under no circumstances may the cutting
!
equipment be used without an approved
guard fitted. See the chapter
data”
. If the wrong guard or a defective
guard is fitted this can cause serious
personal injury.
4. Vibration
damping system
Your machine is equipped
with a vibration damping
system, which is designed to
give as vibration-free and
comfortable use as possible.
Use of incorrectly wound
cord or incorrect cutting
equipment increases the level
of vibration.
The machine’s vibration
damping system reduces the
transfer of vibrations between
the engine unit/cutting
equipment and the machine’s
handle unit.
“Technical
!
WARNING!
Over exposure to vibrations can result in
blood-vessel or nerve injury to persons
suffering with blood circulation problems.
Seek medical attention if you experience
physical symptoms that can be related to
over exposure to vibrations. Examples of
such symptoms are “numbness“, lack of
feeling, “tickling“, “pricking“, “pain“ lack of
or a reduction in normal strength, changes
in the colour of the skin or its surfaces.
These symptoms normally appear in the
fingers, hands or wrists.
English – 5
SAFETY INSTRUCTIONS
5. Muffler
The muffler is designed to
give the lowest possible noise
level and to direct the engine‘s
exhaust fumes away from the
operator. Muffler fitted with
catalytic converter is also
designed to reduce harmful
exhaust components.
In countries that have a warm
and dry climate the risk of fire
is obvious. We have therefore
fitted certain mufflers with a
spark arrest screen. Make sure
that your muffler is fitted with
this kind of screen.
It is extremely important that
the instructions for checking,
maintaining and servicing the
muffler are followed. (see the
section “Control, maintenance
and service of the machine‘s
safety equipment“).
WARNING!
!
Mufflers fitted with catalytic converters
become extremely hot during use and
after stopping. This also applies at idling
speeds. Contact can result in burns to
the skin. Be observant to the risk of fire!
6. Cutting
equipment
1) Grass blades are
intended for brush cutting.
2) The trimmer head is
intended for trimming
grass.
7. Locking nut
A locking nut is used to secure
some types of cutting
equipment on the output
shaft.
1
2
!
WARNING!
Bear in mind that exhaust fumes:
• contain carbon monoxide, which can
cause carbon monoxide poisoning.
Therefore never start or run the machine
indoors.
• are hot and can contain sparks that can
cause fires. Never start the machine
indoors or close to inflammable material.
6 – English
SAFETY INSTRUCTIONS
Control, maintenance and service of
the machine‘s safety equipment
IMPORTANT INFORMATION
• All service and repairs to the machine require
special training.
• This applies especially to the machine‘s safety
equipment. If the machine does not meet any of
the controls listed below you should contact your
service workshop.
• The purchase of one of our products
guarantees that professional repair and servicing
will be carried out on it. If the point of purchase is
not one of our servicing dealers, please ask for
details of the closest service workshop.
1. Throttle trigger
lock
• Check that the throttle is
locked in the “idling
position“ when the throttle
trigger lock is in its
original position.
• Press in the throttle trigger
lock and make sure it
returns to its original
position when released.
3. Cutting
attachment guard
• Ensure that the spray guard
is undamaged and is not
cracked.
• Replace the guard if it has
been exposed to impact or
is cracked.
• Always use the prescribed
blade an guard
combination, see chapter
"Technical data".
4. Vibration
damping system
• Check the vibration
damping element regularly
for material cracks and
distortion.
• Check that the vibration
damping element is
undamaged and securely
attached.
• Ensure that the throttle
and throttle trigger lock
move easily and that their
return spring systems
function.
• See section "Start". Start
the machine and apply full
throttle. Release the
throttle and check that the
cutting equipment stops
and remains at a standstill.

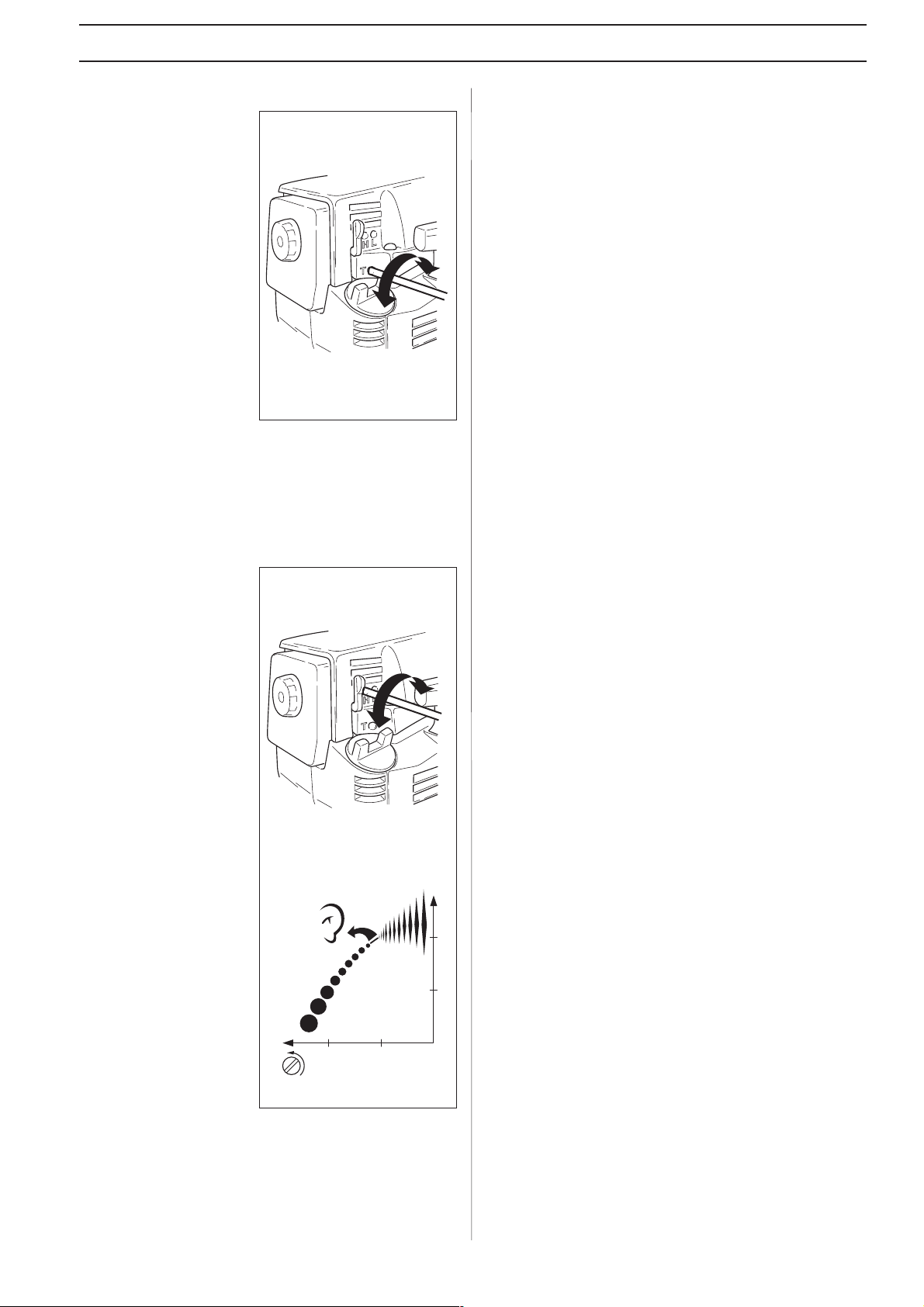

If the cutting equipment
rotates with the throttle in
the idling position then
the carburettor‘s idling
setting must be checked.
See chapter “Maintenance“.
2. Stop switch
• Start the engine and make
sure that the engine stops
when the stop switch is
moved to the stop
position.
#
5. Muffler
1.Never use a machine that
has a defective muffler.
2.Check regularly that the
muffler is secure.
3.If your muffler is fitted
with a spark arrest screen
then it should be cleaned
regularly. A blocked screen
leads to the engine
overheating with serious
damage as a result. Never
use a muffler with a
defective spark arrest
screen.
English – 7
SAFETY INSTRUCTIONS
6. Cutting equipment
This section describes how through correct maintenance and
through using the right type of cutting equipment you can:
• Reduce the machine‘s tendency to kickback
• Obtain maximum cutting capacity.
• Increase the service life of the cutting equipment.
The three basic rules:
1 Only use the cutting and
guard equipment we
recommend! See chapter
“Technical data“.
2 Keep the blade‘s teeth well
and correctly sharpened!
Follow our instructions
and use the recommended
filing gauge. An incorrectly
sharpened or damaged
blade increases the risk of
an accident.

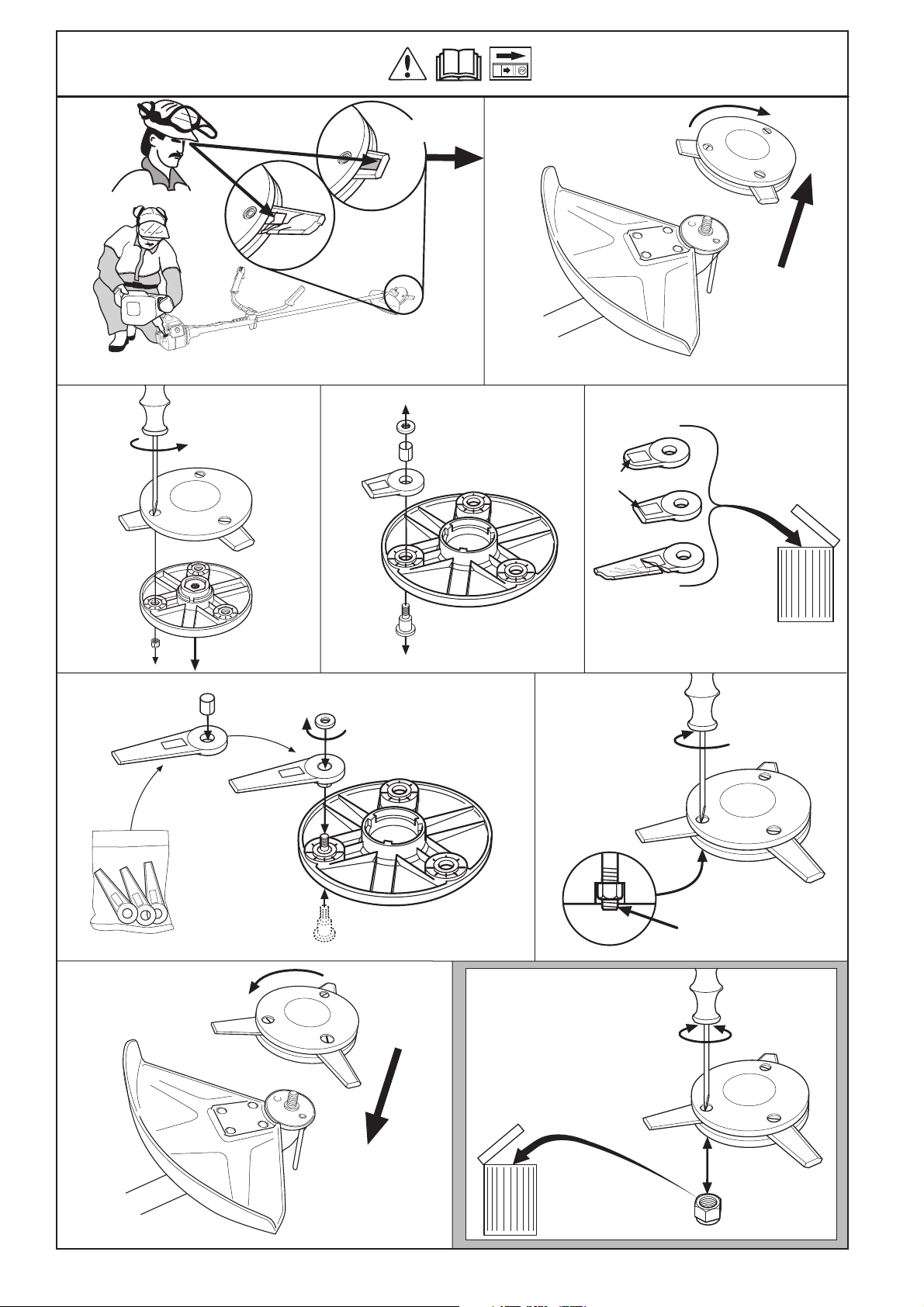

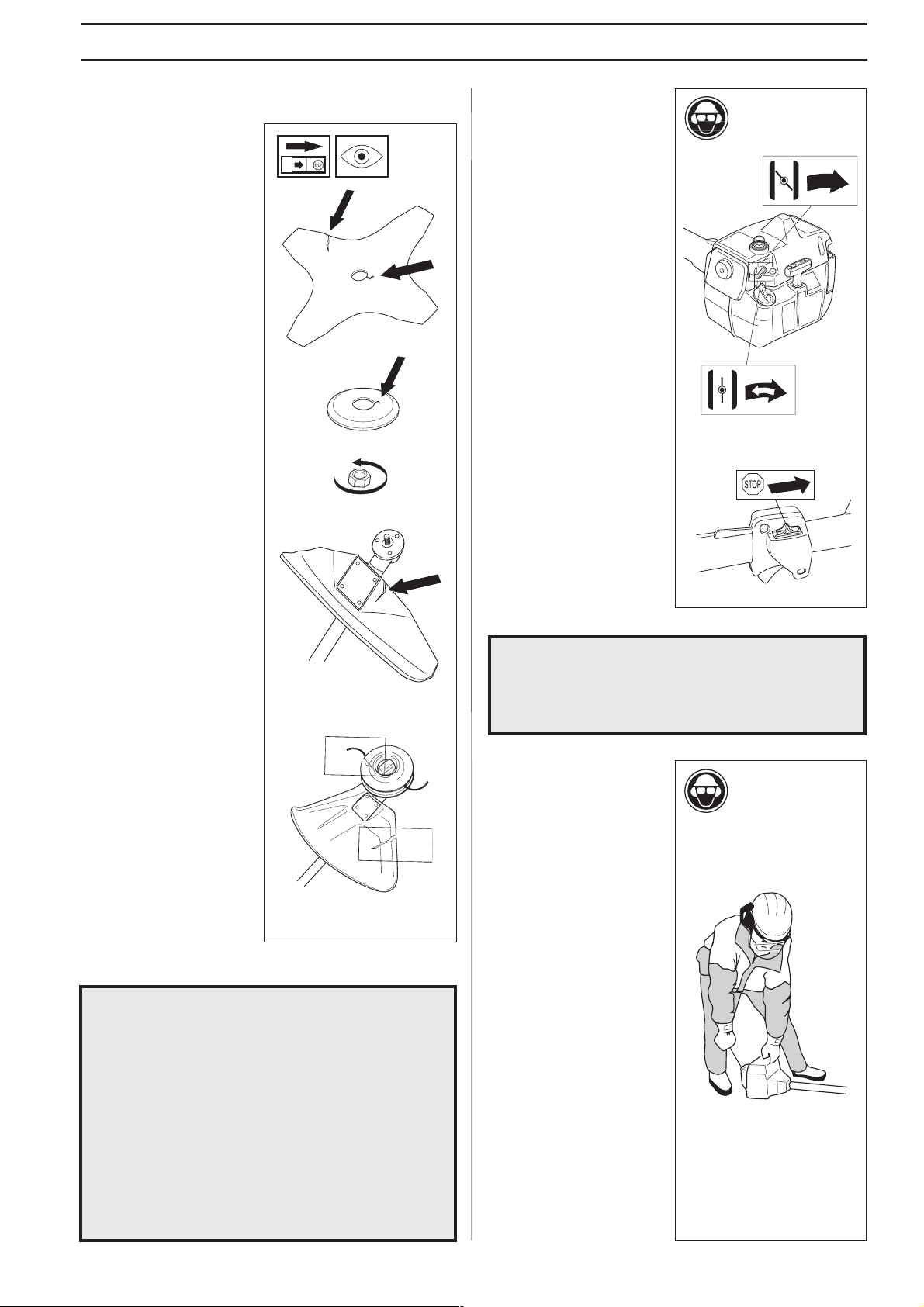

7. Locking nut
• Protect your hand from
injury when assembling,
use the blade guard as
protection when tightening
with a socket spanner.
Tighten the nut by turning
against the direction of
rotation. Loosen the nut by
turning in the direction of
rotation. (NOTE! the nut
has a left-hand thread).
• Tighten the nut using a
socket spanner, 35 - 50 Nm
(3.5 - 5 kpm).
NOTE!
The locking nut‘s nylon lock must not be so worn that it can
be turned by hand. The lock shall hold at least 1.5 Nm. The
nut should be replaced after it has been put on approx. 10
times.
3 Check the cutting
equipment with regard to
damage and crack
formation. Damaged
cutting equipment should
always be replaced.
!
WARNING!
Never use a machine with defective
safety equipment. The safety equipment
should be maintained as described in this
section. If your machine does not meet
any of these controls you should contact
your service workshop.
8 – English
SAFETY INSTRUCTIONS
Cutting equipment
IMPORTANT INFORMATION
The section describes how through correct
maintenance and through using the right type of
cutting equipment you can reduce the machine‘s
tendency to kickback, obtain maximum clearing
capacity and increase the service life of the cutting
equipment.
• Only use the cutting and guard equipment we
recommend! See chapter
•
Refer to the instructions for the cutting equipment
for the correct winding of cord and for the
selection of the right cord diameter.
• Keep the blade’s teeth well and correctly
sharpened! Follow our recommendations. Also
refer to the instructions on the blade packaging.
WARNING!
Incorrect cutting equipment or an
!
incorrectly sharpened blade increases
the risk of kickback.
Filing the grass
blade
• See the cutting equipment’s
packaging for correct filing
instructions.
“Technical data“.

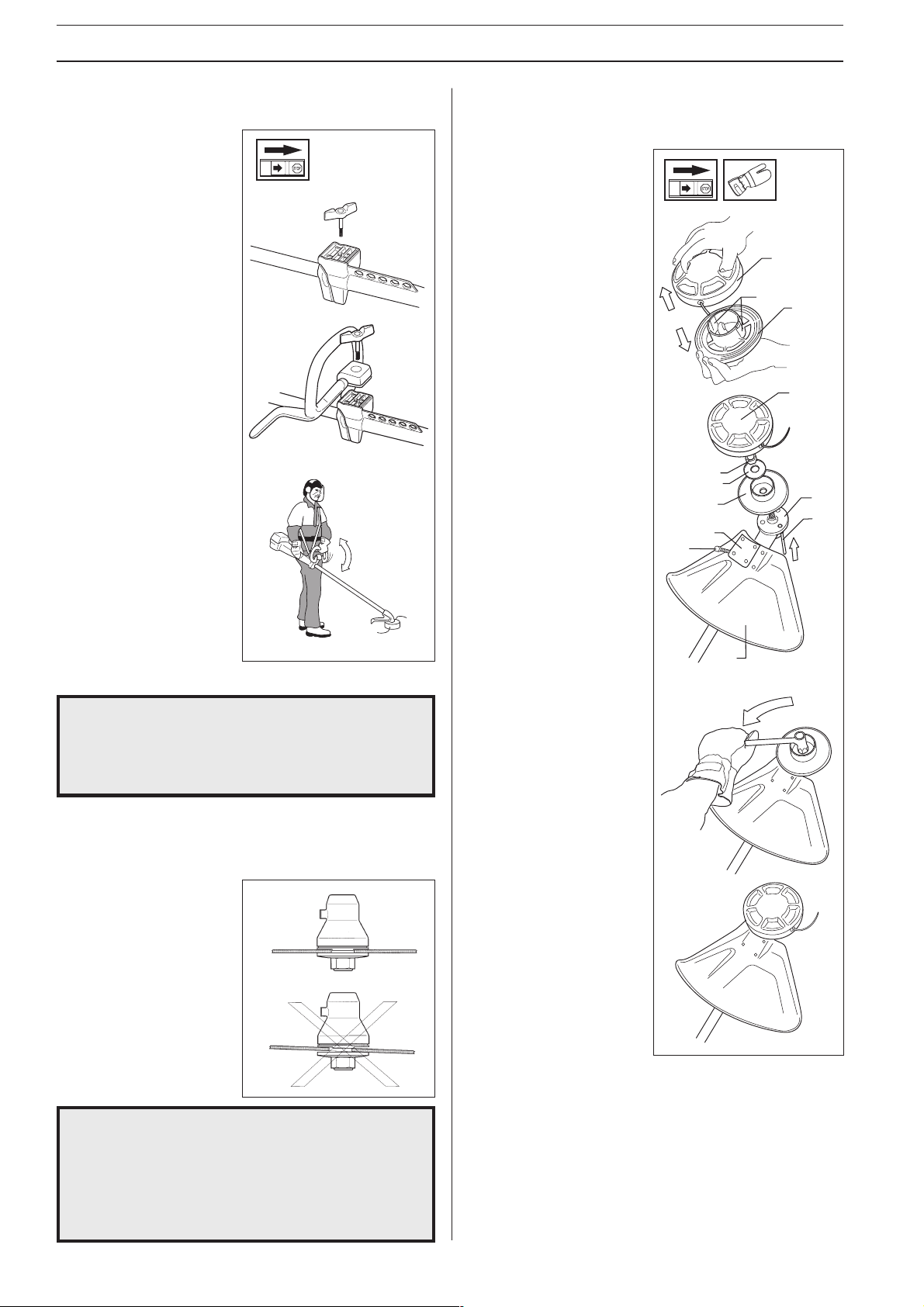

• Generally smaller machines require a small trimmer head
and vice versa. This is because when clearing using a cord
the engine must throw out the cord radially from the
trimmer head and also meet resistance from the grass being
cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of the
same diameter.
• Make sure the knife positioned on the trimmer guard is
intact. This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in water for
a few days. This will make the line tougher and it will keep
longer.
IMPORTANT INFORMATION

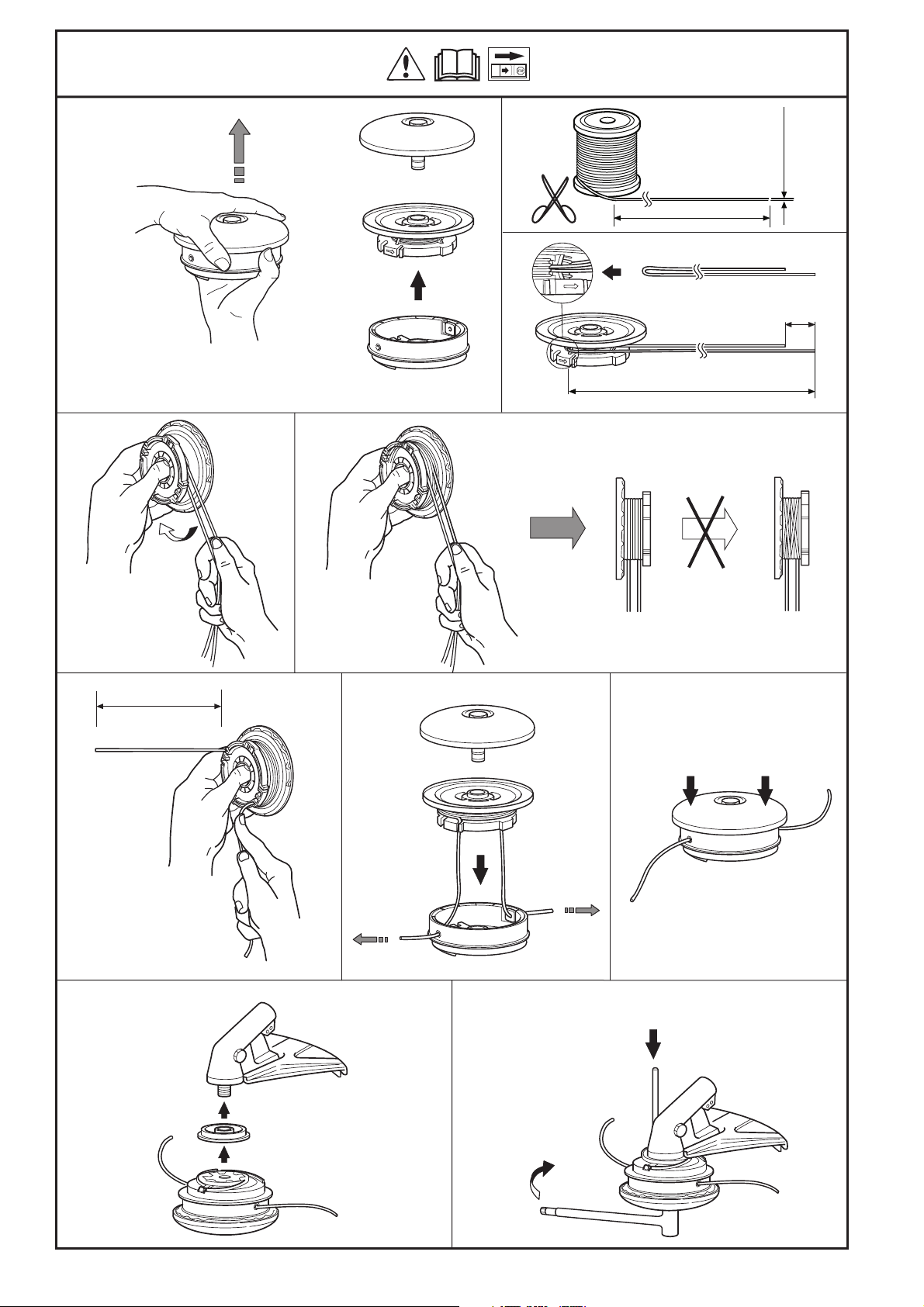

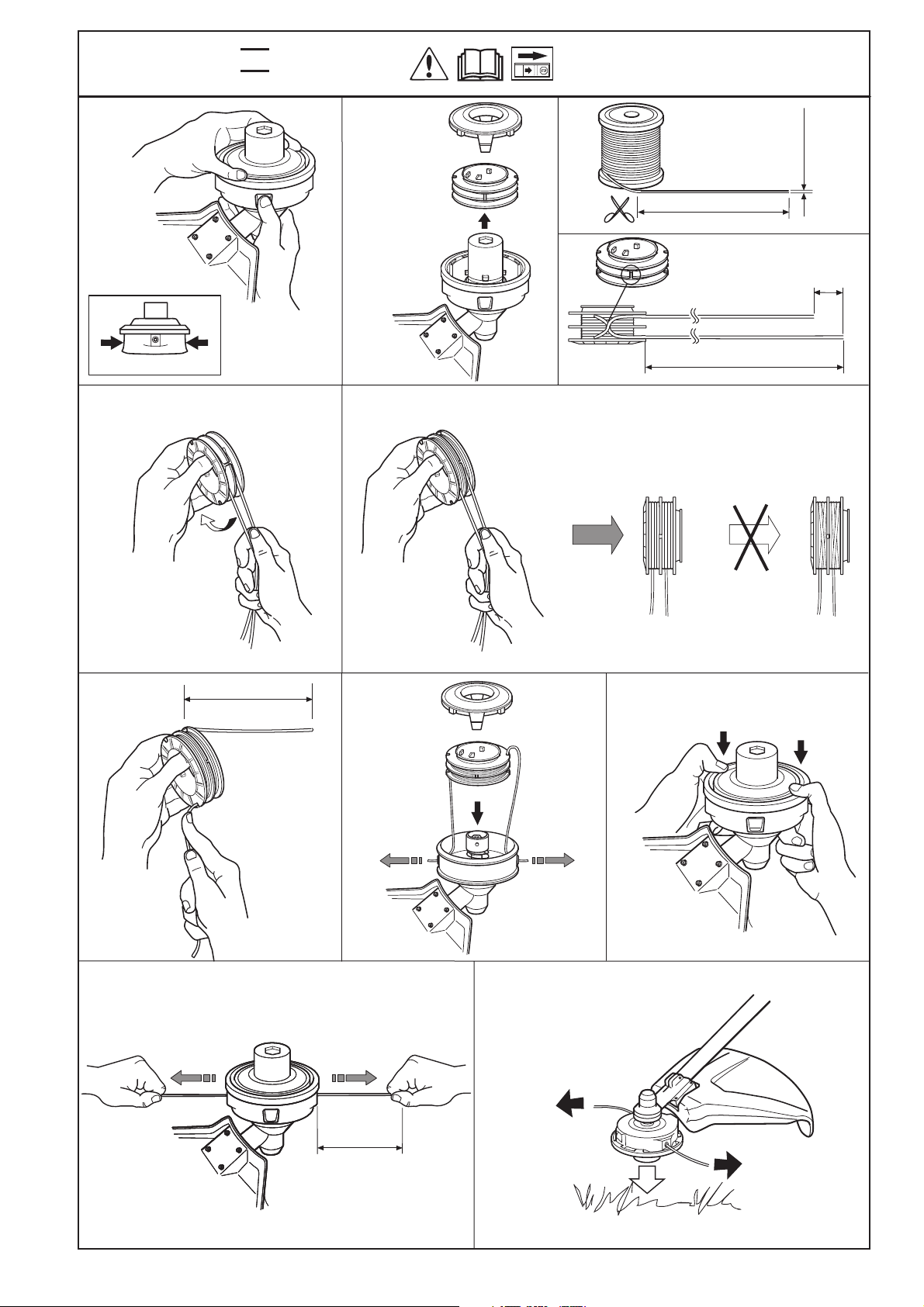

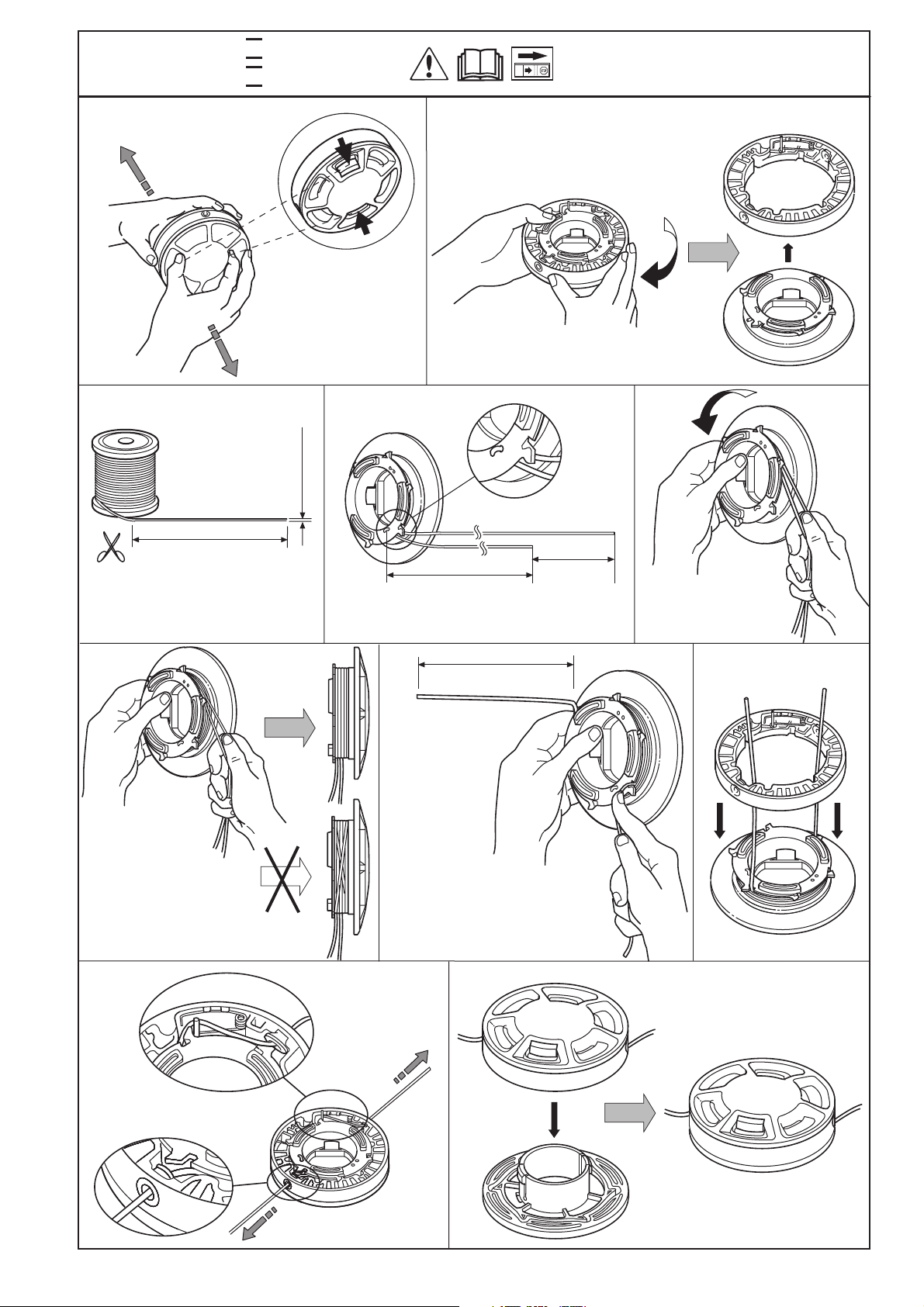

Always ensure the trimmer cord is wound tightly
and evenly around the drum, otherwise harmful
vibrations will occur.
WARNING!
!
Always stop the engine before starting
work on any part of the cutting equipment.
This continues to rotate even after the
throttle has been released. Ensure that the
cutting equipment has stopped completely
and remove the cable from the spark plug
before you start to work on it.
• The blades are sharpened
using a single cut flat file.
• Sharpen all edges equally to
maintain the balance of the
blade.

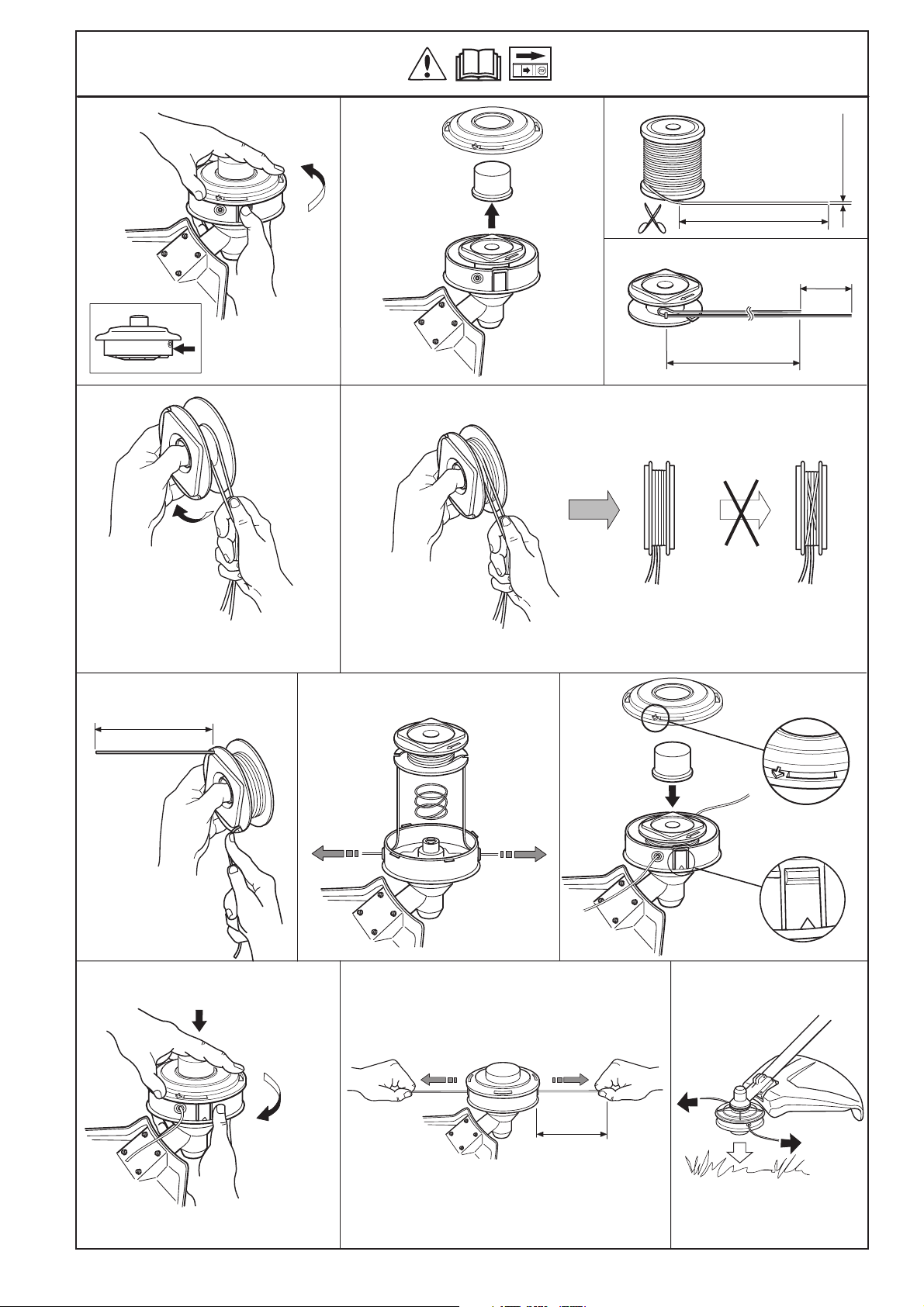

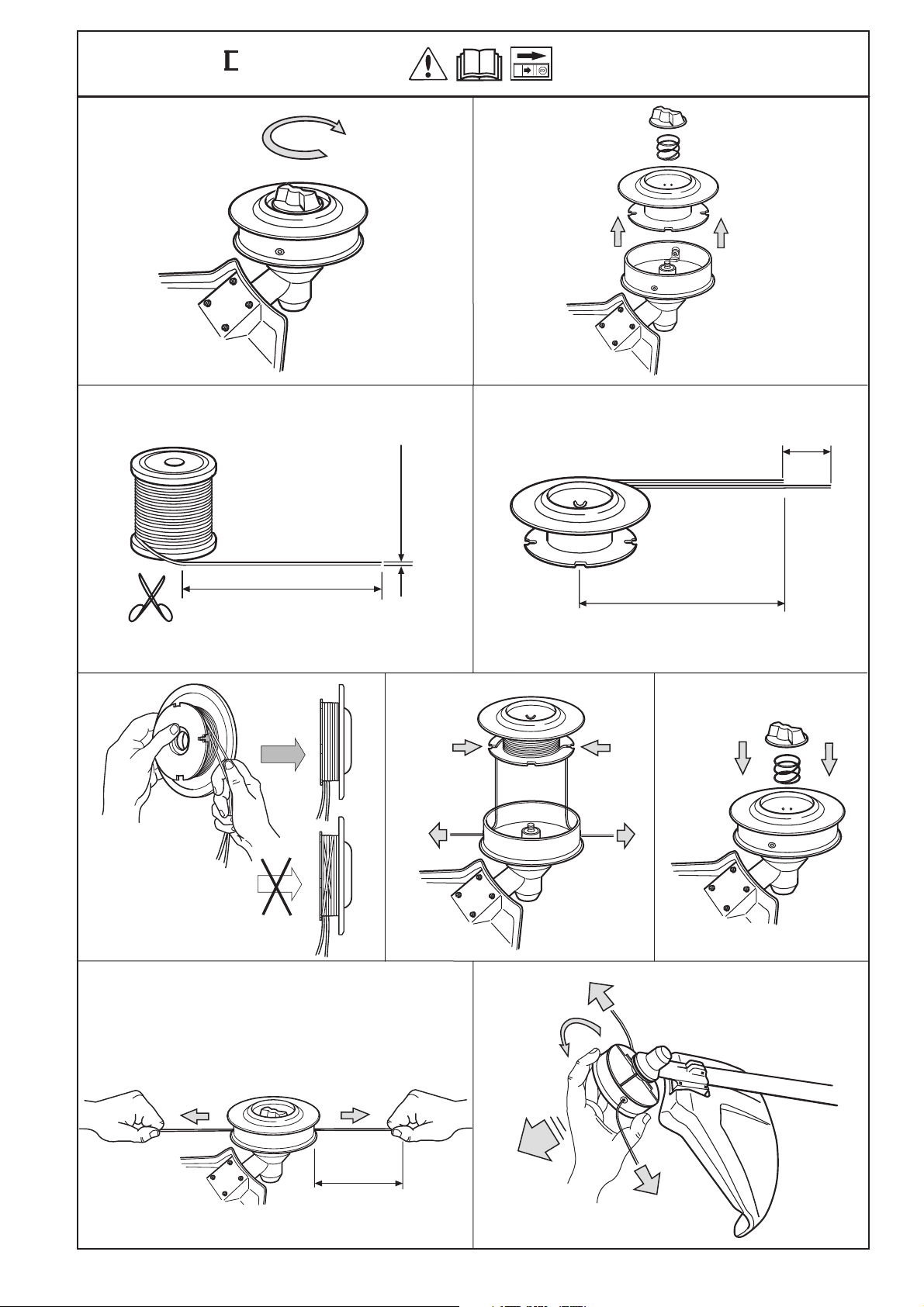

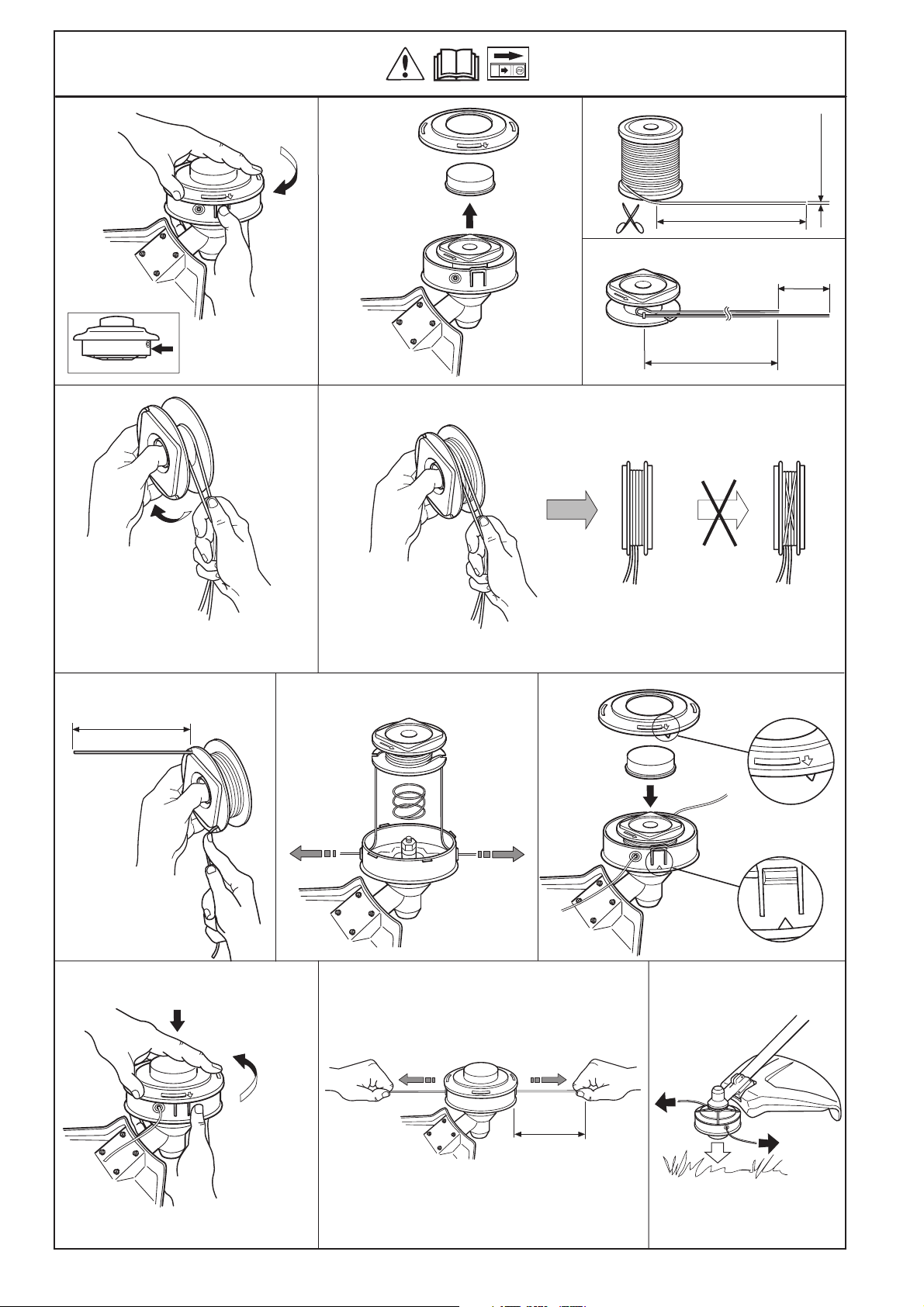

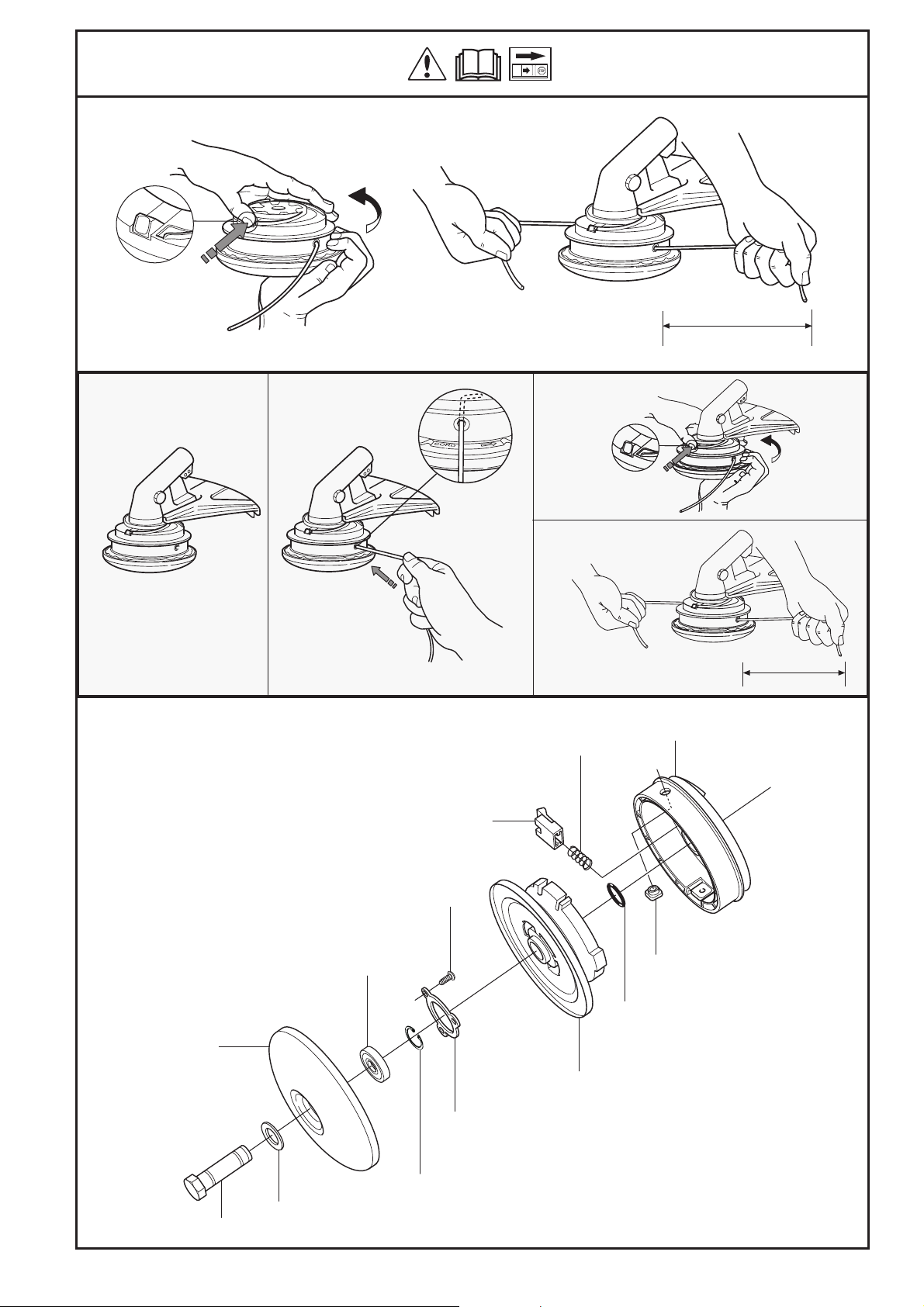

Trimmer head
• Only use a trimmer head
and trimmer cord that is
recommended. These have
been tested by the
manufacturer to suit a
particular engine size. This
is especially important
when a fully automatic
trimmer head is used. Only
use the cutting equipment
we recommend! See chapter
“Technical data“.
English – 9
SAFETY INSTRUCTIONS
General safety instructions
IMPORTANT INFORMATION
• The machine is only designed for trimming grass.
• The only accessories to be used with the engine
unit as a drive source are the cutting units we
recommend in the chapter
• Never use the machine if you are tired, if you
have consumed alcohol, or if you are taking
medicines that can affect your sight, your
judgement or the control of your body.
• Use personal protective equipment. See the
section
• Never use a machine that has been modified so
that it no longer corresponds with the original
design.
• Never use a machine that is faulty. Follow the
maintenance, control and service instructions in
this Operator‘s Manual. Some maintenance and
service actions should be carried out by trained
and qualified specialists. See the chapter
“Maintenance“
• All covers and guards must be fitted before
starting the machine. Check that the spark plug
cap and HT lead are not damaged, otherwise you
could get an electric shock.
• The machine operator shall ensure, while
working, that no persons or animals come closer
than 15 metres (50 feet). When several operators
are working in the same area the safety distance
should be at least double tree length, however, at
least 15 metres (50 feet).
!
“Personal protective equipment“.
.
WARNING!
Faulty cutting equipment increases the risk
of accidents.
“Technical data“

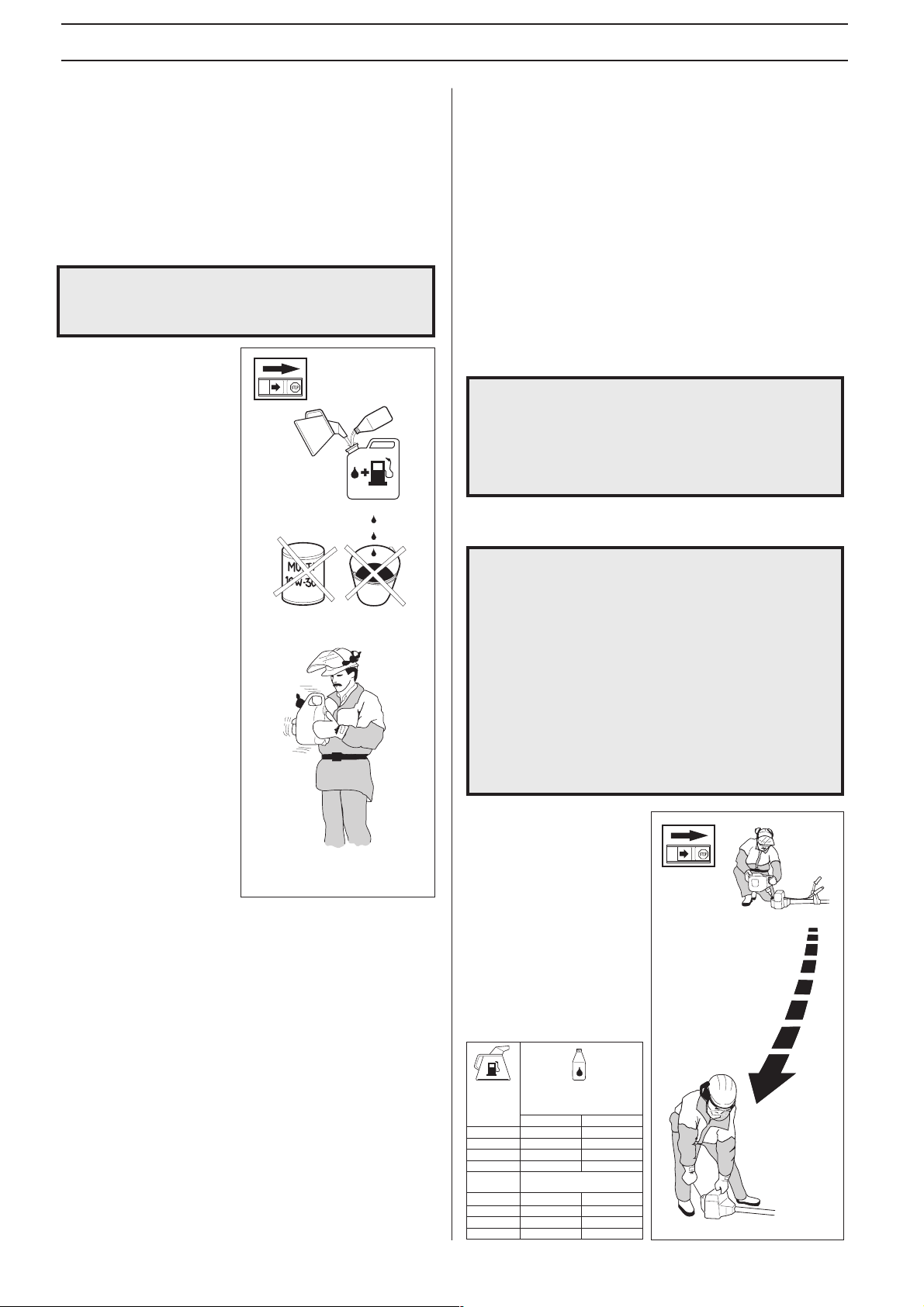

Fuel safety
• Always use a fuel container
with an anti-spill valve.
.
• Never fill the machine while
the engine is running.
Always stop the engine and
let it cool for a few minutes
before refuelling.
• Provide good ventilation
when filling or mixing fuel
(petrol and 2-stroke oil).
• Move the machine at least 3
m from the filling position
before starting.
• Never start the machine:
a)If you have spilt fuel on it.
Wipe up all spillage.
b)If you have spilt fuel on
yourself or your clothes.
Change your clothes.
c)If there is a fuel leak. Make
regular checks for leakage
from the fuel cap and the
fuel supply pipes.
Min. 3 m
(10 ft)
Start
WARNING!
!
• The complete clutch cover with shaft must be fitted before
the machine is started, otherwise the clutch can become
loose and cause personal injury.
• Never start the machine indoors. Bear in mind the dangers
of inhaling the engine‘s exhaust fumes.
• Observe your surroundings and make sure that there is no
risk of people or animals coming into contact with the
cutting equipment.
• Place the machine on the
ground, ensure the cutting
equipment runs free of
twigs and stones. Push the
machine body towards the
ground using your left
hand. (NOTE! Not with
your foot). Grip the starter
handle with your right
hand and pull the
startercord.
When the engine is started with the choke
in either the choke or start throttle positions
the cutting equipment starts to rotate
immediately.
Transport and storage
• Store and transport the machine and fuel so that any leakage
or fumes do not risk coming into contact with sparks or
naked flames. For example, electric machines, electric
motors, electrical switches/power switches, heaters or the
like.
• When storing and transporting fuel approved containers
intended for this purpose must be used.
• When storing the machine for long periods the fuel tank
must be emptied. Contact your local petrol station to find
out how to dispose of excess fuel.
WARNING!
!
Exercise great care when handling fuel.
Bear in mind the risk of fire, explosions and
inhaling fumes.
10 – English
SAFETY INSTRUCTIONS
General working instructions
IMPORTANT INFORMATION
• This section takes up the basic safety
precautions for working with the trimmer.
• If you encounter a situation where you are
uncertain how to proceed you should ask an
expert. Contact your dealer or your service
workshop.
• Avoid all usage which you consider to be
beyond your capability.
Basic safety precautions
1.Observe your surroundings:
• To ensure that people, animals or other things cannot affect
your control of the machine.
• To ensure that the above mentioned do not come into
contact with the cutting equipment or objects that can be
thrown by the cutting equipment.
• NOTE! Never use a machine without the possibility of
calling for help in the event of an accident.
Basic working techniques
• Always drop to idling speed after each working operation.
Longer periods running at full throttle without loading the
engine (that is without resistance, which the engine feels
from the cutting equipment when trimming) can lead to
serious engine damage.
Designations
• Brush cutting is a general
term for clearing grass.
Grass blades are used for
this purpose.
• Grass trimming is a
general term for light
clearing, e.g. around edges
or around trees. A
trimmer head or plastic
blade is used.
WARNING!
Sometimes branches, grass or wood can
!
get caught between the guard and cutting
equipment. Always stop the engine when
cleaning.
2.Avoid usage in
unfavourable weather
conditions. For example,
thick fog, heavy rain,
strong winds or extreme
cold, etc. To work in bad
weather conditions is tiring
and can create dangerous
circumstances, e.g. slippery
surfaces.
3.Make sure you can walk
and stand safely. Look out
for any obstacles with
unexpected movement
(roots, stones, branches,
pits, ditches, etc.). Take
great care when working
on sloping ground.
4.The engine should be switched off before moving. When
moving over longer distances and transporting the transport
guard should be used.
5.Never put the machine down with the engine running
unless you have good sight of it.
Brush cutting using a grass blade
• A blade is used for all
types of high or thick
grass.
• The grass is cut down
with a sideways, swinging
movement, where the
movement from right-toleft is the clearing stroke
and the movement from
left-to-right is the return
stroke. Let the blade work
on the left-hand side
(between 8 and 12
o’clock).
• If the blade is angled to the left when clearing the grass will
collect in a line, which makes collection easier, e.g. when
raking.
• Try to work rhythmically. Stand firmly with your feet apart.
Move forward after the return stroke and stand firmly again.
• Let the support cup rest lightly against the ground. It is used
to protect the blade from hitting the ground.
• Reduce the risk of material wrapping around the blade by
following these instructions:
a) Always work at full throttle.
b) Avoid the previously cut material during the return
stroke.
• Stop the engine, loosen the harness and place the machine
on the ground before you start to collect the cut material.
English – 11
SAFETY INSTRUCTIONS
Grass trimming
using the trimmer
head and plastic
knifes
• Hold the trimmer head
just above the ground at an
angle. It is the end of the
cord that carries out the
work. Let the cord work at
its own pace. Do not press
the cord into the area to be
cut.
• The cord can easily remove
grass and weeds up against
walls, fences, trees and
borders, however, it can
also damage sensitive bark
on trees and bushes and
damage fence posts.
• Reduce the risk of
damaging plants by
shortening the cord to 1012 cm and reducing the
engine speed.
Clearing
• The clearing technique
removes all unwanted
vegetation. Keep the
trimmer head just above
the ground and tilt it. Let
the end of the cord strike
the ground around trees,
posts, statues and the like.
NOTE! This technique
increases the wear on the
cord.
• The cord wears quicker
and must be fed forward
more often when working
against stones, brick,
concrete, metal fences, etc.
than when coming into
contact with trees and
wooden fences.
• When trimming and
clearing you should use less
than full throttle so that
the cord lasts longer and to
reduce the wear on the
trimmer head.
Trimming
• The trimmer is ideal to cut
grass that is difficult to
reach using a normal lawn
mower. Keep the cord
parallel to the ground
when cutting. Avoid
pressing the trimmer head
against the ground as this
can ruin the lawn and
damage the tool.
• Do not allow the trimmer
head to constantly come
into contact with the
ground during normal
cutting procedures.
Constant contact can cause
damage and wear to the
trimmer head.
Sweeping
• The rotating cord‘s
fanning effect can be used
for quick and easy
cleaning. Hold the cord
parallel to and above the
area to be swept and move
the trimmer from side to
side.
• When cutting and
sweeping you should use
full throttle to obtain the
best results.
WARNING!
Neither the user of the tool or anyone else
!
!
may attempt to remove the cut material while
the engine is running or with the blade
rotating as this can result in serious injury.
Stop the engine and blade before you
remove material that has wound around the
blade as otherwise there is a risk of injury.
The bevel gear unit can get hot during use
and may remain so for a while afterwards.
There is a risk of slight burns if you touch it.
WARNING!
Warning for thrown objects. Always wear
protective glasses. Never lean over the
guard. Stones, rubbish, etc. can be thrown
up into the eyes causing blindness or
serious injury.
Keep unauthorised persons at a distance.
Children, animals, onlookers and helpers
should be kept outside the safety zone of
15 m (50 feet). Stop the machine
immediately if anyone approaches.
12 – English
Loading...
