Ryobi 130155001, P103, 140501005, 130429002, P104 User Manual

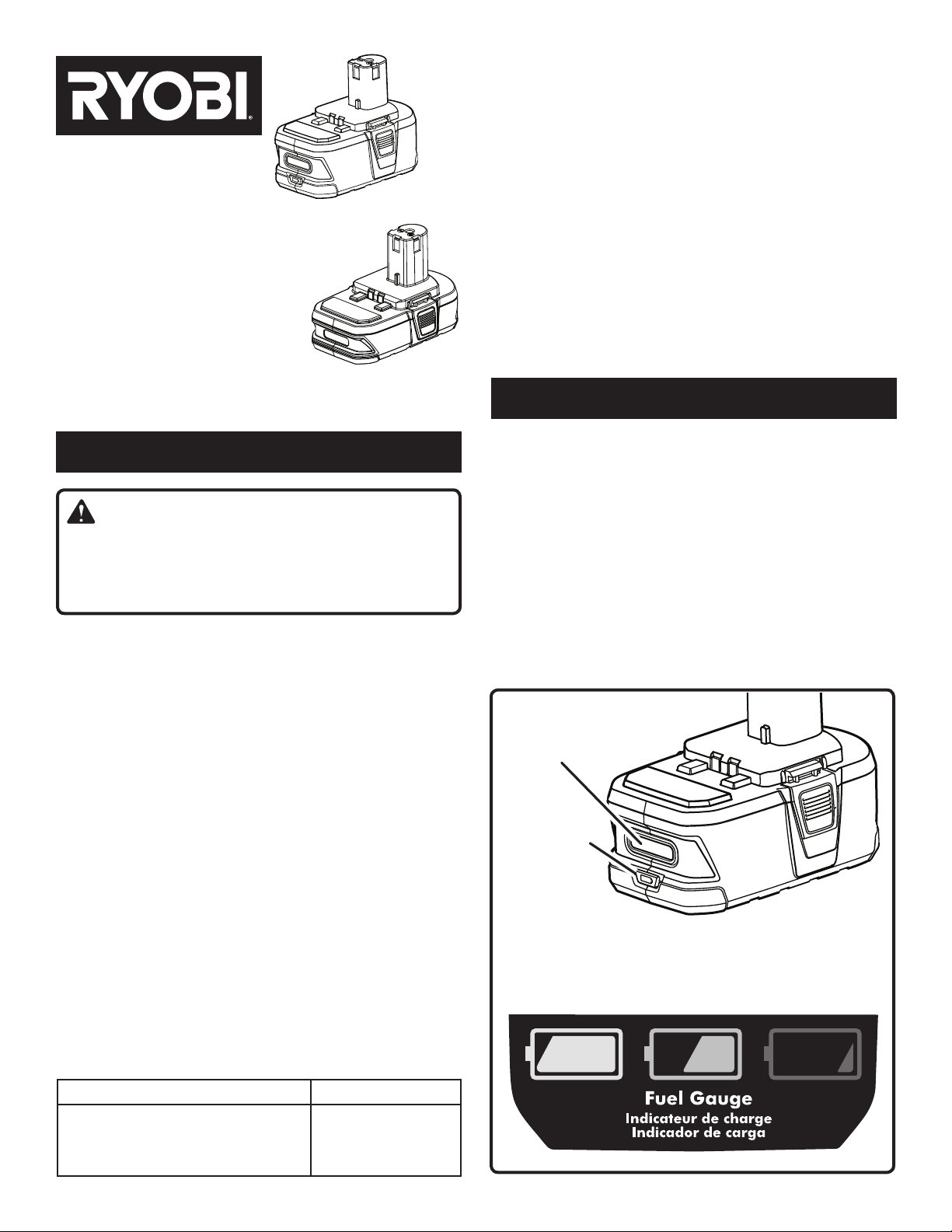

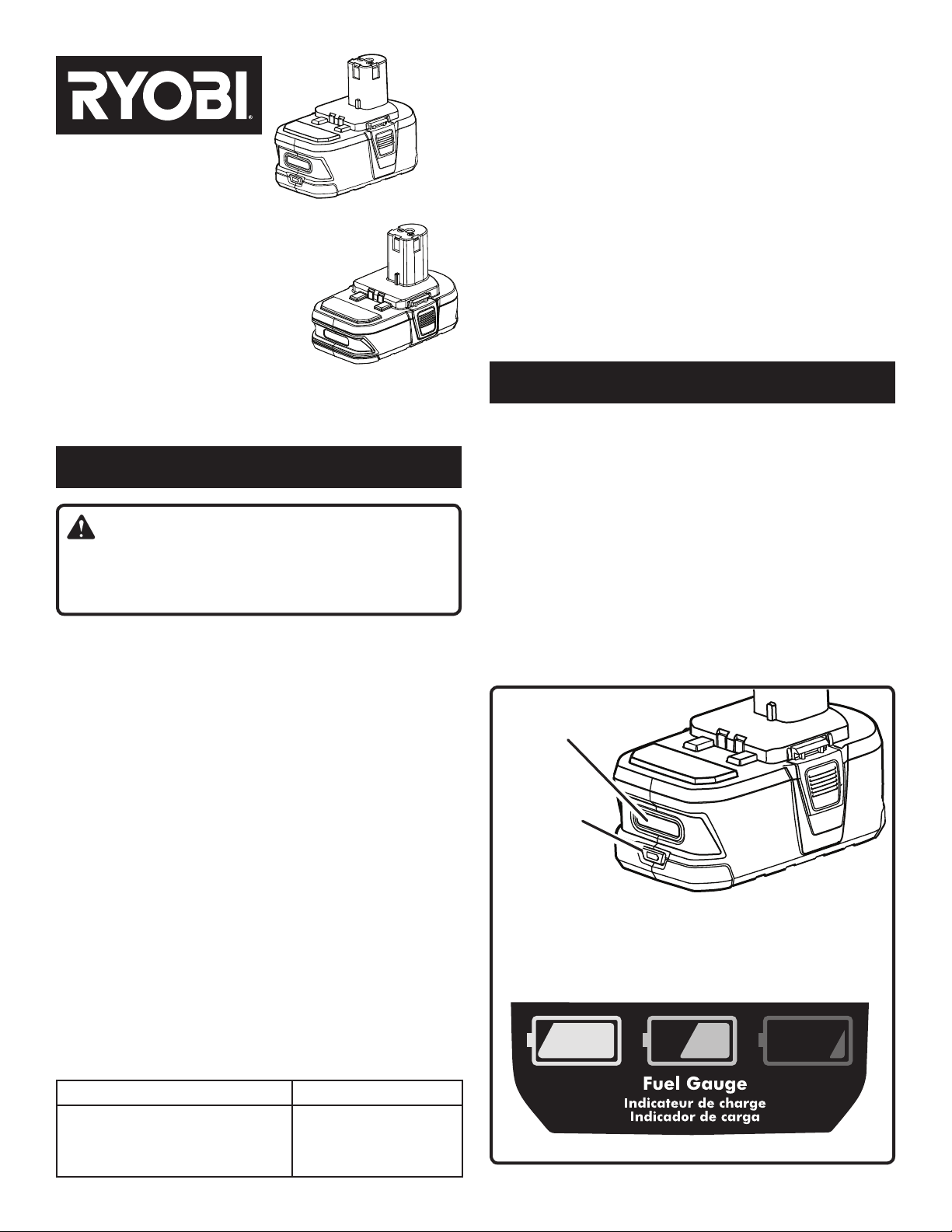

18 volt LITHIUM-ION

battery packs

P104



P104 (130429001,



130429002, 130155001)



P103 (130429004)



Always mention the above model



numbers when communicating with



us regarding battery pack.

P103



Use battery pack for Ryobi cordless

products only. Refer to the Operator’s Manual provided with product.

safety rules

WARNING!

Read and understand all instructions.

Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.

Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.

Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.

Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.

Do not charge battery tool in a damp or wet location.

Following this rule will reduce the risk of electric shock.

Recommended chargers:

BATTERY PACK

CHARGER (P113)





(P104) 130429001, 130429002,

140501001

130155001

140501005

(P103) 130429004







For best results, your battery tool should be charged in a location where the temperature is more than 50°F but less than 100°F. To reduce the risk of serious personal injury, do not store outside or in vehicles.

Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.

Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them these instructions also to prevent misuse of the product and possible injury.

operation

Fuel Gauge (P104 ONLY)

See Figure 1.

To display the amount of charge left in the battery, press and hold the fuel gauge button.

If the charge indicator light glows green, the battery pack is fully charged.

If it glows yellow, it has a usable charge remaining but will soon require recharging.

If it glows red, the battery requires recharging as indicated by the fuel gauge symbols on top of the battery.

CHARGE

INDICATOR

LIGHT

FUEL

GAUGE

BUTTON





P104

GREEN =

YELLOW =

RED =

FULL CHARGE

USABLE CHARGE

REQUIRES



REMAINS BUT WILL

RECHARGING



SOON REQUIRE





RECHARGING



Fig. 1

BATTERY PROTECTION FEATURES

Ryobi One+ 18 V lithium-ion batteries are designed with features that protect the lithium-ion cells and maximize battery life.

If the tool stops during use, release the trigger to reset and resume operation. If the tool still does not work, the battery needs to be recharged.

NOTE: The LED charge indicator light will not work if the battery protection feature has caused the battery pack to stop powering the tool. When the battery pack resets itself, the LED will again function.

CHARGING THE BATTERY PACK

NOTE: The P113 charger will also charge Ryobi One+ 18 V Ni-Cd battery packs.

Battery packs are shipped in a low charge condition to prevent possible problems. Therefore, you should charge them until the green LED on the front of the charger comes on.

If the charger does not charge the battery pack under normal circumstances, return both the battery pack and charger to your nearest Authorized Service Center for electrical

check.

TO CHARGE

Use battery pack only with the recommended charger.

Connect the charger to the power supply. Make sure the power supply is normal household voltage, 120 volts, AC only, 60 Hz.

Make sure the latches on each side of the battery pack snap into place and the battery pack is secured in the charger before beginning operation.

Place the battery pack in the charger aligning raised rib on the battery pack with the groove in the charger.

Press down on the battery pack to be sure contacts on the battery pack engage properly with contacts in the charger. See Figure 1.

Do not place the charger and battery pack in an area of extreme heat or cold. They will work best at normal room temperature.

Note: The charger and battery pack should be placed in a location where the temperature is more than 50°F but less than 100°F.

The battery pack will become slightly warm to the touch while charging. This is normal and does not indicate a problem.

After charging is complete, the green LED will remain on until the battery pack is removed from the charger or charger is disconnected from the power supply.

When batteries become fully charged, unplug the charger from the power supply and remove the battery pack.

To remove the battery pack from the charger, depress the latches on each side of the battery pack.

CHARGING A HOT BATTERY PACK

If the battery pack is above normal temperature range, the red LED will begin flashing and the green LED will be off. When the battery pack cools down to approximately 122°F, the charger will automatically begin fast charge mode.

CHARGING A COOL BATTERY PACK

If the battery pack is below normal temperature range, the red LED will begin flashing and the green LED will be off. When the battery warms to a temperature of more than 32°F, the charger will automatically begin charge mode.

COLD WEATHER OPERATION

The lithium-ion battery pack can be used in temperatures down to -4°F. Put the battery pack on a tool and use the tool in a light duty application. After about a minute, the pack will have warmed up and begin operating normally.

BATTERIES

These batteries have been designed to provide maximum trouble-free life. However, like all batteries, they will eventually wear out. Do not disassemble battery pack and attempt to replace the batteries. Handling of these batteries, especially when wearing rings and jewelry, could result in a serious burn.

To obtain the longest possible battery life, we suggest the following:

Remove the battery pack from the charger once it is fully charged and ready for use.

For battery pack storage longer than 30 days:

Store the battery pack where the temperature is below 80°F and away from moisture.

Store battery packs in a 30%-50% charged condition.

Every six months of storage, charge the pack as normal.

BATTERY PACK REMOVAL AND

PREPARATION FOR RECYCLING

To preserve natural resources, please recycle or dispose of batteries ­properly.



This product contains lithium-ion

Li - Ion

batteries. Local, state or federal laws

may prohibit disposal of lithium-ion





batteries in ordinary trash.

Consult your local waste authority for information regarding available recycling and/or disposal options.

WARNING:

Upon removal, cover the battery pack’s terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any of its components. Lithium-ion batteries must be recycled or disposed of properly. Also, never touch both terminals with metal objects and/or body parts as short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury.

Ryobi® is a registered trademark of Ryobi Limited used under license.

ONE WORLD TECHNOLOGIES, INC.

1428 Pearman Dairy Road

Anderson, SC 29625

Phone 1-800-525-2579 www.ryobitools.com

987000-146

09-03-08 (REV:04)

SAVE THESE INSTRUCTIONS
