Ryobi 105RPL User Manual

Reissued 3/00
10
11
7
8
9
3
5
4
6
3
2
1
Item Part No. Description
1 180300 Screw, Housing Set (Qty. 11) 2 145569 Anti-Rotation Screw 3 180558 Motor Housing Assembly (Serial Number 512000001 – 707000000) 3 181859 Motor Housing Assembly (Serial Number 707000001 and greater) 4 180150 Switch 5 180151 Trigger 6 180559 Lead Wires 7 180305 Terminal Block 8 180153 Motor Assembly (includes 9 & 10)
9 180152 Driver 10 180155 Cooling Fan 11 180156 Power Cord Assembly (Serial Number 512000001 – 707000000) 11 181645 Recessed Plug Assembly (Serial Number 707000001 and greater)

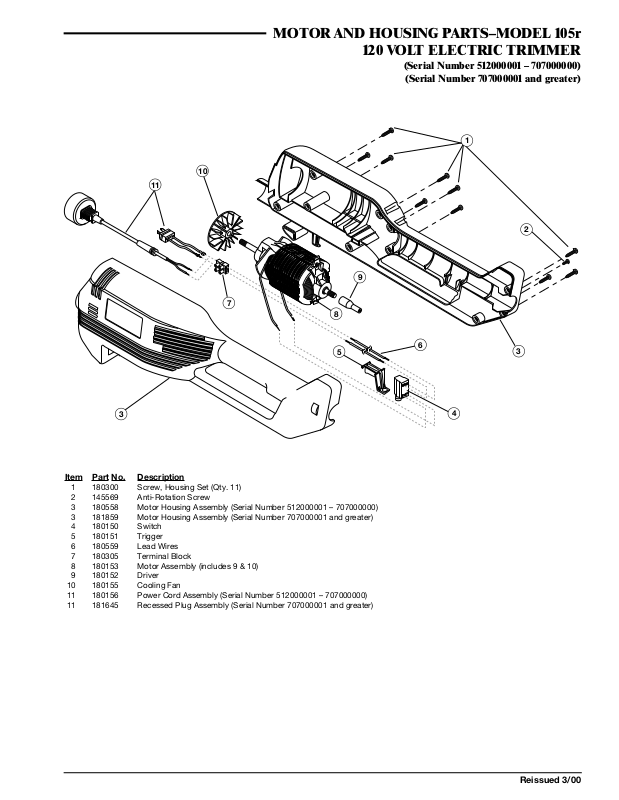

MOTOR AND HOUSING PARTS–MODEL 105r
120 VOLT ELECTRIC TRIMMER
(Serial Number 512000001 – 707000000)
(Serial Number 707000001 and greater)
Reissued 3/00
BOOM AND TRIMMER PARTS - MODEL 105r 120 VOLT ELECTRIC TRIMMER
(Serial Number 512000001 and greater)
1
2
3
4
5
7
6
9
10
11
13
14
12
15
17
16
18
20
19
21
22
23
8
Item Part No. Description
1 145819 D-Handle 2 181587 D-Handle Hardware Assembly 3 180560 Drive Shaft Housing Assembly 4 153597 Lower Clamp Assembly (includes item 7) 5 180561 Flexible Drive Shaft 6 181857 Bushing Housing Assembly w/shaft 7 145569 Anti-Rotation Screw 8 180531 Guard Mounting Screw Assembly
9 683274 Guard and Blade Assembly 10 682061 Blade Assembly 11 181457 Outer Spool and Eyelet Assembly w/ Retainer 12 181458 Retainer 13 181561 Thrust Washer 14 181459 Small Spring 15 181461 Slider 16 181532 E-Clip 17 181531 Spring 18 181462 Plunger 19 181463 C-Clip 20 181464 Inner Reel 21 181465 Large Spring 22 181467 Foam Seal 23 181468 Bump Head Knob Assembly with Spring
and Foam Seal
Optional Accessories
* 181473 .065 Replacement Line (Eight - 10 foot lengths) * 181669 Complete Cutting Head Assembly
(includes 4, 6, 7, 11-23)
* 181471 Reel and Line Assembly
* not shown
