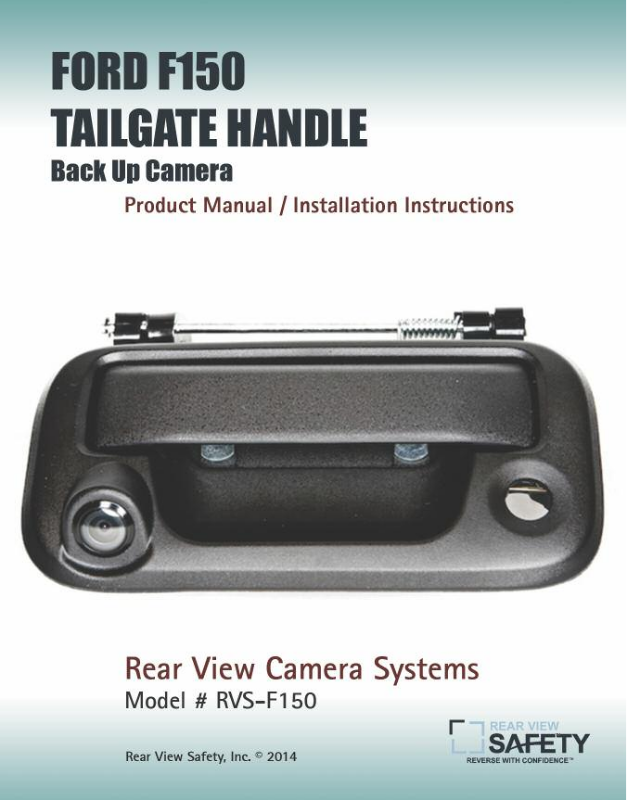

RVS Systems RVS-F150-04, RVS-718503, RVS-F150 User Manual
TM
1
What’s in the Box?
Note: Your configuration will vary depending on
your item options
• 1 Color Sony CCD night vision weather proof backup camera
• 1 Power Wire
Table of Contents
Introduction...................................................................................................4
Safety Information ..................................................................................5-7
Before Beginning Installation...................................................................8
Installation Guide..................................................................................9-10

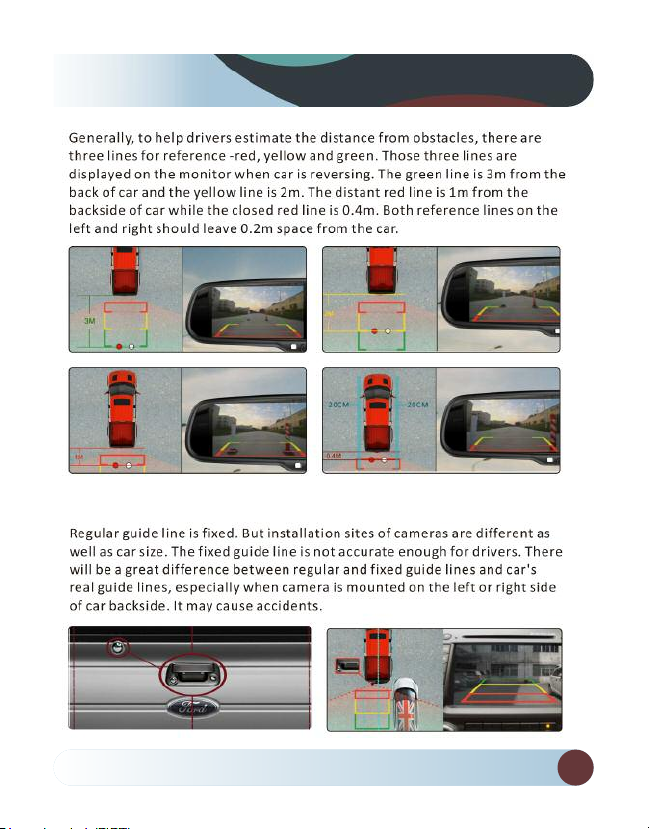

Adjustable Grid Line ..................................................................................11
Installation and Wiring ............................................................................12
Splicing .........................................................................................................13
Positioning.................................................................................................. 14
Troubleshooting..........................................................................................15
Camera Dimensions...................................................................................16
Camera Specifications..............................................................................17
Warranty.......................................................................................................18
Disclaimer ....................................................................................................19
3
Introduction
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup Camera
System! With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplemental aid to the rear view mirror in your vehicle. The
Backup Camera System should not be used as a substitute for the
standard rear view mirror or for any other mirror in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located for-
ward of the back of the driver’s seat or in any location that is vis-
ible, directly or indirectly, to the driver while operating the
vehicle.
4
REAR VIEW SAFETY
Safety Information
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage
and/or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to
this product.
warranty.
Improper installation will void manufacturer’s
USAGE
•
The Rear View Camera System
is designed to help the driver
safely detect people and/or
objects helping to avoid
damage or injury. However,
you the driver, must use it
properly. Use of this system is
not a substitute for safe,
proper or legal driving.
• Never back up while looking
at the monitor alone. You
should always check behind
and around the vehicle when
backing up, in the same way
as you would if the vehicle
did not have the Rear View
Reverse With Confidence
™
Camera System. If you back
up while looking only at the
monitor, you may cause
damage or injury. Always
back up slowly.
• The Rear View Camera Sys-
tem is not intended for use
during exstensive back-up
maneuvers or backing into
cross traffic or pedestrian
walkways.
• Please, always remember,
the area displayed by the
Rear View Camera System is
limited. It does not display
the entire panorama that is
behind you.
5
Safety Information
INSTALLATION
•
Electric shock or product
malfunction may occur if
this product is installed
incorrectly.
• Use this product within
the voltage range specified.
Failure to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
• Make sure to firmly affix the
product before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
• Where the power cable may
touch a metal case, cover the
cable with a friction tape. A
short circuit or disconnected
wire may cause a fire.
• While installing the Rear
View System be careful with
the wire positioning in order
to avoid wire damage.
• The Rear View System should
only be used when the vehicle is in reverse.
• Do not watch movies or
operate the monitor while
driving; as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
6
