Instruction Manual
9” TFT LCD Digital
Quad View Color Monitor
RVS-97QUAD
Please read this manual before using this monitor.
The product may be dierent from how it is described in the manual
depending on what software version you are using.
Reverse With Condence ™
1
Introduction.............................. 03
Safety Information.............................. 04-06
Before Beginning Installation ....................... 07
Precautions.......................... . . . . 08-09
Maintenance...............................10
Accessories.................................11
TABLE OF CONTENTS
2
Monitor Installation...............................12
Connections..................................13
Controls........................... . . . . . 14-15
Menu and Touch Screen Operations. . . . . . . . . . . . . . . . . . . . 16-24
Specication.......................... . . . . . . 25

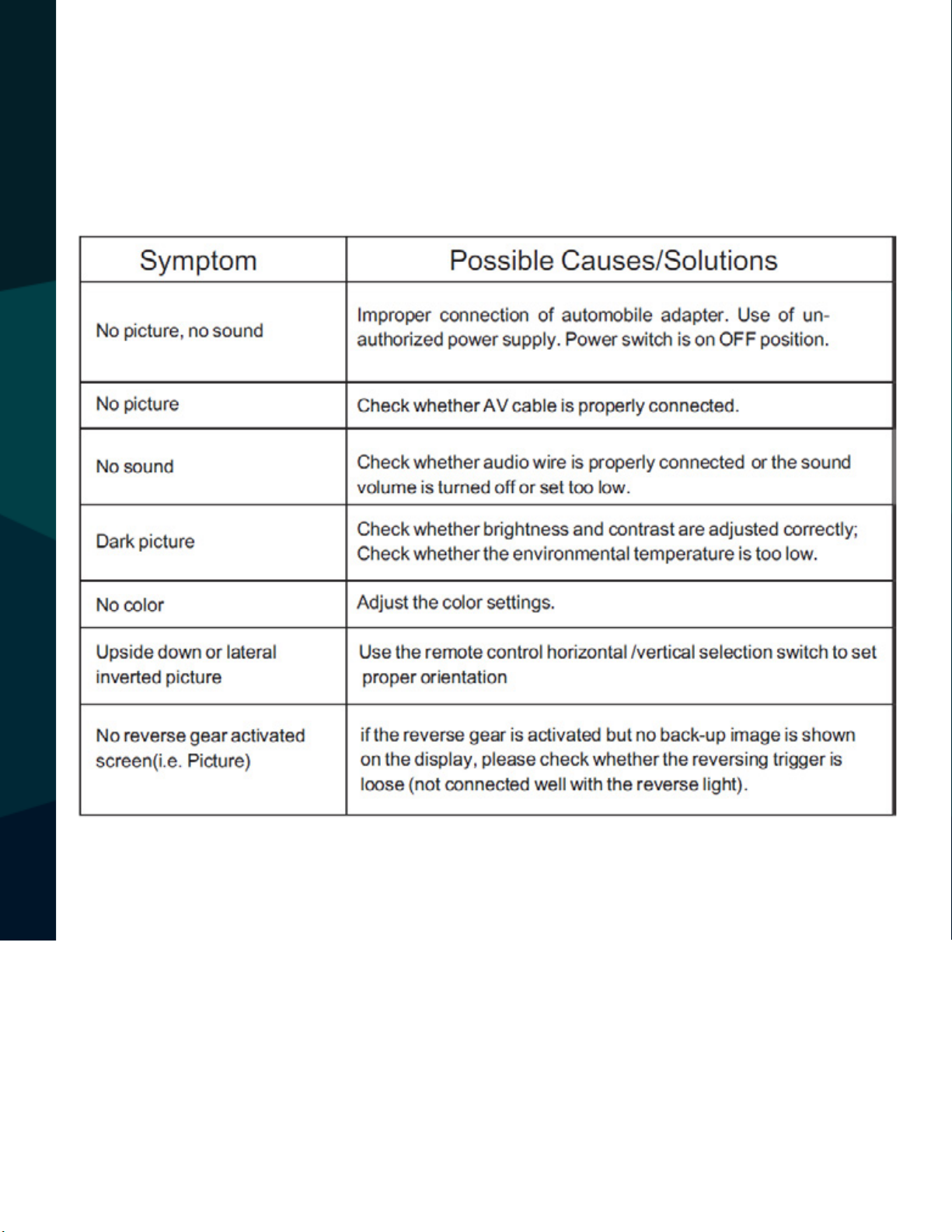

Troubleshooting.......................... . . . . 26
Warranty............................. . . . . 27
Disclaimer............................. . . . . 28
Rear View Safety
NOTE!
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION
Reverse With Condence ™
3
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
USAGE:
• The Rear View Camera System is
designed to help the driver safely detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
damage or injury. Always back up
slowly.
• The Rear View Camera System is
not intended for use during extensive back-up maneuvers or backing
into cross trac or pedestrian walkways.
•Please, always remember, the area
displayed by the Rear View Camera
check behind and around the vehi-
SAFETY INFORMATION
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System. If you back up while looking
only at the monitor, you may cause
4
System is limited. It does not display
the entire panorama that is behind
you.
Rear View Safety
INSTALLATION:
• Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
SAFETY INFORMATION
• Take special care when
cleaning the monitor.
• Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
• Where the power cable may touch
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
a metal case, cover the cable with
friction tape. A short circuit
Reverse With Condence ™
• Dropping the unit may cause
possible mechanical failure.
5
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: 1.800.764.1028
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
SAFETY INFORMATION
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
6
Rear View Safety
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN
Reverse With Condence ™
7
Precautions
Storage and Keeping
1. Do not expose the monitor to excessive heat or cold. The storage
temperature of this device is -30°C~+80°C, and the operating temperature is -20°C~+70°C. Battery operating temperature is 0-70°C.
The humidity is Rh 90%.
2. Never use this device near water or damp locations.
3. Never use this device in environments with excessive moisture, dust
or smoke.
4. Avoid dropping or striking this device.
5. Avoid using this device in enclosed spaces, areas with excessive vibration or areas subject to severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this
device.
7. Do not place cables where they may be pinched or stepped on.
8. Leave at least a 2” space between the monitor and walls, cabinets or
other objects to allow adequate air circulation around the device.
9. The monitor is not designed to be waterproof.
PRECAUTIONS
8
Rear View Safety
Operating Precautions
1. The device may be powered by a 12 or 24 volt battery, as well as the
vehicle's electrical system.
2. Make sure all cables are connected properly. Improper cable connections may damage the monitor. Remove the power cable connections
when not using the device.
3. The back-up battery can be recharged when the power is on.
4. When battery is fully charged, recharging will automatically stop.
5. If batteries are not used for a while, it may take longer to charge.
Warning!
1. This monitor is high voltage. Only professionals should open the monitor's case.
2. Do not watch the video while driving unless you are monitoring the
rear view camera display.
Special Note
Occasionally, a few highlights or dark spots may appear on the LCD screen. This
doesn’t necessarily indicate any monitor defects. Never try to repair this device
yourself. If any problems occur, immediately turn the display o and notify our
company or an authorized dealer. Any disassembly or modication may lead to
PRECAUTIONS
damage and will also void the warranty.
Reverse With Condence ™
9
Maintenance
1. Remove all cable connections from the monitor before cleaning the
device.
2. Use a mild household detergent and a slightly damp cloth to clean
the unit. Never use strong solvents such as thinner or benzine, as they
may damage the nish of the device.
This symbol alerts the user to the presence of uninsulated “dangerous
voltage” inside the product. Never open the product case yourself, as
you may risk electric shock.
This symbol alerts the user to the presence of important operating
and maintenance instructions in the literature accompanying the
device.
This symbol reminds the user not to waste electronic equipment.
MAINTENANCE
Any changes or modications not expressly approved in this manual could void
CAUTION
your warranty and lead to expensive repairs.
10
Rear View Safety

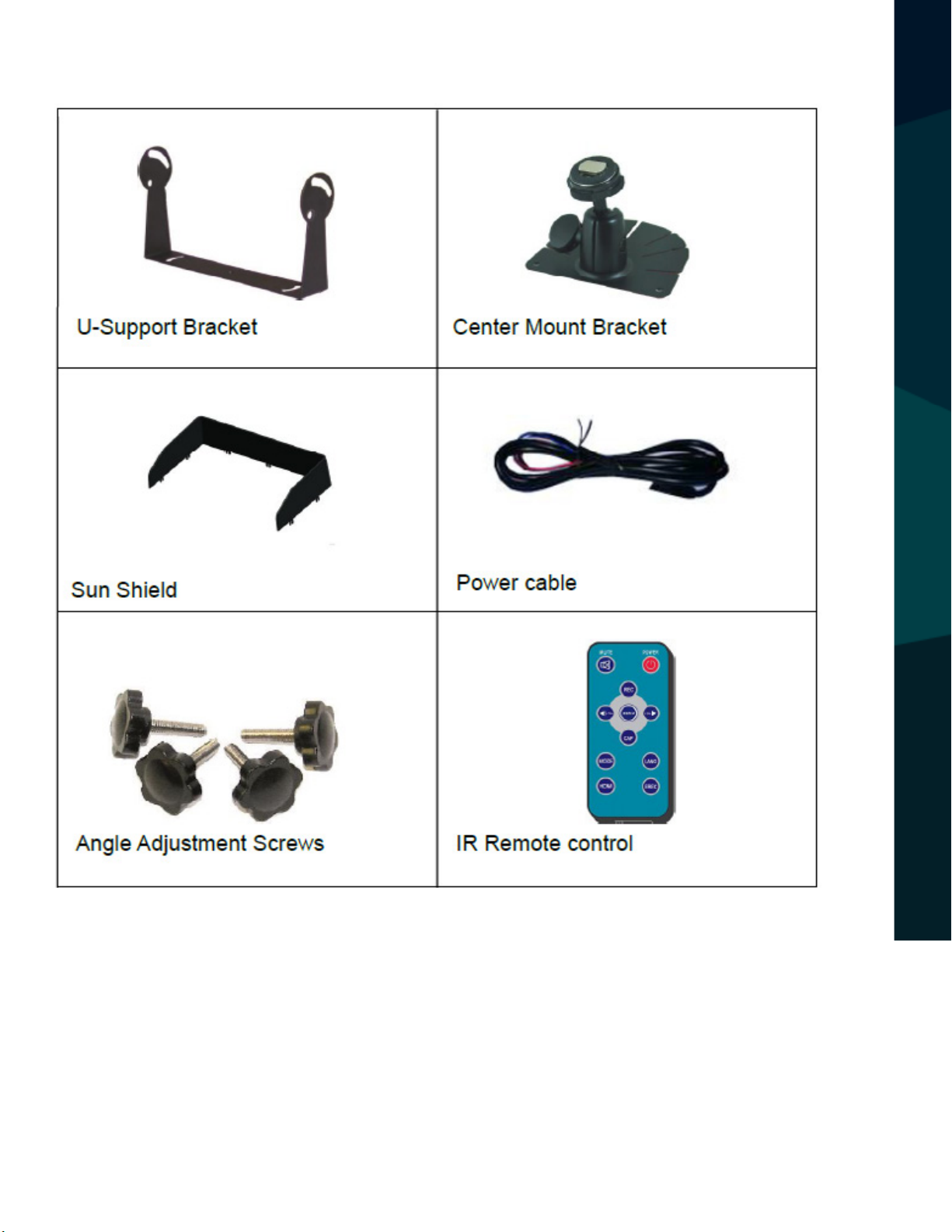

Accessories
Special Notice:
ACCESSORIES
Accessories may vary on certain devices.
Reverse With Condence ™
11
Monitor Installation
MONITOR INSTALLATION
12
Rear View Safety
Connections
5P White
5P Blue
5P Brown
5P Green
CONNECTIONS
Reverse With Condence ™
13

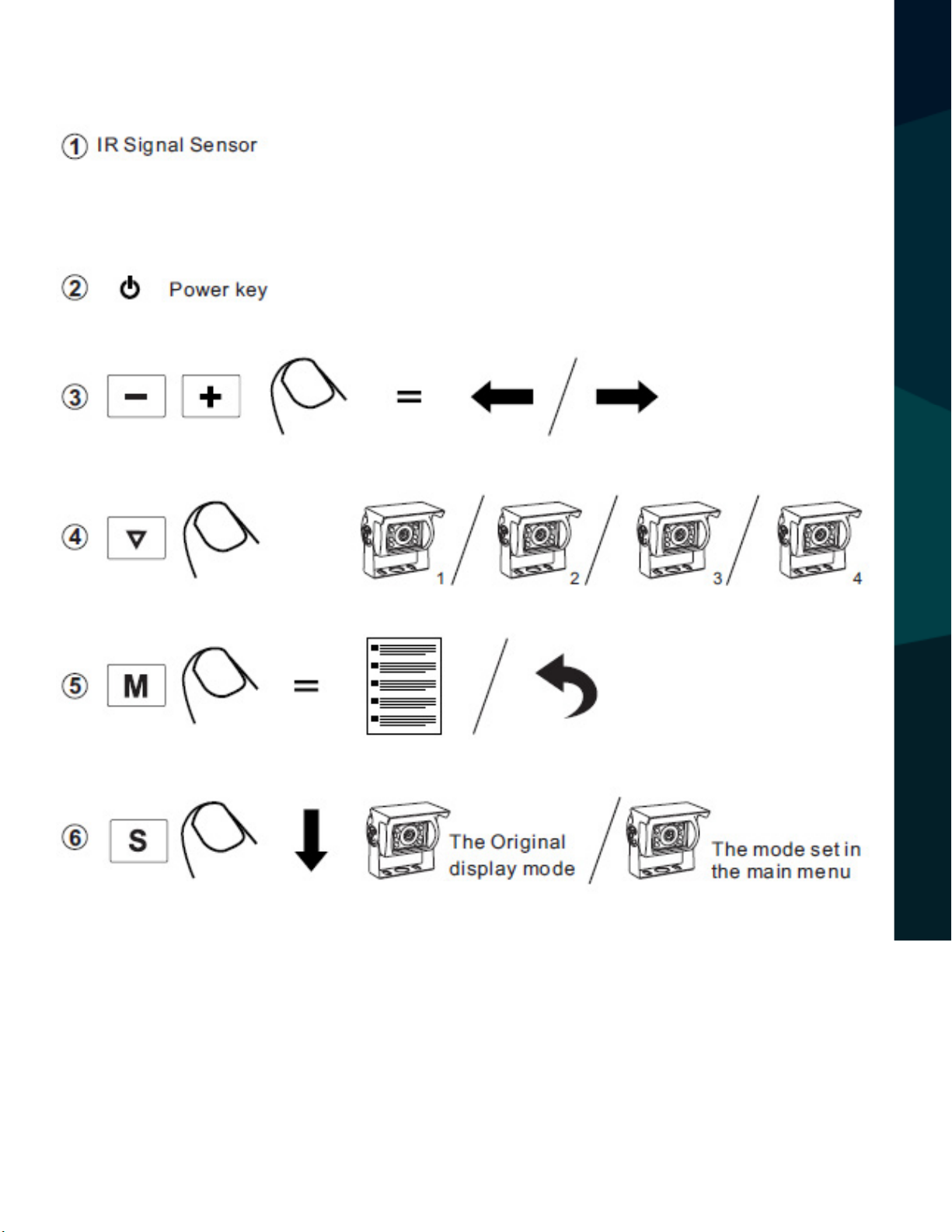

Controls
CONTROLS
14
Rear View Safety
OPERATION
Reverse With Condence ™
15
OSD Setting
• SCALE: To turn on / o electronic distance label. When set as ON, electronic
distance label will be displayed when rear view camera (camera 3) is activated.
• INPUT SCAN: To turn on / o auto identication of camera inputs. When INPUT SCAN is set as ON, monitor will display connected cameras and skip inputs
not in connection.
• BOUNDARY: To set color of the separation line between camera inputs.
White, gray, black and uncolored are available.
LANGUAGE: To set OSD language. English, French, Dutch, Spanish, German
and Italian are available.
• SOFTWARE VERSION: To be updated at all times.
MENU AND TOUCHSCREEN OPERATIONS
16
Rear View Safety
Trigger Setting
• TURN IMAGE: To set the camera input(s) to be displayed when left-side camera (camera 1) / right-side camera (camera 2) is activated.When set as SINGLE,
correspond camera input will be displayed when either camera is activated.
When set as SPLIT,split image of left-side and rear view camera will be displayed when left-side camera is activated; split image of right-side and rear
view camera will be displayed when right-side camera is activated.
• REAR IMAGE: To set the camera input(s) to be displayed when rear view
camera is activated. When set as BACK, the rear view camera will be displayed
when activated. When set as TRIPLE,left-side, right-side and rear view camera
will be displayed.
• TRIGGER DELAY: To set the delaying time of video display when trigger signal
goes o. Delaying time frame: 0-30 seconds.
• SPLIT SCREEN: To set the camera input(s) to be displayed when “split”trigger
wire is activated. LEFT / RIGHT is to set the camera input to be displayed on the
left / right side of monitor screen.
AUDIO is to set the audio output from any of the four cameras.
TRIGGER SETTING
Reverse With Condence ™
17
Jump Key Setting
MENU AND TOUCHSCREEN OPERATIONS
JUMP KEY SETTING
18
Rear View Safety
• REC-V OUT: To set the camera input(s) to be recorded when connected to
DVR via the green RCA wire. Left-side, right-side, front view, rear view camera
and quad view image can be selected.
• AUTOSCAN: To set the auto scanning function. When AUTOSCAN is set as ON,
monitor will automatically switch between connected camera inputs and
quad image.
• SCAN DELAY: To set the switching time of AUTOSCAN. Switching time frame:
0-60 seconds.
• JUMP KEY: To set the shortcut display mode from the 13 modes to the left.It
can be activated by jump key selector.
• POWER ON: To set the default display model from the 13 modes to the left or
STANDBY mode.
• BEEP: To turn on / o the warning tone. Default setting is ON and there will
be a beeping sound when menu is being operated.
• SYSTEM: To set TV system: PAL / NTSC.
JUMP KEY SETTING
• DIMMER: To set backlighting brightness level of screen. Five levels and AUTO
option are available; the higher the level, the brighter. When set as AUTO,
backlighting automatically adjusts in accordance with the outer brightness.
Reverse With Condence ™
19

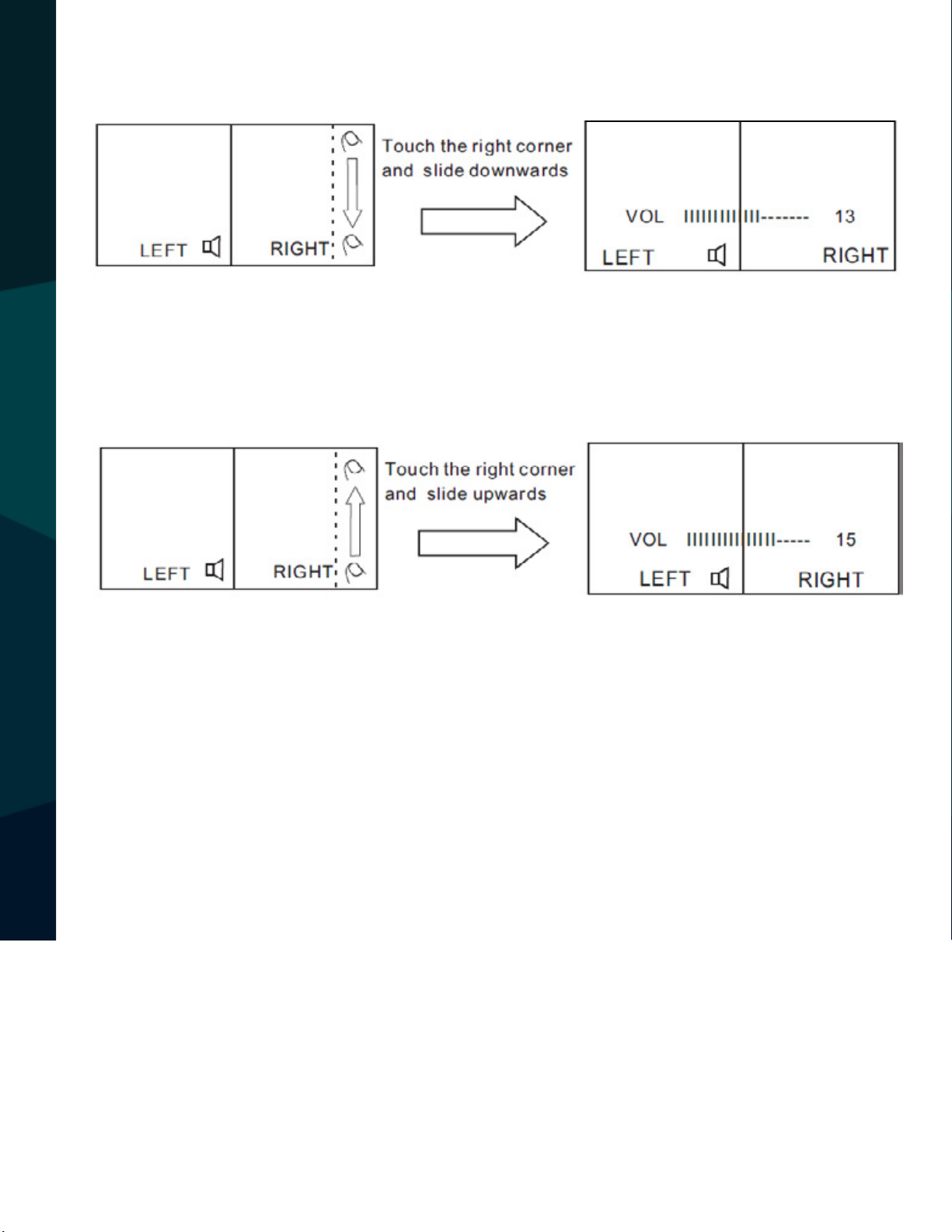

TOUCHSCREEN OPERATIONS
Switch to full screen by touching any channel in multi-viewing
mode
TOUCHSCREEN OPERATIONS
20
Rear View Safety
Buttons function of touch menu (not available in DVD/VGA/aux
channel or when auto scan is on)
TOUCHSCREEN OPERATIONS
Reverse With Condence ™
21
Exchange picture locations of any two cameras displayed
in multi-viewing mode
TOUCHSCREEN OPERATIONS
22
Rear View Safety
Exchange picture locations of two cameras in dual / tripleviewing mode (1 displayed, 1 hidden)
Switch to the next display mode
Switch to the previous display mode
BASIC FUNCTIONS
Reverse With Condence ™
23
Decrease the volume
Increase the volume
TOUCHSCREEN OPERATIONS
24
Rear View Safety
Specications
SPECIFICATION
Reverse With Condence ™
25
Troubleshooting
The symptoms described below do not necessarily mean a failure within the
display. Please check the following items before you initiate request for repair.
TROUBLESHOOTING
26
Rear View Safety
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
WARRANTY DISCLAIMERS
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVE WARRANTY
IS MADE WITH REGARD TO THIS REAR VIEW SAFETY, INC. REAR VIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
WARRANTY
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
Reverse With Condence ™
27
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVE VIEW OF THE REAR OR SIDE AREA OF THE VEHICLE.
ALWAYS MAKE SURE TO LOOK AROUND YOUR VEHICLE AND USE YOUR MIRRORS TO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REAR VIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
DISCLAIMER
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
CONTRACT, TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.
28
Rear View Safety
NOTES
Reverse With Condence ™
NOTES
29
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
30
Rear View Safety
Loading...
