Instruction Manual
G-Series Rear View Replacement Mirror Monitor
with Three 3.5” Displays
RVS-718-3SC
Reverse With Condence ™
Rear View Safety, Inc. © 2015
1
Rear View Safety
Introduction...............................03
Safety Information..........................04-06
Before Beginning Installation . . . . . . . . . . . . . . . . . . . . . . . 07
Installation Guide.......................... 08-09
Installation and Wire.........................10-13
Basic Functions. . . . . .......................14-17
TABLE OF CONTENTS
Monitor Specications ..........................18
Troubleshooting............................19
Warranty & Disclaimer........................ 20-21
2
NOTE!
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION
Reverse With Condence ™
3
Rear View Safety
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
USAGE:
• The Rear View Camera System is
designed to help the driver safely detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
damage or injury. Always back up
slowly.
• The Rear View Camera System is
not intended for use during extensive back-up maneuvers or backing
into cross trac or pedestrian walkways.
•Please, always remember, the area
displayed by the Rear View Camera
check behind and around the vehi-
SAFETY INFORMATION
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System. If you back up while looking
only at the monitor, you may cause
4
System is limited. It does not display
the entire panorama that is behind
you.
INSTALLATION:
• Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
SAFETY INFORMATION
• Take special care when
cleaning the monitor.
• Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
a metal case, cover the cable with
friction tape. A short circuit
Reverse With Condence ™
• Dropping the unit may cause
possible mechanical failure.
5
Rear View Safety
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: 1.800.764.1028
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
SAFETY INFORMATION
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
6
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
19).
BEFORE YOU BEGIN
Reverse With Condence ™
7
Rear View Safety
Replacement Monitor
The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the “pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole).Dierent cars have dierent brackets. Depending on your vehicle make and
manufacturer. There are many methods to remove the original rearview mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car because of wrong mirror installation. Figure 1.1
Clip-On Monitor
1. The Mirror Monitor attaches to the existing rear view mirror in
vehicle with the pressurized clips on the back of the monitor.
2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.
Camera & Cable
Be sure to position the cable properly. The aviation camera cable uses
INSTALLATION GUIDE
aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
camera extension cable which runs inside the vehicle. Figure 1.2
8

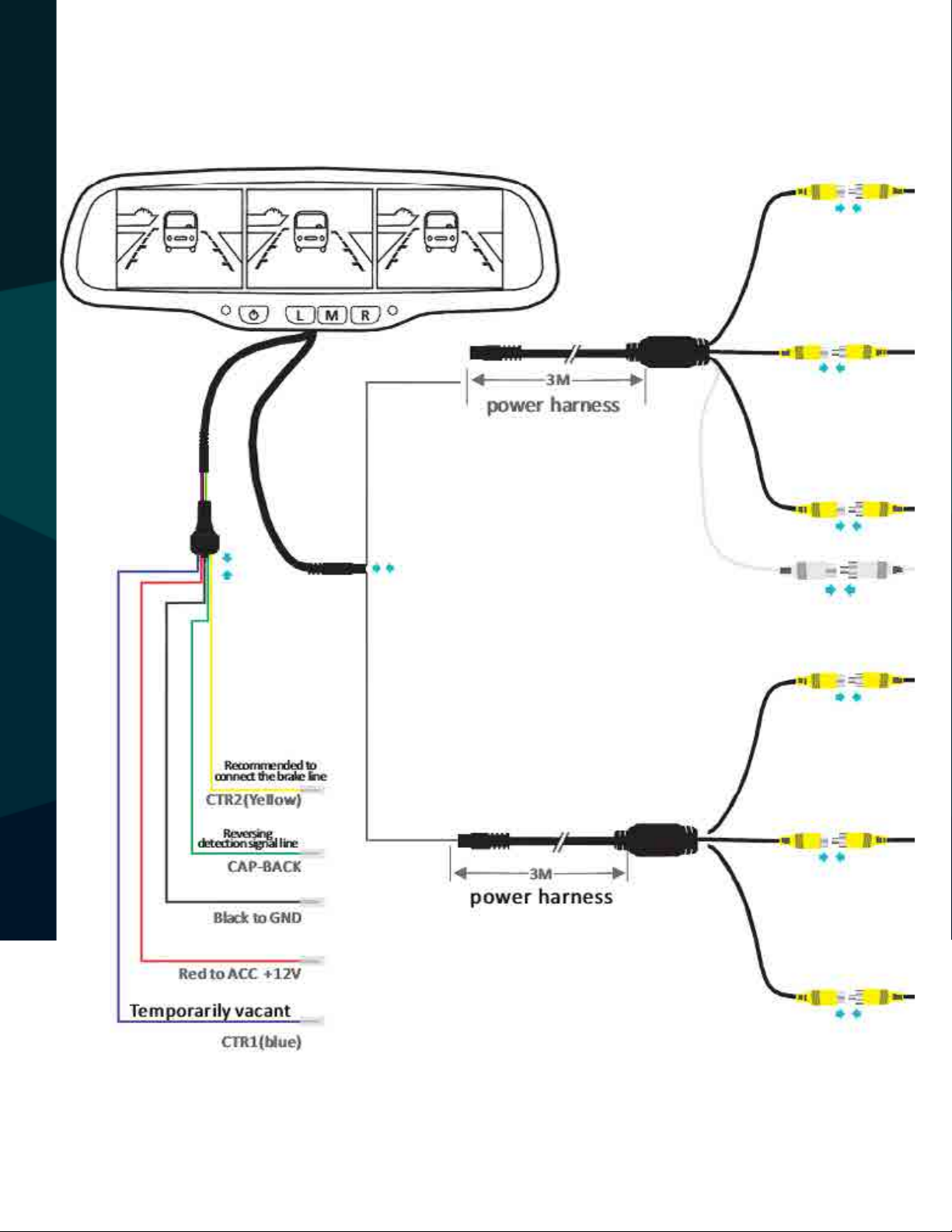

Wiring
After connecting the camera to the “camera cable” the camera should
be plugged into AV2 input. Connect the RED 12V power wire to an
ignition power source and the BLACK 12V ground wire to a chassis
ground. The GREEN wire is the REVERSE trigger wire. Connect this wire
to the vehicle’s backup light circuit to activate the rear-view image
whenever the vehicle shifts into reverse. To connect a second camera,
connect it to AV1 and it can be turned on by pressing the power button
on the monitor. Figure 2.1, Figure 2.2
Precautions for use of Mirror Monitor
I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
INSTALLATION GUIDE + TIPS
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.
Reverse With Condence ™
9
Rear View Safety
FIGURE 1.1
Dierent cars have dierent brackets. It depends on your vehicle maker
and manufacturer. There are many methods to remove the original
rear-view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for any damage caused by an
incorrect installation of the mirror.
INSTALLATION AND WIRE
10
FIGURE 1.2
INSTALLATION AND WIRE
A good position to install a camera at the rear of car is the top of the
license plate, as shown in the image above.
Reverse With Condence ™
11
Rear View Safety

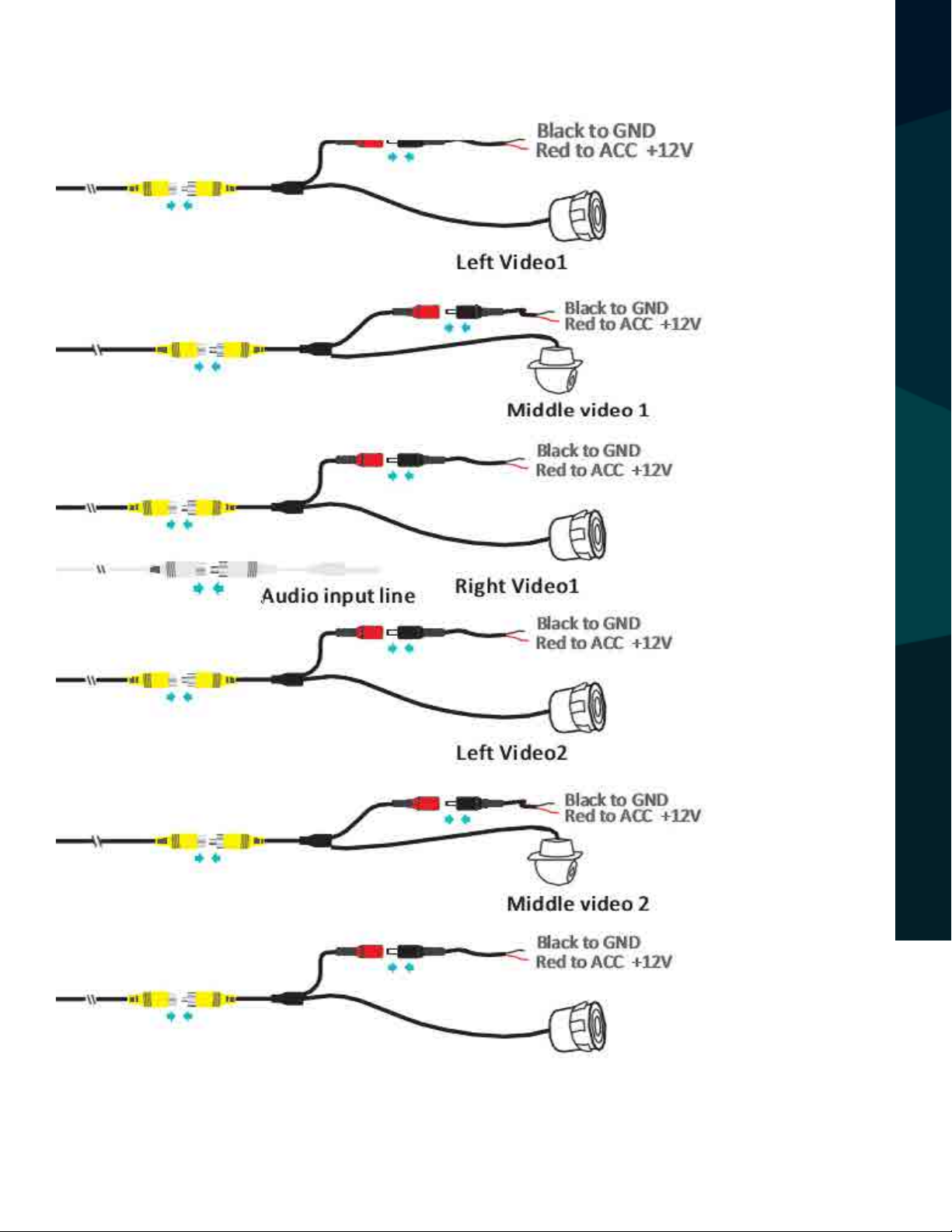

FIGURE 2.2
INSTALLATION AND WIRE
12
INSTALLATION AND WIRE
Reverse With Condence ™
13
Rear View Safety
When the system is turned on, a booting up logo will appear. If during
this process the car is put into reverse and a rear view camera is connected,
the logo will be interrupted and the system will enter into reverse mode. If
there is a video signal, the system will enter a standby mode. In this state,
short press the center button to turn the screen display on or o.
The mirror will enter reverse mode when the car is put into reverse. If a rear
view camera is connected, the monitor will turn on and the standby indicator
will disappear. If no rear view camera is connected, the monitor will remain
o and the standby indicator will remain. The mirror will remain in reverse
mode until the car is taken out of reverse.
Please note: There will be a short delay when switching between video views.
The front video images will be displayed during normal driving.
In case of sudden emergency braking, the rear video mirror will automatically
switch to the video behind the car. It will automatically return to the front
video after releasing the brake.
The views can also be switched manually by pressing the left, right, or middle
buttons.
BASIC FUNCTIONS
14
Location Recommendation
Of Camera Installation
BASIC FUNCTIONS
Reverse With Condence ™
15
Rear View Safety
How To Display The Rear View Mirror Screen.
Driving: When driving, the mirror will display the images from the
front cameras. The left screen displays FL (front left), the middle
screen displays FM (front middle), and right screen displays FR (front
right). The corresponding acronyms will appear in the left corner of
the screens.
Reversing: When the car is in reverse, the left screen displays
displays RL (rear left), the middle screen displays RM (rear middle),
and the right screen displays RR (rear right). The corresponding acronyms will appear in the left corner of the screens.
BASIC FUNCTIONS
16
Braking: If the screen o before braking, FL will be displayed on the left
screen, FM will displayed on the middle screen, and FR will be displayed
on the right screen.
Basic Functions
Highly Reective Mirror
In addition to being a monitor, the system is also highly reective mirror.
Normal mirror Highly reective mirror
BASIC FUNCTIONS
Backup Camera Display
When the car is reverse, the mirror will automatically switch to the
backup camera view.
Reverse With Condence ™
17
Rear View Safety
SPECIFICATIONS:
Screen Size 3.5"
Dot Resolution 320 x 3 (RGB) x 240
Display Format 4:3 / 250:1
Display Brightness 8001x
Viewing Angle U: 15°, D: 35°, L&R: 45°
Video Input 6 Channel
Video Source 1Vp-p, 75Ω
Power Supply DC 9V - 18V (+/-10%)
Power Consumption 8W
Operating Temperature -30°C ~ +70°C
Video System Auto NTSC/PAL
MONITOR SPECIFICATIONS
Overall Dimensions 10.51" (L) x 3.39" (H) x 1" (D)
Weight 800G
Vibration Rating 5G
Sync System Internal
Certications: The DVR mirror has passed E-MARK/FCC/C-TICK and is compliant with ROHS.
18
Problems Diagnoses Solutions
Recording frequently stops
Camera input is working but no
1080P video is shown on screen
Camera input is not working and
no video on screen
Mirror frozen on one interface
and will not function
Remote does not work
1. Motion detection is on
2. The SD card is too small to read and store information
1. Screen is on auto-o mode
2. Auto power is turned on
1. Wiring connected improperly or broken
2. Mirror is broken
1. System has been on for too long
2. Something is wrong with the system
1. Plastic insulation sheet not removed from battery
2. Battery is not installed correctly
3. Remote is too far from the rear view mirror
1. Turn o motion detection
2. Use a larger higher class SD card
1. Short press power button to turn
screen on
2. Change settings in menu
1. Reinstall with a professional
technician
2. Send system back for repairs
1. Reboot
2. If this happens often, send back
for repairs
1. Remove the insulation sheet
2. Reinstall the battery
3. Keep the distance between
the remote and the mirror at 2-3 feet
TROUBLESHOOTINGTROUBLESHOOTING
Reverse With Condence ™
19
Rear View Safety
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
WARRANTY DISCLAIMERS
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVE WARRANTY
IS MADE WITH REGARD TO THIS REAR VIEW SAFETY, INC. REAR VIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
20
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVE VIEW OF THE REAR OR SIDE AREA OF THE VEHICLE.
ALWAYS MAKE SURE TO LOOK AROUND YOUR VEHICLE AND USE YOUR MIRRORS TO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REAR VIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT, TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.
DISCLAIMER
Reverse With Condence ™
21
Rear View Safety
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
22
Loading...
