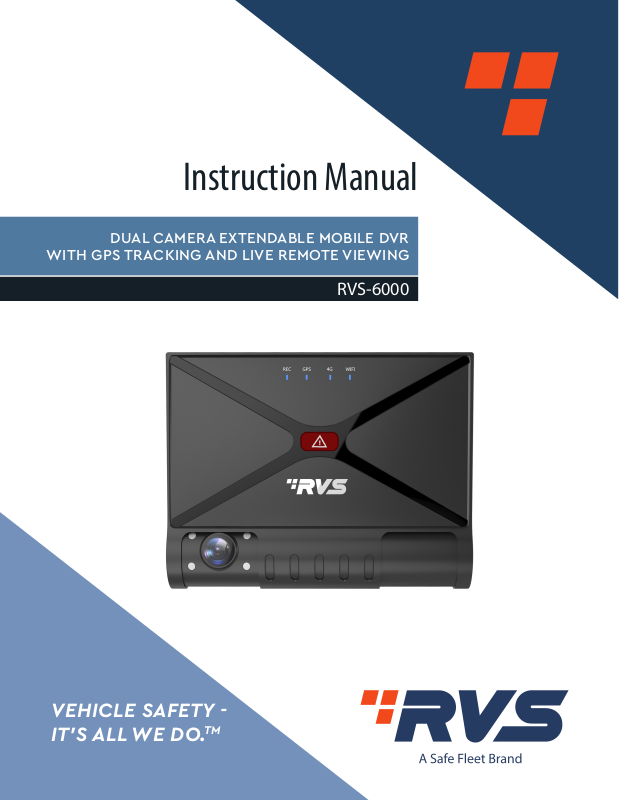

RVS Systems RVS-6001-TE, RVS-6001-T User Manual

Instruction Manual
DUAL CAMERA EXTENDABLE MOBILE DVR
WITH GPS TRACKING AND LIVE REMOTE VIEWING
RVS-6000
VEHICLE SAFETY ­IT'S ALL WE DO.
TM
IMPORTANT REMINDER
1. Use 12V/5A DC adapter while testing
2. Syste
3. 12V output
m uses TF card (range 16GB-256GB) with a speed CLASS 10 or
above.
device can only connect to low-power external devices.
2
TABLE OF CONTENTS
1. PRODUCT OVERVIEW ............................................................................................................................... 4
FEATURES .............................................................................................................................................................. 4
MAIN FUNCTIONS .................................................................................................................................................... 4
SPECIFICATIONS ....................................................................................................................................................... 5
WORKING PARAMETERS ........................................................................................................................................... 6
2. PRODUCT OUTLOOK ................................................................................................................................ 7
DIMENSION ............................................................................................................................................................ 7
3. OPERATION.............................................................................................................................................. 8
REMOTE CONTROL ................................................................................................................................................... 8
LOGIN .................................................................................................................................................................. 8
MAIN MENU ........................................................................................................................................................ 9
SYSTEM ........................................................................................................................................................... 9
RECORD ........................................................................................................................................................ 12
SEARCH ......................................................................................................................................................... 16
Network ........................................................................................................................................................ 18
ALARM .......................................................................................................................................................... 20
INFO .............................................................................................................................................................. 24
4. INSTALLATION ....................................................................................................................................... 25
POWER CABLE CONNECTION .................................................................................................................................... 25
SERVER CONNECTION ............................................................................................................................................. 25
SERIAL PORT ......................................................................................................................................................... 25
5. FAQ ........................................................................................................................................................ 26
1. Why doesn’t DVR record after power is on? ............................................................................................. 26
2. Why doesn DVR frequently reboot when it is on vehicle? ........................................................................ 26
GPS QUESTIONS ................................................................................................................................................... 27
1. Why there is no GPS location info? ........................................................................................................... 27
2. Why there is no positioning info when the vehicle is online? ................................................................... 27
3G/4G QUESTIONS ............................................................................................................................................... 27
Why 3G dial up failed? ................................................................................................................................. 27
SERVER QUESTIONS ............................................................................................................................................... 27
Why I can't connect to the servers when the DVR is running? ..................................................................... 27
3

PRODUCT OVERVIEW

FUNCTIONS
DESCRIPTIONS
WIFi/3G/4G network allow multiple features: real-time monitoring, video
upgrade, use of remote control.
5 channel HD video event recorder equipped with a wide range of features
PAL for example: support D1/720p/1080p @25fps.
Support PAL; NTSC
Supports 2x 256GB TF storage & 1x 2TB HDD
Supports 5CH AV synchronous playback
Supports PC playback
Supports remote search and playback
Supports play, pause, speed control
Recording incl. speed, GPS, temperature
Support 8x triggers (Extended Version)
Supports local recording with vehicle info display
Supports real-time upload remotely, and history search and check
The Trong MobileMule™ 2 Channel Mobile DVR features advanced H.264 video compression and decompression, wireless transmission, and GPS tracking.
Features
Compact design, low power, highly efficient H.264 compression
2CH 1080P HD + 2CH 720P HD + 1CH IPC recording, supports 2TB external hard disk & 256GB
TF card (2 microSD 128GB)
Optional 3G/4G functions
Built-in G-sensor
Built-in GPS, WIFI functions
Power delay shut off, optional inside-laid UPS battery
External ports, incl. 1x RS232, 1x RS485, 6x alarm in & 2x alarm out ports
Automatic trigger switch
Control settings with mouse
Export of video recordings directly via USB port
Advanced CMS platform
Intuitive video playback software
Main Functions
Wireless Communications
Recording
Storage & Playback
Black Box Function
download, two way communication, parameter configuration, remote
and settings, designed especially for commercial applications.
OTF overlay info (time, channel, vehicle ID, GPS, speed)
4
Specificatio
ITEM
PARAMETER
PERFORMANCE
Language
Operation System
Linux
Interface
Password Security
Video Input
Video standard
PAL, NTSC
Video compression
H.264 Main profile, 100 frame / sec
Video Display
Single/Quad screen video
Audio Input
2 audio input
Audio Output
Audio Code
Way of recording
Simultaneous AV recording
Image format
D1/720P/1080P optional
Standard of Video Stream
ISO14496-10
1080P: 2048kbps~8192kbps
class 8 the lowest.
Audio Code Rate
40KB/s
Data Storage
Support 2x 256GB TF storage &1x 2TB HDD &
Alarm input
6x Alarm input
Alarm output
RS232 port
RS485 port
1x RS485
Intercom
support
Others
LED panel
3G WCDMA
optional
4G LTE
optional, support TD-LTE/FDD-LTE
WIFI
Built-in
Acceleration
sensor
Vehicle Analysis Software (VAS)
Video playback and analysis
ns
English / Chinese
System
Video
Audio
Processing &
Storage
Imaging menu operation interface (OTF Menu)
Two levels authority: admin, user
4 HD+ 1 IPC video input
Video Output 1 composite video output
1 audio output
G726
D1: 2048Kbps ~ 400Kbps
Video code rate
8 levels of image quality: class 1 the highest and
720p: 2048Kbps ~ 4096Kbps
Alarm
Communication
Port
Extendable
Port
Wireless Modules
G-sensor Built-in
Vehicle Network Management
Software
Vehicle Safety - It's All We Do.
System (CMS)
2x Alarm output, with 12V high electrical level
1x RS232
GPS Built-in
3G/4G video monitoring and GPS tracking etc.
PC/ Web/Android platforms, multi-languages.
TM
5
Working Parameters
Item
Parameter
Instruction
≥7.5V
ACC On
Video Input
Video Output
Voltage
> 4V
Defined as high level alarm
Temperature
Power Input 8V~+36V Voltage Input: +8V~+36V
Power Output 12V
≤6V ACC Off
ACC
Impedance
75Ω Average 75Ω per video channel
2V p-p 75Ω per each 2V p-p CVBS signal
0-4V Defined as low level alarm
I/O Interface
TF Card Interface
Working
1x HDD slots
2x TF slots
-30°C~+85°C Store in a ventilated area.
Voltage output 12V (
+/-0.2V 0), current for max.
4A
HDD (Hard Disk) of 2.5” SATA, 2TB max.
TF card of current brands, 2 X 256GB max.
TF card can be used for recording, upgrade etc.
6
Vehicle Safety - It's All We Do.
TM

1. PRODUCT OVERVIEW

Dimen
sions
Vehicle Safety - It's All We Do.
TM
7

2. OPERATION

Note: Remote is only included in RVS-6001-TE version. This version setup with a monitor or via the free Trong app. The RVS-6001-T mus
Remote
LOGIN
t be setup with the Trong app, as it cannot be connected to a monitor.
Press LOGIN to enter password of MDVR.
Note: password cannot be reset or retrieved, make
sure you remember the password.
Power button
0-9 number keys
INFO
OK Confirm
Switch to single channel view by pressing 1-9.
It’s also for volume and lightness setting.
A short key to check device running status,
includes: 3G/GPS, alarm, disk recording and device
version etc.
Switch 4-8-1 image.
UP, DOWN, LEFT, RIGHT. It also is used to control fast and slow speed of player. The UP and DOWN
also be used to switch 1-4, 5-8 image.
/‖ Pause/Play when video playback.
PLAY Start to play video
RETURN Return to the previous menu
CANCEL Cancel or backwards
- + symbols Space delimiter when editing; Volume adjustment
F1, F2, F3, F4 N/A
LOGIN
There are two levels for login: ADMIN, USER
8
Vehicle Safety - It's All We Do.
TM
MAIN MENU
Settings include “Search, System, Record, Network, Alarm, Info”
SYSTEM
Settings include “Terminal, Password, Time, Power, Parameter, Format”.
nal
Termi
Dev ID.: device number, factory appointed, cannot change
Phone NO: unique ID recognized by server
Plate NO: car plate number
Server 1 Protocol: choose T-protocol
Vehicle Safety - It's All We Do.
TM
9
Password
Password: ON/OFF, to enable or disable password login.
Note
Only ADMIN can change password; USER can only view. The password must 6-digit numbers and cannot be same. Default password for admin is 111111, user is 000000
Time
Date Ty
pe: incl. YY/MM/DD, M/D/YY, DD/MM/YY. Press OK to choose.
Date: press number keys to enter
Time: format “hour/minute/second”. Press number keys to enter
Time Sync: OFF/GPS/NTP for choice according to need
Time Out: incl. 60/120/300/600s. The screen will auto back to booting image if no operation
of remote controller within the set time.
NTP: Network Time Protocol, auto adjust time via internet
DST mode: Daylight Saving Time
10
Vehicle Safety - It's All We Do.
TM
Power Management
Power Mode: Incl. Acc/timed mode, press OK to show the options
Acc: Power on/off controlled by car key switch
Timed Mode: power on/off controlled by the set time.
Delay Off: only effected under ignition mode. After car key is closed, device will continue
working till set delay time comes an end, after, device is back to standby status.
Screen Time: No video or image if no operation of remote controller within the set time.
Power On: time to power on under “timing mode”
Power Off: time to power off under “timing mode”
Rec Delay: the time for allowing recording within "delay off time"
Record: choose which channel for recording for "Rec Delay".
Parameter Management
Impo
rt: to import current parameter settings to TF card, for batch applying
Export: to export external parameter settings from TF card, for batch applying
Save setting: Save current setting as future default.
Factory default: Restore current setting to factory default.
Recover setting: Restore current setting to saved default.
Vehicle Safety - It's All We Do.
TM
11
Disk Format
DISK1 is TF card; DISK2 is hard disk.
IMPORTANT: All data will be wiped off after format.
Auto disk format upon booting: Usually if the inserted disk is brand new, or it's not DVR's recognized FAT32 type, DVR will auto format the disk when it is turned on. This may take up to 10 min depending on hard disk size. Once format is complete, a red dot recording lights will appear on screen. The DVR may not recognize the format complete from computer (PC).
RECORD
Settings incl. “General, Main Rec, Sub Rec, Timed Rec, Storage, OTF”.
12
Vehicle Safety - It's All We Do.
TM
General
TV System: incl. PAL/NTSC, press OK to choose
Record Mode: incl. auto/time/alarm. Press OK to choose. In “auto mode”, recording will auto
begin when device is power on. In “time mode”, recording only happens in set time. For “alarm mode”, recording only happens when alarm appears.
Camera Type: allows max 2x 1080P/4x 1080N/2x 1080P+2x 720P/2x 1080P+2x D1 camera
Input Resolution: resolution supports 720*576
Display: optional 2/4/5/6/9 frames of view.
Main Rec
EN: ON means the channel recording is open; OFF means the channel recording is closed.
RES: resolution incl. 1080, 720p, D1, HD1 and CIF. For example, in PAL system, 1080 is
1920*1080, 720p is 1280*720, D1 is 704*576, HD1 is 704*288; CIF is 352*288.
FPS: the frames taken per second. PAL range 1-25fps, NTSC range 1-30fps
QUA: image quality (grade 1-8). Grade 1 being the best quality
AUDIO: enable/disable audio recording with video recording
FLIP: options incl. mirror(left-right), flip(up-down), or mirror/flip mixed mode.
QuickSet: Quick setting for all channels.
Vehicle Safety - It's All We Do.
TM
13
Sub Rec
RES: resolution incl. D1, HD1 and CIF. For example, in PAL system, D1 is 704*576, HD1 is
704*288; CIF is 352*288.
FPS: the frames taken per second. PAL range 1-25fps, NTSC range 1-30fps
QUA: image quality (grade 1-7). Grade 1 is the highest quality
Timed Record
Users can set up to 4x period for each individual day
ALL: Setting for every day
Note: Start time cannot be later than the finish time.
14
Vehicle Safety - It's All We Do.
TM
Storage
Alm Pre Rec: the time for recoding before alarm is triggered
Alarm Delay: the time for recoding after alarm is aborted
Alarm file protection: optional 3-45 days, files within protecting period won't be auto
covered.
Alarm file to server: ways incl. “NO (turn off), CMS, FTP”.
Usage: choose use of chosen disk incl. “NO (turn off), Record, Mirror, Backup”
OSD
Enable: ON to enable and OFF to disable info to show on recordings.
X/Y pixel: not necessary to set, except when output resolution does not match the terminal
screen resolution.
Vehicle Safety - It's All We Do.
TM
15
SEARCH
Settings incl. “Video, Log, Picture”.
Video Search
Calendar: green means normal recording, red means alarm recording, blue means no
recording on selected date
Date: date of recordings
Start time: starting time of recordings
End time: ending time of recordings
Video type: incl. All/Alarm
Disk type: search recordings of selected disk, incl. main/mirror (disk being used for mirror
recording)/spare (external storage from USB port)
Move cursor to “Search” and press OK, to enter search result page.
16
Vehicle Safety - It's All We Do.
TM
Search Results
Each file includes 4 video channels. If video is lost, recordings are still generated but playback screen is black with only date/time info.
Log Search
To check running status from results based on parameters selected.
Picture Search
To check pictures which are saved into disk based on certain parameter setting. The picture can also be "exported" to an external u-disk.
Vehicle Safety - It's All We Do.
TM
17
Network
Settings incl. "Center, LAN, 3G/4G, WIFI ".
Center
Center 1: parameters for connecting server
Center 2: parameters for connecting certain server (*reserved)
Port: port number for connecting server
Upgrade: parameters for remote upgrading local device.
IP: IP address of ftp server
Port: port number of ftp server
User/Password: login info of ftp server
18
Vehicle Safety - It's All We Do.
TM
LAN
Type: way of connection incl. Local/WIFI/Peripheral (external way).
Cabled: connection via RJ45 network port
WIFI: connection via outer laid WIFI
External: connection by using MDVR's internal net card as router, which depends on module capability.
IP: IP address of MDVR.
For rest parameters pls set accordingly.
3G/4G
Enable: ON/OFF means to enable or disable 3G/4G connection.
NetType: 3G pls choose WCDMA, 4G pls choose FDDLTE-2
For the rest settings pls consult with your SIM card carrier accordingly.
Vehicle Safety - It's All We Do.
TM
19
WIFI
Enable: ON/OFF means to enable or disable WIFI connection.
AuthMode: the authority type, incl. Open/Share/WPA/WAP-PSK to choose accordingly.
EncType: the encryption type incl. NONE/WEP/TKIP/AES to choose accordingly.
IP: here the IP should not be in a same segment with the IP at “LAN set”. E.g., if LAN set IP is
192.168.AAA.001, here the “AAA” should be different in this place.
For rest parameters pls set accordingly.
ALARM
Settings incl." IO, Speed, G-Sensor, VD Detect, Voltage, Serial, PTZ ".
20
Vehicle Safety - It's All We Do.
TM
IO
Enable: incl. “OFF, Emergency, Front Door, Middle Door, Back Door, Driver Door, Other Door,
Near Beam, Distant Beam, Right Beam, Left Beam, Braking, Reverse, Fog Lamp, Position Light, Horn, Air Conditioner, Neutral Gear, Retarder, ABS, Heater, Clutch, Door Sensor, Smoke Sensor, Customize”
Level: the “Electrical level”. User defined whether high or low electrical level treated as alarm.
By default, 0~4V is low level, 4~25V is high level
Delay: the set period ensures only one alarm is processed during the set period, instead of
the same alarm be read more than once
Hold: be treated as an alarm when alarm length surpassing the set period
Record: enable or disable recording when there’s alarms
Linkage: means “alarm linkage”. OFF or user defined to an external device like alarm lamp
Preview: assign a channel for alarm live video with full screen image
Speed
Speed Source: incl. GPS/Vehicle/Mix. Note: the “vehicle” needs work together with “Pulse”.
Pulse: the pulse rotation rate per a kilometer. It works when “vehicle” is set as speed source.
L-ALM: alarm be triggered when speed surpassing limit value
L-Warn: alarm be triggered when speed surpassing limit value
H-Warn: alarm be triggered when speed surpassing limit value
H-ALM: alarm be triggered when speed surpassing limit value
Vehicle Safety - It's All We Do.
TM
21
Limit: edge value for alarm trigger
Hold: treated as an alarm when alarm length surpassing the set period.
Record: choose whether to activate alarm recording or not.
Linkage: means “alarm linkage”. OFF or user defined to an external device like alarm lamp
G-Sensor
G-Sensor alarm is detected by changes from x, y and z axis. Adjust before first use.
Enable: enable or disable
Limit: set the edge value for alarm triggering
Hold: be treated as an alarm when alarm length surpassing the set period.
Record: choose whether to activate alarm recording or not.
Linkage: means "alarm linkage”. OFF or user defined to an external device like alarm lamp
Delay: if triggered event is longer than preset time, it's considered as an alarm.
Adjust: reset X Y Z value to normal reaction.
Video
Detect
Enable
: the enable or disable video detection.
Limit: alarm threshold
Sense: 3 levels to choose about sensitivity
Record: whether to need recording when alarm appears
22
Vehicle Safety - It's All We Do.
TM
Linkage: connection of external alarm device.
Delay: if triggered event is longer than preset time, then it's considered as an alarm.
Voltage
L-V: alarm be triggered if voltage is lower than threshold value
H-V: alarm be triggered if voltage is higher than threshold value
Limit: edge value for alarm triggering
Hold: be treated as an alarm when alarm length surpassing the set period.
Linkage: means “alarm linkage”. OFF or user defined to an external device like alarm lamp.
Delay: if triggered event is longer than preset time, then it's considered as an alarm.
Serial
COM1/COM3: the RS232, usually for short distance transmission with POS, Printer
COM2/COM4: the RS485, usually for long distance transmission with PTZ camera
Choosing external device accordingly, the Baud will auto set itself; or set manually if external device mismatch the parameters.
Vehicle Safety - It's All We Do.
TM
23
INFO
System Info
Press INFO key to show running status or performance.
24
Vehicle Safety - It's All We Do.
TM

3. INSTALLATION

Power Cable Connection
For field installation, the anode (red) and cathode (black) should directly connect to car battery.
For office testing, the anode (red) and ACC (yellow) can be combined. Lock the DVR to power on.
Server Connection
Note: This setting is for MDVR with WIFI/3G/4G functions.
Step 1: Insert a 3G/4G sim card
Step 2: Go to DVR’s “terminal set”, input a phone number. Note: this ID is a unique number recognized by server.
Step 3: Go to DVR’s “center set”, input phone number, input server IP and port number accordingly.
Serial Port
The DVR features 8x alarm inputs and 2x alarm outputs.
An alarm is d connections, incl. car brake, on/off switch and alarm button. For example, when braking light is
triggered, DVR detects a high electrical level signal and output an alarm depending on setting, otherwise it’s detected as low electrical level.
etected upon changes from high and low electrical level, which can link to multi vehicle
andard current is 200mA. A relay will be needed if higher power consumption is used for
The st operation.
Vehicle Safety - It's All We Do.
TM
25

4. FAQ

1. Why doesn’t the DVR record when powered?
Confirm TF card is in and check status.
Types of disk status: nonexistence, unformatted, normal volume of under usage, normal volume of full usage.
Nonexistence: no detect of TF card. Please check the computer or change to a different TF
card to decide if the problem is from TF card or DVR.
Unformatted: please try formatting from the DVR menu page and check if TF storage is
shown normal after formatting.
Normal volume of under usage: disk being normal, but storage is not full. Please check
recording mode to confirm if recording is enabled.
Normal volume of full usage: disk being normal with storage is full. Pls check if disk cycle
cover is open.
2. Why does the DVR frequently reboot?
The common issue: Abruptly turns on/off, recording interrupt, recording not in sequence
Reasons:
Unstable power supply: this is most possible reason, please test input voltage when this
problem appears
Disk error: 1: try to format disk; 2. change a different or new disk
Software or hardware problems: please remove the TF card or disk, test if issue still occurs
under normal power supply. If problem continues, please send the version to technicians, or return to factory for repair if necessary.
2
Vehicle Safety - It's All We Do.
TM
GPS Questions
1. Why there is no GPS location info?
Confirm GPS module is connected
Check if GPS antenna is installed correctly. It's recommended to put antenna with clear line
of sight to the sky, no obstruction for better signals. Though, it's normal that GPS signals may be lost when car is passing thru a tunnel, big trees, or high buildings.
2. Why there is no positioning info when the vehicle is online?
Check GPS interval
Only GPS signal being normal, there will be positioning info, make sure GPS signal is normal
3G/4G Questions
Why 3G dial up failed?
Check module status and 3G setting.
Check if the antenna is installed correctly and how strong the 3G signal is.
Check SIM card status making sure SIM card is activate, if already activated make sure you
have enough money left on SIM if its prepaid.
Server Questions
Why I can't connect to the servers when the DVR is running?
Make sure 3G/4G has dialed up successfully.
Check if server is configured corrects at local menu, such as IP, port, and ID being unique.
Check if there's online vehicle to confirm if server is working normally.
Vehicle Safety - It's All We Do.
TM
27
If you have any questions
about this product, please contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
EHICLE SAFETY - IT'S ALL WE DO.
V
TM
Loading...
