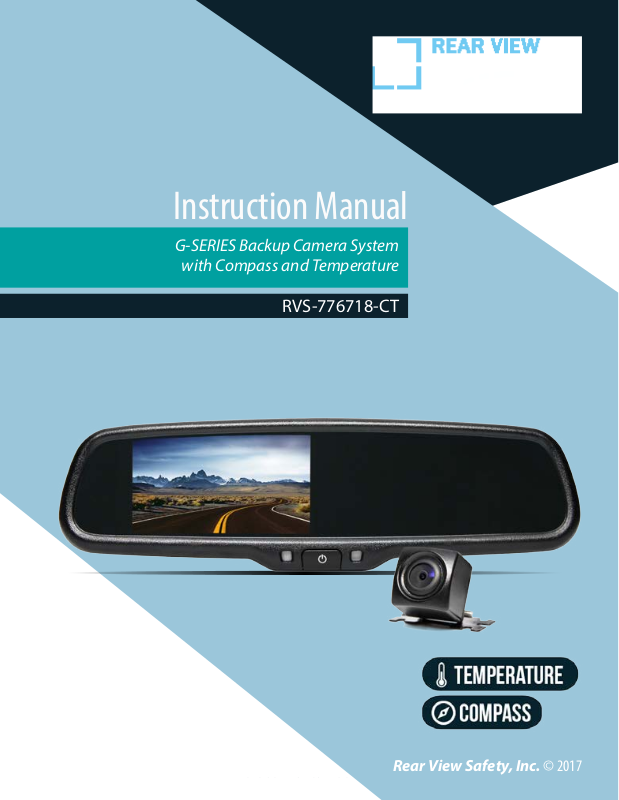

Instruction Manual

G-SERIES Backup Camera System

with Compass and Temperature

RVS-776718-CT

Reverse With Condence ™

Rear View Safety, Inc. © 2017

1

NOTE!

Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.

Congratulations on purchasing a Rear View Backup

Camera System!

With this manual you will be able to properly install and

operate the unit.

TABLE OF CONTENTS

Introduction...............................03

Safety Information..........................04-06

Before Beginning Installation . . . . . . . . . . . . . . . . . . . . . . . 07

Installation Guide.......................... 08-09

Adjustable Grid Line...........................10

Installation and Wire........................11-13

Digital Compass Calibration ......................14-15

Magnetic Fluxline Distribution. . . . . . . . . . . . . . . . . . . . . . . . 17-19

Monitor Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Camera Specication...........................21

Camera Installation ...........................22

Troubleshooting.............................23

The Backup Camera System is intended to be installed as a

INTRODUCTION

supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror

that exists in your vehicle.

In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly

or indirectly, to the driver while operating the vehicle.

Warranty & Disclaimer........................ 24-25

2 3

Rear View Safety Reverse With Condence ™

Please read the entire manual and follow the instructions and

warnings carefully. Failure to do so can cause serious damage and/or

injury, including loss of life. Be sure to obey all applicable local

trac and motor vehicle regulations as it pertains to this product.

• Electric shock or product

malfunction may occur if this
product is installed

INSTALLATION:

or disconnected wire may cause a
re.

Improper installation will void manufacturer’s warranty.

USAGE:

• The Rear View Camera System is

designed to help the driver safe­ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.

damage or injury. Always back up
slowly.

• The Rear View Camera System is

not intended for use during exten­sive back-up maneuvers or backing
into cross trac or pedestrian walk­ways.

incorrectly.

• Use this product within

the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.

• Take special care when

cleaning the monitor.

• While installing the Rear View

System be careful with the wire
positioning in order to avoid wire
damage.

• The Rear View System should only

be used when the vehicle is in
reverse.

• Do not watch movies or

operate the monitor while driving;

SAFETY INFORMATION

• Never back up while looking at the

monitor alone. You should always
check behind and around the vehi-

SAFETY INFORMATION

cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System. If you back up while looking
only at the monitor, you may cause

•Please, always remember, the area

displayed by the Rear View Camera
System is limited. It does not display
the entire panorama that is behind
you.

• Make sure to rmly ax the prod-

uct before use.

• If smoke or a burning smell

is detected, disconnect the
system immediately.

• Where the power cable may touch

a metal case, cover the cable with a
friction tape. A short circuit

as it may cause an
accident.

• Do not install the monitor

where it may obstruct drivers
view or obstruct an air bag
device.

• Dropping the unit may cause

possible mechanical failure.

4 5

Rear View Safety Reverse With Condence ™

If you have questions about this product, contact:

A Safe Fleet Brand

Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility

Rear View Safety

1797 Atlantic Avenue

Brooklyn, NY 11233

Tel: [phone]

IN NO EVENT SHALL SELLER OR MANUFACTURER BE

LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF

ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM

ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.

of them being damaged while vehicle is in use. Keep all cables away

from hot or moving parts and electrical noisy components.

We recommend doing a benchmark test before installation

to insure that all components are working properly.

Step 1: Choose the monitor and camera locations.

BEFORE YOU BEGIN

Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)

SAFETY INFORMATION

hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.

Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page

23).

6 7

Rear View Safety Reverse With Condence ™

Replacement Monitor

Wiring

The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the “pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole).Dier­ent cars have dierent brackets, depending on your vehicle make and
manufacturer. There are many methods to remove the original rear­view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car by wrong installation of the mirror. Figure 1.1

Clip-On Monitor

1. The Mirror Monitor attaches to the existing rear view mirror in

After connecting the camera to the “camera cable” the camera should
be plugged into AV2 input. Connect the RED 12V power wire to an igni­tion power source and the BLACK 12V ground wire to a chassis ground.
The GREEN wire is the REVERSE trigger wire. Connect this wire to the
vehicle’s backup light circuit to activate the rear-view image whenever
the vehicle shifts into reverse. To connect a second camera, connect it
to AV1 input. It can be turned on by pressing the power button on the
monitor. Figure 2.1, Figure 2.2

Precautions for use of Mirror Monitor

INSTALLATION GUIDE + TIPS

vehicle with the pressurized clips on the back of the monitor.

2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.

Camera & Cable

Be sure to position the cable properly. The aviation camera cable uses

INSTALLATION GUIDE

aircraft grade connectors which means the camera cable can be ex­posed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
camera extension cable which runs inside the vehicle. Figure 1.2

I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.

Safety

• Before drilling, be sure no cable or wire is on the other side.

• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.

8 9
