RVS Systems RVS-218632 User Manual
Instruction Manual
G-SERIES Backup Camera System
with Built-In Dash Camera
RVS-776718-BB
Reverse With Condence ™
Rear View Safety, Inc. © 2017
1
Introduction...............................03
Safety Information..........................04-06
Before Beginning Installation . . . . . . . . . . . . . . . . . . . . . . . 07
Installation Guide.......................... 08-09
Grid Lines..............................10-11
Installation and Wire.........................12-14
Adjustable Grid Lines...........................15
Monitor Specications ..........................16
TABLE OF CONTENTS
2
Basic Functions ...........................17-27
Video Recording ............................28
File Browsing ..............................29
Dash Cam Specications .........................30
Camera Specication...........................31
Camera Installation ...........................32
Troubleshooting............................33
Warranty & Disclaimer........................ 34-35
Rear View Safety
NOTE!
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION
Reverse With Condence ™
3
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
USAGE:
• The Rear View Camera System is
designed to help the driver safely detect people and/or objects,
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
damage or injury. Always back up
slowly.
• The Rear View Camera System is
not intended for use during extensive back-up maneuvers or backing
into cross trac or pedestrian walkways.
•Please, always remember, the area
displayed by the Rear View Camera
check behind and around the vehi-
SAFETY INFORMATION
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System. If you back up while looking
only at the monitor, you may cause
4
System is limited. It does not display
the entire panorama that is behind
you.
Rear View Safety
INSTALLATION:
• Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
SAFETY INFORMATION
• Take special care when
cleaning the monitor.
• Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
• Where the power cable may touch
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
a metal case, cover the cable with
friction tape. A short circuit
Reverse With Condence ™
• Dropping the unit may cause
possible mechanical failure.
5
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: 1.800.764.1028
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
SAFETY INFORMATION
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
6
A Safe Fleet Brand
Rear View Safety
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
33).
BEFORE YOU BEGIN
Reverse With Condence ™
7
Replacement Monitor
The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the “pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole).Dierent cars have dierent brackets. Depending on your vehicle make and
manufacturer. There are many methods to remove the original rearview mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car by wrong installation of the mirror. Figure 1.1
Clip-On Monitor
1. The Mirror Monitor attaches to the existing rear view mirror in
vehicle with the pressurized clips on the back of the monitor.
2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.
Camera & Cable
Be sure to position the cable properly. The aviation camera cable uses
INSTALLATION GUIDE
aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
8
camera extension cable which runs inside the vehicle. Figure 1.2
Rear View Safety
Wiring
After connecting the camera to the “camera cable” connect the camera
cable to the input on the wiring harness using the RCA adapter. Connect
the RED 12V power wire to an ignition power source and the BLACK 12V
ground wire to a chassis ground. The GREEN wire is the REVERSE trigger
wire. Connect this wire to the vehicle’s backup light circuit to activate
the rear-view image whenever the vehicle shifts into reverse. Be sure
to power the camera via the RED power por t on the RCA adapter.
Precautions For Use Of Mirror Monitor
INSTALLATION GUIDE + TIPS
I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.
Reverse With Condence ™
9
FIGURE 1.1
Dierent cars have dierent brackets. It depends on your vehicle make
and manufacturer. There are many methods to remove the original
rear view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for any damage caused to
your car by an incorrect installation of the mirror.
INSTALLATION AND WIRE
10
Rear View Safety
FIGURE 1.2

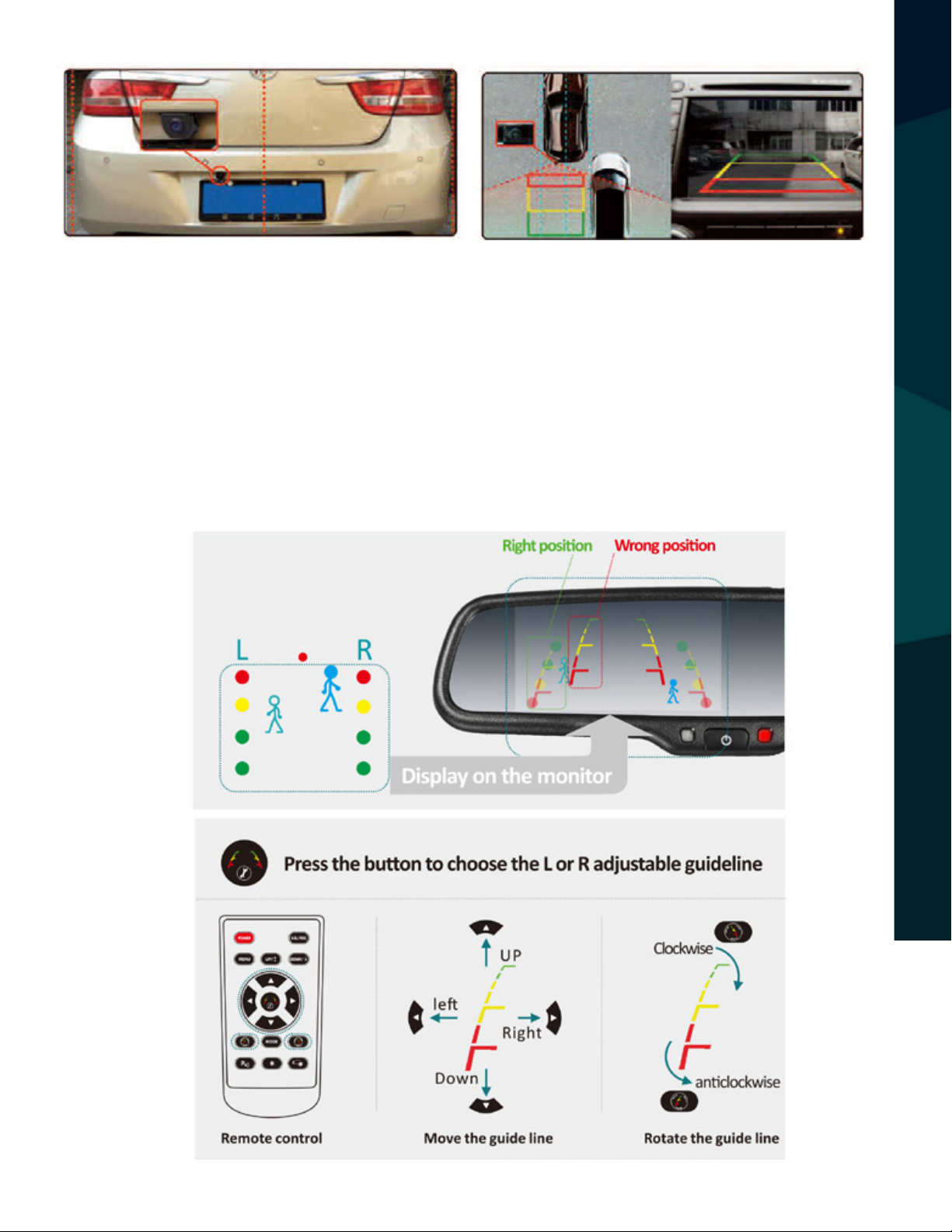

When a camera is to be installed at the rear of vehicle, a good position
is usually at the top of the license plate where there is an under ledge.
INSTALLATION AND WIRE
Reverse With Condence ™
11
