RVS Systems RVS-082552 User Manual

What’s in the Box?

ht visio

nig

ny CCD

1 Co

•

Har

a Cab

ntr

ness

2" OEM Mir

• 1 4.

• 1 66’

• 1 Rem

• 1 Po

Cam

wer

te co

nito

n weather

cam

ckup

Table of Contents

Introduction...................................................................................................4

Safety Information ..................................................................................5-7

Before Beginning Installation...................................................................8

Installation Guide.........................................................................................9

Installation Guide + Tips..........................................................................10

Adjustable Grid Line ..................................................................................11

Installation and Wire................................................................................12

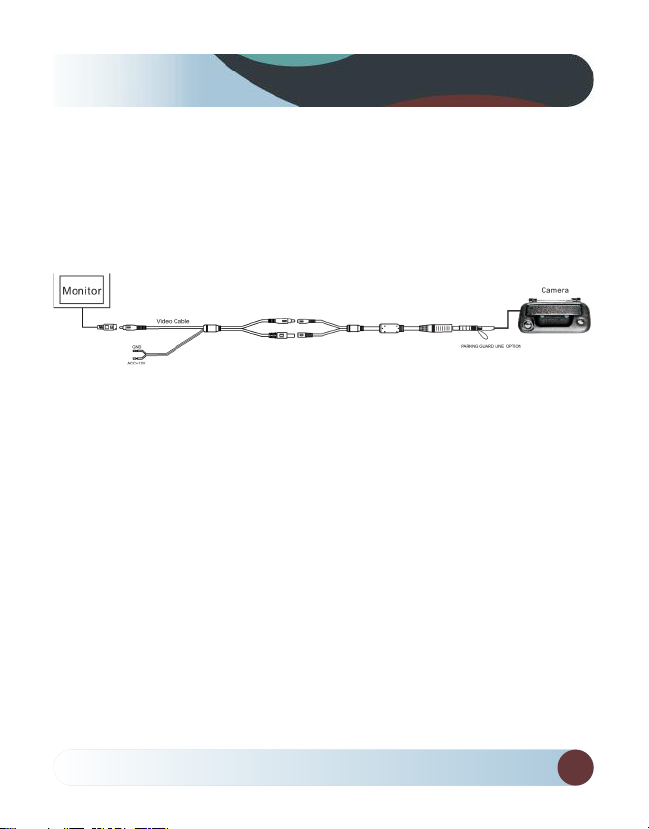

How To Wire................................................................................................13

Splicing .........................................................................................................14

Positioning.................................................................................................. 15

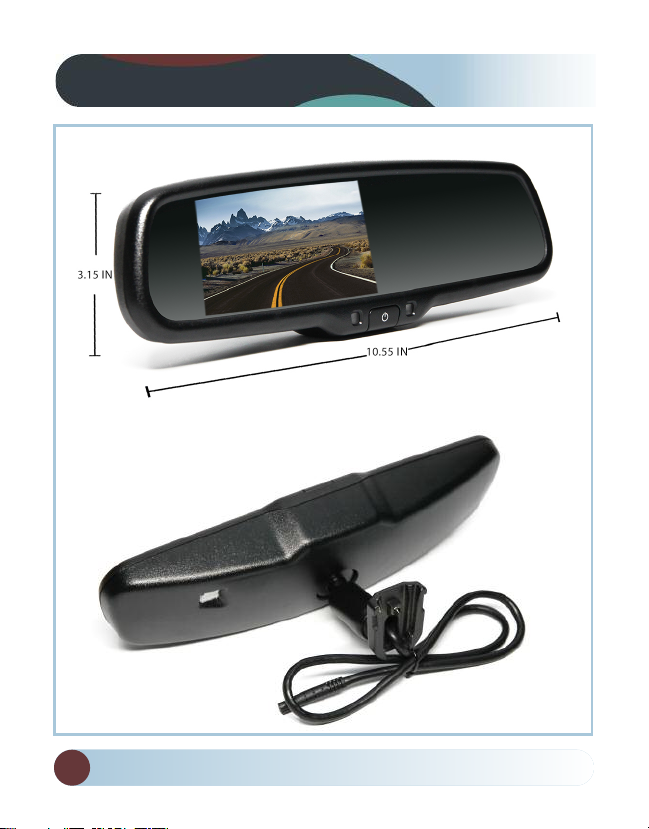

Monitor Dimensions..................................................................................16

Monitor Specifications.............................................................................17

Camera Dimensions...................................................................................18

Camera Specifications..............................................................................19

Troubleshooting..........................................................................................20

Warranty.......................................................................................................21

Disclaimer ....................................................................................................22

Introduction

Please read all of the installation instructions

carefully before installing the product. Improper

installation will void manufacturer’s warranty.

Congratulations on purchasing a Rear View Backup Camera

System! With this manual you will be able to properly install and

operate the unit.

The Backup Camera System is intended to be installed as a

supplemental aid to the rear view mirror in your vehicle. The

Backup Camera System should not be used as a substitute for the

standard rear view mirror or for any other mirror in your vehicle.

In some jurisdictions, it is unlawful for a person to drive a

motor vehicle equipped with a TV viewer or screen located for-

ward of the back of the driver’s seat or in any location that is vis-

ible, directly or indirectly, to the driver while operating the

vehicle.

REAR VIEW SAFETY

Safety Information

Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product.

warranty.

Improper installation will void manufacturer’s

USAGE

•

The Rear View Camera System is designed to help the driver safely detect people and/or objects helping to avoid damage or injury. However, you the driver, must use it properly. Use of this system is not a substitute for safe, proper or legal driving.

• Never back up while looking

at the monitor alone. You should always check behind and around the vehicle when backing up, in the same way as you would if the vehicle did not have the Rear View

Reverse With Confidence

™

Camera System. If you back up while looking only at the monitor, you may cause damage or injury. Always back up slowly.

• The Rear View Camera Sys-

tem is not intended for use during exstensive back-up maneuvers or backing into cross traffic or pedestrian walkways.

• Please, always remember,

the area displayed by the Rear View Camera System is limited. It does not display the entire panorama that is behind you.

Safety Information

INSTALLATION

•

Electric shock or product malfunction may occur if this product is installed incorrectly.

• Use this product within

the voltage range specified. Failure to do so can cause electronic shock or product malfunction.

• Take special care when

cleaning the monitor.

• Make sure to firmly affix the

product before use.

• If smoke or a burning smell

is detected, disconnect the system immediately.

• Where the power cable may

touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire.

• While installing the Rear

View System be careful with the wire positioning in order to avoid wire damage.

• The Rear View System should

only be used when the vehicle is in reverse.

• Do not watch movies or

operate the monitor while driving; as it may cause an accident.

• Do not install the monitor

where it may obstruct drivers view or obstruct an air bag device.

• Dropping the unit may cause

possible mechanical failure.

REAR VIEW SAFETY

Safety Information

If you have questions about this product, contact:

Customer Service:

Rear View Safety

1797 Atlantic Avenue

Brooklyn, NY 11233 Tel: 1.800.764.1028

IN NO EVENT SHALL SELLER OR MANUFACTURER BE

LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF

ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM

ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.

Reverse With Confidence

™

Before You Begin Installation

Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components.

We recommend doing a benchmark test before installation to insure that all components are working properly.

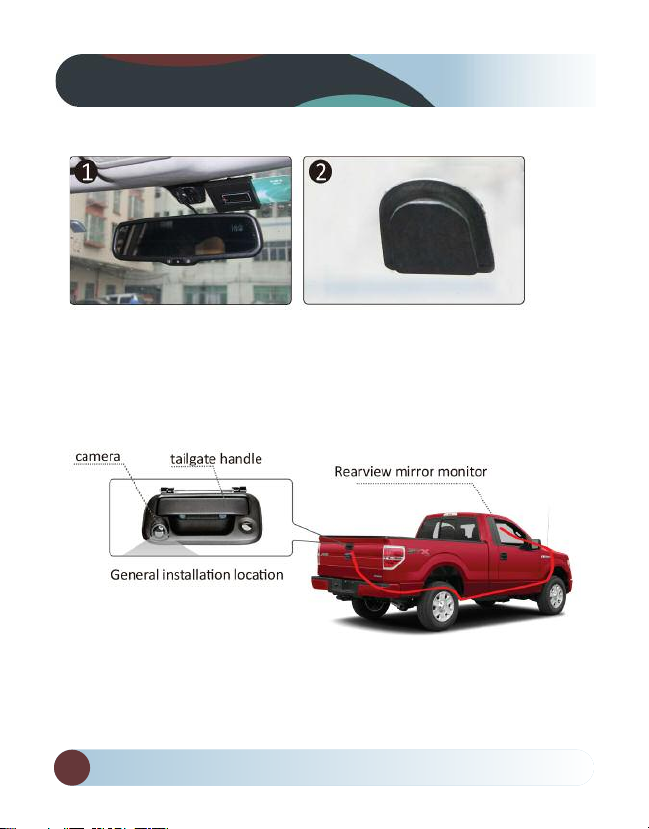

Step 1: Choose the monitor and camera locations.

Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm) hole should be drilled for passing camera cable through vehicles walls. Install split grommets where applicable.

Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 20).

REAR VIEW SAFETY
