RVS Systems rear view camera system 5 1-2 inch monitor User Manual

TM
1
What’s in the Box?
• 1 x 5.6" TFT LCD Color Monitor w/Universal Mount/Stand & Wire
• 1 x Backup Camera
• 1 x Power Harness
• 1 x 66’ Camera Cable
• 1 x Remote Control
1 x Screw Kit for installation
2
REAR VIEW SAFETY
Table of Contents
Introduction...................................................................................................4
Safety Information ..................................................................................5-7
Before Beginning Installation...................................................................8
Installation Guide.........................................................................................9
Wiring Camera & Monitor.................................................................10-11
Installation Diagram .................................................................................12
Installing the Monitor ..............................................................................13
Monitor Operation.....................................................................................14
Splitting & Splicing ...................................................................................15
Positioning.................................................................................................. 16
Monitor Dimensions..................................................................................17
Monitor Specifications.............................................................................18
Camera Dimensions...................................................................................19
Camera Specifications..............................................................................20
Troubleshooting..........................................................................................21
Warranty.......................................................................................................22
Disclaimer ....................................................................................................23
Reverse With Confidence
3
Introduction
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup Camera
System! With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already
exists in your vehicle. The Backup Camera System should not be
used as a substitute for the standard rear view mirror or for any
other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located
forward of the back of the driver’s seat or in any location that
is visible, directly or indirectly, to the driver while operating the
vehicle.
4
REAR VIEW SAFETY
Safety Information
Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica­ble local traffic and motor vehicle regulations as it pertains to this product.
warranty.
Improper installation will void manufacturer’s
USAGE
The Rear View Camera System is designed to help the driver safely detect people and/or objects helping to avoid damage or injury. However, you the driver, must use it properly. Use of this system is not a substitute for safe, proper or legal driving.
Never back up while looking
at the monitor alone. You should always check behind and around the vehicle when backing up, in the same way as you would if the vehicle did not have the Rear View
Reverse With Confidence
Camera System. If you back up while looking only at the monitor, you may cause damage or injury. Always back up slowly.
The Rear View Camera Sys-
tem is not intended for use during exstensive back-up maneuvers or backing into cross traffic or pedestrian walkways.
Please, always remember,
the area displayed by the Rear View Camera System is limited. It does not display the entire panorama that is behind you.
5
Safety Information
INSTALLATION
Electric shock or product malfunction may occur if this product is installed incorrectly.
Use this product within
the voltage range specified. Failure to do so can cause electronic shock or product malfunction.
Take special care when
cleaning the monitor.
Make sure to firmly affix the
product before use.
If smoke or a burning smell
is detected, disconnect the system immediately.
Where the power cable may
touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire.
While installing the Rear
View System be careful with the wire positioning in order to avoid wire damage.
The Rear View System should
only be used when the vehicle is in reverse.
Do not watch movies or
operate the monitor while driving; as it may cause an accident.
Do not install the monitor
where it may obstruct drivers view or obstruct an air bag device.
Dropping the unit may cause
possible mechanical failure.
6
REAR VIEW SAFETY
Safety Information
If you have questions about this product, contact:
Customer Service:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: 800.764.1028
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
Reverse With Confidence
7
Before Beginning Installation
Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm) hole should be drilled for passing camera cable through vehicles walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 22).
8
REAR VIEW SAFETY
Installation Guide
Cable
1. Be sure to position the cable properly. The camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts.
2. Fasten all cables and secure all excess cable.
Monitor
1. To Attach the Pedestal mount to the dashboard or to the headliner use self-tapping screws and/or the adhesive pad.
2. Attach monitor to mount, and adjust mounting angle to allow optimum driver viewing comfort. (see figure 1.1 on page 12)
Reverse With Confidence
9
Installation Guide
The Power Harness.
To power the system connect
the power (RED) 12V+ wire to ignition power and the ground (BLACK) wire to chassis ground.
These are the only wires
needed to power the entire system and all the cameras. Each camera can be seen at any time by simply pressing the power button and using the V1/2 button to toggle.
The three positive trigger wires
(WHITE-CH1, BROWNCH2, BLUE-CH3) each represent one channel and will turn on their channel when the trigger wire is energized with 12V.
"Camera 3" is the designated
backup channel. To have the the backup camera come on when you go into reverse, con­nect the BLUE wire to reverse power (or any power source that comes on only in reverse).
The other channels can simi-
larly be triggered (i.e. side cam­eras can be triggered by the turn signals etc.)
To automatically have camera
and monitor turn ON when vehi­cle activates, simply twist BLUE positive trigger 12V+ to Red Power line 12V+ and wire to ig­nition power.
Note: This setup will disable the menu in channel 3. To access the menu simply move to channel 1 or 2 and all the changes will apply to channel
3. Note: When the blue wire is
active it will have precedence over the other triggers. Therefore, if you wish to use multiple triggers, do not attach the blue trigger to constant power.
10
REAR VIEW SAFETY
Wiring Camera & Monitor
Audio: There is audio on
channels 2 and 3. On channel 3 the blue trigger wire must be energized (12V) to activate the audio. On channel 2 the audio is always on.
Grid-lines: The grid-lines are
also carried through the blue wire. To use the grid-lines for reversing, connect the blue wire to a reverse power.
Note: The camera and monitor can always be activated by manually pushing the power button on monitor. This is in addition to utilizing the positive triggers.
There is a built-in voltage
regulator for our systems which can handle 12-24 volts. Real consumption is 10 to 30 Volts.
Note: If connecting power directly to battery, the camera is always ON and therefore can drain battery. Therefore it is recommended to connect power to an ignition switched accessory power source.
Reverse With Confidence
11

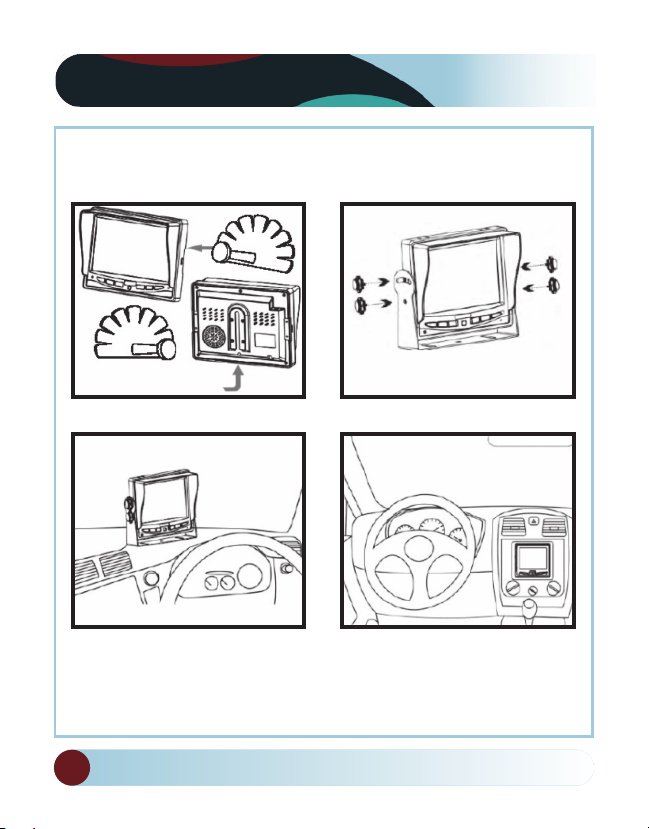

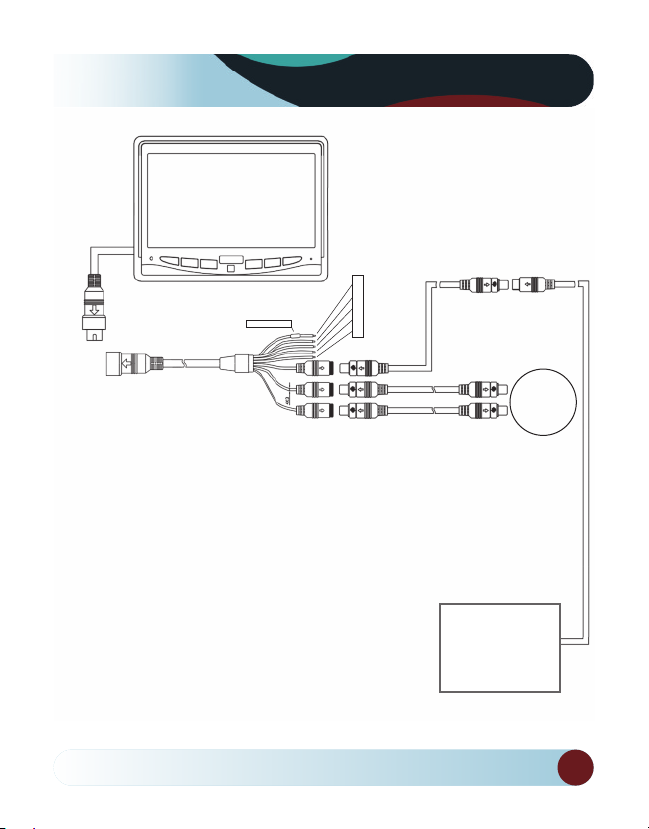

Installation Diagram
Figure 1.1
Figure 1.3
Connection of U
Bracket
Figure 1.2
Figure 1.4
Connection of
Flushmount Bracket
12
REAR VIEW SAFETY
1.
DC12V
Groun
-24V
d
2.
3. Port #3 (blue)
4. Port #2 (brown)
5. Port #1 (white)
Monitor
Installing the Monitor
66ft Extension Cable
1 2 3
3 Amp Fuse
Power Harness
4 5
Camera
Optional Camera Available
Reverse With Confidence
13
Monitor Operation
CAMERA
SELECTION
MENU/
SELECTION
BUTTON
POWER
ON / OFF
DOWN ARROW
UP ARROW
ROTATE IMAGE
MENU
V1/V2
REV
(Back/Exit when in Menu Mode)
• To turn on the monitor, press “ON” button.
• To adjust brightness, press “MENU” 1 time and use arrows
• To adjust contrast, press “MENU” 2 times and use arrows
• To adjust saturation, press “MENU” 3 times and use arrows
• To adjust sharpness, press “MENU” 4 times and use arrows
• To adjust volume, press “MENU” 5 times and use arrows
• To change language, press “MENU” 6 times and use arrows
• To activate rotate image option, press “MENU” 7 times
and use arrows.
• To activate day/night option, press “MENU” 10 times and use arrows
• To reset your system, press “MENU” 11 times and use arrows
• To view images on other cameras, press “CAMERA SELECTION” 1 time for camera one, 2 times for camera two and 3 times for camera three.
14
REAR VIEW SAFETY
Splitting & Splicing

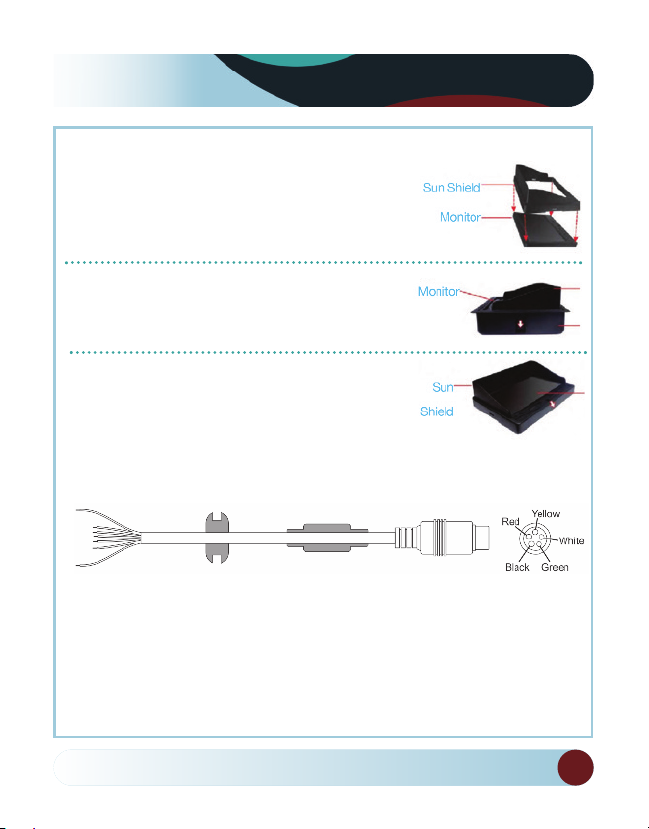

Installing sun shield: Put shade cover on the display. Installing back cover: Put the monitor with shade cover in the back cover (only for embedded monitor)
Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. (only for embedded monitor)
Splitting sun shield: Take the monitor with the left hand and detach with right hand as indicated by the white arrow. (see below)
1.
2.
3.
4.
5.
1. Red - Power (+)
2. Yellow - Video
3. Green - Mirror / Normal Imaging
4. White - Audio
5. Black - Ground (-)
Reverse With Confidence
15
Positioning
16
REAR VIEW SAFETY
Monitor Dimensions
Some Models
5.6”
table of contents
Menu/
Camera
Selec-
tion
Button
Selec-
tion
Power On/Off
Reverse With Confidence
Down Arrow
Up
Arrow
Rotation
Imager
(Exit in
Menu
Mode)
with sun shade
5”
power
video select down/up
menu
mirror/ normal
17
Monitor Specifications
TFT LCD Digital Monitor
Screen Size 5.6”
Dot Resolution 800
H x 3 (RGB) x 480
Display Format 16:9 / 500:1
Display Brightness 400cd/m
2
Viewing Angle U:50° / D:60° / R:70°
Video Input 3 channel
Video Source 1Vp-p, 75Ω
Power Supply DC 12V-24V (+/- 10%)
Power Consumption 5W
Operating Temperature -30°C ~ +80° C
Video System Auto NTSC/PAL
Overall Dimensions 5.6”
L x 5”H x 1”D
Weight 400G
Impact Rating 5G
Dot Pitch 154.08(H) x 86.58(V)
Sync System Internal
18
REAR VIEW SAFETY
Troubleshooting
Monitor Displays Blue Screen & Displays No Signal
Do a hard reset, unplug all
cables and power cables leave out for 1 minute and then re-connect them.
Check to ensure that the con-
nection to the camera is tight.
Verify camera cable is plugged
into port labeled Backup Camera
Verify that the blue positive
Monitor Will Not Power-Up (no backlight on power button)
trigger on power harness is
put to power 12v+.
If the problem still persists, ver­ify that alternate ports work. If alternate ports do not work, re­move Blue Trigger wire from 12V+ and select alternate chan­nels.
Check fuse
Check 12v+ to monitor
No Image On Screen
Verify camera is on correct
camera input
Verify cable is connected to
monitor
Verify camera is connected to
cable
Audio on Camera
Verify chosen camera has audio
Verify volume setting
Reverse With Confidence
Check ground connection
Connect known working
camera and cable to monitor.
Verify Blue trigger is receiving
power
Confirm that the Blue audio
trigger is connected to 12v+
19
Warranty
One Year Warranty
Rear View Safety, Inc. warrants this product against material defects for a period of one year from date of purchase. We reserve the right to repair or replace any such defective unit at our sole discretion. Rear View Safety, Inc. is not responsible for a defect in the system as a result of misuse, improper installation, damage or mishandling of the electronic components. Rear View Safety, Inc. is not responsible for consequential damages of any kind. This warranty is void if: defects in materials or workmanship or damages re-
sult from repairs or alterations which have been made or attempted by oth­ers or the unauthorized use of nonconforming parts; the damage is due to normal wear and tear, this damage is due to abuse, improper maintenance, neglect or accident; or the damage is due to use of the Rear View Safety, Inc. system after partial failure or use with improper accessories.
Warranty Performance
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
Warranty Disclaimers
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS REAR VIEW SAFETY, INC.
REAR VIEW SAFETY, INC. DISCLAIMS ANY IMPLIED WARRANTY OR MERCHANT­ABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC. LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PROD­UCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
20
REAR VIEW SAFETY
Disclaimer
Rear View Safety and/or its affiliates does not guarantee or promise that the user of our systems will not be in/part of an accident or otherwise not collide with an object and/or person. Our systems are not a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations. The Rear View Safety products are not a substitute for rearview mirrors or for any other motor vehicle equipment mandated by law. Our camera systems have a limited field of vision and do not provide a comprehensive view of the rear or side area of the vehicle. Always make sure to look around your vehicle and use your mirrors to confirm rearward clearance and that your vehicle can maneuver safely. Rear View Safety and/or its affiliates shall have no responsi­bility or liability for damage and/or injury resulting from accidents occurring with vehicles having some of Rear View Safety products installed and Rear View Safety and/or its affiliates, the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or consequential, arising out of the use or intended use of the product. In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or otherwise) incurred in connection with the systems, including but not limited to damaged property, personal injury and/or loss of life. Neither shall Rear View Safety and/or its affiliates have any responsibility for any decision, action or inaction taken by any person in reliance on Rear View Safety systems, or for any delays, inaccuracies and/or errors in connection with our systems functions.
Reverse With Confidence
21
Take Notes
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
________________________________________
22
REAR VIEW SAFETY
Reverse With Confidence
23
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
BETTER CAMERAS. BETTER SERVICE.
IT’S OUR GUARANTEE.
Loading...
