CAM6.6

Six-Zone, Six-Source Controller

CAM6.6T

Six-Zone, Six-Source AM/FM Receiver

INSTRUCTION MANUAL

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

POWER CORD NOTICE FOR INTERNATIONAL OPERATION For 230V, 50Hz operation please select the power cord for your area. Select the plug for your area at one end and a IEC320 connector at the other. It is not necessary to make any other changes. If you have any questions please call Russound Inc. at 1-800-638-8055 or 603-659-5170

Safety Instructions:

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance in the operating instructions should be adhered to.

4. Follow Instructions - All operating and user instructions should be followed.

5. Water and Moisture - The appliance should not be used near water; for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

7. Wall or ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings, or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11. Grounding or Polarization - Precaution should be taken so that the grounding or polarization means of an appliance is not defeated.

12. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, receptacles, and the point where they exit from the appliance.

13. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

14. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

15. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through the openings.

16. Damage Requiring Service - The appliance should be ser viced by qualified service personnel when:

A.The power supply cord or the plug has been damaged; or B.Objects have fallen, liquid has been spilled into the appliance; or

C.The appliance has been exposed to rain; or D.The appliance does not appear to operate normally; or E.The appliance has been dropped or the enclosure is damaged.

17. Servicing - The user should not attempt to ser vice the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Precautions:

1. Power – WARNING: BEFORE TURNING ON THE POWER FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. All models are designed for use with either AC120V, 60Hz or AC240, 50Hz voltages. The unit will autoswitch to either of these voltages

2. Do Not Touch The Unit With Wet Hands – Do not handle the CAM6.6 or power cord when your hands are wet or damp. If water or any other liquid enters the CAM6.6 cabinet, take the CAM6.6 to a qualified service person for inspection.

3. Location of CAM6.6 – Place the CAM6.6 in a well - ventilated location. Take special care to provide plenty of ventilation on all sides of the CAM6.6 especially when it is placed in an audio rack. If ventilation is blocked, the CAM6.6 may overheat and malfunction. Do not expose the CAM6.6 to direct sun light or heating units as the CAM6.6 internal components temperature may rise and shorten the life of the components. Avoid damp and dusty places.

4. Care – From time to time you should wipe off the front and side panels of the cabinet with a soft cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since this may damage the finish or remove the panel lettering.

IMPORTANT SAFEGUARDS

TABLE OF CONTENTS

USER SECTION

Product Introduction............................................................................................................................5

Component Guide

CAM6.6 Controller.............................................................................................................. ................6

UNO-S1 Keypad .................................................................................................................. ................7

UNO-S2 Keypad ................................................................................................................. ................8

UNO-TS2 Touchscreen ........................................................................................................................9

SRC2 Remote Control.......................................................................................................................10

Operation

UNO-S1 Keypad Button Function........................................................................................................11

UNO-S1 User Menu...........................................................................................................................12

UNO-S2 Keypad Button Function........................................................................................................13

UNO-S2 User Menu...........................................................................................................................14

UNO-TS2 Touchscreen Button Function...............................................................................................15

UNO-TS2 - Setting Preferences..........................................................................................................16

Internal Source - AM/FM Tuner

UNO-S1 Keypad Control....................................................................................................................17

UNO-S2 Keypad Control ..............................................................................................................18-19

UNO-TS2 Touchscreen Control......................................................................................................20-21

SRC2 Remote Control .................................................................................................................22-23

INSTALLER SECTION

Getting Started

Unpacking........................................................................................................................................25

Tools Needed...................................................................................................................................25

System Installation Considerations.....................................................................................................25

Connection Tips................................................................................................................................25

Component Guide

CAM6.6 Controller Rear Panel.......................................................................................................26-27

UNO Keypad OS Update Port ............................................................................................................28

UNO Keypad Rear Panel ....................................................................................................................29

Wiring Instructions

Keypad Wiring ..................................................................................................................................30

Speaker Wiring.................................................................................................................................30

UNO-S2 IR Receiver Connection.........................................................................................................31

Keypad Installation

UNO Keypad Location ......................................................................................................................32

UNO Keypad Installation....................................................................................................................32

Making Connections

UNO Keypad Port Connections ..........................................................................................................33

Source Audio Input Connections.........................................................................................................34

Source IR Input Connections ..............................................................................................................34

Common IR Input Connection .............................................................................................................35

TABLE OF CONTENTS

Speaker Connections........................................................................................................................36

Zone Fixed/Variable Audio Output ......................................................................................................37

12VDC Home Theater Trigger In/Out..................................................................................................38

12VDC Mute Trigger In/Out...............................................................................................................39

RNET Link In/Out............................................................................................................... ...............40

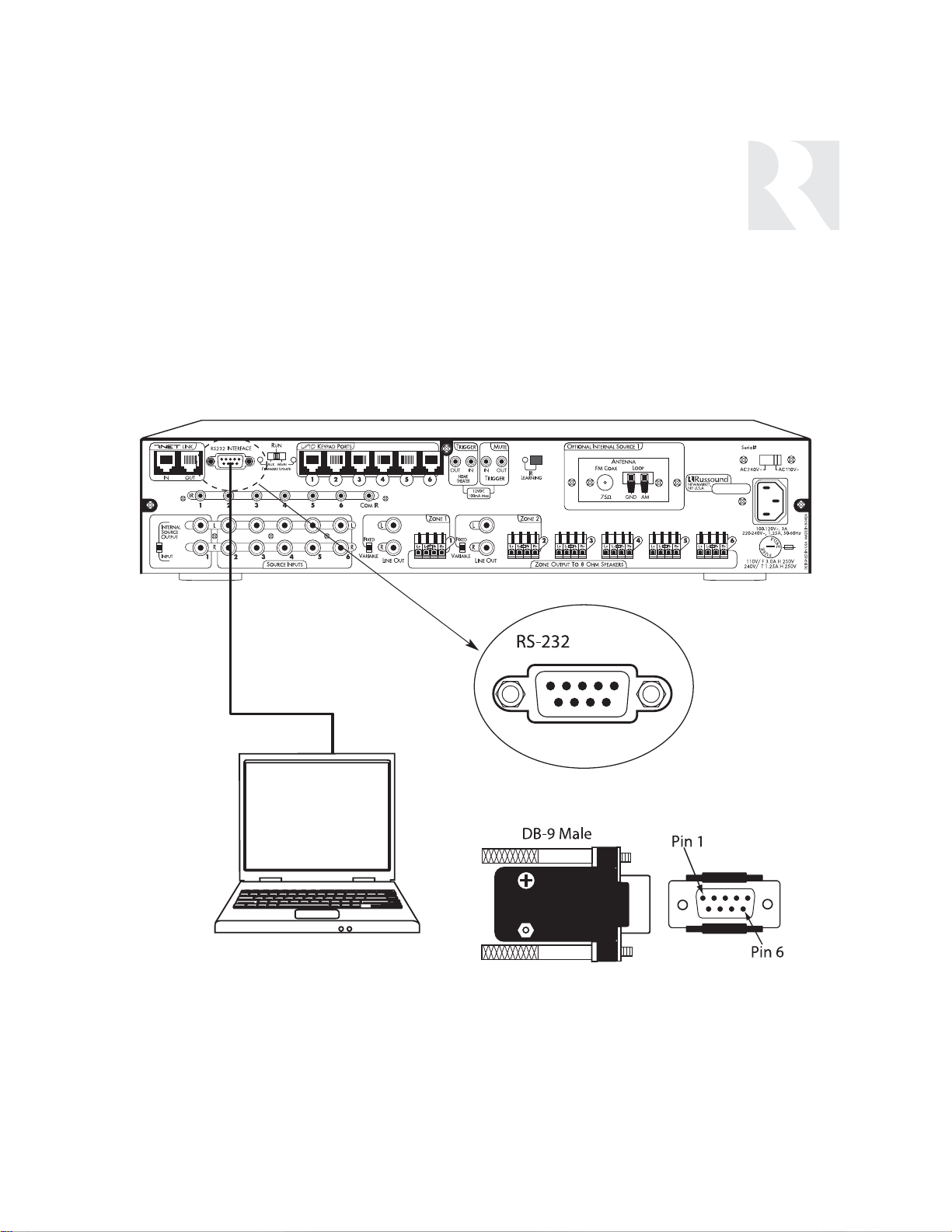

RS-232 Interface ..............................................................................................................................41

AM/FM Tuner Antennas.................................................................................................................42-44

Initial Install Test ...............................................................................................................................45

Programming

System Programming Overview.....................................................................................................46-47

Installation Menu

Installation Menu Overview.............................................................................................................48

Peripheral Setup......................................................................................................................49-51

Source Setup ..........................................................................................................................51-57

Basic Setup...........................................................................................................................51-53

Zone Setup ..................................................................................................................................58

Controller Setup.......................................................................................................................58-59

Power Management .................................................................................................................59-61

Learn IR.......................................................................................................................................61

Macro Editor............................................................................................................................62-63

System Info..................................................................................................................................63

Setup Menu Flow Charts...........................................................................................................64-76

Peripheral Setup: Memory Name, Bank Name..............................................................................64

Peripheral Setup: Controller ID, Region, Factory Init, System Info..................................................65

Basic Setup.................................................................................................................... ...........66

Key Configuration ......................................................................................................................67

Source Names/Volume Trim.......................................................................................................68

Numeric IR................................................................................................................................69

Source Select Command/Number of Sources..............................................................................70

Zone Setup ...............................................................................................................................71

Controller Setup.........................................................................................................................72

Power Management ...................................................................................................................73

Learn IR....................................................................................................................................74

Macro Editor .............................................................................................................................75

System Info...............................................................................................................................76

Keypad Diagnostics Menu .............................................................................................................77

REFERENCE SECTION

IR Device Code List..........................................................................................................................78-81

IR Keycode List..............................................................................................................................82-103

Source Names.............................................................................................................................104-105

Source Information Form.....................................................................................................................106

Zone Information Form.......................................................................................................... ..............107

Macro Editor Form..............................................................................................................................108

Sample Configurations..................................................................................................................109-112

Technical Specifications.......................................................................................................................113

Warranty ............................................................................................................................................114

PRODUCT INTRODUCTION

Thank you for choosing the Russound®CAM6.6 multisource, multizone controller to enhance your home with distributed audio. This controller’s state-of-the-art features and components blend seamlessly with your unique lifestyle and preferences.

Besides distributing and controlling six audio sources to six rooms (zones) using RNET

keypads, your CAM6.6 offers many features that increase your enjoyment of living. Here are several that you may find particularly beneficial.

Favorites

These easy-to-set buttons make it possible to hear your favorite radio station or watch your favorite satellite channel at just the right volume in your room with just a button push. The F1 and F2 preset favorite buttons can be found on the SRC2 remote control, UNO-S2 keypad and UNO-TS2 touchscreen. Want something new? Just re-save the Favorite with a new choice.

Party Mode

Ready to set the mood? In Party Mode, you just pick the source and the sound settings and hear the music throughout all the rooms. The Master keypad simultaneously controls all the keypads in all the rooms to effortlessly select or control the components. A great benefit of the Party Mode feature is the ability to transfer the Master keypad mode to any keypad in the system. If the living room is the center of the party, use that room’s keypad as Master. If the party moves to the sunroom and porch, that room’s keypad can be set to Master instead.

Do Not Disturb

The Do Not Disturb setting prevents unwanted interruptions in your room and stops changes to your selected audio source. You may have a nursery or study that you want to keep quiet, or maybe you are watching a DVD and don’t want it interrupted. Simply set the Do Not Disturb mode to “on” through the keypad’s User Menu, and be free from Party Mode interaction and system-wide functions like “All On” or “All Off.”

Internal Source

The CAM6.6T includes an internal source - an AM/FM tuner module. The tuner can store up to 36 favorites, or memory presets. These are stored in six groups (or banks) of six presets. Each preset and each bank can be given a custom name of your choice.

Here at Russound we are proud to continue providing innovative and intuitive audio product solutions to the world. When you link the industry-leading CAM6.6 with Russound’s commitment to its products and customers, you have truly made – “the right connection.”

USER

COMPONENT GUIDE

CAM6.6 Controller-Front Panel

MAIN POWER SWITCH - Supplies power to the CAM6.6 ROOM LED ON/OFF INDICATORS - Indicates when a room is on (green) or off (red)

Main Power and Zone Status

The power switch for the CAM6.6 controller is “on” in the up position. Any active room (1-6) is indicated on the front of the controller by a green LED, which shows red when the room is inactive. In most basic installations, all functions and room settings are controlled through the corresponding UNO systems keypads.

USER

COMPONENT GUIDE

UNO-S1 Keypad

LCD PANEL - 5-character backlit display shows status of the room, source, volume, and more

SOURCE SELECT BUTTON - Scrolls through the sources directly connected to the CAM6.6. Press and hold brings up the USER MENU for loudness, bass, treble, etc.

VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room IR RECEIVER - Receives IR signals and passes them to the controller and source equip-

ment. Also used when operating the UNO Keypad by using the SRC2 remote POWER BUTTON - Turns room ON or OFF when pressed once, press and hold a sec-

ond time will turn on or off all CAM6.6 rooms COMMAND KEYS - Pressing the command keys controls the source equipment

102.5

(press)

(press and hold)

LCD PANEL - 12-character backlit display shows status of the room, source, volume, and more

SOURCE SELECT BUTTON - Scrolls through the sources directly connected to the CAM6.6. Press and hold brings up the USER MENU for loudness, bass, treble, etc.

VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room IR RECEIVER - Receives IR signals and passes them to the controller and source equip-

ment. Also used when operating the UNO Keypad by using the SRC2 remote COMMAND KEYS - Pressing the command keys controls the source equipment POWER BUTTON - Turns room ON or OFF when pressed once, press and hold a sec-

ond time will turn on or off all CAM6.6 rooms F1 AND F2 BUTTONS - Selects Favorite 1 or Favorite 2 - preset user-selected

favorite settings per room

USER

COMPONENT GUIDE

UNO-S2 Keypad

Command Keys

CD PLAYER 1

USER

COMPONENT GUIDE

UNO-TS2 Touchscreen

IR RECEIVER - Receives IR signals and passes them to the controller and source equipment. Also used when operating the touchscreen by using the SRC2 remote

TOUCHSCREEN - Full color resistive touchscreen with multi-sound feedback. Screen can be programmed to go blank after a period of inactivity. Touching the screen anywhere reactivates it.

PLUS - Adjust setting for selected source MINUS - Adjust setting for selected source NEXT - Go to next selection for selected source PREVIOUS - Go to previous selection for selected source POWER - Turn room power on/off. Press and hold for system all on/all off PAUSE - Pause/mute for selected source VOLUME DOWN - Adjust volume down for room controlled by touchscreen VOLUME UP - Adjust volume up for room controlled by touchscreen

USER

COMPONENT GUIDE

SRC2 Remote Control

POWER - Turns room or Local Source on and off.

RUSSOUND DEVICE BUTTON - Used for SRC2 control of zone keypad.

NUMBER BUTTONS - Buttons (0-9) for direct selection of channels or discs.

VOLUME UP/DOWN - Raises and lowers the volume for the room you are in, or for the selected Local Device.

CURSOR KEYS - Issues IR commands for source equipment, allowing movement through menus and program screens.

COMMAND KEYS - Controls the selected device (e.g., VCR, DVD, or CD player) with these buttons.

SOURCE - Directly select sources connected to the Russound controller while in the Russound mode.

F1 AND F2 BUTTONS - Selects and saves Favorite 1 or Favorite 2 preset selections.

INPUT - Scrolls through sources while in the Russound mode, or switches inputs on selected Local Source.

LOCAL DEVICE BUTTONS - Selects Local Source to be controlled by SRC2.

SETUP - Use for programming SRC2 using the built-in library or by learning-in codes.

Room On/Off

Press and release to turn on the UNO System Keypad. This also turns on the corresponding CAM6.6’s room, and any presets previously assigned will be activated, including settings for bass, volume, last source selected, etc. Press and release to turn off the UNO System Keypad. This will also put the corresponding CAM6.6’s room into a standby state.

System All On/Off

An “All On” command is issued by pressing and holding for 3 seconds, from a keypad that has been turned on. An “All Off” command can be issued to all rooms by pressing and holding

after the room has been turned off.

System On Indicator

When the room is off, but the system is on in another room, is illuminated by a green backlight and the "SYS ON" icon remains visible.

Source Select Button

scrolls through the six audio source inputs. To change sources, press and release . As the sources are sequentially selected, each source's name appears on the keypad LCD panel. When a source is selected in more than one room, the “SHARED” icon will appear on all UNO Keypads using that source. is also

used to enter the User Menu with a press and hold action. (See next page for User Menu)

Volume Up/Down Buttons

The room’s audio output is adjusted using .

Command Keys

The command keys allow control of the selected source at the UNO Keypad. The command keys are activated with a press and release, or press and hold to access secondary functions.

USER

OPERATION

UNO-S1 Keypad Button Function

USER

USER MENU SETTINGS

UNO-S1 User Menu Operation

The User Menu allows the user to adjust the audio properties and control functions of a particular room.

To enter or exit the User Menu, press and hold

during normal operation. The following keys are used to navigate and make changes while using the User Menu:

Press and hold to adjust feature setting

(increment)

Press and hold to adjust feature setting

(decrement)

Go to next feature.

Go to previous feature.

View current feature setting.

UNO-S1 User Menu

Note: When within the UNO-S1 User Menu, if no keys are pressed, the display will revert back to its runtime display.

The following features make up the User Menu: Bass Treb Loud Bal OnVol

Bkgnd DND Party

Feature and Setting:

1. Bass -10 < Bass:Flat > +10

2. Treb (Treble) -10 < Treble:Flat > +10

3. Loud (Loudness) (more bass, fuller sound)

On or Off

4. Bal (Balance) Left 10 < Center > Right 10

5. OnVol (Turn on Volume) (default room volume

level) 0 to 100 (in steps of 2)

6. Bkgnd (Background Color) (keypad background light) Amber or Green or Off

7. DND (Do Not Disturb) - On or Off (default) Do Not Disturb means do not disturb this room or

selected source. This stops pages from being sent to this room, stops an “All Off," "All On" or

Party Mode command from affecting this room. When another UNO Systems Keypad selects the same source, a DND message will scroll on the the LCD panel, alerting the user the source is in Do Not Disturb mode.

8. Party (Party Mode) - Master or Off When in “PARTY MODE” the system is primarily

controlled by a “MASTER” Keypad. Party Mode links all rooms to the same source which is selected by the Master Keypad room. Any keypad in the system can become a Master Keypad (if enabled) but only one Master Keypad may exist at a time in Party Mode. Selecting Master Keypad mode from another keypad will transfer Master Keypad control to that room and release it from the first. When the source selected in the Master Keypad room is changed then the source for all rooms changes as well. The keypad will scroll a PARTY message on the LCD panel. It will scroll a MASTR message in lieu of PARTY if Master is enabled.

Volume level changes at the Master Keypad will be reflected in all rooms in Party Mode. NonMaster rooms in Party Mode can temporarily override Master Keypad volume level adjustments for their particular room preference. Master Keypad will not change Bass, Treble, or Loudness adjustments for any other rooms other than the Master Keypad room. Every other keypad will still operate its respective bass, treble, balance and loudness adjustments for that room.

USER

OPERATION

UNO-S2 Keypad Button Function

Room On/Off

System All On/Off

An “All On” command is issued by pressing and holding for 3 seconds, after an initial room has been turned on. An “All Off” command can be issued to all rooms by pressing and holding

after the room has been turned off.

System On Indicator

When the room is off, but the system is on in another room, is illuminated by a green backlight and the "SYS ON" icon remains visible.

Source Select Button

used to enter the User Menu with a press and hold action. (See next page for User Menu)

Volume Up/Down Buttons

The room’s audio output is adjusted using .

F1 and F2 Buttons

The and buttons are user favorite presets. These presets can be selected at any time to recall source selection, volume, and favorite channel, disk, etc. To store a favorite preset: first, adjust the room settings and select a source to be stored. Next, press and hold the desired or

button until SAVED is displayed on the LCD panel. Now a press and release of the button will recall the favorite preset. To set a favorite numbered disk or channel, use

or to select a disk or channel (e.g., channel 45). Wait for the keypad to show the source name, then press and hold the F1 or F2 within 15 seconds of setting the numeric selection to save the setting.

Command Keys

The command keys allow control of the selected source at the UNO Keypad. The command keys are activated with a press and release, or press and hold to access secondary functions.

The User Menu allows the user to adjust the audio properties and control functions of a particular room.

The following keys are used to navigate and make changes while using the User Menu:

To enter the User Menu, press and hold during normal operation. To exit the User Menu, press and release .

Adjust feature setting (increment). Adjust feature setting (decrement). Go to next feature. Go to previous feature. View current feature setting.

Note: When within the UNO-S2 User Menu, if no keys are pressed, the display will revert back to its runtime display.

The following features make up the User Menu: BASS TREBLE LOUDNESS BALANCE

TURN ON VOL BG COLOR DO NOT

DSTRB PARTY MODE

Feature and Setting:

1. BASS

-10 < Bass:Flat > +10

2. TREBLE

-10 < Treble:Flat > +10

3. LOUDNESS (more bass, fuller sound)

On or Off

4. BALANCE

Left -10 < Center > Right +10

5. TURN ON VOL (default room volume level)

0 to 100

6. BG COLOR (keypad background light)

Amber or Green or Off

7. DO NOT DSTRB - On or Off (default) Do Not Disturb means do not disturb this room

or selected source. This stops pages from being sent to this room, stops an “All Off," "All On" or Party Mode command from affecting this room. When another UNO Systems Keypad selects the same source, a DND icon will appear alerting the user the source is in Do Not Disturb mode.

8. PARTY MODE - Master (Enable) or Off (Disable) When in “PARTY MODE” the system is primarily

controlled by a “MASTER” keypad. Party Mode links all rooms to the same source which is selected by the Master Keypad room. Any keypad in the system can become a Master keypad (if enabled) but only one Master Keypad may exist at a time in Party Mode. Selecting Master keypad mode from another keypad will transfer Master keypad control to that room and release it from the first. When the source selected in the Master keypad room is changed then the source for all rooms changes as well.

Volume level changes at the Master Keypad will be reflected in all rooms in Party Mode. NonMaster rooms in Party Mode can temporarily override Master Keypad volume level adjustments for their particular room preference. F1 and F2 favorite presets selected from the Master Keypad will be enabled in all rooms in Party Mode. Master Keypad will not change Bass, Treble, or Loudness adjustments for any other rooms other than the Master Keypad room. Every other keypad will still operate its respective bass, treble, balance and loudness adjustments for that room.

USER

USER MENU SETTINGS

UNO-S2 User Menu Operation

USER

OPERATION

UNO-TS2 Touchscreen Button Function

Room On/Off

To turn on the room and the touchscreen, touch the UNO-TS2 screen anywhere, or press and release the power button. Any presets previously assigned will be activated, including settings for bass, volume, last source selected, etc. Press and release the power button to turn off the touchscreen, and to put the room into a standby state.

System All On/Off

An “All On” command is issued by pressing the power button and holding for 3 seconds, after an initial room has been turned on. An “All Off” command can be issued to all rooms by pressing and holding the power button after the room has been turned off.

System On Indicator

When the room is off, but the system is on in another room, the power button is illuminated by a red backlight.

Volume Up/Down Buttons

The room’s audio output is adjusted using the volume up/down hard buttons on the side of the touchscreen.

F1 and F2 Buttons

The F1 and F2 buttons are user favorite presets. These presets can be selected at any time to recall source selection, volume, and favorite channel, disc, etc. To store a favorite preset: first, adjust the room settings and select a source to be stored. Next, press and hold either F1 or F2 until “SAVED” is displayed on the LCD panel. Now a press and release of the button will recall the favorite preset. To set a favorite numbered disc or channel, use Plus or Minus to select a disc or channel from its source screen. Wait for the touchscreen to show the source name, then press and hold F1 or F2 within 15 seconds of setting the numeric selection.

Source Select Button

The six buttons in the middle of the touchscreen’s home page show the six assigned names of the sources. To select a source, press the button assigned to that source. To change sources, return to the home screen and press another source button. As the sources are selected, each source's name appears on the touchscreen’s LCD panel. When a source is selected in more than one room, the “shared” icon will be lit on all UNO Keypads using that source.

Source Control Screens

As each source button is pressed, a different screen appears that is customized to the source. These source screens come in “sets” which may have more than one screen per source that provide source information and selection options. In addition, the hard buttons on the right side of the touchscreen have secondary functions that are indicated with text on the specific source screens.

UNO-TS2 Home Screen

The Options button on the home screen brings up room setting options and screen adjustments. (For more detailed information, consult the UNO-TS2 Instruction Manual)

Features

Turn On Volume - This sets the room’s default vol-

ume when the room is turned on. Party Mode - When in “PARTY MODE” the system is

primarily controlled by a “MASTER” Keypad. Party Mode links all rooms to the same source which is selected by the Master Keypad room. Any keypad in the system can become a Master Keypad (if enabled) but only one Master Keypad may exist at a time in Party Mode.

Do Not Disturb - Do Not Disturb means do not disturb this room and selected source. This stops an “All Off" or Party Mode command from affecting this room. When another UNO Systems Keypad selects the same source, a DND icon will appear alerting the user the source is in Do Not Disturb mode.

Sound Control

Bass - Adjust the bass level for the room Balance - Adjust the left-to-right speaker balance for

the room

Treble - Adjust the treble for the room Loudness - Turn loudness (more bass, fuller sound at

“low” volumes) on or off for the room. A checkmark appears to indicate “Loudness” activation.

Options screen

Options

Features screen

Stream 3

Party Mode Off

USER

USER MENU SETTINGS

UNO-TS2 - Setting Preferences

Sound Control screen

Treble:+2

USER

INTERNAL SOURCE - AM/FM TUNER

UNO-S1 Keypad Control

UNO-S1 Keypad Contr

ol of Tuner

Selecting the tuner

On the UNO-S1 keypad, press to select the AM/FM tuner by choosing the tuner’s preassigned source number (1).

Selecting the desired frequency

Press and hold or to activate manual tuning. Once active, press or to scroll

through frequencies. The frequency will scroll twice on the keypad then stop and display the station’s first 5 characters

Setting a Memory Preset

The SRC2 remote control is used to set memory presets for all six banks. See page 22 for details.

TUNER SELECTION - Select source number assigned to AM/FM Tuner (1)

FREQUENCY SELECTION Scrolls through frequencies (press and hold, then press)

102.5

USER

INTERNAL SOURCE - AM/FM TUNER

UNO-S2 Keypad Control

UNO-S2 Keypad Contr

ol of Tuner

Selecting the tuner

On the UNO-S2 keypad, press to select the AM/FM tuner by choosing the tuner’s preassigned source number (1).

Selecting the desired band

Push to toggle between AM band and FM band reception.

Selecting the desired frequency

Use and for manual tuning. The frequency will appear on the keypad and the active tuner. To move quickly through the stations, press and hold either or for more than

1.5 seconds

Frequency Seek

A press on will seek the next higher tuneable station. If a tuneable station is not found, end the SEEK function by pressing again.

Frequency Scan

To scan, press and hold then release . The tuner scans through tuned stations with a 5-second preview before moving to the next station. To end scanning, press again.

Selecting a Bank

The AM/FM tuner can store up to 36 favorites, or memory presets. These are stored in groups

of six called banks, and there are six banks. Each preset and each bank can be given a custom name of your choice. To select a bank, press and hold for bank up or for bank down. The bank’s name will be temporarily displayed on the UNO-S2. Banks and memory presets are custom-named in the Peripheral Setup Menu (see Installation Menu section of this manual).

Setting a Memory Preset

The SRC2 remote control is used to set memory presets for all six banks. See page 22 for details.

Recalling a Memory Preset

Press and to scroll through the memory presets for the selected bank. This procedure will step through all of the presets in the current bank, then loop back to start at the first one. Only configured presets will be displayed.

Mute

Press to mute/unmute the tuner audio output.

TUNER SELECTION - Select source number

assigned to AM/FM TUNER (1)

TUNE UP/DOWN - Used for manual station

selection

SELECT - Selects AM or FM band

SEEK - (press) Seeks next higher tuned station

SCAN - (press and hold) Scans through tuned stations with 5-second preview before next station

MUTE - Mutes/unmutes tuner audio output

BANK SELECT - (press and hold) Used for bank

selection

MEM UP/DOWN - (press) Scrolls through memory

preset stations

USER

INTERNAL SOURCE - AM/FM TUNER

UNO-S2 Keypad Control

92.5 MHz FM

USER

INTERNAL SOURCE - AM/FM TUNER

UNO-TS2 Touchscreen Control

UNO-TS2 Contr

ol of Tuner

Selecting the tuner

On the UNO-TS2 touchscreen home page, press the named source button to select the AM/FM tuner.

Selecting a Bank

From the “1 of 3” tuner screen, select the bank by scrolling using the forward/back arrow next to the bank name. The bank name shows in the window. There are six available banks that store up to six presets each. Banks and memory presets are custom-named in the Peripheral Setup Menu (see Installation Menu section of this manual).

Setting a Memory Preset

From the “1 of 3” tuner screen, press the “tune” up/down hard button functions to select the desired station. Press and hold one of the six buttons in the middle of the screen to save the preset. When you hear the harp sound from the touchscreen, the preset is saved. The preset name then appears on the buttons. These may be custom names or frequencies.

New presets can be saved over existing presets using the same method.

Note: If the UNO-TS2 is powered on before the Russound Tuner is turned on, existing preset names may not appear until after the tuner’s boot up procedure is complete (less than a minute).

Recalling a Memory Preset

From the “1 of 3” tuner screen, press and hold one of the six buttons in the middle of the screen to recall the preset. Only configured presets will be displayed.

Presets can also be recalled from any tuner screen by using the “memory up/down” hard button functions on the bottom right of the

screen. These will be selected from the bank that is currently selected.

Selecting the desired band

From the “2 of 3” tuner screen, press the “AM” or “FM” button to select the desired band.

Selecting the desired frequency

From the “2 of 3” tuner screen, enter the 3- or 4-digit frequency number. The “tune up/down” hard buttons can also be used to select a station.

Frequency Seek and Scan

From the “3 of 3” tuner screen, select either the “Seek” or “Scan “ button. Press the button to begin the seek or scan function, then press the “Stop” button on the screen to end. The “tune up/down” hard buttons can also be used to select a station.

Local - Distant Reception

From the “3 of 3” tuner screen, the Local/Distant Reception setting changes how the tuner’s antenna picks up signals. Normal operation is in Distant mode.However, in cities, antennas can pick up multipath signals when they bounce off buildings and get doubled. In these cases, the Local mode limits the noise associated with these reflected signals.

Stereo - Mono Output

From the “3 of 3” tuner screen, change the output of a radio station by choosing either Stereo or Mono.

Mute

Press the mute hard button on the outside left of the UNO-TS2 to mute the tuner when it is the selected source.

USER

INTERNAL SOURCE - AM/FM TUNER

UNO-TS2 Touchscreen Control

1 of 3

Tuner 1

Dad’s Music

WBZ 1030

102.5 Class WEEI 850

107.1 MHz FM

89.7 NHPR

105.7 Oldies

Banks and Memory Presets

Example of Bank and Preset screen for Russound Tuner

107.1 MHz FM

AM/FM Tuner Advanced Features

3 of 3

Example of AM/FM tuner screen

2 of 3

Tuner 1

Example of numeric station selection screen for Russound Tuner

Numeric Station/Channel Selection

USER

INTERNAL SOURCE - AM/FM TUNER

SRC2 Remote Control

SRC2 Contr

ol of Tuner

Selecting the tuner

To select the tuner, push to toggle through sources and choose the source number preassigned to the AM/FM tuner (1), or use the UNO numeric source inputs at the bottom of the SRC2.

Selecting the desired band

Push to toggle between AM/FM reception.

Selecting the desired frequency

Use the Channel and or and for manual tuning. To move quickly through the channels, press and hold the button for more than 1.5 seconds. To directly select a station, enter the threeor four-digit channel or frequency (1071 for 107.1, etc.). European regions use five-digit station frequencies.

Frequency Seek

The SEEK function is performed by pressing and releasing the Select or or . To seek higher frequency station press . Press for lower frequencies. Tuning begins at the current frequency, seeks upward (or downward) and stops at the next tuned station. Pushing or again continues the SEEK function. Once the highest frequency is reached, the tuner continues SEEK mode at the lowest frequency.

Frequency Scan

To scan, press and hold then release . The tuner scans through tuned stations with a 5-second preview before moving to the next station. To end scanning, press again.

Selecting a Bank

To select a bank, press and hold for bank up or for bank down.

Bank/Memory Presets

The AM/FM tuner has six banks of preset memory settings, and each bank holds six presets for a total of 36 possible presets.

Setting a Memory Preset

1. Select a bank - press and hold or until the desired bank # (1-6) appears on the keypad.

2. Select a station - tune to the desired frequency with ,

or .

3. Press and hold a # button (1-6) until M(#) SA(ved) is displayed.

Recalling a Memory Preset

Press and to scroll through a loop display of all the configured memory presets for the currently selected bank.

Mute

Press the button to mute/unmute the tuner audio output.

USER

INTERNAL SOURCE - AM/FM TUNER

SRC2 Remote Control

POWER - Power managed by CAM6.6 NUMERIC INPUT - (press) Number buttons for

direct input of frequency MEMORY PRESETS - (press and hold) Number

buttons (1-6) for saving memory presets TUNE UP/DOWN - Incrementally scrolls through

channels or tuned stations OK - Confirms numeric selection PLAY - Selects AM or FM band SCAN - (press and hold) Scans through tuned sta-

tions with 5-second preview before next station SEEK UP/DOWN - (press) Seeks next tuned

station up or down MEM UP/DOWN - (press) Scrolls through memory

presets for selected bank BANK UP/DOWN - (press and hold) Used for bank

selection TUNER SELECTION - Select AM/FM Tuner by its

assigned source number PAUSE - Mutes/unmutes tuner audio output SEEK UP/DOWN - Seeks next tuned station up or

down TUNE UP/DOWN - Incrementally scrolls through

tuned stations

RUSSOUND SELECTION - “R” must be the selected source for control of the CAM6.6 and any connected components. Select “R” before sending SRC2 remote commands.

3 5

INSTALLER SECTION

Getting Star

ted

Includes an installation overview, including tools needed and connection tips.

Component Guides

Reviews front and back panel features of the CAM6.6 controller and the UNO keypads.

Keypad Installation

Explains UNO keypad installation and wiring.

Making Connections

Details front and back panel connections of the controller and the keypads.

System Pr

ogramming Overview

Outlines the programming planning process.

Installation Menu

Explains the programming menus that set up controller, keypad, source and zone operations.

Setup Menu Flow Char

Presents the programming menus in a graphical flow chart format.

IR Device Codes

A list of controller’s IR device code library for source Device Code entries.

Key Function Codes

A list of IR codes for each command type contained in the built-in library.

Sour

ce Names

A list of Source Names available for assignment.

Setup Forms

A group of information forms to complete prior to programming

Sample Configurations

Diagrams of various configurations using CAM6.6s and other components.

INSTALLER

GETTING STARTED

Unpacking the System Components

• Keep the original carton and packing materials for future shipment or storage.

• Check for any visible signs of damage. If you encounter any concealed damage, consult your Russound dealer before proceeding to install the unit.

• Retain the sales receipt as it establishes the duration of the limited warranty and provides information for insurance purposes.

Tools needed for installation:

• Drill with a 1/2” x 6” drill bit

• Keyhole saw

• Flat head screwdriver (medium size)

• Phillips Screwdriver (cordless recommended)

• 110 punchdown tool (included)

• Modular RJ-45 crimper and connectors

• Pair of diagonal cutters or wire strippers

• Stud finder

• Steel wire fish tape

• Cable staples

• Single-gang electrical work boxes

System Installation Considerations

There are several factors to consider before installing the Russound CAM6.6 system:

• What are the intended listening zones?

• What system options and accessories might be required for features such as local sources, etc.?

• From where in each zone will the user prefer to control the system? Where will the keypads be located? Where will the speakers be located?

• Where will the source equipment be located? The CAM6.6 must have proper ventilation above and below for air circulation and heat dissipation. A rack-mount location may require fans and vents.

Connection Tips

• It is recommended that the CAM6.6 and the source equipment be plugged into a dedicated 20-amp circuit with an isolated ground. A power line conditioner can reduce interference problems caused by noise found in some electrical systems.

• Disconnect all live power cords before making connections to the controller.

• Verify that all connections and polarity are correct.

• Keep all power cords away from all signal cables to prevent humming from induced noise.

• Choose reliable signal cables/patch cords.

• Label all wires with room location at both ends of the wire.

Do not connect the controller's main power feed until all other connections have been made and verified. Live connection or removal of the keypad wiring or other wiring when the system is powered can cause communication problems in the network. Double-check terminations during each phase of the installation to prevent accidental damage. Incorrect wiring is the number one cause for non-warranty product damage.

CAUTION

19 18

RNET LINK IN AND LINK OUT - Links multiple CAM6.6’s, also links future Russound components that are RNET compatible

RS-232 INTERFACE - The RS-232 Interface allows the zones to be controlled by PC or other devices that have an RS-232 Interface. The RS-232 Interface also allows for firmware updates and programming.

AUX-MAIN RUN SWITCH - For firmware updates UNO KEYPAD PORTS - One UNO Keypad Port for each of the six CAM6.6 Zones 12VDC TRIGGER OUT - 12VDC 100ma Trigger Out turns on when any zone is on HOME THEATER 12VDC TRIGGER IN - 12VDC input jack notifies the CAM6.6 that

additional components are active, e.g., home theater equipment MUTE 12VDC TRIGGER IN - Applying 12VDC to the Mute 12VDC Trigger In jack will

mute audio for assigned CAM6.6 Zones MUTE 12VDC TRIGGER OUT - Mute Trigger Out supplies 12VDC 100 mA whenever

12VDC is applied to the Mute 12VDC Trigger In IR LEARNING WINDOW - IR receiver for learning in IR commands with

confirmation LED

41 3 6 97 11

INSTALLER

COMPONENT GUIDE

CAM6.6 Controller-Rear Panel

1052 8

CAM6.6

OPTIONAL INTERNAL SOURCE - Factory installed optional internal source, AM/FM radio module

AC 240V-AC 110V Switch - Switches A/C input voltage between 110VAC and 240VAC

AC 120/240 INPUT - Grounded 3-terminal plug detachable power cord connection for the CAM6.6

FUSE HOLDER - Holds a replaceable fuse for A/C input connection 110VAC operation - F 3A H 250V, 240VAC operation; T 1.25A H 250V

SPEAKER OUTPUTS - Connect 8 Ohm speakers for each zone with detachable colorcoded modular snap connectors

AUDIO OUTPUTS - Audio line output connection FIXED/VARIABLE SWITCH - Change line out between fixed and variable output. COMMON IR OUTPUT - Output jack will pass all IR signals from all keypads SOURCE IR OUTPUTS - Six source-specific IR Output jacks allow for IR control of

source equipment AUDIO INPUTS - Six sets of Audio Line Level input connections for CAM6.6 source

components OUTPUT/INPUT SWITCH - Enable Source Input 1 or enables Internal Source 1 output

INSTALLER

COMPONENT GUIDE

CAM6.6 Controller-Rear Panel

INSTALLER

COMPONENT GUIDE

UNO Keypad Update Port

OS UPDATE PORT- Connection for programming cable used to update UNO keypad OS software.

SETUP BUTTON - Activates Installer Setup mode and accesses update menus

RESET BUTTON - Resets UNO-TS2 after update OS UPDATE/RUN JUMPER - Pins are jumpered

during OS update, and removed during normal operation.

Software Update

If a keypad update is released, it will be available online at

www.russound.com

through the Document Center, under RNET Systems. Before starting the update procedure, download updates to a PC and connect the correct programming cable from the PC to the OS update port on the front of the keypad.

Required Russound Cable for Programming UNO-S2, UNO-TS2

- use Programming Cable P/N 2500-121036

UNO-S1

- use Advanced Programming Cable P/N 2500-521065 (Do not put RS-232 level signals into the pins)

UNO-S2 Keypad

UNO-TS2 Touchscreen

UNO-S1 Keypad

OS Update Port

UNO-S2

UNO-S1

EXTERNAL IR RECEIVER IN CONNECTOR - Connection for an external IR Receiver OS UPDATE JUMPER - Selects mode “Run” (one pin covered) or “OS Update” (two pins covered).

Jumper setting must be in “Run” position for keypad operation. RESET BUTTON - (UNO-S2) Reset whenever changing from RUN to OS update

(UNO-TS2) Reset after touchscreen firmare update

110 PUNCHDOWN CONNECTOR - Termination for CAT-5 connection between the UNO Keypad and the CAM6.6 controller

INSTALLER

COMPONENT GUIDE

UNO Keypad-Rear Panel

UNO-TS2

EWMARKET

KOREA

DESIGNED IN USA MADE IN KOREA

, NH U.S.A.

UNO-S1

System Control Keypad

BL/WCOM B

GR/W

OR/W

GND

IR OUT

COM A

STATUS IN

BR/W+12V

+12V

NEWMARKET, NH USA

UNO-TS2

EXTERNAL IR RECEIVER IN

GND

+12V

SIGNAL

STATUS

DESIGNED IN USA MADE IN KOREA

+12V

GND

STATUS IN

GND

IR OUT

COM A

COM B

RNET

BR/W

GR/W

OR/W

BL/W

RESET

Wire Length

To determine the amount of CAT-5 wire required for the system installation, first decide how many keypads will be used, then determine the distance between each intended keypad location to the intended CAM6.6 location. The maximum recommended wire run length is 250 feet for each UNO keypad.

• Make sure that the entire wire path between keypads and CAM6.6 is clear and not obstructed by a floor ceiling joist, or masonry wall which can’t be drilled through.

• Confirm ahead of time that you can drill an outlet hole easily and in an unobtrusive spot to connect wires with the CAM6.6.

• Label wires with keypad and room location. This simplifies CAM6.6 hook-up once the keypads and speakers are installed.

RJ-45 Connections

The CAT-5 T568A wiring standard shown below is used for the RJ-45 terminations.

Speaker Wiring

Standard 16-gauge 4-conductor stranded speaker wire can be run up to to 125 feet; 14-gauge wire can be run up to 250 feet.

When running wire, pay particular attention to the following areas:

• Avoid locations concealing pipes, heating ducts and AC wiring in the general vicinity.

• Avoid running wires close to house electrical wiring for any distance. If you have to run them parallel, make sure to space the wires at least two feet from the AC line.

Keypad Wiring

For the UNO keypad or touchscreen, the following connections are used to terminate the CAT-5 wire to the 110 punchdown on the keypad:

-5 WIRE COLOR TYPE

Brown . . . . . . . . . . . . . . . . . . . +12V

Brown/White . . . . . . . . . . . . . . +12V

Green . . . . . . . . . . . . . . . . . . Ground

Green/White. . . . . . . . . . . . Status In

Orange . . . . . . . . . . . . . . . . . Ground

Orange/White. . . . . . . . . . . . . IR Out

Blue . . . . . . . . . . . . . . . . . . . COM A

Blue/White . . . . . . . . . . . . . . COM B

CAT-5 110 Punchdown Connection

The UNO keypad 110-punchdown terminal requires the use of a punchdown tool. Attach the CAT-5 cable to the 110 punchdown terminal on the UNO keypad, matching the conductor colors to the connection color guide. The keypad will not operate properly if the terminations deviate from the required connection order.

Caution

Take care when using an impact 110 punchdown tool, as this may overspread the contact points. Use of the impact tool may propel stray bits of wire and jacket into the keypad’s chassis and possibly cause a short in the circuitry. Gently shake or blow air through the keypad chassis to remove stray wire before the keypad is installed into the junction box.

INSTALLER

WIRING INSTRUCTIONS

The UNO-S2 keypad has an External IR Receiver IN terminal for connecting an external IR receiver such as the Russound SaphIR 858, 862 Eye, or 860 Phantom. Use 2 twisted pair wire with

one pair connecting GND (GROUND) and IR (SIGNAL) and the other pair connecting ST (STATUS) and V+ (+12VDC). If the wire has a shield, connect it to ground at the UNO-S2 only.

Back of

Russound 858

Back of

UNO-S2

INSTALLER

WIRING INSTRUCTIONS

IR Receiver Connection

KOREA

INSTALLER

UNO KEYPAD INSTALLATION

Keypad Location

The best infrared remote performance is achieved with the keypad away from any direct sunlight, plasma TV, and low voltage lighting controls. Also consider convenience when choosing a location.

Choose a place that is easily seen from the position where a person is most likely to be located.

Check whether or not you can route the wire to the location you have chosen.

Keypad Installation

An UNO keypad has three parts: the keypad, a back plate and a cover plate. To install an UNO keypad, use a UL/CSA approved plastic electrical box. Use a double-gang box for UNO-S2 and UNO-TS2. For UNO-S1, use a single-gang box.

• Route CAT-5 wire to the junction box from the CAM6.6.

• Use the supplied 110 punchdown tool to connect each wire to its corresponding color labeled on the punchdown terminal.

• Ensure jumper settings on keypads are in the run positions.

• Mount the keypad in the electrical box and attach the back plate then the cover plate.

• Repeat the steps until all keypads are installed.

Junction Box UNO-S1 Back Plate Cover Plate

Src 3

The UNO System Keypad Ports are located on the back of the CAM6.6 in the top left of center. Connections made at the UNO Keypad Ports are made using CAT-5 T568A RJ-45 wire configuration. CAT-5 is color-coded for ease of installation. For a clean installation when wiring from an UNO System Keypad Port use an RJ-45 CAT-5 patch cable to connect from the keypad port to an RJ-45 Wall Plate (optional). Using the same

CAT-5 T568A RJ-45 wiring configuration, use CAT-5 from the RJ-45 Wall Plate to the keypad. If using more than one keypad on a zone, connect a SA-ZX3 UNO System Keypad Splitter (optional) directly to the UNO System Keypad Port instead of going through the wall plate. Always use the CAT-5 T568A RJ-45 wire configuration when wiring any of the UNO System Keypad Ports.

INSTALLER

MAKING CONNECTIONS

UNO Keypad Port Connection

CAM6.6T

CAM6.6

CAT-5 Cable

PM Mod 3D with RJ-45 CAT-5 Cable

SA-ZX3

1201A/1A Power Supply

Source Audio Connections

The CAM6.6 supports up to six audio sources. The Source Inputs are located at the back panel. For the CAM6.6 (no internal source installed), the switch next to Source 1 input must be set to “Input.” Connect each source output using quality RCA signal cables. Connect the Left and Right Audio outputs from each source to the corresponding inputs on the CAM6.6 controller. Label each cable with the name of the selected source and the Source Audio input number located on the CAM6.6.

For the CAM6.6T, the Source 1 input serves a dual purpose. If the CAM6.6 optional internal source is used, the Source 1 input is not available, and the switch next to it is set to “Internal Source Output.” If you want to utilize the Source 1 inputs, set the switch to “Input” and reconfigure Source 1 in the Source Setup menu.

Note for CAM6.6T: If you hear more than one source when Source 1 is selected, recheck Source 1 wiring and switch setting.

Source IR Connections

Each source component has a designated IR port on the back of the CAM6.6. This IR port is directly above the Source Audio Input Connections.

1. Using an IR emitter (the Russound 845.1 is recommended) attach the end of the emitter

with the 1/8

”

plug to the IR emitter port above

the source input.

2. Remove the adhesive back at the other end of the emitter and attach the emitter over the source component’s IR window.

3. In order to control this source component with IR, the source must be selected at the keypad receiving the command.

CAM6.6

Tape Player

CD Changer

INSTALLER

MAKING CONNECTIONS

Source Audio and IR Input Connections

Use the Source 1 output/input switch for audio OUT of the internal source or audio IN of connected source equipment.

CAM6.6T with Optional Internal Source - AM/FM Tuner

INSTALLER

MAKING CONNECTIONS

Common IR Connection

Common IR Connections

The Common IR jack on the rear of the CAM6.6 allows control of any source equipment without that source being selected on the keypad. The connection for the COM IR jack is made using an

IR emitter with a 1/8’’ plug. The Russound

845.1 single IR emitter is recommended, or use an IR connecting block such as the Russound 857 which allows multiple units to be controlled through the COM IR Port.

CAM6.6

Alternate configuration using 857 IR connecting block

TATUS

12VDC

OWER

12VDC

IR R

ECEIVER IN

IR C

OMMON IN

+12VDC

GND

STATUS

SIGNAL

DESIGNED IN USA MADE IN KOREA

CONNECTING BLOCK

857 INFRARED

123456

IR CONFIRM

EMITTERS

IR emitters to source equipment

The speakers are connected to the CAM6.6 using modular snap connectors. Each of these color-coded connectors is designated for the speaker set of a particular amplified zone. To avoid confusion, connect one zone speaker set at a time starting with Zone 1, taking care to keep zone and speaker wire identities straight. Note: An 8 Ohm minimum speaker is required for each amplified output.

1.Pull the speaker wire conductors apart so they’re separated for the first two inches from their ends.

2.Using a wire stripper, remove 1/4 inch of insulation from each conductor. Twist the strands in each conductor into tight spirals.

3.Remove the modular four-color connector for Zone 1. The color code is as follows:

WHITE -- L+ (left channel positive) GREEN -- L- (left channel negative) BLACK -- R- (right channel negative) RED -- R+ (right channel positive)

Lift the black lever for each connection until it locks open and insert the proper speaker wire, matching channel and polarity for all four wires. Snap the lever down. Insert the modular connector into its designated output on the back of the CAM6.6.

4.Complete the same steps for the remaining zones. Label each set of speaker wires with the zone and location.

INSTALLER

MAKING CONNECTIONS

Speaker Connections

CAM6.6

The CAM6.6 has two Zone Audio outputs, on Zone 1 and Zone 2. Each of these zone audio output connections features a stereo line out RCA connection plus a switch to allow for either a fixed or a variable line level output. When set to Variable, the keypad volume level affects this output. In the Fixed position, the keypad volume level will not change the output level.

The fixed or variable audio outputs can be used if additional amplification is desired (e.g., Russound R235LS two-channel amplifier). Use quality RCA signal cables to ensure a constant quality audio signal.

INSTALLER

MAKING CONNECTIONS

Zone Fixed/Variable Audio Outputs

CAM6.6

12VDC Home Theater Trigger In

This 12VDC Trigger input is used to control Power Management of the audio sources possibly being shared with a home theater system. When the last zone on the CAM6.6 is turned off, 12VDC presence to the trigger input will prevent the sources that are on from being turned off. The connections for the trigger are made using a twoconductor cable with 1/8” male mini-plug. The tip is positive (+) and the sleeve is negative (-).

12VDC 100mA Trigger Out

The 12VDC 100mA trigger out can be used to engage any 12VDC trigger device or component such as the Russound ACT-1 triggered outlet. The connections for the trigger out are made using a two-conductor cable with 1/8” male mini-plug jacks at each end. The tip is positive (+) and sleeve is negative (-).

INSTALLER

MAKING CONNECTIONS

12VDC Home Theater Trigger In/Out

CAM6.6

12VDC Mute Trigger In

When 12VDC is applied to the Mute Trigger In, the system will fully mute any source that is connected to the Source Audio Input. The connections for the trigger are made using a two-conductor cable with 1/8” male mini-plug jacks. The tip is positive (+) and sleeve is negative (-). This allows for the connection of an external paging or muting device. The CAM6.6 can be programmed to mute audio for one or all zones as preferred when the 12VDC is applied.

12VDC Mute Trigger Out

Mute Trigger Out 12VDC output is used for triggering an external amplifier, muting device or other paging component dependent on the Mute Trigger In 12VDC. The connections for the output are made using a two-conductor cable with 1/8” male mini-plug jacks at each end. The tip is positive (+) and sleeve is negative (-). The default setting for the Mute Trigger Out provides 12VDC whenever 12VDC is applied to the Mute Trigger In.

INSTALLER

MAKING CONNECTIONS

12VDC Mute Trigger In/Out

CAM6.6

Doorbell Interface

The RNET Link In and Link Out can be used to connect two to six CAM6.6 or CAV6.6 controllers. The connection is made using a CAT-5 patch cable from the Link Out of the master CAM6.6 and into the Link In of the next controller. Along with RNET data signals, the RNET Link In and Link Out jack passes the six source IR signals. These are only for source-specific IR remote repeating, not codes initiated from the controller’s internal IR library. The CAT-5 patch cable should not exceed 18 inches in length to avoid potential cross-talk between the sourcespecific IR repeating signal lines.

The RNET Link In and Link Out is also used to connect the CAM6.6 to other Russound products with RNET.

Note: If two or more CAM6.6 or CAV6.6 controllers are connected using the RNET Link In and Link Out ports, each controller must have a unique Controller ID prior to being connected through the RNET ports. The Controller ID assignment must be performed during the Controller Setup section of the Installation menu. If using a CAM6.6T, be sure to set the Controller ID under “Peripheral Setup” to “ALL CONTROLLERS” (page 50).

Note: It is not recommended to link together two CAM6.6T controllers. If designing a CAM6.6 system with more then one tuner, use two CAM6.6 controllers and a Russound ST2 Dual Tuner (also ST2-XM, ST2-XM2, ST2S). See page

INSTALLER

MAKING CONNECTIONS

RNET Link In and Link Out

CAM6.6 (Controller ID 1)

CAM6.6

CAV6.6 (Controller ID 2)

CAT-5 Cable (MAX LENGTH 18 INCHES)

The CAM6.6 supports RS-232 communication with various third party automation systems or PC for programming of the controller.

The RS-232 com port is located on the back of the CAM6.6 and uses a DB-9 cable connection.

For RS-232 protocol and the backup PC application, go to

www.russound.com,

Document Center.Under RNET Systems, look under the heading for Technical Documents.

CAM6.6

INTERFACE

DB9 Cable

INSTALLER

MAKING CONNECTIONS

RS-232 Interface

INSTALLER

MAKING CONNECTIONS

Optional Internal Source - AM/FM Tuner Antennas

AM Antenna

Connect the included loop antenna for AM reception to the Optional Internal Source panel, attaching the GND (ground) and AM ends to the appropriately marked connections.

FM Antenna

Attach the included FM antenna for FM reception to the Optional Internal Source panel by pushing the F-type quick-connect termination of the antenna onto the FM connection.

CAM6.6

Connecting an Alternate Outdoor Antenna for AM/FM

The diagram below depicts a suggested installation option of an alternate outdoor FM antenna and AM antenna.

For best performance for AM reception, it is recommended to use an external outdoor or atticmounted long wire antenna for best performance

for AM reception. Use a 75-ohm to 300-ohm balun at the AM connection on the tuner, and attach the 75-ohm coax cable to the balun.

For best performance for FM reception, it is recommended to use an external outdoor or atticmounted antenna. Attach the desired length of 75-ohm coax cable directly to the FM connection on the tuner.

INSTALLER

MAKING CONNECTIONS

Optional Internal Source - AM/FM Tuner Antennas

300 ohm to 75 ohm balun

CAM6.6

Grounding an Outdoor Antenna

If the tuner is used with an outdoor antenna, the antenna must be grounded against static charges and voltage surges. Consult the instructions that came with the antenna or contact the antenna manufacturer for proper installation instructions.

The diagram above gives a general depiction of how an outdoor antenna should be grounded. For complete guidelines on antenna grounding procedures, please consult the National Electrical Code, Section 810, ANSI/NFPA No. 70-1984.

INSTALLER

MAKING CONNECTIONS

Grounding Outdoor Antennas

Electric Service Equipment

Power Service Grounding Electrode System

Ground Clamps

Grounding Conductors

Antenna Lead In Wire

Before proceeding to the system programming section, it’s important to conduct an initial test to determine that the hardware components are working properly.

1. Connect the speaker wires from Zone #3 to the CAM6.6 Zone #3 speaker output connectors.

2. Connect an UNO keypad to Keypad Port #3 on the rear of the CAM6.6.

3. Connect a source to the Source #3 Input on the CAM6.6 using RCA Audio patch cables.

4. Plug a supplied 845.1 IR emitter into the Source #3 IR Output Jack and adhere the emitter end

to the source equipment’s IR window.

5. Plug in the main power cords for the CAM6.6 and the source.

6. Turn on the main power switch on the CAM6.6 and the source.

7. Manually command the source to provide audio or use the source remote control.

8. Press the power button on the UNO keypad and select Source #3.

9. To verify emitter placement, take source equipment’s factory remote control and aim at a key-

pad (not in same room as source equipment). Source equipment should respond to IR command. Congratulations – you should now hear the source through the speakers in Zone #3. If there is no sound, follow these diagnostic steps:

1. Check the source to see that it is operating properly.

2. Check the RCA Audio cable connections from the source to the Source #3 Input on the

CAM6.6.

3. Check the speaker connections and verify that they are correct and are connected to the

Zone #3 speaker outputs.

4. Check to see that the keypad is connected to the Zone #3 Keypad Port and verify the CAT-5 is

properly terminated at both ends. If none of these steps produce successful results, call Russound Tech Support for further assistance.

INSTALLER

INITIAL INSTALL TEST

This manual includes items that are designed to assist in the programming process.

Forms (Pages 106-108)

Three blank reproducible forms are included as planning tools when determining sources, settings and zone preferences. The Source and Zone Information forms and the Macro Editor form should be completed before programming and referred to during the installation menu process. This speeds up programming time and reduces missed or incorrect entries. These forms also serve as system reference documents if future troubleshooting is needed.

IR Device Codes (Pages 78-81)

This list of command type IR device codes reflects the built-in IR codes in the CAM6.6 library. During programming, these codes will be entered for each source at the “Device Code” prompt. If a code is not listed for a source, the Learn IR procedure is available to learn in and centrally store IR codes.

(Note: Device codes for Phono, DAT and Tape are Learned Only)

Key Functions (Pages 82-103)

This list of key functions identifies what IR codes are supported for each command type (source) by the built-in library. “Learned Only” indicates that this function is not supported and must be learned into the CAM6.6. This list of key functions reflects the different available key functions associated with what you see on the LCD panel when performing the Key Configuration procedure in the Installation Menu. The list of functions corresponds with the command types above (e.g., CD, DSS, etc.).

Source Names (Pages 104-105)

A list of assignable Source Names is provided for advance selection and source form completion before programming.

Flow Charts (Pages 64-76)

Installation Menu flow charts provide a graphical representation of the programming process.

Installation Menu (Pages 49-63)

The Installation Menu provides the step-by-step complete programming procedure for the keypad and the controller.

Although you can begin programming at any point within the Installation Menu, the following sequence is recommended for initial installations, as it progresses from the most basic requirements to the more advanced features.

1. Controller Setup (CTRLR SETUP) (Page 58-59)

This procedure sets the controller ID number within the system. This number must be manually set when multiple CAM6.6’s are linked through RNET within one system. This procedure is not necessary for systems with only one CAM6.6.

2. Number of Sources (# of Sources/SOURCE SETUP) (Page 57)

This procedure sets the number of sources used in the system. This prevents the user from selecting a source input that is not used.

INSTALLER

SYSTEM PROGRAMMING OVERVIEW

3. Basic Setup (SOURCE SETUP) (Pages 51-53)

This procedure is mandatory to set up each source for keypad source control and is the cornerstone of the programming process.

4. Peripheral Setup (Pages 49-51) (FOR OPTIONAL INTERNAL SOURCE)

This procedure provides setup and naming procedures for the tuner. It includes assigning a custom name to a memory preset or bank, and choosing a region for AM/FM operation (US or Euro).

5. Learn IR (Page 61)

This procedure is used when the source-specific IR code is not found in the built-in IR code library. This allows IR commands to be learned into the system and centrally stored.

6. Macro Editor (Pages 62-63)

This procedure compiles multiple IR keycodes to be initiated by a single button press. One macro can have up to 10 commands, including other macros, and up to 132 macros can be entered.

7. Source Volume Trim (SOURCE SETUP) (Page 54)

This procedure matches audio output signals for all sources for seamless switching.

8. Numeric IR (SOURCE SETUP) (Pages 54-56)

This procedure sets up control of a source that supports direct numeric commands.

9. Key Configuration (SOURCE SETUP) (Pages 53-54)

This procedure customizes individual key functions on a per-zone basis for source control.

10. Power Management (Pages 59-61)

This function incorporates IR macro commands to automatically control the power state of the sources when the system is in use or when a home theater is sharing sources.

11. Zone Volume Trim (ZONE SETUP) (Page 58)

This procedure limits the maximum volume allowed in a zone, regardless of keypad volume adjustment.

12. System On Enable (SYSON ENABLE/ZONE SETUP) (Page 58)

This feature allows a zone to join or opt out of an “all on” command.

13. Party Enable (ZONE SETUP) (Page 58)

This feature allows a zone to join or opt out of Party Mode participation.

14. Master Enable (ZONE SETUP) (Page 58)

This feature allows a zone the option of becoming a Master keypad in Party Mode.

15. Mute Enable (ZONE SETUP) (Page 58)

This feature allows a zone to allow or mute audio.

INSTALLER

SYSTEM PROGRAMMING OVERVIEW

There are three item types in the installation menu:

Menu –

“Folder” that holds procedures and/or feature options.

Procedure – A series of steps to per form a guided operation, such as configuring a button. Feature – The actual settings that will change the system configuration.

The following UNO-S1 and UNO-S2 buttons are used to navigate and make selections while using the installation menus. The UNO-TS2 does not support access to the Installation Menu.

UNO-S1 Keypad Five-character Display

The UNO-S1 keypad abbreviates information as necessary to appear in its five-character display. In the following menu procedures, the UNO-S1 five-character abbreviation is shown in parentheses underneath the 12-character version.

INSTALLER

INSTALLATION MENU OVERVIEW

UNO-S1 UNO-S2

Setup button (located under cover plate on the keypad’s right side) - Press and release while in normal operating mode to enter the Installation Menu. Press to back out of any procedure and return to beginning of Installation Menu, then to normal operating mode.

Adjust feature setting (increment)

Adjust feature setting (decrement)

Go to next menu / procedure / feature.

Not available while performing a pro-

cedure

Go to previous menu / procedure / feature.

Not available while performing a

procedure

Enter menu / begin procedure / show current feature setting.

While performing a procedure, it is also used to advance to the next sequential feature setting once the current feature has been viewed or adjusted.

Button Function

The following items make up the Installation Menu:

PERIPH SETUP (PerSu) SOURCE SETUP (SrcSu) ZONE SETUP (ZonSu) CTRLR SETUP (CtlSu) POWER MGT (PwMgt) LEARN IR (LrnIR) MACRO EDITOR (MacEd) SYSTEM INFO (SInfo)

PERIPH SETUP (PerSu)

Note: For CAM6.6, Peripheral Setup is not applicable. “

NNoott AAvvaaiill

” shows on the keypad.

Peripheral Setup allows the CAM6.6’s optional internal source to be configured. The following items can be found in the PERIPH SETUP menu:

MEM NAME (MemNm) BANK NAME (BnkNm) CONTROLLR ID (CtlId) REGION (Rgion) FACTORY INIT (FInit) SYSTEM INFO (SInfo)

MEM NAME (MemNm)

NOTE: A memory preset must be created and saved before it can be named. Once it is saved, the preset’s Tuner #, Bank # and Memory # must be entered in the following procedure.

This procedure accesses a name entry field to enter a custom name for a memory preset.

See

Periph Setup - Flow Chart on page 64

1. BANK # – Select the BANK # of the memory preset.

(Bank#)

2. MEMORY # – Select the MEMORY # of the preset to be named. (Mem #)

3. MEMORY NAME – Use the volume up/down keys to select a character and left/right (MemNm) keys to change a character position. A blinking cursor indicates

placement of the character being entered. Names can be from 1 to 5 characters in length. If adding names from 6-12 characters, it is suggested you use an optional UNO-S2 keypad.

BANK NAME (BnkNm)

This procedure accesses a name entry field to enter a custom name for each of the tuner’s six banks.

See Periph Setup - Flow Chart on page 64

1. BANK # – Select the BANK # of the memory preset.

(Bank#) (continued)

INSTALLER

INSTALLATION MENU

INSTALLER

INSTALLATION MENU

2. BANK NAME – Use the volume up/down keys to select a character and left/right

(BnkNm) keys to change a character position. A blinking cursor indicates

placement of the character being entered. Names can be from 1 to 5 characters in length. If adding names from 6-12 characters, it is suggested you use an optional UNO-S2 keypad.

CONTROLLR ID (CtlId)

This procedure is used to identify the controller(s) that the tuner will respond to.

See Periph Setup -

Flow Chart on page 65

1. Controller:# – Select controller ID of controller that will control the tuner.

(CtlId)

2. All controllers – Select if all controllers in the system can control the tuner. (All)

REGION (Rgion)

This procedure assigns either US or Euro frequency display to the tuner. The difference between the two is that US FM frequencies operate in .2 MHz increments, while European FM frequencies operate in .05 MHz increments.

See Periph Setup - Flow Chart on page 65

1. US – Select US for US FM frequency display.

(US)

2. EURO – Select EURO for EURO FM frequency display. (Euro)

FACTORY INIT (FInit)

NOTE: This procedure returns the tuner to its factory settings and erases all user settings.

This procedure allows the erasure of all programmed settings and returns them to the factory default settings.

See Periph Setup - Flow Chart on page 65

1. Are you sure? – Confirmation of YES or NO is required to proceed. A NO

(Sure?) selection returns to the top of the Factory Initialization menu.

A YES selection begins the initialization.

2. Please Wait – Message shows during the initialization process.

3. Cycle Power – When initialization is complete, cycle power to the unit.

INSTALLER

INSTALLATION MENU

SYSTEM INFO (SInfo)

System Info shows the tuner’s manufacturing build properties.

See Periph Setup - Flow Chart on

page 65

BUILD TIME (BTime) BUILD DATE (BDate) VERSION (Ver)

1. BUILD TIME Displays the firmware Build Time of the tuner.

(BTime)

2. BUILD DATE Displays the firmware Build Date of the tuner. (BDate)

3. VERSION Displays the firmware version of the tuner. (Ver)

SOURCE SETUP (SrcSu)

Source Setup allows the system’s sources to be configured. The following items can be found in the SOURCE SETUP menu:

BASIC SETUP (BasSu) KEY CONFIG (KeyCf) SOURCE NAMES (SrcNm)

SRC VOL TRIM (SrcVT) NUMERIC IR (NumIR) SRC SEL CMD (SrcSC)

# OF SOURCES (#Srcs)

BASIC SETUP (BasSu)

NOTE: The BASIC SETUP procedure should be performed for each source before proceeding to other source setting changes.

Note: If the CAM6.6 has an optional internal source installed, it is pre-configured as Source 1, with source name Tuner and command type Peripheral.

This procedure uses built-in source “templates” to quickly and easily configure the source settings needed for basic operation of the source component. Before performing BASIC SETUP, connect the source components to the CAM6.6 as outlined in the Source Connections section. Also be sure that all sources are powered on.

See Basic Setup - Flow Chart on page 66

1. SOURCE NUM – Select the source to be configured.

(Src #) (continued)

INSTALLER

INSTALLATION MENU

2. SOURCE NAME – Select the name for the source (e.g., DVD, Aux 2, Jazz, etc.).

(Name)

3. COMMAND TYPE – Select the type of command template (e.g., CD, TV, etc.). Selecting

(CmdTp) the command type template will tell the CAM 6.6 how to configure the

key’s command and text for the source component.

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. (See Learning IR procedure for instructions on how

to learn IR codes.)

ii. TEMPLATE TYP – Select the template type to define what type of source compo-

(TType) nent is being used. (This will tell the CAM6.6 how to configure

the key commands and text for the source component if it is a learned source.) Procedure advances to USE NUM IR? (step 7).

b. Selected: Unassigned The template for the selected source is cleared. (All key

(Unasg) assignments and other source settings will be erased.)

Procedure advances to SAVE CHANGES (step 10)

c. All Other Selections: Procedure advances to DEVICE CODE (step 4)

4. DEVICE CODE – Enter source component code number listed in this manual’s

(DevCd) Reference section.

5. TEST IR? – If “Yes” is selected, the CAM6.6 sends a power command to the (TstIR) source component. If “No” is selected, the procedure advances

to USE NUM IR? (step 7)

6. SUCCESS? – If the power to the source component was turned off, select (OK?) “Yes” otherwise select “No.” By selecting “No” the Procedure

returns to DEVICE CODE (step 4) to allow selection of another code number from the provided list.

7. USE NUM IR? – Indicates the source component has numeric scrolling, such as (NumIR) multi-disc CD player (See NUMERIC IR Setup Procedure for

advanced settings or more information). “No” advances menu to AUTO PLAY (step 9).

8. HIGHEST NUM – Enter the highest possible number; for example, a 100-disc CD (High#) player would have a max number of 100.

INSTALLER

INSTALLATION MENU

9. AUTO PLAY? – “Yes” tells the CAM6.6 to issue a PLAY command whenever the

(AtoPl) source is selected for listening. This option is skipped if the

source type (COMMAND TYPE) chosen does not have a PLAY command associated with it.

10. SAVE CHANGES? – Select “yes” to save changes. Procedure returns to SOURCE

(Save?) NUM to allow configuration of another source.

KEY CONFIG (KeyCf)

Key Configuration defines zone-specific key functions for each source.

See Key Config. - Flow Chart

on page 67

1. ZONE NUM – Select the zone the key will be configured for. Changes are made

(Zone#) for that zone only; default setting is “All Zones.”

2. SOURCE NUM – Select the source the key will be configured for. (Src #)

3. SELECT A KEY – Using + or -, select the keypad key to be configured. (SelKy)

4. KEY TYPE – Either “Key Press,” “Key Hold” or “Both” will activate the command.

(KeyTp)

5. KEY NAME – Name that appears on the keypad display when the command is (KeyNm) activated.

6. COMMAND TYPE – Select the type of source command (e.g., CD, DVD, etc.). (CmdTp)

a. Selected: Learned IR – Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 8)

b. Selected: Unassigned The key configuration is cleared. Procedure advances to SAVE

(Unasg) CHANGES (step 9)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 8)

d. Selected: Macro: (To build macros, see Macro Editor page 62)

(Macro) (continued)

INSTALLER

INSTALLATION MENU

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SAVE CHANGES

(MacID) (step 9)

e. All Other Selections: Procedure advances to DEVICE CODE (step 7)

7. DEVICE CODE – Enter source component code number listed in this manual’s

(DevCd) Reference section.

8. KEY FUNCTION – Select a function for the button. (KeyFn)

9. SAVE CHANGES? – Select “yes” to save changes. Procedure advances to ZONE NUM (Save?) (step 1)

SOURCE NAMES (Sr

cNm)

This procedure allows the installer to customize the source names for the sources attached to the CAM6.6.

See Source Names/Vol Trim - Flow Chart on page 68

1. SOURCE NUM – Select the source number this name will be assigned to.

(Src #)

2. SOURCE NAME – Select the name. SOURCE NUM will reappear on the LCD panel; (Name) repeat the instructions for each source to be labeled.

SRC VOL TRIM (SrcVT)

This procedure allows the installer to adjust the output level of an individual source. The output volume is adjustable by 16dB. At 0dB (-3dB is the default setting), the volume is at max output; at -16dB the volume is at the lowest setting possible for that source only.

See Source Names/Vol Trim -

Flow Chart on page 68

1. SOURCE NUM – Select the source number this level will be set for.

(Src #)

2. TRIM LEVEL – 0dB is max output volume, -16dB is lowest setting. (Trim)

NUMERIC IR (NumIR)

Numeric IR allows the installer to program source specific number functions (Channel 12, Disk 89, etc.).

See Numeric IR - Flow Chart on page 69

(continued)

INSTALLER

INSTALLATION MENU

1. SOURCE NUM – Select the source number this function will be configured for.

(Src #)

2. USE NUM IR? – Tells the system whether the source component has numeric (NumIR) scrolling, such as 100-disc CD player. A selection of “no”

disables Numeric IR and advances to SAVE CHANGES

3. HIGHEST NUM – Enter the highest possible number; for example, the 100-disc CD (High#) player would have a max number of 100.

4. NUMERIC TEXT – Select Numeric descriptive text. (NmTxt)

5. PREFIX CMD – Tells the system whether a command will be issued prior to the (Prefx) selection of the numerical value (e.g.,

Disc

1,2). If “no,” proce-

dure advances to SUFFIX CMD (step 9)

6. COMMAND TYPE – Select the type of command (e.g., CD, TV, etc.). (CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 8)

b. Selected: Unassigned The numeric IR Prefix command is cleared. Procedure advances

(Unasg) to SUFFIX CMD (step 9)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 8)

d. Selected: Macro: (To build macros, see Macro Editor page 62)

(Macro)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SUFFIX CMD (step 9)

(MacID)

e. All Other Selections: Procedure advances to DEVICE CODE (step 7)

7. DEVICE CODE – Source component code for IR control.

(DevCd)

8. KEY FUNCTION – Select a function (Disc, etc.). (KeyFn) (continued)

INSTALLER

INSTALLATION MENU

9. SUFFIX CMD – Tells the system whether a command will be issued after the

(Sufix) selection of the numerical value (e.g., 1, 2

Enter

). If “no,” proce-

dure advances to SAVE CHANGES (step 13)

10. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 12)

b. Selected: Unassigned The numeric IR Suffix command is cleared. Procedure advances

(Unasg) to SOURCE NUM (step 1)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 12)

d. Selected: Macro: (To build macros, see Macro Editor page 62)

(Macro)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SAVE CHANGES

(MacID) (step 13)

e. All Other Selections: Procedure advances to DEVICE CODE (step 11)

11. DEVICE CODE – Source component code for IR control.

(DevCd)

12. KEY FUNCTION – Select a function (Enter, Play, etc.).

(KeyFn)

13. SAVE CHANGES? – Select “yes” to save the changes.

(Save?)

SRC SEL CMD (SrcSC)

This procedure permits a command to be sent to the source component when the source component is initially selected.

See Source Select Command & # Of Sources - Flow Chart on page 70

1. SOURCE NUM – Select the source number this command will be configured for.

(Src #)

(Continued next page)

INSTALLER

INSTALLATION MENU

2. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 4)

b. Selected: Unassigned The source select command is cleared. Procedure advances to

(Unasg) SAVE CHANGES (step 5)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 4)

d. Selected: Macro: (To build macros, see Macro Editor page 62)

(Macro)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SAVE CHANGES

(MacID) (step 5)

e. All Other Selections: Procedure advances to DEVICE CODE (step 3)

3. DEVICE CODE – Source component code for IR control.

(DevCd)

4. KEY FUNCTION – Select a function (Play, Enter, etc.). (KeyFn)

5. SAVE CHANGES? – Select “yes” to save the changes. (Save?)

# OF SOURCES (#Srcs)

At this field it is necessary to enter the number of sources used in the CAM6.6 system (1 to 6). This limits the sources displayed on the keypad in the normal running mode when the source button is pressed, but also limits source selections in the configuration menus.

See Source Select

Command & # Of Sources - Flow Chart on page 70

INSTALLER

INSTALLATION MENU

ZONE SETUP (ZonSu)

NOTE: This procedure should be performed using the keypad installed in the zone to be configured.

See Zone Setup - Flow Chart on page 71

Zone Setup allows the installer to adjust properties of the UNO Keypad controlled CAM6.6 zone. This series of menus allows the system’s zones to be configured for these properties:

ZON VOL TRIM (ZonVT) SYSON ENABLE (SysOn) PARTY ENABLE (PtyEn) MASTER ENABL (MstEn) MUTE ENABLE (MutEn)

1. ZON VOL TRIM This feature allows the installer to adjust the output volume to

(ZonVT) each zone. -16dB (lowest) to 0dB (max)(-3DB default).

2. SYSON ENABLE This feature is either disabled or enabled. If disabled (default), an (SysOn) All On command activated from another zone will not turn on the

disabled zone. If enabled, an All On command activated from another zone will turn on the enabled zone.

3. PARTY ENABLE This feature is either disabled or enabled. If disabled, Party Mode (PtyEn) activation from another zone will not affect the disabled zone. If

enabled (default), the zone will participate with Party Mode.

4. MASTER ENABLE This feature is either disabled or enabled. If disabled, the zone (MstEn) cannot host a master keypad during Party Mode. If enabled

(default), the zone has the option of hosting the Master keypad.

5. MUTE ENABLE This feature is either disabled or enabled. It allows the option of (MutEn) enabling or disabling muting in a zone. If disabled, the zone will

not mute. If enabled (default), the zone will be muted when a mute signal is received.

CTRLR SETUP (CtlId)

Controller Setup is the basic configuration of the controller. This setup menu selects the options for Controller ID and Factory Initialization.

See Controller Setup - Flow Chart on page 72

1. CONTROLLER ID This defines the Controller ID for this system. The default is 1 but

(CtlId) when multiple controllers are used, each additional controller ID

must be sequential and unique and be set before being connected to the system. Note that the system must be restarted before the controller will assume the new ID.

(continued next page)

INSTALLER

INSTALLATION MENU

2. FACTORY INIT

WARNING: This procedure returns the controller to its

(FInit)

original settings - use with discretion.

Factory Initialization allows the installer to erase all programmed settings and returns the settings to the factory default settings. All settings including source equipment IR commands will need to be reentered. An “Are you sure?” prompt and a “no” response allows the installer to cancel the reset; a “yes” at the prompt will load factory/default settings.

POWER MANAGEMENT (PwMgt)

The CAM6.6 is capable of managing the power state of the connected source equipment. The power management is configured on a source-by-source basis.

All sources that have power management enabled are initialized by a “POWER ON” command or macro. Power management is initialized when the first keypad is turned on or when the home theater trigger input has 12VDC present. The 12VDC trigger output is turned on when the first zone is turned on.

All sources that have power management enabled are turned off by the “POWER OFF” command after all zones have been turned off, with a timeout of five minutes.The 12VDC trigger output is turned off one minute after that. This timeout is postponed for as long as the home theater trigger input has 12VDC present.

See Power Management - Flow Chart on page 73

1. SOURCE NUM – Select the source number this feature will be configured for.

(Src #)

2. POWER ON CMD – Tells the controller to turn on the selected source equipment (by

(OnCmd) SOURCE NUMBER) when any of the UNO System Keypads is

turned on. If “no,” procedure advances to POWER OFF CMD (step 6)

3. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.). (CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 5)

b. Selected: Unassigned The Power On command is cleared. Procedure advances to

(Unasg) POWER OFF CMD (step 6)

(continued)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 5)

d. Selected: Macro: (To build macros, see Macro Editor page 62)

(Macro)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to POWER OFF CMD

(MacID) (step 6)

e. All Other Selections: Procedure advances to DEVICE CODE (step 4)

4. DEVICE CODE – Source component code for IR control.

(DevCd)

5. KEY FUNCTION – Select a function (Play, Enter, etc.). (KeyFn)

6. POWER OFF CMD – Tells the controller to turn off the selected source equipment (by

(OfCmd) SOURCE NUMBER) when the last of the UNO System Keypads is

turned off. If “no,” procedure advances to SAVE CHANGES (step 10)

7. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.). (CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 9)

b. Selected: Unassigned The Power Off command is cleared. Procedure advances to

(Unasg) SAVE CHANGES (step 10)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 9)

d. Selected: Macro: (To build macros, see Macro Editor page 62)

(Macro)

i. MACRO – Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number.Menu advances to SAVE CHANGES

(MacID) (step 10)

(continued next page)

INSTALLER

INSTALLATION MENU

e. All Other Selections: Procedure advances to DEVICE CODE (step 8)

8. DEVICE CODE – Source component code for IR control.

(DevCd)

9. KEY FUNCTION (f) – Select Keypad function.

(KeyFn)

10. SAVE CHANGES? (f) – Select “yes” to save the changes.

(Save?)

LEARN IR (LrnIR)

This procedure allows IR commands to be learned into the system and be centrally stored in the main controller to let the system access the same IR codes that operate the source equipment.

NOTE: IR codes must be learned in by pointing the remote at the CAM6.6’s REAR panel IR receiver only.

See Learn IR - Flow Chart on page 74

1. LEARNED SRC – Select the source (Source 1-6 and Miscellaneous Learned IR

(LnSrc) (Misc)) whose commands will be learned into the controller.

2. KEY FUNCTION – Select the function to be learned or deleted. (KeyFn)

3. LEARN/DELETE – Select Learn IR Now or Delete IR. If Learn IR Now, a “USE (Ln/Dl) REMOTE” prompt appears. Point the learning remote at the

controller’s IR window. If Delete IR, procedure returns to LEARNED SRC (step 1)

4. TEST IR? – If “yes,” sends the learned command to the source component (TstIR) to test the IR. If the component responds, the IR test was a

success. If the component does not respond the Code was not learned properly. If “no,” menu goes back to LEARNED SRC (step 1)

5. SUCCESS? - Asks if the IR test was a success (OK?)

IF YES - If the test was a success, specify “yes” and proceed to KEY FUNCTION (step 2) IF NO - If the test was a failure, specify “no” and LEARN/DELETE (step 3) reappears on the display allowing another code to be learned in.

INSTALLER

INSTALLATION MENU

MACRO EDITOR (MacEd)

This procedure is used to create a sequence of commands that are launched with one key touch or other event. Up to 132 macros can be created for the system, and each macro can contain up to 10 commands including other macros and delays.

See Macro Editor - Flow Chart on page 75

1. MACRO ID – Number of Macro up to 132 including any previously named

(MacID) macros.

2. MACRO NAME – Name of Macro (optional). (MacNm)

3. COMMAND NUM – Number of Command up to 10. (Cmd#)

4. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.). (CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 6)

b. Selected: Unassigned Selected command and subsequent commands are cleared.

(Unasg) Procedure advances to COMMAND NUM (step 3)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 6)

d. Selected: Macro:

(Macro)

i. MACRO - A macro can “call” another macro if a sequence of more than 10

(Macro) commands is needed.

ii. MACRO ID – Enter the macro ID number. Menu advances to COMMAND NUM

(MacID) (step 3)

e. Selected: Delay Enter a 1- to 60-second delay time to postpone delivery of the

(Delay) next command in the macro. Procedure advances to COMMAND

NUM (step 3)

f. All Other Selections: Procedure advances to DEVICE CODE (step 5)

(continued next page)

INSTALLER

INSTALLATION MENU

5. DEVICE CODE – Source component code for IR control. (DevCd)

6. KEY FUNCTION – Select a function (Play, etc.). (KeyFn)

SYSTEM INFO (SInfo)

System Info allows the installer to view the controller’s manufacturing build properties.

See System Info - Flow Chart on page 76

#CONTROLLERS (#Ctls) BUILD TIME (BTime) BUILD DATE (BDate) VERSION (Ver)

1. #CONTROLLERS Displays the number of CAM6.6 controllers in the system.

(#Ctls)

2. BUILD TIME Displays the Software Build Time of the controller. (BTime)

3. BUILD DATE Displays the Software Build Date of the controller. (BDate)

4. VERSION Displays the software version of the CAM6.6. (Ver)

INSTALLER

INSTALLATION MENU

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

SETUP MENU FLOW CHARTS

INSTALLER

KEYPAD DIAGNOSTIC MENU

UNO Keypad Diagnostics Menu

The Diagnostics Menu allows the installer to run a diagnostic check on the keypad and to verify the firmware version. The Diagnostics Menu also contains the update firmware procedure for updating the UNO-S1 and UNO-S2’s firmware.

To access the Diagnostics Menu, press and hold the Setup button on the right side of the keypad until “DIAGNOSTICS” appears on the display. The menus are outlined in the diagram below.

When finished, press and release the Setup button again (except for the Update Firmware where the power must be cycled).

Note: Do not change Controller ID settings in this menu. Controller ID is set in the Controller Setup menu (see Controller Setup Menu on page 72).

INSTALLER

IR DEVICE CODES

Device Codes for TVs:

Admiral 0093, 0463 Advent 0761, 0842 Aiko 0092 Akai 0030, 0672, 0702, 0812 Albatron 0700, 0843 America Action 0180 Anam 0180 AOC 0030 Apex Digital 0748, 0765, 0767, 0879, 1943 Audiovox 0451, 0180, 0092, 0623 Bell & Howell 0154 BenQ 1032 Bradford 0180 Broksonic 0236, 0463, 1935, 1911 Candle 0030 Carnivale 0030 Carver 0054 Celebrity 0000 Celera 0765 Changhong 0765 Citizen 0060, 0030, 0092 Clarion 0180 Comm’l Solutions 1447, 0047 Contec 0180 Craig 0180 Crosley 0054 Crown 0180 Curtis Mathes 0047, 1147, 1347, 0054, 0154,

0451, 0093, 0060, 0030, 0145,

0166, 0702 CXC 0180 Daewoo 0451, 1661, 0672, 0092, 0661,

0623 Dell 1080 Denon 0145 Dumont 0017 Durabrand 0463, 0180, 0178, 0171, 1034 Electroband 0000 Emerson 0154, 0236, 0463, 0180, 0178,

0171, 1911, 0623 Envision 0030 ESA 0812, 0171 Fisher 0154 Fujitsu 0853, 0809, 0683 Funai 0180, 0171, 1904 Futuretech 0180 Gateway 1756, 1755 GE 1447, 0047, 1147, 1347, 0051,

0451, 0178, 1922, 1917 Gibralter 0017, 0030 Go Video 0886 GoldStar 0030, 0178 Grunpy 0180 Haier 1034 Hallmark 0178 Harley Davidson 1904 Harman/Kardon 0054 Harvard 0180 Havermy 0093 Helios 0865 Hello Kitty 0451 Hisense 0748 Hitachi 1145, 0145, 1960, 1904 Hyundai 0849 Infinity 0054 Inteq 0017

JBL 0054 JCB 0000 Jensen 0761 JVC 0053, 1253, 1923, 0731 KEC 0180 Kenwood 0030 KLH 0765, 0767 KTV 0180, 0030 LG 0178, 0700, 0856 Lloyd’s 1904 LXI 0047, 0054, 0154, 0156, 0178 Magnavox 1454, 0054, 0030, 0706, 1904,

1254 Marantz 0054, 0030 Matsushita 0250 Maxent 1755 Megapower 0700 Megatron 0178, 0145 Memorex 0154, 0463, 0150, 0178, 1911 MGA 0150, 0030, 0178 Midland 0047, 0017, 0051 Mitsubishi 0093, 1250, 0150, 0178, 1917 Monivision 0843, 0700 Motorola 0093 MTC 0060, 0030 Multitech 0180 NAD 0156, 0178, 0866 NEC 0030 Nikko 0030, 0178, 0092 Norcent 0748, 0824 NTC 0092 Onwa 0180 Optimus 0154, 0250, 0166 Optonica 0093 Orion 0236, 0463, 1911, 1463 Panasonic 0250, 0051, 1941 Penney 0047, 0156, 0051, 0060, 0030,

0178, 1347 Philco 0054, 0030 Philips 1454, 0054, 1961, 0690 Pilot 0030 Pioneer 0166, 0679, 0866 Portland 0092 Prima 0761 Princeton 0700 Prism 0051 Proscan 1447, 0047, 1347, 1922 Proton 0178 Pulsar 0017 Quasar 0250, 0051 Radio Shack 0047, 0154, 0180, 0030, 0178,

1904 RCA 1447, 0047, 1047, 1347, 1917,

0679, 1247, 1547, 1948, 0090,

1147, 1922 Realistic 0154, 0180, 0030, 0178 Runco 0017, 0030 Sampo 0030, 1755 Samsung 0060, 0812, 0702, 0030, 0178,

0766, 1959, 1060 Sansui 0463, 1935, 1911, 1904 Sanyo 0154, 0088 Scotch 0178 Scott 0236, 0180, 0178

Sears 0047, 0054, 0154, 0156, 0178,

0171, 1904 Sharp 0093, 1917 Sheng Chia 0093

Sony 1100, 0000, 1904 Soundesign 0180, 0178 Squareview 0171 SSS 0180 Starlite 0180 Studio Experience 0843 Supreme 0000 SVA 0748, 0865 Sylvania 0054, 0030, 0171 Symphonic 0180, 0171, 1904 Tandy 0093 Tatung 1756 Technics 0051, 0250 T echwood 0051 Teknika 0054, 0180, 0150, 0060, 0092 T elefunken 0702 Thomas 1904 TMK 0178 TNCi 0017 Toshiba 0154, 0156, 0060, 1256, 1156,

1656, 1356, 1945, 1935 TVS 0463 V Inc. 1756 Vector Research 0030 Victor 0053 Vidikron 0054 Vidtech 0178 Viewsonic 1755 Wards 0054, 0030, 0178, 0866, 1156 Waycon 0156 Westinghouse 0889 WhiteWestinghouse 0463, 0623 Yamaha 0030 Zenith 0017, 0463, 0178, 1911, 0092,

1904

Device Codes for Cable:

ABC 0003, 0008 Americast 0899 Bell South 0899 Clearmaster 0883 ClearMax 0883 Coolmax 0883 Director 0476 General Instrument 0003, 0476, 0810, 0276 GoldStar 0144 Hamlin 0009, 0273 Jerrold 0003, 0276, 0476, 0810 Memorex 0000 Motorola 0476, 0276, 0810, 1254, 1376 Multitech 0883 Pace 0237, 1877 Panasonic 0000, 0107 Paragon 0000 Philips 0317, 1305 Pioneer 0144, 0533, 0877, 1877 Pulsar 0000 Quasar 0000 RadioShack 0883 Regal 0273, 0279 Runco 0000 Samsung 0144 Scientific Atlanta 0008, 0477, 0877, 1877 Sony 1006

(continued next page)

Device Codes for Cable: (cont’d)

Starcom 0003 Supercable 0276 Supermax 0883 T orx 0003 T oshiba 0000 Tristar 0883 V2 0883 Viewmaster 0883 Vision 0883 Vortex View 0883 Zenith 0000, 0525, 0899

Device Codes for Video Acc:

ABS 1272 Alienware 1272 CyberPower 1272 D-Link 1554 Escient 1151, 1371, 1370, 1373, 1372 Gateway 1272 Hewlett Packard 1272, 1267 Howard Computers1272 iBUYPOWER 1272 LG 1415 Linksys 1365 Media Center PC 1272 Microsoft 1272 Mind 1272 Motorola 1363 Northgate 1272 Panasonic 1120 Pioneer 1010 Samsung 1190, 1490 Sensory Science 1126 Sharp 1010 SMC 1456 Sony 1272, 1324, 1364 Systemax 1272 Tagar Systems 1272 T oshiba 1272 T ouch 1272 Viewsonic 1272, 1329 ZT Group 1272

Device Codes for SAT/DSS:

AlphaStar 0772 Century 0856 Chaparral 0216 Crossdigital 1109 DirecTV 0392, 0566, 0639, 1639, 1142,

0247, 0749, 1749, 0724, 0819, 1856, 1076, 1109, 0099, 1640,

1108, 1392, 1442, 1414 Dish Network Sys 1005, 0775, 1775, 1505 Dishpro 1005, 0775, 1505, 1775 Echostar 1005, 0775, 1775, 1505 Expressvu 0775, 1775 GE 0566 General Instrument 0869 GOI 0775, 1775 Hisense 1535

Hitachi 0819, 1250 HTS 0775, 1775 Hughes Net. Sys. 0749, 1142, 1749, 1442 I-Lo 1535 JVC 0775, 1775 LG 1414 Magnavox 0724, 0722 Memorex 0724 Mitsubishi 0749 Motorola 0869 Next Level 0869 Panasonic 0247, 0701 Paysat 0724 Philips 1142, 0749, 1749, 0724, 1076,

0722, 0099, 1442, 0856 Proscan 0392, 0566 Proton 1535 RadioShack 0869 RCA 0392, 0566, 0143, 0855, 1392 Samsung 1276, 1109, 1108 Sony 0639, 1639, 1640 Star Choice 0869 Tivo 1142, 1442 Toshiba 0749, 1749, 0790, 1285 UltimateTV 1392,1640 Uniden 0724, 0722 US Digital 1535 USDTV 1535 Voom 0869 Zenith 0856, 1856

Device Codes for VCRs:

ABS 1972 Admiral 0048, 0209 Adventura 0000 Aiko 0278 Aiwa 0037, 0000 Akai 0041 Alienware 1972 America Action 0278 American High 0035 Asha 0240 Audiovox 0037, 0278 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209, 0002, 0479 Calix 0037 Canon 0035 Carver 0081 CCE 0072, 0278 Citizen 0037, 0278 Colt 0072 Craig 0037, 0047, 0240, 0072 Curtis Mathes 0060, 0035, 0162, 0041 Cybernex 0240 CyberPower 1972 Daewoo 0045, 0278 Dell 1972 Denon 0042 DirecTV 0739 Durabrand 0039, 0038 Dynatech 0000 Electrohome 0037 Electrophonic 0037 Emerex 0032

Emerson 0037, 0184, 0000, 0121, 0043,

0209, 0002, 0278, 0479 Fisher 0047, 0104 Fuji 0035, 0033 Funai 0000 Garrard 0000 Gateway 1972 GE 0035, 0060, 0240 Go Video 0432 GoldStar 0037, 0038 Gradiente 0000 Harley Davidson 0000 Harman/Kardon 0081, 0038 Harwood 0072 Hewlett Packard 1972 HI-Q 0047 Hitachi 0000, 0042, 0041, 0089 Howard Computers1972 Hughes Net. Sys. 0042, 0739 iBUYPOWER 1972 Jensen 0041 JVC 0067, 0041 KEC 0037, 0278 Kenwood 0067, 0041, 0038 KLH 0072 Kodak 0035, 0037 Lloyd's 0000 Logik 0072 LXI 0037 Magnavox 0035, 0039, 0081, 0000, 0149 Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita 0035, 0162 Media Center PC 1972 MEI 0035 Memorex 0035, 0162, 0037, 0048, 0039,

0047, 0240, 0000, 0104, 0209,

0479 MGA 0240, 0043 MGN Technology 0240 Microsoft 1972 Mind 1972 Minolta 0042 Mitsubishi 0067, 0043 Motorola 0035, 0048 MTC 0240, 0000 Multitech 0000, 0072 NEC 0104, 0067, 0041, 0038 Nikko 0037 Noblex 0240 Northgate 1972 Olympus 0035 Optimus 1062, 0162, 0037, 0048, 0104,

0432 Orion 0184, 0209, 0002, 0479 Panasonic 1062, 0035, 0162, 0225, 0616 Penney 0035, 0037, 0240, 0042, 0038 Pentax 0042 Philco 0035 Philips 0035, 0081, 0618, 0739 Pilot 0037 Pioneer 0067 Polk Audio 0081 Profitronic 0240 Proscan 0060 Protec 0072

(continued next page)

INSTALLER

IR DEVICE CODES

INSTALLER

IR DEVICE CODES

Device Codes for VCRs: (cont’d)

Pulsar 0039 Quasar 0035, 0162 Radio Shack 0000 Radix 0037 Randex 0037 RCA 0060, 0240, 0042, 0149, 0880 Realistic 0035, 0037, 0048, 0047, 0000,

0104 ReplayTV 0616 Runco 0039 Samsung 0045, 0240 Sanky 0048, 0039 Sansui 0000, 0067, 0209, 0041, 0479 Sanyo 0047, 0240, 0104 Scott 0184, 0045, 0121, 0043 Sears 0035, 0037, 0047, 0000, 0042,

0104 Sharp 0048 Shintom 0072 Shogun 0240 Singer 0072 Sonic Blue 0616 Sony 0035, 0032, 0033, 0000, 0636,

1972 STS 0042 Sylvania 0035, 0081, 0000, 0043 Symphonic 0000 Systemax 1972 Tagar Systems 1972 Tatung 0041 Teac 0000, 0041 Technics 0035, 0162 Teknika 0035, 0037, 0000 Thomas 0000 Tivo 0618, 1503, 0739, 0636 TMK 0240 Toshiba 0045, 0043, 1008, 1972, 1503 Totevision 0037, 0240 T ouch 1972 Unitech 0240 Vector 0045 Vector Research 0038 Video Concepts 0045 Videomagic 0037 Videosonic 0240 Viewsonic 1972 Villain 0000 Wards 0035, 0060, 0048, 0047, 0081,

0000, 0042, 0240, 0072, 0149 White Westinghouse 0209, 0072 XR-1000 0035, 0000, 0072 Yamaha 0038 Zenith 0039, 0033, 0000, 0209, 0479 ZT Group 1972

Device Codes for Laser Disc Players:

Denon 0059 Mitsubishi 0059 NAD 0059 Optimus 0059 Panasonic 0204

Pioneer 0059 Quasar 0204 Sony 0201 T echnics 0204

Device Codes for DVD Players:

Allegro 0869 Apex Digital 0672, 0717, 0797, 1061, 0796,

1056, 0794, 1020 Aspire Digital 1168 Blaupunkt 0717 Blue Parade 0571 Broksonic 0695 CineVision 0869 Coby 1086 CyberHome 0816, 1129 Daewoo 0784, 0833, 1172, 0869 Denon 0490 DVD2000 0521 Emerson 0591, 0675 Enterprise 0591 Fisher 0670 Funai 0675 Gateway 1073, 1194, 1158, 1077 GE 0522, 0717 Go Video 0744, 0715, 0833, 1099, 0783,

1075, 1730, 0869, 1158 Greenhill 0717 Hitachi 0573, 0664 Hiteker 0672 Initial 0717 JVC 0558, 0623, 0867 Kenwood 0490, 0534 KLH 0717, 1020 Koss 0651 Lasonic 0798 LG 0591, 0869 Lite-On 1158, 1058 Magnavox 0503, 0539, 0675 Marantz 0539 Memorex 0695 Microsoft 0522 Mintek 0839, 0717 Mitsubishi 1521, 0521 Nesa 0717 Onkyo 0503 Oritron 0651 Panasonic 0490, 1762 Philips 0503, 0539, 0646, 0675, 0885 Pioneer 0525, 0571 Polaroid 1086, 1061 Polk Audio 0539 Proscan 0522 Qwestar 0651 RCA 0522, 0571, 0717, 0822 Rio 0869 Rotel 0623 Sampo 0752 Samsung 0490, 0573, 1075, 0820 Sansui 0695 Sanyo 0695, 0670, 0873 Sharp 0630, 0752 Sherwood 1077 Shinsonic 0533, 0839 Sonic Blue 0869, 1099

Sony 0533, 0864, 1033 Sylvania 0675 Symphonic 0675 T echnics 0490 Theta Digital 0571 Toshiba 0503, 1154, 0695 Urban Concepts 0503 US Logic 0839 Xbox 0522 Yamaha 0490, 0539, 0545 Zenith 0503, 0591, 0869

Device Codes for Tuner/Amp:

ADC 0531 Aiwa 0189, 1405, 0158, 0121 Anam 1609, 1074 Audiotronic 1189 Bose 1229 Capetronic 0531 Carver 0189, 1189 Coby 1263 Dell 1383 Denon 1360, 1142 Gateway 1517 Glory Horse 1263 Harman/Kardon 0110, 0189 Hewlett Packard 1181 Integra 0135 JBL 0110 JVC 0074, 1263 Kenwood 1313, 1569, 0027 KLH 1428 Linn 0189 Magnavox 1189, 1269, 0189, 0531 Marantz 1189, 1269, 0039, 0189 MCS 0039 Mitsubishi 1393 Onkyo 0135 Optimus 1023, 0670, 0531, 1074 Panasonic 0039, 0309 Philips 1189, 1269, 0189 Pioneer 1023, 0150, 0014, 0630, 0531 Polk Audio 0189 Proscan 1254 Quasar 0039 RadioShack 1263 RCA 1023, 1609, 1254, 1074, 0531 Rio 1383 Sansui 0189 Sharper Image 1263 Sonic Blue 1383 Sony 1058, 1759, 0158, 1406 Soundesign 0670 Stereophonics 1023 Sunfire 1313 T eac 1074 Technics 1308, 0039, 0309 Thorens 1189 Victor 0074 Wards 0158, 0189, 0014 Yamaha 0176, 1276, 1176

Device Codes for Amp and Misc. Audio:

Aiwa 0159 Altec Lansing 1485 Cambridge Sound.1530 Creative 0872 Durabrand 1561 GE 0078 Harman/Kardon 0892 JVC 0331 Left Coast 0892 Lenoxx 1561 Marantz 0892, 1491 Motorola 1464 Omnifi 1605 Optimus 0395 Philips 0892 Polk Audio 0892 Realistic 0395 Russound 1302 Sony 0159 Soundesign 0078 Victor 0331 Wards 0078 Yamaha 0354

Device Codes for CD Players:

Aiwa 0157 Burmester 0420 Calif. Audio Labs 0029 Carver 0157, 0179 Denon 0873, 0003 DKK 0000 DMX Electronics 0157 Emerson 0305 Fisher 0179 Garrard 0420 Genexxa 0032, 0305 Harman/Kardon 0157, 0173 Hitachi 0032 Integra 0101 JVC 0072 Kenwood 0681, 0028, 0037, 0190 KLH 1318 Krell 0157 Linn 0157 LXI 0305 Magnavox 0157, 0305 Marantz 0029, 0157 MCS 0029 Miro 0000 Mission 0157 MTC 0420 NSM 0157 Onkyo 0868, 0101 Optimus 1063, 0000, 0032, 0037, 1075,

0179, 0145, 0420, 0087, 0305 Panasonic 0029 Parasound 0420 Philips 0157 Pioneer 1063, 0032, 0305 Polk Audio 0157 Proton 0157

QED 0157 Quad 0157 Quasar 0029 RadioShack 1075 RCA 0032, 0305, 0179, 0053, 0420 Realistic 0420, 0179 Rotel 0157, 0420 SAE 0157 Sansui 0157, 0305 Sanyo 0087, 0179 Scott 0305 Sears 0305 Sharp 0861, 0037 Sherwood 1067 Sonic Frontiers 0157 Sony 0490, 0000, 0100 Soundesign 0145 Symphonic 0305 TAG McLaren 0157 Tascam 0420 T eac 0420 T echnics 0029 Victor 0072 Wards 0157, 0053 Yamaha 0888, 0036

Device Codes for Home Control:

Accutek 1215 Bionaire 1215 Frigidaire 1333 GE 0240 GoldStar 1537 Holmes 1215 Lasko 0846 LG 1537 Lutron 0597 One For All 0167 RadioShack 0240 Russound 1232, 1233 Security System 0167 Sharper Image 0846 Universal X10 0167 Whirlpool 1332 Windmere 1215 X10 0167

INSTALLER

IR DEVICE CODES

INSTALLER

KEY CODES TV (HDTV)

KEY FUNCTION UNO-S1 TV (HDTV)

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 Digit 5 6 6 Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Channel Up Channel Dn Ch Dn Channel Down Power Power Power On/Off Enter Enter Channel Enter Prev Channel PrvCh Last Channel TV/Video TVVid Learned Only TV/VCR TVVCR Lear ned Only A/B A / B Lear ned Only TV/DVD TVDVD Learned Only TV/LD TV LD Learned Only Input Input TV/Video TV/DSS TVDSS Learned Only Play Play Learned Only Stop Stop Learned Only Search Fwd SrchF Lear ned Only Search Rev SrchR Lear ned Only

KEY FUNCTION UNO-S1 TV (HDTV)

Pause Pause Learned Only Record Recrd Lear ned Only Menu Menu Menu (Picture) Menu Up MenuU Menu Up, Adjust Up Menu Dn MenuD Menu Dn, Adjust Dn Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel Menu Select Exit Exit Exit, Cancel Display Displ Display, OSD, Info Guide Guide Guide Page Up PageU Adjust up Page Down PageD Adjust Down Disk Disk Learned Only Plus 10 Pls10 +100 Open/Close Op/Cl Learned Only Random Randm Learned Only Track Fwd TkFwd Learned Only Track Rev TkRev Learned Only Sur On/Off SurOn Surround On/Off Sur Mode SurMd Lear ned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Learned Only PIP Move PIP M PIP Move PIP Swap PIP S PIP Swap Program Progm Learned Only Sleep Sleep Lear ned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 TV (HDTV)

Off Off Off, Power On/Off 11 11 Lear ned Only 12 12 Lear ned Only 13 13 Lear ned Only 14 14 Lear ned Only 15 15 Lear ned Only 16 16 Lear ned Only Bright Brght Learned Only Dim Dim Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Cue Cue Learned Only Disk Up DiskU Learned Only Disk Down DiskD Learned Only Info Info Learned Only External Src ExtSr Exter nal Antenna Live/Intro Intro Learned Only Menu Menu Menu (Audio) Back Back Back Fav Channel FavCh Favorite Display Fmt DFrmt Fmt,Wide,16:9,Aspct SAP SAP SAP, CC Slow Slow Learned Only PIP On PIPOn PIP ON PIP Off PIPOf PIP OFF PIP Freeze PIPFr PIP Freeze PIP Input PIPIn PIP Input

KEY FUNCTION UNO-S1 TV (HDTV)

PIP Chan Up PIPCU PIP Channel Up PIP Chan Dn PIPCD PIP Channel Down Input 1 In 1 VID1,Video,TVp1 Input 2 In 2 VID2,TVp2 Input 3 In 3 VID3,TVp3 Input 4 In 4 VID4,TVp4 Input 5 In 5 VID5,AV1,VCR,BNC Input 6 In 6

VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV, Tuner Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

TV (HDTV)

INSTALLER

KEY CODES CABLE

KEY FUNCTION UNO-S1 CABLE

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 Digit 5 6 6 Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Channel Up Channel Dn Ch Dn Channel Down Power Power Power On/Off Enter Enter Channel Enter Prev Channel PrvCh Last Channel TV/Video TVVid Learned Only TV/VCR TVVCR Learned Only A/B A / B Learned Only TV/DVD TVDVD Learned Only TV/LD TV LD Learned Only Input Input Bypass, A/B TV/DSS TVDSS Learned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 CABLE

Pause Pause Pause Record Recrd Record Menu Menu Menu, Settings Menu Up MenuU Menu Up Menu Dn MenuD Menu Down Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel Menu Select Exit Exit Exit, Cancel Display Displ Info, Display, OSD Guide Guide Guide Page Up PageU Page Up Page Down PageD Page Down Disk Disk Learned Only Plus 10 Pls10 +100 Open/Close Op/Cl Learned Only Random Randm Learned Only Track Fwd TkFwd Quick Skip,Advance Track Rev TkRev Instant Replay Sur On/Off SurOn Day Down Sur Mode SurMd Learned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Lear ned Only PIP Move PIP M Lear ned Only PIP Swap PIP S Learned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 CABLE

PIP Chan Up PIPCU Lear ned Only PIP Chan Dn PIPCD Lear ned Only Input 1 In 1 A,VID1,Video,TVp1 Input 2 In 2 B,VID2,TVp2

Input 3 In 3 C,VID3,TVp3 Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC Input 6 In 6

VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV , Tuner Input 10 In 10 AUX, RGB

KEY FUNCTION UNO-S1 CABLE

Off Off Off, Power On/Off 11 11 Lear ned Only 12 12 Lear ned Only 13 13 Lear ned Only 14 14 Lear ned Only 15 15 Lear ned Only 16 16 Lear ned Only Bright Brght Learned Only Dim Dim Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Cue Cue Learned Only Disk Up DiskU Learned Only Disk Down DiskD Learned Only Info Info Learned Only External Src ExtSr Exter nal AV Source Live/Intro Intro Return to Live Menu Menu PPV (Wink) Back Back Back Fav Channel FavCh Favorite Display Fmt DFrmt Help SAP SAP Day Up Slow Slow Learned Only PIP On PIPOn Learned Only PIP Off PIPOf Learned Only PIP Freeze PIPFr Learned Only PIP Input PIPIn Learned Only

INSTALLER

KEY CODES

CABLE

INSTALLER

KEY CODES VIDEO ACC

KEY FUNCTION UNO-S1 VIDEO ACC

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 Digit 5 6 6 Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Channel Up Channel Dn Ch Dn Channel Down Power Power Power On/Off Enter Enter Channel Enter Prev Channel PrvCh Last Channel TV/Video TVVid Learned Only TV/VCR TVVCR Lear ned Only A/B A / B Learned Only TV/DVD TVDVD Lear ned Only TV/LD TV LD Learned Only Input Input TV/Video, DTV TV/DSS TVDSS Lear ned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 VIDEO ACC

Pause Pause Pause Record Recrd Record Menu Menu Menu, Home Menu Up MenuU Menu Up Menu Dn MenuD Menu Dn Menu Left MenuL Menu Left Menu Right MenuR Menu right Select Sel Menu Select Exit Exit Exit, Cancel, Go Display Displ Info, Display, OSD Guide Guide Guide, View Page Up PageU Page Up, Scroll Up Page Down PageD Page Dn, Scroll Dn Disk Disk Learned Only Plus 10 Pls10 +100.+10 Open/Close Op/Cl Learned Only Random Randm Lear ned Only Track Fwd TkFwd Skip Up, Next Track Rev TkRev Skip Dn, Previous Sur On/Off SurOn Lear ned Only Sur Mode SurMd Lear ned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Learned Only PIP Move PIP M PIP Move PIP Swap PIP S PIP Swap Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 VIDEO ACC

Off Off Off, Power On/Off 11 11 Lear ned Only 12 12 Lear ned Only 13 13 Lear ned Only 14 14 Lear ned Only 15 15 Lear ned Only 16 16 Lear ned Only Bright Brght Learned Only Dim Dim Lear ned Only Close Close Learned Only Open Open Learned Only Halt Halt Lear ned Only AM/FM AM/FM Learned Only Cue Cue Learned Only Disk Up DiskU Learned Only Disk Down DiskD Lear ned Only Info Info Lear ned Only External Src ExtSr Ext. Antenna, Web Live/Intro Intro Learned Only Menu Menu Setup,Prgrm,Options Back Back Learned Only Fav Channel FavCh Favorites Display Fmt DFrmt Fmt,Wide,16:9,Aspct SAP SAP Language, MTS Slow Slow Learned Only PIP On PIPOn PIP ON PIP Off PIPOf PIP OFF PIP Freeze PIPFr PIP Freeze PIP Input PIPIn PIP Input

KEY FUNCTION UNO-S1 VIDEO ACC

PIP Chan Up PIPCU PIP Channel Up PIP Chan Dn PIPCD PIP Channel Down Input 1 In 1 VID1,Video,TVp1 Input 2 In 2 VID2,TVp2 Input 3 In 3 VID3,TVp3 Input 4 In 4 VID4,TVp4 Input 5 In 5

VID5,AV1,VCR,BNC

Input 6 In 6

VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV, Tuner Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

VIDEO ACC

INSTALLER

KEY CODES SAT/DSS

KEY FUNCTION UNO-S1 SAT/DSS

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 Digit 5 6 6 Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Channel Up Channel Dn Ch Dn Channel Down Power Power Power On/Off Enter Enter Channel Enter Prev Channel PrvCh Last Channel TV/Video TVVid Learned Only TV/VCR TVVCR Lear ned Only A/B A / B Lear ned Only TV/DVD TVDVD Lear ned Only TV/LD TV LD Learned Only Input Input TV/DSS/SAT TV/DSS TVDSS Lear ned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 SAT/DSS

Pause Pause Pause Record Recrd Record Menu Menu Menu (PVR, Tivo) Menu Up MenuU Menu Up Menu Dn MenuD Menu Down Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel Menu Select Exit Exit Exit, Cancel Display Displ Info, Display, OSD Guide Guide Guide Page Up PageU Page Up,ThumbsUp Page Down PageD Page Dn,ThumbsDn Disk Disk Lear ned Only Plus 10 Pls10 +100 Open/Close Op/Cl Learned Only Random Randm Learned Only Track Fwd TkFwd Quick Skip,Advance Track Rev TkRev Instant Replay Sur On/Off SurOn Learned Only Sur Mode SurMd Learned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Learned Only PIP Move PIP M Learned Only PIP Swap PIP S Learned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 SAT/DSS

PIP Chan Up PIPCU Learned Only PIP Chan Dn PIPCD Learned Only Input 1 In 1 VID1,Video,TVp1 Input 2 In 2 VID2,TVp2 Input 3 In 3 VID3,TVp3 Input 4 In 4 VID4,TVp4 Input 5 In 5 VID5,AV1,VCR,BNC Input 6 In 6

VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV, Tuner Input 10 In 10 AUX, RGB

KEY FUNCTION UNO-S1 SAT/DSS

Off Off Off, Power On/Off 11 11 Lear ned Only 12 12 Lear ned Only 13 13 Lear ned Only 14 14 Lear ned Only 15 15 Lear ned Only 16 16 Lear ned Only Bright Brght Learned Only Dim Dim Learned Only Close Close Learned Only Open Open Lear ned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Cue Cue Learned Only Disk Up DiskU Lear ned Only Disk Down DiskD Learned Only Info Info Learned Only External Src ExtSr External AV Source Live/Intro Intro Retur n to Live Menu Menu Menu (DTV) Back Back Back Fav Channel FavCh Favorite Display Fmt DFrmt Fmt,Wide,16:9,Aspct SAP SAP Alt/Audio,Lang.,CC Slow Slow Slow PIP On PIPOn Learned Only PIP Off PIPOf Learned Only PIP Freeze PIPFr Lear ned Only PIP Input PIPIn Lear ned Only

INSTALLER

KEY CODES

SAT/DSS

INSTALLER

KEY CODES VCR

KEY FUNCTION UNO-S1 VCR

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 Digit 5 6 6 Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mutte Mute Channel Up Ch Up Channel Up Channel Dn Ch Dn Channel Down Power Power Power On/Off Enter Enter Channel Enter Prev Channel PrvCh Last Channel TV/Video TVVid Learned Only TV/VCR TVVCR Learned Only A/B A / B Lear ned Only TV/DVD TVDVD Learned Only TV/LD TV LD Lear ned Only Input Input TV/VCR TV/DSS TVDSS Lear ned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 VCR

QuickSkip/Adv ,Indx TrkUp

Track Rev TkRev

Instnt Rplay,Indx Trk Dn

Sur On/Off SurOn Lear ned Only Sur Mode SurMd Learned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Learned Only PIP Move PIP M Learned Only PIP Swap PIP S Learned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 VCR

Return to Live,Auto Track

Menu Menu Menu Back Back Clear Fav Channel FavCh

Replay Zones, Indx Mark

Display Fmt DFrmt Record Speed SAP SAP SAP, CC Slow Slow Slow PIP On PIPOn Learned Only PIP Off PIPOf Learned Only PIP Freeze PIPFr Learned Only PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 VCR

PIP Chan Up PIPCU Learned Only PIP Chan Dn PIPCD Learned Only Input 1 In 1 VID1,Video,TVp1 Input 2 In 2 VID2,TVp2 Input 3 In 3 VID3,TVp3 Input 4 In 4 VID4,TVp4 Input 5 In 5 VID5,AV1,VCR,BNC Input 6

In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV, Tuner Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

VCR

INSTALLER

KEY CODES LASER DISC

KEY FUNCTION UNO-S1 LASER DISC

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 5Digit 5 6 6 6Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Learned Only Channel Dn Ch Dn Learned Only Power Power Power On/Off Enter Enter Learned Only Prev Channel PrvCh Repeat TV/Video TVVid Learned Only TV/VCR TVVCR Learned Only A/B A / B Learned Only TV/DVD TVDVD Learned Only TV/LD TV LD Lear ned Only Input Input TV,LD,Input Select TV/DSS TVDSS Lear ned Only Play Play Play Stop Stop Stop Search Fwd SrchF Chapter/Skip Up Search Rev SrchR Chapter/Skip Dn

KEY FUNCTION UNO-S1 LASER DISC

Pause Pause Pause Record Recrd Lear ned Only Menu Menu Menu, Program Menu Up MenuU Menu Up Menu Dn MenuD Menu Down Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel Menu Select Exit Exit Exit, Cancel Display Displ Display, OSD, Info Guide Guide Lear ned Only Page Up PageU Disk Skip, Disk Up Page Down PageD Disk Down Disk Disk Lear ned Only Plus 10 Pls10 +10 Open/Close Op/Cl Lear ned Only Random Randm Lear ned Only Track Fwd TkFwd Chapter/Skip Up Track Rev TkRev Chapter/Skip Down Sur On/Off SurOn Audio Sur Mode SurMd Lear ned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Lear ned Only PIP Move PIP M Learned Only PIP Swap PIP S Lear ned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 LASER DISC

Ext AV Src,CDV,VCD,Karaok

Live/Intro Intro Intro,Search,Scan Menu Menu Learned Only Back Back Learned Only Fav Channel FavCh Mark Display Fmt DFrmt Learned Only SAP SAP Subtitle, CC Slow Slow Slow PIP On PIPOn Lear ned Only PIP Off PIPOf Learned Only PIP Freeze PIPFr Learned Only PIP Input PIPIn Lear ned Only

KEY FUNCTION UNO-S1 LASER DISC

PIP Chan Up PIPCU Learned Only PIP Chan Dn PIPCD Learned Only Input 1 In 1 VID1,Video,TVp1 Input 2 In 2 VID2,TVp2 Input 3 In 3 VID3,TVp3 Input 4 In 4 VID4,TVp4 Input 5 In 5 VID5,AV1,VCR,BNC Input 6

In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV, Tuner Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

LASER DISC

INSTALLER

KEY CODES DVD

KEY FUNCTION UNO-S1 DVD

1 1 Digit 1, Traack 1 2 2 Digit 2, Track 2 3 3 Digit 3, Track 3 4 4 Digit 4, Track 4 5 5 Digit 5, Track 5 6 6 Digit 6, Track 6 7 7 Digit 7, Track 7 8 8 Digit 8,Track 8 9 9 Digit 9, Track 9 0 0 Digit 0, Track 10 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Channel Up Channel Dn Ch Dn Channel Down Power Power Power On/Off Enter Enter Channel Enter Prev Channel PrvCh Last Channel,Repeat TV/Video TVVid Learned Only TV/VCR TVVCR Learned Only A/B A / B Learned Only TV/DVD TVDVD Learned Only TV/LD TV LD Lear ned Only Input Input TV/DVD,Input Select TV/DSS TVDSS Lear ned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 DVD

Pause Pause Pause Record Recrd Record Menu Menu Disk Menu Menu Up MenuU Menu Up Menu Dn MenuD Menu Dn Menu Left MenuL Menu Left Menu Right MenuR Menu right Select Sel Menu Select Exit Exit Exit, Cancel, Return Display Displ Display, OSD, Info Guide Guide Title Page Up PageU Disk Skip, Disk Up Page Down PageD Disk Down Disk Disk Lear ned Only Plus 10 Pls10 +100. +10 Open/Close Op/Cl Lear ned Only Random Randm Lear ned Only Track Fwd TkFwd Chapter/Skip Up Track Rev TkRev Chapter/Skip Down Sur On/Off SurOn Audio, Language Sur Mode SurMd Lear ned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Lear ned Only PIP Move PIP M Learned Only PIP Swap PIP S Lear ned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 DVD

Off Off Off, Power On/Off 11 11 Learned Only 12 12 Learned Only 13 13 Learned Only 14 14 Learned Only 15 15 Learned Only 16 16 Learned Only Bright Brght Learned Only Dim Dim Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Lear ned Only AM/FM AM/FM Learned Only Cue Cue Learned Only Disk Up DiskU Learned Only Disk Down DiskD Learned Only Info Info Lear ned Only External Src ExtSr External AV Source Live/Intro Intro Intro,Search,Scan Menu Menu Setup Menu Back Back Clear Fav Channel FavCh Mark Display Fmt DFrmt

Format Wide,Zoom,Aspect

SAP SAP Subtitle, CC Slow Slow Slow PIP On PIPOn Learned Only PIP Off PIPOf Learned Only PIP Freeze PIPFr Learned Only PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 DVD

PIP Chan Up PIPCU Learned Only PIP Chan Dn PIPCD Learned Only Input 1 In 1 VID1,Video,TVp1 Input 2 In 2 VID2,TVp2 Input 3 In 3 VID3,TVp3 Input 4 In 4 VID4,TVp4 Input 5 In 5 VID5,AV1,VCR,BNC Input 6

In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component Input 8 In 8 CAB,SAT,S-Video Input 9 In 9 AV, Tuner Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

DVD

INSTALLER

KEY CODES RECEIVER

KEY FUNCTION UNO-S1 RECEIVER

Last Channel, Repeat

TV/Video TVVid Learned Only TV/VCR TVVCR Learned Only A/B A / B Lear ned Only TV/DVD TVDVD Lear ned Only TV/LD TV LD Learned Only Input Input

DVD/Tuner,Input Select

TV/DSS TVDSS Learned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 RECEIVER

Pause Pause Pause Record Recrd Record Menu Menu Disk menu, Menu Menu Up MenuU Menu Up, Adjust Up Menu Dn MenuD Menu Dn, Adjust Dn Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel

Menu Select, Continue

Exit Exit Exit, Cancel Display Displ Display, OSD, Info Guide Guide Title Page Up PageU Adjust Up Page Down PageD Adjust Down Disk Disk Learned Only Plus 10 Pls10 Band, FM/AM Open/Close Op/Cl Learned Only Random Randm Random Track Fwd TkFwd Skip Up Track Rev TkRev Skip Down Sur On/Off SurOn

Srrd Mode/On Off,Aduo Lang

Sur Mode SurMd Learned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Lear ned Only PIP Move PIP M Lear ned Only PIP Swap PIP S Learned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 RECEIVER

Off Off Off, Power On/Off 11 11 Learned Only 12 12 Learned Only 13 13 Learned Only 14 14 Learned Only 15 15 Learned Only 16 16 Learned Only Bright Brght Learned Only Dim Dim Lear ned Only Close Close Learned Only Open Open Lear ned Only Halt Halt Lear ned Only AM/FM AM/FM Learned Only Cue Cue Learned Only Disk Up DiskU Learned Only Disk Down DiskD Learned Only Info Info Lear ned Only External Src ExtSr External AV Source Live/Intro Intro Intro,Search,Scan Menu Menu Menu Back Back Clear Fav Channel FavCh Mark Display Fmt DFrmt

FormatWide,Zoom,Aspect

SAP SAP Learned Only Slow Slow Slow PIP On PIPOn Learned Only PIP Off PIPOf Learned Only PIP Freeze PIPFr Learned Only PIP Input PIPIn Lear ned Only

KEY FUNCTION UNO-S1 RECEIVER

PIP Chan Up PIPCU Learned Only PIP Chan Dn PIPCD Learned Only Input 1 In 1 CD Input 2 In 2 Tuner Input 3 In 3 DVD, LD Input 4 In 4 VCR, VID1 Input 5 In 5 VID5,AV1,VCR,BNC Input 6 In 6 TV, VID2 Input 7 In 7 LD , VID3 Input 8 In 8 AUX, VID4 Input 9 In 9 D AT, Ca ble Input 10 In 10 Phono SAT

INSTALLER

KEY CODES

RECEIVER

INSTALLER

KEY CODES AMP/MISC AUDIO

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

1 1 Digit 1 2 2 Digit 2 3 3 Digit 3 4 4 Digit 4 5 5 Digit 5 6 6 Digit 6 7 7 Digit 7 8 8 Digit 8 9 9 Digit 9 0 0 Digit 0 Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Preset Up Channel Dn Ch Dn Preset Down Power Power Power On/Off Enter Enter 5.1, Prologic Prev Channel PrvCh Repeat TV/Video TVVid Lear ned Only TV/VCR TVVCR Lear ned Only A/B A / B Learned Only TV/DVD TVDVD Learned Only TV/LD TV LD Lear ned Only Input Input Bypass,Input Slct TV/DSS TVDSS Learned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

Pause Pause Pause Record Recrd Record Menu Menu Menu, Program Menu Up MenuU Menu Up, Adjust Up Menu Dn MenuD Menu Dn, Adjust Dn Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel Menu Select, Cont Exit Exit Exit, Cancel Display Displ Display, OSD, Info Guide Guide Learned Only Page Up PageU Adjust Up Page Down PageD Adjust Down Disk Disk Learned Only Plus 10 Pls10 Band, FM/AM Open/Close Op/Cl Learned Only Random Randm Lear ned Only Track Fwd TkFwd Skip Up Track Rev TkRev Skip Down Sur On/Off SurOn

Srrd Mode/On Off,Aduo Lang

Sur Mode SurMd Lear ned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Learned Only PIP Move PIP M Learned Only PIP Swap PIP S Learned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

Off Off Off, Power On/Off 11 11 Learned Only 12 12 Learned Only 13 13 Learned Only 14 14 Learned Only 15 15 Learned Only 16 16 Learned Only Bright Brght Learned Only Dim Dim Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Lear ned Only Cue Cue Lear ned Only Disk Up DiskU Learned Only Disk Down DiskD Learned Only Info Info Lear ned Only External Src ExtSr External AV Source Live/Intro Intro Intro,Search,Scan Menu Menu Learned Only Back Back Clear Fav Channel FavCh Learned Only Display Fmt DFrmt Learned Only SAP SAP Lear ned Only Slow Slow Learned Only PIP On PIPOn Learned Only PIP Off PIPOf Lear ned Only PIP Freeze PIPFr Learned Only PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

PIP Chan Up PIPCU Learned Only PIP Chan Dn PIPCD Learned Only Input 1 In 1 CD Input 2 In 2 Tuner Input 3 In 3 DVD, LD Input 4 In 4 TAPE, MD Input 5 In 5 VCR, VID1 Input 6 In 6 TV, VID2 Input 7 In 7 LD, VID3 Input 8 In 8 AUX, VID4 Input 9 In 9 DAT, Cable Input 10 In 10 Phono, SAT

INSTALLER

KEY CODES

AMP/MISC AUDIO

100

INSTALLER

KEY CODES CD

KEY FUNCTION UNO-S1 CD

Digit 1, Track 1,Dsc1

Digit 2, Track 2,Dsc2

Digit 3, Track 3,Dsc3

Digit 4, Track 4,Dsc4

Digit 5, Track 5,Dsc5

Digit 6, Track 6,Dsc6

Digit 7, Track 7,Dsc7

Digit 8,Track 8,Dsc8

Digit 9, Track 9,Dsc9

Digit 0, Trck10,Dsc10

Volume Up VolUp Volume Up Volume Down VolDn Volume Down Mute Mute Mute Channel Up Ch Up Learned Only Channel Dn Ch Dn Learned Only Power Power Power On/Off Enter Enter Set Prev Channel PrvCh Repeat TV/Video TVVid Learned Only TV/VCR TVVCR Learned Only A/B A / B Learned Only TV/DVD TVDVD Lear ned Only TV/LD TV LD Learned Only Input Input

DVD/Tuner Input Select

TV/DSS TVDSS Lear ned Only Play Play Play Stop Stop Stop Search Fwd SrchF Fast Forward Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 CD

Pause Pause Pause Record Recrd Record Menu Menu Disk, Edit Menu Up MenuU Menu Up Menu Dn MenuD Menu Down Menu Left MenuL Menu Left Menu Right MenuR Menu Right Select Sel Menu Select, Cont Exit Exit Exit, Cancel Display Displ Display, OSD, Info Guide Guide Group,Magazine Page Up PageU Disk Skip, Disk Up Page Down PageD Disk Down Disk Disk Lear ned Only Plus 10 Pls10 +10, +100 Open/Close Op/Cl Lear ned Only Random Randm Lear ned Only Track Fwd TkFwd Skip Up Track Rev TkRev Skip Down Sur On/Off SurOn Learned Only Sur Mode SurMd Lear ned Only Surround Up SurUp Learned Only Surround Dn SurDn Learned Only PIP PIP Lear ned Only PIP Move PIP M Learned Only PIP Swap PIP S Lear ned Only Program Progm Learned Only Sleep Sleep Learned Only On On On, Power On/Off

Russound CAM6.6T, CAM6.6 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
