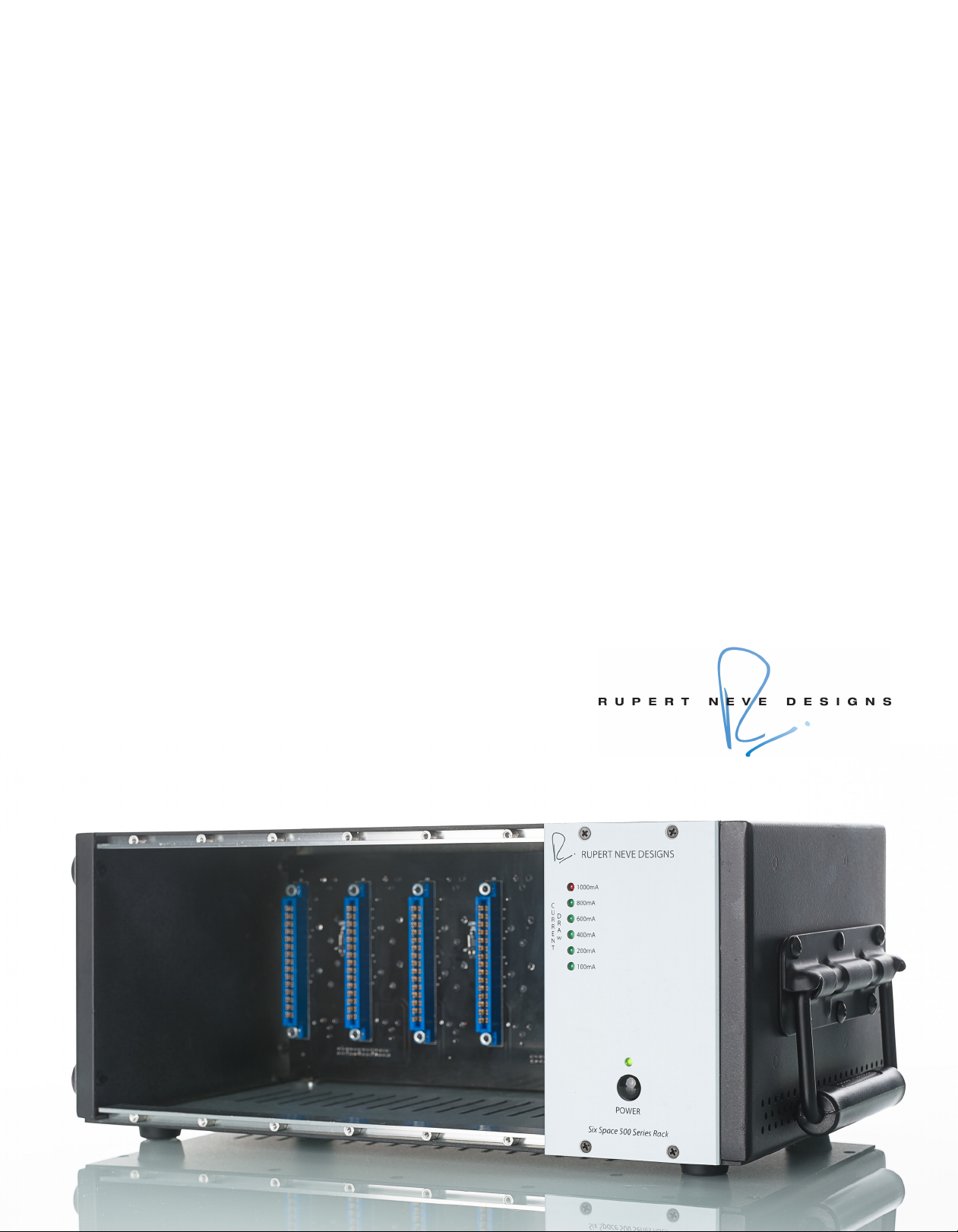

Rupert Neve Designs R6 User manual

Thank you for your purchase of the R6: Six Space 500 Series Rack. Everyone at Rupert Neve Designs
hopes you enjoy using this tool as much as we have enjoyed designing and building it.

Usage Notes

The R6 has 6 x 500 series slots, with ample power, and a full complement of XLR, TRS and DB-25 I/O
in a portable steel chassis. To use the R6, carefully slide each 500 series module in such that the edge

connector ts snuggly into the slot in the back, and tighten both front panel screws for each module.

The current draw meter will display the total current being used by the installed modules. Channels
7 & 8 do not correspond to a module slot, so the connectors are available to access channels 7-8 of a
connected DB-25 cable. These can also be used to convert the jack type (i.e from DB-25 to XLR, or
from TRS to DB-25)

Link

To enable linking between modules, reset the corresponding jumper located by the card slots to the
LINK position. The linking function is set in pairs so that you can link channels 1-2, 3-4, and 5-6. The
link function is typically used to link the VCA circuitry of compressors (such as our 543 module). Most

other types of units are not linkable unless specically noted by the manufacturer.

R6 Specications

DC Voltage to Units +/-16VDC and +48VDC for phantom power

Max Current 1000mA for modules, 150mA for 48V phantom power
Power Requirements 100-240VAC, 50/60Hz, 50 Watts
Weight 9.5lbs
Dimensions 13” long x 7.5”wide x 5.5” high

R6

Six Space 500 Series Rack

1

R6: Six Space 500 Series Rack

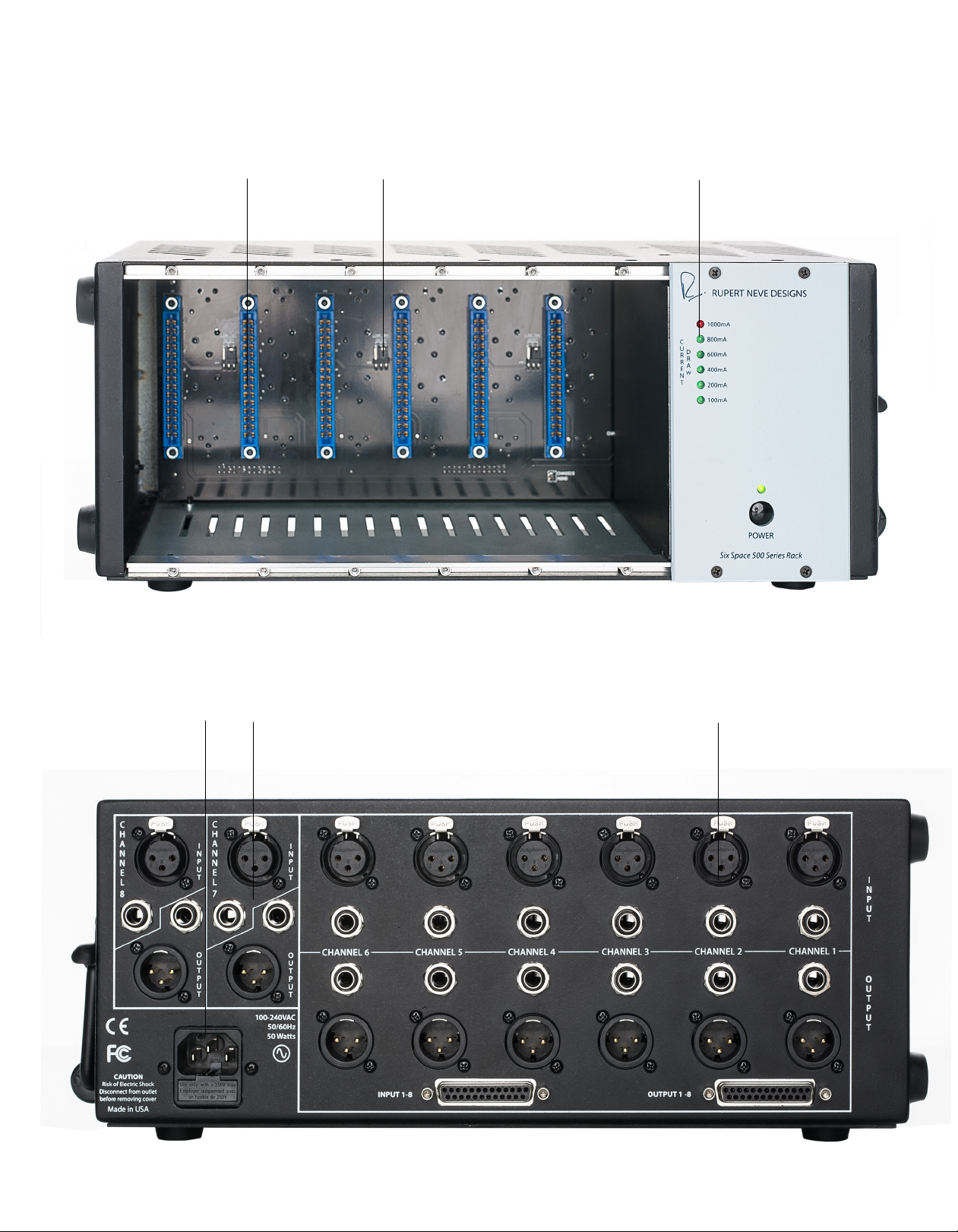

Front / Back Panel

Each card slot is designed to

fit a standard 500 series

module

Link JumperCard Slot

There are three link jumpers,
which can be individually set
to allow linking on Channels
1-2, 3-4, and 5-6

Current Meter

The current meter monitors
the current draw on the
power supply

The IEC power input accepts

IEC Input

100-240VAC, 50/60Hz input

with a 50 Watt draw

Channel 7-8 THRU I/O

You can use the channel 7-8
connections access channels
7-8 on a connected DB-25
cable, or to switch between
TRS and XLR

Channel 1-6 I/O

Each channel has a multitude
of I/O options with XLR, TRS
and DB-25

2
