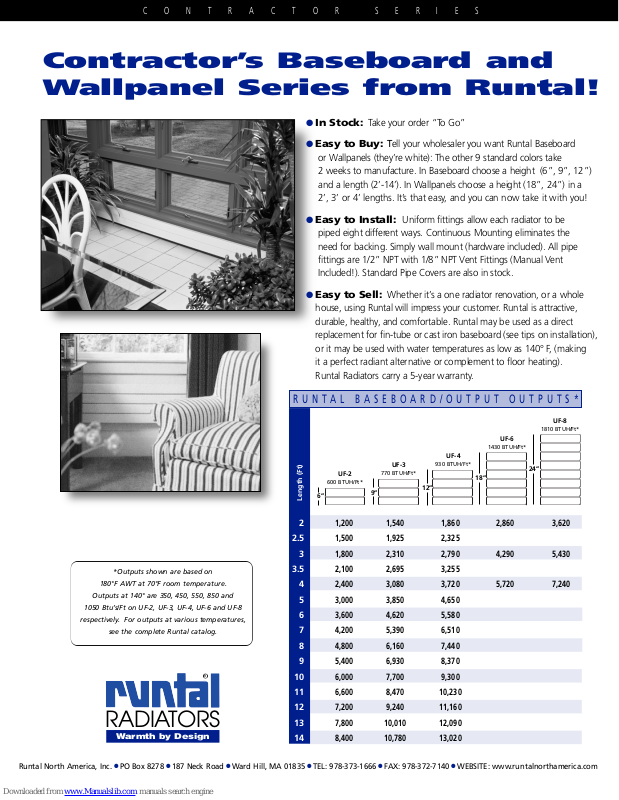

Page 1
CONTRACTOR SERIES
Contractor’s Baseboard and
Wallpanel Series from Runtal!
n Stock:Take your order “To Go”
l
I
l
Easy to Buy:
or Wallpanels (they’re white): The other 9 standard colors take
2 weeks to manufacture. In Baseboard choose a height (6”, 9”, 12”)
and a length (2’-14’). In Wallpanels choose a height (18”, 24”) in a
2’, 3’ or 4’ lengths. It’s that easy, and you can now take it with you!
l
Easy to Install:
piped eight different ways. Continuous Mounting eliminates the
need for backing. Simply wall mount (hardware included). All pipe
fittings are 1/2” NPT with 1/8” NPT Vent Fittings (Manual Vent
Included!). Standard Pipe Covers are also in stock.
l
Easy to Sell:
house, using Runtal will impress your customer. Runtal is attractive,
durable, healthy, and comfortable. Runtal may be used as a direct
replacement for fin-tube or cast iron baseboard (see tips on installation),
or it may be used with water temperatures as low as 140° F, (making
it a perfect radiant alternative or complement to floor heating).
Runtal Radiators carry a 5-year warranty.
Tell your wholesaler you want Runtal Baseboard
Uniform fittings allow each radiator to be
Whether it’s a one radiator renovation, or a whole
*Outputs shown are based on
180°F AWT at 70°F room temperature.
Outputs at 140° are 350, 450, 550, 850 and
1050 Btu’
respectively. For outputs at various temperatures,
s/Ft on UF-2, UF-3, UF-4, UF-6 and UF-8
see the complete Runtal catalog.
R
RADIATORS
Warmth by Design
RUNTAL BASEBOARD/OUTPUT OUTPUTS*
UF-8
810 BTUH/Ft*
1
UF-6
1430 BTUH/Ft*
24”
18”
5,720 7,240
2.5
3.5
10
11
12
13
14
2
3
4
5
6
7
8
9
Length (Ft)
UF-4
930 BTUH/Ft*
12”
600 BTUH/Ft*
6”
UF-2
UF-3
770 BTUH/Ft*
9”
1,200 1,540 1,860 2,860 3,620
1,500 1,925 2,325
1,800 2,310 2,790 4,290 5,430
2,100 2,695 3,255
2,400
3,080 3,720
3,000 3,850 4,650
3,600
4,620
5,580
4,200 5,390 6,510
4,800 6,160 7,440
5,400 6,930 8,370
6,000
6,600
7,700 9,300
8,470
10,230
7,200 9,240 11,160
7,800
10,010 12,090
8,400 10,780 13,020
Runtal North America, Inc.lPO Box 8278l187 Neck RoadlWard Hill, MA 01835lTEL: 978-373-1666lFAX: 978-372-7140lWEBSITE: www.runtalnorthamerica.com
Page 2
CONTRACTOR SERIES
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
▼▼
Roughin-(L-2")
UF-2
(1/8 NPT)
(1/8 NPT)
H
eight
5-3/4"
2 x (1/2" NPT)
1"
3/4
"
1"
2"
1 5/8"
L
ength-(L)
2 x (1/2"
NPT)
K-1
2
K-4
5
Installation Tips for Runtal Baseboard/Wallpanels
Roughing In: The rough in dimensions are the same for all 5 heights.
ips:
T
ounting: The mounting system is identical on all 5 heights.
M
Tips:
l
Always plan to pipe directly into the radiator. “U” shapes
hould be avoided. Always check your piping scheme in
s
advance to be sure of clearance from joists, etc.
l
Use all of the K-12 brackets provided with each radiator.
l
Place 1 bracket 6” in from each end, and equally space the rest.
l
Mount bracket on studs whenever possible (use appropriate
method for non-stud mounting).
l
Mount radiators 3” from the floor for optimum efficiency, ease
of vacuuming, and pr
oper trim cover fit. However a minimum
of 1” between radiator and finished floor is permissible.
l
Be sure to install leveling bolt (K-45) prior to piping radiator.
Vertical Covers
Piping: Each radiator may be piped eight different ways.
This should allow for the most efficient and most attractive installation.
rim Covers: Ther
T
e are 2 types of standard trim covers: Vertical Covers and Horizontal Covers.
Please refer to Runtal’s “Radiator Trim Sheet” for complete information.
Vertical Covers: These come standard in 3”
and 10” heights and ar
straight ver
and the floor. They can be easily field cut
for heights other than 3” and 10”.
tical pipe between the radiator
e designed to cover
Tips:
l
Piping should be kept to a minimum and should be planned to
match the standard trims.
l
Always install the air vent (included) opposite the supply side
of the radiator.
l
Be sure to properly seal the flush plugs (included) in the
unused fittings (3/8” and 3/16” hex wrenches required).
l
Be sure to leave room for piping inside corners. You will need
two to three inches plus working room, minimum.
Horizontal Covers: Standard trims simply
snap into place. Straight T
rims & Center T
End T
Inside Corners are 12” x 12” and End Cap
e either 6” x 2” (right hand) or 2”
rims ar
T
rims (used as
e 12” long.
rims) ar
x 6” (left hand).
Outside Corner
rims and other
T
special trims ar
readily available
equest.
on r
e
Tips:lHorizontal trims require a minimum of
2” overlap on the radiator for proper
fit.
l
It may be easier to purchase trims
after the radiators are installed, but
care should be taken to ensure that
all piping has been done with standard trim configurations in mind.
l
If you are unable to use standard
trims on an installation, please call for
custom trim options.
Horizontal Covers
System: Runtal will work well in both High and Low temperature closed loop systems.
Tips:
l
Always test the system with air at a maximum pressure of 50 PSI prior to wet testing.
l
Runtal baseboard may be used with fin-tube, but the fin-tube will perform better if the Runtal is at the end of the loop.
l
Runtal is compatible with cast iron baseboard and cast iron radiators.
l
In series installation: an individual loop should not exceed 30,000 Btuh or 7 radiators.
