Runco SC-60d, SC-50d User Manual

I NSTALLATION/OPERATION MANUAL

SC-50d Series
SC-60d Series

Full-HD Private Cinema Projector and

Digital High Definition (DHD) Controller/Processor

RuncoCare™ Standard Two Year Limited

Warranty

Congratulations on your purchase of a Runco® product! With proper installation, setup and care, you should enjoy many years
of unparalleled video performance.

This RuncoCare Standard Limited Warranty is provided free of charge by Runco International, LLC (“Runco”) with the purchase
of a covered Runco product. The following sets forth Runco’s Standard Limited Warranty applicable to all Runco projectors,
processors, LCD display and plasma display products, with the exception of the following models: XP-103DHD, SC-1, SC-1a,
CW-95DHD and VW-100HD

The following terms and conditions of the RuncoCare Standard Limited Warranty represent a contract between us, Runco, and
you, the customer, who has purchased a Runco product. This contract applies to purchases of covered Runco products
occurring on or after February 11, 2010. Runco reserves the right to change the terms of this contract, and such changes
shall apply to purchases of covered Runco products that occur on or after any future effective date.

RuncoCare Standard Features

• Two-year protection from defects in material and workmanship

• Access to 24x7 phone support

• Complimentary, second-day one-way shipping

1

.

Y

Warranty Coverage

Runco warrants its products to be free from defects in material and workmanship during the warranty period provided below.
If, in Runco’s sole determination, a product proves to be defective in material or workmanship during the warranty period,
Runco will repair the product, replace the product with a substantially similar new or like-new product, or refund a prorata
share of the purchase price (calculated based on the remainder of the warranty period and the then-current MSRP
product), if repair or replacement of the product is determined by Runco to not be feasible. Runco has sole discretion in
determining whether a same or like model is offered, and what constitutes a “substantially similar model.”

Length of Warranty

Runco products are warranted for two (2) years from the date of shipment from Runco. Lamps are warranted six (6) months
from the date of shipment or 1000 hours of use, whichever comes first. All other accessories, which include but are not limited
to, cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product, are warranted for ninety (90)
days from the date of the original shipment of the accessory.

Eligibility

This RuncoCare Standard Limited Warranty is valid only for the first customer who purchases the covered product from an
authorized Runco dealer or distributor. This warranty is not transferable. You may be required to provide proof of purchase in
order to receive warranty services.

PRE

IMINAR

L

2

of a similar

1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates to
the list of covered products will not apply on a retroactive basis.

2. MSRP is defined as the most recent product price listed on Runco’s price list.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual iii

RuncoCare Claim Procedure

In the event of a product defect, please follow the warranty claim procedure provided below:

1. The Customer is required to contact a Runco dealer or Runco Technical Support via email at [e-mail] or via
phone at (toll free) (800) 23RUNCO (800-237-8626). If the customer is located outside North America, call [phone]
554 in Europe for product service.

2. Be prepared to provide the date of purchase, the place of purchase, serial number, product model number, description of
the problem and troubleshooting steps already attempted.

3. Runco Technical Support staff will attempt to correct any minor issues that may be causing the problem. If Runco is
unable to resolve the problem through troubleshooting, a Return Material Authorization (RMA) number will be issued for the
exchange of the defective product if it is determined that the claim was made within the coverage period of the Standard
Limited Warranty.

4. If it is determined that the Standard Limited Warranty applies to the claim, the customer will need to return the defective
product to the Runco repair depot location specified by the Runco technical support representative. The customer will
need to properly package the defective product, consisting of the product only, and not include any accessories (e.g.,
cables, remotes, carrying cases, lens, lens cap and other peripherals) and return it to the Runco repair depot specified by
the technical support representative. It is the customer’s responsibility to properly package the hardware, include all
appropriate materials, and return it to the location specified by the Runco technical support department. The customer will
need to address and resolve any shipping damage claims directly with the shipping company.

5. The customer is responsible for providing a suitable box to ship the defective product to an authorized Runco repair depot.
Boxes may be purchased from a Runco technical support representative.

6. The customer is responsible for paying freight charges to ship the defective product to an authorized Runco repair depot.

7. For in-warranty repairs, Runco will pay freight charges to return the repaired/replacement product (which shall not include
accessories--e.g., cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product) to the
customer from the Runco repair depot.

IMINAR

L

Y

8. Once an RMA has been created, the customer may contact [e-mail] for followup questions or
confirmation status of the claim process.

Warranty Exclusions

This RuncoCare Standard Limited Warranty does not include or is limited by the following:

1. Products not purchased from an authorized Runco dealer

2. Rental costs incurred by the customer in the event of product defect or failure

3. Any product with a defaced, modified, or removed serial number

4. Damage, deterioration, or malfunction resulting from:
a Accident, abuse, misuse, neglect, improper ventilation, fire, water, disaster, lightning, or other acts of nature, smoke

exposure (cigarette or otherwise), unauthorized product modification (including use of an unauthorized mount), or failure

to follow instructions supplied with the product
b Repair or attempted repair by anyone not authorized by Runco
c Any damage to the product due to shipment
d Removal or installation of the product
e Causes external to the product, such as electric power fluctuations or failure
f Use of supplies or parts (including lamps) that are not purchased from Runco or do not meet Runco’s specifications
g Normal wear and tear

PRE

iv Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

h Expected lamp degradation and normal decrease in lamp output over a period of time or as the lamp is consumed
i Customer caused defects, including but not limited to, scratched/defaced/altered plastics
j Failure to follow maintenance procedures as outlined in the product’s user guide where a schedule is specified for

regular cleaning of the product
k Opening the product and/or tampering with internal circuitry
l Products lost, stolen or discarded
m Any damage or dissatisfaction associated with latent images, “burnin,” or any other damage determined by Runco to be

the result of customer use patterns
n Any other cause, which does not relate to a product defect in material or workmanship

5. Removal, installation, and setup service charges are excluded from this Standard Limited warranty

6. Black uniformity issues or other LCD issues associated with usage outside the Runco recommended guidelines and
specifications for the product

7. Bright or dark sub pixels that are characteristic of LCD technology and considered by Runco to be acceptable and within
Runco’s manufacturing specifications. (See “Sub Pixel Policy,” below.)

8. Second day shipment delivery time and availability may vary based on origin and destination and Runco is unable to deliver
to PO Box and FPO Box addresses

Sub Pixel Policy

It is not uncommon for one or more sub pixels to become bright or dark during or after the manufacturing process. A bright
sub pixel is one that remains in the on position, and a dark sub pixel is one that appears black or off. The sub pixels are usually
hard to see and will not detract from the display quality or usability at normal viewing distance. The following are Runco’s
criteria for identifying bright or dark sub pixels that would be considered unacceptable: a) the number of bright or dark sub
pixels; b) the location of the bright or dark sub pixels; c) the color of the bright sub pixels; and d) the Runco model size. If sub
pixels have been identified as unacceptable by Runco the LCD will be deemed faulty and will be replaced if reported within the
warranty period. If there are issues with bright or dark sub pixels, gather the information listed above and call or email
[e-mail].

Other Terms and Conditions

IMINAR

L

Y

PRE

1. Runco will not accept returned Product unless an RMA number has been issued by Runco.

2. If an Advance Exchange return occurs, it is the customer’s responsibility to properly package the defective product and
ship it to the address provided by the Runco technical support representative with the RMA number prominently
displayed. If the defective product is not properly packaged and is damaged in transit during its return to Runco, you may
be invoiced for either the repair costs, if repairable, or the MSRP of a replacement product and shipping costs incurred by
Runco.

3. The repaired or replaced product will assume the remainder of your original product’s RuncoCare Service Plan term or 90
days from the date the repaired unit is shipped, whichever is longer.

4. If a replacement product is sent, the customer agrees to retain the replacement for the product you purchased and your
defective product becomes the property of Runco.

Extended Service Options

Runco offers extended and expanded service plans. For information on additional product protection, please email
[e-mail] or call (toll free) (800) 23RUNCO (800-237-8626).

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual v

Online Product Registration

Please visit http://www.runco.com/support/product-registration/ to register product.

Limitation of Implied Warranties

RUNCO PROVIDES NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THOSE EXPRESSLY PROVIDED HEREIN. RUNCO
EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of Damages

Y

RUNCO’S MAXIMUM AGGREGATE LIABILITY HEREUNDER IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF
THE PRODUCT.

1. RUNCO SHALL NOT BE LIABLE FOR DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECT IN THE PRODUCT,
DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS,
LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR
OTHER COMMERCIAL LOSS, EVEN IF THE CUSTOMER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

2. RUNCO SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES.

3. RUNCO SHALL NOT BE LIABLE FOR ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

IMINAR

Effect of Local Law

L

This warranty gives you specific legal rights, and you may have other rights, which vary from locality to locality. Some localities
do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the
above limitations and exclusions may not apply to you.

COPYRIGHT AND TRADEMARKS:

PRE

© Copyright 2011 Runco International, LLC (“Runco”). This document contains proprietary information protected by copyright,
trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of Runco.

The trademarks reproduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are
licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents
Pending.

vi Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Important Safety Instructions

Thank you for your purchase of this quality Runco video product! For the best performance, please read this manual carefully
as it is your guide through the menus and operation.

WARNING

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

CAUTION:

SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock.

This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

Y

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of
the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point
where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The +12V trigger only outputs 12Vdc signal for triggering. Do not connect to any other power input or output. This could
cause damage to this unit.

16. Keep the packing material in case the equipment should ever need to be shipped.

17. The lamp becomes extremely hot during operation. Allow the projector to cool down for approximately 45 minutes prior to
removing the lamp assembly for replacement.

18. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to
explode in rare occasions.

PRE

IMINAR

L

19. Never look directly into the lens when the lamp is on.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual vii

Compliance Information

DECLARATION OF CONFORMITY:

Manufacturer’s Name: Runco International, LLC

Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992

hereby declares that the Products’ Model Numbers:

SC-50d, SC-50d/CineWide with AutoScope, SC-60d and SC-60d/CineWide with AutoScope

conform with the provisions of:

Council Directive 2004/108/EC on Electromagnetic Compatibility;

EN 55022 “Limits and methods of measurements of radio interference characteristics of information technology equipment”
1998;

EN 55024 “Limits and methods of measurements of immunity characteristics of information technology equipment” 1998;

Including:

• EN 61000-4-2 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 2:
Electrostatic discharge immunity test”

• EN 61000-4-3 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 3: Radiated,
Radio-Frequency, Electromagnetic Field Immunity Test”

• EN 61000-4-4 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 4: Electrical
fast transient/burst immunity test”

• EN 61000-4-5 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 5: Surge
immunity test"

• EN 61000-4-6 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 6: Conducted
disturbances induced by radio-frequency fields immunity test"

• EN 61000-4-8 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 8: Conducted
disturbances induced by power frequency magnetic fields immunity test"

• EN 61000-4-11 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 11: Voltage
dips, short interruptions and voltage variations immunity tests"

PRE

IMINAR

L

Y

And:

• EN 61000-3-2 "Electromagnetic compatibility (EMC) Part 3, Section 2: Limits for harmonic current emissions (equipment
input current up to and including 16 A per phase)" 2000;

• EN 61000-3-3 "Electromagnetic compatibility (EMC) Part 3, Section 3: Limitations of voltage changes, voltage
fluctuations and flicker in public low-voltage supply systems, for equipment with rated current up to and including 16 A
and not subject to conditional connection" 1995;

Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety;

EN 60950 “Safety of information technology equipment, including electrical business equipment”

The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International,
LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.

Date of Declaration: March 2011

viii Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

FCC PART 15:

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

INDUSTRY CANADA (ICES-003):

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Y

PRODUCT DISPOSAL:

IMINAR

The Product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to
environmental considerations.

IMPORTANT RECYCLE INSTRUCTIONS

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

L

PRE

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.

For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European
Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not be treated as
household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences to the environment and human health, which could
otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve
natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please
contact your local authorities or dealer and ask for the correct method of disposal.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual ix

Notes:

Y

IMINAR

L

PRE

x Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

1Table of Contents

RuncoCare™ Standard Two Year Limited Warranty ................................................... iii

Important Safety Instructions ....................................................................................... vii

Compliance Information .............................................................................................. viii

1. Introduction ............................................................................................................... 1

About This Manual .......................................................................................................1

Target Audience .....................................................................................................1

If You Have Comments About This Manual.............................................................1

Textual and Graphic Conventions ...........................................................................1

Using This Manual ........................................................................................................ 2

Description, Features and Benefits ...............................................................................3

Key Features and Benefits ......................................................................................4

Parts List ................................................................................................................4

2. Controls and Functions ............................................................................................5

SC-50d/SC-60d at a Glance ........................................................................................5

SC-50d/SC-60d Input Panel ........................................................................................6

DHD Controller Front Panel ..........................................................................................8

DHD Controller Rear Panel ........................................................................................... 9

SC-50d/SC-60d Remote Control Units ...................................................................... 11

DHD Controller/SC-50d/SC-60d Remote Control Unit ..........................................11

Setup Remote Control ..........................................................................................14

PRE

3. Installation ...............................................................................................................15

Remote Control ..........................................................................................................15

IMINAR

L

Y

Notes on Batteries ................................................................................................15

Notes on Remote Control Operation .....................................................................16

Quick Setup ............................................................................................................... 16

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual xi

Table of Contents

Installation Considerations ..........................................................................................17

Installation Type .................................................................................................... 17

Ambient Light .......................................................................................................17

Throw Distance.....................................................................................................18

Vertical and Horizontal Position............................................................................. 19

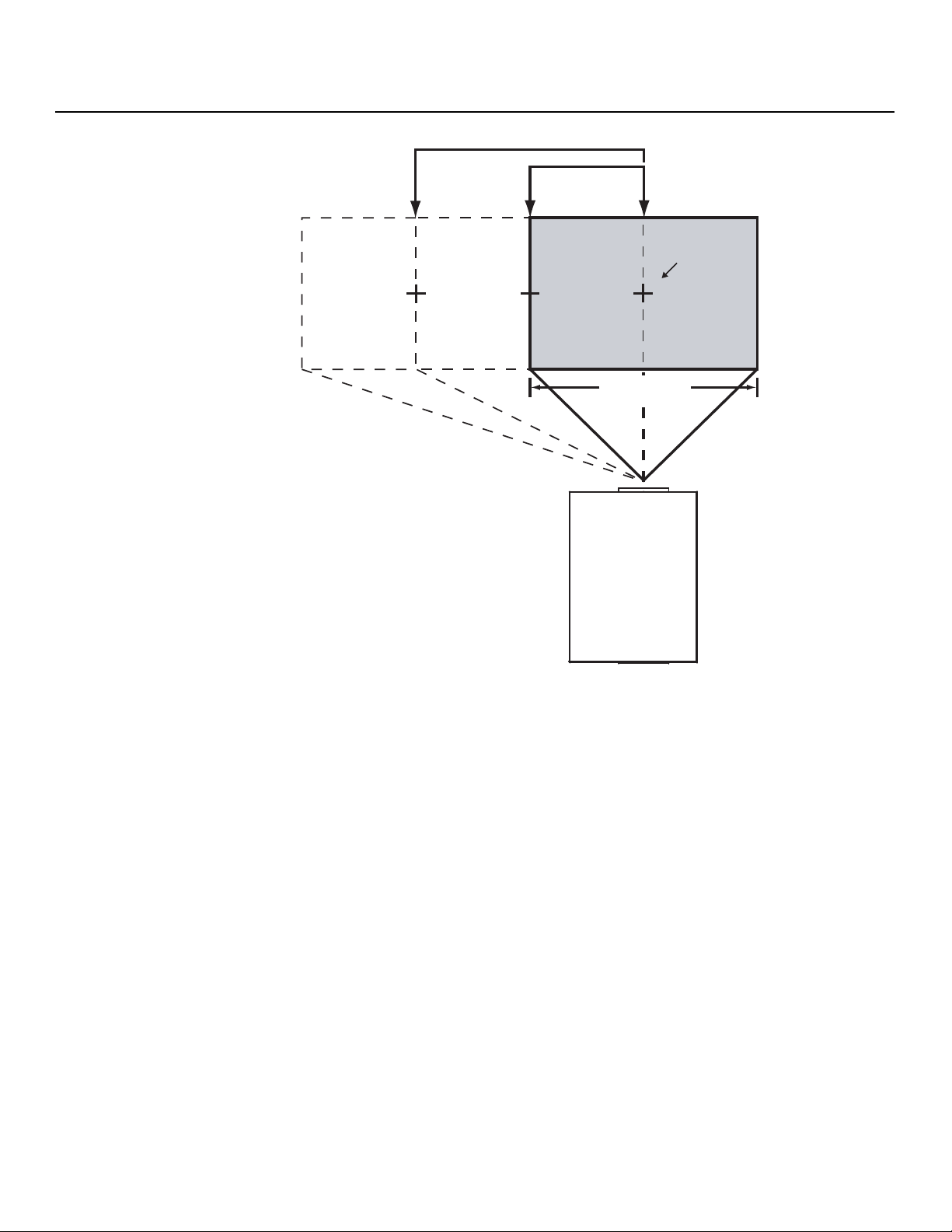

Vertical and Horizontal Lens Shift..........................................................................19

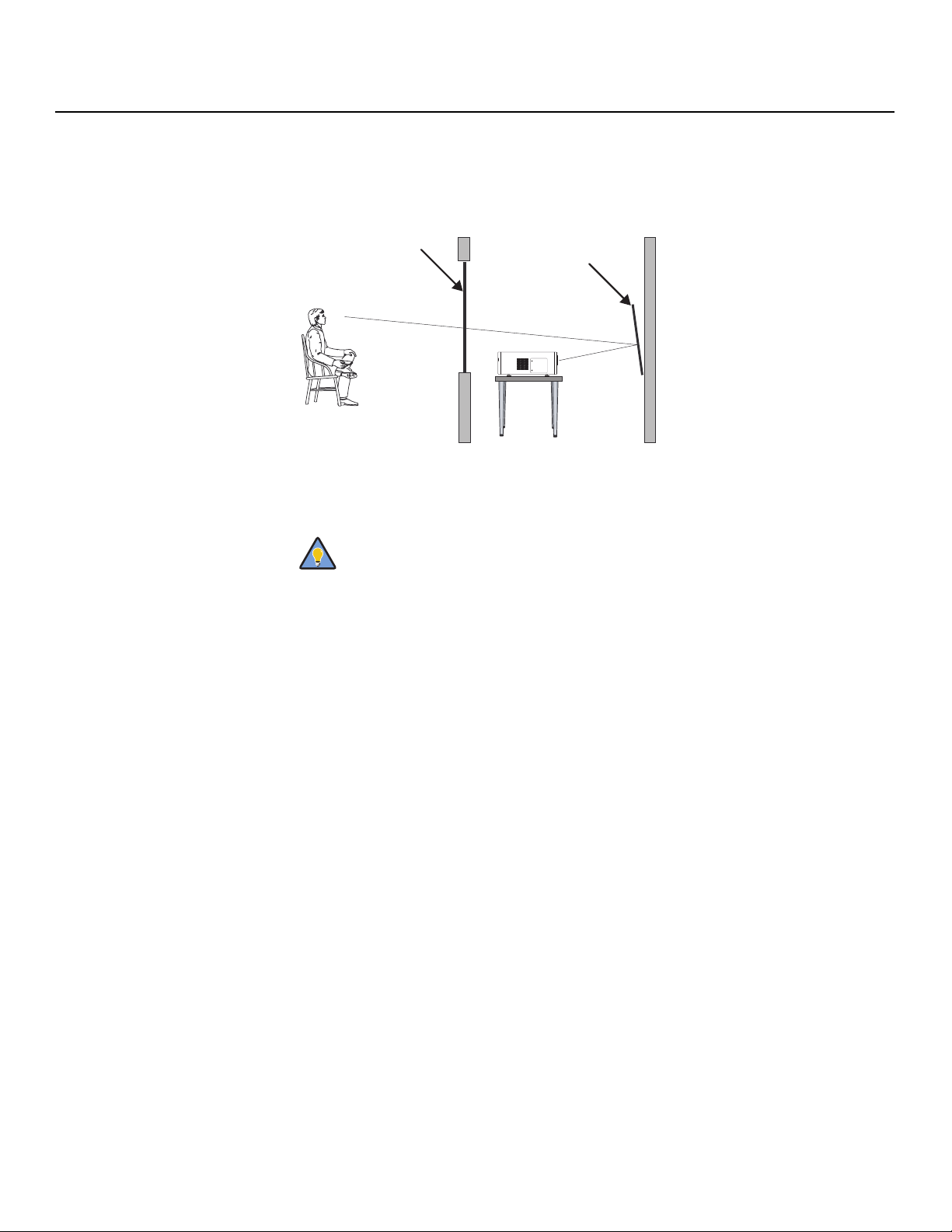

Folded Optics .......................................................................................................22

Audio/Video Synchronization Issues...................................................................... 23

Ventilation............................................................................................................. 24

Other Considerations ............................................................................................24

Y

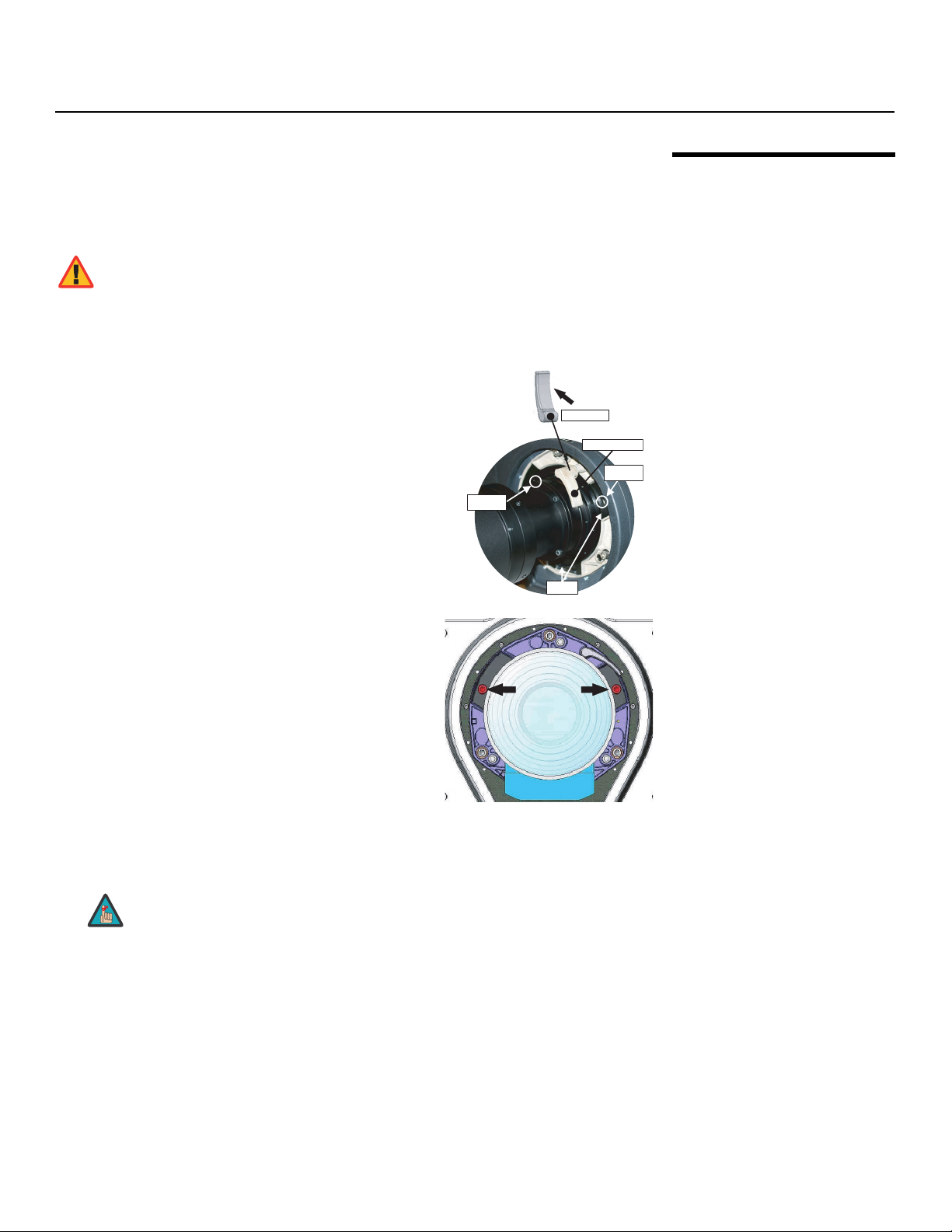

Installing the Primary Projection Lens .........................................................................25

Installing the Optional CineWide with AutoScope Lens Motor .....................................26

Remove Projector Front Feet ................................................................................26

Install Anamorphic Lens Motor..............................................................................26

Mounting the SC-50d/SC-60d ...................................................................................27

Floor Mounting (Upright) ....................................................................................... 27

Ceiling Mounting (Inverted)....................................................................................27

Installing the Projector in an Enclosure..................................................................27

Adjusting the Projection Angle ..............................................................................28

Connections to the SC-50d/SC-60d and DHD Controller ...........................................29

Connecting the DHD Controller to the SC-50d/SC-60d ........................................29

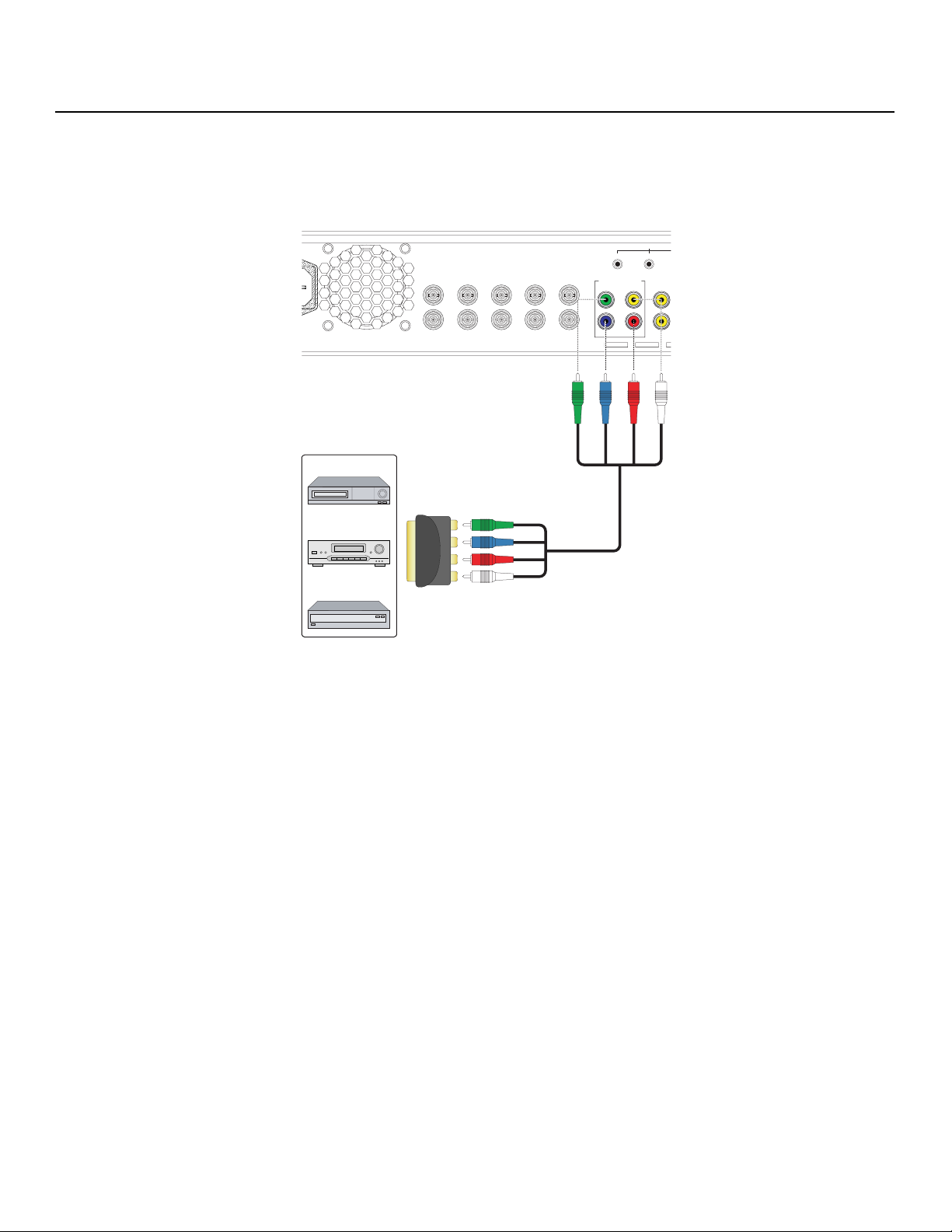

Connecting Source Components to the DHD Controller .......................................31

Connecting an Audio Processor or Secondary Display Device

to the DHD Controller (Optional)............................................................................ 36

PRE

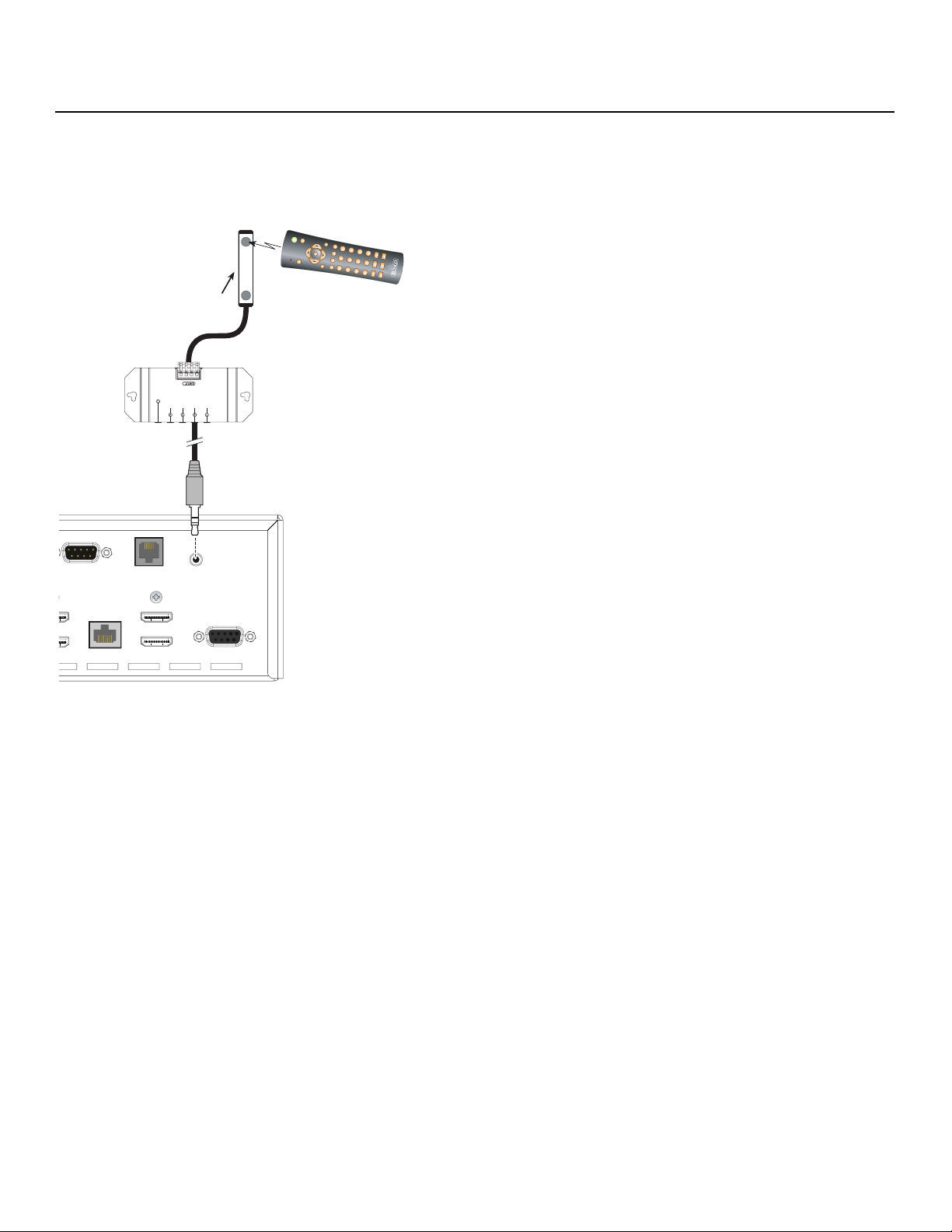

Additional Connections to the DHD Controller (Optional) ....................................... 37

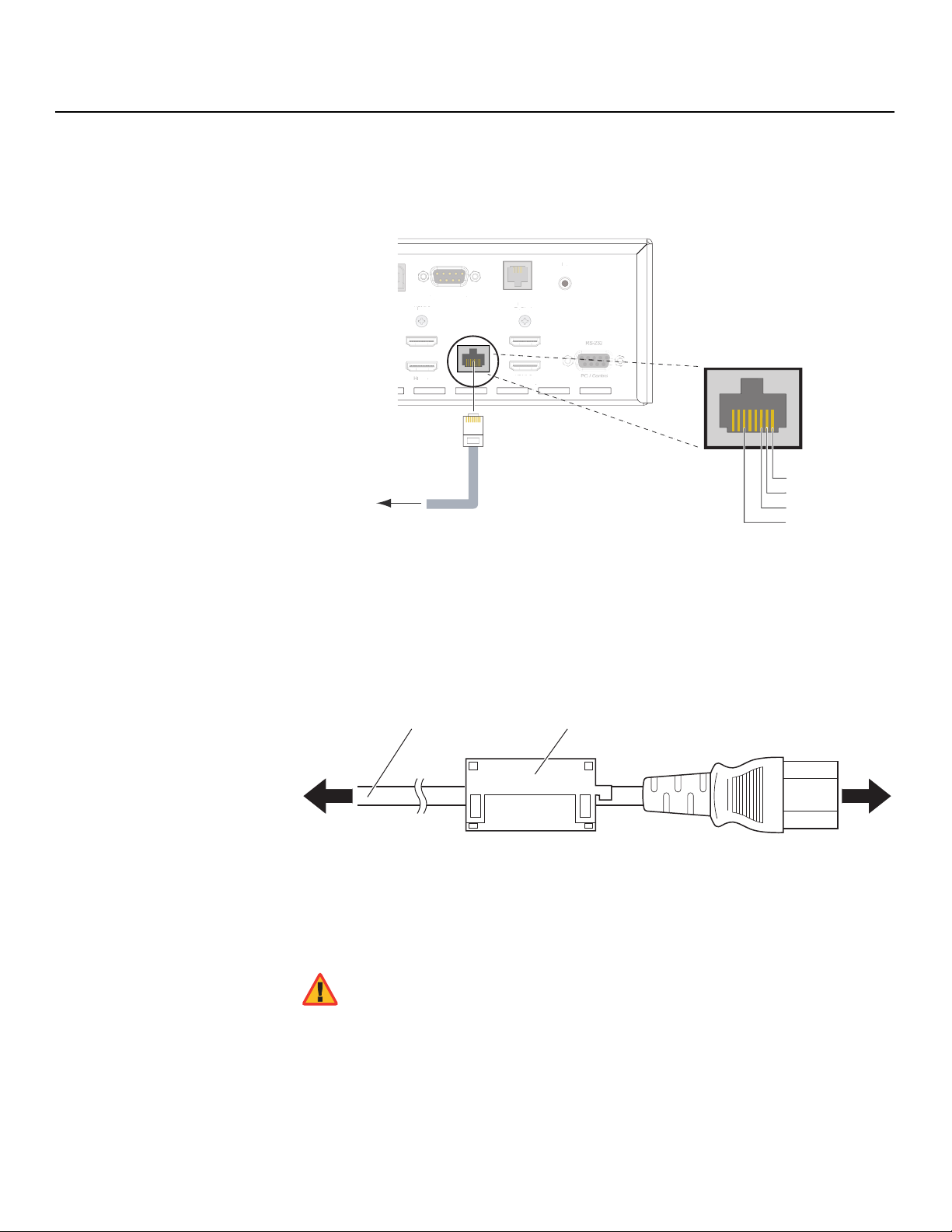

Connecting to AC Power ......................................................................................40

Turning on the Power .................................................................................................41

Primary Lens Adjustments: Focus, Zoom and Position ...............................................41

Adjusting the Picture Orientation ................................................................................42

Adjusting the Image Geometry ...................................................................................43

Installing and Adjusting the CineWide Anamorphic Lens .............................................45

IMINAR

L

Attach Lens Mounting Assembly to Lens Motor Carriage Plate .............................46

Configure Lens Motor Trigger (CineWide with AutoScope) ....................................47

Adjust the Anamorphic Lens .................................................................................47

Verify Proper Image Alignment with Anamorphic Lens ..........................................50

Working With the Lamp ..............................................................................................50

xii Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Table of Contents

4. Operation .................................................................................................................51

Using the On-Screen Menus ......................................................................................51

Main Menu............................................................................................................53

Input Source......................................................................................................... 53

Aspect Ratio......................................................................................................... 53

Picture..................................................................................................................56

Input Position........................................................................................................60

Memory Presets .................................................................................................. 62

Sleep Timer ..........................................................................................................63

Information ...........................................................................................................64

Y

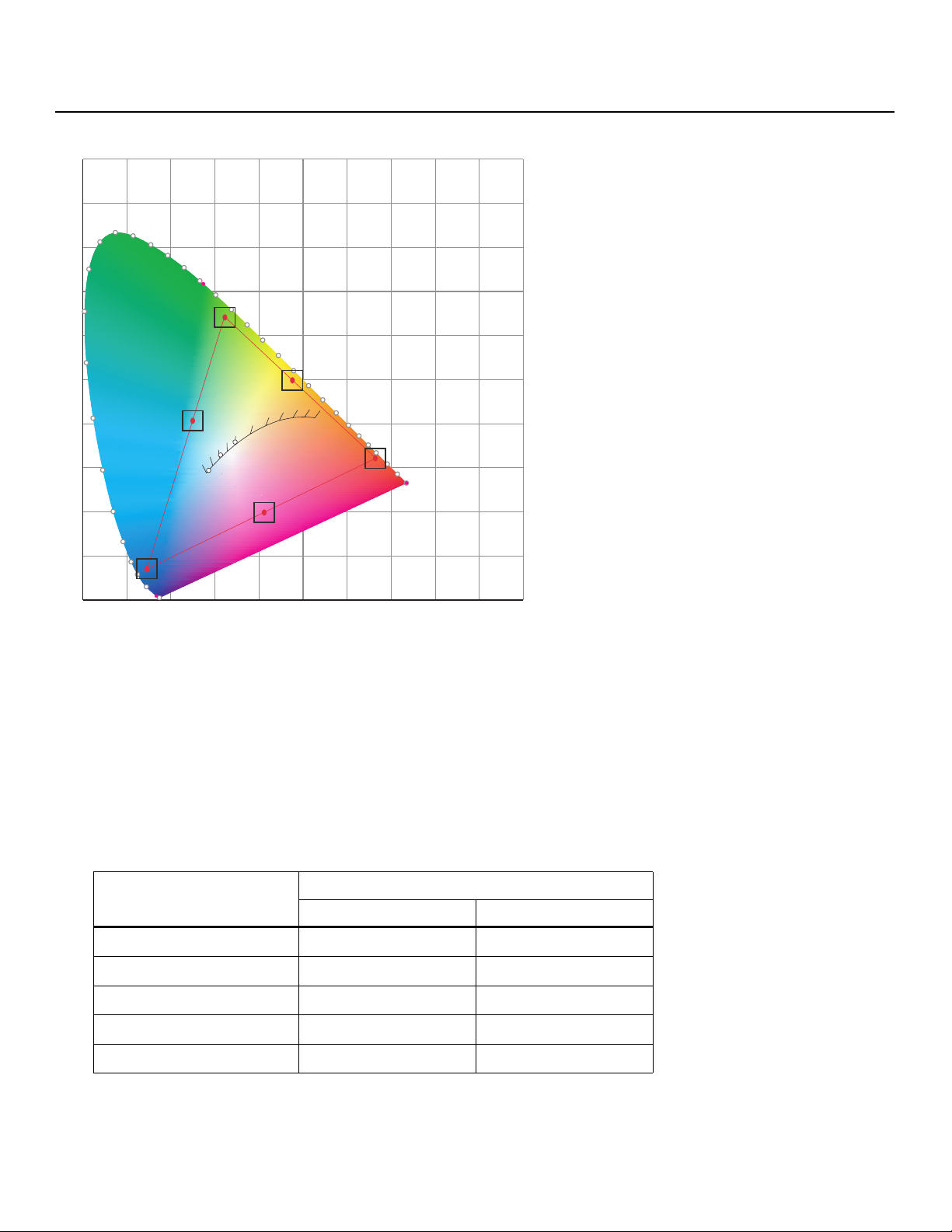

Calibration ............................................................................................................65

Service ................................................................................................................. 70

5. Maintenance and Troubleshooting ........................................................................ 81

Lamp Replacement ....................................................................................................81

Troubleshooting Tips ..................................................................................................83

6. External Control ......................................................................................................85

Serial Communications ...............................................................................................85

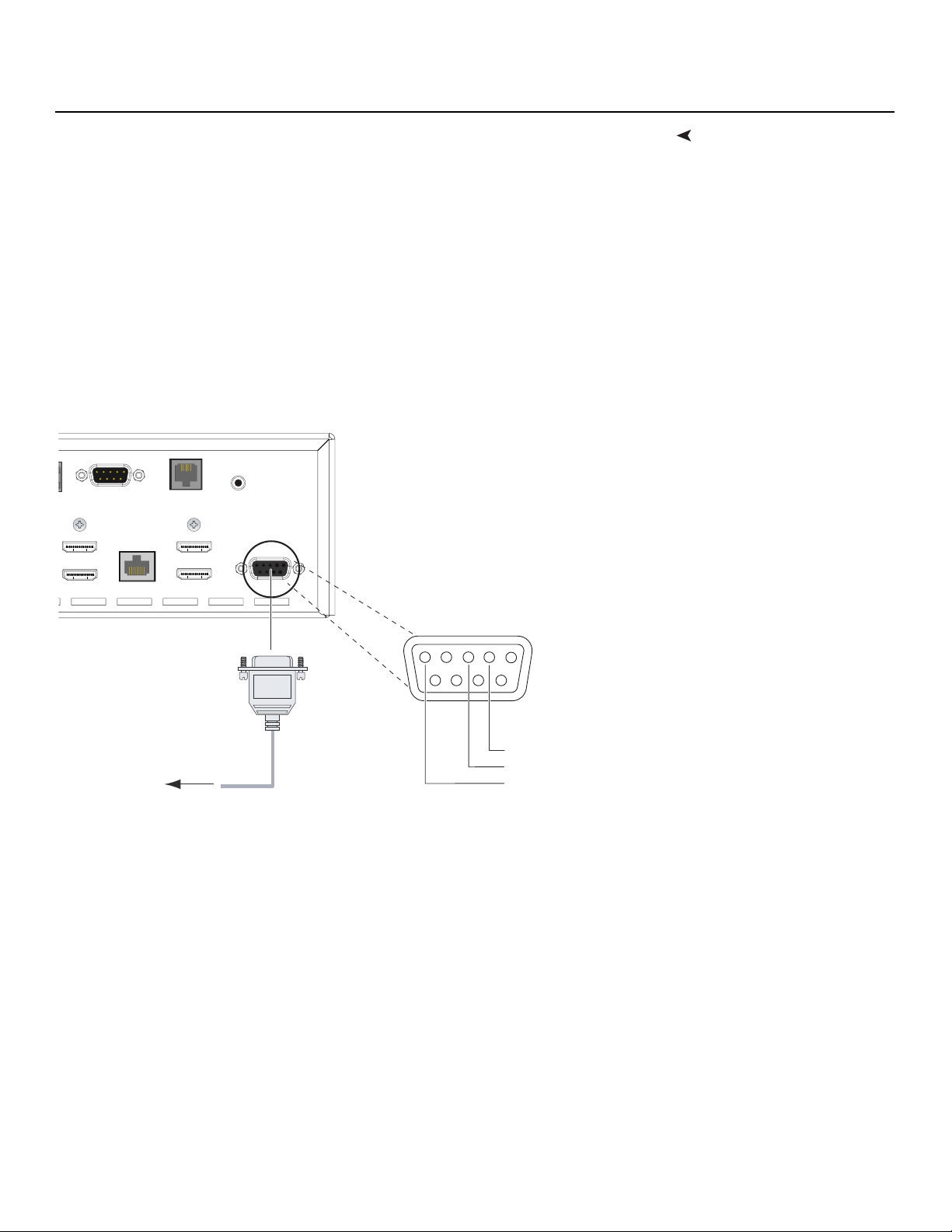

RS-232 Connection and Port Configuration .......................................................... 85

Serial Command Syntax .......................................................................................85

Using Discrete IR Codes ............................................................................................90

IR Command Protocol ..........................................................................................90

IR Command List..................................................................................................92

Using HDMI CEC Messages .......................................................................................94

CEC Command List.............................................................................................. 94

PRE

7. Specifications .......................................................................................................... 97

SC-50d/SC-60d Projector Specifications ...................................................................97

DHD Controller Specifications .................................................................................... 99

SC-50d/SC-60d Dimensions ....................................................................................101

SC-50d/SC-60d Dimensions with CineWide with AutoScope Assembly ...................102

Supported Timings ...................................................................................................103

IMINAR

L

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual xiii

Table of Contents

Notes:

Y

IMINAR

L

PRE

xiv Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

1List of Figures

2-1. SC-50d/SC-60d Top/Rear/Front View.......................................................................... 5

2-2. SC-50d/SC-60d Input Panel ........................................................................................6

2-3. DHD Controller Front Panel ..........................................................................................8

2-4. DHD Controller Rear Panel ...........................................................................................9

2-5. DHD Controller/SC-50d/SC-60d Remote Control.......................................................11

2-6. Setup Remote Control for SC-50d/SC-60d ................................................................14

Y

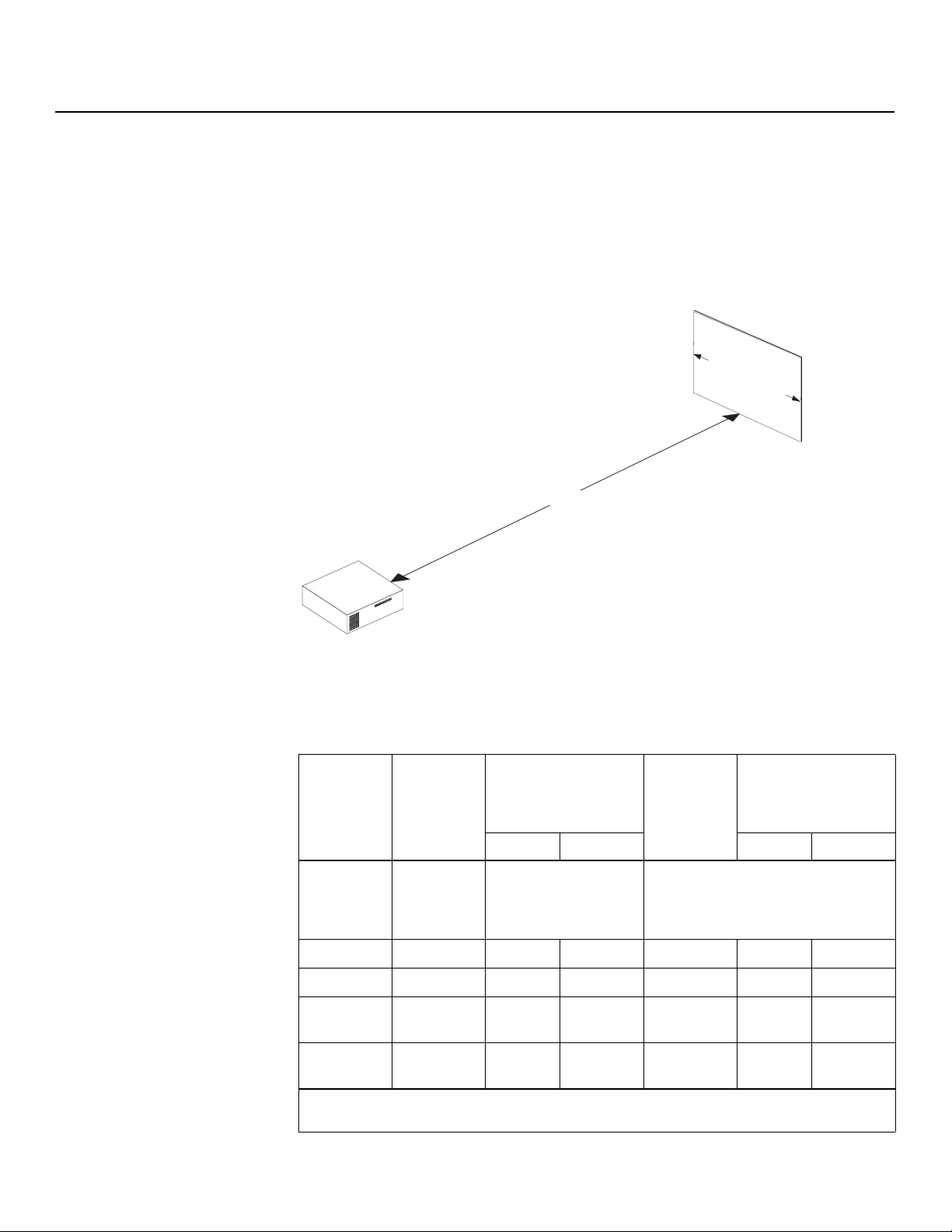

3-1. Estimating Throw Distance .........................................................................................18

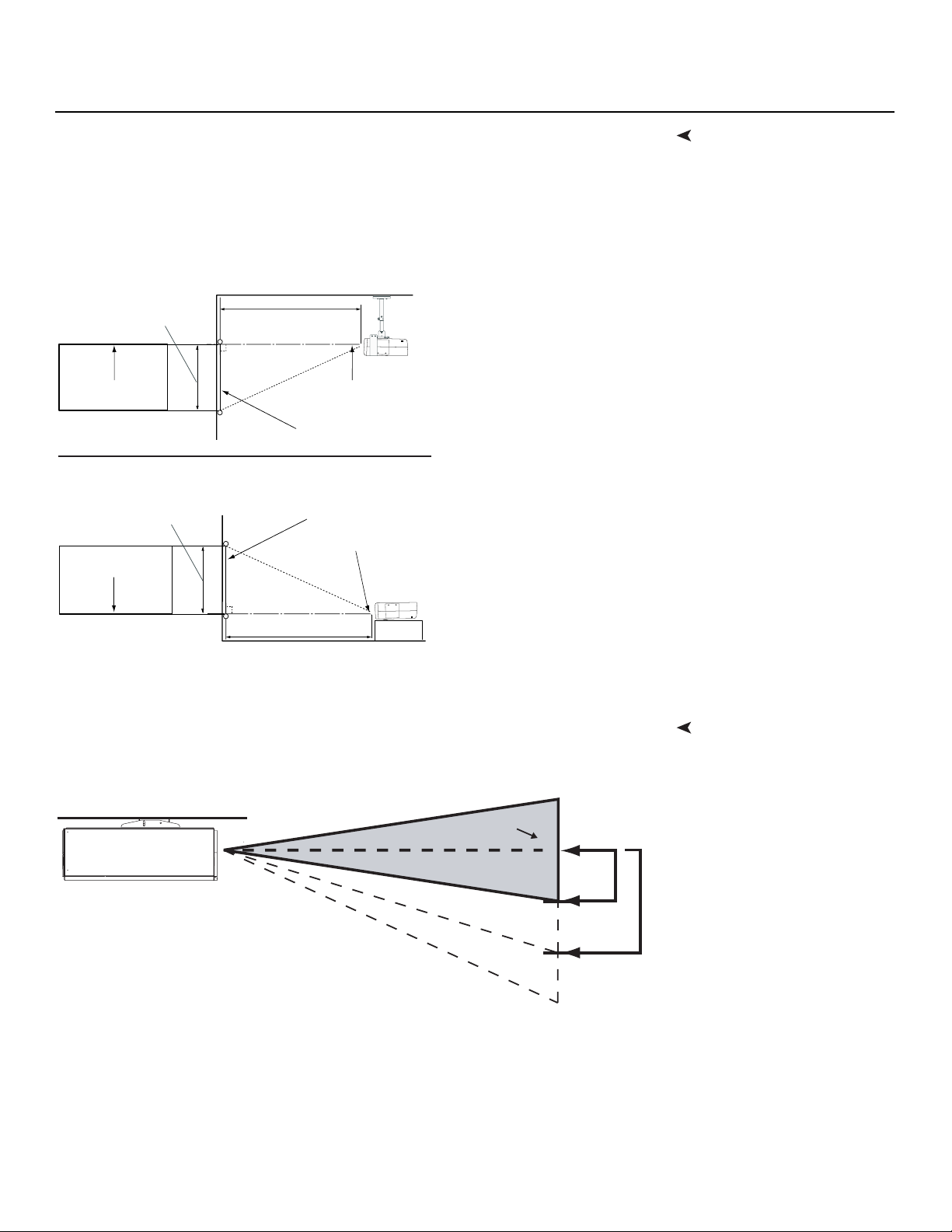

3-2. Projector Placement ...................................................................................................19

3-3. Vertical Lens Shift (EXAMPLE ONLY) .......................................................................... 19

3-4. Horizontal Lens Shift (EXAMPLE ONLY)......................................................................20

3-5. Folded Optics.............................................................................................................22

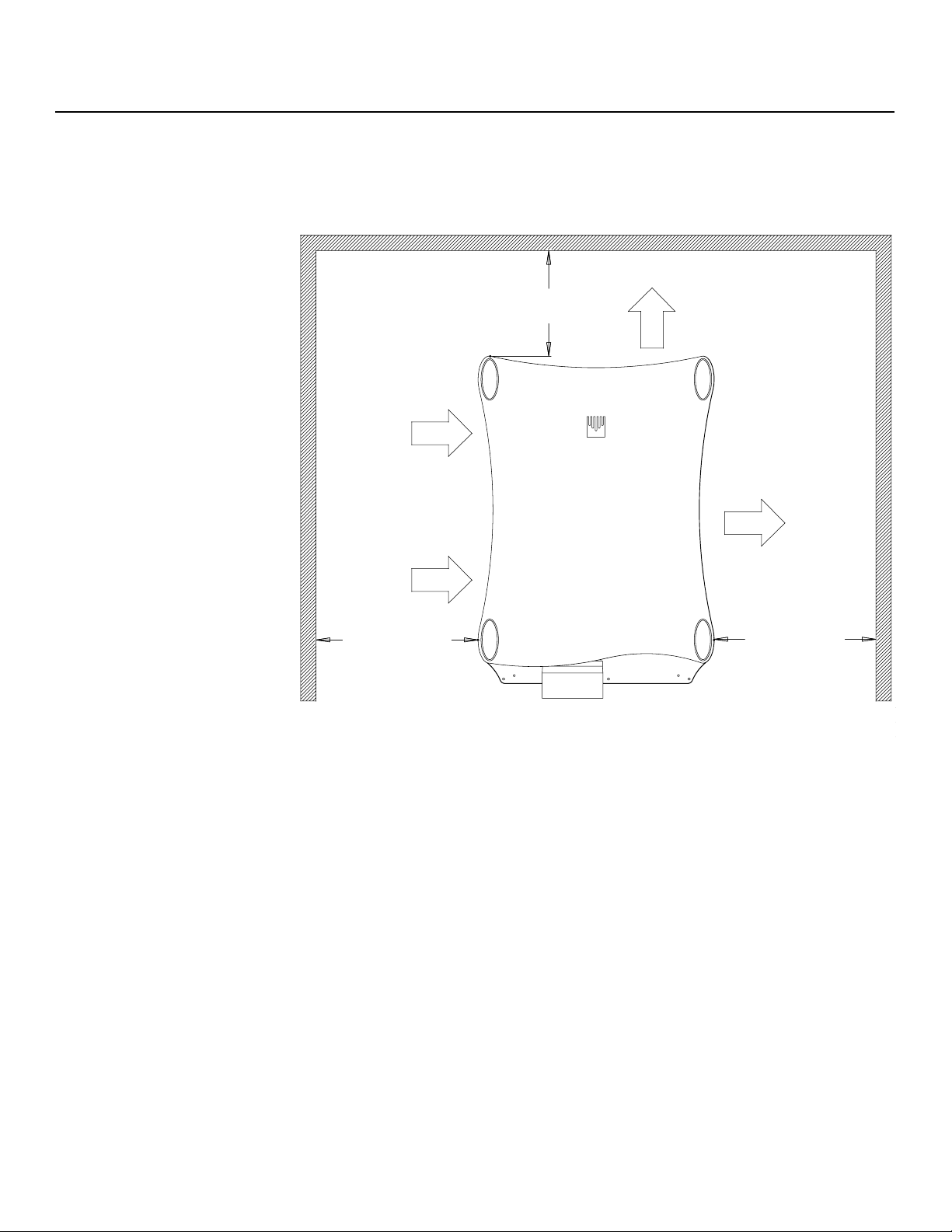

3-6. Ventilation Requirements for Enclosure Mounting .......................................................24

3-7. Attaching the AutoScope Lens Motor to the Projector ............................................... 26

3-8. Mounting Angle Ranges (Front-to-Back and Side-to-Side).......................................... 28

3-9. Connecting the SC-50d/SC-60d to the DHD Controller.............................................. 29

3-10. RS-232 Connection from the DHD Controller to the SC-50d/SC-60d....................... 30

3-11. HDMI Source Connections .......................................................................................31

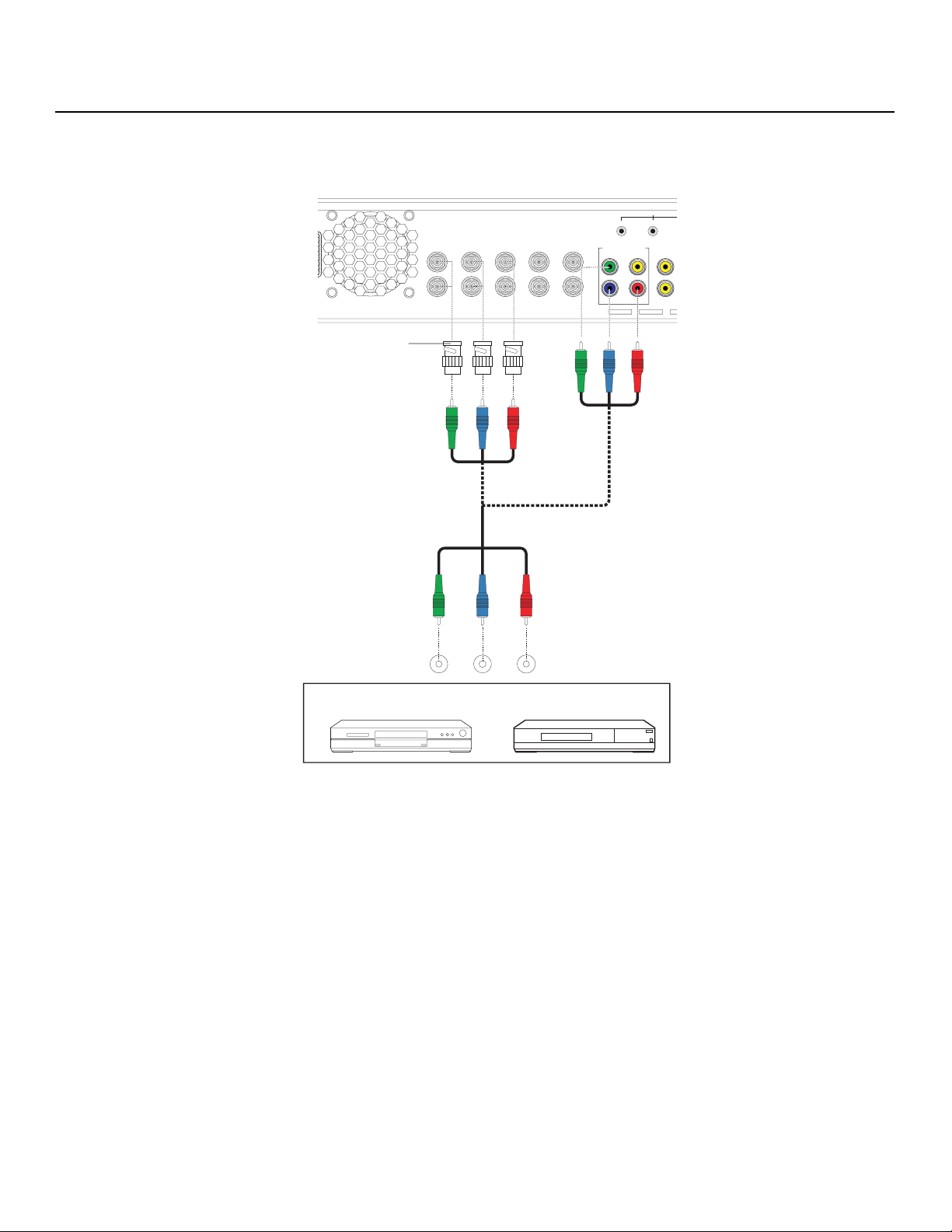

3-12. Component Video Source Connections.................................................................... 32

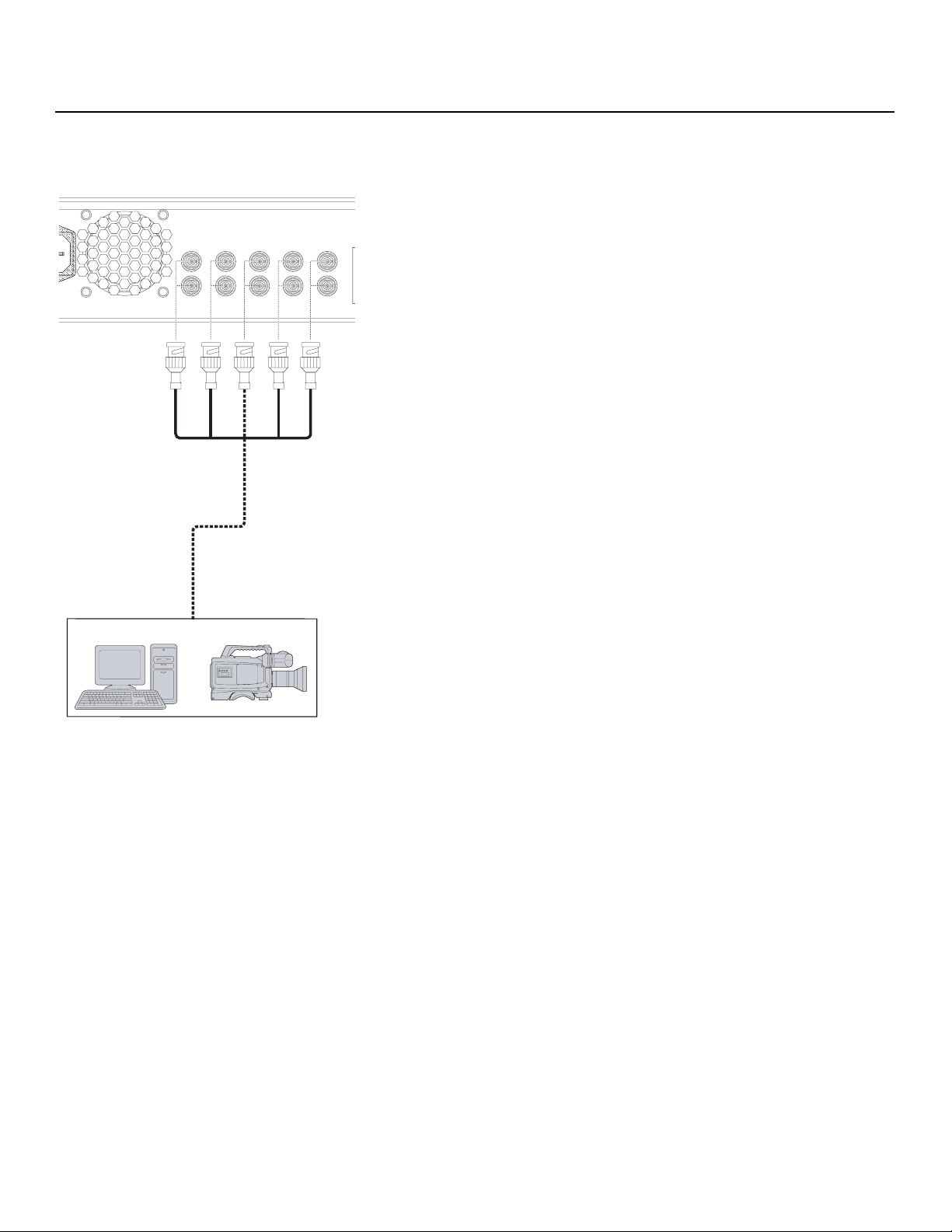

3-13. RGBHV Source Connections....................................................................................33

3-14. SCART RGBS Source Connections..........................................................................34

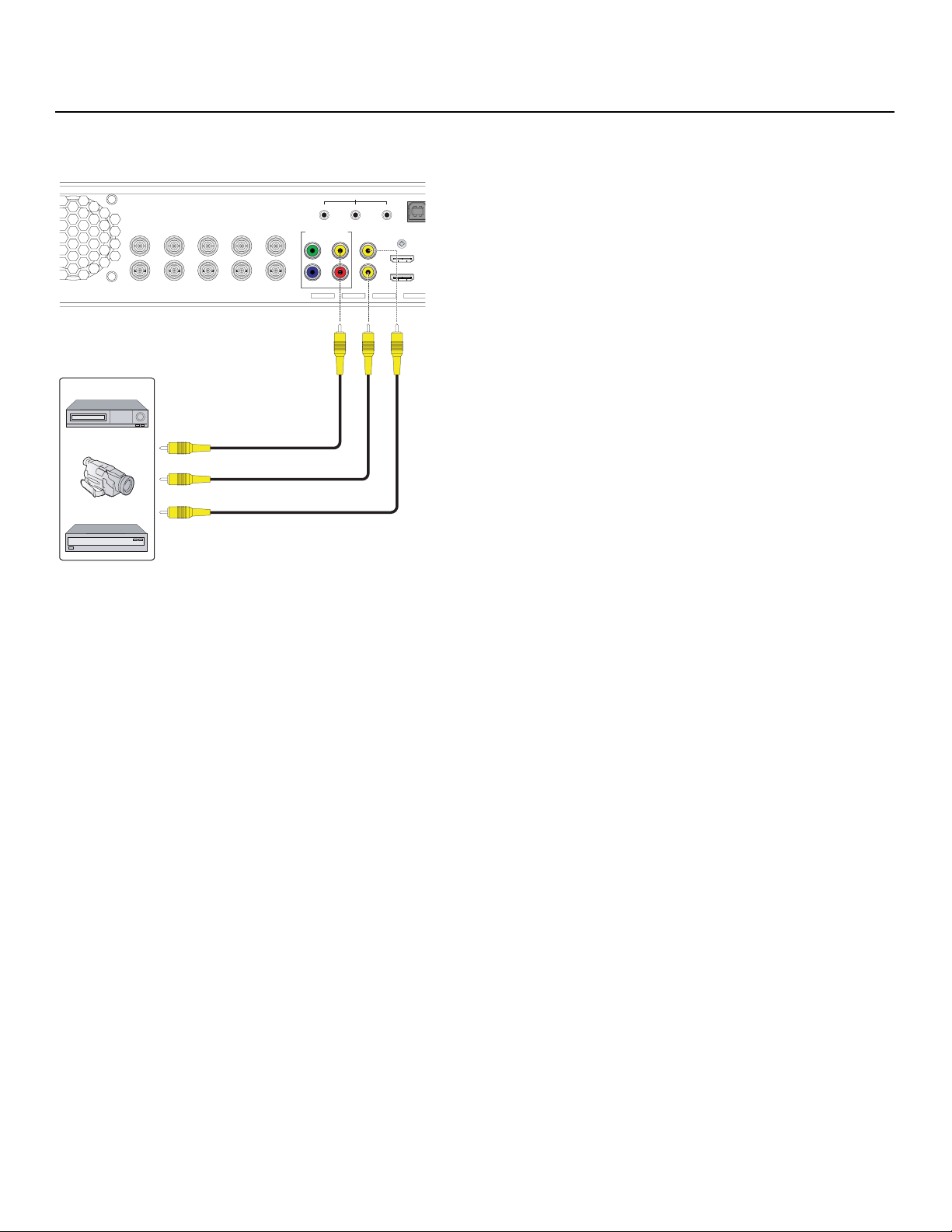

3-15. Composite Video Source Connections .....................................................................35

PRE

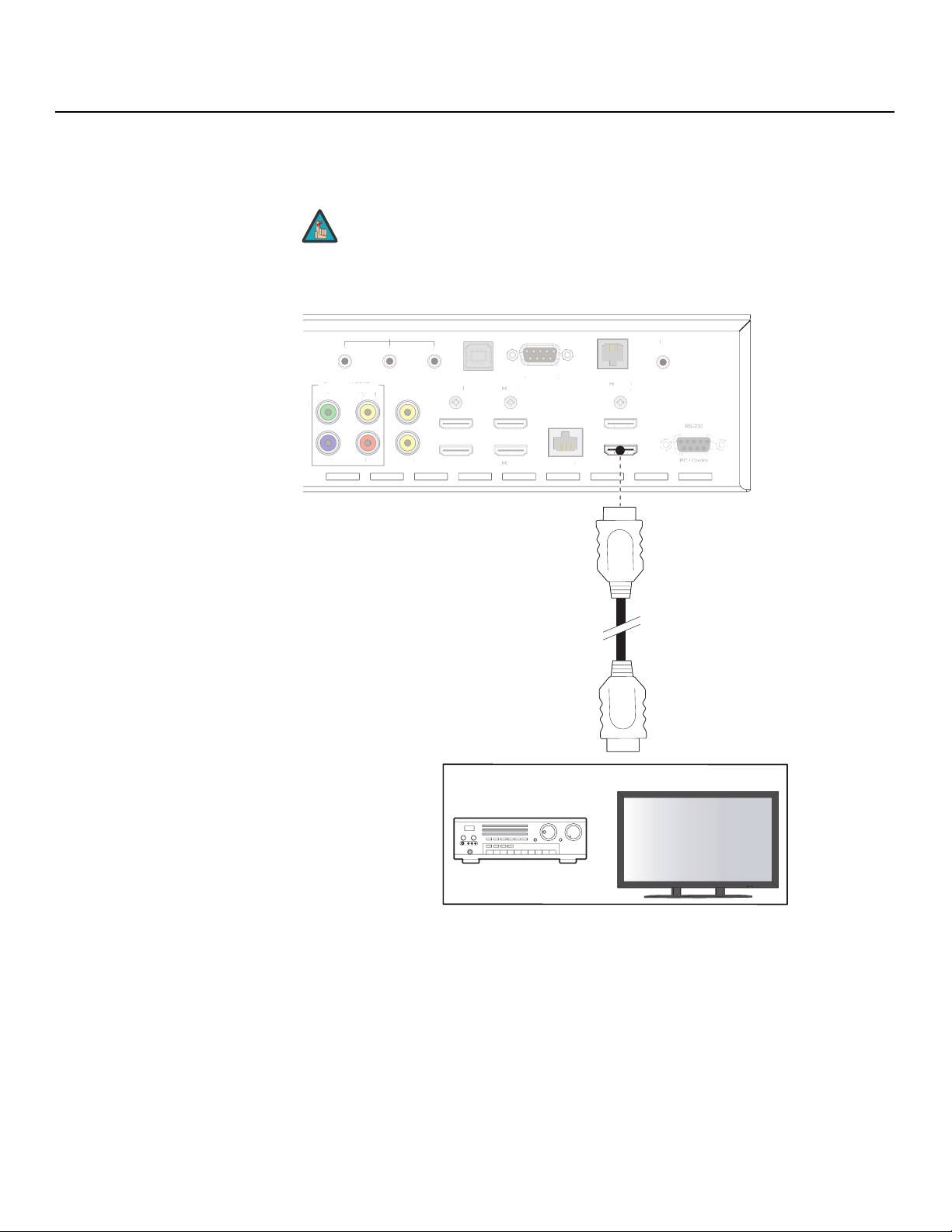

3-16. Audio Processor Connection to DHD Controller .......................................................36

IMINAR

L

3-17. RS-232 Control System Connection to DHD Controller ............................................37

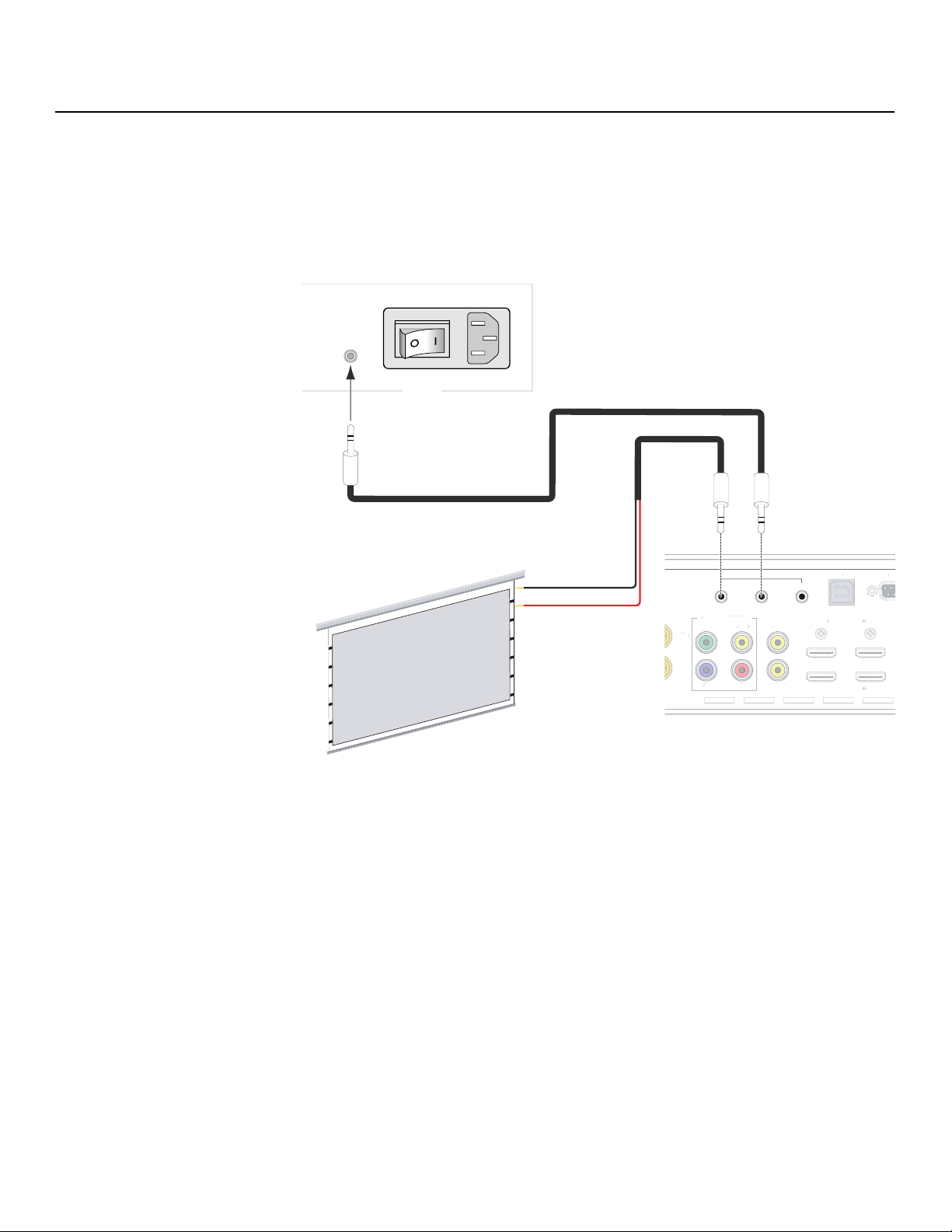

3-18. Connecting 12-volt Trigger Outputs..........................................................................38

3-19. External IR Receiver Connection...............................................................................39

3-20. Ethernet Network Connection to DHD Controller ...................................................... 40

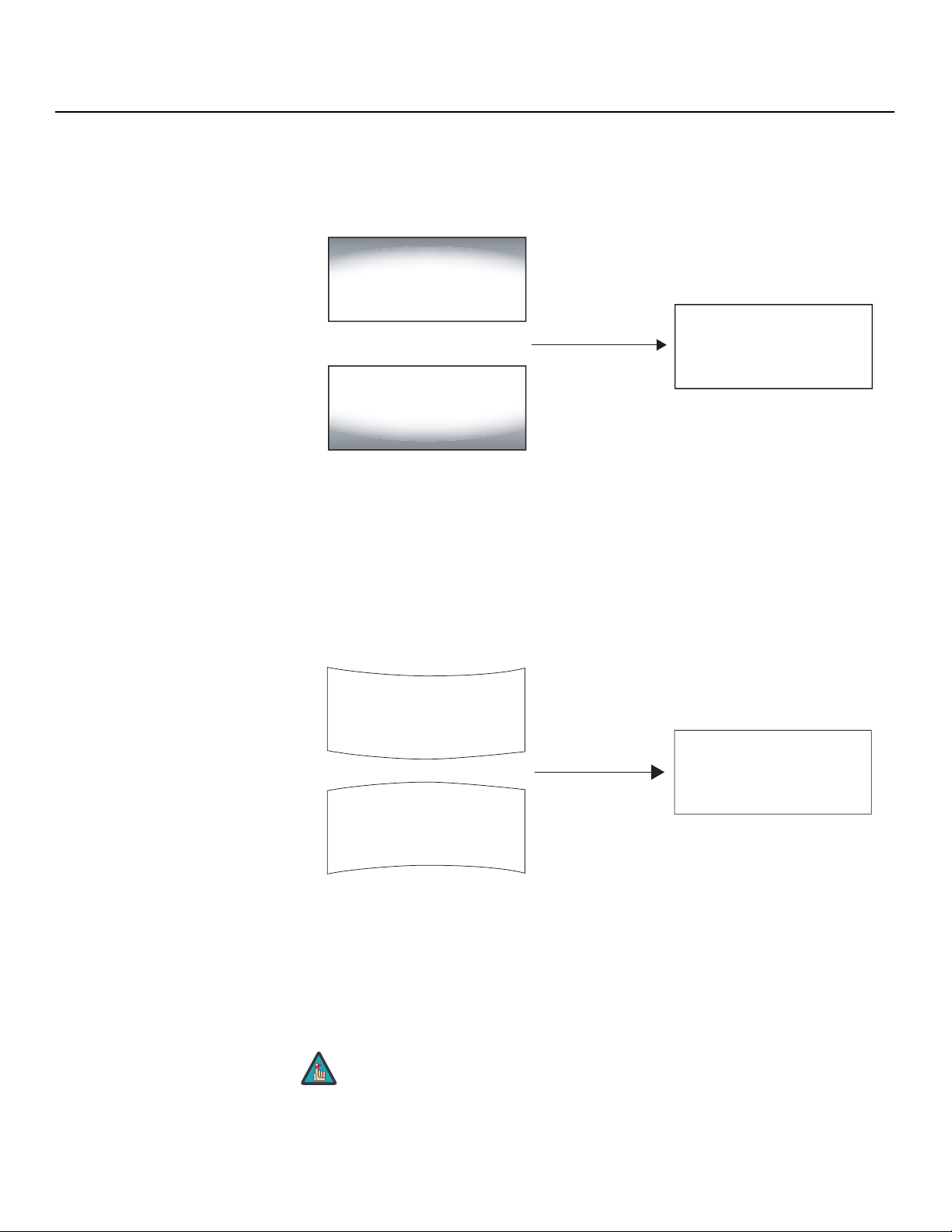

3-21. Keystone and Pincushion Distortion .........................................................................43

3-22. Image Alignment Controls ........................................................................................44

3-23. Anamorphic Lens Mounting Assembly - Exploded View ...........................................45

3-24. Attaching the Anamorphic Lens to the Lens Ring ..................................................... 46

4-1. SC-50d/SC-60d OSD Menu Structure .......................................................................51

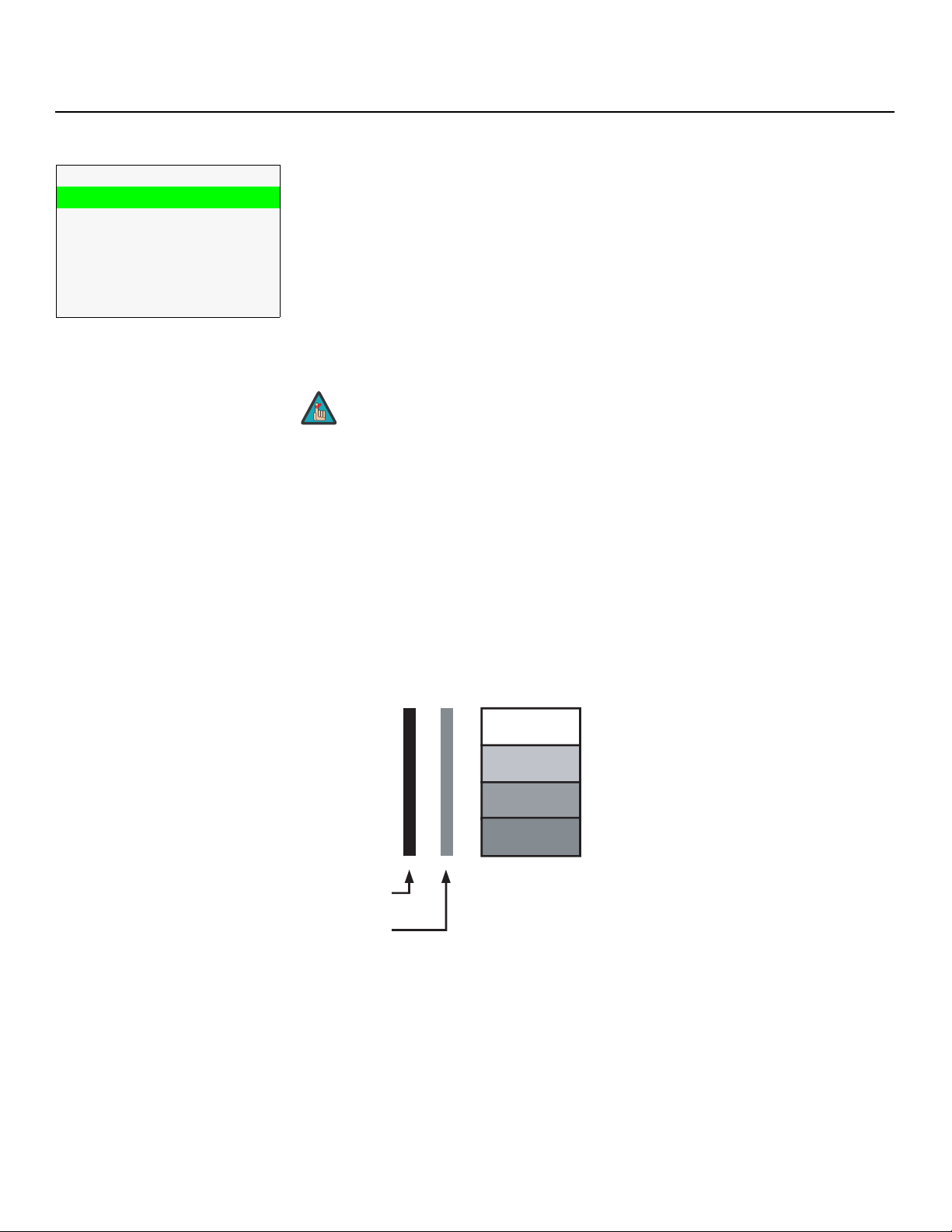

4-2. Typical PLUGE Pattern for Adjusting Brightness .........................................................56

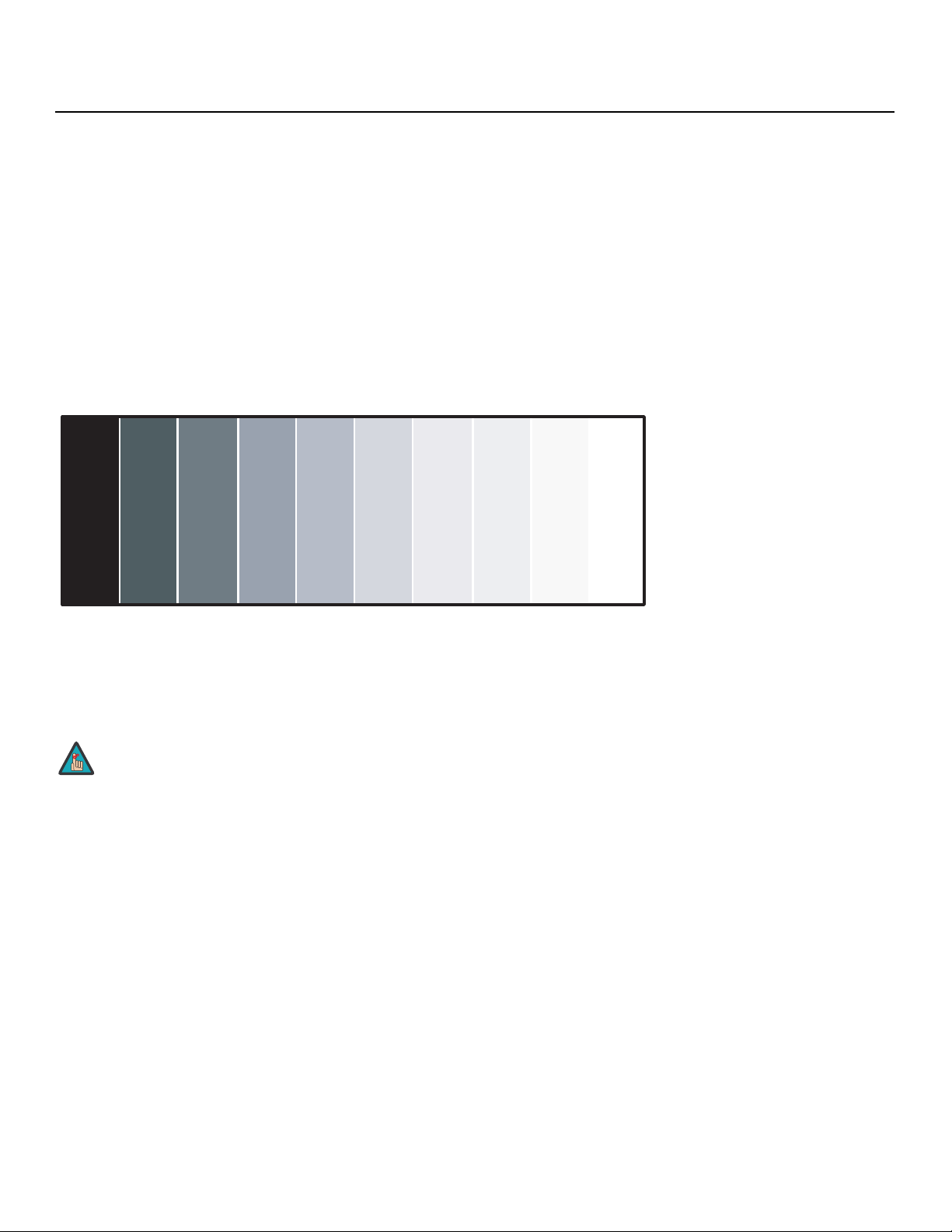

4-3. Typical Gray Bar Pattern for Adjusting Contrast ..........................................................57

4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint................................58

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual xv

List of Figures

4-5. Typical Test Pattern for Adjusting Sharpness..............................................................60

4-6. Overscan Modes ........................................................................................................61

4-7. CIE 1931 Chromaticity Diagram .................................................................................67

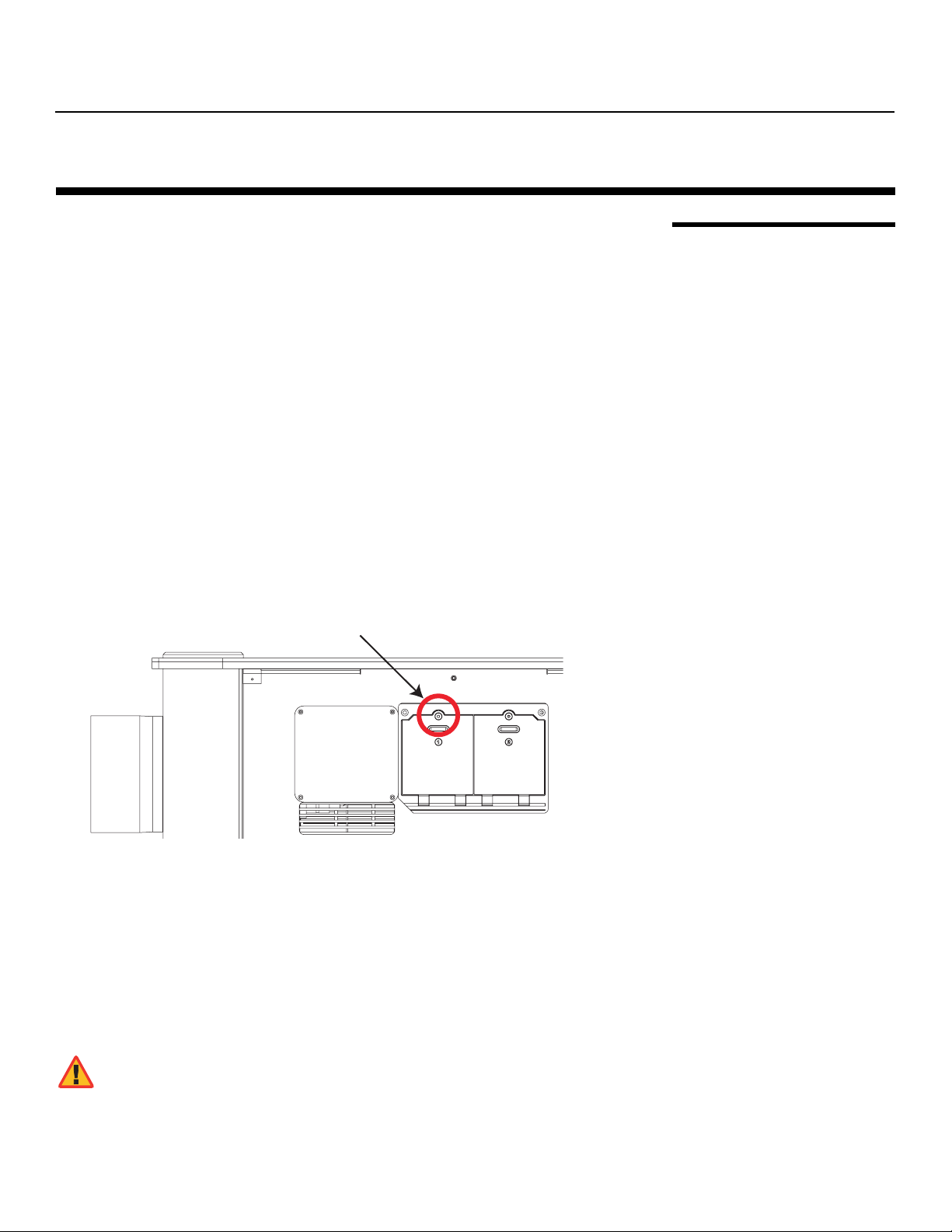

5-1. Opening the Lamp Door .............................................................................................81

6-1. RC5 Message Format ................................................................................................ 91

7-1. SC-50d/SC-60d Dimensions ....................................................................................101

7-2. SC-50d/CineWide with AutoScope and SC-60d/CineWide with AutoScope

Dimensions .............................................................................................................. 102

Y

IMINAR

L

PRE

xvi Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Introduction

1. Introduction

This Owner’s Manual describes how to install, set up and operate the Runco Signature
Cinema™ Series SC-50d/SC-60d Private Cinema Projector and DHD Controller.

Throughout this manual, the Runco Signature Cinema™ Series SC-50d/SC-60d Private
Cinema Projector and DHD Controller is referred to as the “SC-50d/SC-60d.”

out of the SC-50d/SC-60d.

Runco has made every effort to ensure that this manual is accurate as of the date it was
printed. However, because of ongoing product improvements and customer feedback, it
may require updating from time to time. You can always find the latest version of this and
other Runco product manuals on-line, at www.Runco.com.

Runco welcomes your comments about this manual. Send them to [e-mail].

Text Conventions: The following conventions are used in this manual, in order to clarify
the information and instructions provided:

• Remote and built-in keypad button identifiers are set in upper-case bold type; for
example, “Press EXIT to return to the previous menu.”

• Computer input (commands you type) and output (responses that appear on-screen) is
shown in monospace (fixed-width) type; for example: “To change the aspect ratio to
Letterbox, type LETTERBOX <Enter>.”

• All keys with functional names are initial-capped, set in bold type and enclosed in angle
brackets. These keys are the following: <Enter>, <Spacebar>, <Control>,
<Esc> and <Tab>.

• <Enter> indicates that you may press either the RETURN or ENTER key on your
keyboard if it has both keys.

In addition to these conventions, underlining, boldface and/or italics are occasionally used
to highlight important information, as in this example:

PRE

IMINAR

L

Y

1.1 About This Manual

Target AudienceRunco has prepared this manual to help installation personnel and end users get the most

If You Have Comments About This Manual...

Textual and Graphic Conventions

Note

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 1

A carriage return must be used after each command or string.

Introduction

Graphic Conventions: These symbols appear in numerous places throughout the
manual, to emphasize points that you must keep in mind to avoid problems with your
equipment or injury:

TIPS highlight time-saving short cuts and helpful guidelines for using

Tip

certain features.

1.2

Using This Manual

Note

Caution

NOTES emphasize text with unusual importance or special
significance. They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action can
degrade performance or cause a malfunction.

Y

WARNING

DANGER!

Use the following table to locate the specific information you need in this manual.

WARNINGS appear when a given action or omitted action can result
in damage to the equipment, or possible non-fatal injury to the user.

DANGER appears when a given action can cause severe injury or
death.

IMINAR

If you need... ... Turn to page:

Information about obtaining service iv

General information about the Signature Cinema™ Series
SC-50d/SC-60d Private Cinema Projector and DHD Controller

L

3

Installation instructions 15

PRE

First-time configuration instructions 41

Advanced configuration instructions 65

Troubleshooting tips 83

Specifications for the Signature Cinema™ Series
SC-50d/SC-60d Private Cinema Projector and DHD Controller

97

2 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Introduction

Offering the best in high-end luxury projection, the new Signature Cinema™ Series
SC-50d/SC-60d Private Cinema Projector and DHD Controller expands Runco’s most
prestigious line of custom-built personal cinema projectors. The SC-50d and SC-60d join
Runco’s legendary SC-1 and offer the best cinematic experience available for the most
sophisticated private cinemas.

The Signature Cinema™ Series SC-50d/SC-60d Private Cinema Projector and DHD
Controller offers exceptional performance with a state-of-the-art product that provides an
extraordinary cinematic experience. The Signature Cinema experience surpasses even the
most renowned public theaters because the product and room are custom-built with the
finest components to exactly match an owner’s specifications.

Combined with the unique and flexible engine design, the SC-50d/SC-60d provides
better, richer color performance for pristine color accuracy. These benefits combine into a
brilliant image that provides a spectacular color gamut and contrast, as well as
unmatched color brightness, even on the largest screen sizes.

For unparalleled reproduction of Hollywood’s 2.35:1 CinemaScope standard, the
SC-50d/SC-60d is available with Runco’s legendary CineWide™ with AutoScope™
technology. Selecting from multiple lens options that allow the flexibility for seamless
integration into the most sophisticated personal cinemas, each SC-50d/SC-60d projector
is custom-built to suit the exact requirements specified for every client. The
SC-50d/SC-60d features 1080p HD native resolution 3-chip system for the finest
projection image and 16:9 native aspect ratio to match all digital programming including
seamlessly switching aspect ratios for all media, including broadcast, film, sports and
gaming.

IMINAR

Y

1.3 Description, Features and Benefits

Note

CineWide requires the use of a 2.35:1 (or similar aspect ratio),
“superwide” format screen.

L

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 3

Introduction

➤

➤

Key Features and Benefits The SC-50d/SC-60d offers these key features and benefits:

• Cinema-quality color with the most accurate and exceptionally broad color gamuts

• Multiple lens options including compatibility with Runco’s award-winning CineWide™
with AutoScope

• Ships with Runco’s DHD Controller featuring ViVix™ video processing for exceptional
scaling, analog to digital signal conversion, and control via IR or RS-232

• Bundled with two years of Runco PremierCare™ service program providing on-site
calibration and two years of ongoing support from Runco

• Native Resolution: 1920 x 1080 (16:9 Native Aspect Ratio)

• DLP system using three, high-performance Digital Micromirror Device (DMD) chips

Parts List Your SC-50d/SC-60d is shipped with the following items. If any items are missing or

damaged, please contact your Runco dealer or Runco Customer Service at (800)
23RUNCO.

• Signature Cinema™ Series SC-50d/SC-60d Private Cinema Projector and DHD
Controller

• DHD Controller Remote Control Unit and batteries

• Setup Remote Control Unit and batteries

• AC power cord for projector (with ferrite sleeve, rated at 15 amps)

• AC power cord for DHD Controller

• RJ-11 Telephone Cable, 50 feet (15.24 meters)

• Serial Port Adapter, RJ-11 Female to DB-9 Male

• Adapter, DVI-I male-to-HDMI female

• Rack-mounting brackets and hardware for the DHD Controller

• Signature Cinema™ SC-50d/SC-60d Quick Setup Guide

L

®

Y

IMINAR

Optional Accessories:

• CineWide™ with AutoScope™ system (secondary anamorphic lens and motorized
mount)

PRE

• Ceiling mount kit (part number 956-0302-00)

4 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Controls and Functions

2. Controls and Functions

Figure 2-1 shows the key SC-50d/SC-60d components.

2

IMINAR

L

2.1 SC-50d/SC-60d at a Glance

1

Y

3

4

PRE

6

Figure 2-1. SC-50d/SC-60d Top/Rear/Front View

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 5

5

Controls and Functions

2

GA

Sig

2

GA

Sig

1. RIGHT (INTAKE) SIDE PANEL

The right side panel is perforated to allow cool air to enter the projector.

2. LEFT (EXHAUST) SIDE PANEL

The left side panel is perforated to allow warm air to exit the projector. Removing this
panel provides access to the lamp.

3. INPUT PANEL COVER

Removing this panel provides access to the projector input panel. For more
information, refer to SC-50d/SC-60d Input Panel on page 6.

4. REAR EXHAUST VENT

Warm air exits the projector through this vent. Ensure that it is not obstructed in any
way.

5. ADJUSTABLE FEET (4)

Located on the underside of the projector are four adjustable feet. Raise or lower
these feet when positioning the projector to ensure it is level on all sides so the
displayed image will appear rectangular without any keystone.

6. PROJECTION LENS

Y

2.2 SC-50d/SC-60d Input Panel

PRE

Figure 2-2 shows the SC-50d/SC-60d rear input panel.

1 32 4

IMINAR

L

RS232 IN

PWR

1 - Dual Link DVI-I 2 - VGA

Analog

Digital

- V

2 - VGA

- V

Signal

Signal

nal

nal

5

6

7

Figure 2-2. SC-50d/SC-60d Input Panel

6 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

1. RS232 IN
Connect the RS-232 output from the DHD Controller here, using the provided
RJ11-to-DB9 adapter and communication cable.

2. PWR LED
Lights green to indicate that power is applied and the module is initialized. During
normal operation, always on.

3. 1 - Dual-Link DVI-I Input (Slot 2)
HDCP-compliant digital video input. Connect the HDMI output from the DHD
Controller to this input (see Figure 2-4).

4. Analog LED
Lights briefly when the projector is powered up (self-test). During normal operation,
always off.

5. Digital LED
Lights green to indicate that a valid digital signal from the DHD Controller is present.

6. MAIN POWER SWITCH
Disconnects or applies power to the SC-50d/SC-60d.

7. POWER INPUT (100 to 240 VAC)
Connect the projector to power here.

Controls and Functions

Y

WARNING

Use ONLY the AC power cord shipped with the
SC-50d/SC-60d for this purpose (the one with the ferrite
sleeve). Doing otherwise creates a fire hazard risk.

IMINAR

L

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 7

Controls and Functions

2.3

DHD Controller Front

Figure 2-3 shows the controls and indicators on the DHD Controller front panel; the
paragraphs that follow describe them.

Panel

4

SC-50d/SC-60d

HDMI 1

16:9 1080i/60

1

Figure 2-3. DHD Controller Front Panel

2

1. RUNCO ICON
Lights blue to indicate that the controller is on or powering up.

2. IR SENSOR
Receives IR commands from the remote control.

3. VACUUM FLUORESCENT DISPLAY
Can be used instead of the On-Screen Display (OSD). Displays currently-selected
menu or – if no menu is selected – the connected display device model, current
source, input resolution and aspect ratio.

4. ON/STANDB Y BUTT O N

PRE

Press once to toggle from standby mode to on mode. Press it again to return to
standby mode. For a discrete on or off command, you can use the direct access
buttons on the remote control.

5. LEFT BUTTON
Used to direct-select inputs or move the OSD menu cursor to the left. When no menu
is present on-screen, the LEFT button toggles through the different sources, in this
order:
HDMI 4 - HDMI 3 - HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component ­Composite 3 - Composite 2 - Composite 1

3

L

91011

t

i

o

a

r

standby

n

p

u

i

t

t

e

n

r

e

Y

r

a

o

i

t

654 87

i

n

p

u

t

IMINAR

m
e
n
u

6. DOWN BUTTON
Use to direct-select aspect ratios or move the OSD menu cursor down. When no
menu is present on-screen, this button toggles through the different aspect ratios, in
this order:
16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema - Native

8 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

7. RIGHT BUTTON

Pb

p

G

Pb

B

R

Pb

H

V

HV

HDMI2H

DMI 4

Vi

deo

1

deo

i

deo

nt / SCARTen

Used to direct-select inputs or move the OSD menu cursor to the right. When no
menus are present on-screen, the RIGHT button toggles through the different
sources, in this order:
Composite 1 - Composite 2 - Composite 3 - Component - HD 1 - HD 2 - SCART ­HDMI 1 - HDMI 2 - HDMI 3 - HDMI 4

8. MENU BUTTON
Press the MENU button to bring up the main menu, or to exit the current menu and
return to the previous one.

9. UP BUTTON
Use to direct-select aspect ratios or move the OSD menu cursor up. When no menus
are present on-screen, the UP button toggles through aspect ratios in the following
order:
Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9

10. ENTER BUTTON
When an item is highlighted on the OSD, the ENTER button selects the item.

11. STA N DBY L E D
Lights amber when the DHD Controller is in standby mode; otherwise it is off.

Controls and Functions

Y

Figure 2-4 shows the rear connector panel on the DHD Controller.

IMINAR

1

Y

Pb

G

B

L

Pr
R

2

TRIGGERS

123

V

H

Component / SCART

Video 1

Video 2

HDMI 1

PRE

Video 3

V

Y
G

7

Pr

Pb

B

R

8

HV

Pb

9141310

Figure 2-4. DHD Controller Rear Panel

1. MAIN POWER SWITCH
Disconnects or applies power to the DHD Controller.

2. TRIGGERS
Connection for up to three (3), 12-volt trigger-controlled devices such as retractable
screens or screen masks. Output current is limited to 250 milliamperes (mA).

3. USB
A standard, USB Series “B” connection to a personal computer, for performing
software upgrades and other service procedures.

3

Pr

HDMI 2

2.4 DHD Controller Rear Panel

6

543

Ethernet

Display Control

HDMI Out
To Display

HDMI Out
Audio Only

IR

RS-232

PC / Control

1512

USB

RS-232

To Accessory Box

HDMI 3

HDMI 4

11

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 9

Controls and Functions

4. RS-232 (To Accessory Box)
A male, 9-pin D-sub connector for interfacing with external equipment. (For future
use.)

5. Display Control
Connect this to the RS-232 input on the SC-50d/SC-60d projector.

6. IR
Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system. It is a

3.5-mm, mini phono jack, wired as follows:
Ring = No connection
Tip = IR Input
Sleeve = Ground

7. POWER INPUT (100 to 240 VAC)
Connect the DHD Controller to power here.

8. HD1 / HD2 (5 x Analog BNCs)
Two inputs (five BNCs per input) for connecting standard-definition (SD = 480i/576i),
enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p)
component video sources, or RGBHV sources such as personal computers.

9. Component / SCART (3 x RCA connectors)
SD/HD input for connecting SDTV, EDTV or HDTV component video sources. Also
provides RGB input for SCART RGBS sources.

10. Video 1 / Video 2 / Video 3
Standard, composite video inputs for connecting a VCR, camcorder or other
composite video source. The Video 1 input also provides composite sync input for
SCART RGBS sources.

11. HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.

L

12. Ethernet
A female RJ-45 connector for wired network communications.

13. HDMI Out (Audio Only)
Connect this output to an audio control system to pass through HDMI audio.

Y

IMINAR

PRE

14. HDMI Out (To Display)

15. RS-232 (PC / Control)

Note

Connect this to the DHD Input on the SC-50d/SC-60d (see Figure 2-2).

A female, 9-pin D-sub connector for interfacing with a PC or automation/control
system.

The DHD Controller does not transmit HDMI CEC control
messages from the “HDMI Audio Out” connector.

10 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Controls and Functions

The SC-50d/SC-60d ships with two remote control units:

• A standard Runco DHD Controller remote control unit; and

• A “setup” remote control unit for making lens adjustments.

Only the setup remote control can be used to perform lens shift, zoom and focus
adjustments. For this reason, you must use it to complete the initial SC-50d/SC-60d

installation and setup. After you have completed the installation, only the standard DHD
Controller remote control is needed to access all projector and controller functions.

Figure 2-5 shows the SC-50d/SC-60d remote control, and the paragraphs that follow
describe its functionality.

Y

1

LIGHT

3

ON

DAY

ISF

RATIO

T

N

E

RATIO

E

4

I

5

6

8

N
P
U
T

EXIT

ISF
NT

OFF

R

MENU

CUST1CUST

I
N
P
U
T

2

2

IMINAR

7

L

2.5 SC-50d/SC-60d Remote Control Units

DHD Controller/ SC-50d/SC-60d Remote Control Unit

9

10

12

14

VID

1

HD

1

HDMI

1

HDMI

3

16 : 9 4 : 3

V-WIDE CINEMA V-CINE

VID

2

123

HD

2

456

HDMI

2

7809

HDMI

4

VID

3

COMP

PRE

SCART

NATIVE

LET

BOX

11

13

Figure 2-5. DHD Controller/SC-50d/SC-60d Remote Control

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 11

Controls and Functions

1. IR OUTPUT INDICATOR
Lights when a button is pressed to indicate that an IR signal is being transmitted.

2. LIGHT
Press to illuminate the buttons.

3. ON / OFF
Press to turn the DHD Controller and projector on or off.

4. ENTER
Press to select a highlighted menu item or confirm a changed setting.

5. Cursor Buttons (, , , )
Use these buttons to select items or settings, adjust settings or switch display
patterns.

When no menu is present on-screen, the UP and DOWN buttons toggle through the
available aspect ratios, in this order:

UP Button = Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9
DOWN Button = 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema -

Native

Note

Likewise, the LEFT and RIGHT buttons toggle through the different source inputs, in
this order:
LEFT Button = HDMI 4 - HDMI 3 - HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 ­Component - Composite 3 - Composite 2 - Composite 1
RIGHT Button = Composite 1 - Composite 2 - Composite 3 - Component - HD 1 ­HD 2 - SCART - HDMI 1 - HDMI 2 - HDMI 3 - HDMI 4

6. EXIT
Press this button to exit the current menu and return to the previous one.

7. MENU
Press this button to access the OSD controls, or to exit the current menu and return

PRE

to the previous one.

8. Memory Preset Buttons:

IMINAR

L

Y

For more information about aspect ratios, refer to Table 4-1.

ISF NIGHT

Press to recall settings for the current input from the “ISF Night” memory preset.

ISF DAY

Press to recall settings for the current input from the “ISF Day” memory preset.

CUST 1

Press to recall settings for the current input from the “Custom 1” memory preset.

CUST 2

Press to recall settings for the current input from the “Custom 2” memory preset.

9. VID 1 (1) / VID 2 (2) / VID 3 (3)
Press to select a composite video input as the source or to enter the numeric
character “1,” “2” or “3.”

12 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

10. HD 1 (4) / HD 2 (5)
Press to select a HD (RGBHV or YPbPr component) input or to enter the numeric
character “4” or “5.”

11. COMP (Component) (6)
Press to select the Component video input as the source or to enter the numeric
character “6.”

12. HDMI 1 (7) / HDMI 2 (8) / HDMI 3 / HDMI 4 (0)
Press to select an HDMI input as the source or to enter the numeric character “7,” “8”
or “0.”

13. SCART (9)
Press to select the SCART video input as the source or to enter the numeric character
“9.”

14. Aspect Ratio Selection Buttons
Use these buttons to select an aspect ratio directly, as follows:

NATIVE

Displays the source signal in its native resolution, centered in the display area.

16:9

For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.

Controls and Functions

Y

4:3

Scales the input signal to fit 4:3 display mode in the center of the screen.

LETBOX (Letterbox)

For viewing non-anamorphic (“full-screen”) DVDs on a 16:9 screen.

V-WIDE (VirtualWide)

Enlarges a 4:3 image horizontally in a non-linear fashion to fit 16:9 full screen display.

CINEMA
For viewing 2.35:1 source material.

V-CINE

Selects the Virtual Cinema aspect ratio, used for viewing 16:9 source material on a

2.35:1 screen.

PRE

IMINAR

L

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 13

Controls and Functions

➤

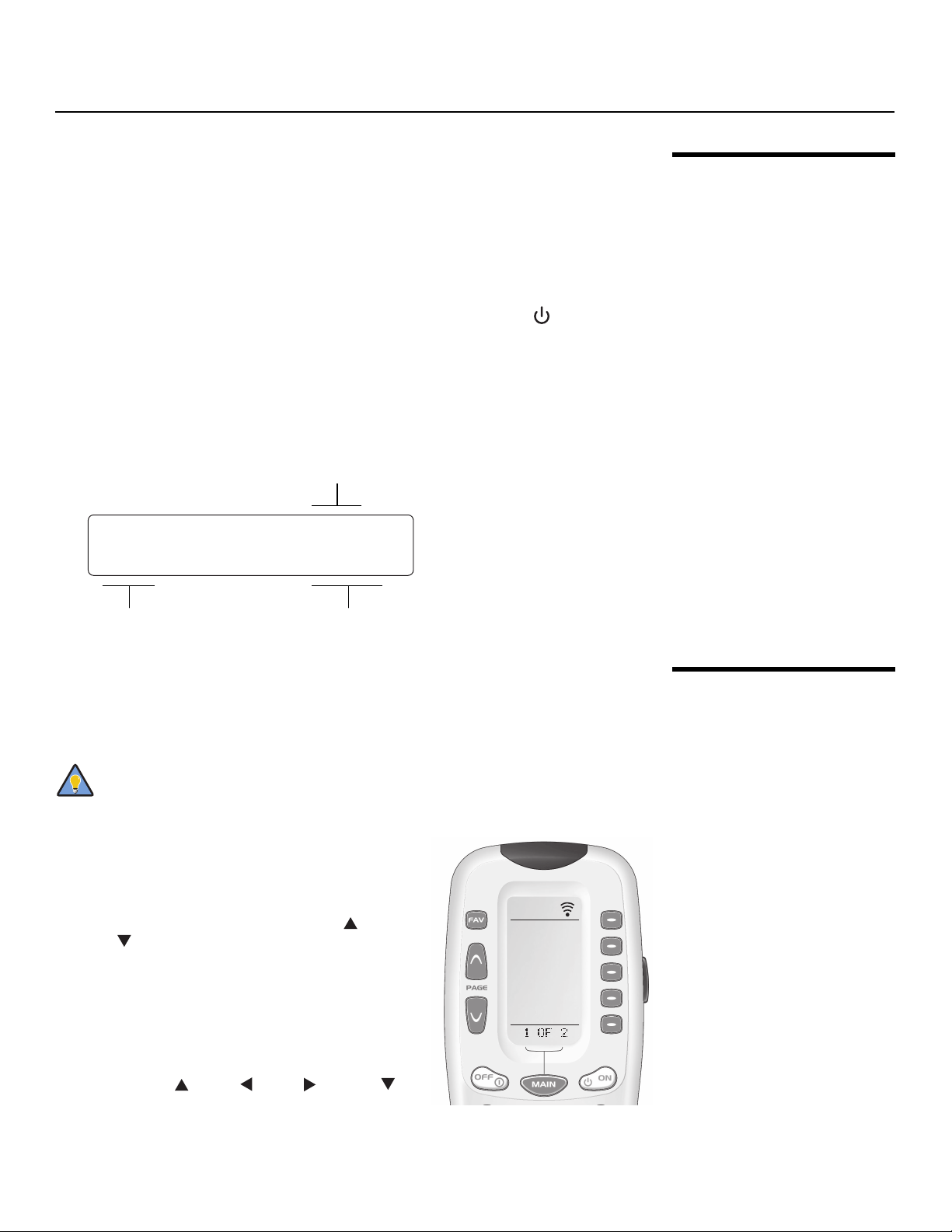

Setup Remote Control The setup remote control unit furnished with the SC-50d/SC-60d gives you access to the

motorized lens controls (position, focus and zoom).

Figure 2-6 shows the setup remote control, and the paragraphs that follow describe its
functionality.

FOCUS

FCUS
FCUS

FOCUS

ZOOM

LENSS

Press MAIN
to return to
this menu

LENSS

LENS
LENS
LENS
LENS

1 OF 1

1 OF 1

ZOOM

Y

ZOOM+
ZOOM-

1 OF 1

Figure 2-6. Setup Remote Control for SC-50d/SC-60d

• FOCUS Button
Press to access the lens focus controls.

• ZOOM Button
Press to access the lens zoom controls.

• LENSS Button
Press to access the lens shift controls.

• MAIN Button

PRE

Press to return to the Main lens control menu from the FOCUS, ZOOM or LENSS (lens
shift) page.

IMINAR

L

14 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

3. Installation

Note

To install batteries in the remote control:

1. Press down the tab on the cover and
pull the cover in the direction of the
arrow.

2. Insert the included batteries. Ensure
that the polarities correctly match the

and markings inside the battery

compartment.

3. Insert the lower tab of the cover into
the opening, and press down the cover
until it clicks in place.

Installation must be performed by a qualified custom video
installation specialist.

Y

IMINAR

L

3.1 Remote Control

• Do not mix an old battery with a new one or different types of batteries.

• If you will not use the remote control for a long time, remove the batteries to avoid

damage from battery leakage.

• Do not expose batteries to excessive heat such as from sunshine, fire or the like.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 15

PRE

Notes on Batteries• Make sure that the battery polarities are correct when installing the batteries.

Installation

➤

Notes on Remote Control

Operation

3.2

Quick Setup

• Make sure that there is nothing obstructing the infrared beam between the remote
control and the IR receiver on the DHD Controller.

• If the effective range of the remote control decreases, or it stops working, replace the
batteries with new ones.

• The remote control may fail to operate if the infrared remote sensor is exposed to bright
sunlight or fluorescent lighting.

• Ambient conditions may possibly impede the operation of the remote control. If this
happens, point the remote control at the DHD Controller, and repeat the operation.

Table 3-1 gives a quick overview of the SC-50d/SC-60d installation process. The sections
following this one provide detailed instructions.

Table 3-1. Installation Overview

Step Procedure

Choose a location for the projector 17

1

Install primary projection lens 25

2

Install CineWide with AutoScope lens motor (optional) 26, 38

3

Mount the projector 27

4

Y

For Details, Refer

to page...

Connect the DHD Controller to the projector 29

5

IMINAR

Connect signal sources to the DHD Controller 31

6

L

Connect other external equipment to DHD Controller (optional):

• Audio processor or secondary display device

• Control system interface (RS-232)

• 12-volt trigger-activated equipment (AutoScope lens motor,

7

retractable screens or screen masking etc.)

• External IR repeater

• Network hub, router or gateway (Ethernet)

PRE

10

11

12

13

14

Apply power to the projector 40, 41

8

Adjust primary lens: projected image size (zoom), position (shift)

9

and focus

For rear-screen and/or ceiling-mount installations, select the
proper picture orientation

Use Image Alignment controls to fine-tune image geometry 43

Install CineWide anamorphic lens (optional) 45

Adjust CineWide anamorphic lens: position, pitch (angle),
geometry and focus

DHD Controller input calibration: adjust the following for each

DHD Controller input and display mode (resolution/frame
rate); save settings when finished:

• Aspect ratio • Color level

• Brightness • Tint

• Contrast • Input position

• Color temperature and white balance

36

19, 41

42

47

53 through 68

16 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

Proper installation of your projector will ensure the quality of your display. Whether you are
installing a projector temporarily or permanently, you should take the following into
account to ensure your projector performs optimally.

inverted mount. Table 3-2 compares these various installation methods.

Table 3-2. Projector Installation Options

Advantages Considerations

Front Screen, Floor Mount Installation

Y

• Easy to set up

• Can be moved or changed quickly

• Easy to access

Front Screen, Inverted Mount (ceiling) Installation

• Does not take up audience space

• Projector is unobtrusive

• Projector cannot be accidentally moved

Rear Screen, Floor Mount Installation

• Projector is completely hidden

• Projector is easily accessed

• Usually good ambient light rejection

• Shares floor space with audience

• Installation is more permanent

• Projector access is more difficult

• Requires separate room

• Installation cost is usually higher

IMINAR

3.3 Installation Considerations

Installation TypeChoose the installation type that best suits your needs: front or rear screen, floor mount or

Rear Screen, Inverted Mount (ceiling) Installation

• Projector is completely hidden

• Usually good ambient light rejection

Rear Screen, Floor Mount with Mirror

• Projector is completely hidden

• Usually good ambient light rejection

• Requires less space behind screen than
other rear screen installations

images will be noticeably reduced if light directly strikes the screen, such as when a shaft
of light from a window or floodlight falls on the image. Images may then appear washed
out and less vibrant.

PRE

L

• Requires separate room

• Installation cost is usually higher

• Requires separate room

• Installation cost is usually higher

Ambient LightIn general, minimize or eliminate light sources directed at the screen. Contrast ratio in your

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 17

Installation

➤

Throw Distance Throw distance is the distance measured from the front of the projector to the screen.

This is an important calculation in any projector installation as it determines whether or not
you have enough room to install your projector with a desired screen size and if your
image will be the right size for your screen.

You can quickly estimate the throw distance by taking the width of the screen and
multiplying it by the lens throw ratio; see Figure 3-1. The result of this calculation tells you
roughly how far back the projector should be positioned from the screen in order to
project a focused image large enough to fill the screen.

Estimating Throw Distance

Throw Distance (TD) =
Screen Width (w) x Lens Throw Ratio

IMINAR

Figure 3-1. Estimating Throw Distance

Table 3-3 lists the available SC-50d/SC-60d lens options and their throw ratios.

Table 3-3. SC-50d/SC-60d Lens Options and Throw Ratios (Note)

PRE

Lens Option

L

Throw Ratio

with Primary

Lens Only

Screen width (w)

Y

TD

Throw Range in

inches, with

120x67.5-inch (1.78:1)

Screen

Minimum Maximum Minimum Maximum

Throw Ratio

with Primary

Lens and

Anamorphic

Lens

Throw Range in

inches, with

158.6x67.5-inch
(2.35:1) Screen

For rear-screen installa-

Athena Uno

Athena Dos

Athena Tres

Athena
Quatro

Athena
Cinco

Note: Due to normal manufacturing variances, throw distance can vary by up to +/- 5 percent from
these specifications.

0.67 (Fixed)

1.39 - 1.85 166.80 222.00 1.20 - 1.39 190.36 220.50

1.85 - 2.59 222.00 310.80 1.39 - 1.94 220.50 307.74

2.59 - 4.16 310.80 499.20 1.94 - 3.12 307.74 494.93

4.16 - 6.93 499.20 831.60 3.12 - 5.20 494.93 824.88

tions only. Contact

Runco Technical Support

for more information.

18 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Athena Uno cannot be used with an

anamorphic lens.

Installation

Proper placement of the projector relative to the screen will yield a rectangular,
perfectly-centered image that completely fills the screen.

Ideally, the projector should be positioned perpendicular to the screen and in such a way
that the lens center is aligned with either the top or bottom edge of the screen area, and
centered horizontally. See Figure 3-2.

Ceiling Installation

Height

x

Floor Installation

Height

Lens Center

Projection Distance

Screen

Screen

Lens Center

Ceiling

Lens CenterLens Center

Y

Vertical and Horizontal Position

x

Projection Distance

Figure 3-2. Projector Placement

You can use the lens shift controls to center the image on the screen. Lens shift is
generally expressed as a percentage of the screen height or width, as shown in Figure 3-3
and Figure 3-4.

IMINAR

Floor

L

PRE

Screen Center

Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular
lens or projector is used in this example.

0%

50% Height

Lens Shift

(0.5 x H)

100% Height

Lens Shift

(1.0 x H)

Vertical and Horizontal Lens Shift

Figure 3-3. Vertical Lens Shift (EXAMPLE ONLY)

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 19

Installation

100% Width Lens Shift

(1.0 x W)

50% Width Lens Shift

(0.5 x W)

Screen Width (W)

Screen Center

0%

Y

IMINAR

L

Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular
lens or projector is used in this example.

Figure 3-4. Horizontal Lens Shift (EXAMPLE ONLY)

PRE

20 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Table 3-4 lists the lens shift limits for each available SC-50d/SC-60d lens, as percentages
and absolute measurements with a 120 x 67.5 inch (1.78:1) screen.

Table 3-4. Vertical and Horizontal Lens Shift Limits

Lens Option

Athena Dos

Athena Uno

Lens Shift Limits, as Percentages of Screen Height or Width (Note 1)

Athena Tres

Athena Quatro

Athena Cinco

Installation

Vertical

(Note 2)

Horizontal

Lens Shift Limits in Inches, with a 120-by-67.5 inch (1.78:1) Screen

Vertical

Horizontal

Notes:

1. Vertical shift limits are percentages of the screen height. Horizontal shift limits are percentages of
the screen width.

2. Vertical lens shift figures are for ceiling mount configurations. For floor installations
(where the projector is upright), reverse the up/down vertical lens shift percentages.

Up 17% 60%

Down 17% 60%

Left 6% 25%

Right 6% 25%

Up 11.48 40.50

Down 11.48 40.50

Left 7.20 30.00

Right 7.20 30.00

IMINAR

L

Y

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 21

Installation

➤

Folded Optics In rear-screen applications where space behind the projector is limited, a mirror may be

used to fold the optical path, as shown in Figure 3-5. The position of the projector and
mirror must be accurately set. If you are considering this type of installation, contact your
dealer for assistance.

Screen

Figure 3-5. Folded Optics

For best performance, always use “first-surface” mirrors in your

Tip

L

rear-projection installation (as opposed to conventional,
“second-surface” mirrors with the reflective surface behind a
transparent substrate such as glass or acrylic).

IMINAR

First-surface mirrors provide a strict reflection without the “ghosting”
effect seen with a second surface mirror, where a faint secondary
reflection could be observed coming from the front surface of the
glass.

Mirror

Y

PRE

22 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

Due to its extraordinarily high level of video processing performance, the DHD Controller
may distribute video signals with a perceptible level of audio latency. In order to easily
solve this issue, Runco recommends using the DHD Controller with a high-quality audio
receiver that has the ability to effectively synchronize audio and video signals.

Most mainstream audio receiver/switchers have the ability to synchronize the audio and
video to the Advanced Television Systems Committee (ATSC) prescribed tolerances.
According to the ATSC, the sound program should never lead the video program by more
than 15 milliseconds, and should never lag behind the video program by more than 45
milliseconds.

In addition, many video displays and A/V receivers introduce additional latency that needs
to be compensated for during the installation.

Table 3-5 shows the amount of possible audio latency given different signal input timings.

Y

Table 3-5. Possible Audio Latency for Various Input Timings

Input Timing Possible Audio Latency (milliseconds)

480i 133

480p 83

576i 160

576p 100

720p/50 100

720p/60 83

IMINAR

1080i/25 160

1080i/30 133

1080p/24 125

L

Audio/Video Synchronization Issues

1080p/50 80

1080p/60 67

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 23

Installation

➤

Z

Z

➤

Ventilation If you are mounting the SC-50d/SC-60d in an enclosure, leave at least 10 inches

(250 mm) of space on the left and right sides between it and surrounding objects, as
shown in Figure 3-6. This allows heat to disperse, maintaining the proper operating
temperature.

>@

>@

0,1,080%$&.

0,1,080%$&.

&/($5$1&(

&/($5$1&(

/$03$,5287)/2:
&)0>$3352;@

&$5'&$*(32:(56833/<
$,5,1)/2:
&)0>$3352;@

/,*+7(1*,1($,5,1)/2:
&)0>$3352;@

IMINAR

>@

>@

0,1,0805,*+76,'(

0,1,0805,*+76,'(

&/($5$1&(

&/($5$1&(

L

Figure 3-6. Ventilation Requirements for Enclosure Mounting

Other Considerations Other considerations and tips that can help improve your installation:

PRE

• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector
away from heating and/or air conditioning vents. Changes in temperature may cause
drifts in the projector circuitry, which may affect performance.

• Keep the projector away from devices that radiate electromagnetic energy such as
motors and transformers. Common sources of these include slide projectors,
speakers, power amplifiers and elevators.

Y

$,5287)/2:
&)0>$3352;@

81/(6627+(5:,6(63(&,),('
',0(16,216$5(,10,//,0(7(56

72/(5$1&(681/(6627+(5:,6(63(&,),('

>@

>@

0,1,080/()76,'(

0,1,080/()76,'(

&/($5$1&(

&/($5$1&(

(1*5%<

'5$:1%<

7RGG/RH

7RGG/RH

24 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

The projection lens is shipped separately from the projector. Proceed as follows to install
it:

1. Remove the lens plug from the lens opening in the projector.

WARNING

2. Remove the rear cap from the lens. (Keep the front lens cap on the projection lens to
protect it from damage during the installation process.)

3. Rotate the lens clamp to the OPEN position.

Never operate this projector without a lens. The lens seals the
projector, preventing contaminants from entering the interior of the
projector.

Y

CLAMP OPEN

CLAMP CLOSED

SECURITY

SCREW

SECURITY

SCREW

MOUNTS

4. Remove and retain the two security screws from the
lens mount.

IMINAR

L

3.4 Installing the Primary Projection Lens

Security

Screws

PRE

5. Align the lens interface plate with the lens mount. Align the lens electrical connector
with the mating connector on the lens mount. Fully insert the assembly straight into
the lens mount opening without turning. Press using your hand.

When installing the lens, ensure that it is not inserted at an angle, as

Note

6. While holding the lens flat against the lens mount, rotate the lens clamp clockwise to
lock the lens assembly in place.

7. Re-attach the lens mount security screws that you removed in Step 4.

8. Remove the front lens cap.

this can cause damage.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 25

Installation

➤

➤

3.5

Installing the Optional CineWide with AutoScope Lens Motor

Remove Projector Front

Feet

Install Anamorphic Lens

Motor

If you are installing a standard SC-50d/SC-60d (without an anamorphic lens), skip this
step and proceed with Mounting the SC-50d/SC-60d (page 27).

If you are installing an SC-50d/CineWide with AutoScope or SC-60d/CineWide with
AutoScope, proceed as follows to install the lens mount/motor assembly.

1. Do not install the CineWide lens yet, only the AutoScope lens

Note

Place the projector upside down on a blanket or other soft surface. Loosen and remove
the two front feet on the projector.

Line up the eight mounting holes on the lens motor housing with those on the bottom of
the projector. Secure the motor to the projector with the eight screws provided for this
purpose. See Figure 3-7. Then, connect the +12V trigger input on the motor to a +12V
trigger output on the

motor. You will install the CineWide lens after you install the
projector and adjust the primary lens.

2. Some components shipped with your projector may differ slightly
from what is shown in these instructions.

3. The anamorphic lens mounting kit is partially pre-assembled at
the factory – the AutoScope lens motor and lens mounting
assemblies are both fully assembled.

DHD Controller as shown in Figure 3-18.

Y

IMINAR

L

PRE

Figure 3-7. Attaching the AutoScope Lens Motor to the Projector

Caution

DO NOT OVER-TIGHTEN THE SCREWS.

26 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

There are several methods for mounting the projector. Depending on your chosen
installation, one method may be more suitable than another.

level surface such as a table or cart. Carts are useful when moving a projector during a
presentation or from site to site. If possible, lock the wheels when it’s in position to prevent
it from being moved during a presentation.

For fixed installations, and for those that want the projector out of sight or have a limited
space for projector and audience, you can invert the SC-50d/SC-60d and suspend it from
the ceiling using a specially-designed ceiling mount fixture.

Use only the Runco-approved ceiling mount kit designed for your

Note

Install the ceiling mount kit according to the instructions provided with the kit.

The projector can also be inverted and placed in an enclosure above and behind the
viewing area. Install four feet on the inside bottom surface of the enclosure on which the
projector can rest. A variety of materials can be used for this purpose (for example, rubber
crutch tips or turntable feet).

projector.

Y

IMINAR

3.6 Mounting the SC-50d/SC-60d

Floor Mounting (Upright)In typical front and rear screen installations, the projector can be mounted to a secure and

Ceiling Mounting (Inverted)

Installing the Projector in an Enclosure

L

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 27

Installation

➤

Adjusting the Projection

Angle

If the screen is significantly higher or lower than the projector, you can also tilt the
projector at a slight angle. In a ceiling installation, you do this by adjusting the ceiling
mount.

For a floor installation, turn the adjustable feet at the bottom of the projector to adjust the
projection angle.

The projector can be rotated (front-to-back) up to 360 degrees and mounted without it
affecting performance. However, to ensure optimal performance of the lamp, limit the
side-to-side tilt of the projector to ±20 degrees; see Figure 3-8.

Y

± 360º

± 20º

Figure 3-8. Mounting Angle Ranges (Front-to-Back and Side-to-Side)

If you do this, you may need to vertically shift the image to compensate. For detailed
instructions, refer to Primary Lens Adjustments: Focus, Zoom and Position on
page 41.

IMINAR

L

PRE

28 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

PWR

1 - Dual Link DVI-I

2 - VGA

Signal

Digital

Analog

PWR

1 - Dual Link DVI-I

2 - VGA

Signal

Digital

Analog

Ethernet RS232 IN

Reset

Wired Keypad

Slot 2Slot 4

PWR

1 - Dual Link DVI-I

2 - VGA

Signal

Digital

Analog

Reset

Wired Keypad

Ethernet

2 - VGA

Signal

Proceed as follows to connect the DHD Controller to the SC-50d/SC-60d, your video
sources, external controller(s) – if present – and AC power.

When connecting your equipment:

• Turn off all equipment before making any connections.

• Use the correct signal cables for each source.

• For best performance and to minimize cable clutter, use high-quality cables that are
only as long as necessary to connect two devices. (Don’t use a 20-foot cable when a
6-foot cable will suffice.)

• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.

Y

Digital Video Connection: Connect the “HDMI Out To Display” connector on the DHD
Controller to the DVI-I input in Slot 2 of the SC-50d/SC-60d as shown in Figure 3-9.

RJ-11
to DB-9
Adapter

(provided)

RS-232
Communication
Cable (provided)

IMINAR

3.7 Connections to the SC-50d/SC-60d and DHD Controller

Connecting the DHD Controller to the SC-50d/SC-60d

L

DVI-I to-HDMI

Adapter

(provided)

PRE

HDMI Cable

(not provided)

TRIGGERS

YGPbBPr

Y
G

B

R

PrRPb

H

HV

V

HD1

HD2

123

Component / SCART

Y

Video 1

Pb

Pr

Display
Control

USB

HDMI 1

Video 2

Video 3

HDMI 2

Display Control

RS-232

To Accessory Box

HDMI 3

Ethernet

HDMI 4

HDMI Out

To Display

HDMI Out

Audio Only

IR

RS-232

PC / Control

HDMI Out
To Display

Figure 3-9. Connecting the SC-50d/SC-60d to the DHD Controller

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 29

Installation

A

RS-232 Connection: Connect the Display Control output from the DHD Controller to
the RS-232 input on the SC-50d/SC-60d. Use a standard, modular telephone cable with
RJ11 plugs at both ends. On the SC-50d/SC-60d end, use the provided RJ11-to-DB9
adapter. This adapter is wired as shown in Figure 3-10.

To/From

DHD

Controller

1, 6

4

3

2

RCV DATA

XMT DATA

SIG GND

NO CONNECTION

2

3

5

1, 4, 6,
7, 8, 9

To/From Projector

RS232 IN

Y

6-position
RJ11 Male

6

1

Figure 3-10. RS-232 Connection from the DHD Controller to the SC-50d/SC-60d

1

6

DB9 Male

PWR

IMINAR

L

PRE

30 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

Connect your video sources to the DHD Controller as shown and described in the
sections that follow.

HDMI Source Connections: See Figure 3-11.

Use the HDMI inputs whenever possible. This ensures the highest

Tip

video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the projector.

You can also connect computers with DVI output to these inputs.

Note

Refer to Supported Timings on page 103 for a list of compatible
input signals.

IGGERS

23

HDMI 1

Video 2

Video 3

HDMI 2

USB

To Accessory Box

HDMI 3

HDMI 4

RS-232

Ethernet

Display Control

HDMI Out
To Display

HDMI Out
Audio Only

IR

RS-232

PC / Control

Connecting Source Components to the DHD Controller

Y

HDMI

AV OUT

HDMI

AV OUT

PRE

HDMI sources (BD, DVD, DTV Set-Top Box etc.)

Figure 3-11. HDMI Source Connections

IMINAR

L

HDMI

AV OUT

HDMI

AV OUT

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 31

Installation

Component Video Source Connections: Connect your component video sources to
the HD1, HD2 and/or Component/SCART inputs as shown in Figure 3-12.

TRIGGERS

12

RCA-to-BNC
adapter

YGPbBPr

Y

Pb

G

B

R

Pr
R

V

H

HD1

HV

HD2

Component / SCART

Y

Pb

Video 2

Video 1

Video 3

Pr

Y

IMINAR

COMPONEN T

L

VIDEO OUT

BD/DVD

PRE

Figure 3-12. Component Video Source Connections

Y PB PR

DTV-Set-Top Box

(DTV-STB)

32 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

RGBHV Source Connections: Connect personal computers and/or other RGB sources
to the HD1 and/or HD2 inputs as shown in Figure 3-13.

Installation

Computer

YGPbBPr

Y
G

Green

Blue

RGB Camcorder

or

V

H

R

HD1

Pr

Pb

B

R

HV

HD2

Y

Red

H-Sync

V-Sync

IMINAR

L

Figure 3-13. RGBHV Source Connections

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 33

Installation

SCART RGBS Source Connections: Connect the green, blue and red outputs from
your SCART source to the Component/SCART input on the DHD Controller. Connect the
sync output from your SCART source to the Video 1 input on the DHD Controller. See
Figure 3-14.

TRIGGERS

12

YGPbBPr

Y

Pb

G

B

R

Pr
R

V

H

HD1

HV

HD2

Component / SCART

Y

Pb

Video 2

Video 1

Video 3

Pr

Y

Green

Blue

Red

VCR

DVD/DTV STB

Gaming Console

SCART-to-RGBS

adapter

Green

Blue

Red

Sync

Sync

IMINAR

Figure 3-14. SCART RGBS Source Connections

L

PRE

34 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Composite Source Connections: See Figure 3-15.

Installation

VCR

Camcorder

Gaming Console

YGPbBPr

Y

Pb

G

B

R

Pr
R

Composite

Composite

Composite

V

H

HD1

HV

HD2

TRIGGERS

123

Component / SCART

Y

Pb

Video 1

Pr

Composite

Video 2

Video 3

Composite

USB

HDMI 1

HDMI 2

Composite

Figure 3-15. Composite Video Source Connections

IMINAR

Y

L

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 35

Installation

➤

US

Y

V

deo

2

3

Pb

Display Control
1HD

3

2

Etherne

t

H

t

T

T

RIGGERS

R

12

3

Connecting an Audio

Processor or Secondary

Display Device to the DHD

Controller (Optional)

The DHD Controller provides a second HDMI output (labeled HDMI Out (Audio Only)) for
connection to an audio receiver/switching system or secondary display device for
monitoring purposes. See Figure 3-16.

The DHD Controller does not transmit HDMI CEC control

Note

messages from the “HDMI Audio Out” connector. For more
information about CEC, refer to Using HDMI CEC Messages on
page 94.

Ethernet

Display Control

HDMI Out

DMI Ou

To Display

To Display

HDMI Out
Audio Only

IR

Y

TRIGGERS

123

Component / SCART

Component / SCAR

Y

Video 1

V

1

2

deo

Pb

Pr

Video 2

i

Video 3

Vdeo

HDMI 1

HDMI

HDMI 2

HDMI

USB

HDMI 3

HDMI 4

MI

S-232

RS-232

To Accessory Box

To Accessory Bo

IMINAR

L

PRE

Figure 3-16. Audio Processor Connection to DHD Controller

Audio Processor/

Switcher

Secondary Display

or

36 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

The DHD Controller provides the following interfaces to external equipment that allow it to
control or be controlled by that equipment:

• An RS-232 interface to a PC or control/automation system;

• Three (3), 12-volt trigger outputs;

• An infrared (IR) repeater input;

• An Ethernet network interface for firmware updates and maintenance notifications.

The following sections describe how to make these interface connections. For more
information about using these connections, refer to Network on page 71 and External
Control on page 85.

RS-232 Controller Connection: Use a straight-through, 9-pin RS-232 cable to connect
a PC or control/automation system (if present) to the RS-232 port on the DHD Controller;
see Figure 3-17.

RS-232

To Accessory Box

HDMI 3

HDMI 4

Ethernet

Display Control

HDMI Out
To Display

HDMI Out

Audio Only

IR

RS-232

PC / Control

Y

Additional Connections to the DHD Controller (Optional)

IMINAR

1

345

L

to Automation/

Control System

or PC

Figure 3-17. RS-232 Control System Connection to DHD Controller

PRE

(none of the other pins are used)

2

6

89

7

2 Receive Data
3 Transmit Data
5 Ground

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 37

Installation

s

-

U

To

A

s

Vi

deo

1

Y

Vi

deo

2

i

deo

3

Pb

HDMI

1

H

DMI

3

HDMI

2

Comp

R

RS-

Connecting 12-volt Trigger Outputs to External Equipment: If you are installing an
SC-50d/CineWide with AutoScope or SC-60d/CineWide with AutoScope, connect the
AutoScope lens motor to a 12-volt trigger output on the DHD Controller; see Figure 3-18.

Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or
screen masks) to the other trigger outputs.

AutoScope Lens Motor

Power

Switch

3.5-mm
mini plug

Retractable Screen or other
12-volt trigger-activated
device

IMINAR

L

PRE

Figure 3-18. Connecting 12-volt Trigger Outputs

AC Input

Sleeve = Ground

Tip = +12V

Y

123

onent / SCA

Component / SCART

Y

HD1

HD2

Video 1

Pb

Pr

TRIGGERS

Video 2

Video 3

V

USB

S

HDMI 1

HDMI 2

HDMI 3

HDMI 4

To Acce

RS

cce

38 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Connecting an External IR Receiver to the DHD Controller: If infrared signals from

O

N

ISF

NT

VID

1

VID

2

HD

1

HD

2

VID

3

COMP

ISF

DAY

CUST

1

CUST

2

O

FF

R

ATIO

RA

TIO

I

N

P

U

T

I

N

P

U

T

E

X

IT

123

456

HDMI

1

HDMI

3

HDMI

4

HDMI

2

SCART

NATIVE

78

0

9

M

E

N

U

L

I

G

H

T

E

N

T

E

R

16 : 9 4 : 3

LET

BOX

V-WIDE CINEMA V-CINE

the remote control cannot reach the DHD Controller due to excessive distance or
obstructions such as walls or cabinet doors, you can connect an external IR receiver to
extend the range of the remote control. See Figure 3-19.

Installation

IR Sensor

Remote Control

IR Repeater

(3.5-mm, mini

phono plug)

Ethernet

Display Control

HDMI Out
To Display

HDMI Out
Audio Only

IR

RS-232

PC / Control

L

RS-232

To Accessory Box

3

4

Figure 3-19. External IR Receiver Connection

Y

IMINAR

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 39

Installation

o

A

Display Control

3

To

a

y

H

Ou

t

Audio Only

RS

2

➤

Ethernet Network Connection: Use a standard, Category 5 network cable with an
RJ-45 plug to connect a network hub, router or gateway to the Ethernet port on the DHD
Controller; see Figure 3-20. For more information about configuring and using this
connection, refer to Network on page 71.

Ethernet

Display Control

HDMI Out

HDMI Out

Displ

To Display

HDMI Out

DMI

Audio Only

IR

HDMI 3

HDMI

HDMI 4

RS-232

-23

To Accessory Box

T

ccessory Box

Y

1

8

to Ethernet

Hub, Router

or Gateway

Figure 3-20. Ethernet Network Connection to DHD Controller

Connecting to AC Power Projector and DHD Controller: The SC-50d/SC-60d ships with two (2), AC power

cords: one for the DHD Controller and one for the projector. They are not

IMINAR

interchangeable. The projector power cord is rated at 15 amps and has a ferrite sleeve,
to reduce radio frequency interference (RFI) emissions to a level that conforms to FCC

L

regulations:

1 Transmit Data +
2 Transmit Data ­3 Receive Data +
6 Receive Data -

PRE

To power outlet

Plug the female end of the projector power cord into the AC receptacle on the rear of the
SC-50d/SC-60d (AC 100V ~ 240V); see Figure 2-2. Then, connect the other end to your
AC power source.

WARNING

Connect the DHD Controller to a nearby AC outlet using the other AC power cord.

AutoScope Lens Motor: With AutoScope-equipped projectors, an additional power
cord is provided for the lens motor. Plug the female end of the AC power cord into the AC
input on the rear of the lens motor assembly. Connect the other end to your AC power
source.

Ferrite sleeveAC power cord

To Projector AC IN

Use ONLY the AC power cord with the ferrite sleeve to
connect the projector to AC power. Doing otherwise
creates a fire hazard risk.

40 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

1. Power up your source components.

2. Turn on the main power switch at the rear of the projector.

3. If this is an AutoScope-equipped projector, turn on the main power switch at the rear
of the AutoScope lens motor. The lens motor power switch is located next to the AC
input (see Figure 3-18).

4. Turn on the main power switch at the rear of the DHD Controller.

5. Press the ON button on the remote control (or the ON/STANDBY ( ) button on the
DHD Controller front panel) to turn on the system. The vacuum fluorescent display on
the DHD Controller front panel briefly displays “Initializing System,” followed by
“Starting SC-50d/SC-60d.”

6. When the display is ready for use, the fluorescent display indicates the active source,
input resolution/frame rate and aspect ratio; for example:

Current
Source

SC-50d/SC-60d

HDMI 1

16:9 1080i/60

Aspect Ratio

1080p/60

Input Resolution/Frame Rate

IMINAR

Y

3.8 Turning on the Power

L

Lens zoom, focus and position are motorized adjustments that are adjustable using the
Setup remote control (Figure 2-6). This allows you to adjust the focus and image size while
at the screen for more accurate results.

For maximum range, point the remote directly at the projector.

Tip

To access the lens controls, press the MAIN button
on the Setup remote control to display the Main Menu
page (if not already displayed). Then:

•Focus: To focus the projected image, press

FOCUS, then press and hold the FCUS or
FCUS button.

•Zoom: To make the picture smaller (zoom out),

press ZOOM, then press and hold the ZOOM-
button. To enlarge the picture (zoom in), press and
hold the ZOOM+ button.

•Lens Shift: To change the lens (and projected

image) position, press LENSS, then press and
hold the LENS , LENS , LENS or LENS
button.

PRE

FOCUS

ZOOM

LENSS

3.9 Primary Lens Adjustments: Focus, Zoom and Position

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 41

Installation

3.10

Adjusting the Picture Orientation

By default, the SC-50d/SC-60d is configured for a “floor/front” installation, in which the
projector is installed upright and in front of the screen. If it is installed behind the screen
and/or mounted on a ceiling, you must change the picture orientation. To do this:

1. On the DHD Controller remote control or front panel, press MENU.

2. Select Service from the Main Menu and enter the Service Menu passcode.

Note

3. Select Display Device from the Service Menu.

4. Select Configure from the Display Device menu, then select Installation.

5. Select Orientation, then choose Floor/Rear, Ceiling/Front or Ceiling/Rear, to match
the installation method.

You must enter a passcode to access the Service menu.

Y

IMINAR

L

PRE

42 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

Projector and/or screen placement — among other things — can cause geometric
distortion in the projected image.

To correct this, the DHD Controller provides precise, nine-point control over the projected
image geometry. Use these controls as (and only if) needed to re-position the image
corners, mid-points and center to eliminate “keystoning” (mis-aligned corners) or
“pincushion” distortion (mid-points not aligned with corners). See Figure 3-21.

Horizontal Keystoning

Y

Vertical Keystoning

IMINAR

3.11 Adjusting the Image Geometry

PRE

Pincushion Distortion

L

Figure 3-21. Keystone and Pincushion Distortion

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 43

Installation

e

“Keystoning” usually occurs when the projector is tilted relative to the screen. “Pincushion”
distortion can sometimes occur if the throw distance is very short and/or the projector is
equipped with an anamorphic lens.

To correct keystoning or pincushion distortion:

1. On the DHD Controller remote control or front panel, press MENU.

2. Select Calibration from the Main Menu and enter the Calibration Menu passcode.

You must enter a passcode to access the Calibration menu.

Note

3. Select Image Alignment from the Calibration Menu.

4. Select Corner Alignment to correct a “keystoned” image by adjusting the image
corner positions. Select Midpoint Alignment to correct pincushion distortion by
adjusting the image edge mid-points. See Figure 3-22.

Use the built-in test pattern when adjusting the image corners or

Tip

midpoints. To access it, check the Test Pattern box in the Corner
Alignment or Midpoint Alignment menu.

Y

Top Left (x, y)

IMINAR

L

Left

Middle

(x, y)

PRE

Bottom Left (x, y)

Notes:

1. Bottom Middle x = Top Middle x

2. Right Middle y = Left Middle y

3. Smaller “x” values move a point to the left; larger values move it to the right.

4. Smaller “y” values move a point up; larger values move it down.

Top Middle (x, y)

Center

(x, y)

Bottom Middle (y)

Top Right (x, y)

Right
Middl
(x)

Bottom Right (x, y)

Figure 3-22. Image Alignment Controls

The “Left Middle y” setting also controls the “Right Middle”

Note

y-coordinate. Similarly, the “Top Middle x” setting also controls the
“Bottom Middle” x-coordinate.

44 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

If you are installing an SC-50d/CineWide with AutoScope or SC-60d/CineWide with
AutoScope, proceed as follows to install and adjust the secondary anamorphic lens.

Note

The SC-50d/SC-60d Anamorphic lens mount kit consists of everything shown in Figure
3-23. Some components shipped with your projector may differ slightly from what is
shown in these instructions. If any items are missing or damaged, please contact your
Runco dealer or Runco Customer Service at (800) 23-RUNCO.

Anamorphic Lens

10

Set Screw

Pitch Adjustment

9

T-Nut (2x)

It is extremely important that the primary lens is properly
adjusted before you install the anamorphic lens. Ensure that
the image from the primary lens is perfectly centered on the
screen.

Lens Adapter Ring and

1

Mounting Screws (3x)

IMINAR

Pitch Adjustment Yoke for Lens

2

3.12 Installing and Adjusting the CineWide Anamorphic Lens

Y

L

3

PRE

Anamorphic Lens

5

Yaw/X Adjustment

8

Lever (2x)

6

AutoScope Carriage Plate

7

Figure 3-23. Anamorphic Lens Mounting Assembly - Exploded View

Holder

1/4-20 Hex Bolt (2x)
and Washer (2x)

Height/Y Adjustment
T-Screw and Washer
(2x)

Pitch Adjustment

4

T-Screw and
Washer (2x)

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 45

Installation

➤

Attach Lens Mounting

Assembly to Lens Motor

Carriage Plate

1. Remove the two Yaw/X Adjustment Levers (item #8) from the bottom of the
Anamorphic Lens Holder (item #5).

2. Place the Anamorphic Lens Holder on top of the AutoScope Carriage Plate (item #7).
Position the bracket so that the long slot at the bottom of the lens holder is
perpendicular to the corresponding slots on the plate.

3. Secure the Anamorphic Lens Holder to the plate using the Hex Bolts/Washers
(item #6) and Yaw/X Adjustment Levers that you removed in Step 1.

4. Use the Lens Mounting Screws to attach the Lens Adapter Ring (item #1) to the Pitch
Adjustment Yoke (item #2); see Figure 3-24. (Use the round, threaded holes on the
yoke.)

5. Use the Height/Y Adjustment T-Screws/Washers (item #3), Pitch Adjustment
T-Screws/Washers (item #4) and T-Nuts (item #9) to attach the Pitch Adjustment
Yoke and Lens Adapter Ring to the Anamorphic Lens Holder. The Yoke should be

as close to the primary lens as possible.

6. Attach the lens to the Lens Adapter Ring by threading it clockwise.

Lens threads into ring

Y

IMINAR

L

S

U

PRE

Figure 3-24. Attaching the Anamorphic Lens to the Lens Ring

C

O

F

46 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Installation

CineWide with AutoScope maintains constant image height independent of the aspect
ratio, while using the full display resolution of the projector. It accomplishes this by moving
the anamorphic lens in front of the primary lens when widescreen material is being viewed.
When the viewer transitions back to 16:9 or 4:3 source material, the anamorphic lens
moves out of the light path.

To configure the lens motor trigger on the DHD Controller for proper AutoScope
operation:

1. Project a 2.35:1 aspect ratio test pattern or other image on the screen.

2. On the DHD Controller remote control or front panel, press MENU.

3. Select Service from the Main Menu and enter the Service Menu passcode.

Note

4. Select Tri gg er s from the Service menu.

5. Assign the trigger output to which the lens motor is connected to the Cinema and
Virtual Cinema aspect ratios. This enables the lens motor to move the anamorphic
lens into position (in front of the primary lens) when either aspect ratio is selected.

6. Select the Cinema or Virtual Cinema aspect ratio to move the anamorphic lens into
position, if it isn’t already. To do this, press CINEMA or V-CINE on the DHD
Controller remote control (Figure 2-5), or press or repeatedly with no menus
visible on-screen.

You must enter a passcode to access the Service menu for the first
time after turning on the system.

Y

IMINAR

Refer to Figure 3-23 and proceed as follows:

L

Horizontal Position (X) Adjustment:

Configure Lens Motor Trigger (CineWide with AutoScope)

Adjust the Anamorphic Lens

1. Project a white field on the screen.

2. Loosen the Yaw/X-Adjustment Levers underneath the lens.

3. Slowly move the anamorphic lens into place (from right to left or vice versa) so that
there are no shadows on either side of the screen:

PRE

Too Far Left

Correct position

Too Far Right

4. When the horizontal position is properly set, tighten the Yaw/X-Adjustment Levers to
secure the lens in place.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 47

Installation

Adjusting the Height (Y): With the white field still on-screen, loosen the
Height/Y Adjustment T-Screws on either side of the lens. Then, slowly move the
anamorphic lens into place so that there are no shadows on the top or bottom of the
screen:

Too Low

Y

Correct position

Too High

When the height is properly set, tighten the Height Adjustment T-Screws to secure the
lens in place.

Adjusting the Pitch (Angle): Next, angle the lens to even out any top-to-bottom
pincushion distortion. To do this, loosen the Pitch Adjustment T-Screws (directly below
the Height/Y Adjustment T-Screws) on either side of the lens to allow it to pivot freely.
Then, adjust the anamorphic lens angle so that the projected image is rectangular:

IMINAR

L

PRE

Incorrect Lens Angle

The anamorphic lens will almost always be angled with respect to the projector; this is
normal.

Correct Lens Angle

Once the proper lens angle has been set, firmly tighten the Pitch Adjustment T-Screws to
secure the lens in place.

Note

There may be some pincushion distortion even after the lens is
properly adjusted, especially at shorter throw distances. If this is the
case, Runco recommends that you slightly over-scan the image
into the screen frame area to mask the distortion.

48 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Yaw Adjust: Loosen the Yaw/X-Adjustment Levers to allow the lens to pivot freely from
side to side. Then, angle the lens to even out any left-to-right pincushion distortion:

Anamorphic Lens (Top View)

Installation

Y

IMINAR

Correct Position

L

Wrong Position

Once the proper lens angle has been set, firmly tighten the Yaw/X-Adjustment Levers to
secure the lens in place.

Geometry:

1. Input an anamorphic cross-hatch test pattern to the DHD Controller.

2. Unscrew the Anamorphic Lens just enough to allow it to rotate freely.

3. Grasp the lens by the center ring and rotate the lens until the image is properly
anamorphic:

Wrong Position Correct Position

4. When the image geometry appears correct, tighten the
Anamorphic Lens Set Screw (item #10) to secure the lens in place.
(When viewed from the front, the rear opening on the anamorphic
lens should appear as a tall, narrow oval.)

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 49

Installation

➤

Focus: Finally, rotate the Focus Ring on the anamorphic
lens to fine-tune the optical focus.

S

U

C

O

F

Verify Proper Image

Alignment with

Anamorphic Lens

3.13

Working With the Lamp

After you have installed the anamorphic lens, ensure that the 2.35:1 image corners and
edges are aligned with the screen with no geometric distortion. Use the Image Alignment
controls to make any necessary adjustments (refer to Adjusting the Image Geometry
on page 43).

Y

At this point you may want to check and adjust the following settings to optimize lamp
performance:

• Choose a lamp mode for regulating power and light output.

• Change the optical aperture size.

To access them, choose Calibration from the Main Menu and enter the Calibration menu
passcode. Then, choose Display Color -> Lamp (refer to Lamp on page 66) or Display
Color -> RVR (refer to RVR on page 68).

IMINAR

L

PRE

50 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Operation

4. Operation

To display the Main Menu, press the MENU button on the remote control or DHD
Controller front panel (Figure 2-3).

To select a menu item, use the and buttons on the remote control or DHD Controller
front panel to highlight it. Then, to confirm your selection, press ENTER on the remote
control or DHD Controller front panel.

The SC-50d/SC-60d OSD menus are arranged hierarchically, as shown in Figure 4-1.
Some menu options apply only to certain input signal types. For example, Phase and
Tracking can only be adjusted for RGB, Component video or SCART signals.

Composite 1
Composite 2
Composite 3
Component
HD 1

Input Source

Aspect Ratio


Input Position

Memory
Presets

Sleep Timer

Note: Default settings appear in bold type.

HD 2
SCART
HDMI 1
HDMI 2
HDMI 3
HDMI 4
16:9
4:3
Letterbox
VirtualWide
Cinema
Virtual Cinema
Native
Brightness
Contrast
Color
Tint
Sharpness
Noise Filter
Left/Right
Up/Down
Width
Height
Overscan
Overscan Mode

(Zoom/Crop)
Phase

(RGB/Component/SCART signals only)
Tracking

(RGB/Component/SCART signals only)
Recall ISF Night or ISF Day
Recall/Save Custom 1 or Custom 2
Reset Custom 1 and Custom 2 to Factory

Default
Off, 30 Minutes, 60 Minutes, 90 Minutes, 2

Hours or 4 Hours

Information

IMINAR

L

Calibration

PRE

Signal

Network
Field Service
Manufacturing

Display Color

Input Image

Input Color

Save ISF Night
Save ISF Day

Copy/Paste

Output Shift

Alignment

Splash
Configure

OSD Position Hor. / Ver. 0, 1, 2 ... 100

(read-only)System

Gain
Offset

Gamma

Lamp

Color Temp

RVR 0, 1, 2 ... 9
Brightness
Contrast
Color
Tint
Sharpness
Gain
Offset

Chroma Delay

Noise Filter 0, 1, 2 ... 63

Back / Confirm

Copy Settings
Paste Settings
Left/Right
Up/Down
Width
Height
Corner Alignment Top Left / Top Right / Bottom Left / Bottom Right

Midpoint Alignment

Owner Name
ISF Calibrated
ISF Other
Splash Timer 5, 6, 7 ... 15 ... 59, 60
Splash Enable On/Off

Y

4.1 Using the On-Screen Menus

-100, -99... 0 ... 99, 100 (Red, Green, Blue)

Mode
(Simple / Advanced)

Simple
(1.00, 1.01, 1.02 ... 2.20 ... 3.38, 3.39, 3.40)

Advanced
(0 (2.2 gamma curve),
1, 2, 3 ... 20 (custom gamma tables))

Mode
(Power (recommended) / Intensity)

Power
(SC-50d = 150, 151, 152 ... 200W)
(SC-60d = 300, 301, 302 ... 350W ... 370)

Intensity
(0, 1, 2 ... 9999)

Simple
(3200K, 5500K, 6500K, 7500K or 9300K)

-50, -49 ... 0 ... 49, 50

-32, -31... 0 ... 31, 32
(HD 1, HD 2 and Component inputs only)

0, 1, 2 ... 7
(Composite inputs only)

-50, -49 ... 0 ... 49, 50

-50, -49, 48 ... 0

Center / Top Middle / Left Middle / Right Middle /
Bottom Middle

Figure 4-1. SC-50d/SC-60d OSD Menu Structure

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 51

Operation

Service

Color Bars 1

Test Video

Input Names Rename/Restore

Display Device - Configure

Display Device - Auto
Calibration

Network

Color Space

Triggers 1 / 2 / 3

Miscellaneous

Sync Threshold 0, 1, 2 ... 15 (HD 1, HD 2 and Component inputs only)

HDMI

Front Panel Brightness

Auto Power Off

System Reset

PRE

Color Bars 2
Focus
Grey Bars

Picture Orientation

Lamp Info.
(read-only)

Diagnostics

Yes/No

IP Configuration

Auto Firmware Upgrade

E-Mail Notification

Remote Network Control On / Off
Auto, REC601, REC709,

RGB-PC or RGB-Video

Language

OSD Timer 0 (no timeout) or 5, 6, 7 ... 15 ... 60 sec.
OSD Messages On / Off
Blank Screen Color
Sidebar Color
Film Mode

(SD sources only)
CUE

(Chroma Upsampling Error)
Remote Code 00, 01, 02 ... 17 ... 31

HDMI EDID Extension On / Off (per HDMI input)

Audio Format

CEC On / Off
Logo LED 0 (off), 1, 2 ... 31
Standby LED On / Off
LCD 0 (off), 1, 2, 3 or 4
Enable On / Off
Hours 1, 2, 3, 4, ... 8 ... 23, 24

L

Auto, Floor Front, Ceiling Front, Floor
Rear or Ceiling Rear

(Projector Serial Number)

White, Red, Green, Blue, Yellow, Cyan,
Magenta

DHCP (On / Off), IP Address, Subnet
Mask, Default Gateway, Communication
Test

Auto Check for New Firmware, Auto
Perform Upgrade, Check for New
Firmware

E-Mail Address, Error Notification, Error
Notification to Runco, Periodic Service
Notification, Lamp Life Notification,
Customer Information, E-Mail Calibration
Data

(Not available on Composite 1,
Composite 2 or Composite 3 inputs)

English, Français, Deutsch, Italiano.
Español, Svenska, Traditional Chinese,
Simplified Chinese, Português or Russian

Red/Green/Blue = 0, 1, 2, 3 ... 255

On / Off

IMINAR

On / Off

Combined / HDMI Out (To Display) / HDMI

Out (Audio Only)

Y

Figure 4-1. SC-50d/SC-60d OSD Menu Structure (continued)

52 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Operation

Main MenuThe Main Menu is the starting point for accessing all DHD Controller functions.

(You must enter a passcode to access the Calibration and Service menus.)

Y

The active source is indicated by an arrow (Î) to its left; in this example, Composite is the
active source.

IMINAR

L

Runco Video

Input Source
Aspect Ratio
Input Position
Memory Presets
Sleep Timer
Information
Calibration
Service

Input SourceFrom the Main Menu, select Input Source to choose a video signal source.

Input Source

Î

Composite 1
Composite 2
Composite 3
Component
HD 1
HD 2
SCART
HDMI 1
HDMI 2
HDMI 3
HDMI 4

from the Main Menu and press ENTER. Select the appropriate aspect ratio for your
screen size and the type of program material being viewed; refer to Table 4-1.

The currently-selected aspect ratio is indicated by a “
selected.

Note that some aspect ratios are unavailable and/or not useful with certain types of
source material. The optimal setting depends on a number of factors, such as:

• The aspect ratio of the source material, as broadcast or encoded on the playback

medium.

• The “display type” (16:9 or 4:3) and output resolution settings at the source

component. Most modern DVD/BD players and set-top boxes have such controls.

• Viewer preference (original aspect ratio with “black bars,” or a full-screen presentation

with some distortion or cropping).

Note

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 53

PRE

The aspect ratio selection is automatically saved for each input and
resolution.

7” to its left; in this example, 16:9 is

Aspect RatioTo change the aspect ratio (size and shape) of the projected image, select Aspect Ratio

16:9

7

4:3



Letterbox



VirtualWide



Cinema



Virtual Cinema



Native



Aspect Ratio

Operation

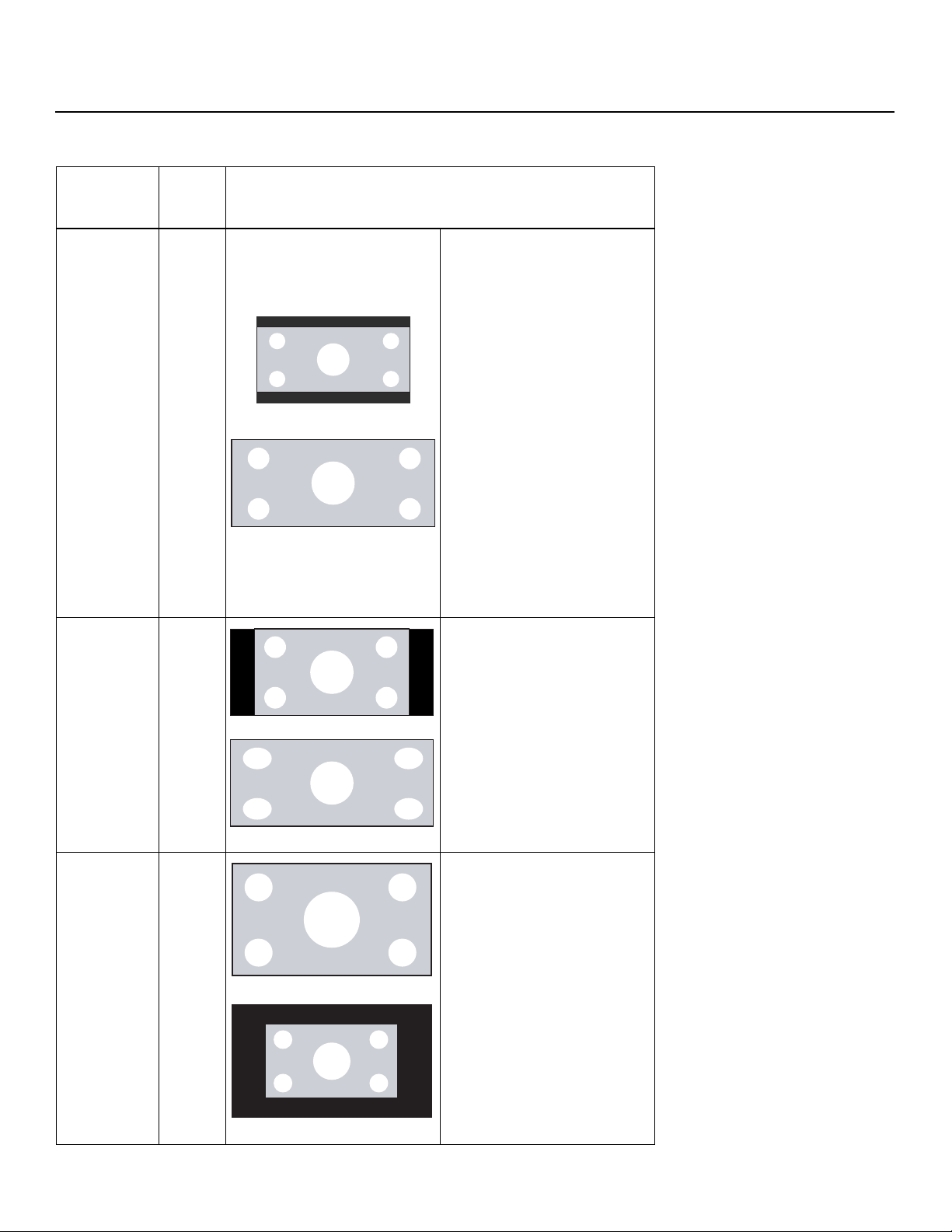

Table 4-1. Aspect Ratio Settings

Remote

Aspect Ratio

16:9 16:9 Select 16:9 to view 16:9 DVDs

Control

Key

16:9 Image on

16:9 Screen (Display)

4:3 Image, stretched to fill

16:9 Screen (Display)

Description

Y

and HDTV programs in their
native aspect ratio.

4:3 images are stretched
horizontally to fit a 16:9 screen.

4:3 4:3 Standard 4:3 scales the input

IMINAR

L

Letterbox LET

PRE

VirtualWide V-WIDE VirtualWide scales a 4:3 image

BOX

4:3 Image on

16:9 Screen (Display)

4:3 Image on

16:9 Display

(Letterbox aspect ratio)

4:3 Image on

16:9 Screen (Display)

4:3 Image on

16:9 Screen

with VirtualWide

signal to fit in the center of the
16:9 screen. 4:3 is the aspect
ratio used by computer
monitors, standard television
programming and most VHS
video cassettes.

Letterbox mode scales (zooms
in on) a 4:3 image linearly (by the
same amount on all sides) to fill
a 16:9 display.
Letterbox is best suited for
viewing LaserDisc movies or
non-anamorphic DVDs on a
16:9 screen.

NON-linearly (more on the sides
than in the center) to fit a 16:9
screen.

4:3 Image on

2.35:1 Screen

with VirtualWide

54 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

On a 2.35:1 screen, the image is
centered between black bars on
either side.

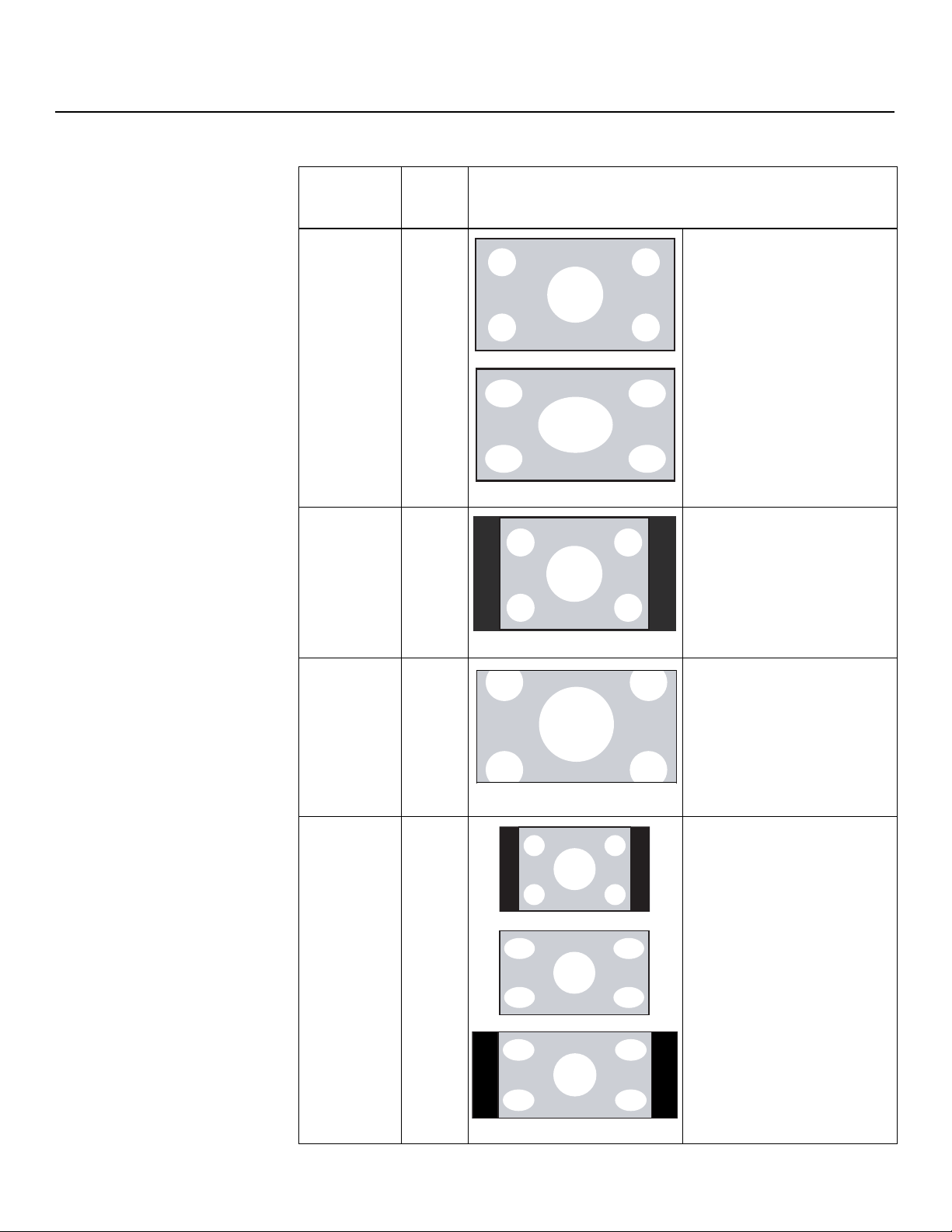

Table 4-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Cinema CINEMA Select Cinema to view 2.35

Control

Key

2.35:1 Image on
16:9 Screen

(Cinema aspect ratio / no CineWide)

Description

source material in its native
aspect ratio.

With a 16:9 screen and a
standard SC-50d/SC-60d
(without an anamorphic lens),
the upper and lower portions of
the screen are masked, but the
geometry of the active image
area is unchanged.

Operation

Y

2.35:1 Image on

2.35:1 Screen

Cinema aspect ratio / CineWide)

(

Virtual Cinema V-CINE A 16:9 image is scaled

16:9 Image on

16:9 Image on

2.35:1 Screen

2.35:1 Screen

16:9 Image on

PRE

Native NATIVE Select Native to display the

2.35:1 Screen with
Virtual Cinema

1080i HDTV Image

L

With a 2.35:1 screen and an
anamorphic lens, the DHD
Controller scales the 2.35:1
image so that the active image
area fills the 16:9 chip surface,
eliminating the black bars. The
secondary, anamorphic lens
then restores the proper
geometry to the 2.35:1 image.

IMINAR

NON-linearly (more on the sides
than in the center) to fit a 2.35:1
screen.

source signal in its native
resolution, centered in the
display area with no re-sizing or
overscan.

This means, for example, that
720p HDTV programs will
display with unused pixels on all
sides: 320 on the left and right
sides and 180 above and below.

720p HDTV Image

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 55

With SDTV and EDTV sources,
the DHD Controller scales the
image horizontally to achieve a
16:9 aspect ratio.

Operation

➤

A

Brightness
Contrast
Color
Tint
Sharpness
Noise Filter


Picture Use the controls in the Picture Menu to calibrate each DHD Controller input to achieve

optimum picture quality.

The DHD Controller has been designed to incorporate setup and calibration standards
established by the Imaging Science Foundation (ISF). The ISF has developed carefully
crafted, industry-recognized standards for optimal video performance and has
implemented a training program for technicians and installers to use these standards to
obtain optimal picture quality from Runco video display devices. Accordingly, Runco
recommends that setup and calibration be performed by an ISF certified installation
technician.

All signal types require separate processing. Therefore, you need to calibrate each DHD
Controller input separately.

Note

Although it may be possible to obtain satisfactory picture quality using the naked eye and
regular program material, Runco recommends using an external test pattern source
(Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent) for best
results.

Connect your test pattern source to the input that you are calibrating and proceed as
follows. Perform the adjustments in the order listed here.

Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an
acronym for “Picture Line-Up Generation Equipment.”) Figure 4-2 shows a typical PLUGE
pattern.

IMINAR

L

PRE

When you change a picture quality setting, save the change to a
preset afterwards. Otherwise, the change will be lost when a
different input is selected. (Picture quality settings are saved for
each input and display mode separately.) For information about
saving settings, refer to Memory Presets on page 62.

Y

Below Black

bove Black

Figure 4-2. Typical PLUGE Pattern for Adjusting Brightness

56 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

PLUGE patterns vary but generally consist of some combination of black, white and gray
areas against a black background. The example above includes two vertical bars and four
shaded boxes.

Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that:

• The darkest black bars disappear into the background.

• The dark gray areas are barely visible.

• The lighter gray areas are clearly visible.

• The white areas are a comfortable level of true white.

• The image contains only black, gray and white (no color).

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in Figure 4-3.

Y

Operation

IMINAR

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast

L

Select Contrast and press ENTER. Adjust the contrast to a point just below which the
white rectangle starts to increase in size.

Note

Brightness and contrast controls are interactive. A change to one
may require a subtle change to the other in order to achieve the
optimum setting.

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 57

Operation

Color Saturation: On your external test pattern source, select a color bar pattern like the
one shown in Figure 4-4.

gray

yellow

cyan

green

red

magenta

blue

Y

Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

1. Press the MENU button on the remote control or DHD Controller front panel.

2. Select Service from the Main Menu and press ENTER.

3. Enter the Service menu passcode.

4. Select Display Device from the Service menu and press ENTER.

5. Press ENTER again to select Configure.

6. Select Diagnostics and press ENTER.

7. Select Blue from the Diagnostics menu, then press ENTER to display only the blue
color channel.

8. Press EXIT (or MENU) repeatedly to return to the Main Menu.

IMINAR

L

PRE

9. Select Picture from the Main Menu and press ENTER.

10.Select Color from the Picture menu and press ENTER.

58 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

11.Adjust the color saturation level until the outermost (gray and blue) color bars appear to
be a single shade of blue:

Operation

gray

yellow

cyan

green

red

magenta

blue

Y

Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image.
When tint is decreased, the image appears redder; when it is increased the image
appears greener.

To adjust the tint, enable “blue only” display mode in the Diagnostics menu, as you would
for adjusting color saturation (refer to the previous section, Color Saturation).

Select Tint from the Picture menu and press ENTER. Adjust the tint level until the cyan
and magenta color bars (on either side of the green bar) appear to be a single shade of
blue.

Like the brightness and contrast controls, the color and tint controls

Note

are interactive. A change to one may require a subtle change to the
other in order to achieve the optimum setting.

IMINAR

L

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 59

Operation

➤

Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust
sharpness, select Sharpness from the Picture menu and press ENTER. On your external
test pattern source, select a pattern like the one shown in Figure 4-5. Adjust as needed,
looking for white edges around the transitions from black to gray and differently-sized lines
in the “sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate
them.

Y

Input Position

Left/Right
Up/Down
Width
Height
Overscan
Overscan Mode
Phase
Tracking

IMINAR

Figure 4-5. Typical Test Pattern for Adjusting Sharpness

Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Picture

menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction,
keeping in mind that higher settings (which reduce high frequencies) may also “soften” the

PRE

Input Position Use the controls in the Input Position Menu to fine-tune the aspect ratio and image

image.

position for the current source.

Left/Right: Select Left/Right from the Input Position menu to shift the projected image
horizontally. Press to shift the image to the right; press to shift it to the left.

Up/Down: Select Up/Down from the Input Position menu to shift the projected image
vertically. Press to shift the image upward; press to shift it downward.

Width: Select Width from the Input Position menu to change the projected image width.
Press to increase the width; press to decrease it.

L

Note

The input position settings are automatically saved for each input
and resolution.

60 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Height: Select Height from the Input Position menu to change the projected image
height. Press to increase the height; press to decrease it.

Overscan/Overscan Mode: Overscan pushes the outside edge of the active picture
area of the video signal out beyond the edge of the display area.

Some television programs are produced based on the assumption that older television
sets may not display the outer edges of the broadcast picture area. Overscan effectively
trims away these inactive, outer edges and enlarges the remaining portion of the image to
fill the display area.

For HDTV, DVDs and other video sources, Overscan is generally not necessary or
desirable.

This control defines the amount of overscan applied to the image. The range is from
0 to 20. There are two overscan modes:

•In Crop mode, each increment adds a mask at the top, bottom, left and right edges of
the source image equal to 0.5% of the displayed horizontal resolution (1% total). A
setting of 10, for example, crops the image 5% on all sides or 10% total.

•In Zoom mode, each increment adds a factor to the scaling of the source image so
that the vertical and horizontal resolutions are 100% plus 1% increments of the size
determined by the aspect ratio function. A setting of 10, for example, zooms in on the
image 5% on all sides or 10% total.

Y

Operation

Figure 4-6 illustrates the effect of each overscan mode setting.

Off Crop Zoom

IMINAR

4:3

16:9

= Source Image Area

= Edge Noise

= Screen (16:9)

Figure 4-6. Overscan Modes

PRE

L

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 61

Operation

➤

Phase (RGB, Component or SCART sources): This control adjusts the phase of the
pixel sampling clock relative to the incoming signal. Adjust the phase when an RGB,
Component or SCART image still shows shimmer or “noise” after Tracking has been
optimized.

Adjust the Phase after adjusting Tracking (see below).

Tip

For best results, use a good test pattern such as a smooth gray consisting of a clear
pattern of black and white pixels, or a similar “half on, half off” graphic image. Adjust the
slidebar until the image stabilizes and each pixel is clearly defined. You may notice that
you can stabilize the image at more than one point. Use either setting in such cases.

Tracking (RGB, Component or SCART sources): Tracking determines the frequency
of the pixel sampling clock, indicated by the number of incoming pixels per line, so that all
pixels generated by a particular source are sampled.

Steady flickering or several soft vertical stripes or bands across the entire image indicates
poor pixel tracking. Proper pixel tracking helps ensure that the image quality is consistent
across the screen, that aspect ratio is maintained and that pixel phase (see above) can be
optimized.

Y

Memory Presets For each input, the DHD Controller lets you save image quality settings as presets that you

Memory Presets

Î

ISF Night
ISF Day
Custom 1 Save Reset
Custom 2 Save Reset

can recall at a later time. You can create up to four presets per input and display mode
(resolution and frame rate).

The DHD Controller stores the following display modes in each memory preset:

•480i

•480p

•576i

•576p

• 720p/24 Hz

PRE

• 720p/25 Hz

• 720p/30 Hz

• 720p/50 Hz

• 720p/60 Hz

• 1080i/50 Hz

• 1080i/50 Hz (Australia)

• 1080i/60 Hz

• 1080p/24 Hz

• 1080p/25 Hz

• 1080p/30 Hz

• 1080p/50 Hz

• 1080p/60 Hz

IMINAR

L

Use the Memory Presets menu to recall saved image presets, or to save image settings in
the “Custom 1” or “Custom 2” memory location. The currently-selected preset is indicated
by a “Δ to its left; in the example shown here, ISF Night is selected.

62 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

You should save changes to any of the following settings to a preset; otherwise they will
be lost when a new input source or resolution is selected:

• Brightness

•Contrast

• Color saturation

•Tint

• Sharpness

•Gamma

• Lamp Settings

• Color temperature and white balance

Operation

To select a memory preset, press or to highlight it and press ENTER.

To save the settings for the current input and display mode to the Custom 1 or Custom 2
memory preset, select it, press or to highlight Save and press ENTER.

Note

To reset the Custom 1 or Custom 2 memory preset to its factory-default state, select it,
press or to highlight Reset and press ENTER.

To save the settings for the current input and display mode to the
ISF Night or ISF Day memory preset, select Save ISF Night or Save
ISF Day from the Calibration menu (refer to Save ISF Night/Save
ISF Day on page 68).

Y

IMINAR

interval. Press or to select Off, 30 Minutes, 60 Minutes, 90 Minutes, 2 Hours or
4 Hours. Then, press ENTER.

L

PRE

Sleep TimerSelect Sleep Timer from the Main Menu to turn off the SC-50d/SC-60d after a specified

Î

Sleep Timer

Off
30 Minutes
60 Minutes
90 Minutes
2Hours
4Hours

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 63

Operation

➤

Signal
System
Network
Field Service
Manufacturing

Information Signal / System: Select Information from the Main Menu, then choose either Signal or

System to display information about the current input signal (resolution, frequency, type et

Information

cetera) and installed firmware versions, as well as other information that uniquely identifies
your DHD Controller and display device.

Should you ever need to contact Runco Technical Support, this information will help them
answer your questions or resolve product performance issues.

Signal

Input Source HDMI 1
Signal Format 1080p/60
Input Resolution 1920x1080
Vertical Freq 59.94 Hz
Horizontal Freq 67.500 kHz
Pixel Clock 148.500 MHz
Color Space REC709
Sync Type Separate
Memory Preset ISF Night

Model DHD4

Display Name

Output Resolution 1920x1080
Serial Number 00000000

Y

Boot Version 4.0
Firmware Version 4.0
Micro Version 4.0

System

SC-50d/SC-60
d

Network

MAC Address 1A:2B:3C:4D:5E:6F
IP Address 192.168.0.150
Subnet Mask 255.255.0.0
Default Gateway 192.168.1.1
DHCP Enabled
Network Status Connected

PRE

Network: Select Information from the Main Menu, then choose Network to display
information about the Ethernet network connection.

To enable network communication via Ethernet, refer to IP Configuration on page 71.

IMINAR

Field Service / Manufacturing: The Field Service and Manufacturing menus are
password-protected and intended for use only by Runco service personnel and factory
technicians.

L

64 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

should be used by ISF-certified technicians only.

Note

To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the
Memory Presets menu (see page 62) or use the corresponding remote control buttons.

Display Color: Use the Display Color settings to adjust the color balance at the DHD
Controller output. These settings are saved independently for each input and display
mode.

•Gain: Use the Gain controls to correct color imbalances in the bright areas of the
image. A good way to do this is to use a test pattern consisting mostly of solid white
areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red (Pr),
green (Y) or blue (Pr), decrease the Gain for that color.

•Offset: Use the Offset controls to correct color imbalances in the dark areas of the
image. A good way to do this is to use a test pattern consisting mostly of dark gray
areas, such as a 30 IRE “window” pattern. If the gray areas contain traces of red (Pr),
green (Y) or blue (Pr), decrease the Offset for that color.

• Gamma: Select Gamma from the Display Color menu to choose a de-gamma curve.
Used correctly, the Gamma control can improve contrast while maintaining good
details for blacks and whites. If excess ambient light washes out the image and it
becomes difficult or impossible to see details in dark areas, lower the gamma setting to
compensate. This improves contrast while maintaining good details for blacks.
Conversely, if the image is washed out and unnatural, with excessive detail in black
areas, increase the setting.

• Mode: With the SC-50d/SC-60d, two Gamma adjustment modes are available:

Simple or Advanced. The two modes are mutually exclusive; when you select the
Simple mode, the Advanced selection in the Gamma menu is grayed out. Likewise,
when you select Advanced, the Simple selection is grayed out.

• Simple: Use the Simple Gamma control to perform gamma correction at the display

according to a simple power law gamma function. The value chosen here
corresponds to the power variable in this equation:

You must enter a passcode to access the Calibration menu.

Y

IMINAR

L

PRE

Operation

CalibrationUse the Calibration menu to perform advanced picture quality adjustments. This menu

Calibration

ISF Settings

Display Color
Input Image

Input Color
Save ISF Night
Save ISF Day
Copy/Paste
Output Shift
Splash Configure
OSD Position

Output = Input

The DHD Controller applies this gamma curve to all three primary color channels
(red, green and blue).

• Advanced: To select a custom gamma curve, select Mode from the Gamma menu
and set it to Advanced. Then, select Advanced from the Gamma menu to select one
of up to 20 pre-programmed gamma tables. Custom gamma tables provide the
ability to perform complex, non-linear gamma correction on each primary color
channel independently of the others.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 65

Power

Operation

•Lamp: Select Lamp from the Display Color menu to adjust the projector lamp
brightness.

• Mode: With the SC-50d/SC-60d, two lamp adjustment modes are available: Power

(recommended) or Intensity. The two modes are mutually exclusive; when you select
the Power mode, the Intensity selection in the Lamp menu is grayed out. Likewise,
when you select Intensity, the Power selection is grayed out.

• Power: To supply a constant wattage to the lamp, select Mode from the Lamp

menu and set it to Power. Then, select Power from the Lamp menu to set the lamp
power level. You can choose to run the lamp as bright as possible (this is the default
setting) or you can choose a lower setting. Generally, lower lamp output prolongs
the life of the lamp, but decreases brightness.

• Intensity: To maintain a constant brightness level, select Mode from the Lamp

menu and set it to Intensity. Then, select Intensity from the Lamp menu to specify
the desired brightness level. The projector automatically adjusts the amount of
power applied to the lamp as needed to maintain the desired brightness level.

Y

Note

• Color Temp: Select Color Temp from the Display Color menu to adjust the color
temperature. Color temperature establishes the “color of gray” by adjusting the 75%
white point to various color points.

What are “color points?” A “color point” is an x/y coordinate pair that defines a
color’s location on the standard CIE chromaticity graph, shown in Figure 4-7. (CIE
stands for “Commission Internationale de l’Éclairage” (International Commission on
Illumination), the organization responsible for color measurement and management
standards.)

IMINAR

L

PRE

1. The “Intensity” Lamp Mode setting cannot be used with the RVR

control (refer to RVR on page 68).

2. The Intensity value is not the actual lumen output, but rather a
correlated value only—1246 may represent 3500 lumens, for
example.

66 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

1.0

0.9

0.8

0.7

0.6

Operation

y

Green

0.5

Blue

Cyan

D93

D65

8000

10000

D50

6667

5714

5000

4000

0.4

0.3

0.2

0.1

0.0

0.00.10.20.30.40.50.60.70.80.91.0

Yellow

2500

2857

3333

Magenta

2222

2000

Red

x

IMINAR

Figure 4-7. CIE 1931 Chromaticity Diagram

• Simple: Select Simple mode from the Color Temp menu to choose one of five color
temperature presets: 3200K, 5500K, 6500K, 7500K and 9300K. The default setting,
6500K, is appropriate for most situations. Higher settings produce a “bluer” picture;
lower ones impart a reddish hue to the image.

Table 4-2 lists the x- and y-coordinates for each color temperature preset in
“Simple” mode.

PRE

L

Y

Table 4-2. Color Temperature Presets and Associated Color Points

Color Temperature Preset

3200K 0.423 0.404

5500K 0.332 0.348

6500K 0.313 0.329

7500K 0.299 0.315

9300K 0.284 0.298

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 67

Associated x/y Values

xy

Operation

•RVR: Use the RVR control to increase or decrease the Reflectance Volume Regulation
setting. RVR lets you adjust the aperture or iris size (the physical opening through the
lens; similar to an “f-stop” on a camera). Doing so allows you to optimize brightness
and contrast according to the amount of ambient light in the viewing area.

Use a lower setting (larger aperture = higher brightness) for rooms with a lot of ambient
light. Use a higher setting (smaller aperture = higher contrast) for more “theater-like”
viewing conditions (little or no ambient light).

Note

Input Image: The Input Image controls are functionally similar to those in the Picture
menu (refer to page 56), but are accessible only by entering the Calibration menu
passcode.

Note

Input Color: The Input Color controls are similar to those in the Display Color menu (see
above), but adjust the color balance of the incoming signal. These settings are also saved
independently for each input and display mode.

•Gain/Offset (HD1, HD2 and Component/SCART inputs only): These controls
operate similarly to those in the Display Color menu (described on page 65), but affect
the Y, Pb and Pr signal components rather than the red, green and blue channels.

• Chroma Delay: use the Chroma Delay control to correct a mis-aligned image from a
composite video source. Chroma delay in an image causes color shifts to occur to the
left of the vertical edge transitions, producing artificial shadows or a “halo” effect. If
necessary, adjust this setting to eliminate them.

•Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the

PRE

Input Color menu. The Noise Filter is useful for clearing up noisy images from 480i
video sources.

IMINAR

L

RVR can only be used with the “Power” Lamp Mode setting (refer
to Lamp on page 66).

Y

The Input Image settings establish the “zero point” for the Picture
menu settings, whose values represent offsets from the Input
Image settings. For example, if you set Brightness to 10 in this
menu, setting Brightness to 10 in the Picture menu results in an
actual setting value of 20 (10+10).

Copy/Paste

Copy Settings
Paste Settings

Copied From:
Input Source HDMI 1
Signal Format 1080p/60
Memory Preset ISF Night

Use the left- or right-arrow buttons to select the desired amount of noise reduction,
keeping in mind that higher settings (which reduce high frequencies) may also “soften”
the image.

Save ISF Night/Save ISF Day: Whenever you make a change to the ISF settings, you
should always save it. Select Save ISF Night or Save ISF Day from the Calibration menu to
do this.

Copy/Paste: You can copy and paste settings from one memory location to another.
This gives you a convenient starting point for creating a new preset based on an existing
one, to make the calibration process less time-consuming.

For example, you can use the Copy/Paste feature to:

• Apply settings from HDMI 1 to HDMI 2, or from HD1 to HD2.

• Calibrate an input for 720p source signals, then use those settings for 1080i sources.

• Duplicate ISF Night settings for a given source and signal format and save them in the
Custom 1 memory preset.

68 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

To use this feature, select Copy/Paste from the Calibration menu.

• Copy Settings: Select Copy Settings from the Copy/Paste menu to place the settings
for the current input source, signal format (resolution and frame rate) and memory
preset onto a “clipboard,” which is a temporary memory location. When you do, the
message “Settings Copied” briefly appears on-screen. The Copy/Paste menu then
re-appears, indicating the source of the copied settings.

Operation

Note

•Paste Settings: To apply the settings on the clipboard to a different input source,
signal format and/or memory preset, do any or all of the following:

• Switch to another input (for example, from HD1 to HD2).

• Change the output signal format at the source (for example, from 720p/60 to

1080i/60).

• Switch to another Memory Preset (for example, from ISF Night to Custom 1).

Then, select Paste Settings from the Copy/Paste menu. If you want to keep these
new settings, you must save them! (Refer to Save ISF Night/Save ISF Day on
page 68 or Memory Presets on page 62.)

Output Shift: The controls in the Output Shift menu are similar to those in the Input
Position menu, except that they change the characteristics of the output signal. These
settings are saved independently for each aspect ratio.

Image Alignment: Use the controls in the Image Alignment menu to ensure proper
image geometry; that is, a perfectly rectangular projected image with no keystoning or
pincushion. For detailed instructions, refer to Adjusting the Image Geometry on
page 43.

Splash Configure: Use the Splash Configure menu to control the appearance and
behavior of the “splash” screen that appears on the display upon power-up.

•Owner Name/ISF Calibrated/ISF Other: You can have the SC-50d/SC-60d display
the owner’s name, your name, the phrase “ISF Calibrated” and/or any other string, up
to 30 characters in length.

Copied settings are not retained after a power cycle.

Y

IMINAR

L

PRE

Use the up or down cursor button to select a character. Use the right and left cursor
buttons to change the cursor position. Press MENU when you have finished entering
text.

• Splash Timer: When you turn on the SC-50d/SC-60d, it projects a welcome screen
with the Runco and ISF logos, along with the personalized information you enter as
described above. Select Splash Timer from the Splash Configure menu to set the
amount of time for which this screen appears. The range is from 5 to 60 seconds, in
one-second increments. Press or to set the timer, then press MENU.

• Splash Enable: When you have finished customizing the splash screen, select Splash
Enable from the Splash Configure menu. Then, select On and press ENTER.

OSD Position: To adjust the position of the OSD, select OSD Position from the
Calibration menu and press ENTER.

Press or to select “Hor.” or “Ver.” Then, press or to change the position.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 69

Operation

➤

Service

Test Video
Input Names
Display Device
Network
Color Space
Triggers
Miscellaneous
Sync Threshold
HDMI
Front Panel Brightness
System Reset

Service Use the Service menu to access advanced projector configuration settings. This menu

should be used by ISF-certified technicians only.

Note

Test Video: Select Test Video from the Service Menu to access the internal test patterns
on the DHD Controller. Table 4-3 lists the available test patterns and describes their
suggested usage.

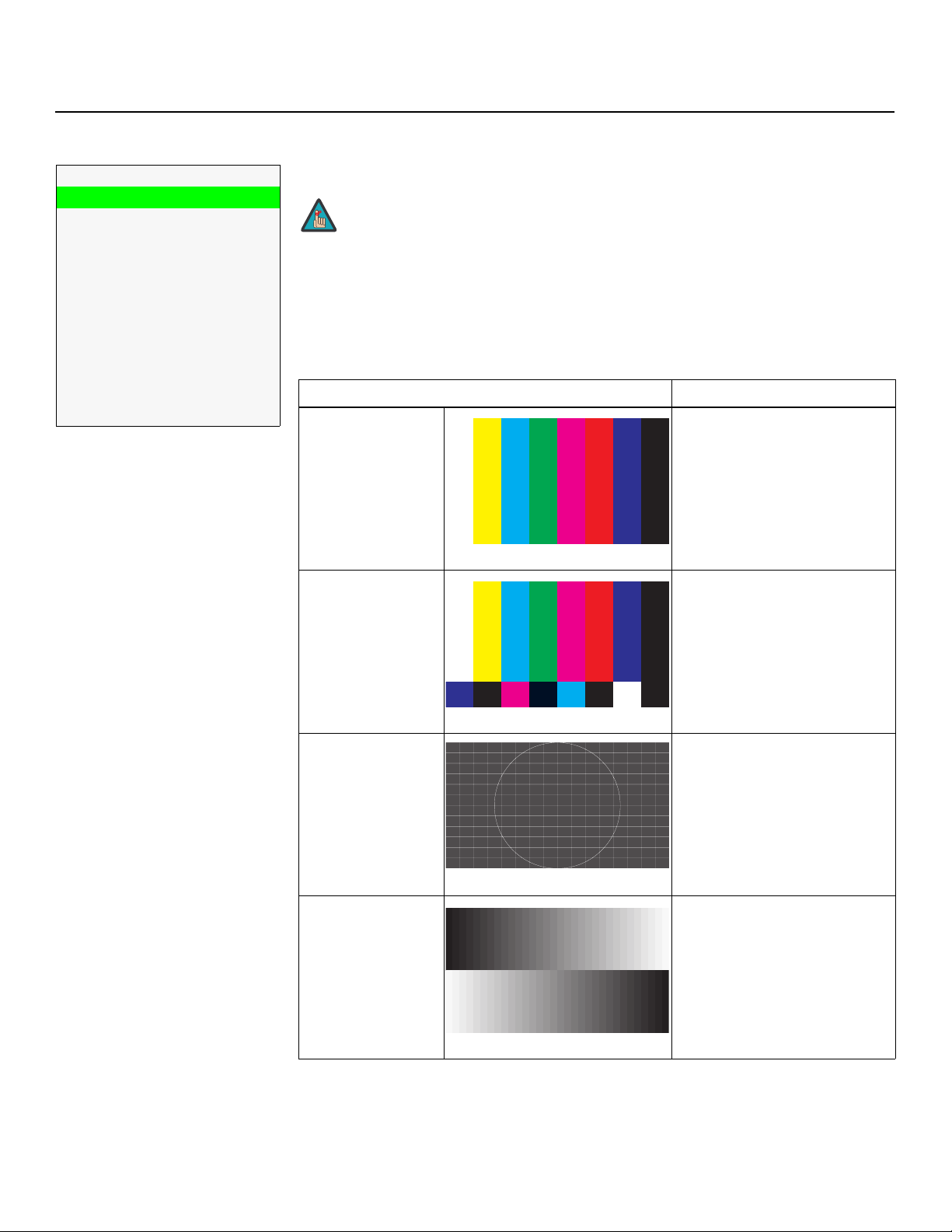

Table 4-3. Test Patterns and Their Suggested Usage

Color Bars 1

You must enter a passcode to access the Service menu.

Pattern Suggested Usage

Y

Use this pattern when making
color saturation and tint
adjustments.

IMINAR

Color Bars 2

L

PRE

Focus

Grey Bars

Use this pattern when making
color saturation and tint
adjustments.

Use this pattern when adjusting
the focus.

Use this pattern when making
brightness, contrast or white
balance (gain/offset) adjustments.

Press MENU to exit test pattern mode.

70 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Input Names: You can give each input a descriptive name. For example, you may want
to change the default input name to the type of source component connected to it:
“VCR,” “DVD,” “Laptop” et cetera. Input names can be up to 12 characters long.

To edit an input name, select Input Names from the Service menu. Press or to select
an input and press ENTER. Use the or buttons to change a character; press

or to select a character to change. When you have finished editing the input name,

press ENTER or MENU.

To restore the default input name, press repeatedly to highlight that input name in the
“Restore” column. Then, press ENTER.

Y

Display Device - Configure: The options in the Display Device - Configure menu allow
you to change the picture orientation, perform lens adjustments or access other,
display-device specific functions.

•Installation – Orientation: Select Picture Orientation from the Display Device -
Configure menu, then select Orientation to change the picture orientation to suit the
method of installation (Floor Front, Floor Rear, Ceiling Front or Ceiling Rear). Or, for
front-projection installations, use the Auto setting to have the projector automatically
determine the orientation (floor or ceiling) using an internal sensor.

•Lamp Info.: Select Lamp Info. from the Display Device - Configure menu to see the
projector serial number.

•Diagnostics: Select Diagnostics from the Display Device - Configure menu, then
select Red, Green, Blue, Yellow, Cyan or Magenta to display only that color channel
(simulating a filter of that color). This can be useful for calibration or measurement
purposes.

IMINAR

L

Input Names

C o mp o s i t e 1
C o mp o s i t e 2
C o mp o s i t e 3
C o mp o n e n t
H D 1
H D 2
S CA R T
H D M I 1
H D M I 2
H D M I 3
H D M I 4

Operation

Restore

Composite 1
Composite 2
Composite 3
Component
HD 1
HD 2
SCART
HDMI 1
HDMI 2
HDMI 3
HDMI 4

To restore the normal picture (all colors), select White.

Network: The options in the Network menu allow you to configure the network
communication features.

• IP Configuration: Select IP Configuration from the Network menu to either set the IP
address, subnet mask and default gateway of the DHD Controller manually or obtain
these settings automatically, from a DHCP (Dynamic Host Configuration Protocol)
server. (Most broadband routers and gateways support DHCP.) You can also test the
network connection from this menu.

• DHCP: To enable the DHCP client in the DHD Controller, select DHCP from the IP

Configuration menu and set it to On. With this setting, the DHD Controller’s IP
address, subnet mask and default gateway are assigned by the local DHCP server.

To manually configure these values, set DHCP to Off.

Note

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 71

PRE

The IP Address, Subnet Mask and Default Gateway items in the IP
Configuration menu are disabled (grayed out) when DHCP is
enabled.

Operation

• IP Address: Select IP Address from the IP Configuration menu to manually
configure the IP Address of the DHD Controller, as follows:

1. Press or to select the first, second, third or fourth byte of the address.

2. Press or to set the value of that byte. The range is from 0 to 255 inclusive.

3. Repeat Steps 1 and 2 for all four bytes of the address.

4. Press MENU when you have finished setting the address.

• Subnet Mask: Select Subnet Mask from the IP Configuration menu to manually
configure the IP subnet mask. The procedure is similar to that for setting the IP
address.

• Default Gateway: Select Default Gateway from the IP Configuration menu to
manually configure the default IP gateway. The procedure is similar to that for setting
the IP address.

• Communication Test: Select Communication Test from the IP Configuration menu
to verify proper operation of the network communication link.

To start the test, select Start Test from the Communication Test menu. The DHD
Controller displays the message “Performing Communication Test.” When the test
completes, the DHD Controller displays either “Failed” (along with the error that
occurred) or “Succeeded.”

• Auto Firmware Upgrade: Select Auto Firmware Upgrade from the Network menu to
enable automatic detection of a newer version of the DHD Controller firmware. If one is
found, you can configure the DHD Controller to install it automatically. These features
make it easier to keep your DHD Controller firmware up-to-date.

• Auto Check For New Firmware: To have the DHD Controller automatically check

for firmware updates at periodic intervals, select Auto Check for New Firmware from
the Auto Firmware Upgrade menu and set it to On. If you prefer to do this manually,
set it to Off and use the Check For New Firmware sub-menu (described below).

• Auto Perform Upgrade: If the “Auto Check For New Firmware” process

determines that a newer firmware version than the one currently installed is available,
you can have the DHD Controller automatically download and install it. To do this,
select Auto Perform Upgrade from the Auto Firmware Upgrade menu and set it to

PRE

On. The upgrade will occur the next time the DHD Controller is “power-cycled”
(powered off, then on again).
If you prefer to do this manually, set it to Off. The DHD Controller will ask if you want
to perform the upgrade the next time it is power-cycled.

• Check For New Firmware: To have the DHD Controller check for new firmware on

demand (and perform an upgrade if it finds a new version), select Check For New
Firmware from the Auto Firmware Upgrade menu. If the DHD Controller finds a new
firmware version, select Ye s to perform the upgrade or No to return to the previous
menu.

IMINAR

L

Y

72 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

• E-Mail Notification: Select E-Mail Notification from the Network menu to specify
when and to whom the DHD Controller sends error and service notification messages
via e-mail.

The notification messages are in the following format:

To: [E-Mail Address; see below]
From: [e-mail]
Subject: [Type of notification] from Runco DHD4
Body:

This is an automated message sent from the Runco DHD4:

Notification: [One of the following:

“DHD Error” / “Display Error”
“Periodic Service Notification”
“Lamp Life Notification” / “Calibration Data”]

Detailed Description: [ If a DHD Error, one of the following:

“Fan Failure 1” / “Fan Failure 2”
“Overtemp 1” / “Overtemp 2”
“Initialization Failure”

Operation

Y

If a Display Error, a device-specific
error message such as “Lamp Door Open”

If a Periodic Service Notification, the elapsed
time since the last notification

If a Lamp Life Notification, the number of hours
the lamp has been in service

If a Calibration Data message,

“See Attached File” ]
Serial Number: [DHD Controller serial number]
Customer Information: [From “Customer Information“ sub-menu;

see below]

Best Regards,

Runco International, LLC
1195 NW Compton Drive
Beaverton, OR 97006
1-800-237-8262

• E-Mail Address: To specify the destination e-mail address for error and service

notifications, select E-Mail Address from the E-Mail Notification menu. The
procedure is similar to that for setting the IP address (refer to IP Configuration on
page 71). Enter up to 45 alphanumeric characters.

• Error Notification: To have the DHD Controller send a message to the destination

e-mail address when a “DHD Error” or “Display Error” occurs, select Error
Notification from the E-Mail Notification menu and set it to On.

• Error Notification to Runco: To have the DHD Controller send an e-mail message

to Runco Customer Support when a “DHD Error” or “Display Error” occurs, select
Error Notification to Runco from the E-Mail Notification menu and set it to On.

PRE

IMINAR

L

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 73

Operation

• Periodic Service Notification: You can have the DHD Controller send periodic
reminders via e-mail to perform regular maintenance tasks. To do this:

1. Select Periodic Service Notification from the E-Mail Notification menu.

2. Highlight Enable and press ENTER.

3. Highlight On and press ENTER.

4. Press MENU.

5. Highlight Timer and press ENTER.

6. Press or to set the notification interval in months. The range is from 1 to

255 inclusive; the default is 12 months.

7. Press MENU.

• Lamp Life Notification: To have the DHD Controller send a message to the
destination e-mail address when the lamp hour counter reaches a certain threshold,
select Lamp Life Notification from the E-Mail Notification menu. Then:

1. Highlight Enable and press ENTER.

2. Highlight On and press ENTER.

3. Press MENU.

4. Highlight Lamp Hours and press ENTER.

Y

5. Press or to set the notification threshold in hours. The range is from 100 to

10,000 hours; the default is 1,000 hours.

6. Press MENU.

• Customer Information: Select Customer Information from the E-Mail Notification
menu to supply this information to the DHD Controller, which includes it in all e-mail
notification messages. Six lines (up to 30 characters per line) of text are provided;
use them however you wish.

1. Press or repeatedly to select a line of text to edit.

2. Press ENTER.

3. Press or repeatedly to set the highlighted character.

PRE

4. Press (or ) to select the next (or previous) character. Use the and

buttons to change it.

5. Press ENTER when you have finished editing that line of text.

6. Repeat Steps 1 through 5 for each line of text you want to edit.

7. Press MENU when you have finished entering customer information.

• E-Mail Calibration Data: To have the DHD Controller collect all calibration data,
attach it to a message and send it to the destination e-mail address, select E-Mail
Calibration Data from the E-Mail Notification menu. To confirm this action, select Ye s
and press ENTER.

To cancel and return to the previous menu, select No.

IMINAR

L

74 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

• Remote Network Control: Select Remote Network Control from the Network menu
to enable or disable control of the DHD Controller via an IP connection (typically using a
web browser). Set it to On to allow all incoming remote network connectivity. Set it to
Off to disable any incoming network communication that was not initiated by the DHD
Controller.

Operation

Note

Display Device - Auto Calibration: Auto Calibration is a process in which the projector
quickly optimizes critical display parameters such as size, position and pixel tracking,
based on the type of incoming video signal. Auto Calibration allows you to quickly get the
image “in the ballpark” after which you can perform further calibration, if necessary.

To perform an Auto Calibration, select Display Device from the Service Menu. Then,
select Auto Calibration and set it to Yes.

What an “Auto Calibration” Does: Auto Calibration sets the following parameters to
their default values:

• Contrast and Brightness

• Auto Input Level (off)

• Detail (if video source)

• Filter

• Luma Delay

Auto Calibration also optimizes the following settings, based on the characteristics of the
incoming signal:

• Pixel Tracking

• Pixel Phase

• Size and Blanking

• Vertical Stretch

•Position

• Input Levels

This setting has no effect on the E-Mail Notification or Auto
Firmware Upgrade functions.

Y

IMINAR

L

PRE

If additional fine-tuning is necessary after performing an Auto Calibration, use the controls
in the Picture menu (refer to page 56) or Calibration menu (refer to page 65).

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 75

Operation

Color Space: Select Color Space from the Service menu to choose the color space of
the source signal for HDMI, RGB, and component connections.

• The default setting, Auto, functions as follows:

• HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or
range data, the DHD Controller uses that information. Otherwise, for RGB sources,
the DHD Controller uses the RGB-Video color space. For component SDTV and
EDTV resolutions, REC601 is used. For other component video resolutions,
REC709 is used.

• RGB: If Hsync or Vsync signals are present, the DHD Controller uses the RGB-PC
color space. Otherwise, REC601 is used for SDTV and EDTV sources, and REC709
for all other sources.

• Component: For SDTV and EDTV resolutions, the DHD Controller uses the
REC601 color space. For all other resolutions, REC709 is used.

In most cases, the Auto setting determines the correct color space to use. If it does not,
you can force the DHD Controller to use a specific color space. Choose one of the
following:

• REC709 sets the color space matrix to that defined in ITU-R BT.709.

• REC601 sets the color space matrix to that defined in ITU-R BT.601.

• RGB-PC uses RGB color space and sets black at 0,0,0 RGB and white at
255,255,255 RGB, assuming an 8-bit image.

• RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at
235,235,235, assuming an 8-bit image, to correspond to the luminance values defined
in digital component standards.

Y

IMINAR

Triggers: Select Triggers from the Service menu to configure the 12-volt trigger outputs.
You can assign one or more trigger outputs to each aspect ratio. Those triggers are then
activated by selecting that aspect ratio.

L

Miscellaneous: Select Miscellaneous from the Service menu to set the following options:

• Language: Select Language from the Miscellaneous menu and press the up- or

down-arrows to select the OSD Language (English, Français, Deutsch, Italiano,
Español, Svenska, Traditional Chinese, Simplified Chinese, Português or Russian).

PRE

•OSD Timer: Select OSD Timer from the Miscellaneous menu to set the OSD Timer,
which controls how long the menus remain on-screen after selecting them. Select from
5 to 60 seconds, in one-second increments. Or, set the timer to 0 (disabled) if you want
the menus to remain on-screen indefinitely.

•OSD Messages: When you select a new aspect ratio, input source or memory preset,
the DHD Controller briefly displays an on-screen message confirming your new
selection. To prevent the display of these messages, select OSD Messages from the
Miscellaneous menu to and set it to Off.

•Blank Screen Color: Select Blank Screen Color from the Miscellaneous menu to
select the color that appears when no incoming signal is present. The range is from 0
to 255 inclusive for each color component (red, green and blue).

• Sidebar Color: Select Sidebar Color from the Miscellaneous menu to change the
color of the inactive image area. The range is from 0 to 255 inclusive for each color
component (red, green and blue). The inactive image area is on either side of the active
image area when using the 4:3 aspect ratio.

76 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

• Film Mode: Use Film Mode to smooth out moving images from interlaced,
standard-definition (SD) sources. In most cases, the DHD Controller detects the proper
“pull-down” rate and vertical frequency. However, if your source is jittery and/or tearing
you may want to enable Film Mode to ensure stable processing for that source.

•CUE (Chroma Upsampling Error) Correction: Some DVD players use MPEG
decoders that do not correctly “upsample” the 4:2:0 format chroma information on the
DVD to the 4:2:2 or 4:4:4 format required by the video encoder of the display device.

This so-called “chroma bug” sometimes causes streaky or spiky horizontal lines
running through the chroma channel. It is most noticeable in static, interlaced scenes
and on diagonal edges (especially red ones). Set CUE to On to correct this issue.

• Remote Code: Select Remote Code from the Miscellaneous menu to set the infrared
(IR) code set to which the DHD Controller will respond. By default, it is set to 17. You
can change this setting if either:

• Another device in the theater (a DVD player, for example) is responding to

commands from the DHD Controller remote control (Figure 2-5) in ways that are
unpredictable or undesirable.

• You have multiple DHD Controllers and want to control them independently, as

opposed to broadcasting commands from a single remote to all of them. In this
scenario, you can use multiple remotes programmed to use different IR codes. Or,
you can use a single remote and change the IR code as needed to address a
specific DHD Controller.

Y

Operation

Use the DHD Controller front-panel keypad to change the IR code to

Tip

When you change a remote code on the DHD Controller, you must re-program the
DHD Controller remote control to send that same code. To do this:

1. Press and hold the LIGHT button on the
remote control for approximately three
seconds, or until the LED on the remote lights
solid red.

2. Enter a new two-digit code between 00 and 31
inclusive. Include a leading zero for single-digit
codes; for example, enter 9 as “09.”

3. The LED turns off to confirm the code change. If you enter an invalid code, the LED
flashes for three or four seconds. Try again, entering a valid code.

which the controller will respond. Then, change the code sent by the
remote to match as described below.

IMINAR

L

LIGHT

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 77

Operation

Sync Threshold: Select Sync Threshold to adjust the threshold at which negative pulses
on the component video green/luma channel are interpreted to be sync pulses.

Sync Threshold adjustment is occasionally necessary when a DVD player or HDTV source
signal drops “below black” (for example, during scenes with explosions or when subtitles
are present) and causes the projector to temporarily lose sync. If the sync level from the
source is persistently too low, the display device won’t sync with the source at all.

The range is from 0 (approximately 60 millivolts (mV)) to 15 (approximately 300 mV).

HDMI: Select HDMI from the Service menu to set the following options affecting
communication between HDMI sources, the DHD Controller and the SC-50d/SC-60d.

• HDMI EDID Extension: Extended display identification data (EDID) is a data structure
provided by a display device to describe its capabilities to a graphics card. It is what
enables a modern personal computer to know what kind of monitor is connected.

Y

Some modern display devices provide more information via EDID than others, in the
form of “extensions.” Some computer graphics cards do recognize or properly interpret
this extended EDID information.

Select HDMI EDID Extension from the HDMI menu to specify whether or not the EDID
extensions from the display device are passed through to the 3Dimension Processor
and to the sources connected to the HDMI 1, HDMI 2, HDMI 3 or HDMI 4 inputs. By
default, the extensions are on. Change these settings only if HDMI EDID incompatibility
issues arise.

•Audio Format: Select Audio Format from the HDMI menu to choose an option for
routing the audio signal from an HDMI source. With the SC-50d/SC-60d, the
recommended setting is HDMI Out (Audio Only). (This is also the default setting.)

•CEC: This control chooses whether or not the DHD Controller responds to HDMI CEC
control messages from a disc player, set-top box or other HDMI source.

IMINAR

L

The default setting is On. For more information about CEC, refer to Using HDMI CEC
Messages on page 94.

Note

PRE

The DHD Controller does not transmit HDMI CEC control
messages from the “HDMI Audio Out” connector, regardless of the
CEC setting.

78 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Front Panel Brightness: Select Front Panel Brightness from the Service menu to adjust
the brightness of the front-panel LED and LCD status indicators.

Operation

Logo LED

• Logo LED: Select Logo LED from the Front Panel Brightness menu to adjust the
brightness of the large, illuminated logo on the left side of the display. The range is from
0 (off) to 31.

Note

• Standby LED: Select Standby LED from the Front Panel Brightness menu to change
the behavior of the front-panel STANDBY indicator LED. When set to ON, the LED
lights amber when the system is in standby mode; otherwise, it is off. When set to OFF,
the LED is always off.

Note

During a firmware upgrade, this LED lights at full brightness
regardless of the Logo LED setting.

During a firmware upgrade, this LED lights at full brightness
regardless of the Standby LED setting.

LCD

Standby LED

Y

IMINAR

L

• LCD: Select LCD from the Front Panel Brightness menu to adjust the brightness of the
front-panel LCD. The range is from 0 (off) to 4.

Auto Power Off: Select Auto Power Off from the Service menu to have the
SC-50d/SC-60d turn itself off after a period of inactivity (no source signal present).

•Enable: By default, Auto Power Off is disabled. To enable it, select Enable from the
Auto Power Off sub-menu and set it to On.

•Hours: The default time-out period is eight (8) hours; the range is from 1 to 24 hours.

System Reset: To reset ALL controller settings (including image settings) back to their

factory defaults, choose System Reset from the Service menu.

A confirmation message appears. Select Yes to continue with the reset or select No to
cancel.

Caution

This action is not undoable. Proceed with caution! Before you

perform a System Reset, save your “Custom” Memory Presets
(page 62) and ISF Day/Night Memory Presets (page 68).

PRE

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 79

Operation

Notes:

Y

IMINAR

L

PRE

80 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Maintenance and Troubleshooting

5. Maintenance and Troubleshooting

The lamp should be replaced when it reaches the end of its life (typically 2,000 hours), or
sooner if a noticeable degradation in brightness occurs.

Keep track of the number of hours the lamp has been in use and be aware of any changes
to brightness. These indicators will help you effectively maintain operation of the projector.
To find out how long the currently-installed lamp has been in service, select Lamp Info.
from the Display Device - Configure menu (available by selecting Service -> Display

Device -> Configure -> Lamp Info, in sequence).

For lamp or filter replacement, please contact your nearest Runco authorized
service center or Runco dealer. Do not attempt to replace the lamp yourself!

1. Turn off the projector and unplug the power cord. Allow the projector to cool down for

approximately 15 minutes prior to removing the lamp assembly for replacement.

2. Remove the four screws securing the Left (Exhaust) Side Panel (see Figure 2-1) to the

projector. Then, remove the panel.

3. To open the lamp compartment cover: Using a Phillips screwdriver, turn the

captive screw on the lamp compartment cover counter-clockwise to access the lamp
compartment (see Figure 5-1).

Lamp Compartment Cover
Retaining Screw

IMINAR

Y

L

5.1 Lamp Replacement

PRE

Figure 5-1. Opening the Lamp Door

4. Remove the old lamp.
a Unscrew the three (3) captive screws securing the lamp using a #1 Phillips

screwdriver.

b Carefully remove the lamp from the projector. Place the old lamp in a location where

it cannot fall or be bumped.

WARNING

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 81

Handle lamps with extreme caution. Dispose of lamps according to
safety regulations for your area. Discard the lamp using safe
disposal/recycling practices or contact your Runco dealer for a
possible re-lamping program.

Maintenance and Troubleshooting

5. Install the new lamp:
a Take care to align the new lamp properly in the correct orientation inside the lamp

compartment.
b Press firmly on the lamp to properly seat it.
c Secure the lamp by tightening the three (3) captive screws.

6. Close the lamp compartment cover and tighten the captive screw.

Note

7. Re-attach the Left (Exhaust) Side Panel to the projector.

The lamp will automatically turn on again when the cover is closed.

Y

IMINAR

L

PRE

82 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

Maintenance and Troubleshooting

Table 5-1 provides some general guidelines for troubleshooting problems you may
encounter with the SC-50d/SC-60d. If the suggested solutions fail to resolve the problem
or if you encounter an issue not described here, please contact Runco Technical Support.

Table 5-1. Troubleshooting Chart

Symptom Possible Cause(s) Solution

The projector does not turn
on.

• The SC-50d/SC-60d is not
plugged in and switched
on, or the AC outlet is not
active.

• The DHD Controller is not
plugged in and switched
on, or the AC outlet is not
active.

•The remote control
batteries have run out.

• The serial connection from
the DHD Controller to the
SC-50d/SC-60d is
incorrect.

IMINAR

• Ensure that the
SC-50d/SC-60d is
plugged in and switched
on, and that the AC outlet
is active.

• Ensure that the DHD
Controller is plugged in
and switched on, and that
the AC outlet is active.

• Replace the batteries.

• Ensure that the RS-232
output from the DHD
Controller is properly
connected to the RS-232C
input on the
SC-50d/SC-60d (see
Figure 3-10).

Y

5.2 Troubleshooting Tips

The projector and DHD
Controller are both on, but
there is no picture and
on-screen menus do not
appear.

The display is on and menus
appear, but there is no
picture.

A projected image from a
DVD is split or otherwise
scrambled.

Image geometry is incorrect. • Incorrect aspect ratio

• Lens cover is on or shutter
is closed.

• Lamp failed to ignite.

• Faulty or incorrect video

PRE

connection between the
DHD Controller and the
SC-50d/SC-60d.

• Incorrect source selection.

• Source component is not
turned on.

• Source component is
connected incorrectly or
not at all.

• DVD player is connected
to the Component input
and set to progressive
scan mode.

selection.

L

• Ensure that the lens cover
is off and the shutter is
open.

• Ensure that the lamp door
is closed. If it is and the
problem persists, replace
the lamp.

• Ensure that the HDMI
output from the DHD
Controller is properly
connected to the Slot 2
DVI-I input on the
SC-50d/SC-60d (see
Figure 3-10).

• Select the correct source.

• Turn on the source
component.

• Check connections from
source component to DHD
Controller.

• Turn off progressive scan
on the DVD player. Or,
connect the DVD player to
the HD1 or HD2 input.

• Select a different aspect
ratio.

Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual 83

Maintenance and Troubleshooting

Table 5-1. Troubleshooting Chart (continued)

Symptom Possible Cause(s) Solution

The display is jittery or
unstable.

Image is too bright and/or
lacks definition in the bright
areas of the image.

Image appears “washed out”
and/or dark areas appear too
bright.

Colors in the image are
swapped; for example, reds
appear blue or vice versa.

The display freezes suddenly. • Excessive voltage noise on

IMINAR

L

The projector will not turn
back on after it was powered
down, or the image disap­pears during operation.

• Poor-quality or improperly
connected source.

• The horizontal or vertical
scan frequency of the
input signal may be out of
range for the projector.

• Contrast is set too high. • Lower the contrast setting.

Y

• Brightness is set too high. • Lower the brightness

• The Red/Pr, Green/Y or
Blue/Pb outputs from the
source are connected to
the wrong inputs on the
DHD Controller.

the AC or ground input has
interrupted the projector’s
ability to lock on to a
signal.

• The projector will not turn
on for two minutes after
power-down, to protect
the lamp.

• The lamp has failed.

• Ensure that the source is
properly connected and of
adequate quality for
detection.

• Correct at the source.

setting.

• Ensure that the source
outputs are connected to
the correct DHD Controller
input.

• Power down the projector
and disconnect from AC.
Then, plug in again and
power up as usual.

• Wait until the LED at the
front of the DHD Controller
turns red.

• Replace the lamp.

PRE

AutoScope lens motor does
not work.

• The motor is not plugged
in or the AC outlet is not
active.

• The motor is not
connected to a trigger
output on the DHD
Controller.

• Incorrect trigger
assignment.

84 Signature Cinema™ SC-50d/SC-60d Installation/Operation Manual

• Ensure that the motor is
plugged in and that the AC
outlet is active.

• Check the trigger
connection between the
lens motor and DHD
Controller (Figure 3-17).

• Correct the trigger
assignment (refer to

Installing and Adjusting
the CineWide
Anamorphic Lens on

page 45).
