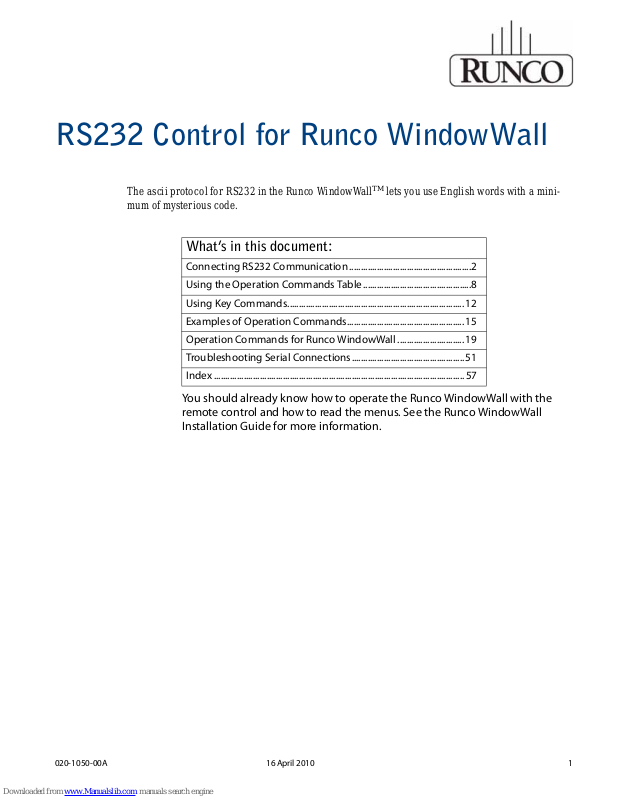

Runco RS232, WindowWall User Manual

RS232 Control for Runco WindowWall

The ascii protocol for RS232 in the Runco WindowWallTM lets you use English words with a mini­mum of mysterious code.

What’s in this document:

Connecting RS232 Communication.....................................................2

Using the Operation Commands Table...............................................8

Using Key Commands.............................................................................12

Examples of Operation Commands...................................................15

Operation Commands for Runco WindowWall ............................. 19

Troubleshooting Serial Connections.................................................51

Index .............................................................................................................57

You should already know how to operate the Runco WindowWall with the
remote control and how to read the menus. See the Runco WindowWall
Installation Guide for more information.

020-1050-00A 16 April 2010 1

Connecting RS232 Communication

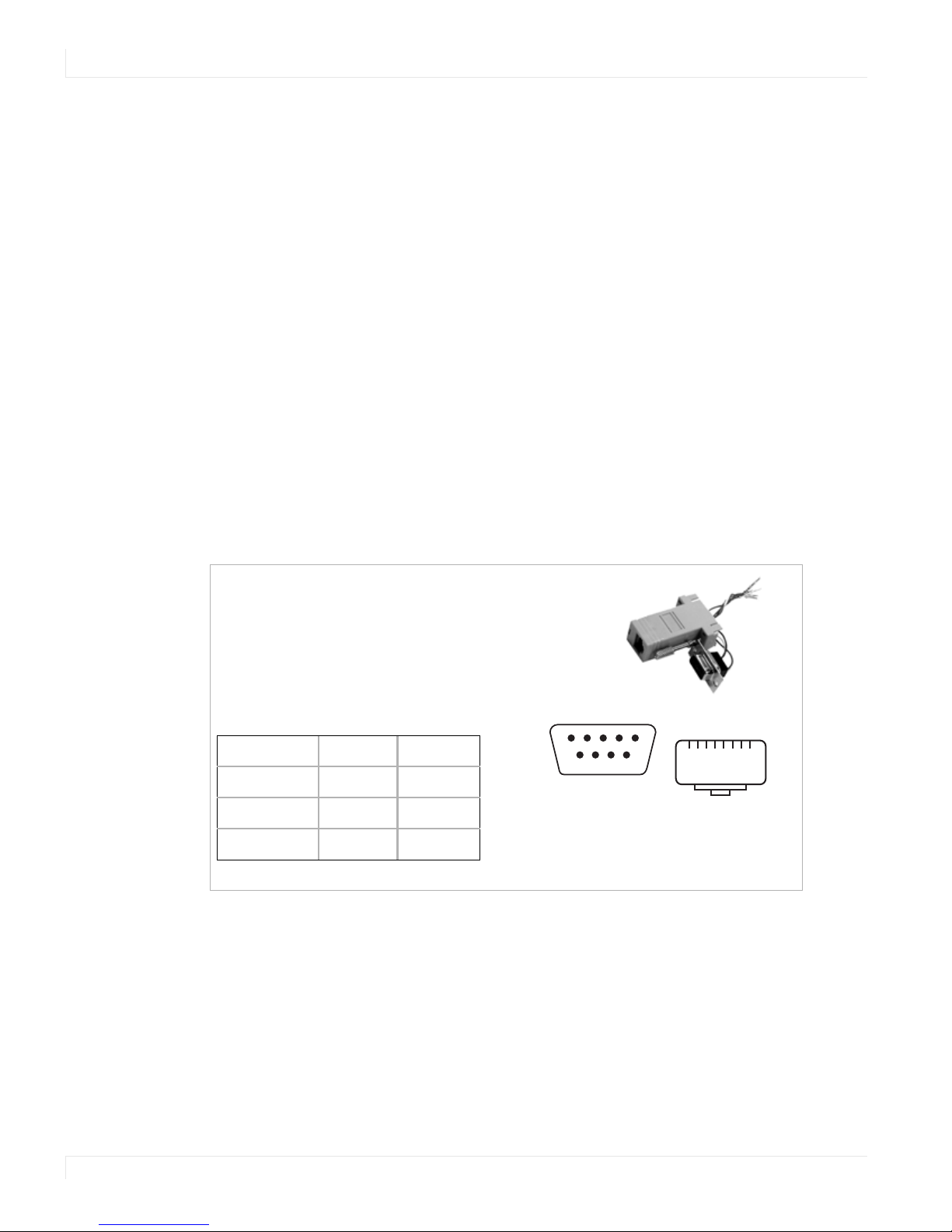

Wiring the adapter

To go from 9-pin D-sub serial connector on
the back of the computer to an RJ45
connector, use a standard RJ45-to-9-pin
adapter. Wire it internally as shown. The
wiring shown for this adapter is correct for
straight-through cables. Straight-through
cables are wired 1-to-1, 2-to-2, etc.

RJ45 9-pin

Yellow wire 6 3

Black wire 3 2

Green wire 5 5

RJ45 looking into
the socket

Connecting RS232 Communication

RS232 control is not necessary for operation, but is a convenient way to control tiles
from a computer at a distance. If your installation will not use RS232 control, skip this
section.

Everything you can do with the remote, you can do with RS232 commands. Plus, you
can send inquiries to the tiles and find out the current settings and values.

RS232 connections are made with cables like Ethernet straight-through cables. This is
the common type of LAN connection cable sometimes called a Cat 5 cable.

Note: It is important that the RJ-45 cable has “straight through” connections. To see if your

cable is correct, hold the two connectors side by side with the ends pointing in the same
direction. Look at the sides of the connectors that do not have the locking tab. If the colors of
the wires inside the connectors are the same left to right for both connectors, this is the
correct cable. If the colors are mirror reflections of each other, it is the wrong type.

You need an adapter to go from the computer’s 9-pin serial output connector to an
RJ-45 connector. Adapters of this type are readily available at computer and
electronic supply stores. The adapter is not pre-wired. You will make three
connections inside the adapter, as described below.

2 RS232 Control

You will only need one adapter; all the rest of the connections will be RJ-45 to RJ-45
using the RS485 In and Out connectors. RS485 is used after the first tile because the
signal it carries is more reliable and less disturbed by electrical interference.

5 4 3 2 1

6789

1

8

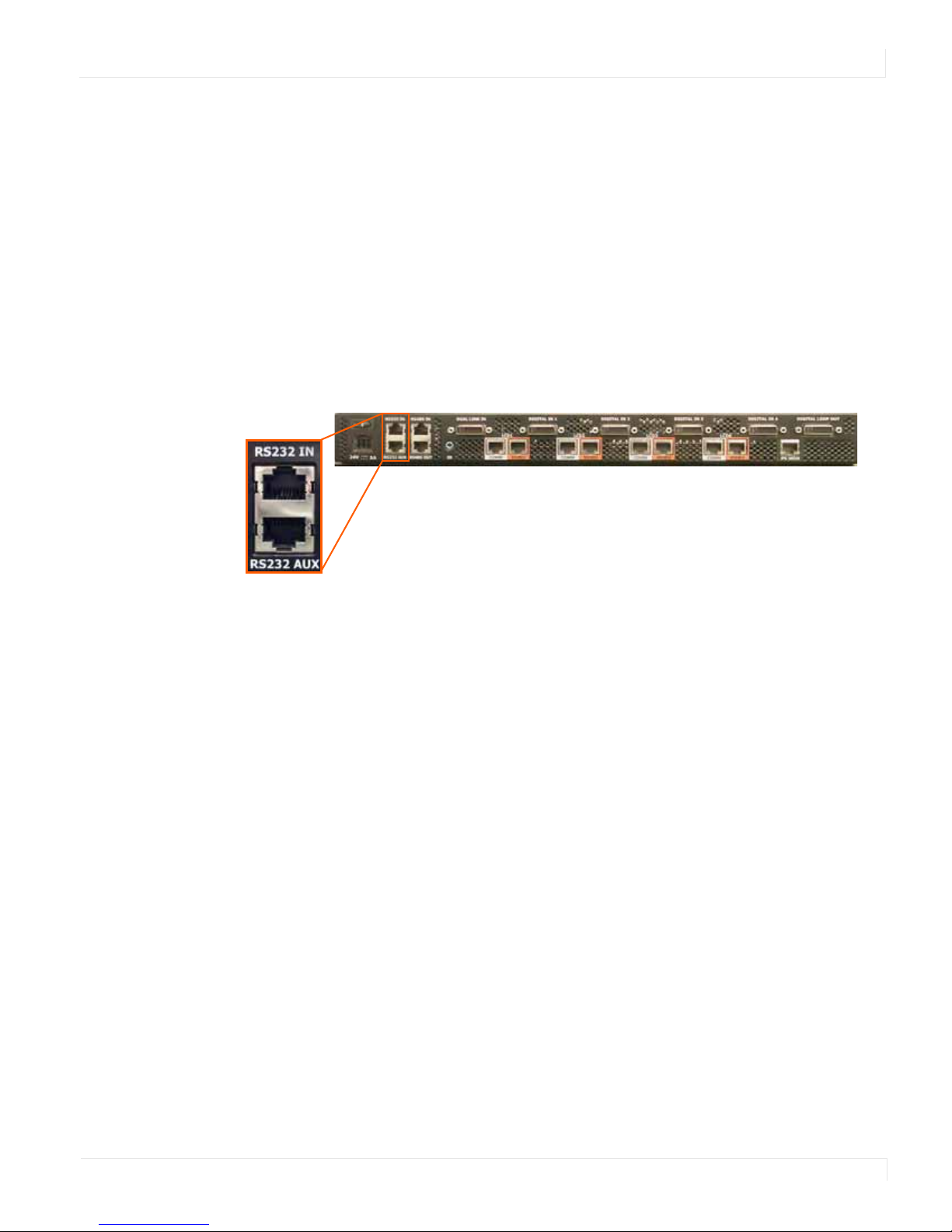

Connecting RS232 Cables

Connect this to Quad Input Manager Module A only ­make sure you don’t connect to other Quad Input
Manager Modules

1 Connect the 9-pin adapter to the serial output connector of the controlling

computer. (This computer does not have to be the same one as the computer
used as a picture source.) The serial output is sometimes called the Comm Port,
and sometimes there is more than one.

Note: Some computers have an RS485 output. You can connect this directly into the nearest

tile’s RS485 In connector.

2 Connect this first tile’s RS485 Out connector to the next tile’s RS485 In connector.

For more information about configuring RS232 communications, see the
WindowWall Installation Manual.

Connecting RS232 Communication

RS232 Control 3

How to Form Commands

How to Form Commands

Basic Rules

• RS232 commands consist of a string of ascii characters.

• All numeric values are decimal; you do not need to use hex or binary digits in the
commands.

• Spaces or tabs may be used in the commands to separate the parts and make
them easier for humans to read. This “white space” is ignored by the command
reader in the Runco WindowWall.

• You cannot use commas, slashes, or other punctuation as separators. Periods
have a special purpose in commands.

• Commands are not case sensitive, so you can use upper and lower case letters as
you wish, EXCEPT the first two letters of every command must be both upper or
both lower case. After that, it doesn’t matter.

• When a command requires a response, wait for the response before sending
another command to another tile.

• All commands must end with a carriage return character, shown as [CR] in the rest
of this document. Depending on your serial communications program,
commands may automatically be ended with a [CR]. If you are uncertain whether
your application automatically does this, send a test command such as ky 00
menu without a [CR]. If the menu displays on screen, you will not need to insert a
[CR]. If nothing happens, you will need to add a [CR] at the end of each
command.

Types of Commands

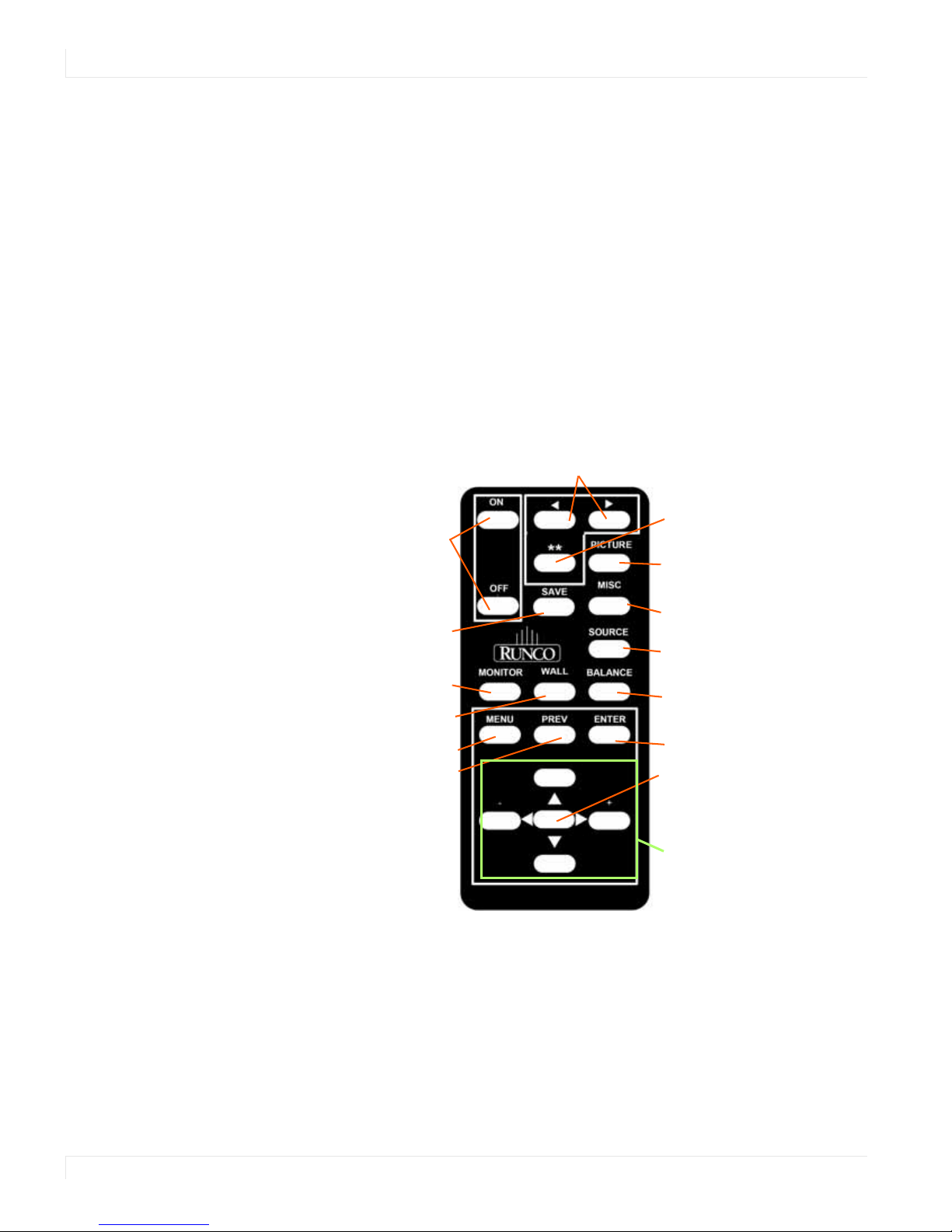

Key Commands

Key commands simulate pressing a key on the remote control. This is not very useful
unless you can see the screen, because you won’t know where the selector is in the
menu.

Operation Commands

Tip: Operation commands are more flexible and easier to use than Key commands

Operation commands tell the tile exactly what to do.

• Set green in the white color balance to 27

• Save the current settings into memory slot 23

• Recall memory slot 7

Operation commands can ask questions and get answers, such as:

• What is the state of the backlights? (on, off, failed, etc.)

• Which connector is used if memory slot 3 is recalled?

4 RS232 Control

String Commands

String commands send strings of characters to the tile.

String commands can also retrieve information from the tile. For instance,

ST A1 BUILD.DATE? [CR]

returns the build date of the firmware:

ST A1 BUILD.DATE= "JUN 15 2009 08:48:24"

Addresses in Commands

All commands must be addressed. Each tile has a two-character ID that is unique to
it. The first character is A-P and the second character is 1-4. The first character is
called the Group ID, and the second one is the Unit ID. The Group ID is the Quad
Input Manager Module address and the Unit ID is the processor on that module.

• Commands can be addressed to individual tiles: A1, B2, C3, D4. When this form

of address is used, the tile will respond to the host computer.

How to Form Commands

Note: Whenever a command is sent to an individual ID, wait for the response before

sending a second command.

• Commands can be addressed to all tiles: **

• Commands can be addressed to a group of tiles: *4 (all tiles with 4 as the Unit ID),

A* (all tiles with A as the Group ID).

Command Structure

All commands start with two letters:

OP or op for operations commands (but not Op or oP)

KY or ky for key commands (but not Ky or kY)

ST or st for string commands (but not St or sT)

The next two characters are the address.

The next section of the command is the operation, the remote key, or the string, the
main part of the command telling the tile what to do.

A few commands have a ‘target.’ For example, to adjust white balance, you must state
which color to change: red, green, blue, or all. Or to determine whether a memory
slot is empty, you must target the memory slot number. The target is always in
(parentheses).

RS232 Control 5

How to Form Commands

The next character is the command function symbol. There are five function symbols:

Function Symbol Action on the tile

Set = Makes the tile take that value

Get ? Asks what the value is

Increment + Adds 1 to the current value

Decrement – Subtracts 1 from the current value

Execute [none] Performs an action, such as a reset

• Some commands are Execute only, such as resetting the lamp hours.

• Others are Set and Get only, such as setting the pattern or asking what the
pattern is.

• Some are Get only, such as getting the horizontal frequency of the source.

• And some are Set, Get, Increment, Decrement, such as color balance.

• The last part of the command, for Set commands only, is the value. The value
may be a number or one or two words.

Sample Operation Commands

Command Example

op A3 auto.position.disable = DISABLED [CR]

1

Disable the auto position

Explanation

feature in tile A3

op G4 auto.position.disable ? [CR]

Is the auto position feature
enabled or disabled in tile G4?

op A* brightness + [CR]

Increment the brightness in all
tiles with Group ID A

op ** window.reset.size [CR]

Makes all the Zoom and
Viewport settings return to the
default values.

op A1 center.point (red) ? [CR]

What is the value for the red
pixel at the center (sampling)
point in tile A1?

1

The command line must always end with a carriage return character, noted in the exam­ples above as [CR]. The Runco WindowWall will not act on the command unless the last
character is a carriage return character (ascii hex value: 0D).

6 RS232 Control

Sample Key Commands

How to Form Commands

Command

Example

Explanation

1

ky A1 menu [CR] Press the MENU button on the remote for the entire

wall

ky A1 down [CR] Press the down arrow on the remote for the entire

wall

ky A1 enter [CR] Press the

ENTER button on the remote for the

entire wall

1

As you can see from Sample Key Commands sequence, if you are not
looking at the screen, you won’t know what you just did. You don’t know
where the cursor was at the start.

Sample String Commands

Command

Example

st A1 revision ?[CR] What is the revision level of tile A1?

Explanation

RS232 Control 7

Using the Operation Commands Table

Using the Operation Commands Table

The Operation Commands table starts on page 19.

Operations and Operation Numbers

The commands are listed in alphabetical order by Operation. In a command, you may
use either the ascii text of the operation or its Operation Number. For instance, to
get the tile power, all these commands are equivalent:

op A3 display.power ? [CR]

opA3display.power? [CR]

op A3 1094 ? [CR]

opA31094? [CR]

OP A3 dIsplAy.Power ? [CR]

Tar g et

If the Target column has anything in it, the command must use one (and only one) of
the targets, and it must be in parentheses. Use either the ascii text or the Target
Number. These are equivalent commands:

opa2 center.point (red) ? [CR]

opa21110(0)? [CR]

8 RS232 Control

Command Types Allowed

Use only the types listed in the first column.

Symbol Meaning Example Result

Using the Operation Commands Table

= Set tells the tile to

take the value
that follows

? Get asks for the

value

+ Increment increments the

value

– Decrement decrements the

value

op A* white.balance (all) = 100
[CR]

op A1 contrast ? [CR]

op ** gray.balance(red) + [CR]

op ** white.balance(green) – [CR]

All tiles with a Group ID
of A (and Unit ID of
anything) will set their
white balance levels for
red, green and blue to
their maximum of 100

Tells tile A1to send the
value of contrast to the
host computer. Note
that the tile will only
respond if it is addressed
individually.

Makes all the tiles
increase their Gray
Balance value by one.
Note that any tile whose
value is already at the
top (in this case 15) will
not increase it.

Makes all the tiles
decrease their White
Balance value by one.
Any tile that had a white
balance of 1 before the
decrement will not
change.

[none] Execute means the

command is
executed. No
character
follows the
command (or
the Target, if it
has one)

Note: Any word or character or phrase that appears between [square brackets] is for

information or clarification only. It is not sent to the tile or received from it.

op ** slot.save (0) – [CR]

RS232 Control 9

Saves slot 1 to memory.

Using the Operation Commands Table

Values

The Value may be sent as text or as a value number.

Text values can be sent in upper or lower case or with mixed case. They are listed in
UPPER CASE in the table to make it easier to see the difference between the value
and any [explanation].

[varies] means the range of acceptable values and replies varies with the type of
source.

Reading the Response

Two commands establish the features of the replies. (Remember the tiles only reply
when individually addressed.)

ascii.eol determines the End Of Line character the tile will send at the end of
every command.

ascii.response determines how you want the replies to look when they come
back to you.

• Symbolic means the replies will come back as ascii characters, if the value
column allows them.

• Numeric means that the Value Number will come back

• Data means that only the value is returned, not the preceding information

The following table shows examples of each setting for ascii.response and
three possible responses:

Command Sent Response Explanation

op A1 ascii.response = symbolic [CR] OPA1ASCII.RESPONSE=SYMBOLIC

op A1 pattern ? [CR] OPA1PATTERN=BLACK

The tile received the
command and has set the
response type to symbolic
and replies will be ascii
characters

The current test pattern is
black.

10 RS232 Control

Using the Operation Commands Table

Command Sent Response Explanation

op A1 ascii.response = numeric [CR] OPA11137=1

op A1 pattern ? [CR] OPA11036=6

op A1 ascii.response = data [CR] ACK

op A1 pattern ? [CR] 6

Note: Replies are always in ALL CAPS, regardless of how the query was sent.

The tile received the
command and has set the
response type to numeric
and will reply with the
value number

The current test pattern is
black.

The tile received the
command and has set the
response type to data and
will reply with only a
number

The current test pattern is
black.

RS232 Control 11

Using Key Commands

1

2

4

3

5

6

7

8

9

10

11

12

13

14

15

Using Key Commands

Key commands always start with ky or KY. There are two kinds of key commands,
command word and numeric equivalent commands.

Command Word Key Commands

Command word key commands simulates pressing a button on the remote. For
example, the command:

ky A1 menu [CR]

simulates pressing the menu button. All the other named buttons on the remote
control can be “pressed” in this manner by using the name on the remote. This
picture shows the command for each named key:

Note: Keep in mind that you need to point the remote towards where the IR sensor is

mounted.

12 RS232 Control

Remote Control Buttons

Number Definition

1Turn the tile ON/OFF.

2 Move the target left or right.

3 Set the target to all at once.

4 With each press, go to Picture, Input Levels, Aspect

Ratio, Picture Position, Zoom Top & Left, Zoom
Bottom and Right.

5 Press once for Miscellaneous Options, twice for

Backlight Settings, three times for Serial Port
Settings.

6 Press once for Recall, twice for Save.

Using Key Commands

7 Takes you to the next Quick Configure setting (Big

Picture, A1, A2, etc.)

8 Press once for the Color Balance menu.

9 With each press, go to Unit Status, Serial Port Status,

Setup Summary and Test Patterns.

10 Open the Wall Configuration menu.

11 Bring up the on-screen menus.

12 Return to the previous menu.

13 Press to select a menu option.

14 Move highlight to the top line of the menu.

15 Arrow keys move the highlight around on the menu

to select the option you want.

RS232 Control 13

Using Key Commands

Numeric Equivalent Commands

Numeric equivalent commands also simulate pressing a remote button. For example,
the command:

ky A1 r43 [CR]

simulates pressing the MENU key on the remote. All the keys have “R” numbers
associated with them, even keys that don’t exist on the real remote.

In the illustration below, the white buttons don’t exist on the remote, and the shaded
buttons contain the command key equivalent:

RØØ

on

R1Ø

target.left

R20

off

R3Ø R31

R40

monitor

R50

menu

R6Ø

R70

left

R8Ø

RØ1

R11

**

R21

save

R41

wall

R51

prev

R61

up

R71

top

R81

down

RØ2

target.right

R12


R22

misc

R32

source

R42

balance

R52

enter

R62

R72

right

R82

Note: Although they don’t exist on the remote, there are two more key commands that can

be used: target.up and target.down.

14 RS232 Control

Examples of Operation Commands

Recalling Memories

Remember: The slot target number used in the command is one less than the memory
slot number as seen in the menus. For example, to recall memory slot #40, in
commands you’d specify slot.target = 39. Likewise, to recall the first slot,
you’d specify slot.target = 0.

Recalling Memories Directly

Use slot.recall ( ). Put the memory number (minus 1) in the parentheses.
What is the difference between slot.recall.target and slot.target?

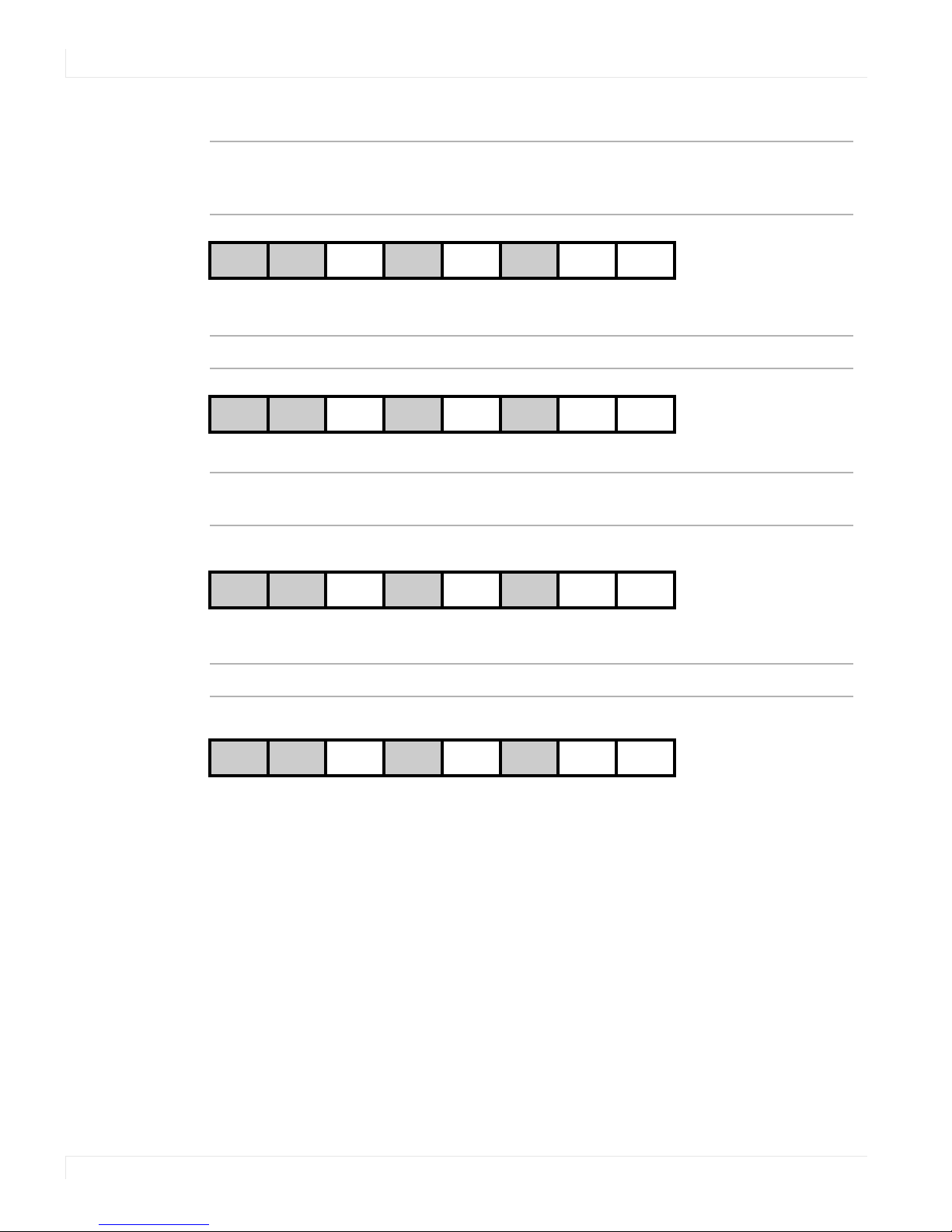

Assume that memory slots #1, #2, and #6 are used (full). Memory slots #3, #4, and #5
all the others are empty, as shown in the illustration below:

1 2345678

Examples of Operation Commands

The following series of example commands show the difference between
slot.target and slot.recall.target and which memory slot the
command is pointing to.

op A1 slot.target = 3 [CR]

1 2345678

▲

op A1 slot.action (save) [CR]

1 2345678

▲

op A1 slot.target = 4 [CR]

This sets the memory slot to #4 in tile A1. Any further
commands that need a memory slot will use this one
until it is changed.

This saves all the current settings into memory
slot #4 with the default memory name.

This sets the memory slot to #5, which is empty.

1 2345678

▲

RS232 Control 15

Examples of Operation Commands

op A1 slot.action (recall) [CR]

This action fails, because there is nothing in
slot #5. Nothing happens to the picture on
the screen; it does not change.

1 2345678

▲

op A1 slot.recall.target = 5 [CR]

Sets the memory slot to #6.

1 2345678

▲

op A1 slot.action (recall) [CR]

This recalls slot #6 because the target was
set to #6 in the previous command.

1 2345678

▲

op A1 slot.action (recall) [CR]

Recalls settings from memory slot #1.

1 2345678

▲

16 RS232 Control

Asking (Get) and Telling (Set)

To ask about a value or condition, use a question mark [ ? ]. No character should
follow the question mark. To set a value or condition, use an equal sign [ = ]. A value
must follow the equal sign.

Get and Set Commands Compared

Examples of Operation Commands

Command Example

op A1 contrast ? [CR]

op A* contrast = 128 [CR]

op A* contrast ? [CR]

1

Asks what the contrast is set to on tile A1.

Sets the contrast on all tiles connected to Quad Input
Manager Module

Won’t work. All queries [ ? ] must be addressed to

Explanation

A to 128.

individual tiles only; no asterisks [ * ] in the
command line.

1

The command line must always end with a carriage return character, noted in the exam­ples above as [CR]. The Runco WindowWall will not act on the command unless the last
character is a carriage return character (ascii hex value: 0D).

RS232 Control 17

Examples of Operation Commands

Types of Responses

Response from the tile can be Symbolic (mostly text), Numeric (mostly numbers), or
Data.Whenever a command is sent to an individual ID, wait for the response before
sending a second command.

Symbolic Response Examples

Command and Response

Examples

opA1 auto.lamp ? [CR]

OPA1AUTO.LAMP=DISABLE

Numeric Response Examples

Command and Response

Examples

op A1 auto.lamp ? [CR]

OPA11037=0

Data Response Examples

Explanation

Would get the Symbolic response

Text in responses are all caps, regardless of what you sent.

Explanation

Would get the Numeric response

Notice that you can send commands as text and get the
response as numeric. 1037 is the Operation Number for
auto.lamp, and 0 means Disabled. It works the other way,
too. Ask the question with all numbers and get a text
response, if ascii.response is set to Symbolic.

Command and Respond

Examples

op A1 auto.lamp ? [CR]

0

Would get the Data response

You get only the answer and only in numeric form. This is
used mainly when a sequence of commands is sent and
the data is acted upon by the program. For instance, the
program might query each tile as to its lamp state, on or
off, then send a Lamp On command to just those tiles that
are off.

Note: Remember: tiles only respond when they are individually addressed. If you want to

know a status or a value in six different tiles, you must ask the question six times, and you
must wait for the response from each tile before sending the question to the next one.

18 RS232 Control

Explanation

19

An index follows the table that lists all the entries, plus other names for the entries. For instance, “memory” in the index will
lead to “slot,” which is the name used in the commands to refer to memory numbers. All commands are Operation commands
which should start with “op”, except those marked with [ST] which are String commands.

For String commands, use the form “ST -- build.date ?” without the quotes, and substitute the unit ID for the -- . There is
no target for string commands.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number )

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

1

ascii.eol 1138 =? CR

CRLF
LF
LFCR

0
1
2
3

Determines the End Of Line

character used in replies.

2

ascii.response 1137 = ? SYMBOLIC

NUMERIC
DATA [only]

0
1
2

Determines the style of the reply:
SYMBOLIC replies with the

Value [except for what is in
square brackets]

NUMERIC replies with the Oper-

ation number and Value number

DATA replies with the Value num-

ber only

3

aspect 1054 =? FILL

CROP
LETTERBOX
16X9
ONE.TO.ONE
4X3

0
1
2
3
4
5

4

aspect.status 1092 ?EQUAL

TA LL E R
WIDER

0
1
2

TALLER and WIDER refer to the

source picture being taller than
or wider than the aspect ratio of
the screen or wall.

5

auto.frequency.disable 17421 = ? NOT.DISABLED

DISABLED
TOGG LE

0
1
2

6

auto.lamp 1037 = ? DISABLE

ENABLE

0
1

set

get

inc

dec

20

7

auto.phase.disable 17420 = ? NOT.DISABLED

DISABLED
TOGG LE

0
1
2

8

auto.position.disable 17422 = ? NOT.DISABLED

DISABLED
TOGG LE

0
1
2

9

auto.resync.disable 17438 = ? NOT.DISABLED

DISABLED
TOGG LE

0
1
2

10

backlight.intensity 1085 =?+– 1-10

10 is maximum intensity.

11

baud 1143 ? 2400

4800
9600
19200

Baud rate

12

bl.offset 1367 = ? + – 78-128

Individual offset for the backlight

of the connected LCD. This is a
signed byte with allowable val­ues from -50 to 0. (The byte is
converted to an unsigned word
resulting in the values 78-128.)
This value is stored on the LCD
interface board and a copy is
kept in the LCD. If no tile is
attached, the copy is used.

13

bl.status 1287 ?ERROR

FAI LE D
NORMAL
UNKNOWN

0
1
2
3

Status of the backlight for the

connected LCD. If the LCD is
turned off, the status is
unknown. If the LCD reports a
good status while it is turned off,
there must be a sensor failure
and the status is error. If no tile
is connected result is
UNKNOWN.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

21

14

black.balance 1402 RED

GREEN
BLUE
ALL
RESET

0
1
2
3
4

=?+–

A target of “ALL” can only be

used with increment and decre­ment commands. It will adjust all
3 of the colors; however if any
color is already at its limit, no
color will be adjusted.

A target of “RESET” used will set

all 3 colors to 0. The data for
RESET is irrelevant but must be
included in the command.

15

blue.only 1057 = ? DISABLE

ENABLE

0
1

16

border.color 1151 =? RED

GREEN
BLUE
DKBLUE
DKGREEN
DKRED
BLACK
WHITE

63488

2016

31

8

1024

32768

0

65535

17

brightness 16387 = ? + – 0 – 255

Used when digital source is

YPbPr.

18

build.date [ST] 1 ?

Retrieves text: firmware compila-

tion date and time.

19

bytes.received 1140 RS232

RS485
AUX232

0
1
2

? 0 – 32767

Used only to indicate that bytes

have been received. Resets to
zero upon reaching its maxi­mum value.

20

bytes.sent 1141 RS232

RS485
AUX232

0
1
2

? 0 – 32767

Used only to indicate that bytes

have been sent. Resets to zero
upon reaching its maximum
value.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

22

21

cable.equalization 1368 =? 0-7

Value that varies with the length

and quality of the Cat 6 cable
used to connect the LCD video.
This value is stored in the Quad
Input Manager Module and
communicated to the LCD inter­face board when it is connected.

22

center.point 1110 RED

GREEN
BLUE
ALL

0
1
2
3

? 0 – 255

The center point is the one pixel

used by auto level.

23

clear.input.memory 16902 [execute]

Makes the tile “forget” any

sources it has seen before.

24

clipboard.bl.offset 1397 ?

Backlight offset value that is cur-

rently in the clipboard.

25

clipboard.gray.balance 1163 RED

GREEN
BLUE
ALL

0
1
2
3

? 0 – 15

26

clipboard.recall 1161 [execute]

27

clipboard.save 1162 [execute]

28

clipboard.white.balance 1164 RED

GREEN
BLUE
ALL

0
1
2
3

? 0 – 100

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

23

29

clone.setting 1391 0-8

255

= <operation>

Applicable only to tile A1. Other

processors will NAK.

Force the settings from tile A1

onto all other tiles in the system.
Ta rg e t s :
0: Clone only the operation given

in the data
1: Clone items on Backlight

Menu
2: Clone items on Miscellaneous

menu
3: Clone items on Input Setup

Menu
4: Clone items on Size & Position

menus
5: Clone items on Big Picture

Setup menu (except for row and

column)
6:Clone items on Color Balance

Menu
7: Clone items on Scaling Menu
8: Clone items on Factory Set-

tings Menu
255: All items from targets 1-8

30

color.temp 1268 = ? 3200K

5500K
6500K
8500K
NATIVE
CUSTOM

0
1
2
3
4
5

31

colorspace 1180 ?RGB

YPBPR

0
1

32

commands.received 1107 RS232

RS485
AUX232

0
1
2

? 0 – 32767

Used only to indicate that com-

mands have been received.

Resets to zero upon reaching its

maximum value.

33

contrast 16388 = ? + – 0 – 255

Used when digital source is

YPbPr.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

24

34

custom.pattern 1237 RED

GREEN
BLUE
ALL

0
1
2
3

= ? + – 0 – 255

35

display.power 1094 =? OFF

ON

0
1

This turns on/off backlights.For

queries, system.state provides

more information. Power should

only be sent to tile A1.

36

edid.mailbox 1261 ?

37

fan.state 1096 POWER.SUPPLY

QUAD.MODULE
LAMP
INTAKE

0
6
1
6

ON
UNKNOWN
FAI LE D

0
1
2

38

frame.compensation 1284 = ? DISABLE

ENABLE

0
1

39

frame.height 1283 =?+–

40

frame.lock.enable 1292 = ? DISABLE

ENABLE

0
1

When disabled, tile will not try to

frame lock.

41

frame.locked 1275 ? DISABLE

ENABLE

0
1

42

frame.width 1282 =?+–

43

frequency 16404 =?+– [varies]

44

frequency.horizontal 1070 ? [KHz*100]

45

frequency.pixel 1069 ? [MHz*100]

46

frequency.vertical 16403 ?[Hz]

47

gain.all 1033 ? + – 0 – 255

For ?, returns the average of red,

green, and blue. For + and –,

adjusts red, green and blue.

Applies to analog sources only.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

25

48

gain.blue 16394 = ? + – 0 – 255

gain.whatever adjusts the White

Level; offset.whatever adjust the

Black Level. Applies to analog

sources only.

49

gain.green 16392 = ? + – 0 – 255

50

gain.red 16390 = ? + – 0 – 255

51

gamma 1086 = ? DISABLE

ENABLE

0
1

52

gray.balance 1031 RED

GREEN
BLUE
ALL

0
1
2
3

= ? + – 0 – 15

53

horizontal.period 1264 ?

54

hue 16395 = ? + – 0 – 180

Used when digital source is

YPbPr. This controls the color

hue. Default value is 90.

55

interlaced 1065 ?OFF

ON

0
1

56

ir.remote 1095 = ? DISABLE

ENABLE

0
1

57

justify 1053 = ? LEFT [top]

CENTER
RIGHT [bottom]
FILL

0
1
2
3

The values LEFT and RIGHT are

used for top and bottom justifi-

cation when the source aspect

ratio is wider than the screen.

58

lamp.saver 1105 = ? DISABLE

ENABLE

0
1

This enables/disables DPMS

delay.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

26

59

lamp.saver.delay.discrete 1286 =? 0MIN

5MIN
10MIN
15MIN
30MIN
45MIN
1HR
2HR
4HR
6HR
8HR
12HR
24HR

0
1
2
3
4
5
6
7
8

9
10
11
12

60

lamp.saver.delay.hours 1145 = ? + – 0 – 23

This is DPMS delay.

61

lamp.saver.delay.minutes 1144 = ? + – 0 – 59

This is DPMS delay with fine

control.

62

lamp.saver.state 1146 ? DISABLED

USER.OFF
AUTO.OFF
ON
WAIT.ON

0

1

2

3

4

USER.OFF = Backlight is turned

off because the user turned it
off.

AUTO.OFF = Backlight is off

because lamp saver turned it

off.
ON = Backlights are on
WAIT.ON = Backlights are off,

waiting for the cool-down time-

out to end so they can come on.

63

last.fault.hours 1149 ? 0 – 32767

Elapsed system time, not real

time, since last fault.

64

last.fault.minutes 1148 ? 0 – 59

65

lcd.horizontal.resolution 1125 ? 1024, 1600, 1280, 1920

66

lcd.vertical.resolution 1126 ? 768, 1200, 720, 1080

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

27

67

lcd.position 1369 CURRENT

ROW
COLUMN
ALERT
STORED

0
1
2
3
4

?

Returns the row/column position

of the connected LCD. The posi-

tion starts at 1 and goes up to

64.

Targets 0,1 & 2 return the current

position discovered at the sen-

sors. If the panel is removed

from the array (as in service

mode) this position will be 1,1. If

no tile is connected, the last

known position will be used. If

there was never a connected

tile, 254 will be returned.
Target 4 returns the position that

has been stored after the last

MATRIX.LAYOUT command

and is the one used for subse-

quent MATRIX.ROUTE.QCON-

FIG operations. If there has

never been a MATRIX.LAYOUT

command, 254 will be returned.
Target 0&4: Column is in the

upper byte of a word, row is in

the lower byte (i.e. Col-

umn*256+row).
Target 1&3: Returns only the row

or column.
Target 3: Returns non zero if the

stored value matches the cur-

rent value.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

28

68

lcd.status 1374 ? bit

field

Returnsthe status of the con-

nected LCD, all in one 16-bit

word.
bit 0 = video status: High if sync

is detected on the video inter-

face.
bit 1 = backlight status: High if

backlight is on.
bit 2-7 = Column position cur-

rently being sensed.
bit 8-13 = Row position currently

being sensed.
bit 14 = Voltage under limit: High

if the ADC reading is outside the

limits set in the chip. Limits are

set at startup to alert below 22v.
bit 15 = 1 if the tile is connected.

If tile is disconnected, all other

fields should be ignored.

69

lcd.vertial resolution 1126

70

lcd.voltage 1396 ? 0-2600

Returns the voltage read by the

attached LCD. Values below 22v

is cause for concern. Value is

multiplied by 100 to give hun-

dredths precision. Returns NAK

if no LCD is connected.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

29

71

matrix.layout 1377 AUTO

RESET

02=NOT.STARTED

IN.PROGRESS
COMPLETE
ERROR
WONT.FIT

0
1
2
3
4

Applicable only to tile A1. Other

processors will NAK.

Force the system to re-discover

the layout by polling all possi-

ble tiles for their position.
Ta rg e t s :
0 or 1: Perform Discovery
2: Re set system to default
A get returns the status of the

discovery process. WONT.FIT

means the discovered layout is

wider or taller than 9x9 and so

won’t fit on the GUI. This is not

an error.
ERROR means that more than

one tile reported the same posi-

tion. This usually happens if a

tile is in service mode.

72

matrix.layout.module.at 1380 (column-1)

256 + (row-1)

? 0-15, 255

Applicable only to tile A1. Other

processors will NAK.

Returns the module (A=0,B=1…)

of the LCD which is currently at

the requested row and column
Returns 255 if there is no LCD at

that location.

73

matrix.layout.module.exists 1381 A1-P4

SUBWALL.1
SUBWALL.2
SUBWALL.3
SUBWALL.4
SUBWALL.DUAL.LINK
SUBWALL.TWO.INPUT
CUSTOM
NONE

0-63

64
65
66
67
68

69
254
255

Applicable only to tile A1. Other

processors will NAK.

Returns non 0 if the requested

processor exists in the system
even if there is no LCD con­nected. This command is useful
for knowing what inputs exist in
the system.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

30

74

matrix.layout.position 1398 A1-P4

SUBWALL.1
SUBWALL.2
SUBWALL.3
SUBWALL.4
SUBWALL.DUAL.LINK
SUBWALL.TWO.INPUT
CUSTOM
NONE

0-63

64

65

66

67

68

69
254
255

Applicable only to tile A1. Other

processors will NAK.

Returns the position in the

WindowWall for the requested
tile as determined during dis­covery. If there is no LCD in that
position, returns 0xfefe. If there
is no Quad Input Manager Mod­ule in that position, returns
0xffff.

75

matrix.layout.processor.at 1382 (column-1)

256 + (row-1)

0-3, 255

Applicable only to tile A1. Other

processors will NAK.

Returns the processor (0=1, 1=2,

2=3,3=4) of the tile that is cur­rently at the requested row and
column.
Returns 255 if there is no LCD
attached at that position.

76

matrix.layout.size 1386

HEIGHT
WIDTH

0
1
2

? height and width information

(see Notes)

Returns the physical size of the

array as determined during dis­covery. If discovery failed,
returns the last known wall size
(or else 255 if discovery has
never successfully completed).

Ta rg e t s :
0 Return Width*256+Height
1 Height only
2 Width only

77

matrix.layout.unit.at 1385 (column-1)

256 + (row-1)

A1-P4
SUBWALL.1
SUBWALL.2
SUBWALL.3
SUBWALL.4
SUBWALL.DUAL.LINK
SUBWALL.TWO.INPUT
CUSTOM
NONE

0-63

64
65
66
67
68

69
254
255

Applicable only to tile A1. Other

processors will NAK.

Returns the ID (0=A1, 1=A2,

…63=P4) of the LCD that is cur­rently at the requested row and
column.
Returns 255 (NONE) if there is
no LCD at that position.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

31

78

matrix.route.module 1384 A

B
C
D
E
F
G
H
I
J
K
L
M
N
O
P

0
4

8
12
16
20
24
28
32
36
40
44
48
52
56
60

? bit field (see description)

Use only on tile A1. Other pro-

cessors will accept the com­mand but the master needs to
have the information for all tiles.
So it must get the command first
and then pass it on to the rele­vant tile.

Returns a bit field that represents

the current FPGA route settings
for the tile requested. To set
each switch individually, use

op_TOP_ROUTE
bit 0-1 = switch 1
bit 2-3 = switch 2
bit 4-5 = switch 3
bit 6-7 = switch 4
bit 8-10 = external loop
bit 11-12 = internal loop
bit 13 = 0 if the external loop is

enabled

Values for switch 1 & 2:
0= Digital 1
1=Digital 2
2=use loop
3=use loop
Values for switch 3 &4:
0= Digital 3
1=Digital 4
2=use loop
3=use loop
Values for external loop
0=digital 1
1=digital 2
2=digital 3
3=digital 4
4=Dual Link In
Values for internal loop
0=digital 1
1=digital 2
2=digital 3
3=digital 4

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

32

79

matrix.route.output 1399 ? high byte = tile to route (see

target for

TOPO_ROUTE_MODULE)
Low byte:
Loop Out
LCD 1
LCD 2
LCD 3
LCD 4

0
1
2
3
4

Use only on tile A1. Other pro-

cessors will accept the com­mand but the master needs to
have the information for all tiles.
So it must get the command first
and then pass it on to the rele­vant tile.

Set the specified output to dis-

play the specified input. If nec­essary, the external or internal
loop settings may be changed in
order to accommodate the
request. This could cause other

LCD routing to change.
Data
0=digital 1
1=digital 2
2=digital 3
3=digital 4
4=Dual Link In

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

33

80

matrix.route.qconfig 1379

NEXT
REFRESH

0
1
2

?A1-P4

SUBWALL.1
SUBWALL.2
SUBWALL.3
SUBWALL.4
SUBWALL.DUAL.LINK
SUBWALL.TWO.INPUT
CUSTOM
NONE

0-63

64
65
66
67
68

69
254
255

Applicable only to tile A1. Other

processors will NAK.

Configure routing and wall

parameters for all processors in
the system. If auto discovery
has not been performed, or has
failed, only the routing will be
done. Otherwise wall mode will
be turned on and the width,
height, row and column settings
for each tile will be set appropri-

ately.
Target 2:
Data field is ignored. Redo the

command with the same data

as last time (used after new tiles

were added or tiles moved

around).
Target 1:
Data field is ignored. Uses the

next possible input. For exam-

ple, if A1 is currently being big

pictured, big picture A2.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

34

81

matrix.route.qconfig (cont.) 1379

Target 0:
Use the data field:
Data 0-63:
Big picture the input over the

entire wall.
Data 64-68:
Spread 1 input over the whole

Quad Input Manager Module

(for each module in the system).
64=use Digital 1, 65= Digital

2,66=Digital 3, 67=Digital 4,

68=Dual Link In
Data 69:
Spread Digital 1 onto LCD 1&2

and Digital 3 onto LCD 3&4.
Data 255

Route each input to its corre-

sponding output and turn off

wall mode.
A get of this command returns

the current configuration. Only

the route information, not the

wall parameters are used to

determine the current configura-

tion. If none of these configura-

tions are set, 254 is returned.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

35

82

matrix.route.switch 1383 ? high byte = tile to route (see

target for
TOPO_ROUTE_MODULE
Low byte:
external loop
switch 1
switch 2
switch 3
switch 4
internal loop enable
internal loop

0
1
2
3
4
5
6

Use only on tile A1. Other pro-

cessors will accept the com­mand but the master needs to
have the information for all tiles.
So it must get the command first
and then pass it on to the rele­vant tile.

Set the FPGA switch for the

specified tile. To set all switches
in the tile at once, use

MATRIX.ROUTE.MODULE
Values for switch 1-4:
0= self
1=other in pair (if 1,2; if 2,1; if3,4

if 4,3)
2=use loop
3=use loop
Values for external loop
0=digital 1
1=digital 2
2=digital 3
3=digital 4
4=Dual Link In
Values for internal loop
0=digital 1
1=digital 2
2=digital 3
3=digital 4
Value for internal loop enable
0=Use external loop
1=Use internal loop

83

menu.position.horizontal 12341 = ? + – 0 – 32767

Horizontal offset from the default

side.

84

menu.position.vertical 12342 = ? + – 0 – 32767

Vertical offset from the default

side.

85

menu.rotate 1038 =? NONE

CLOCKWISE
INVERTED
COUNTER-CLOCKWISE

0
1
2
3

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

36

86

menu.target 1393 =ALL

A0-P3

65535

2560

-6659

Use only on tile A1. Other pro-

cessors will accept the com-

mand but the master needs to

send the information to all tiles.

So it must get the command first

and then pass it on.

Set which processor will respond

when a slave menu is pre-

sented.

87

menu.target.move 1392 UP

DOWN
LEFT
RIGHT
ALL

0
1
2
3
4

=ALL

A0-P3

65535

2560

-6659

Use only on tile A1. Other pro-

cessors will accept the com-

mand but the master needs to

send the information to all tiles.

So it must get the command first

and then pass it on.

Moves the target processor (the

one that responds to input when

a slave menu is presented)

to the next tile in the

WindowWall in the specified

direction. If auto discovery has

not been performed or there

was an error, it will move in pro-

cessor order. When the target is

“ALL” the target processor is set

to **.

88

menu.timeout 8194 = ? + – 0 – 60

Seconds menu will remain on

screen; 0 = forever

89

menu.top 1189 [execute]

Used with Key commands to be

sure the menu selector is at the

top.

90

mode.id 16436 ? 0 – 999

91

native.frequency 1351 60HZ

50HZ

60
50

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

37

92

offset.all 1032 ? + – 0 – 127

For ?, returns the average of red,

green, and blue. For + and –,

adjusts red, green and blue.

Applies to analog sources only.

93

offset.blue 16393 = ? + – 0 – 127

offset.whatever adjusts Black

Level.
gain.whatever adjusts the White

Level.

94

offset.green 16391 = ? + – 0 – 127

When colorspace = YPBPR, this

controls the black level (Bright-

ness) of whole picture, not just

the green. Default value varies

and is set at factory. Not used

with digital sources.

95

offset.red 16389 = ? + – 0 – 127

96

offset.reset 1177 [execute]

Sets offset.red, offset.green and

offset.blue to mid levels.

97

ontime.average 1387 ?0-24

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Return the number of hours the

system has been on per day.

98

ontime.days.overlimit 1389 ?

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Return the number of days the

system has been on for more

hours than the limit (20 for

WindowWall).

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

38

99

ontime.days.total 1388

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Return the number of days sys-

tem has been collecting on time

statistics. The system must be

on at midnight for consecutive

days in order to count statistics.

100

ontime.limit 1390

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Return the limit used in

ontime.days.overlimit

101

osd.enable 1360

102

overscan 1184 = ? + – 0 – 20 [% of image hidden at

edges]

103

part [ST] 2 ?

Retrieves firmware part number

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

39

104

pattern 1028 =? NONE

WHITE
GRAY
RED
GREEN
BLUE
BLACK
RED.SCALE
GREEN.SCALE
BLUE.SCALE
GRAY.SCALE
COLOR.BARS
LOGO
GRID
CHECK4X4
COLORSCALE
UNIFORMITY
ALIGNMENT
FOCUS
CUSTOM
CYAN
YELLOW
MAGENTA

0
1
2
3
4
5
6
7
8

9
10
11
12
18
20
21
22
24
25
26
28
29
30

105

phase 16400 = ? + – [Range 0–31]

Value for = or ? commands is 0 –

31. In the menu, the value is
shown in degrees. Each step (0
– 31) is 11.25 degrees.

106

plug.and.play 1152 = ? DISABLE

ENABLE

0

1

Enables/Disables DDC (EDID)

response; factory default is
enabled.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

40

107

poll.pause 1400 = 0-65535

Applicable only to tile A1. Other

processors will NAK.

Turn off system polling for the

number of seconds specified.
0 = Turns the polling on.
65535 = Turns the polling off for-

ever (until the next AC power

cycle).
When polling is turned off, the

“LCD” LEDs on the front panel

of the Quad Input Manager

Modules will not be updated.

This takes away all periodic

communications on the RS485

bus and makes troubleshooting

of the communication bus eas-

ier.

108

position.horizontal 16398 =?+– [varies]

109

position.vertical 16399 =?+– [varies]

110

preferred. source.detection 1288 =? 5x4

4x3
15x9
16x9

12
13
16
17

111

product [ST] 3 ?

Retrieves text: display product

name.

112

product.type 1171 ?

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

41

113

ps.status 1176 1-5 FAU LT

OK
OFF
UNKNOWN

0
1
2
3

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Return the status of the

requested power supply. Not all

power supplies may be stuffed

in a system. If a power supply is

not stuffed, OFF is returned. If

the sense cable from the power

supply to the Quad Input Man-

ager Module

is disconnected,

UNKNOWN is returned.

114

quad.input.status 1375 ? bit

field

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Returns the status of the inputs

for the five inputs in the Quad

Input Manager Module.
bit 0: High if sync detected on

DIGITAL 1
bit 1: High if sync detected on

DIGITAL 2
bit 2: High if sync detected on

DIGITAL 3
bit 3: High if sync detected on

DIGITAL 4
bit 4: High if sync detected on

DUAL LINK IN

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

42

115

quad.lcd.status 1372 ?

Applicable only to processor 1 of

a tile. Other processors will

NAK.
Returns the status of the

attached LCDS in the Quad

Input Manager Module.
bit 0-1: LCD 1 status
bit 2-3: LCD 2 status
bit 4-5: LCD 3 status
bit 6-7: LCD 4 status
status
0 = No tileis connected.
3 = Tile is fully connected.
2=Tile has communication but

video is not present.
This status is known to the Quad

Input Manager Module

only indi-

rectly. Processor A1 polls all

tiles for their status and then

aggregates the status for each

Quad Input Manager Module

and communicates it back to the

tile. This information is used to

light the front panel LEDs. If

polling is disabled, this informa-

tion will not be current.

116

replies.sent 1139 RS232

RS485
AUX232

0
1
2

? 0 – 32767

Used only to indicate that replies

have been sent. Resets to zero

upon reaching its maximum

value.

117

reset.balance 1034 [execute]

Resets color balance values to

100/7 (white 100; gray 7).

118

resolution.horizontal 16401 =? [varies]

119

resolution.vertical 16402 =? [varies]

120

revision [ST] 4 ?

Retrieves text: firmware revision

number.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

43

121

rs485.termination 1259 DISABLE

ENABLE

0
1

122

runtime.hours.high 1113 = ? [hours / 10000]

Do not set backlight, runtime or

system hours/minutes unless

actual time was lost, such as

when the control board is

replaced. Note: Product warran-

ties are not based on these tim-

ers.

123

runtime.hours.low 4100 = ? [hours mod 10000]

124

runtime.hours.reset 4613 [execute]

125

runtime.minutes 4101 = ? 0 – 59

126

saturation 16396 = ? + – 0 – 255 (source into VIM)

0-1024 (digital YPbPr)

This controls color saturation.

Used when digital source is

YPbPr.

127

serial.diagnostics.clear 1188 RS232

RS485
AUX232

0
1
2

[execute]

128

sharpness 16397 =?+– 0-15

129

slot.action 1082 SAVE

RECALL
DELETE
NONE

0
1
2
3

[execute]

Performs the action (save, recall,

delete) on the currently targeted

slot.

130

slot.current 1150 ? 0 – 39 [slot # – 1]

255 [none now used]

131

slot.delete 1174 0 [slot 1]

1 [slot 2]

:
39 [slot 40]
255 [current target]

[execute]

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

44

132

slot.full 1114 0 [slot 1]

1 [slot 2]

:
39 [slot 40]

0
1
:

39

? 0 [empty]

1 [full]

133

slot.name. [ST] 5

Returns the name that will be

used when saving the target
slot.

134

slot.name.clear 1081 [execute]

Operates on the currently

selected slot (see slot.target
and slot.recall.target)

135

slot.name.letter 1080 0 [1st char]

1 [2nd char]

:
23 [last char]

0
1
:

23

= ? [one ascii character value]

The target is the nth letter of the

24-character string: 0–23. The
value is the ascii character to
send: numbers, letters, punctua­tion. Not all punctuation is avail­able.

136

slot.recall 1173 0 [slot 1]

1 [slot 2]

:
39 [slot 40]
255 [current target]

[execute]

137

slot.recall.target 1077 = 0 [slot 1]

1 [slot 2]

:

39 [slot 40]

0
1
:

39

138

slot.save 1172 0 [slot 1]

1 [slot 2]

:
39 [slot 40]
255 [current target]

[execute]

Slot.save, slot.recall and

slot.delete are more direct ways
accomplishing what slot.action
does.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

45

139

slot.setting 1078 OFFSET.RED

GAIN.RED
OFFSET.GREEN
GAIN.GREEN
OFFSET.BLUE
GAIN.BLUE
BRIGHTNESS
COLORSPACE
CONTRAST
SHARPNESS
HUE
SATURATION
POSITION.HORIZONTAL
POSITION.VERTICAL
ASPECT
JUSTIFY
OVERSCAN
VIEWPORT.WINDOW.BOTTOM
VIEWPORT.WINDOW.LEFT
VIEWPORT.WINDOW.RIGHT
VIEWPORT.WINDOW.TOP
ZOOM.WINDOW.BOTTOM
ZOOM.WINDOW.LEFT
ZOOM.WINDOW.RIGHT
ZOOM.WINDOW.TOP
WALL.HE IGHT
WALL.MO DE
WALL.COLUMN
WALL.ROW
WALL.WI DTH

16389
16390
16391
16392
16393
16394
16389

1169
16388
16397
16395
16396
16398
16399

1054

1053

1184

1042

1039

1040

1041

1047

1044

1045

1046

1049

1052

1051

1050

1048

140

slot.state 1316 SAVE

RECALL
DELETE
NONE

0
1
2
3

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

46

141

slot.status 1083 0 [slot 1]

1 [slot 2]

:

39 [slot 40]

0
1
:

39

?EMPTY

FILLED
FILLED.AND.CURRENT
NAME.EDITED

0
1
2
3

142

slot.target 1068 = ? 0 [slot 1]

1 [slot 2]

:

39 [slot 40]

0
1
:

39

Sets (or recalls) the target slot

number for other actions. The
target slot is used by slot.action,
slot.name.clear, slot.name.let­ter, and slot.setting.)

143

source.search.status 1133 ? VIDEO.DISPLAYED

GRAPHICS.DISPLAYED
AUTO.RUNNING
AUTO.SETUP.COMPLETE
OUT.OF.RANGE
SEARCHING
DETECTED
HOLDING
IDLE

0
1
2
3
4
5
6
7
8

144

sync.type 1064 ? UNKNOWN

SOG
COMPOSITE
SEPARATE

0
1
2
3

SOG = sync on green
SEPARATE = separate H and V

sync

145

system.hours.high 1112 = ? [hours / 10000]

Do not set backlight, runtime or

system hours/minutes unless
actual time was lost, such as
when control board is replaced.
Note: Product warranties are
not based on these timers.

146

system.hours.low 4098 = ? [hours mod 10000]

147

system.hours.reset 4612 [execute]

148

system.minutes 4099 = ? 0 – 59

149

temperature.c 1153 BOARD

LCD

0
1

? 0 – 125

Temperature, in Celsius.
BOARD = control board

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

47

150

uart.clear 1187 RS232

RS485
AUX232

0
1
2

[execute]

151

uart.errors 1186 RS232

RS485
AUX232

0
1
2

? 0 -32767

Resets to zero upon reaching its

maximum value.

152

uart.overflows 1185 RS232

RS485
AUX232

0
1
2

? 0 -32767

Resets to zero upon reaching its

maximum value.

153

update 1394 =ALL

P2
P3
P4
IDLE

0
1
2
3

255

Applicable only to processor 1 of

a tile. Other processors will
NAK.

Force a tile to copy its firmware

to the specified processor. This
process takes a long time. While
cloning is in progress, no further
RS232 commands are possi­ble. All input to that tile (includ­ing IR commands) will be
ignored. While cloning, the LCD
status lights on the front panel
will change slowly from red to
green. One of the lights will be
opposite in color from the other
three. That is the processor that
is currently being cloned.

154

vertical.lines 1263 ? 0 – 65535

Raw number of lines detected by

the tile.

155

video.standard 17426 ?NTSC

NTSC.60.443
PAL.50.358
PA L
SECAM
N/A

1
3
4
6
8

22

If the format is completely

unknown, or it is not a video
source, the response is N/A.

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

48

156

viewport.window.bottom 1042 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

157

viewport.window.height 1100 ?[pixels]

158

viewport.window.left 1039 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

159

viewport.window.right 1040 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

160

viewport.window.top 1041 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

161

viewport.window.width 1099 ?[pixels]

162

wall.column 1051 = ? + – 1 – 32

163

wall.height 1049 = ? + – 1 – 32

164

wall.mode 1052 = ? + – DISABLE

ENABLE

0
1

165

wall.row 1050 = ? + – 1 – 32

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

49

166

wall.status 1066 ?0 [ok]

1 [error horizontally]
2 [error vertically]
3 [this cube is blank]

167

wall.width 1048 = ? + – 1 – 32

168

white.balance 1285 RED

GREEN
BLUE
ALL

0
1
2
3

= ? + – 0 – 100

169

white.balance.percent 1285 RED

GREEN
BLUE
ALL

0
1
2
3

170

window.reset.size 1091 [execute]

Sets zoom and viewport windows

back to default values.

171

ypbpr.reset 1181 [execute] [to factory calibration]

172

zoom.window.bottom 1047 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

173

zoom.window.height 1098 ?[pixels]

174

zoom.window.left 1044 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

175

zoom.window.right 1045 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

50

176

zoom.window.top 1046 = ? + – 0 [–100]

:

100 [0]

:

200 [+100]

0
:

100

:

200

177

zoom.window.width 1097 ?[pixels]

Operation Commands for Runco WindowWall

Row

Operation

or

String [ST]

Operation or

String

number

(Target)

Target or Target number
must be in parentheses.

(Target

number)

Command

types allowed
(Use only
one symbol)

Value

If numbers listed first, use
numbers only. Data in
[square brackets] is for
information only.

Val ue num ber

Notes

set

get

inc

dec

Troubleshooting Serial Connections

There are many small details involved in getting an entire wall or group of tiles to
communicate over a serial link. By starting with simple commands you can ensure all
these details are in place before moving on to more complex control. If you are
setting up a wall or group of tiles for the first time, follow these steps for easy setup. If
you have problems later, you can refer to the troubleshooting flowcharts starting on
page 53 as necessary.

Setup

1 Connect the RS232 cable from the computer to the RS232 In connector of Quad

Input Manager Module A. Connect the out connector of that tile, to the In
connector of the next tile and so on until all tiles are connected.

2 Each tile in the wall has a unique ID. The tile’s group ID is the ID of the Quad Input

Manager Module to which it’s connected (A-P). The tile’s unit ID is the output
number to which it is connected (1-4).

Troubleshooting Serial Connections

3 Set the baud rate of the host computer to 19200. If this is not possible, set the

4 Open a program on the host that allows you to easily type commands. Serial Talk,

Global Command

1 Send the command op ** pattern=red ^M

2 Did all tiles in the wall put up a red test pattern?

baud rate of each tile to match the baud rate of the host computer. The baud rate
is not set automatically. If the baud rate of a tile does not match the baud rate of
the computer, communication will not happen.

available from our website, is one such program. Be sure you know how to send a
carriage return character with whatever program you are using. All commands to
the tiles must end in a carriage return. The rest of this document will use Serial
Talk syntax in the examples.

a If yes, go on to send individual commands.

b If none of the tiles responded, go to Global Command to First Tile on page 53.

c If the first tile went red, but one or more of the others didn’t, go to Global

Command to Subsequent Tiles on page 54.

RS232 Control 51

Troubleshooting Serial Connections

Individual Command

1 For each tile in the wall, send the command op A1 pattern=blue ^M,

substituting each tile’s ID in turn.

2 Did each tile turn blue when commanded?

a If not, check that you typed the ID correctly to match the tile.

3 Did you receive an echoed response back each time?

a If not, go to Response From Individual Tiles on page 55.

Data Query

1 Send a command which asks for information to each tile in turn. For example, op

A3 lcd.position(row)? ^M

2 Did each tile return its row in the WindowWall?

a If not, go to Response From Individual Tiles on page 55.

Troubleshooting Useful Commands

If you are trying to send a particular command and are having trouble, first make sure
you have established the wiring and settings are correct by using the simple
commands suggested above. After you have established that, the problem is
probably in the command itself.

If a tile doesn't respond to a particular command, look at the “Commands Received”
number. If it doesn't increase by one, the tile didn't understand the command.
Double check the spelling and syntax. Be sure to start operations with op or OP, not
oP or Op. Be sure to end with a ^M.

If the Commands Received increases but the tile didn't respond, it may be in a state
where it cannot respond at this time, or it may have invalid data. Try sending the
command with an individual (not global) address, and watch the response. If it sends
a NAK, it wasn't able to carry out the command. For example, you can't change the
brightness unless you have a valid source. It will also send a NAK if the data is out of
range. For example, you can't set the brightness to 1000. If it sends an ERR, it didn't
understand the command. Perhaps it is spelled wrong, or you are trying a command
that is not valid on this product.

52 RS232 Control

Do you see your
command echoed
on the bottom
line of menu A1?

Is there a 13 at the
end of the decimal
display (second to
last line of the
menu)?

Is the command
spelled correctly?

Does the bytes
received number
increase when you
send a command?

Send a carriage return. Then
resend the command with a
carriage return at the end of it.

Resend the command with the
correct spelling.

Check that the first two
characters are the same case
(OP or op) not (Op or oP)

Do the UART framing
errors number
increase when you
send a command?

Check the wiring of connectors
and adapters. Be sure the
ground is connected.

Does the baud rate of
the tile match the
baud rate of the host?

Set the baud rate on either the
host or the tile so they match.

Check the wiring of connectors
and adapters.

Check the connection of the
serial cable.

Check that the program is
using the correct serial port.

Check that the cable is connected to the
RS232 In connection on tile A (not on
the RS485 connector).

No

Yes

No

No

Ye s

No

Yes

Yes

No

Yes

Yes

Open the Serial Port Status

menu on all tiles.

Troubleshooting Serial Connections

Global Command to First Tile

RS232 Control 53

Troubleshooting Serial Connections

Open the Serial Port Status menu
on all tiles. Send a global
command from the host.

Do you see one
tile not
responding when
other tiles on the
same Quad Input
Manager Module
do respond?

You r Quad Inp ut Ma nag er
Module may be defective.

Check the RS485 cabling to the
Quad Input Manager Module.

Try a smaller group of Quad
Input Manager Modules. If a
module is bad, it could prevent
any tiles from getting the
message. If you suspect a bad
module, get a small group
working and then add tiles to
the chain one at a time.

Global Command to Subsequent Tiles

54 RS232 Control

Response From Individual Tiles

Do you see your
query on the bottom
line of the menu of
the tile in question?

Does the
commands
received number
increase on the
tile?

Go to troubleshooting a global
command chart.

Check for a carriage return on
the command.

Check the spelling of the
command.

Check that each Quad Input Manager
Module is set to a unique ID. If two tiles try
to respond, the message will be garbled.

Yes

Yes

No

No

Open the RS232 Serial Port Status menu on

all tiles. Send a query command from the

host to an individual tile.

Check that the first two
characters are the same case
(OP or op) not (Op or oP).

Does the
commands sent
number increase
on the tile?

No

Yes

Check the wiring of the RS232
connectors and adapters. The Tx line to
the host may not be making connection.

Does the Last Packet
Address say “This
Cube Alone”?

Check the address. Only
addresses with no * in them
will be answered.

No

Troubleshooting Serial Connections

RS232 Control 55

Troubleshooting Serial Connections

56 RS232 Control

Index

Operation Numbers

1, 18
1028, 104
1030, 168

, 52

1031
1032, 92
1033, 47

, 117

1034
1037, 6
1038, 85

, 158

1039
1040, 159
1041, 160

, 156

1042
1044, 174
1045, 175

, 176

1046
1047, 172
1048, 167

, 163

1049
1050, 165
1051, 162

, 164

1052
1053, 57
1054, 3

, 15

1057
1064, 144
1065, 55

, 166

1066
1068, 142
1069, 45

, 44

1070

, 137

1077
1078, 139

, 135

1080
1081, 134

, 129

1082

, 141

1083
1085

, 10
, 51

1086

, 170

1091
1092

, 4
, 35

1094

, 56

1095
1096

, 37
, 177

1097
1098

, 173
, 161

1099

, 157

1100
1105

, 58
, 32

1107

, 22

1110

1112

, 145
, 122

1113
1114, 132

, 65

1125
1126, 66, 69
1133, 143

, 2

1137
1138, 1
1139, 116

, 19

1140
1141, 20
1143, 11

, 61

1144
1145, 60
1146, 62

, 64

1148
1149, 63
1150, 130

, 16

1151
1152, 106
1153, 149

, 26

1161
1162, 27
1163, 25

, 28

1164
1171, 112
1172, 138

, 136

1173
1174, 131
1176, 113

, 96

1177
1180, 31

, 171

1182

, 102

1184

, 152

1185
1186, 151

, 150

1187
1188

, 127
, 89

1189

, 83

12341
12342

, 84

, 34

1237

, 121

1259
1261

, 36
, 154

1263

, 53

1264

, 30

1268

, 41

1275
1282

, 42
, 39

1283

, 38

1284
1285

, 169

RS232 Control 57

Index

1286, 59
1287, 13
1288, 110

, 40

1292
1316, 140
1351, 91

, 101

1360
1367

, 12
, 21

1368
1369, 67
1372, 115

, 68

1374
1375, 114
1377, 71

, 80

1379
1380, 72
1381, 73

, 82

1383
1384, 78
1385, 77

, 76

1386
1387, 97
1388, 99

, 98

1389
1391, 29
1392, 87

, 86

1393
1394, 153
1396, 70

, 24

1397
1398, 74
1399, 79

, 107

1400
16387, 17
16388, 33

, 95

16389
16390, 50
16391, 94

, 49

16392

, 93

16393
16394, 48

, 54

16395
16396, 126

, 128

16397

, 108

16398
16399

, 109
, 105

16400

, 118

16401
16402

, 119
, 46

16403

, 43

16404
16436

, 90
, 23

16902
17420

, 7
, 5

17421

, 8

17422
17426

, 155
, 9

17438

, 103

2

, 111

3
4, 120
4098, 146

, 148

4099
4100, 123
4101, 125

, 147

4612
4613

, 124

, 133

6
8194, 88

A

action, slot, 129
adjust frequency
adjust phase, 105
ascii response type, 2
aspect ratio

fill, 3
justify, 57
letterbox
one-to-one, 3
status of, 4, 4

auto

frequency
lamp on, enable/disable, 6
phase
position, 8
resync, 9

, 43

, 3

, 3

, 5

, 7

B

backlight

intensity, 10
status, 12, 13

balance, gray
baud, 11
black border color, 16
blue

border color
gain, 48
offset
only

border color, 16

dkblue
dkgreen

dkred
bottom zoom
brightness
build date
bytes received, number of
bytes sent, number of

, 52

, 16

, 93

, 15

, 16

, 16

, 16

, 172

, 17

, 18

, 20

C

cable

equalization
Celsius temperature
center pixel, value of

, 21

, 149

, 22

, 19

58 RS232 Control

Index

character, end of line, 1
clear input memory, 23
clear serial diagnostics, 127
clear slot name
clear uart, 150
clipboard

blacklight offset
gray balance
recall
save to, 27
white balance values, 28

clone setting
color balance

clipboard, gray value in, 25
clipboard, white value in
gray, 52
recall clipboard values, 26
reset values
save values to clipboard, 27
white, 168

color temperature
color, border, 16, 16
colorspace, 31
column, wall
commands received, number of, 32
contrast, 33

, 1

CR
CRLF, 1
crop, 3
current memory (slot.current)
custom pattern, 34

, 134

, 24

, 25

, 26

, 29

, 28

, 117

, 30

, 162

, 130

D

data only response, 2
date, build
DDC control (plug.and.play), 106
delete slot, 131
diagnostics, serial, clear the
disable

display power, on/off
dkblue border color
dkgreen border color
dkred border color

, 18

auto lamp
big picture mode
blue only, 15
DDC
EDID
IR remote
lamp saver
plug and play
remote IR
wall mode

, 6

, 106

, 106

, 56

, 58

, 106

, 56

, 164

, 16

, 127

, 164

, 35

, 16

, 16

E

edge

zoom left, 174
zoom right, 175
zoom top

EDID

control (plug.and.play)
mailbox, 36

enable

auto lamp
big picture mode, 164
blue only, 15
DDC
EDID, 106
IR remote, 56
lamp saver
plug and play, 106
remote IR, 56
wall mode

end of line character, 1
eol, ascii, 1
equal aspect ratio
erase slot name, 134
error

uart

, 176

, 6

, 106

, 58

, 164

, 4

, 151, 152

F

fan.state, 37
fault

last, hours
last, minutes, 64

fill, 3
frame locked
frame.compensation, 38
frame.height, 39
frame.lock.enable
frame.width, 42
frequency

adjusting
auto
horizontal, 44
pixel
vertical

, 63

, 41

, 40

, 43

, 5

, 45

, 46

G

gain

, 47

all
blue

, 48

, 49

green

, 50

red

gamma, 51
go to top of menu
gray balance in clipboard
green

border color
gain

, 49

offset

, 89

, 16

, 94

, 106

, 25

RS232 Control 59

Index

H

height of wall, 163
height of zoom, 173
high system hours, 145
horizontal

frequency
period
position, 108
resolution, 118
resolution of LCD

hours

lamp saver delay, 60
runtime, high
runtime, low, 123
runtime, reset, 124

, 54

hue

, 44

, 53

, 65

, 122

I

ID, mode, 90
input memory, clear, 23
input search status (source.search.status)
input status of the quad, 114
intensity, backlight, 10
interlace, on/off
IR remote, enable/disable, 56

, 55

J

justify aspect ratio, 57

L

lamp

on, auto, enable/disable, 6
saver delay hours, 60
saver delay minutes
saver, enable/disable, 58

saver, state of
lamp.saver.delay.discrete
last fault

, 63

hours

minutes
layout

module, 72

of WindowWall

of WindowWall tile

position of WindowWall

size of WindowWall

WindowWall tile exists
LCD

horizontal resolution of

position, 67

quad status

status

vertical resolution

vertical resolution of

voltage

, 64

, 115

, 68

, 70

, 61

, 62

, 59

, 71

, 77

, 74

, 76

, 73

, 65

, 69

, 66

, 143

left

side zoom

letterbox, 3

, 1

LF
LFCR, 1
lines, vertical, 154
low system hours

, 174

, 146

M

mailbox, EDID, 36
matrix

, 71

layout
layout module, 72
layout module exists
layout of unit, 77
layout position, 74
layout size
route module, 78
route output, 79
route quick configure
route switch, 82

memory

current (slot.current)
empty (slot.full), 132
full (slot.full), 132
input, clear
name letter (slot.name.letter), 135
name, clear/erase (slot.name.clear), 134
recall target (slot.recall.target)
save, 138
save/recall/delete action (slot.action), 129
slot delete
slot recall, 136
status (slot.status), 141
target (slot.target)
target for recall (slot.recall.target), 137

menu

go to top
orientation
position horizontal, 83
position vertical
target, 86
target move
timeout

minutes

lamp saver delay, 61
runtime
system

mode

, 90

ID
wall, enable/disable

, 76

, 23

, 131

, 89

, 85

, 87

, 88

, 125

, 148

, 73

, 80, 81

, 130

, 137

, 142

, 84

, 164

N

name letter, memory (slot.name.letter), 135
name, product
native frequency

, 155

NTSC

, 111

, 91

60 RS232 Control

Index

number

revision, 120
number of

bytes received

bytes sent, 20

columns in wall (wall.width), 167

commands received

rows in wall (wall.height)
numeric response

, 19

, 32

, 2

O

offset

all, 92

, 93

blue

green, 94

red, 95

, 96

reset
one.to.one, 3
on-screen display, 101
ontime

average

days overlimit, 98

days total
overscan, 102

, 97

, 99

P

PAL, 155
part number, software
pattern

custom, 34

, 104

test
period of horizontal, 53
phase

, 105

adjust

auto, 7
pixel

frequency

value of center
plug and play, 106
point, center
poll pause
position

auto

horizontal

horizontal, menu

of LCD

of WindowWall layout

vertical
power

tile on/off
power on/off
power supply status
preferred.source.detection
product

name

type
ps status

, 22

, 107

, 8

, 108

, 67

, 109

, 35

, 35

, 111

, 112

, 113

, 103

, 45

, 22

, 83, 84

, 74

, 113

, 110

, 163

Q

quad

input status, 114
lcd status, 115

quick configure

routing for WindowWall

, 80, 81

R

ratio

aspect, status of, 4

recall

color balance clipboard values
memory slot, 136
memory, target of (slot.recall.target), 137

red

border color
gain, 50
offset

remote control, enable/disable, 56
replies sent, 116
reply types
reset

color balance values, 117
offset
runtime hours, 124
system hours, 147
YPbPr

resolution

horizontal, 118
horizontal, of LCD
vertical, 119
vertical, of LCD, 66, 69

response

ascii
sent, number of, 116
types

resync, auto, 9
revision number
RGB colorspace
right side zoom
routing

quick configure for WindowWall
row, wall
RS485
rs485.termination
runtime

, 165

, 2

hours, high, 122

hours, low

hours, reset

minutes

, 16

, 95

, 2

, 96

, 171

, 65

, 2

, 2

, 120

, 31, 31

, 175

, 121

, 123

, 124

, 125

, 26

, 80, 81

S

saturation, 126
save

color balance values to clipboard

memory slot

slot name

, 138

, 133

, 27

RS232 Control 61

Index

saver, lamp, status of, 62
search, status of source search, 143
SECAM, 155
serial diagnostics, clear
shape, 3
sharpness, 128
slot

, 129

action

, 130

current
delete, 131
empty (slot.full), 132

, 132

full
name letter, 135
name save, 133
name, clear
recall, 136
recall target, 137

, 138

save
setting, 139
state, 140

, 141

status
target, 142

software

part number

source

search status, 143

status

, 4

aspect
input search (source.search.status), 143
lamp saver
memory (slot.status), 141
of LCD, 68
slot
source search, 143
wall, 166

stretch

bottom
left side, 174
right side
top side

string

build date
build.date, 18
product
revision
slot.name.save

uart
symbolic response
sync type
system

hours reset

hours, high

hours, low

minutes

, 62

, 141

, 172

, 175

, 176

, 18

, 111

, 120

, 103

, 144

, 147

, 145

, 146

, 148

, 127

, 134

, 103

, 133

, 2

T

taller aspect ratio, 4

target

memory (slot.target)
slot, 142

temperature

, 149

Celsius

test pattern, 104

, 34

custom

tile

power on/off

time

lamp saver delay hours, 60
lamp saver delay minutes
last fault hours, 63, 64
reset system hours, 147
runtime hours
runtime hours, reset, 124
runtime minutes, 125
system hours
system minutes, 148

timeout

menu

top of menu, go to, 89
top zoom, 176
type of product
type, sync, 144

, 35, 35

, 88

, 112

, 142

, 61

, 122, 123

, 145, 146

U

uart

, 150

clear
errors, 151, 152

update, 153

V

vertical

frequency, 46
lines, 154
position
resolution
resolution of LCD, 66

video

standard

viewport window, 156, 157, 158, 159, 160, 161
voltage

of LCD

, 109

, 119

, 155

, 70

W

wall

, 162

column
height of
justify
mode, enable/disable
row
status
width of

, 163

, 57

, 164

, 165

, 166

, 167

62 RS232 Control

white

balance in clipboard, 28

balance percent, 169

border color

color balance, 168
wider aspect ratio, 4
width

, 167

wall

zoom
window, viewport, 156, 157, 158, 159, 160, 161
window.reset.size, 170
WindowWall

layout

layout module, 72

layout module exists

layout of tile, 77

layout position, 74

layout size

quick configure, 80, 81

route module, 78

route output

route switch, 82

, 16

, 177

, 71

, 73

, 76

, 79

Index

Y

YPbPr

colorspace

reset, 171

Z

zoom

bottom

height, 173

left side, 174

right side

top side, 176

width, 177

, 31, 31

, 172

, 175

RS232 Control 63

64 RS232 Control
