OW N E R S O P E R A T I N G M A N U A L
CL-610 and CL-610LT
DLP™ Projectors
Table of Contents
Limited Warranty ............................................................................ 5
Overview .........................................................................................
Features .............................................................................................................. 9
Front / Top View ...................................................................................................
Rear / Bottom View ..............................................................................................
8
9
10
11
Controls and Functions .................................................................. 13
Control Panel ....................................................................................................... 13
Connector Panel ..................................................................................................
Runco Logo .........................................................................................................
Remote Control ....................................................................................................
14
14
15
Installation ...................................................................................... 17
Remote Control .................................................................................................... 17
Installation Considerations ....................................................................................
18
Connections .................................................................................... 23

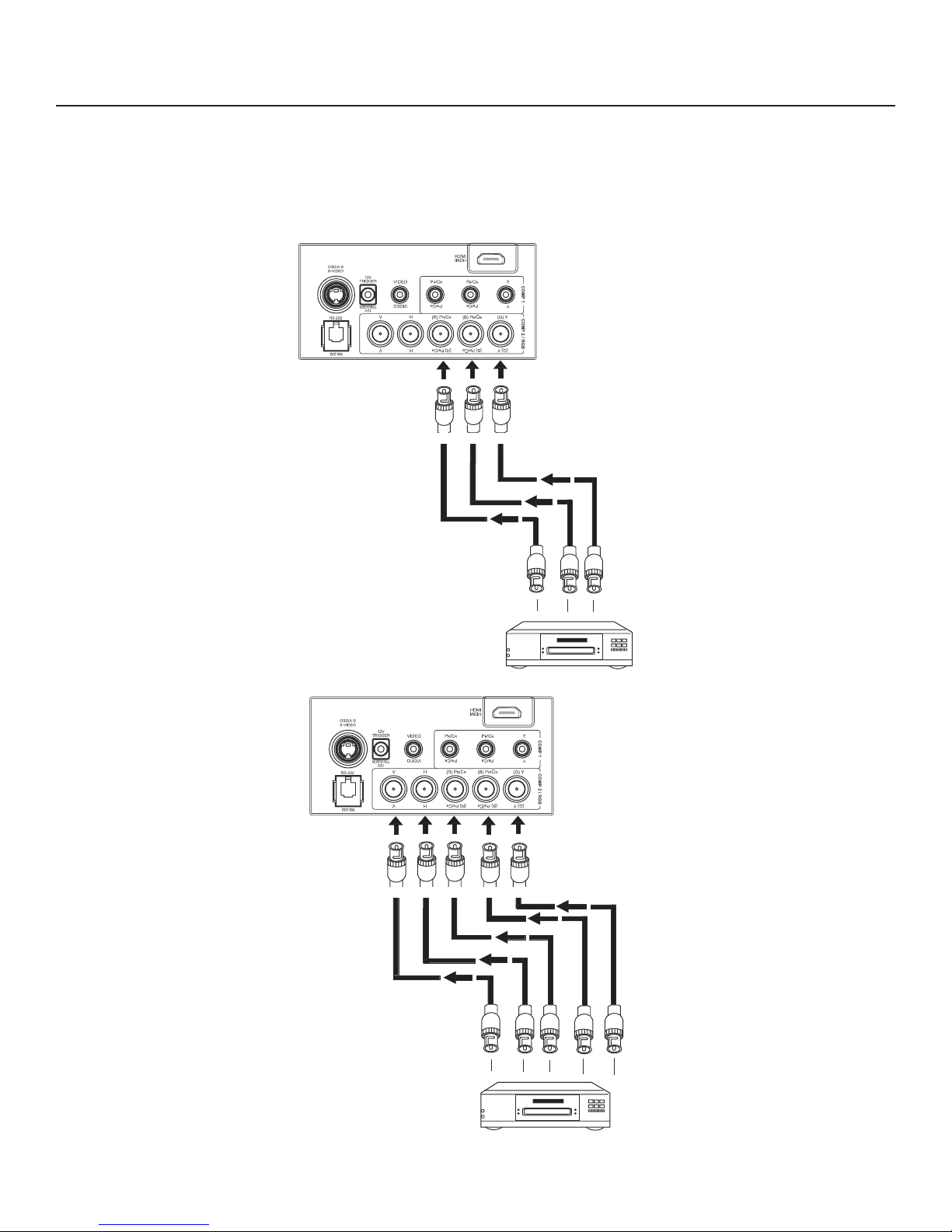

Connecting Video Inputs ...................................................................................... 23
Connecting a Computer (GBRHV) .........................................................................
Connecting an HDMI™ Device ..............................................................................
Connecting to AC Power ......................................................................................
25
25
26
Basic Operation .............................................................................. 27
Turning on the Power ........................................................................................... 27
Adjusting the Zoom and Focus .............................................................................
Adjusting Projector Height or Projection Angle .......................................................
Selecting Video Memory .......................................................................................
Selecting an Aspect Ratio .....................................................................................
Adjusting the Picture ............................................................................................
Setting the Menu ..................................................................................................
Selecting the Input Source ....................................................................................
PIP / PBP Function ..............................................................................................
Turning off the Power ...........................................................................................
27
27
28
28
28
29
29
29
30
On-Screen Display Menus .............................................................. 31
Using the Menu .................................................................................................... 31
Main Menu ...........................................................................................................
Picture Quality Adjustments ..................................................................................
Aspect Ratio ........................................................................................................
Installation ...........................................................................................................
Option .................................................................................................................
Setup ..................................................................................................................
Runco CL-610 Owner’s Operating Manual
31
32
34
35
37
39
3
Table of Contents (continued)
ISF Calibration ..................................................................................................... 43
Lamp Replacement ........................................................................ 45
Troubleshooting ..............................................................................
RS-232 Setup ..................................................................................
Connecting RS-232 to the Projector ..................................................................... 49
RS-232C Control Codes .......................................................................................
Specifications ................................................................................. 53
Dimensions .....................................................................................
47
49
50
55
4
Runco CL-610 Owner’s Operating Manual
TWO YEAR LIMITED WARRANTY
For Projectors, Video Processors and Controllers
Congratulations on your purchase of a Runco video product and welcome to the Runco family! We believe Runco produces “The World’s Finest Home Theater Products”. With proper installation, setup and care, you should enjoy many years of unparalleled video performance.
This is a LIMITED WARRANTY as defined in the Magnuson-Moss Warranty Act. Please read it carefully and retain it with your other important documents.
WHAT IS COVERED UNDER THE TERMS OF THIS LIMITED WARRANTY:
SERVICE LABOR:
of manufacturing defect for a period of two (2) years from the effective date of delivery to the end user (excluding the lamp).
PARTS: (Not including the lamp) Runco will provide new or rebuilt replacement parts for the parts that fail due to defects in materials or workmanship for a period of two (2) years from the effective date of delivery to the end user. Such replacement parts are then subsequently warranted for the remaining portion (if any) of the original warranty period.
PROJECTOR LAMP: Runco will pay for service labor by a Runco Authorized Service Center when needed as a result of a manufacturing defect for a period of six (6) months or 1000 hours, which ever comes first, from the effective date of delivery to the end user. In addition, Runco will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or workmanship for a period of six (6) months or 1000 hours, which ever comes first, from the effective date of delivery to the end user. Such replacement lamps are then subsequently warranted for the remaining portion (if any) of the original warranty period.
WHAT IS NOT COVERED UNDER THE TERMS OF THIS LIMITED WARRANTY:
This Limited Warranty only covers failure due to defects in materials and workmanship that occur during normal use and does not cover normal maintenance. This Limited Warranty does not cover cabinets or any appearance items; failure resulting from accident, misuse, abuse, neglect, mishandling, misapplication, faulty or improper installation or setup adjustments; improper maintenance, alteration, improper use of any input signal; damage due to lightning or power line surges, spikes and brownouts; damage that occurs during shipping or transit; or damage that is attributed to acts of God. In the case of remote control units, damage resulting from leaking, old, damaged or improper batteries is also excluded from coverage under this Limited Warranty
Runco will pay for service labor by a Runco Authorized Service Center when needed as a result
.
CAUTION: THIS LIMITED WARRANTY ONLY COVERS RUNCO PRODUCTS PURCHASED FROM RUNCO AUTHORIZED DEALERS. ALL OTHER PRODUCTS ARE SPECIFICALLY EXCLUDED FROM COVERAGE UNDER THIS LIMITED WARRANTY. MOREOVER, DAMAGE RESULTING DIRECTLY OR INDIRECTLY FROM IMPROPER INSTALLATION OR SETUP IS SPECIFICALLY EXCLUDED FROM COVERAGE UNDER THIS LIMITED WARRANTY.
Runco CL-610 Owner’s Operating Manual
5
RIGHTS, LIMITS AND EXCLUSIONS:
Runco limits its obligations under any implied warranties under state laws to a period not to exceed the warranty period. There are no express warranties. Runco also excludes any obligation on its part for incidental or consequential damages related to the failure of this product to function properly. Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages. So the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
EFFECTIVE WARRANTY DATE:
This warranty begins on the effective date of delivery to the end user. For your convenience, keep the original bill of sale as evidence of the purchase date.
IMPORTANT: WARRANTY REGISTRATION:
Please fill out and mail your warranty registration card. It is imperative that Runco knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.
CONTACT A RUNCO AUTHORIZED SERVICE CENTER TO OBTAIN SERVICE:
Repairs made under the terms of
this Limited Warranty covering your Runco video product will be performed at the location of the product, during usual working hours, providing location of product is within normal operating distance from a Runco Authorized Service Center. In some instances it may be necessary for the product to be returned to the Runco factory for repairs. If, solely in Runco’s judgment, location of product to be repaired is beyond normal operating distance of the closest Runco Authorized Service Center, or the repair requires the unit be returned to the Runco factory, it is the owner’s responsibility to arrange for shipment of the product for repair. These arrangements must be made through the selling Runco Dealer. If this is not possible, contact Runco directly for a Return Authorization number and shipping instructions. Runco will return product transportation prepaid in the United States, unless no product defect is discovered. In that instance, shipping costs will be the responsibility of the owner.
COPYRIGHT AND TRADEMARKS
© Copyright 2005 Runco International. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.
All trademarks and registered trademarks are the property of their respective owners.
6
Runco CL-610 Owner’s Operating Manual
ADDITIONAL INFORMATION:
To locate the name and address of the nearest Runco Authorized Service Center, or for additional information about this Limited Warranty, please call or write:
RUNCO INTERNATIONAL, INC.
Attn: Customer Service Department
2900 Faber Street
Union City, CA 94587
Ph: (510) 324-7777
Fax: (510) 324-9300
Toll Free: (800) 23-RUNCO
RUNCO VIDEO PRODUCT INFORMATION
RETAIN THIS INFORMATION FOR YOUR RECORDS
Model Purchased Date
Serial Number
Runco Authorized Dealer Name
Address
City State/Province Postal Code
Phone Fax
Runco CL-610 Owner’s Operating Manual
7
Safety Precautions
CAUTION
RISK O F ELECT RIC SHO CK
DO NOT O PE
N
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Thank you for your purchase of this quality Runco video projector! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.
WARNING This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not use this projector near water, outdoors or otherwise exposed to the elements.
5. Clean only with a dry cloth.
6. Do not block any ventilation openings.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety feature of the polarized or grounding type plug. A polarized type plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.
9. Do not connect the RJ-11 RS-232 jack to a telephone line connection.
10. The 12V trigger only outputs DC 12V s ignal for triggering . Do not connec t to any other power input or output. This could cause damage to this unit.
11. Only use accessories specified by RUNCO International.
12. Keep the packing material in case the projector should ever need to be shipped.
13. Unplug this projector during lightning storms or when it will not be used for an extended period of time.
14. The lamp becomes extremely hot during operation. Allow the projector to cool down for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps
beyond rated life could cause them to explode in rare occasions.
15. Refer all servicing to qualified service personnel. Servicing is required when the projector has been damaged in any way, objects have fallen or spilled into the projector, the projector has been exposed to rain or moisture, does not operate normally, or has been dropped.
8
Runco CL-610 Owner’s Operating Manual
Overview
Native 16:9 Aspect Ratio, SuperOnyxTM DMD 1280 x 720p
High Contrast and Picture Quality
12-degree mirrors with dark metal process.
High Dynamic Range and Rich Gray-scale
6-segment, 5x color wheel with wide color space.
TIR (Total Internal Reflection) Prism
High-performance light engine with Cat’s Eye optics.
Wide Variety of Inputs
Support for various video formats, including Composite, S-Video, Component, DTV Y/PB/PR, DTV RGB HD and Computer signals. The HDTV input (DTV Y/PB/PR and DTV RGB) is via RGB BNC connectors, providing the least amount of signal degradation caused by longer cable runs.
HDTV Ready
480p, 1080i and 720p (576p PAL Version) formats are all compatible with this unit (via an external DTV decoder, not provided).
Features
De-interlacing with 3:2 Pull-down
Using Runco’s proprietary De-interlacing technology, this projector provides exceptional scaling and film-to-video (3:2 pulldown) conversion for the most artifact­ free images possible.
PIP/ PBP function
Picture in Picture/Picture by Picture functions allow you to display two inputs on the screen at the same time.
ISF Calibration
This product includes ISF day and night mode settings as established by the Imaging Science Foundation. These standards provide for superior image quality and assure the user that restoration to preset values for both day and night viewing is accomplished by just the press of a button, should the projector’s settings or calibrations be inadvertently disturbed.
Runco CL-610 Owner’s Operating Manual
9
Overview
Front / Top View
1. Exhaust Vent
2. Focus Ring and Zoom Ring Access
Adjust the focus and zoom of image.
3. Runco Logo
Can be rotated to match floor or ceiling installation. See “Runco Logo” on page 14.
4. Top IR Sensor
5. Status LEDs
See “Control Panel” on page 13.
6. Intake Vent
7. Front IR Sensor
8. Projection Lens
10
Runco CL-610 Owner’s Operating Manual
Rear / Bottom View
Overview
1. Connector Panel
See “Connector Panel” on page 14.
2. AC Power IN Socket
3. AC Power Switch
4. Cable Access Door
Open to access connectors. See “Connector Panel” on page 14.
5. Cable Opening
Pass cables through this opening.
Runco CL-610 Owner’s Operating Manual
6. Runco Logo
Can be rotated to match floor or ceiling installation. See “Runco Logo” on page 14.
7. Lamp Module Cover
Remove this cover when replacing the lamp. See “Lamp Replacement” on page 45.
8. Front / Rear Adjusters
Adjusts the height or projection angle.
9. Ceiling Mount Holes
The connecting holes for the ceiling mount bracket.
11
Overview
This page is intentionally left blank.
12
Runco CL-610 Owner’s Operating Manual
Controls and Functions
Control Panel
1. FOCUS RING
Adjust the focus of the image
- Ro tate the focus ring right or left to focus the image.
2. ZOOM RING
Adjust the size of the image
- Rotate right to enlarge the image.
- Rotate left to reduce the image.
3. LAMP LED
Indicates the status of the lamp
- Red when the lamp has exceeded its usage life or developed a problem. Please contact your Runco Dealer for assistance.
- Flashing Red when the fans are not working or the lamp cover is open. Please contact your Runco Dealer for assistance.
4. POWER LED
Indicates the status of the power
- Orange when the AC power cord is plugged in to a wall outlet (standby mode). Once in standby mode, you can turn on the projector by pressing the ON button on the remote control.
- Green when the power is turned on (operational mode).
- Flashing Orange for the first 45 seconds after power-up indicating that the lamp is warming up.
- Flashing Green for 110 seconds after the projector was powered off indicating that the lamp is cooling down.
5. TEMP LED
Indicates the status of the fans and internal temperature
- Red when the internal temperature is too high. Please contact your Runco Dealer for assistance.
- Flashing Red when the fans are not working or the lamp cover is open. Please contact your Runco Dealer for assistance.
6. TOP IR SENSOR
Runco CL-610 Owner’s Operating Manual
13
Controls and Functions
Connector Panel
To access the connector panel, pull firmly on the cable access cover to open it.
1. S-Video (mini DIN 4-pin) Y/C (S-video) signal input
2. 12v Trigger (mini jack, diameter 5.5 mm outside, 2.5 mm inside)
+12V output, active when the projector is turned on
Runco Logo
3. Video (RCA Jack)
Composite video signal input
4. Component (RCA Jacks)
480i Component (Y/CB/CR) video signal input
5. HDMI (High-Definition Multimedia Interface) Input
Digital video signal input
6. RGB/ HDTV (BNC) or Progressive Scan DVD players
DTV Y/P
B/PR or DTV RGB video signal input
7. RS-232C (RJ-11 Jack)
RS-232C control signal input (refer to page 49 for details)
The Runco logos on the front and rear of the projector can be rotated to match a floor or ceiling installation. To rotate the logo, grip it at the sides, pull it away from the projector and rotate it 180 degrees.
14
Runco CL-610 Owner’s Operating Manual
Controls and Functions
FOCUS LENSZOOM
LIGHT
OFFON
VID S-VID COMP1
RGBHD
INFO RVR
ENTER
EXIT MENU
BRT
CONT COL TNT
HDMI
COMP2
MEM1 FACT
ISF
DAY
ISF
NIGHT
ANA
16X9
VWIDELBOX
4X3
CINEMA
VCINE
PBP PIP PIP+ACT
PIP-
2
1
5
4 6
3
9
8 0
7
INFO
Displays active source and aspect ratio information.
Arrow (▲,◄,▼,►)
Use to select the menu or to make various adjustments.
ENTER
Enter the setting of items in the menu.
RVR
Not applicable to this model.
EXIT
Exit and save the setting(s) of items in the menu.
MENU
Turns on/off the on-screen display menu.
LIGHT
Press to turn on the remote control back light.
ON
Press to turn on the projector.
OFF
Press to turn off the projector.
VID (Video)
Composite video signal input.
S-VID (S-Video)
S-Video signal input.
COMP1 (Component 1)
Component Y/CB/CR input.
COMP2 (Component 2)
DTV Y/PB /PR signal input.
RGBHD
DTV RGBHV signal input.
HDMI
High-Definition Multimedia Input.
BRT (Brightness)
Adjust picture brightness.
CONT (Contrast)
Adjust picture contrast.
COL (Color)
Adjust color intensity.
TNT (Tint)
Adjust color tones.
Remote Control
Runco CL-610 Owner’s Operating Manual
15
Controls and Functions
FOCUS LENSZOOM
LIGHT
OFFON
VID S-VID COMP1
RGBHD
INFO RVR
ENTER
EXIT MENU
BRT
CONT COL TNT
HDMI
COMP2
MEM1 FACT
ISF
DAY
ISF
NIGHT
ANA
16X9
VWIDELBOX
4X3
CINEMA
VCINE
PBP PIP PIP+ACT
PIP-
2
1
5
4 6
3
9
8 0
7
Remote Control (continued)
CINEMA
Image in Letterbox mode is enlarged to a 16x9 image and the upper and lower portions are compressed.
ANA (Anamorphic)
For 16:9 DVDs.
4X3 (Standard 4:3)
The input signal will be scaled to fit 4:3 display mode in the center of the screen.
LBOX (Letterbox)
Image in letterbox format is enlarged to fit 16:9 full screen display and the upper/ lower portions are “blanked off.”
VWIDE (VirtualWide)
4:3 image is enlarged NON­linearly in horizontal direction to fit 16:9 full screen display.
VCINE (Virtual Cinema)
A 2.35 image is stretched vertically in both directions to fill a 16:9 image.
MEM1, ISF NIGHT, ISF DAY, FACT
Recall video memory sequentially. See “Selecting Video Memory” on page 28.
0 - 9
Press to type in menu passcodes.
PBP (Picture by Picture)
Enable the PBP function.
ACT (Active)
Switch to the active window in PIP display mode.
PIP (Picture in Picture)
Enable the PIP function. Use ARROW keys to adjust the position of the PIP window. See “PIP / PBP Function” on page 29.
PIP+
Enlarge the size of PIP window.
PIP- Shrink the size of PIP window.
16
Runco CL-610 Owner’s Operating Manual
Installation
Push the battery cover and slide it off. Install the two AAA batteries with the correct polarity and then replace the cover.
Notes on Batteries
Make sure that the battery polarities are correct when installing the batteries.
Do not mix an old battery with a new one or different types of batteries.
If you will not use the remote control for a long time, remove the batteries to avoid
damage from battery leakage.
Notes on Remote Control Operation
Remote Control
Make sure that there is nothing obstructing the infrared beam between the remote
control and the IR receiver on the projector.
The usable range is up to 8 meters (26.25 feet) within a 45-degree horizontal angle
and a 15-degree vertical angle.
If the effective range of the remote control decreases, or it stops working, replace
the batteries with new ones.
The remote control may fail to operate if the infrared remote sensor is exposed to
bright sunlight or fluorescent lighting.
Ambient conditions may possibly impede the operation of the remote control. If this
happens, point the remote control at the projector, and repeat the operation.
• The Ø icon appears on the screen when a button for an unavailable function is
pressed.
Runco CL-610 Owner’s Operating Manual
17
Installation
Installation Considerations
Installation Type
Proper installation of your projector will ensure the quality of your display. Whether you are installing a projector temporarily or permanently, you should take the following into account to ensure your projector performs optimally.
Choose the installation type that best suits your needs: front or rear screen, floor mount or inverted mount.
Front Screen, Floor Mount Installation
Advantages Considerations
• Easy to set up
• Can be moved or changed quickly
• Easy to access
• Shares floor space with audience
Front Screen, Inverted Mount (ceiling) Installation
Advantages Considerations
• Does not take up audience space
• Projector is unobtrusive
• Projector cannot be accidentally moved
• Installation is more permanent
• It is more difficult to access the projector
Rear Screen, Floor Mount Installation
Advantages Considerations
• Projector is completely hidden
• Projector is easily accessed
• Usually good ambient light rejection
• Requires separate room
• Installation cost is usually higher
Screen Type and Size
Rear Screen, Inverted Mount (ceiling) Installation
Advantages Considerations
• Projector is completely hidden
• Usually good ambient light rejection
• Requires separate room
• Installation cost is usually higher
Rear Screen, Floor Mount with Mirror
Advantages Considerations
• Projector is completely hidden
• Usually good ambient light rejection
• Requires less space behind screen than other rear screen installations
• Requires separate room
• Installation cost is usually higher
Front Screen Installations
In front screen installations the projector and audience are positioned in front of the screen, which can be flat or curved.
Flat screens are recommended with this projector. They offer a gain of about 1 with a viewing angle just less than 180°. This type of screen reflects incident light equally in all directions so the audience can see the display from various angles.
Curved screens have a gain greater than 1 with a viewing angle much less than 180°. This type of screen does not reflect incident light equally in all directions; instead, it is concentrated in a viewing cone. The audience sitting within the viewing cone area sees a brighter image than those sitting just outside this area. Runco generally does not recommend use of curved screens due to excessive brightness and uncorrectable geometrical distortion.
18
Runco CL-610 Owner’s Operating Manual
Installation
Rear screen installations
There are two basic types of rear screens: diffused and optical.
A diffusion screen has a surface that spreads the light striking it. Purely diffused screens have a gain of less than 1. The main advantage of the diffused screen is its wide viewing angle, similar to that of a flat screen for front screen projection. This type of screen is suitable when a wide viewing angle is required but there is low ambient room lighting.
Optical screens take light from the projector and redirect it to increase the light intensity at the front of the screen. This reduces it in other areas. A viewing cone similar to that of a curved, front-screen installation is created. This type of screen is better suited for brightly lit rooms where the audience is situated within the viewing cone.
Screen size
Choose a screen size that is appropriate for your lens and application. The size of the room and viewing distance are the defining factors; a rule of thumb is that the primary viewing distance be 1.5 times the screen width.
To fill a screen with an image, the aspect ratio of the screen should be equal to the aspect ratio of the image (expressed as the ratio of its width to its height). Standard video from a VCR has a 4:3 or 1.33:1 aspect ratio. For example, to display a VCR output with a 4:3 aspect ratio onto a 10-foot (3.05-meter) high screen, the width of the screen must be at least 13.3 feet (4 meters).
Runco CL-610 Owner’s Operating Manual
19
Installation




Ambient Light
Other Considerations
Throw Distance
In general, minimize or eliminate light sources directed at the screen. Contrast ratio in your images will be noticeably reduced if light directly strikes the screen, such as when a shaft of light from a window or floodlight falls on the image. Images may then appear washed out and less vibrant.
Other considerations and tips that can help improve your installation:
• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector away from heating and/or air conditioning vents. Changes in temperature may cause drifts in the projector circuitry, which may affect performance.
Keep the projector away from devices that radiate electromagnetic energy such as motors and transformers. Common sources of these include slide projectors, speakers, power amplifiers and elevators.
Throw distance is the distance measured from your projector’s lens to the screen. This is an important calculation in any projector installation as it determines whether or not you have enough room to install your projector with a desired screen size and if your image will be of the right size for your screen.
You can quickly estimate the throw distance by taking the width of the screen and multiplying it by the lens throw ratio that is applicable to your projector:
The CL-610 has a minimum throw distance factor of 1.37 and a maximum throw distance factor of 1.82.
The CL-610LT has a minimum throw distance factor of 1.86 and a maximum throw distance factor of 2.47.
The result of this calculation tells you roughly how far back the projector should be positioned from the screen in order to project a focused image large enough to fill the screen.
For example, with an 8-foot (96-inch) wide screen (the maximum recommended screen width for this projector):
The CL-610 has a throw distance range of between 131.52 inches (3.34 meters)
The CL-610LT has a throw distance range of between 178.56 inches (4.54 meters)
and 174.72 inches (4.44 meters).
and 237.12 inches (6.02 meters).
20
Runco CL-610 Owner’s Operating Manual
Proper placement of the projector relative to the screen will yield a rectangular, perfectly-
Screen
Height
Projection Distance
Ceilin
g
x
Lens Center
Lens Center
Ceiling Installation
Screen
Height
Floo
r
Lens Center
Projection Distance
Floor Installation
Lens Center
x
centered image that completely fills the screen.
Ideally, the projector should be positioned perpendicular to the screen and in such a way that the lens center is aligned with either the top or bottom edge of the screen area, and centered horizontally.
The top of the projected image is even with the lens center when the projector is inverted (ceiling-mounted). Likewise, the bottom of the projected image is aligned with the lens center when the projector is upright (as in a floor installation).
Installation
Vertical and Horizontal
Position
If it is not possible to align the projector and screen as shown above, you can tilt the projector at a slight angle. In a ceiling installation, you do this by adjusting the ceiling mount. For a floor installation, turn the four adjustable feet on the bottom of the projector to adjust the projector height and/or projection angle.
If you do this, you may need to make keystone adjustments or vertically shift the image using the on-screen display (OSD) controls, to compensate. For detailed instructions, refer to On-Screen Display Menus, later in this manual.
Runco CL-610 Owner’s Operating Manual
Adjusting the Projection
Angle
21
Installation
Mounting
Folded Optics
There are several methods for mounting the projector. Depending on your chosen installation, one method may be more suitable than another. In typical front and rear screen installations the projector can be mounted to a secure and level surface, such as a table or cart. Carts are useful when moving a projector during a presentation or from site to site. If possible, lock the wheels when it’s in position to prevent it from being moved during a presentation.
CEILING MOUNT—The projector can also be inverted and suspended from the ceiling using a specially designed ceiling mount fixture. This type of mounting is recommended for fixed installations and for those that want the projector out of sight or have a limited space for projector and audience.
Use only the Runco-approved ceiling mount kit designed for your projector.
In rear screen applications where space behind the projector is limited, a mirror may be used to fold the optical path, as shown below. The position of the projector and mirror must be accurately set. If you are considering this type of installation, contact your dealer for assistance.
22
Runco CL-610 Owner’s Operating Manual
Connections
DVD Player
When connecting your equipment, make sure to:
1. Turn off all equipment before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly connected.
Connecting Video Inputs
Video / S-Video /
Component (Interlaced Video)
Runco CL-610 Owner’s Operating Manual
23
Connections
DTV Source
DTV Source
Vert Horiz Red Blue Green
Red Blue Green
Progressive Component
(DTV Y/P
The RGB BNC input (labeled COMP 2 / RGB) supports two kinds of HDTV formats: Progressive component (DTV Y/PB/PR) and DTV RGB. The projector will automatically detect the resolution.
B/PR)
RGBHV (DTV RGB)
24
Runco CL-610 Owner’s Operating Manual
Connections
Vert Horiz Red Blue Green
Connecting a Computer (GBRHV)
This unit is compatible with the following computer resolutions: 1024x768, 800x600 and 640x480.
PC or Notebook (PC, RGB, Analog, HD Component, Progressive DVD)
Use an HDMI (High-Definition Multimedia Interface) cable to connect the projector to an HDMI device.
Connecting an HDMI™ Device
HDMI So u rce
(DVD player or HD tuner with HDMI or DVI out)
Runco CL-610 Owner’s Operating Manual
25
Power switch
Connections
Connecting to AC Power
The CL-610 ships with various types of AC power cords. Choose the one that is appropriate to your locale.
Plug the female end of the power cord into the AC receptacle on the rear of the projector (AC 100V ~ 240V). Then, connect the other end to your AC power source.
26
Runco CL-610 Owner’s Operating Manual
Basic Operation
LIGHT
OFFON
VID S-VID COMP1
RGBHD HDMI
COMP2
Focus
Zoom out
Zoom in
• Turn on the main power switch. The POWER LED will light orange.
Press the ON button on the remote
control to turn on the projector. The POWER LED flashes orange during the warm up period, then lights solid green.
“Searching….” appears on the
screen before the projector identifies the input signal, and remains there until a valid signal is detected.
If an incompatible input signal exceeds
the range of the projector a “No signal supported” message will be displayed on the screen. This message remains on the screen until you change the input signal.
Adjust the projected image size with
the zoom ring on the lens. To focus the image, rotate the focus ring on the lens.
Turning on the Power
Adjusting the Zoom and Focus
To adjust the projector height or projection angle, or to compensate for a mounting surface that isn’t level, turn the four adjustable feet on the bottom of the projector.
Runco CL-610 Owner’s Operating Manual
Adjusting Projector Height or Projection Angle
27
Basic Operation
ANA
16X9
VWID
ELBOX
4X3
CINEMA
VCINE
2
1
BRT
CONT COL TNT
MEM1 FACT
ISF
DAY
ISF
NIGHT
Selecting Video Memory
Selecting an Aspect Ratio
Press MEM1 to recall custom memory
settings.
• Press ISF NIGHT to recall ISF Night
settings.
• Press I SF DAY t o rec all ISF Day
settings.
NOTE: ISF settings must be calibrated and stored by a certified ISF calibrator. For more information, please go to www.imagingscience.com.
Press FACT (Factory) to restore factory
settings for the current source. An on­screen confirmation message appears. Press FACT again to confirm.
Select an aspect ratio that suits the format of the video signal. The following aspect ratios are available.
CINEMA: The image in the Letterbox mode
is enlarged to a 16x9 image and the upper and lower portions are compressed.
ANA16X9 (Anamorphic): A 4:3 image is
stretched horizontally to fit a 16:9 screen. This setting is for 16:9 DVDs and HDTV programs.
4 X 3 (Standard 4:3): The input signal is
scaled to fit a 4:3 display mode in the center of the screen.
LBOX (Letterbox): An image in letterbox
format is enlarged to fit a 16:9 full screen display; the upper and lower portions are compressed.
VWIDE (Virtua l Wide): This setti ng
transforms a 4x3 image to a 16x9 image.
VCINE (Virtual Cinema): A 2.35 image is
stretched vertically in both directions to fill a 16:9 image.
Adjusting the Picture
28
Press BRT (Brightness) to adjust picture
brightness.
• Press CONT (Contrast) to adjust picture
contrast.
• Press COL (C olor) to a djust color
intensity.
Press TNT (Tint) to adjust color tones.
Runco CL-610 Owner’s Operating Manual
INFO RVR
ENTER
EXIT MENU
Basic Operation
VID S-VID COMP1
RGBHD HDMI
COMP2
PBP PIP PIP+ACT
PIP-
Press INFO to view information about the active signal source and aspect ratio.
Press MENU to open or close the on-screen menu.
Use the arrow buttons (▲,◄,▼,►) to select menu items or make adjustments.
Press ENTER or to enter the setting of items in the menu, or press EXIT to leave and save the setting of items in the menu.
When you turn on the projector, it searches for the input source you selected last time.
• You may select the input source directly on the remote control.
Setting the Menu
For more information on settings, See “On­Screen Display Menus” on page 31.
Selecting the Input Source
For PIP (Picture In Picture) and PBP (Picture By Picture) purposes, there are two groups of inputs separated by their display modes:
Video g roup: Vi d e o , S- V i d e o and Component Y/CB/CR inputs.
Graphic (HD) group: HDMI and RGB/
Component HD inputs.
• PIP / PBP shows one input from the Graphic group within or beside one input from the Video group.
• Press PBP to enable the PBP function. Press PBP again to switch the screens left to right. Press PBP again to turn PBP off.
Press ACT (Active) to switch to the active window. You can only change the input signal settings in the active window.
• Press PIP to enable the PIP function. Press PIP again to switch the main window. Press PIP again to turn PIP off.
• Press PIP+ or PIP- to adjust the size of the PIP window.
Adjust the position of the PIP window with the ARROW keys (▲,◄,▼,►).
PIP / PBP Function
Runco CL-610 Owner’s Operating Manual
29
LIGHT
OFFON
VID S-VID COMP1
RGBHD HDMI
COMP2
Basic Operation
Turning off the Power
• Press the OFF button to turn off the
projector.
The POWER LED will blink green and the
fans will speed up for a quick cool-down. The projector will not respond to any command for 90 seconds.
• The POWER LED will light solid orange
once t h e cooling d o w n cycle has completed.
• The fans will run for three minutes to cool.
• You can turn the projector back on after approximately two minutes.
30
Runco CL-610 Owner’s Operating Manual
On-Screen Display Menus
INFO RVR
ENTER
EXIT MENU
This unit i s equi pped with an on-screen display (OSD) menu for making adjustments and changing settings. There are five menu languages; see the Language setting under “Installation” on page 35.
Press the Menu button to turn on/off the OSD menu.
NOTE: If the Main Menu is displayed, you can also press Exit to turn it off.
Use the arrow buttons (▲,◄,▼,►) to select items in the menu or to make various adjustments.
Press Enter or to select an item to change, or press Exit to leave and save the setting of items in the menu.
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option Set Up ISF Calibration
Source selection and picture quality adjustments
Aspect Ratio selection Installation selection
Option selection Setup selection ISF Calibration selection
Using the Menu
Main Menu
When the Menu button is pressed, the Main Menu (shown above) appears on the screen. Use the or button to move to an item, then press Enter to select it.
The active source is indicated by an arrow (>) to the left of the source; in the example above, Video is the active source. To select a different source, use the or button to highlight it and press Enter or ►.
Runco CL-610 Owner’s Operating Manual
31
On-Screen Display Menus
Picture Quality Adjustments
Brightness
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option Setup ISF Calibration
Adjustment
Brightness Contrast Color Tint Sharpness Filter Color Temperature ICC Selection Store Image Settings Restore Image Settings
To access the picture quality adjustments, press Menu, highlight the active source and press Enter or . The picture quality sub-menu then appears (see above).
To adjust a setting, highlight it with the
or button and press Enter to activate a
scroll bar for that setting. Use the or keys to change the setting. When finished, press Exit.
Select Brightness to adjust the black level of the projected image (0 = minimum; 60 = maximum).
Contrast
Select Contrast to adjust the white level of the projected image (0 = minimum; 32 = maximum).
Color
Tint
Sharpness
Select Color to adjust the color level (saturation) of the projected image (0 = minimum; 64 = maximum).
Select Tint to adjust the hue of the projected image (0 = minimum; 30 = maximum).
Select Sharpness to adjust the sharpness of the projected image (-14 = minimum; +20 = maximum). This setting has no effect if the Sharpness Filter is set to 0 (refer to the next paragraph).
Filter
The Filter setting controls the behavior of the Sharpness control. The available settings depend on the vertical resolu tion of the inp ut signal, as f ollows:
With a 480i signal, you can apply the sharpness control to either the input signal
(1), the output signal (2), both (3) or neither (0).
With a 480p or higher-resolution signal, the sharpness control is applied only
to the output signal and only when you set the Sharpness filter to “on” (1).
32
Runco CL-610 Owner’s Operating Manual
On-Screen Display Menus
The CL-610 has six memory settings for Color Temperature. Four of these settings are factory set to default as follows:
0 -- Original lamp color temperature 1 -- 5400 kelvins 2 -- 6500 kelvins
Color Temperature
2 - +
3 -- 8500 kelvins 4 -- Custom 5 -- Custom
Custom 4 and 5 memory are installer-adjustable and can be used to create custom settings. There are nine adjustable “white balance” parameters available for the Custom 4 and 5 settings (three each for red, green and blue). These are described later in this section; refer to “Set Up.”
NOTE: You must enter a passcode in order to enter the Set Up menu.
Use the ICC Selection menu to select the color space that is appropriate for the source signal, to achieve optimal color balance.
NOTE: The International Color Consortium (ICC) is a group of imaging product vendors that promotes and develops cross-platform, vendor-neutral color measurement and management standards.
Color Temperature
ICC Selection
If you select NTSC, HDTV or PAL, you can make further adjustments to individual color characteristics in the ICC Adjust sub-menu under the ISF Calibration menu, described later in this section. (The Standard color is factory-set and not adjustable.)
Once the desired adjustments have been entered, select Store Image Settings to save these settings into the “Memory 1” memory location.
To recall stored custom image quality settings, select Restore Image Settings and choose “Memory 1,” “ISF Night” or “ISF Day.”
Store Image Settings
Restore Image Settings
Runco CL-610 Owner’s Operating Manual
33
Active Image Area
Active
Image Area
Active Image Area
On-Screen Display Menus
Aspect Ratio
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option Setup ISF Calibration
Aspect Ratio
Anamorphic (16:9) Standard (4:3) Letterbox
Virtual Wide
Cinema Virtual Cinema
To access the Aspect Ratio adjustments, press Menu, then press the or arrows to highlight Aspect Ratio and press Enter. The Aspect Ratio sub-menu then appears (see above).
There are six aspect ratios available that can be selected for video signal inputs:
• ANAMORPHIC (16:9)
The image is compressed vertically, but anamorphic software will appear properly proportioned. This is best suited for use with 16:9 DVDs and HDTV programming.
• LETTERBOX
The image in the Letterbox mode is stretched vertically, and the top and bottom portion ‘blanked off’. This ratio is best suited for LaserDisc movies or non-anamorphic DVDs.
• STANDARD (4 x 3)
The input signal is scaled to fit in the center of the 16:9 screen.
34
• VIRTUALWIDE
A 4:3 image is transformed into a 16x9 image.
Runco CL-610 Owner’s Operating Manual
On-Screen Display Menus
• CINEMA
The image in the Letterbox mode is enlarged to a 16x9 image and the upper and lower portions are compressed.
• VIRTUAL CINEMA
A 2.35 image is stretched vertically in both directions to fill a 16:9 image.
Aspect Ratio (continued)
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option Setup ISF Calibration
Installation
Language
Picture Orientation Keystone Adjust Background Color RS-232 Baud Rate Blue Image
To access the Installation adjustments, press Menu, then press the or arrows to highlight Installation and press Enter. The Installation sub-menu will then appear (see above). Press the Exit button to return to the previous menu or press the Menu button to close all menus.
NOTE: When you change a setting in the Installation menu, the change takes effect immediately; you do not need to press Enter afterwards. (Press Exit to return to the previous menu or Menu to exit.)
Installation
Runco CL-610 Owner’s Operating Manual
35
On-Screen Display Menus
Language
Picture Orientation
Keystone Adjust
Background Color
Press the or arrows to select from the available Languages: English, French, Spanish, German and Italian.
Press the
or arrows to select the projector’s Picture
Orientation. The projector can be installed on a ceiling
or in a rear-screen configuration with one or more mirrors. There are four settings: Floor Front, Ceiling Front, Floor Rear and Ceiling Rear.
To correct distortion resulting from the angle of the projection, select Keystone Adjust and use the or arrows to make the image rectangular.
NOTE: Runco recommends that the keystone feature not be used unless absolutely necessary, as it may cause artifacts in the image.
Press the or arrows to select the image Background Color (blue or white). The Background Color appears when
no incoming signal is present.
Language
> English
Francais Espanol Deutsch Italiano
Picture Orientation
> Floor Front
Ceiling Front Floor Rear Ceiling Rear
Keystone Adjust
- + 0
Background Color
> Blue
White
RS-232 Baud Rate
Blue Image
Press the or arrows to select the projector’s RS-232 Baud Rate. This function is used to change the transfer
rate of the RS-232 connection. (This setting must match the data rate of the device connected to the RS-232 input.)
Press the or arrows to turn the Blue Image Off or On. This feature removes all red and green color information from the image, and is useful for color-calibrating the projector
or other video components.
RS-232 Baud Rate
> 9600
38400
115200
Blue Image
> Off
On
36
Runco CL-610 Owner’s Operating Manual
On-Screen Display Menus
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option Setup ISF Calibration
Reset Image Settings
Sleep T imer Lamp Hours OSD Timer OSD Position PC & HD Adjust PIP/PBP Set Up DNR
Option
To access the Option adjustments, press Menu, then press the or arrows to highlight Option and press Enter. The Option sub-menu will then appear (see above). Press the Exit button to return to the previous menu or press the Menu button to close all menus.
To restore the default image settings for the current input source ONLY, press the arrow key to highlight “Yes” then press Enter.
Reset Image Settings
Load default of
current source
Confirm?
No Yes
Option
Reset Image Settings
The Sleep Timer automatically puts the projector into standby mode after the amount of time you specify here. (A warning appears on-screen one minute before this is to occur.)
Press the or arrows to set the timer for anywhere from 10 minutes to 3 hours, in 10-minute increments. To disable the Sleep Timer, set it to 0.
Press the Enter button to check the total time of lamp usage.
Press the or arrows to set the OSD Timer. This timer controls how long the menus remain on-screen after selecting them. Select from 0 to 60 seconds, in 3-second increments. When you set the OSD to 0, the menus remain on-screen until you hide them by pressing Menu.
Press the or arrows to adjust the horizontal and vertical position of the OSD.
Sleep Timer
- 0 + Minutes
Lamp Hours
+8 Hours
+30 Minutes
OSD Timer
+60 - +
OSD Position
Hor.
Ver. +20
0
Sleep Timer
Lamp Hours
OSD Timer
OSD Position
Runco CL-610 Owner’s Operating Manual
37
On-Screen Display Menus
PC & HD Adjust
PIP / PBP Set Up
Press Enter to display the PC & HD Adjust menu. Use these settings to fine-tune 480p and higher-resolution signals for optimum picture quality.
Auto: Adjusts the phase, frequency and position
automatically.
Freq.: Adjusts the frequency of the signal.
Phase: Adjusts the phase of the input signal (similar to
tracking on a VCR).
H. Pos.: Adjusts the horizontal position of the image.
PC & HD Adjust
Auto Yes?
Freq. 0
Phase +10
H.Pos. 0
V.Pos. 0
V. Pos.: Adjusts the vertical position of the image.
NOTE: To adjust the image position with a 480i source, use the Image Shift controls in the Set Up menu, described on page 41.
Press the or arrows to select PIP/PBP Enable, then press Enter. Press the or arrows to select Off or On, then press Enter.
PIP/PBP Set Up
PIP/PBP Enable
PIP Set Up PBP Set Up
PIP/PBP Enable
Off
On
PIP Set Up
PBP Set Up
DNR
Press the or arrows to select PIP Set Up, then press Enter. Press the or arrows to select PIP Off, Graphic in Video or Video in
Graphic, then press Enter.
PIP/PBP Set Up
PIP/PBP Enable
PIP Set Up
PBP Set Up
PIP Set Up
PIP Off
Graphic in Video Video in Graphic
Press the or arrows to select PBP Set Up, then press Enter. Press the or arrows to select PBP Off, Graphic by Video or Video by
Graphic, then press Enter.
PIP/PBP Set Up
PIP/PBP Enable PIP Set Up
PBP Set Up
PBP Set Up
PBP Off
Graphic by Video Video by Graphic
Press the or arrows to adjust the Digital Noise Reduction (DNR). DNR is useful for clearing up noisy RGB images such as those from a PC. Adjust as desired, keeping in mind that reducing noise (which reduces high frequencies) may also soften the image.
- + 0
38
Runco CL-610 Owner’s Operating Manual
On-Screen Display Menus
To access advanced picture quality adjustments, use the up- or down-arrow keys to highlight Set Up and press Enter. Use the number buttons on the remote to enter the Set Up menu passcode when prompted and press Enter again. Then, press MENU on the remote control.
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option
Set Up
ISF Calibration
Passcode Please Enter Passcode To
Access Service
Screen
* * *
Passcode Please Enter Passcode To
Access Service
Screen
Confirmed
NOTE: You only need to enter the Set Up menu passcode the first time you select that menu after turning on the projector.
Gamma: “Gamma” is a global setting that determines how gray shades are displayed between minimum input (black) and maximum input (white) for all signals. A good gamma setting helps to optimize blacks and whites while ensuring smooth transitions for the “in-between” values utilized in other grays. Unlike “Brightness” and “Contrast” controls, the overall tone of your images can be lightened or darkened without changing the extremes and all images will be more vibrant while still showing good detail in dark areas when using the “Gamma” control.
In all but the most unusual situations, the appropriate “Gamma Selection” (see below) will produce accurate colors and a satisfying contrast level. However, it is sometimes necessary to adjust the red, blue and green gamma curves individually. To do this, select Gamma from the White Balance sub-menu and use the left- and right-arrow buttons to manipulate the on-screen slidebars.
Gain: Use the Gain controls in the White Balance sub-menu to correct color imbalances in the bright areas of the image. A good way to do this is to use a test pattern consisting mostly of solid white areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red, green or blue, decrease the Gain for that color.
Offset: Use the Offset controls in the White Balance sub-menu to correct color imbalances in the dark areas of the image. A good way to do this is to use a test pattern consisting mostly of dark gray areas, such as a 30 IRE “window” pattern. If the gray areas contain traces of red, green or blue, decrease the Offset for that color.
Store Color Temp.4/Store Color Temp.5: When you are finished adjusting the Gamma, Gain and Offset, select Store Color Temp.4 or Store Color Temp.5 to store your settings. To recall them, set the Color Temperature to +4 or +5 in the Image Adjustment menu (refer to “Picture Quality Adjustments,” earlier in this section).
Setup
White Balance
Runco CL-610 Owner’s Operating Manual
39
On-Screen Display Menus
Gamma Selection
SD Enhance
The normal gamma setting of 2.2 is correct for almost all signals and conditions. If excess ambient light washes out the image and it becomes difficult or impossible to see details in dark areas, lower the gamma setting to compensate. This will improve contrast while maintaining good details for blacks. Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting. Again, good gamma improves contrast while maintaining good details for blacks and whites.
The SD Enhance menu gives you options for improving the quality of standard-definition, 480i images. (For 480p and higher-definition images, the controls in this menu are disabled.) Keep in mind that these controls add frequencies that are not present in the original signal, and may make images appear “noisy” if misused.
H Enhance/V Enhance: These controls can improve the apparent horizontal and/or vertical resolution of the image.
Chroma Enhance: This control adds chroma (color information) to the input signal and can make colors appear more vibrant and saturated.
H Threshold/V Threshold/Chroma Threshold: Set these to +11 or higher to activate the enhancement controls described above. Generally, the higher the threshold, the more noticeable the enhancements you make will be.
Gamma Selection
2.8
2.5
2.2
1.0 RUNCO Enhance 1 RUNCO Enhance 2 ISF Day
H Enhance
V Enhance Chroma Enhance H Threshold V Threshold Chroma Threshold
Image Over Scan
Image Shift
Image Over Scan pushes the outside edge of the active picture area of the video signal out beyond the edge of the display area.
Some television programs are produced based on the assumption that older television sets may not display the outer edges of the broadcast picture area. Over scan effectively trims away these inactive, outer edges and enlarges the remaining portion of the image to fill the display area.
Select from 1% to 10% of Over Scan, as desired.
For HDTV, DVDs and other video sources, Over Scan is generally not necessary or desirable.
The Image Shift menu allows you to precisely center the image on the screen. (These controls are available only with a 480i source signal.)
Horizontal: This control moves the image right or left within the area of available pixels.
Vertical: This option moves the image up or down within the area of available pixels.
Image Over Scan
+4 %
Horizontal
Vertical
- + 0
40
Runco CL-610 Owner’s Operating Manual
Horizontal
Vertical
- + 0
Video Black Level
> 0 IRE
7.5 IRE
NOTES:
1. To adjust the image position with a 480p or higher­resolution source, use the PC & HD Adjust controls in the Option menu, described on page 38.
2. The values shown represent where the approximate center of the image lies in relation to the total number of pixels available horizontally or vertically. This varies widely according to the signal; watch the image while adjusting.
The Amplitude Adjust menu allows you to fine-tune the image aspect ratio by stretching it horizontally or vertically, in small increments. The Horizontal control adjusts the image width while keeping the height constant. Similarly, the Vertical control adjusts the image height while keeping the width constant.
This control compensates for incoming elevated black levels present in certain video signals, and ensures that blacks in the display are neither “crushed” (where dark grays appear black) nor excessively elevated (where blacks appear dark gray). By default, the projector automatically determines the best setting according to the type of incoming video signal:
• 0 IRE – Used for DVD output with “enhanced black,” SECAM, most PAL standards and Japanese NTSC.
7.5 IRE – Used for most NTSC video signals.
For some types of video, you may want to override the setting. Generally, if black appears crushed when brightness = 30, choose “0 IRE”. If black appears excessively elevated, use “7.5 IRE.”
On-Screen Display Menus
Amplitude Adjust
Video Black Level
Lamp Power 250 W
Select Lamp Power from the Set Up Menu to adjust the lamp output level. You can choose to run the lamp as bright as possible (250W; this is the default setting) or you can choose the lower (200W) setting. Generally, lower lamp output can prolong the life of the lamp, but decreases brightness.
Primary +20 Secondary
The Remote Control menu shows you the primary and secondary infrared (IR) codes assigned to the CL-610. The
+20
Primary IR code is permanently set to +20. The secondary IR code is also +20.
You can change the secondary IR code if either:
Another device in the theater (a DVD player, for example) is responding to commands from the CL-610 remote control in ways that are unpredictable or undesirable.
• You have multiple CL-610 projectors and want to control them independently, as opposed to broadcasting commands from a single remote to all of them. In this scenario, you can use multiple remotes programmed to
Runco CL-610 Owner’s Operating Manual
41
Lamp Power
Remote Control
On-Screen Display Menus
use different IR codes. Or, you can use a single remote and change the IR code as needed to address a specific projector.
When you change the secondary IR code, the remote sends that code instead of the primary IR code.
NOTE: The Remote Control menu is read-only and need not be visible in order to change the secondary IR code.
Reset Lamp Timer
Fan Control
To simultaneously change the secondary IR code and synchronize that remote with a projector, point the remote at the projector, then press and hold and simultaneously for five seconds. The Remote Control edit window, shown at right, appears. Type a new, two-digit code.
The procedure for changing the secondary IR code on the remote only is the same, except that you point the remote away from the projector.
When you replace the projector lamp, you should also reset the lamp timer. To do this, select Reset Lamp Timer from the Set Up menu. Press the right-arrow key on the remote to highlight “Yes,” then press Enter to confirm the reset.
NOTE: Reset the Lamp Timer ONLY after you replace the lamp. Otherwise, the reported “Lamp Hours” will be inaccurate.
WARNING! Do not exceed the recommended lamp life of 2000 hours. An old lamp becomes increasingly fragile and
prone to sudden failure.
Select Fan Control from the Set Up Menu to control the operation of the projector’s cooling fan.
Mode: In most cases, the default Fan Control Mode (Auto Normal) will maintain the correct operating temperature. If the lamp frequently turns off due to overheating, or in certain high-altitude operating environments, you may need to change this setting to Auto Hi. Altitude or Manual.
Fan Speed: If you set the Fan Mode to Manual, select Fan Speed and use the on-screen slidebar to adjust the speed.
After changing either of these settings, press Exit to return to the previous menu.
Remote Control
Secondary +20
Reset Lamp Timer
Reset only if you
replace lamp
Are you sure?
No Yes
Fan Control
Mode
Fan Speed
Fan Control
> Auto Normal Auto Hi. Altitude
Manual
Fan Speed
+2 - +
Return to User OSD
To exit the Set Up menu, use the up- or down-arrow keys to highlight Return to User OSD and press Enter.
To return to the Set Up menu, select it from the Main Menu, press Enter twice, then press MENU on the remote control. (You do not need to re-enter the passcode.)
42
Runco CL-610 Owner’s Operating Manual
On-Screen Display Menus
The CL-610 has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from Runco video display devices. Accordingly, Runco recommends that setup and calibration be performed by an ISF certified installation technician.
All signal types require separate processing. Therefore, you need to calibrate each and every input separately.
To access the ISF Calibration menu, use the up- or down-arrow keys to highlight ISF Calibration and press Enter. Use the number buttons on the remote control to enter the ISF Calibration menu passcode, then press Enter again.
NOTE: You only need to enter the ISF Calibration menu passcode the first time you select that menu after turning on the projector.
Runco CL-610
> Video
S-Video Component1 Component2 RGB-HD HDMI
-----------------------­ Aspect Ratio Installation Option
Setup ISF Calibration
Passcode Please Enter Passcode To
Access ISF Calibration
Screen
* * *
Passcode Please Enter Passcode To
Access ISF Calibration
Screen
Confirmed
ISF Calibration
Reset Picture Adjust
Restore ISF Default.
Confirm?
No Yes
To restore the ISF default image settings for the current input source ONLY, press the arrow key to highlight “Yes” then press Enter.
These settings are described in the “Picture Quality Adjustments” section (refer to page 32).
These settings are described in the previous section, “Set Up.”
These settings are described in the previous section, “Set Up.”
This setting is described in the “Installation” section (refer to page 35).
Runco CL-610 Owner’s Operating Manual
43
Reset Picture Adjust
Picture Adjust
White Balance
Gamma Selection
Blue Image
On-Screen Display Menus
ICC Adjust
Store Settings
Use the ICC Adjust controls to customize the stored NTSC, HDTV and/or PAL color characteristics. To do this, select the color space to modify. Then, select a component color (Red, Green, Blue, Yellow, Cyan or Magenta).
For each component color, you can adjust the following:
Intensity: This slidebar adjusts the intensity -- also known as luminance -- of a given color.
Sat.: This slidebar adjusts the color saturation level -- the amount of that color in a video image. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
Hue: This slidebar adjusts the red/green color hue for true color reproduction of video signals. For best results, adjust tint while displaying an external color bars test pattern. Otherwise, it is recommended that Hue remain at its default setting.
When you have finished customizing the color space, select Store Setting and press Enter.
When you have finished calibration, select Store Image Settings and choose “Memory 1,” “ISF Night“ or “ISF Day” to store your settings.
To recall stored custom image quality settings, select Restore Image Settings from the Adjustment menu (refer to “Picture Quality Adjustments,” earlier in this section) and choose “Memory 1,” “ISF Night“ or “ISF Day.” Or, simply use the corresponding buttons on the remote control.
ICC Adjust
Color NTSC
R G B Y C M
Intensity +100
Sat. +100
Hue M C 0
Store Setting
Store Settings
Memory 1
ISF Night
ISF Day
Splash Screen Timer
ISF Enable
Press the or arrows to set the Splash Screen Timer. This timer controls how long the startup (ISF and Runco logo) image stays on-screen after you turn on the projector. Select from 5 to 60 seconds, in 1-second increments. When finished, press Exit.
Use ISF Enable to control the display of the ISF logo on the CL-610 splash screen upon power-up.
44
Runco CL-610 Owner’s Operating Manual
Splash Screen Timer
+20 - +
ISF Enable
> Off
On
Lamp Replacement (Contact Your Runco Dealer)
The lamp should be replaced when it reaches the end of its life (typically 2000 hours), or sooner if a noticeable degradation in brightness occurs.
1. Turn off the projector and unplug the power cord. Allow the projector to cool down for
approximately 45 minutes prior to removing the lamp assembly for replacement.
2. Remove the two screws from the lamp cover.
3. Remove the lamp cover.
4. Remove the two screws from the lamp module.
5. Pull the lamp module straight out to remove it.
6. Insert the new lamp module securely and replace the two screws.
7. Replace the lamp cover at the right side first as shown and secure it with the two screws.
8. Turn on the power and go into the Setup/Reset Lamp Timer menu to reset the lamp timer. Refer to “Set Up” in the previous section, On-Screen
Display Menus.
Runco CL-610 Owner’s Operating Manual
45
Lamp Replacement
This page is intentionally left blank.
46
Runco CL-610 Owner’s Operating Manual
PROBLEM POSSIBLE CAUSE REMEDY
The projector does not turn on
No picture
Image is unstable
Picture is blurred
Remote control does not work correctly
LAMP LED blinks red
LAMP LED blinks red; POWER LED is green
There is no power from the power cable.
The power switch is not turned on.
The projector was turned on again within the cool down time.
Lamp cover is not attached well.
The lamp cover is not correctly attached.
The projector is not correctly connected to the input source device.
The input signal has not been correctly selected.
TEMP LED or LAMP LED blinking.
The connection cables are not connected to the projector.
The projection lens is not correctly focused.
The projector and the screen are not aligned squarely.
The batteries are exhausted.
The cooling fan does not work well.
The temperature inside the projector is extremely high.
The lamp has exceed its specified usage hours.
The lamp has burned out.
Plug the power cord into the AC power socket on the rear of the projector and an electrical outlet.
Turn on the power switch.
Wait until projector completes the cool down time.
Correctly attach the lamp cover.
Correctly attach the lamp cover.
Check the connection.
Select the correct input signal with the SOURCE input keys: VID, S-VID, COMP1, COMP2, RGBHD or HDMI.
Please contact your Runco dealer for assistance.
Correctly connect the cables to the appropriate terminals.
Adjust the focus of the projection lens with the focus ring.
Adjust the projection angle and direction, and the height of the projector.
Replace both batteries with new ones.
Please contact your Runco dealer for assistance.
Check that the ventilation holes are not blocked.
Replace the lamp with a new one.
Replace the lamp with a new one.
Troubleshooting
Runco CL-610 Owner’s Operating Manual
47
Troubleshooting
This page is intentionally left blank.
48
Runco CL-610 Owner’s Operating Manual
RS-232 Setup
1
2
3
4
5
7
8
9
6
D-Sub 9-pin female
RJ-11 to D-Sub 9-pin (not included
)
1
2
3
4
Yellow
Yellow
Re
d
Red
Black
Green
Gree
n
Blac
k
1. Connect a D-Sub 9-pin female-to-RJ-11 adapter (not included) to a COM port on your PC. The adapter must be wired as follows:
RS-232 Pin Assignments
D-Sub 9-pin female 4-pin RJ-11 Function
2 2 Transmit Data
3 3 Receive Data
5 1, 4 Ground
1, 4, 6, 7, 8, 9 -- Not Connected
2. Connect the COM port to the RS-232 port on the projector. Use a standard, 4-wire RJ-11 telephone cable, wired straight-through.
Connecting RS-232 to the Projector
3. Start a terminal session on your PC using a terminal-emulation program, such as HyperTerminal.
4. Configure the COM port on the PC as follows: no parity, 8 data bits, 1 stop bit and no flow control. Set the baud rate to match that of the projector (115200, 38400 or 9600).
5. Press Enter. You should see a command prompt (>) in the terminal window.
6. Type the desired command from the table that follows and press Enter. For example, to set the aspect ratio to Letterbox, type x063x <Enter>.
Runco CL-610 Owner’s Operating Manual
49
RS-232 Setup
RS-232C Control Codes
NOTES:
1. All codes are in the ASCII format.
2. A carriage return is required after each command.
3. The projector will not accept RS-232 commands for 20 seconds after it is turned on or off.
Code Function
x001x Power On
x002x Power Off
x003x Menu
x004x Enter
x005x Exit
x006x Up (arrow key)
x007x Down (arrow key)
x008x Left (arrow key)
x009x Right (arrow key)
x011x Show active source and
aspect ratio information
x021x Keypad 1
x022x Keypad 2
x023x Keypad 3
x024x Keypad 4
x025x Keypad 5
x026x Keypad 6
x027x Keypad 7
x028x Keypad 8
x029x Keypad 9
x030x Keypad 0
x031x Store image settings to
Memory 1
x032x Store image settings to
ISF Night
x033x Store image settings to
ISF Day
x046x Restore image settings from
Memory 1
x047x Restore image settings from
ISF Night
x048x Restore image settings from
ISF Day
Code Function
x049x Load default of current source
x051x Single source, full-screen
x052x PIP - graphics on video
x053x PIP - video on graphics
x054x PBP - graphics by video
x055x PBP - video by graphics
x056x PIP - increase sub-window size
x057x PIP - decrease sub-window size
x058x Set PIP/PBP active window
x061x Anamorphic (16:9) aspect ratio
x062x Standard (4:3) aspect ratio
x063x Letterbox aspect ratio
x064x VirtualWide aspect ratio
x065x Cinema aspect ratio
x066x Virtual Cinema aspect ratio
x071x RS-232 baud rate = 9600
x072x RS-232 baud rate = 38400
x073x RS-232 baud rate = 115200
x081x Image orientation = floor front
x082x Image orientation = ceiling front
x083x Image orientation = floor rear
x084x Image orientation = ceiling rear
x091x Lamp Power = 200W
x092x Lamp Power = 250W
x121x OSD Language = English
x122x OSD Language = French
x123x OSD Language = Spanish
x124x OSD Language = German
x125x OSD Language = Italian
50
Runco CL-610 Owner’s Operating Manual
RS-232 Setup
Code Function
x131x Switch to Composite input
x132x Switch to S-Video input
x133x Switch to RGB-HD input
x134x Switch to DVI input (HDMI)
x135x Switch to Component 1 input
x136x Switch to Component 2 input
x156x Background Color = Blue
x157x Background Color = White
x181x Toggle Blue Image on/off
RS-232C Control Codes (continued)
Runco CL-610 Owner’s Operating Manual
51
RS-232 Setup
This page is intentionally left blank.
52
Runco CL-610 Owner’s Operating Manual
Specifications
Projector Type:
Native Resolution:
Aspect Ratios:
Video Standards:
DTV Compatibility:
Scan Frequency:
Picture Size (16:9 screens):
Throw Distance (Factor x Screen Width):
Horizontal and Vertical Offset:
Lamp:
Digital Light Processing™ (DLP™), Single-Chip SuperOnyx DMD™
1280 x 720 (16:9)
4:3, Letterbox, 16:9 Anamorphic, VirtualWide™, Cinema, Virtual Cinema™
NTSC, PAL, SECAM
480p, 576p, 720p, 1080i
Horizontal: 15-80 kHz; Vertical: 50-100 Hz
Recommended Width: 72 in. (1.83 m) to Capable of screen widths between 48 in. (1.22 m) and 240 in. (6.10 m)
CL-610
1.37 to 1.82 x Screen Width
CL-610LT
1.86 to 2.47 x Screen Width
- Lens is fixed
- Horizontal and/or vertical image shift via OSD controls
- Bottom edge of projected image is aligned with lens center when projector is upright
- Top edge of projected image is aligned with lens center when projector is inverted (ceiling-mounted)
210W NSH
96 in. (2.44 m)
Lamp Life:
Inputs:
12V Output:
Runco CL-610 Owner’s Operating Manual
2000 hours
(1) Composite Video, (1) S-Video, (1) RGB/Component (via BNC), (1) RCA Component Video, (1) HDMI, (1) RS-232
Max. 0.25 Amps, active when the projector is on
53
Specifications
Brightness and Contrast:
Cinema Standards Measurement System (CSMS) Specifications
- Brightness: 12.3 to 19.3 foot-Lamberts (fL)
- Contrast Ratio: 185:1 to 205:1
These measurements are taken from the projector in a controlled, home theater environment. All measurements are made to ANSI/ NAPM IT7.228-1997 specifications using the Photo Research PR-650 SpectraColorimeter and Minolta LS-100 Luminance Meter, Video Essentials test DVD and a 1.3 gain, 72-inch wide screen. The projector is calibrated to a color temperature of 6,500K and has a minimum of 150 hours of usage.
The foot-Lambert (fL) is the unit of measurement used in commercial movie theaters to express image brightness at the screen surface. The Society of Motion Picture and Television Engineers (SMPTE) specifies 16 fL as the target image brightness for film-based projectors using an open gate (without film in the projector). More importantly, today SMPTE specifies 12 fL as the target image brightness in Digital Cinema theaters. The foot-Lambert measurement is dependent on screen size, screen gain and projector light output.
Home Theater Calibration Specifications
- Light Output: 395 to 526 ANSI Lumens
- Contrast Ratio: 185:1 to 205:1
These specifications are obtained by calibrating the projector as described above for CSMS measurements.
Industry-Standard Specifications
- Light Output: 1150 ANSI Lumens
- Contrast Ratio: 1400:1 to 2200:1
These are typical projector brightness and contrast specifications found in most companies’ sales literature. Runco includes these measurements in its literature to allow for direct comparison with other manufacturers’ projectors. These measurements are typically taken at 9,000K to 13,000K to get expected performance data when the projector is used in professional, commercial and industrial displays.
Power Requirements:
Operating
100 to 240V AC, 50/60Hz, 310W
41ºF to 95ºF (5º to 35ºC); 20-80% humidity (non-condensing)
Environment:
Dimensions:
Width: 16.5 in. (419.1 mm) Depth: 16.31 in. (414.27 mm) Height (without feet): 5.56 in. (141.22 mm) Height (with feet): 6.12 in. (155.45 mm)
Weight (including lens):
Regulatory Approvals:
Limited Warranty:
Net: 32 lbs. (14.6 kg); Shipping: 43.5 lbs. (19.8 kg)
Complies with FCC Class B, CE, C-Tick
Projector: Two (2) years parts and labor from the date of delivery to the end user. Lamp Warranty: 1000 hours or six (6) months, whichever comes first.
Specifications are subject to change without notice.
54
Runco CL-610 Owner’s Operating Manual
16.31 in. (414.27 mm)
5.56 in. (141.22 mm)
6.12 in. (155.45 mm)
2.66 in. (67.53 mm)
11
.0 in. (279.4 mm)
16.5 in. (419.10 mm)
14.80 in. (376.0 mm)
8.86 in. (225.0 mm)
8.07 in.
(205 mm)
12.57 in.
(319.15 mm)
0.91 in. (23 mm)
2.36 in.
(60 mm)
Dimensions
Runco CL-610 Owner’s Operating Manual
55
RUMA-011115
S ER I A L N UM BE R
rev 09-12-05
Runco International • 2900 Faber Street • Union City, CA 94587 • Ph (510) 324-7777 / (800) 23RUNCO / Fax (510) 324-9300
www.runco.com
Runco CL-610 Owners Operating Manual
Loading...
