Runco Q-1500d Ultra, QuantumColor Q-1500d, QuantumColor Q-1500d Ultra Quick Setup Manual

Q-1500d Series LED Home Theater Projection System Quick Setup Guide Page 1 020-1091-02 Rev. A (March 2014)
Connecting the Dimension Digital Controller to the Projector
Projector Lens Adjustments

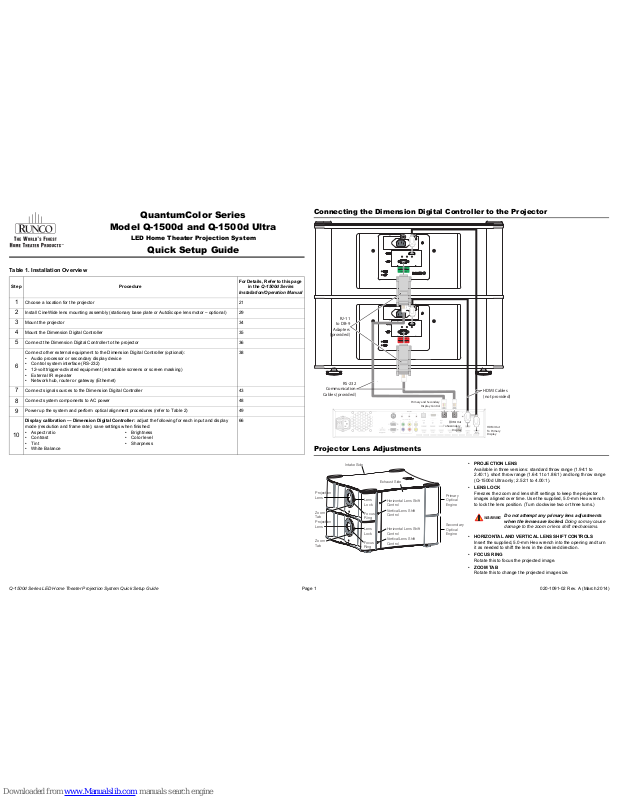

QuantumColor Series
Model Q-1500d and Q-1500d Ultra
LED Home Theater Projection System
Quick Setup Guide
Table 1. Installation Overview
For Details, Refer to this page
in the Q-1500d Series
Installation/Operation Manual
1
Choose a location for the projector 21
2
Install CineWide lens mounting assembly (stationary base plate or AutoScope lens motor – optional) 29
3
Mount the projector 34
4
Mount the Dimension Digital Controller 35
5
Connect the Dimension Digital Controller to the projector 36
6
Connect other external equipment to the Dimension Digital Controller (optional):
• Audio processor or secondary display device
• Control system interface (RS-232)
• 12-volt trigger-activated equipment (retractable screens or screen masking)
• External IR repeater
• Network hub, router or gateway (Ethernet)
38
7
Connect signal sources to the Dimension Digital Controller 43
8
Connect system components to AC power 48
9
Power up the system and perform optical alignment procedures (refer to Table 2) 49
10
Display calibration — Dimension Digital Controller: adjust the following for each input and display mode (resolution and frame rate); save settings when finished:
• Aspect ratio • Brightness
• Contrast • Color level
• Tint • Sharpness
• White Balance
66
PRIMARY
PRIMARY
SECONDARY
SECONDARY
US
Video 1
Y
Video 2
Video 3
Pr
Pb
IR
Pri. Display Control Sec. Display Control
HDMI
HDMI 2 HDMI 4
HDMI 5
HDMI 6
HDMI 7
HDMI 8
Ethernet
HDMI Out
To Sec. Display
HDMI Out
To Pri. Display
HDMI Out Audio Only
Component / SCART
TRIGGERS
123
HD1
3D SYNC
HD2
DisplayPort
US
deo
1
Y
deo
V
deo
3 P
r
P
b
I
R
H
DMI
HDMI
5
6
HDMI
78E
therne t
HDMI
Ou
t
Audio Onl
y
Component / SCAR
T
TRIGGER
S 12
3
HD1
3D SYNC
D
isplayPor t
r
HDMI Out To Primary Display
Primary and Secondary
Display Control
RS-232
Communication
Cables (provided)
HDMI Cables (not provided)
HDMI Out
To Secondary
Display
RJ-11
to DB-9
Adapters
(provided)
Lens Lock
Focus Ring
Zoom
T
ab
Zoom
T
ab
Projection Lens
Projection Lens
Lens Lock
Focus Ring
Horizontal Lens Shift Control
Horizontal Lens Shift Control
Exhaust Side
Intake Side
Primary Optical Engine
Vertical Lens Shift Control
Vertical Lens Shift Control
Secondary Optical Engine
PROJECTION LENS Available in three versions: standard throw range (1.94:1 to
2.40:1), short throw range (1.64:1 to 1.86:1) and long throw range (Q-1500d Ultra only; 2.52:1 to 4.00:1).
LENS LOCK Freezes the zoom and lens shift settings to keep the projector images aligned over time. Use the supplied, 5.0-mm Hex wrench to lock the lens position. (Turn clockwise two or three turns.)
HORIZONTAL AND VERTICAL LENS SHIFT CONTROLS Insert the supplied, 5.0-mm Hex wrench into the opening and turn it as needed to shift the lens in the desired direction.
FOCUS RING Rotate this to focus the projected image.
ZOOM TAB Rotate this to change the projected image size.
Do not attempt any primary lens adjustments when the lenses are locked. Doing so may cause
damage to the zoom or lens shift mechanisms.
WARNING
Q-1500d Series LED Home Theater Projection System Quick Setup Guide Page 2 020-1091-02 Rev. A (March 2014)
Table 2. Q-1500d Optical Alignment Procedure (with Anamorphic Lenses)
Dimension Digital Controller
1. Leave system off for now.
2. Connect an active 1080p source to the HDMI 1 connector.
Projector
1. Mount the projector (refer to Mounting the Q-1500d on page 34).
2. Mount the Dimension Digital Controller (refer to Mounting the Dimension Digital Controller on page 35).
3. Connect system components to each other and to external equipment (refer to System Interconnections on page 36).
4. Q-1500d/CineWide with AutoScope only: Install anamorphic lenses in retracted position (out of the light path) and ensure that the AutoScope transport motor AC switch is in the “off” position.
5. Loosen the lock screw for both primary lenses.
Note: All page references given here are to the Q-1500d Series Installation/ Operation Manual.
Note: At this point the anamorphic lenses
are simply used as weight to maintain the correct center of gravity while you adjust the primary lens, so that the projector won’t shift when you add the anamorphic lenses later.
Dimension Digital Controller
1. Turn on system and select the HDMI 1 input.
2. Select Calibration -> Adjustment Mode and set it to Primary.
3. Select Service -> Test Video and choose
Primary Alignment.
Projector (Align Primary Image with Screen)
1. Adjust the ceiling mount to correct for image keystone and clocking.
2. Align the image to the screen by adjusting the top primary lens zoom, focus and H/V offset.
3. Tighten the top primary lens lock screw.
Notes:
1. You must enter a passcode to access the Calibration or Service menu.
2. The lock screw locks all lens adjustments except for focus.
Dimension Digital Controller
1. Select Calibration -> Adjustment Mode and set it to Secondary.
2. Select Service -> Test Video and choose
Secondary Alignment.
Projector (Align Secondary Image with Screen)
1. Align the image to the screen by adjusting the bottom primary lens zoom, focus and H/V offset.
2. Tighten the bottom primary lens lock screw.
3. Q-1500d/CineWide with AutoScope
only: Remove anamorphic lenses.
Set the AutoScope transport motor AC switch to the “on” position.
Note:
The default warp is 46 pixels on the left and right sides (x) and 26 pixels at the top and bottom (y). If more is needed, use the “Image Alignment” controls to increase it.
Dimension Digital Controller
1. For a ceiling-mounted (inverted) and/or rear­projection installation, select Service ->
Display Device -> Configure -> Installation -> Picture Orientation and set it
as needed.
2. Select Aspect Ratio and set it to Cinema. On a Q-1500d/CineWide with AutoScope, this should position the anamorphic lens transport in front of the primary lenses.
3. Select Calibration -> Adjustment Mode and set it to Primary.
4. Select Service -> Test Video and choose
Primary Alignment.
Projector
1. (Re-)install anamorphic lenses.
2. Align the primary image with the screen by adjusting the top anamorphic lens to produce the least amount of distortion.
START
Dimension Digital Controller
1. Select Calibration -> Adjustment Mode and set it to Secondary.
2. Select Service -> Test Video and choose
Secondary Alignment.
Projector
1. Align the secondary image to the screen by adjusting the bottom anamorphic lens to produce the least amount of distortion.
Dimension Digital Controller (Align Secondary Image with Primary Image)
1. Select Aspect Ratio and set it to 16:9.
2. Select Calibration -> Adjustment Mode and set it to Secondary.
3. Select Calibration -> Image Alignment ->
Corner Alignment, check the Primary Test Pattern and Secondary Test Pattern boxes
and adjust corners.
4. Select Calibration -> Image Alignment ->
Midpoint Alignment, check the Primary Test Pattern and Secondary Test Pattern boxes
and adjust midpoints.
Projector
No adjustment needed.
Note: The Primary lens image is usually left un-warped. This provides the best image quality and will be un-scaled for 1080p sources. You can adjust the Primary image if needed, however, by setting the Adjustment Mode to Primary, checking the Primary Test Pattern and Secondary Test Pattern boxes and adjusting the cor­ners and/or midpoints prior to this step.
Dimension Digital Controller
1. Select Aspect Ratio and set it to Cinema.
2. Select Calibration -> Image Alignment -> Corner Alignment and adjust corners.
3. Select Calibration -> Image Alignment ->
Midpoint Alignment and adjust midpoints.
Projector
No adjustment needed.
Note: The Dimension Digital Controller saves the Image Alignment (warp) settings for each aspect ratio. To program additional aspect ratios, select each one and use the controls in the Corner Alignment and
Midpoint Alignment menus. Or, select Calibration -> Copy/Paste -> Aspect Ratio -> Copy Settings, select a different aspect ratio and choose Paste Settings.
Dimension Digital Controller Remote Control and Front-Panel Keypad
Table 2. Q-1500d Optical Alignment Procedure (with Anamorphic Lenses) (Continued)
END
Memory
Preset
Buttons
Aspect
Ratio
Selection
Power On
Video
Source
Selection
3D Mode Selection (not used)
Press to illuminate the remote control buttons
Power O
Number Buttons
Menu Navigation Buttons
r
a
t
i
o
r
a
t
i
o
i
n
p
u
t
standby
m e n u
i
n
p
u
t
e
n
t
e
r
STANDBY LED
Lights amber when
the controller is in
standby mode.
ON/STANDBY BUTTON
Press to go from standby
mode to on mode
or vice versa.
LEFT BUTTON
Used to direct-select an
input or move the OSD
menu cursor to the left.
When no menus are
present on-screen,
this button cycles through the dierent sources in this order:
DisplayPort - HDMI 8 ­HDMI 7 - HDMI 6 - HDMI 5 ­HDMI 4 - HDMI 3 - HDMI 2 -
HDMI 1 - SCART - HD 2 -
HD 1 - Component -
Composite 3 - Composite 2 -
Composite 1
DOWN BUTTON
Used to direct-select an aspect ratio or move the OSD menu cursor down. When no menus are present on-screen, this button toggles through aspect ratios in the following order: 16:9 - 4:3 - Letterbox - VirtualWide - Cinema ­Virtual Cinema - Native - Auto Cinema
RIGHT BUTTON
Used to direct-select an input or move the OSD menu cursor to the right. When no menus are present on-screen, this button cycles through the dierent sources in this order: Composite 1 - Composite 2 ­Composite 3 - Component ­HD 1 - HD 2 - SCART ­HDMI 1 - HDMI 2 - HDMI 3 ­HDMI 4 - HDMI 5 - HDMI 6 ­HDMI 7 - HDMI 8 - DisplayPort
MENU BUTTON
Press MENU to bring up the main menu, or to exit the current menu and return to the previous one.
ENTER BUTTON
When an item is highlighted on the OSD, press ENTER to select that item.
UP BUTTON
Used to direct-select an aspect ratio or move the OSD menu cursor up. When no menus are present on-screen, this button toggles through aspect ratios in the following order: Auto Cinema - Native - Virtual Cinema ­Cinema - VirtualWide - Letterbox - 4:3 - 16:9
Q-1500d Series LED Home Theater Projection System Quick Setup Guide Page 3 020-1091-02 Rev. A (March 2014)
OSD Menu Tree
Note: Default settings appear in bold type.
Input Source
Composite 1 HDMI 1
Composite 2 HDMI 2
Composite 3 HDMI 3
Component HDMI 4
HD 1 HDMI 5
HD 2 HDMI 6
SCART HDMI 7
DisplayPort HDMI 8
Aspect Ratio
16:9
4:3
Letterbox
VirtualWide
Cinema
Virtual Cinema
Native
Auto Cinema
Screen
Screen 1 / Screen 2
Brightness
Contrast
Color
Tint
Sharpness
Noise Filter
Input Position
Left/Right
Up/Down
Width
Height
Overscan
Overscan Mode (Zoom/Crop)
Phase (RGB/Component/SCART signals only)
Tracking (RGB/Component/SCART signals only)
Memory Presets
Recall ISF Night or ISF Day
Recall/Save Custom 1 or Custom 2
Reset Custom 1 and Custom 2 to Factory Default
Sleep Timer
Off, 30 Minutes, 60 Minutes, 90
Minutes, 2 Hours or 4 Hours
Information
Signal (read-only)
System (read-only)
Network (read-only)
Field Service
Manufacturing
Calibration
Display Color ­Common Settings
Gain
-100, -99... 0 ... 99, 100 (Red, Green, Blue)
Offset
Gamma
Mode (Simple / Advanced)
Simple (1.8, 2.0, 2.2, 2.35 or 2.5)
Advanced (0 (2.2 gamma curve), 1, 2, 3 ... 20 (custom gamma tables))
Color Temp Simple (5500K, 6500K, 7500K or 9300K)
Color Gamut
Auto, REC709, SMPTE-C, EBU, Native or PCE
PCE
Hue (Red / Yellow / Green / Cyan / Blue / Magenta)
Saturation (Red / Yellow / Green / Cyan / Blue / Magenta)
Level (Red / Yellow / Green / Cyan / Blue / Magenta)
Runco Smart Color (RSC) (On or Off)
White Balance (Red / Green / Blue Gain)
Display Color ­Projector Settings
SatCo On or Off
ConstantContrast Low, Medium, High or Off
Engine Configuration Dual / Single
Input Image
Brightness
-50, -49 ... 0 ... 49, 50
Contrast
Color
Tint
Sharpness
Input Color
Gain
-32, -31... 0 ... 31, 32 (HD 1, HD 2 and Component inputs only)
Offset
Chroma Delay
0, 1, 2 ... 7 (Composite inputs only)
Noise Filter 0, 1, 2 ... 63
Save ISF Night
Back / Confirm
Save ISF Day
Copy/Paste
Memory Preset
Copy Settings
Paste Settings
Aspect Ratio
Copy Settings
Paste Settings
Output Shift
Left/Right
-50, -49 ... 0 ... 49, 50
Up/Down
Width
-50, -49, 48 ... 0
Height
Screen Masking
0, 1, 2 ... 100 (Top/Bottom/Left/Right/Test Pattern Enable)
Image Alignment
Corner Alignment
Top Left / Top Right / Bottom Left / Bottom Right / Test Pattern Enable
Midpoint Alignment
Center / Top Middle / Left Middle / RightMiddle / Bottom Middle / Test Pattern Enable
Adjustment Mode
Both
, Primary or
Secondary
Splash Configure
Owner Name
ISF Calibrated
ISF Other
Splash Timer 5, 6, 7 ... 15 ... 59, 60
Splash Enable On/Off
OSD Position Hor. / Ver. 0, 1, 2 ... 100
Service
Test Video
Color Bars 1
Color Bars 2
Focus
Grey Bars
Full White
Primary / Secondary / Dual Alignment
Input Names Rename/Restore
Remote Control
Remote Code
00000 ... 08209 ... 65535 or 88999 (extended mode)
SRC 1-7 Keys
(select a key, then choose a source to assign to it)
SRC 8-14 Keys
Display Device ­Configure
Picture Orientation
Auto, Floor Front, Ceiling Front, Floor Rear or Ceiling Rear
Display Info. (read-only)
(Projector Serial Number)
Diagnostics
White, Red, Green, Blue, Yellow, Cyan, Magenta
Altitude Auto / High
Network IP Configuration
DHCP (On / Off), IP Address, Subnet Mask, Default Gateway, Communication Test
Color Space
Auto, REC601, REC709, RGB-PC or RGB-Video
(Not available on Composite 1, Composite 2 or Composite 3 inputs)
Triggers 1 / 2 / 3
Miscellaneous
Language
English, Français, Deutsch, Italiano, Español, Svenska, (Simplified Chinese), (Traditional Chinese), Português, (Russian), (Japanese) or (Korean)
OSD Timer 0 (no timeout) or 5, 6, 7 ... 30 ... 60 sec.
OSD Messages On / Off
Blank Screen Color
Red/Green/Blue = 0, 1, 2, 3 ... 255
Sidebar Color
Film Mode (SD sources only)
On / Off
CUE (Chroma Upsampling Error)
On / Off
Sync Threshold
0, 1, 2 ... 15 (HD 1, HD 2 and Component inputs only)
HDMI
HDMI EDID Extension On / Off (per HDMI input)
Audio Format
Combined / HDMI Out (Pri. Display) / HDMI Out (Sec. Display) / HDMI Out
(Audio Only)
CEC On / Off
HPD Toggle Rejection Auto / On / Off
Front Panel Brightness
Logo LED 0 (off), 1, 2 ... 31
Standby LED On / Off
LCD 0 (off), 1, 2, 3 or 4
Auto Power Off
Enable On / Off
Hours 1, 2, 3, 4, ... 8 ... 23, 24
Standby Mode Low Power
/ Fast Startup
System Reset
Q-1500d Series LED Home Theater Projection System Quick Setup Guide Page 4 020-1091-02 Rev. A (March 2014)
Serial Communications
© Copyright 2014 Runco International. All rights are reserved. Trademarks and registered trademarks used in this document are the property of their respective owners.
Connect your control system or PC to the RS-232 input of the Dimension Digital Controller as shown in the diagram at right.
Configure the RS-232 controller or PC serial port as follows: no parity, 8 data bits, 1 stop bit and no flow control. Set the baud rate to 19200.
The following is a partial list of supported serial commands. For a complete list, refer to the Q-1500d
Series Installation/Operation Manual.
All commands must be followed by a carriage return character.
Command Description
Power On/Off Commands
(PWR=0) or (KEY=2) Turns projector off
(PWR=1) or (KEY=1) Turns projector on
Input Selection Commands
(INS=3) or (KEY=14) Selects the Component input
(INS=0) or (KEY=13) Selects the Composite 1 video input
(INS=1) or (KEY=24) Selects the Composite 2 video input
(INS=2) or (KEY=25) Selects the Composite 3 video input
(INS=7) or (KEY=19) Selects the HDMI 1 input
(INS=8) or (KEY=20) Selects the HDMI 2 input
(INS=9) or (KEY=21) Selects the HDMI 3 input
(INS=10) or (KEY=22) Selects the HDMI 4 input
(INS=11) or (KEY=81) Selects the HDMI 5 input
(INS=12) or (KEY=82) Selects the HDMI 6 input
(INS=13) or (KEY=83) Selects the HDMI 7 input
(INS=14) or (KEY=84) Selects the HDMI 8 input
(INS=15) or (KEY=85) Selects the DisplayPort input
(INS=4) or (KEY=17) Selects the RGB HD 1 input
(INS=5) or (KEY=18) Selects the RGB HD 2 input
(INS=6) or (KEY=23) Selects the SCART input
Aspect Ratio Commands
(ASP=1) or (KEY=9) Selects the 16:9 aspect ratio
(ASP=0) or (KEY=10) Selects the 4:3 aspect ratio
(ASP=4) or (KEY=44) Selects the Cinema aspect ratio
(ASP=2) or (KEY=11) Selects the Letterbox aspect ratio
(ASP=6) or (KEY=46) Selects the Native aspect ratio
(ASP=3) or (KEY=12) Selects the VirtualWide aspect ratio
(ASP=5) or (KEY=45) Selects the Virtual Cinema aspect ratio
(ASP=7) or (KEY=86) Selects the Auto Cinema aspect ratio
Note
PC / Control
RS-232
IR
Pri. Display Control Sec. Display Control
H
DMI 5
H
DMI 6
HDMI 7
HDMI 8
Ethernet
HDMI Out
To Sec. Display
HDMI Out
To Pri. Display
HDMI Out Audio Only
Pri. Display ControlSec. Display Control
HDMI
5 HDMI
6 HDMI 7
HDMI
8
E
therne
t
H
DMI Ou
t
To
Sec. Display
H
DMI Ou
t
To Pri. Displa
y
HDMI Ou
t
Audio Onl
y
12345
7
89
6
to Automation/ Control System
or PC
2 Receive Data
(to ctrl. system)
3 Transmit Data
(from ctrl. system)
5 Ground
(none of the other pins are used)
Picture Adjust Commands (Calibration -> Input Image menu)
(BRT=[-50...+50]) Sets a value for brightness
(CLR=[-50...+50]) Sets a value for color
(CON=[-50...+50]) Sets a value for contrast
(SHP=[-50...+50]) Sets a value for sharpness
(TNT=[-50...+50]) Sets a value for tint
Image Preset Commands
(MMP=2) or (KEY=50) Loads “Custom 1” image preset
(MMP=3) or (KEY=51) Loads “Custom 2” image preset
(MMP=1) or (KEY=49) Loads “ISF Day” image preset
(MMP=0) or (KEY=48) Loads “ISF Night” image preset
Screen Commands
(SCN?) Returns the screen setting
(SCN=0) or (KEY=38) Sets the screen to Screen 1
(SCN=1) or (KEY=39) Sets the screen to Screen 2
Miscellaneous Commands
(IDN?) Returns display device numeric identifier (1 = Auto; 50 = Q-1500d)
(IIR?) Returns input resolution
(MDL?) Returns product model name
(IOR?) Returns output resolution
(RMN=[0...65535]) Sets the remote code
(RMN?) Returns the remote code
(ISN?) Returns Dimension Digital Controller serial number
(IFV?) Returns firmware version number
(T[1...3][1...7]=[0...1])
12-volt trigger configuration: [1...3] = Trigger number [1...7] = Aspect ratio (1 = 16:9, 2 = 4:3, 3 = Letterbox, 4 = VirtualWide, 5 = Cinema,
6 = Virtual Cinema, 7 = Native)
[0...1] = On/off (0 = Cancel previous assignment, 1 = assign)
Example: (T15=1)[CR] assigns Trigger 1 to Cinema aspect ratio.
The following serial commands are used to emulate buttons on the remote control or Dimension Digital Controller front pane l. Each button has its own serial command, so effectively it is as if you were using the IR remote. These commands provide active OSD responses just like IR remote commands.
(KEY=6) Down-Arrow ( ) key
(KEY=4) ENTER key
(KEY=52) EXIT key
(KEY=7) Left-Arrow ( ) key
(KEY=3) MENU
(KEY=8) Right-Arrow ( ) key
(KEY=5) Up-Arrow ( ) key
Command Description
Loading...
